Model 1117LHO/1117LHO2
Drinking Fountain
INSTALLATION, OPERATION
&
MAINTENANCE INSTRUCTIONS
LIMITED WARRANTY
HAWS warrants that all of its products are guaranteed against defective material or poor workmanship for
a period of one year from the date of shipment. The foregoing notwithstanding, HAWS warrants certain
specific products or components thereof for an adjusted period. A list of these excepted products and
components and a description of their respective warranty terms may be found here:
www.hawsco.com/warranty. HAWS’liability under this warranty shall be discharged by furnishing without
charge F.O.B. HAWS factory any goods, or part thereof, which shall appear to the Company upon
inspection to be of defective material or not of first-class workmanship, provided that a claim is made in
writing to Company within a reasonable period after receipt of the product. Where claims for defects are
made, the defective part or parts shall be delivered to the Company, prepaid, for inspection. HAWS shall
not be liable for the cost of repairs, alterations or replacements, or the labor required to implement them, or
for any expense connected therewith made by the owner or owner’s agents, except upon written authority
from HAWS. HAWS shall not be liable for any damages caused by defective materials or poor
workmanship, except for replacements, as provided above. Buyer agrees that HAWS has made no other
warranties either express or implied in addition to those above stated, except that of title with respect to
any of the products or equipment sold hereunder and that HAWS shall not be liable for general, special,
incidental, or consequential damages claimed to arise under the contract of sale.
Equipment manufactured by HAWS is warranted to function if installation and maintenance instructions
provided are adhered to. The units also must be used for the purpose for which they were intended. Any
HAWS emergency equipment is intended to supplement first-aid treatment. Due to widely varying
conditions, HAWS cannot guarantee that the use of this emergency equipment will prevent serious injury
or the aggravation of existing or prior injuries.
EXCEPT AS EXPRESSLY STATED HEREIN, HAWS HEREBY DISCLAIMS ALL WARRANTIES,
WHETHER EXPRESS OR IMPLIED, ARISING BY LAW OR OTHERWISE, INCLUDING WITHOUT
LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THIS WARRANTY MAY NOT BE MODIFIED OR EXTENDED WITHOUT THE
WRITTEN CONSENT OF HAWS. REMEDIES AND REPLACEMENTS STATED HEREIN ARE
EXCLUSIVE. IN NO EVENT SHALL HAWS BE LIABLE FOR ANY SPECIAL, PUNITIVE,
CONSEQUENTIAL OR INCIDENTAL DAMAGES TO ANY PERSON INCLUDING BUT NOT LIMITED TO
DAMAGES FOR LOSS OF USE OR PROFITS, SUBSTITUTE PRODUCTS OR COSTS, PROPERTY
DAMAGE, OR OTHER MONETARY LOSS.
NOTE TO INSTALLER: Please leave this information with the Maintenance Department.
CAUTION! Prior to making any electrical connections, verify with a voltmeter that power from
the service panel is off.

07/21 Model 1117LHO/1117LHO2 Page 2 of 8
RECOMMENDED TOOLS: Hack saw, pipe joint sealant, screwdriver, level, 12" adjustable
wrench, 10" pipe wrench, 5/64“ hex key wrench, 9/16”, 1/2", 7/16” socket wrench or open-end
wrench.
LOCATION OF UNIT: The Model 1117LHO/1117LHO2 Drinking Fountain is a wheelchair
accessible drinking facility. The height dimensions shown, meet current ADA requirements.
When installing this unit, local, state or federal codes should be adhered to. If height other
than shown is required, then dimensions must be adjusted accordingly.
SUPPLY LINE: The minimum recommended line size is 1/2“IPS with 30-90 psi (2-6 ATM)
flowing pressure. Where sediment or mineral content is a problem, an inlet filter is
recommended.
PLUMBING CONNECTIONS: Inlet is 3/8” O.D. push-in type fitting. Waste outlet is female 1-
1/4” NPT.
ELECTRICAL CONNECTIONS: Drinking Fountain may be mounted on external wall of
building provided transformer shall be mounted inside the wall and protected from
water as shown on RKHO Series O&M details (page 8) per NEC/CEC and local code.
Sensor(s):
1117LHO with 1RKHO.H: 100-277VAC x 9VDC, 50-60Hz, 5 Watts.
1117LHO2 with 2RKHO.H: 100-277VAC x 9VDC, 50-60Hz, 5 Watts.
MAINTENANCE: Periodically clean out the supply line Y-strainer (and strainer located inside
push button valve on Model 1117LHO). Refer to 5874 Series Valve Manual for more
information.
INSTALLATION PROCEDURE
GENERAL NOTES:
1. For all plastic push-in type fitting connections, only connect NSF-61 copper or
plastic tubing. Stainless steel or glass tubing is not recommended. The
following assembly instructions must be followed to ensure a watertight
connection:
a. Cut tubing square and clean.
b. Mark from end of tube the length of insertion (See table below).
c. Push tube into the fitting until it bottoms out.
d. To remove, depress collet and pull tubing out.
Tube Sizes
O.D.
Tolerance
Insertion Depth
3/8”
±.005”
3/4”
SHOULD YOU EXPERIENCE DIFFICULTY WITH THE INSTALLATION OF THIS
MODEL PLEASE CALL:
TECHNICAL SUPPORT: 1-800-766-5612
FOR CUSTOMER SERVICE: 1-888-640-4297

07/21 Model 1117LHO/1117LHO2 Page 3 of 8
INSTALLATION PROCEDURE…
STEP 1: Thoroughly flush supply line to remove all foreign matter. Connect 1/2” IPS supply
screwdriver-stop (not supplied). Install supply 3/8” O.D. tubing (supplied), between
screwdriver-stop and supplied Y-strainer. (Cut tubing to proper length and follow
general notes for proper connection procedures for push-in type fittings). Connect
3/8”O.D. tube between supplied tee and fountains and solenoid valve outlet(s) (if not
already connected). See installation drawings (pages 6 & 7) towards the end of this
manual for supply plumbing and wiring details.
STEP 2: Open screwdriver-stop wide open while checking for leaks at all connections. Also,
check waste for leaks.
STEP 3: Model 1117LHO (only): 5874 Series Valve –Adjust bubbler stream height using a
small flat-head screwdriver inserted through a hole in the center of the push button
for increased flow turn clockwise and for decreased flow turn counterclockwise. If
flow problems arise, see troubleshooting guide for additional instructions to correct
problem. Bubbler stream may lower during short break-in period. Set initial stream
height a little high to minimize or eliminate the need for break-in period readjustment.
Model 1117LHO/1117LHO2: 5867 Valve Pressure Regulator –Adjust bubbler
stream height using the black pressure regulator mounted inside bracket that has HO
sensor unit, by loosening the locknut and rotating the knob clockwise to increase flow
or counterclockwise to reduce flow. Tighten the locknut and check flow height.
Repeat these steps until the bubbler flow height is correct.
STEP 4: 1RKHO.H & 2RKHO.H Transformer and Sensor Setup: Refer to the 1RKHO.H &
2RKHO.H manuals for instructions (supplied).
MAINTENANCE
STEP 1: Periodically clean out the supply line Y-strainer and the strainer located in the push
button valve body on Model 1117LHO (Refer to 5874 Series Valve Manual for more
information).
TROUBLESHOOTING
PROBLEM
REPAIR CHECKLIST
1.
Insufficient bubbler flow.
1a.
Check that inlet screwdriver stop valve is wide
open. Turn counter-clockwise.
b.
Verify minimum 30 psi flowing supply pressure.
c.
Clean strainer. See 5874 Series Valve Manual
d.
Adjust valve to increase flow. Use front adjust
screw or see 5874 Series Valve Manual.
For more information about Haws products, see our website: www.hawsco.com
© 2021 Haws®Corporation –All Rights Reserved
HAWS® and other trademarks usedin these materials are the exclusive property of Haws Corporation.

6
515
A
REF
2
3
1
1
7
4
APPROVED
DRAWN
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BYECN NO.
PAGE
DATE
DATE
ECN:
REVISED PER
CHKD
Haws Corporation - All Rights Reserved
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
C
R
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [e-mail]
WEBSITE: WWW.HAWSCO.COM
ITEM DESCRIPTION
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
WHEN ORDERING PARTS PLEASE SPECIFY MODEL NUMBER.
PART NO.
FV
07/21/21
1
0510001209
1117LHO/1117LHO2
1:1
12
FV 07/29/21
5712
DP
4 OF 8

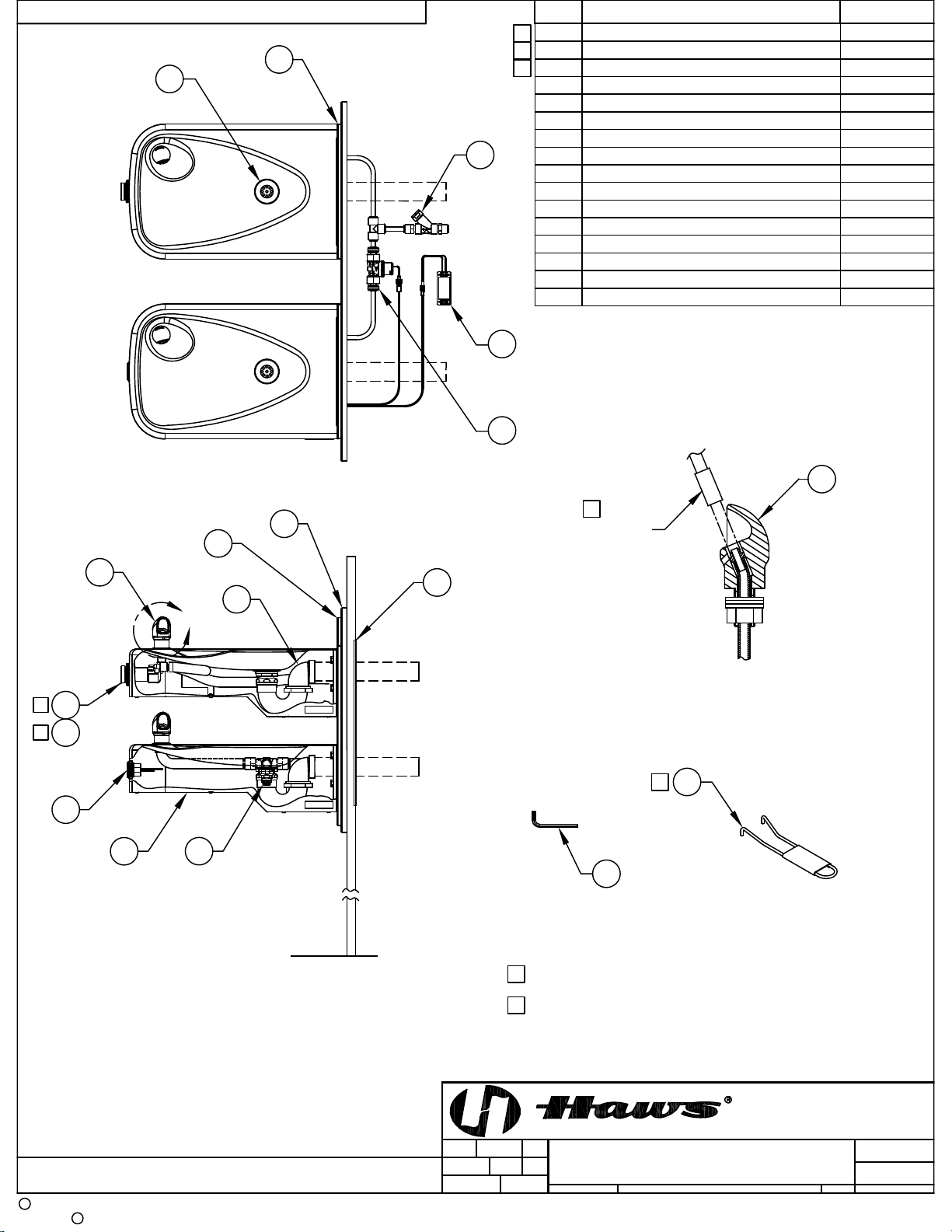

PARTS BREAKDOWN
5712
2021
FV
5
ROTATED 90° INTO VIEW
DETAIL A
REMOVE INSERT
WITH 5/16 HEX SOCKET
(NOT SUPPLIED)
NOTES:
1 ITEMS 1, 2 AND 3 ARE ONLY USED ON MODEL 1117LHO.
2 ENSURE TUBE IS DISCONNECTED FROM PUSH BUTTON
VALVE BODY PRIOR TO REMOVAL. APPLY ONE DROP OF
LOCTITE 222MS TO NOZZLE THREADS PRIOR TO FASTENING
BACK ONTO BUBBLER HEAD. RE-ATTACH TUBE TO VALVE.
** REQUIRED - S0LD SEPARATELY
1117LHO SHOWN
1117LHO2 ON SHEET 2
PARTS BREAKDOWN
1SPANNER WRENCH
2
3
4
BUTTON, PUSH, FLANGED, ASSY
5
8
7
6
9
10
BOTTOM PLATE
PRESSURE REGULATOR
BACK PANEL
11
0006983506
12
MOUNTING PLATE
PBA6
PBM1107
5867
0004023590
6717
13
VALVE REPAIR KIT VRK5874
1
1
1
14
Y-STRAINER 6433
**
TRAP LOW PROFILE 0005982900
15
BACK PANEL SMALL 0004023587
STRAINER ASSY
BUBBLER HEAD
6462
5703M
KEY HEX F/PINNED HEX 000298112716
SENSOR
TRANSFORMER
SOLENOID VALVE
VRKHO6
VRKHO8
VRKHO5
1
2
12
10
8
9
11
14
13
14
(REF)
16
1
**

APPROVED
DRAWN
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BYECN NO.
PAGE
DATE
DATE
ECN:
REVISED PER
CHKD
Haws Corporation - All Rights Reserved
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
C
R
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [e-mail]
WEBSITE: WWW.HAWSCO.COM
ITEM DESCRIPTION
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
WHEN ORDERING PARTS PLEASE SPECIFY MODEL NUMBER.
PART NO.
FV
07/21/21
1
0510001209
1117LHO/1117LHO2
1:1
22
FV 07/29/21
5712
DP
5 OF 8
PARTS BREAKDOWN
5712
2021
FV
1117LHO2 SHOWN
1117LHO ON SHEET 1
PARTS BREAKDOWN
12
4
14(REF)
10
8
6
515
A
7
9
11
14
13
**

NOTES:
STANDING ADULT HEIGHT: SEE SHT 3 FIG 3
FOUNTAIN: 27" (686mm)
SUPPLY: 29-1/8" (740mm)
WASTE: 29-1/4" (743mm)
ADULT WHEELCHAIR HEIGHT: SEE SHT 3 FIG 2
FOUNTAIN: 24" (610mm)
SUPPLY: 26-1/8" (664mm)
WASTE: 26-1/4" (667mm)
CHILD WHEELCHAIR HEIGHT: SEE SHT 3 FIG 1
ROUGH IN DIMENSIONS FOR FOUNTAIN HEIGHTS:
4
3
CHILD/ADULT
MOUNTING HOLE
ADULT STANDING
MOUNTING HOLE
SUPPLY
Ø7
16
[Ø11mm]
SUPPLY
WASTE
3
[76mm]
WASTE
21
2
[64]
41
4
[108mm]
2X 2-7/8"
[73mm] 12
[305mm]
8
[203mm]
16
[406mm]
32
[813mm]
ADULT STANDING
BUBBLER
CHILD/ADULT
FOUNTAIN
20 7
16
[519mm]
FLOOR LINE
187
8
[479mm]
1
2
[13mm]
MOUNTING PLATE
ADULT STANDING
WASTE
ADULT STANDING
SUPPLY
CHILD/ADULT
WASTE
CHILD/ADULT
SUPPLY
81
2
[216mm]
1-1/4" NPT TRAP
(SUPPLIED)
WALL FACE
3
12
[305mm]
20
[508mm]
MOUNTING HOLE: 24-13/16" (630mm)
MOUNTING HOLE: 27-13/16" (706mm)
36
[914mm]
16
[406mm]
16
[406mm]
143
4
[375mm]
13
[330mm]
8
[203mm]
8
[203mm]
*2311
16
[602mm]
TO FLOOR
5.
NOTES CONTINUED ON SHEET 3 OF 3
1-1/4" IPS WASTE
(NOT SUPPLIED)
41
4
[108mm]
1-1/4" IPS WASTE
(NOT SUPPLIED)
CHILD/ADULT
BUBBLER
ADULT STANDING
FOUNTAIN
BUBBLER: 29-7/8" (756mm)
BUBBLER: 32-7/8" (832mm)
WASTE: 34-3/4" (883mm)
SUPPLY: 34-5/8" (879mm)
MOUNTING HOLE: 33-5/16" (846mm)
BUBBLER: 38-3/8" (972mm)
FOUNTAIN: 32-1/5" (826mm)
MUST BE INSTALLED BEFORE FINISH WORK
6717 MOUNTING PLATE
MOUNTING DETAIL
6717
MOUNTING
HOLES
*
4
*
4
*
*4
4
4
4
4
*
*
*
*
4
4
4
*
*
HOLD ROUGH-IN DIMENSIONS ± 18" (3.2MM).
WHEN INSTALLING THIS UNIT, LOCAL, STATE, OR FEDERAL CODES
SHOULD BE ADHERED TO. FOR INSTALLATION HEIGHTS OTHER
THAN SHOWN, DIMENSIONS MARKED (*) MUST BE ADJUSTED
ACCORDINGLY.
REFER TO 5874 SERIES OPERATION AND MAINTENANCE
MANUAL FOR PUSH BUTTON AND VALVE
INSTALLATION/MAINTENANCE INSTRUCTIONS.
REFER TO MODEL 1117LHO INSTALLATION DRAWING SHEET 3 OF 3
(ON HAWS WEBSITE WWW.HAWSCO.COM) FOR PERMISSABLE BOWL
MOUNTING PATTERNS. TWO WHEELCHAIR HEIGHT FOUNTAINS
CANNOT BE MOUNTED SIDE BY SIDE PER ANSI A117.1.
1.
2.
BACK VIEW
APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
07/21/21
1
0510001209.D
1117LHO/1117LHO2
1:2
13
FV 07/29/21
5712
DP
6 OF 8
INSTALLATION
5712
2021
FV
THIS PLATE IS REQUIRED - SOLD SEPARATELY.
REQUIRED
SOLD SEPARATELY
SENSOR
FROM SUPPLY
TO
BUBBLER
HEAD
-Vo
+Vo
AC(L)
AC(N)
BLACK WIRE
WHITE WIRE
TRANSFORMER
SENSOR WIRING / SUPPLY
PLUMBING SCHEMATIC
TO PUSH
BUTTON
FOUNTAIN
VALVE SOLENOID
VALVE
Y-STRAINER
PRESSURE
REGULATOR
100-277VAC-9VDC
TRANSFORMER
AND DC CABLE
(SUPPLIED)
FROM DIRECT
CONTACT WITH WATER
MUST BE PROTECTED
6
Y-STRAINER
(SUPPLIED)
SOLENOID VALVE
TEE
(SUPPLIED)
(SUPPLIED)
LOCATE AND INSTALL
ELECTRICAL
9 VDC
TRANSFORMER
WITHIN WALL SENSOR
EYE
SOLENOID
VALVE
6
6
3/8" O.D. SUPPLY TUBING IS
SUPPLIED. SCREWDRIVER
STOP (NOT SHOWN) IS
NOT SUPPLIED.
MODEL 1117LHO SHOWN
MODEL 1117LHO2 ON SHEET 2
(ROUGH-IN DIMENSIONS APPLY TO BOTH MODELS)
15° 7
6REFER TO 1RKHO OR 2RKHO SERIES OPERATION
INSTRUCTONS FOR TRANSFORMER AND SENSOR SETUP.
7MAXIMUM ADLUSTABLE RANGE IS 15° FROM PARALLEL TO BACK WALL.
3/8" O.D. SUPPLY
LINE TO TEE
2X SMALL BACK
PANEL (SUPPLIED)
2X
LARGE BACK
PANEL (SUPPLIED)

FLOOR LINE
APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
PAGE
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
07/21/21
1
0510001209.D
1117LHO/1117LHO2
1:2
23
FV 07/29/21
5712
DP
7 OF 8
INSTALLATION
5712
7 OF 8
2021
FV
100-277VAC-9VDC
TRANSFORMER
AND DC CABLE
(SUPPLIED)
FROM DIRECT
CONTACT WITH WATER
MUST BE PROTECTED
6
LOCATE AND INSTALL
ELECTRICAL
9 VDC
TRANSFORMER
WITHIN WALL
SENSOR
EYE
SOLENOID
VALVE
6
6
MODEL 1117LHO2 SHOWN
MODEL 1117LHO ON SHEET 1
(SEE SHEET 1 FOR APPLICABLE ROUGH-IN DIMENSIONS)
15° 72X
SENSOR
Y-STRAINER
SOLENOID VALVE
PRESSURE REGULATOR
FROM SUPPLY
TO BUBBLER
HEAD
SENSOR WIRING / SUPPLY
PLUMBING SCHEMATIC
SENSOR
SOLENOID VALVE
PRESSURE REGULATOR
TO BUBBLER
HEAD
POWER SPLITTER
CABLE
-Vo
+Vo
AC(L)
AC(N) BLACK WIRE
WHITE WIRE
TRANSFORMER
REGULATOR
SENSOR
EYE
6
POWER SPLITTER CABLE6

NOTES:
8 FIGURES 1 AND 2 ARE REVERSIBLE. CAN BE RIGHT OR LEFT SIDE HIGH.
9 USE SHADED HOLES TO MOUNT AT INDICATED POSITIONS BASED ON COMBINATION
SELECTED (FIGS. 1 THRU 3).
10. REFER TO SHEET 1 OF 3, NOTE 4, FOR INSTALLED FOUNTAIN DIMENSIONS.
88
9 (TYPICAL)
FIGURE 1.
ADULT STANDING/CHILD WHEELCHAIR
FIGURE 2.
ADULT STANDING/ADULT WHEELCHAIR
FIGURE 3.
ADULT STANDING/ADULT STANDING
BOWL MOUNTING PATTERNS
APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
07/21/21
1
0510001209.D
1117LHO/1117LHO2
1:2
33
FV 07/29/21
5712
DP
8 OF 8
INSTALLATION
5712
2021
FV
