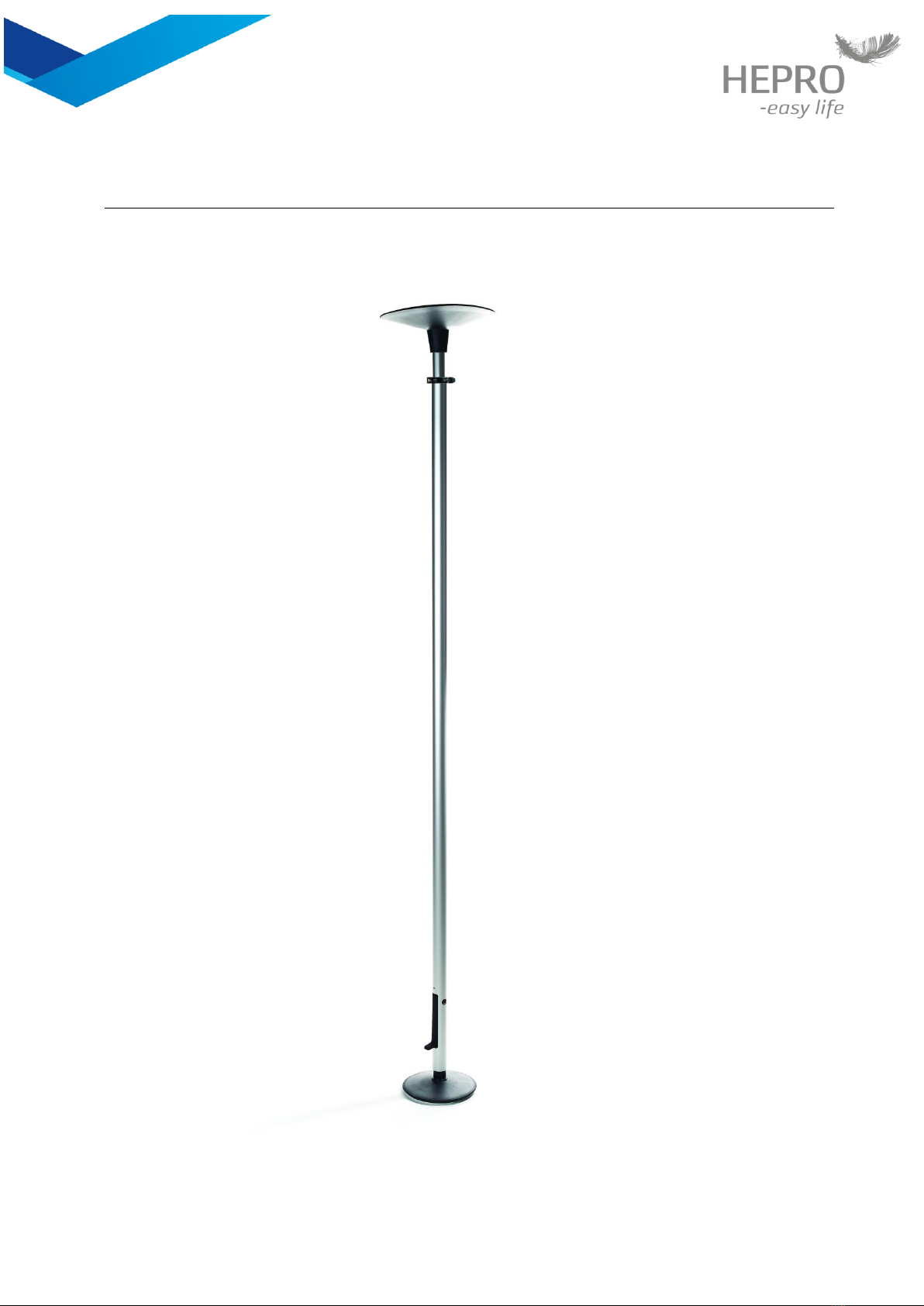

HEPRO Gripo Alu User manual

SERVICE MANUAL for
Telescopic pole, Gripo Alu
Telescopic pole –Gripo Alu
Side 1 av 11

SERVICE MANUAL for
Telescopic pole, Gripo Alu
Telescopic pole –Gripo Alu
Side 2 av 11
HEPRO –aid manufacturer
HEPRO is a Norwegian industrial company that develops, manufactures and sells technical aids for
adults and children with mobility impairment. The company was established in 1987 and has to day
about 50 employees. The company`s headquarter and factory is located in Rognan, Nordland:
Hepro AS
Øvermoan 9
8250 Rognan
Technical Service
Services are performed in the factory at Rognan, but also by partners in many parts of the country. Our
sales personnel are also trained in technical maintenance. If errors on products or other queries, please
contact your supplier or importer.
Adaptations and Special Adaptations
Hepro is a manufacturer and can therefore offer user customized solutions when required.
Customizations and custom solutions to meet individual needs is part of the daily tasks of the plant.
Warranty
When used in accordance with the supplied assembly guide and the user reference manual, Hepro
provides a two year warranty against defects in material and workmanship. Please address warranty
complaints or other inquiries about the product to your supplier or importer. Always state the product`s
serial number as a reference.
The product is designed, tested and produced in conformity to following regulations and requirements:
NS-EN 12182 ”Technical aids for disabled persons.”
93/42/EØF ”Equipment class 1, marked

SERVICE MANUAL for
Telescopic pole, Gripo Alu
Telescopic pole –Gripo Alu
Side 3 av 11
Table of contents
1. Short product description........................................................................ 4
1.1 Main Product...................................................................................... 4
1.1.1 Type / designation ........................................................................ 4
1.1.2 Structure...................................................................................... 4
1.2 Technical specifications..................................................................... 5
1.3 Safety provisions................................................................................ 6
1.3.1 Warning........................................................................................ 6
1.3.2 Installation and assembly ............................................................. 6
1.3.3 Installation ................................................................................... 6
1.3.4 Function Verification and testing of product and accessories ...... 7
1.3.5 Disassembly ................................................................................. 7
1.3.6. How to use ................................................................................... 7
1.3.7 Error Indications and check out of these ...................................... 7
2. Work Descriptions ................................................................................... 8
2.1 Cleaning performed by user ............................................................... 8
2.2 Maintenance ...................................................................................... 8
2.2.1 Periodic inspection ...................................................................... 8
2.2.2 Preparation for reuse ................................................................... 8
2.2.3 Troubleshooting ........................................................................... 8
3. Part Catalog ............................................................................................ 9
3.1 Main parts, replace modules and components ................................... 9
.....................................................................................................................11
4. Change log .............................................................................................11

SERVICE MANUAL for
Telescopic pole, Gripo Alu
Telescopic pole –Gripo Alu
Side 4 av 11
1. Short product description
Gripo Alu is classified in NS-EN ISO 9999 as a medical device and within the product group
180806, and is defined as a TELESKOPIC POLE to carry support devices.
The pole is tested according to EN 12182 and approved for a horizontal load of 100 kg on the
middle of the pole with maximum length 3,0 meter.
It is produced in the materials of aluminum and plastic and intended for clamping between the
floor and ceiling of any room where the ceiling and floor have enough strength to withstand a
point load of 100 kg.
In each end of the pole there is a plate-shaped end plate with a friction ring installed. The force
between the plates is maintained by a gas spring with an average pressure of 100 kg. This
makes the pole possible to be installed without use of any form of screw or nail connection,
causing perforation of floor or ceiling, and the dismantling of the bar leaves no marks.
With support of different accessories the pole can be adapted to many different pole use
situations.
The pole can be used in rooms with headroom from 2,1 meter to 3,0 meter, and it is delivered in
only one model in which the aluminum tubes are in the colour nature aluminum, and all plastic
parts in black colour.
1.1 Main Product
1.1.1 Type / designation
Product information covers the following model:
GRIPO ALU
1.1.2 Structure
Generally, the product is structured by the following main components, which will also appear in
how the product is broken down in section 3.Part catalog
Base plate
Outer tube w/lifting mechanism
Inner tube w/tighten bushing with conus and screw
Between these a Quick Release clamp
Top plate w/ gas spring

SERVICE MANUAL for
Telescopic pole, Gripo Alu
Telescopic pole –Gripo Alu
Side 5 av 11
1.2 Technical specifications
Gripo Alu
DIMENSIONS
Description
Unit
Dimension
Headroom
m
2,1 –3,0
Inner tube
mm
Ø31 x 6,0
Outer tube
mm
Ø40 x 3,0
Average gas spring pressure
N
900
Top plate
mm
Ø290
Base plate
mm
Ø200
Max horizontal loa don the middle of pole
kg
100
Product weight without accessories
kg
4,7
Max user weight
kg
150
MATERIALS AND COMPONENTS
Inner and outer tube
Aluminium 6063 T6
Surface protection tube
Elox.
Gas spring
Stabilus LiftOMat
Top plate
Plastic PA6 GF15
Base plate
Plastic PA6 GF15
Tubes for accessories
Aluminium 6063 T6 Elox.

SERVICE MANUAL for
Telescopic pole, Gripo Alu
Telescopic pole –Gripo Alu
Side 6 av 11
1.3 Safety provisions
The installation of the pole has to be done by a trained person or by one who has set himself
thoroughly in the assembly instruction.
1.3.1 Warning
The product should not be adopted without prior training and before the user reference
manual has been carefully read and understood.
All kinds of support devices may involve danger if incorrect assembled or wrongly used.
If the pole indicates any sign for loosening, it shall not be used and help be called.
The pole must not be installed in rooms with headroom exceeding the approved or be
placed where there can be any risk for pinching.
When used in showers friction mat has to be used under the base plate.
If the red warning sign is visible, the assembly is wrong and the pole must not be used.
1.3.2 Installation and assembly
Test before installation
Beforehand the ceiling should be examined with regard to strength and opportunity for
placement of the pole at the desired location. At plate-covered ceiling the pole should
preferably be placed directly under the beams or nailing strip to prevent plate damage. If the
ceiling is made of concrete, the pole can be placed anywhere. If the wallboard is made of
gypsum or other week material, The Top plate Big has to be used, or the ceiling has to be
reinforced by for instance using a more solid wallboard between the pole`s top plate and the
ceiling.
1.3.3 Installation
The pole is delivered with a loose base- and top plate.
1. Place the pole on the base plate and set the top plate in place.
2. Position the pole in a suitable place with the base plate flat against the floor.
3. Pull out the foot pedal and open the Quick Release clamp.
4. Rotate the inner tube clockwise so it want slide down by it`s own weight. Extend the pole till
the top plate reaches the ceiling by pulling the inner tube out of the outer tube.
5. Close the Quick Release clamp.
6. Press down the foot pedal.
7. Check that the red mark is no longer visible. If not, go back to point 4
8. If the pole is tilted, pull out the foot pedal and adjust it vertical and press down the foot
pedal again.
9. Installation of accessories by using the Universal link can now be done.
10. If the red mark still is visible, this may be the reason:
It is too big distance between the ceiling and the top plate when the rotation of the inner
tube started.
The quick release could have been too loose. Tighten the nut a few millimeters.

SERVICE MANUAL for
Telescopic pole, Gripo Alu
Telescopic pole –Gripo Alu
Side 7 av 11
The ceiling is too weak and is lifted by the force in the pole`s gas spring.
The pole was ice-cold during assembly.
See also the Assembly guide illustrated with pictures.
1.3.4 Function Verification and testing of product and accessories
After the installation is completed, it must be checked that the red mark in the upper
part of the inner tube just below the top plate is not visible. This should also be checked
regularly by the use of the pole. If the red marking is apparent the cause may be:
oToo week ceiling structure that causes the power of the pole pushing the ceiling
up. Then use the Top plate Big or the ceiling must be reinforced, or the pole
must be moved to an area where construction is strong enough.
oThe tightening screw on the quick release may have loosened. Tighten the nut
on the quick release till it sits tight.
When recycling the pole, all surfaces must be inspected for damage. Take special care
of the list in the top- and base plate which make the friction ring. If this shows sign of
darkning, it should be replaced.
After this control, the pole must be installed in a room where the ceiling is solid, and
the Quick Release must be checked so that the red marking is not visible after
installation.
1.3.5 Disassembly
Pull out the foot pedal and open the quick release. The inner tube can now be pushed down into
the outer tube.
1.3.6. How to use
Gripo Alu can be used in many situations where there is a need for support. Use of equipment
and methods will in cooperation with the user, the therapist and the supplier`s qualified person
be best taken care of.
See also the illustrated brochure.
1.3.7 Error Indications and check out of these
If the pole seems loose, out of plumb or there are marks on the floor or the ceiling that indicates
that the pole has displaced, the assembly must be checked by a competent person.
If the red mark on the top of the inner tube appears, the pole must not be used before new
installation is done and checked. This may indicate that the pole is either not installed correctly
or the ceiling is not strong enough.
1.3.8 Inquiry by mistake
If an error occurs, using problems or suspected wrongly installation, please contact your
supplier. By request, always give the serial number affixed to the pole

SERVICE MANUAL for
Telescopic pole, Gripo Alu
Telescopic pole –Gripo Alu
Side 8 av 11
2. Work Descriptions
General
It must never be changed to other parts than those stated in the split images in the ”3. PART
CATALOG” with article numbers. It can in worst case cause the product not to satisfy its
acceptance criteria, and be changed from being an aid to become a dangerous tool for the user
or the environment.
If for some reason it is desirable to deviate from this rule, Hepro has to be contacted for review
and possible approval.
2.1 Cleaning performed by user
METHODE
Normal dusting and cleaning with wet cloth and soap is sufficient.
2.2 Maintenance
2.2.1 Periodic inspection
GENERAL
It is basically sufficient with inspection when recycling. For poles older than 5 years, the
producer recommend inspection as for recycling once a year.
PRODUCTS WITH SPECIAL LOADS
The product has no particular need for periodic inspection if it is a standard product used by a
person who in any way exposes the product for special or extreme loads.
If the product is exposed to special loads, it would be an advantage for all that each case will be
considered and necessary maintenance is established.
Hepro can of course be of help with advice and guidance if contacted.
2.2.2 Preparation for reuse
To ensure that the user gets a secure aid when recycling, it is important that the aid undergo a
thorough technical control and is properly cleaned before it comes to a new user. As a
manufacturer and supplier we believe that the control described in section 2.3.2 is sufficient.
Worn parts must be checked and replaced if they are considered to lead to reduced safety for
the user.
2.2.3 Troubleshooting
The product is built quite simple, and by using the Service Manual, any error could easily be
detected.
Hepro`s Service Organization is of course also available for advice and guidance.

SERVICE MANUAL for
Telescopic pole, Gripo Alu
Telescopic pole –Gripo Alu
Side 9 av 11
3. Part Catalog
In the following sections the article name and article number included in the standard product
will be stated.
Prices are stated in an own spare parts price list.
3.1 Main parts, replace modules and components
.
Pos.
Description
No.
Hepro
Item no
-
Gripo Alu complete
1
35100
1
Top plate
1
35110
2
Washer, 6,4x20x1,25
3
70277
3
Lock nut, Nylock ELZ M6
2
70054
4
Gas spring Stabilus LiftOMat, 900N
1
35137
5
Inner tube
1
35111
6
Brand foil, red
1
35143
7
Quick release
1
35195
8
Upper bushing
2
35194
9
Cone, aluminium
1
35126
10
Tighten bushing w/thread adapter
1
35118
11
Tighten screw, stainless steel, M6x0,75, compl.
1
35144
12
Set screw, stainless steel, thread stift M5
1
70198
13
Outer tube
1
35115
14
Foot pedal
1
35113
15
Lifting arm
1
35114
16
Base plate
1
35112
17
Furniture button, K-15 9x15 M6
2
70276
18
Lock nut, Nylock M6
1
70054

SERVICE MANUAL for
Telescopic pole, Gripo Alu
Telescopic pole –Gripo Alu
Side 10 av 11
18
2,3
1
4
2,3
6
5
7
12
11
8
9
10
13
14
17
15
16

SERVICE MANUAL for
Telescopic pole, Gripo Alu
Telescopic pole –Gripo Alu
Side 11 av 11
4. Change log
Edt.. 01
31.01.2012 Adapted new provisions
Edt. 02
10.09.2012 Updated 1.3.1.
Pos.
Description
No.
Hepro
Item no
-
Universal conection, complete
1
35130
20
Hand wheel
1
35123
21
Washer 10,2x40x2
1
70250
22
Bend 40mm
2
35122
23
Adapter bend 40mm
2
35128
24
Tooth washer
1
35121
25
Bend 22mm
2
35120
26
Adapter bend 22mm
2
35129
27
Tighten screw M10
1
35119
20
21
22
24
25
27
23
26
