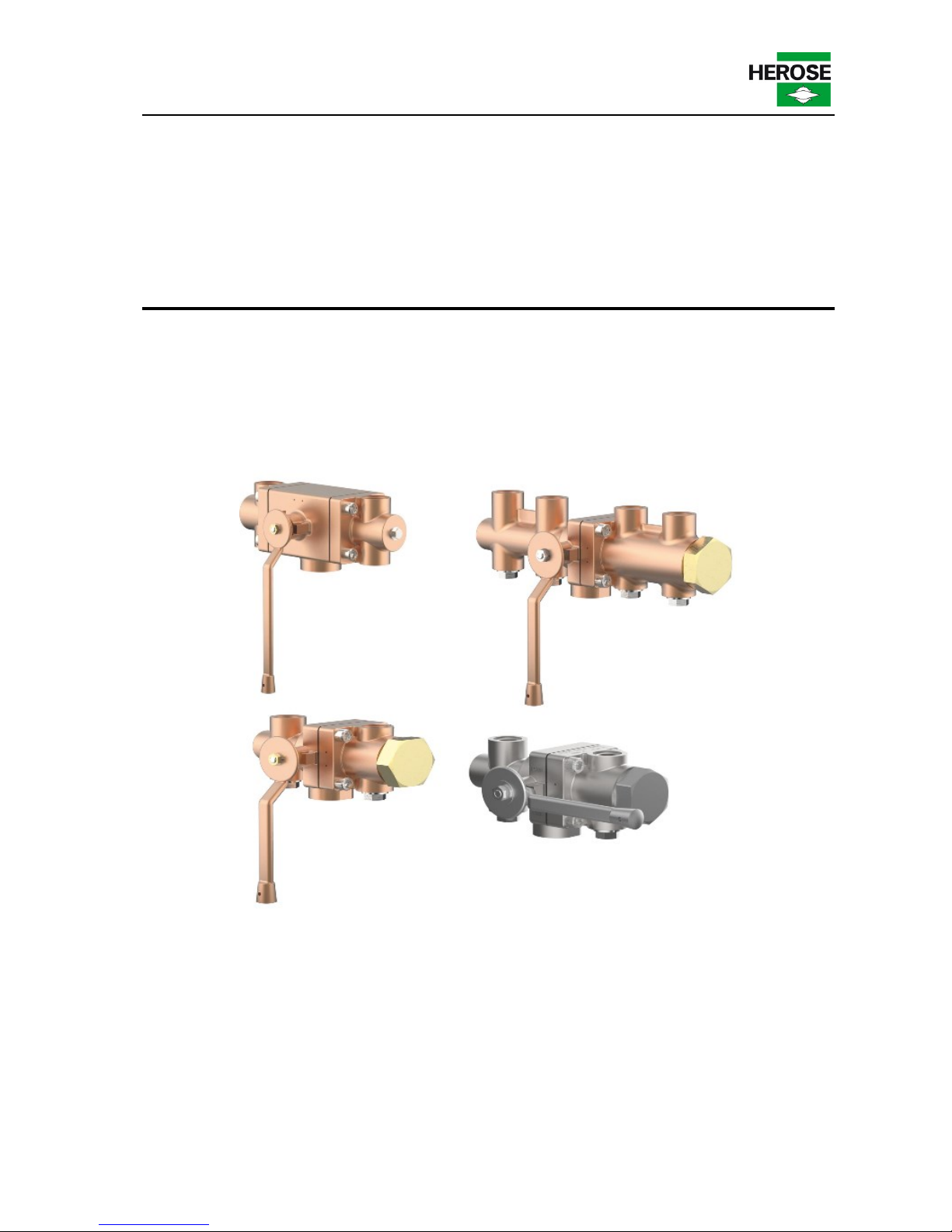

Operating instructions
II
Phone [phone]
Table of contents
1About these instructions ................................................................................................1
2Safety............................................................................................................................1
3Transport and storage ...................................................................................................4
4Description of the diverter valve.....................................................................................4
5Assembly.......................................................................................................................7
6Operation ......................................................................................................................9
7Maintenance and service.............................................................................................10
8Disassembly and disposal ...........................................................................................12

Operating instructions
herose.com
1
1 About these instructions
1.1 Principles
The operating instructions are part of the diverter valve named on the front page.
1.2 Applicable documents
Document
Contents
Catalogue page
Description of the diverter valve
For accessories, refer to the respective manufacturer's documentation.
1.3 Hazard levels
The warning notes are marked and classified according to the following hazard levels:
Symbol
Explanation
DANGER
Identifies a hazard with a high risk level that will result in death
or serious injury.
WARNING
Identifies a hazard with a moderate risk level that will result in
death or serious injury.
CAUTION
Identifies a hazard with a low risk level that will result in a minor
or moderate injury.
NOTICE
Identifies a risk to property. Damage to property may occur if
this notice is ignored.
2 Safety
2.1 Intended use
The diverter valve is intended for installation in a pipeline or pressure tank system in order to block media
or allow them to pass through within the permissible operating conditions. The permissible operating
conditions are specified in these operating instructions.
The diverter valve is suitable for the media listed in these operating instructions; see section 4.5 "Media".
Operating conditions and applications deviating from these require the approval of the manufacturer.
Only media may be employed to which the materials used for the valve body and seals are resistant.
Contaminated media or usage outside of the pressure and temperature specifications can lead to damage
to the valve body and seals.
Avoidance of foreseeable incorrect use
Follow all safety instructions and operating procedures in these operating instructions.
2.2 Meaning of the operating instructions
The operating instructions are to be read and followed by the responsible technical personnel before
installation and start-up. As part of the diverter valve the operating instructions must be available close to
it. People could be seriously injured or killed if the operating instructions are not followed.
Read and observe the operating instructions before using the diverter valve.
Retain the operating instructions and make sure they are available.
Pass on the operating instructions to subsequent users.
2.3 Requirements for persons who work with the diverter valve
Persons could be seriously injured or killed if the diverter valve is used improperly. In order to avoid
accidents, all persons who work with the diverter valve must meet the following minimum requirements.
They are physically capable of controlling the diverter valve.
They can safely carry out the work with the diverter valve within the scope of these operating
instructions.
They understand the operating principles of the diverter valve within the scope of their work and are
able to recognise and avoid the hazards of the work.
They have understood the operating instructions and are able to implement the information of the
operating instructions accordingly.

Operating instructions
2
Phone [phone]
2.4 Personal protective equipment
Missing or unsuitable personal protective equipment increases the risk of damage to health and injuries to
people.
The following protective equipment is to be provided and worn during work:
Protective clothing
Safety shoes
Define and use additional protective equipment depending on the application and the media:
Safety gloves
Eye protection
Ear protection
Wear the specified personal protective equipment for all work on the diverter valve.
2.5 Additional equipment and spare parts
Additional equipment and spare parts not conforming to the manufacturer's requirements can negatively
affect the operational safety of the diverter valve and cause accidents.
In order to ensure operational safety, use original parts or parts that conform to the
manufacturer's requirements. If in doubt, have these confirmed by the dealer or manufacturer.
2.6 Adhere to the technical thresholds
If the technical threshold values for the diverter valve are not adhered to, the diverter valve may sustain
damage, accidents may be caused and people may be seriously injured or killed. Adhere to the
thresholds.
See section 4 "Description of the diverter valve".
2.7 Safety instructions
DANGER
Hazardous medium.
Escaping operating medium can lead to poisoning, burns and caustic burns!
Wear the prescribed protective equipment.
Provide suitable collecting containers.
WARNING
Harmful and/or hot/cold conveyed media, lubricants and fuels
Hazardous for persons and the environment!
Collect and dispose of rinsing medium and any residual media.
Wear protective clothing and a protective mask.
Observe legal regulations regarding the disposal of harmful media.
Risk of injury if maintenance work is done incorrectly!
Incorrect maintenance can lead to serious injury and considerable material damage.
Before the start of work, ensure there is sufficient room for doing the work.
Ensure the space around the work is tidy and clean! Parts and tools in loose piles or lying around
are hazard sources.
If parts have been removed, take care to assemble correctly and re-install all attachment items.
Before putting back into service, ensure:
All maintenance work has been carried out and completed.
There are no persons in the hazard area.
All covers and safety devices are installed and operating correctly.
CAUTION
Cold/hot pipelines and/or diverter valve.
Risk of injury due to thermal influences!
Insulate the diverter valve.
Attach warning signs.
Medium escaping at high speed and high/low temperature.
Risk of injury!
Wear the prescribed protective equipment.

Operating instructions
herose.com
3
NOTICE
Impermissible stresses arising from operating conditions and extensions / added structures.
Leakage from or breakage of the body of the diverter valve!
Provide suitable support.
Additional loads, such as traffic, wind or earthquakes, are not explicitly taken into account by
default and require separate dimensioning.
Condensation in air conditioning, cooling and refrigeration plants.
Icing!
Blocking of the actuation mechanism!
Damage due to corrosion!
Insulate the diverter valve with diffusion-tight material.
Improper installation.
Damage to the diverter valve!
Remove cover caps before installation.
Clean the sealing surfaces.
Protect the body against impacts.
Improper handling.
Leakage from or damage to the diverter valve!
Do not store tools and/or other objects on the diverter valve.
Do not use tools to increase the torque of the hand wheel.
Painting of diverter valve and pipelines.
Functional impairment of the diverter valve / loss of information!
Protect spindle, plastic parts and type plate against the application of paint.
Impermissible load.
Damage to the control mechanism!
Do not use the diverter valve as a foothold.
Exceeding the maximum permissible operating conditions.
Damage to the diverter valve!
The maximum permissible operating pressure must not be exceeded, and the minimum and
maximum permissible operating temperatures must be observed.
Safety instructions for installed safety valves
DANGER
Hazardous medium.
Escaping operating medium can lead to poisoning, burns and caustic burns!
Wear the prescribed protective equipment.
Provide suitable collecting containers.
Stand to the side of or behind the valve during manual actuation for testing.
The outlet must be free.
Flammable media and dusts.
Risk of sustaining burns!
Avoid potential sources of ignition in the immediate vicinity of the safety valve.
Attach warning signs.
Risk of injury due to pressure.
Injury due to the safety valve being flung away!
Depressurise and empty all supply lines before dismounting the safety valve.
Make sure that the system is depressurised.
Secure against being pressurised again.
Do not bend over the safety valve when dismounting.

Operating instructions
4
Phone [phone]
3 Transport and storage
3.1 Inspection of condition on delivery
Inspect the diverter valve for damage upon receipt.
In case of transport damage, determine and document the precise extent of the damage, and
report it immediately to the supplying dealer/carrier and the insurer.
3.2 Transportation
Transport the diverter valve in the packaging supplied.
The diverter valve is delivered ready to operate with body ends protected by cover caps.
Protect the diverter valve against shocks, impacts, vibrations and dirt.
Adhere to a transport temperature range of -20 °C to +65 °C.
3.3 Storage
Store the diverter valve in a clean and dry place.
Make use of a desiccant or heating in damp storerooms to prevent the formation of
condensation.
Adhere to a storage temperature range of -20 °C to +65 °C.
4 Description of the diverter valve
Refer to the respective catalogue page for further detailed information.

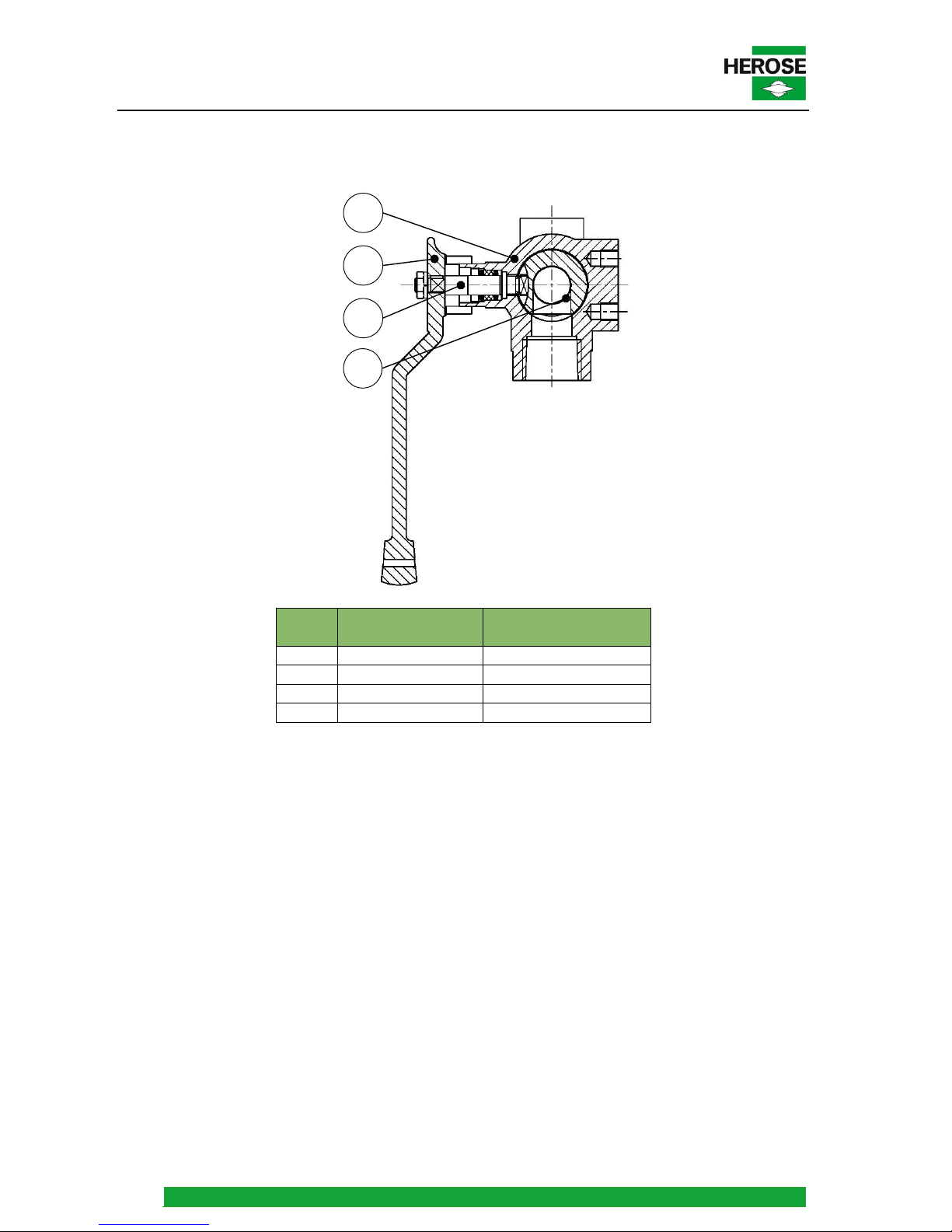

4.1 Structure
Design
Non-automatically opening and closing multiport ball valve with hand lever.
Component
Design
Body
Multiport form, divided body
Flanged, without spindle thread
Actuator
Shaft
Closing body
Self-sealing ball with seal made of non-metallic materials
Spindle bushing
Non self-sealing, gland
4.2 Marking
The diverter valves are provided with an individual marking for identification.
Symbol
Explanation
DN
Nominal diameter
PN
Nominal pressure (max. permissible operating pressure)
-…..°C +…..°C
Temperature, min. / max.
Manufacturer's mark "HEROSE"
01/16
Date of manufacture, MM/YY
12345
Type
01234567
Serial no.
EN1626
Standard
0045
CE-mark, ID of notified body
e.g. CC491K
Material

Operating instructions
herose.com
5
4.3 Intended use
Diverter valve for the installation of two or more safety valves in a possible combination with bursting discs
for protecting gas storage tanks. The requirements of the pressure equipment directive for redundant or
different types of safety devices are fulfilled with this diverter valve and in combination with safety valves
with the same setting pressure. Additional connections are available on each side for suitable means of
testing.
In the case of servicing the safety valves or replacement of the bursting discs, the side to be serviced is
isolated from the tank.
In the end position one outlet is open and the other is closed. It is not possible to shut off both outlets at
the same time.
4.4 Operating data
Valve
Nominal
pressure
Temperature
Max. operating
pressure
06510
06511
PN50
-196 °C to +120 °C
50 bar
06512
06513
PN50
-196 °C to +120 °C
50 bar
06520
06521
PN50
-196 °C to +120 °C
50 bar
06530
06531
PN50
-196 °C to +120 °C
50 bar
4.5 Media
Gases, cryogenic liquefied gases and their gas mixtures, such as:
Name
Argon,
Chlorotrifluoromethane
,
Nitrous oxide,
Ethane,
Ethylene,
Carbon dioxide,
Carbon monoxide,
Krypton,
LPG,
LNG,
Methane,
Oxygen,
Nitrogen,
Trifluoromethane,

Operating instructions
6
Phone [phone]
4.6 Materials
Part
no.
Name
Material
1
Body
CC491K/1.4308
2
Lever
CC491K/1.4308
3
Control shaft
1.4301/2.4360
4
Closing body
1.4571/CW453K/PCTFE
4.7 Scope of delivery
Diverter valve
Operating instructions
4.8 Dimensions and weights
See catalogue page.
4.9 Lifetime
The user is obligated to use Herose products only for their intended purpose.
In this case, a technical service life may be assumed in accordance with the underlying product standards
(e.g. EN1626 for shut-off valves and EN ISO 4126-1 for safety valves).
The technical service life can be restarted several times through the exchange of wearing parts within the
context of the maintenance intervals, and lifetimes of more than 10 years can be achieved.
If products are stored for a period exceeding 3 years, then the plastic components and elastomer sealing
elements fitted to the product should be replaced as a precautionary measure before installation and use.
1
2
3
4

Operating instructions
herose.com
7
5 Assembly
5.1 Installation position
Attention must be paid to the direction of flow.
The installation position is arbitrary.
The preferred installation position should be with the spindle horizontal.
5.2 Notes regarding the installation
Use suitable tools.
Clean tools before the installation
Use suitable transport and lifting equipment for the installation.
Open the packaging only directly before the installation. Freedom from oil and grease for oxygen
(O2)
Diverter valves for oxygen are permanently marked with “O2”.
Only install the diverter valve if the maximum operating pressure and operating conditions of the
plant correspond to the marking on the diverter valve.
Remove protective caps or covers before assembly.
Inspect the diverter valve for dirt and damage.
DO NOT install damaged or dirty diverter valves.
Remove dirt and residues from the pipeline and diverter valve in order to prevent leaks.
Avoid damaging the connections.
The sealing surfaces must remain clean and intact.
Seal the diverter valve with suitable seals.
No sealant (sealing tape, liquid sealing tape) may enter the diverter valve.
Respect the suitability for use with O2.
Connect pipelines in a force-free and torque-free manner.
Stress-free installation.
In order to ensure trouble-free operation, no impermissible static, thermal or dynamic stresses
may be transmitted to the diverter valve. Observe reaction forces.
Temperature-dependent changes in length in the pipework system must be compensated with
expansion joints.
Fasten the diverter valve with the existing threads in the body.
The diverter valve must be protected against dirt and damage during construction work.
Check the leak-tightness.

Operating instructions
8
Phone [phone]
Tightening torques
Diverter valve
Nominal size [G; Rc; NPT]
Tightening torques (Nm)
Number of
layers of PTFE
tape
Tightening torque G [Nm]
Tightening torque NPT [Nm]
Tightening torque SV with double nipple and clamping sleeve in diverter valve [Nm]
Tightening torque SV with copper washer in diverter valve [Nm]
Tightening torque Rc [Nm]
G thread
NPT thread
Rc thread
Length [cm]
min.
max.
min.
max.
min.
max.
06510 /
06511 /
06512 /
06513
1/2
50
30
50
40
60
40
60
3
20-
25
3/4
50
40
60
40
70
40
70
5
40-
45
1
50
50
80
50
80
50
80
6
55-
60
1.1/4
55
50
100
50
100
50
100
6
80-
85
1.1/2
60
70
100
60
100
60
100
6
90-
95
06520/
06530
1/2
50
30
50
30
50
40
60
3
20-
25
06521/
06531
3/4
50
40
60
40
60
40
70
5
40-
45
Plug screw
Test thread
1/4
20
20
20
20
20
20
20
20
2
2
10-
15
1/2
50

Operating instructions
herose.com
9
6 Operation
6.1 Prior to start-up
Check the following points prior to start-up:
All assembly and installation work are completed.
The safety guards are in place.
Compare the material, pressure, temperature and installation position with the layout plan for
the pipework system.
Dirt and residues have been removed from the pipeline and diverter valve in order to prevent
leaks.

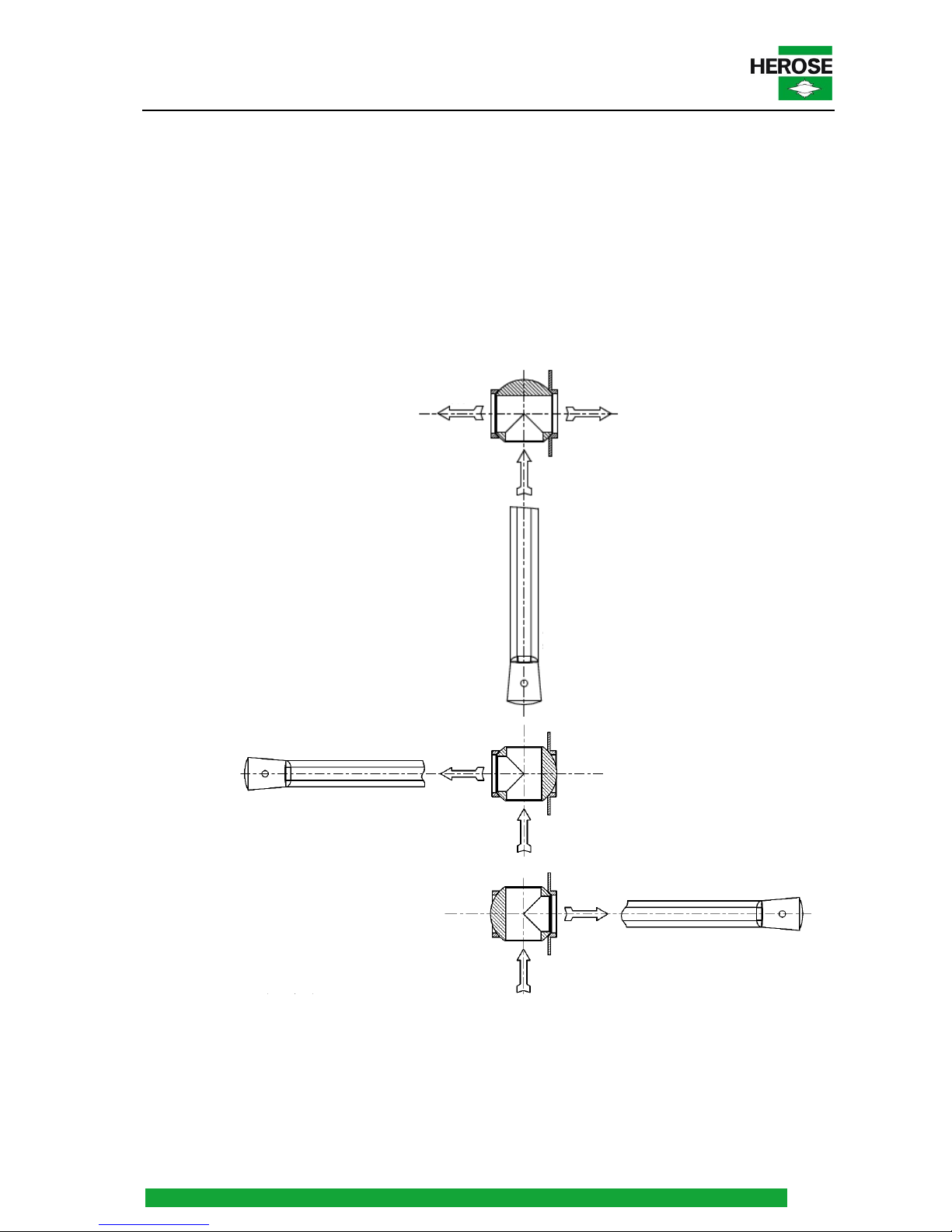

6.2 Lever position
Outlet
Outlet
Inlet
Standard position
Lever position left
Outlet
closed
Inlet
closed
Outlet
Lever position right
Inlet

Operating instructions
10
Phone [phone]
7 Maintenance and service
7.1 Safety during cleaning
Take note of the specifications in the safety data sheet and the general occupational health and
safety rules if degreasers are used for process-related reasons for the cleaning of bearing parts,
fittings and other precision parts.
7.2 Maintenance
The maintenance intervals must be defined by the user according to the operating conditions.
The recommendations for the functional checking of the diverter valves are to be taken from section 7.2.1
"Inspection and maintenance intervals" in these operating instructions.
7.2.1 Inspection and maintenance intervals
Recommended intervals
Description
Interval
Scope
Inspection
During start-up
Visual inspection
of the diverter valve for damage:
of the marking for legibility;
Leak-tightness
at the gland packing;
between body I and body II;
of the valve seat;
at the connections;
at the plug screw;
Test the opening and closing functions of the
diverter valve.
Functional testing
annually
Test the opening and closing functions of the
diverter valve including a visual inspection.
External inspection
Every 2 years
Check of function and leak-tightness including visual
check.
Internal inspection
Every 5 years
Replacement of all sealing elements, including a
function and leak test as well as a visual inspection.
Hydraulic testing
Every 10 years
Replacement of all sealing elements, including a
function and leak test as well as an inspection.

Operating instructions
herose.com
11
7.3 Fault table
Fault
Cause
Remedial action
Leak at the spindle
Gland nut loose
Retighten the gland nut
Gland packing defective
Replace the diverter valve
Fit on the spindle damaged
Replace the diverter valve
Leak between body I
and body II
Body I loose
Tighten the bolts
Seal damaged
Replace the diverter valve
Leaking lateral
connections
Inadequate seals
Seal with suitable sealants
Blind plug / bolted-on safety
valves loose
Tighten to the specified torques
Lateral connections cracked
Replace the diverter valve
Body leaking
Discontinuity/gas cavity open
Replace the diverter valve
Diverter valve cannot
be switched over
Gland nut overtightened
Loosen the gland nut
Tightness must still be ensured
Thread seized
Replace the diverter valve
Lever lock not removed
Remove lever lock
7.4 Spare parts
We require the following details for your spare part orders:
Article no. of the spare part package,
desired delivery quantity,
dispatch and delivery address,
desired method of dispatch.
7.5 Returns / complaints
Use the Service form in case of returns/complaints.
Contact in case of service:
Herose.com › Service › Product service › Complaints
E-mail: [email protected]
Fax: [phone]

Operating instructions
12
Phone [phone]
8 Disassembly and disposal
8.1 Notes regarding the disassembly
Take note of all national and local safety requirements.
The pipework system must be depressurised.
The medium and the diverter valve must be at ambient temperature.
Aerate / flush the pipework system in the case of corrosive and aggressive media.
8.2 Disposal
1. Dismount the diverter valve.
Collect greases and lubricating fluids during dismantling.
2. Separate the materials:
Metal
Plastic
Electronic scrap
Greases and lubricating fluids
3. Carry out a sorted disposal of the materials.
