zone
2
zone
2
zone
2
zone
2
zone
2
outside
zone
60cm
60cm
60cm
60cm
75cm
75cm
75cm
75cm
60cm
radius
225cm
225cm
zone
1
zone
2
zone
1
This product is suitable for installation in zones:
All installations must comply with guidelines which are based on a zonal concept. The
diagram above illustrates this concept and must be followed to ensure the safe installation
of electrical appliances in the bathroom. These regulations apply to domestic installations
only. Installations must be made in accordance with the current IEE wiring regulations and
relevant building regulations. HiB recommends that all electrical bathroom products
should only be tted by a suitably qualied, Part P registered electrician.
Ver No. 1.0 Sept 2014

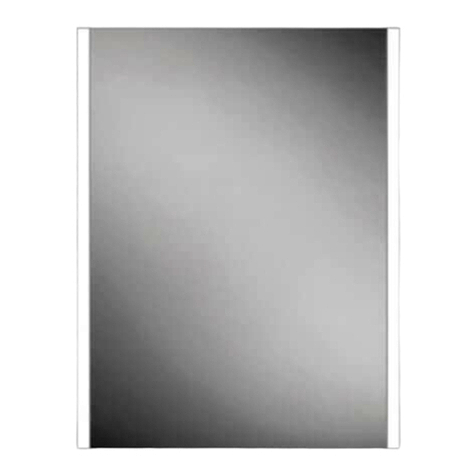

Globe 45 Art No.78400000 /
Globe 50 Art No.78500000/
Globe 60 Art No.78600000
Thank you for purchasing this HiB product.
Please read through these instructions carefully and refer back to them
during installation to ensure that your product is tted safely and that it
retains its high quality nish.
Please retain this leaet for future reference.
Before drilling, ensure there are no hidden cables or pipes in the wall.
Installation
1. Position the mirror in a suitable location (according to the zonal
diagram opposite), ensuring that the domestic electrical mains
supply is within reach of the electrical entry point of the product.
2. Carefully mark the position of the mirror using a soft pencil ensuring
it is level. Remove the mirror and mark the mounting points. Please
ensure that all marked mounting points accurately match up with
the xing points on the mirror.
3. Using a suitable drill bit, drill holes in the marked positions to a
suitable depth. If drilling through tile, use a ceramic drill bit.
4. Insert wall plugs level with the surface of the wall. If tting to a
tiled surface, wall plugs should be inserted below the tile surface to
avoid cracking. NB. For plasterboard walls, specialist xings should be
purchased, available from any DIY or hardware store.
5. Screw supplied brackets into wall plugs.
6. Ensure the domestic electrical mains supply to which the mirror is
being connected is turned o. Connect the domestic mains supply
to the terminal box according to the wiring diagram opposite.
7. Hang the mirror in position ensuring that the brackets slot into the
mounting points.
8. Switch the domestic electrical mains supply for the mirror back on.
Operation Instructions
To turn illumination on or o, operate the sensor switch located at the
bottom of the mirror.
Heated Pad is only on when mirror is illuminated.
Care Instructions
Do not use abrasives or solvents when cleaning this product.
Wipe o all water spillages as soon as possible using a soft, damp cloth.
Aftercare Service
In the unlikely event that this product should fail please contact HiB
customer services, contact detail shown below.

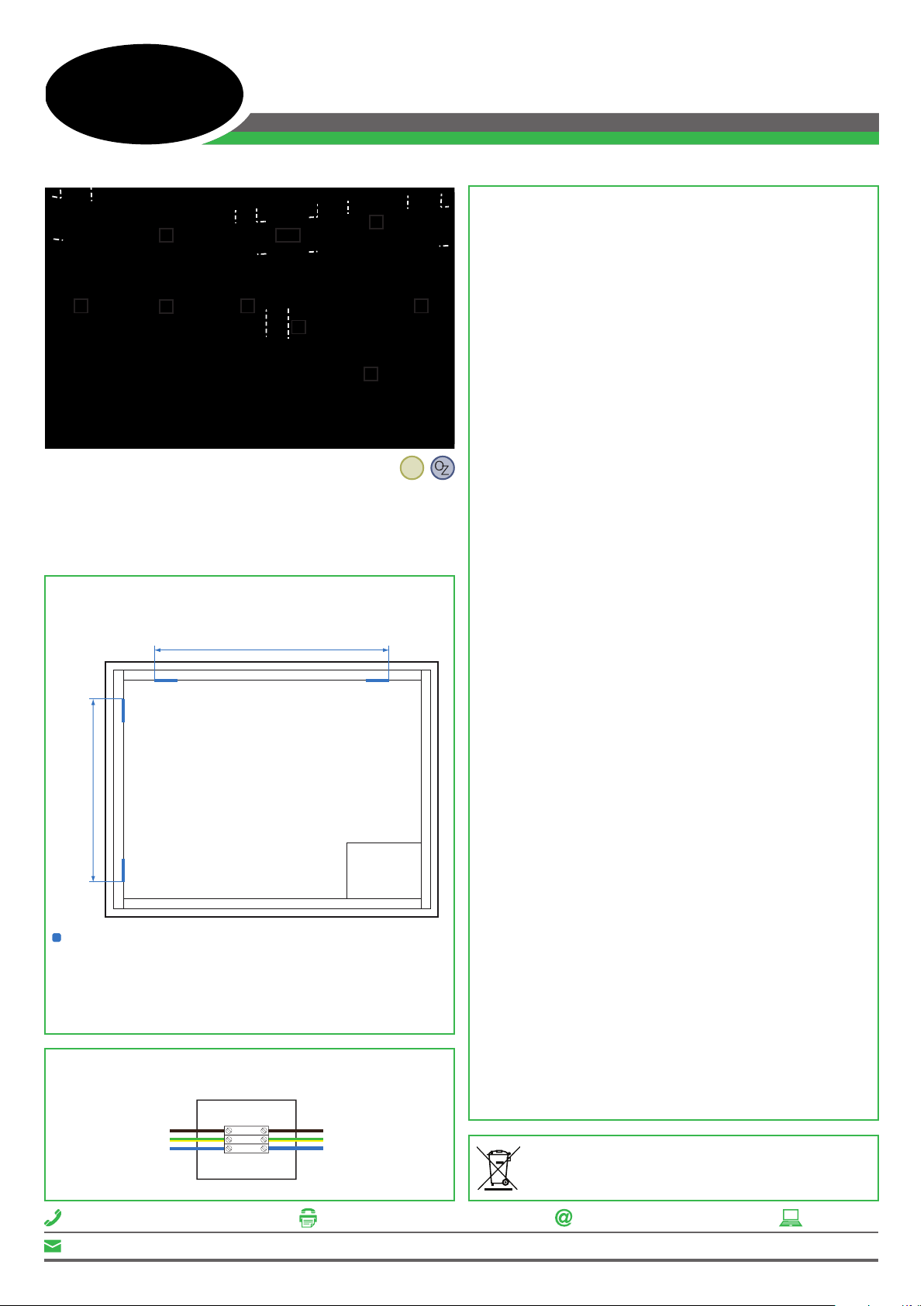

Mounting Points Diagram
Wiring Diagram
live
earth
neutral
MAINS SUPPLYLUMINAIRE
Wiring Diagram
Live supply can be Red or Brown
Earth supply is Green and Yellow
Neutral supply can be Blue or Black
Live is Brown
Earth is Green and Yellow
Neutral is Blue
NB. This product must be installed with a minimum distance of 150mm
between the infra-red sensor switch and any adjacent wall or object to
ensure correct operation of the sensor.
WEEE compliance
Must not be mixed with general household waste
mounting points
REAR VIEW
Hanging Portrait
Hanging landscape
