HIKOKI H 3641DA User manual

H 3641DA
Handling instructions
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST

2
I
l
l
u
s
t
L
i
s
t
1
1
25
6
34
7
8 9
10
13
14 11
12
15
16
17
2
11
18
1
2
3
11
19
1
2
4
2
1
21
22
20
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST

3
5
1
45
2
1
23
3
6
3
1
2
7
1
2
2
4
8
27
12
26
24
25
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST

4
9
6
10
5
6
1
3
2
11
6
1
2
12
L
H
Bpm 1500 2000 2400 2880
89
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST

5
13 14
6
15
15
18
29
30 30
28
31
32
16
11
a b
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST

6
17
33
34
35
1
2
18
33
34
35
12
19
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST

7
GENERAL POWER TOOL SAFETY
WARNINGS
WARNING
Read all safety warnings, instructions, illustrations
and specifications provided with this power tool.
Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated
(cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust
or fumes.
c) Keep children and bystanders away while
operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools.
Unmodified plugs and matching outlets will reduce
risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators.
There is an increased risk of electric shock if your
body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts.
Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the
risk of electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device
(RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or
medication.
A moment of inattention while operating power tools
may result in serious personal injury.
b) Use personal protective equipment. Always
wear eye protection.
Protective equipment such as a dust mask, non-skid
safety shoes, hard hat or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool.
Carrying power tools with your finger on the switch
or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on.
A wrench or a key left attached to a rotating part of
the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times.
This enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts.
Loose clothes, jewellery or long hair can be caught
in moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used.
Use of dust collection can reduce dust-related
hazards.
h) Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles.
A careless action can cause severe injury within a
fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application.
The correct power tool will do the job better and
safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off.
Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
c) Disconnect the plug from the power source
and/ or remove the battery pack, if detachable,
from the power tool before making any
adjustments, changing accessories, or storing
power tools.
Such preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool.
Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may affect the power toolʼs operation. If
damaged, have the power tool repaired before
use.
Many accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to
control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions and
the work to be performed.
Use of the power tool for operations different from
those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean
and free from oil and grease.
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST

8
Slippery handles and grasping surfaces do not allow
for safe handling and control of the tool in
unexpected situations.
5) Battery tool use and care
a) Recharge only with the charger specified by the
manufacturer.
A charger that is suitable for one type of battery
pack may create a risk of fire when used with
another battery pack.
b) Use power tools only with specifically
designated battery packs.
Use of any other battery packs may create a risk of
injury and fire.
c) When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another.
Shorting the battery terminals together may cause
burns or a fire.
d) Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water. If
liquid contacts eyes, additionally seek medical
help.
Liquid ejected from the battery may cause irritation
or burns.
e) Do not use a battery pack or tool that is
damaged or modified.
Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire, explosion
or risk of injury.
f) Do not expose a battery pack or tool to fire or
excessive temperature.
Exposure to fire or temperature above 130°C may
cause explosion.
g) Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specified in the instructions.
Charging improperly or at temperatures outside the
specified range may damage the battery and
increase the risk of fire.
6) Service
a) Have your power tool serviced by a qualified
repair person using only identical replacement
parts.
This will ensure that the safety of the power tool is
maintained.
b) Never service damaged battery packs.
Service of battery packs should only be performed
by the manufacturer or authorized service providers.
PRECAUTION
Keep children and infirm persons away.
When not in use, tools should be stored out of reach
of children and infirm persons.
CORDLESS DEMOLITION HAMMER
SAFETY WARNINGS
Safety instructions for all operations
1. Wear ear protectors.
Exposure to noise can cause hearing loss.
2. Use the auxiliary handle(s), if supplied with the
tool.
Loss of control can cause personal injury.
3. Hold the power tool by insulated gripping
surfaces, when performing an operation where the
cutting accessory may contact hidden wiring.
Cutting accessory contacting a "live" wire may make
exposed metal parts of the power tool "live" and could
give the operator an electric shock.
ADDITIONAL SAFETY WARNINGS
1. Do not allow foreign matter to enter the hole for
connecting the rechargeable battery.
2. Never disassemble the rechargeable battery and
charger.
3. Never short-circuit the rechargeable battery. Short-
circuiting the battery will cause a great electric current
and overheat. It results in burn or damage to the
battery.
4. Do not dispose of the battery in fire. If the battery is
burnt, it may explode.
5. When using this unit continuously, the unit may
overheat, leading to damage in the motor and switch.
Leave it without using it for approximately 15minutes.
6. Do not insert objects into the air ventilation slots of the
charger.
Inserting metal objects or inflammables into the charger
air ventilation slots will result in electrical shock hazard
or a damaged charger.
7. Bring the battery to the shop from which it was
purchased as soon as the post-charging battery life
becomes too short for practical use. Do not dispose of
the exhausted battery.
8. Ensure that the power switch is in the OFF position. If
the battery is installed while the power switch is in the
ON position, the power tool will start operating
immediately, which could cause a serious accident.
9. Make sure that the battery is installed firmly. If it is at all
loose it could come off and cause an accident.
10. Before starting to break, chip into a wall, floor or ceiling,
thoroughly confirm that such items as electric cables,
conduits or pipes are not buried inside.
11. When working at a highly elevated location, pay
attention to articles and persons below.
12. Do not touch the bit during or immediately after
operation.
The bit becomes very hot during operation and could
cause serious burns.
13. Make sure to securely hold the power tool as shown in
Fig.19 during operation. Do not hold by the grip during
work. If you pull it by mistake, the bull point could jump
out.
14. Wear protective shoes to protect your feet.
15. Wear a dust mask.
Do not inhale the harmful dusts generated in chiseling
operation. The dust can endanger the health of yourself
and bystanders.
16. To prevent accidents, make sure to turn the switch off
and pull out the battery before mounting and removing
accessories, storing, carrying or when not using the
power tool.

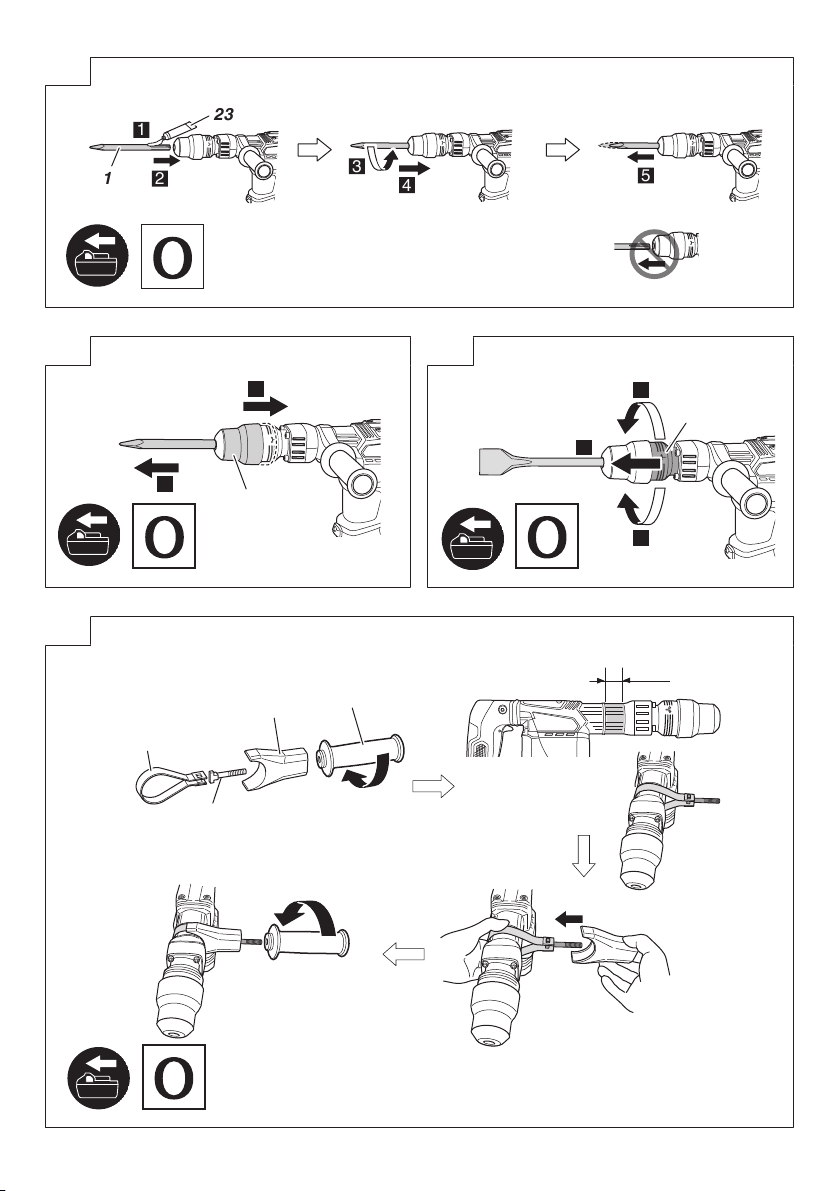

17. Mounting the tool
○ When using tools such as bull points, cutters, etc.,
make sure to use the genuine parts designated by our
company.
○ Clean the shank portion of the bull point. Then smear
the shank portion with the grease or machine oil.
○ Check the latching by pulling on the bull point.
18. Do not use the product if the tool or the battery
terminals (battery mount) are deformed.
Installing the battery could cause a short circuit that
could result in smoke emission or ignition.
19. Keep the power tool terminals (battery mount) free of
swarf and dust.
○ Prior to use, make sure that swarf and dust have not
collected in the area of the terminals.
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST

9
○ During use, try to avoid swarf or dust on the tool from
falling on the battery.
○ When suspending operation or after use, do not leave
the power tool in an area where it may be exposed to
falling swarf or dust.
Doing so could cause a short circuit that could result in
smoke emission or ignition.
20. Do not look directly into the light. Such actions could
result in eye injury.
Wipe off any dirt or grime attached to the lens of the
LED light with a soft cloth, being careful not to scratch
the lens.
Scratches on the lens of the LED light can result in
decreased brightness.
21. Always use the tool and battery at temperatures
between -5°C and 40°C.
22. Always charge the battery at an ambient temperature of
0–40°C.
CAUTION ON LITHIUM-ION BATTERY
To extend the lifetime, the lithium-ion battery equips with
the protection function to stop the output.
In the cases of 1 to 3 described below, when using this
product, even if you are pulling the switch, the motor may
stop. This is not the trouble but the result of protection
function.
1. When the battery power remaining runs out, the motor
stops.
In such a case, charge it up immediately.
2. If the tool is overloaded, the motor may stop. In this
case, release the switch of tool and eliminate causes of
overloading. After that, you can use it again.
3. If the battery is overheated under overload work, the
battery power may stop.
In this case, stop using the battery and let the battery
cool. After that, you can use it again.
Furthermore, please heed the following warning and
caution.
WARNING
In order to prevent any battery leakage, heat generation,
smoke emission, explosion and ignition beforehand, please
be sure to heed the following precautions.
1. Make sure that swarf and dust do not collect on the
battery.
○ During work make sure that swarf and dust do not fall
on the battery.
○ Make sure that any swarf and dust falling on the power
tool during work do not collect on the battery.
○ Do not store an unused battery in a location exposed to
swarf and dust.
○ Before storing a battery, remove any swarf and dust
that may adhere to it and do not store it together with
metal parts (screws, nails, etc.).
2. Do not pierce battery with a sharp object such as a nail,
strike with a hammer, step on, throw or subject the
battery to severe physical shock.
3. Do not use an apparently damaged or deformed
battery.
4. Do not use the battery for a purpose other than those
specified.
5. If the battery charging fails to complete even when a
specified recharging time has elapsed, immediately
stop further recharging.
6. Do not put or subject the battery to high temperatures or
high pressure such as into a microwave oven, dryer, or
high pressure container.
7. Keep away from fire immediately when leakage or foul
odor are detected.
8. Do not use in a location where strong static electricity
generates.
9. If there is battery leakage, foul odor, heat generated,
discolored or deformed, or in any way appears
abnormal during use, recharging or storage,
immediately remove it from the equipment or battery
charger, and stop use.
10. Do not immerse the battery or allow any fluids to flow
inside. Conductive liquid ingress, such as water, can
cause damage resulting in fire or explosion. Store your
battery in a cool, dry place, away from combustible and
flammable items. Corrosive gas atmospheres must be
avoided.
11. Do not give a strong shock to the display panel or break
it. It may lead to a trouble.
CAUTION
1. If liquid leaking from the battery gets into your eyes, do
not rub your eyes and wash them well with fresh clean
water such as tap water and contact a doctor
immediately.
If left untreated, the liquid may cause eye-problems.
2. If liquid leaks onto your skin or clothes, wash well with
clean water such as tap water immediately.
There is a possibility that this can cause skin irritation.
3. If you find rust, foul odor, overheating, discolor,
deformation, and/or other irregularities when using the
battery for the first time, do not use and return it to your
supplier or vendor.
WARNING
If a conductive foreign matter enters in the terminal of
lithium ion battery, the battery may be shorted, causing fire.
When storing the lithium ion battery, obey surely the rules
of following contents.
○ Do not place conductive debris, nail and wires such as
iron wire and copper wire in the storage case.
○ To prevent shorting from occurring, load the battery in
the tool or insert securely the battery cover for storing
until the ventilator is not seen.
REGARDING LITHIUM-ION BATTERY
TRANSPORTATION
When transporting a lithium-ion battery, please observe the
following precautions.
WARNING
Notify the transporting company that a package contains a
lithium-ion battery, inform the company of its power output
and follow the instructions of the transportation company
when arranging transport.
○ Lithium-ion batteries that exceed a power output of
100Wh are considered to be in the freight classification
of Dangerous Goods and will require special application
procedures.
○ For transportation abroad, you must comply with
international law and the rules and regulations of the
destination country.

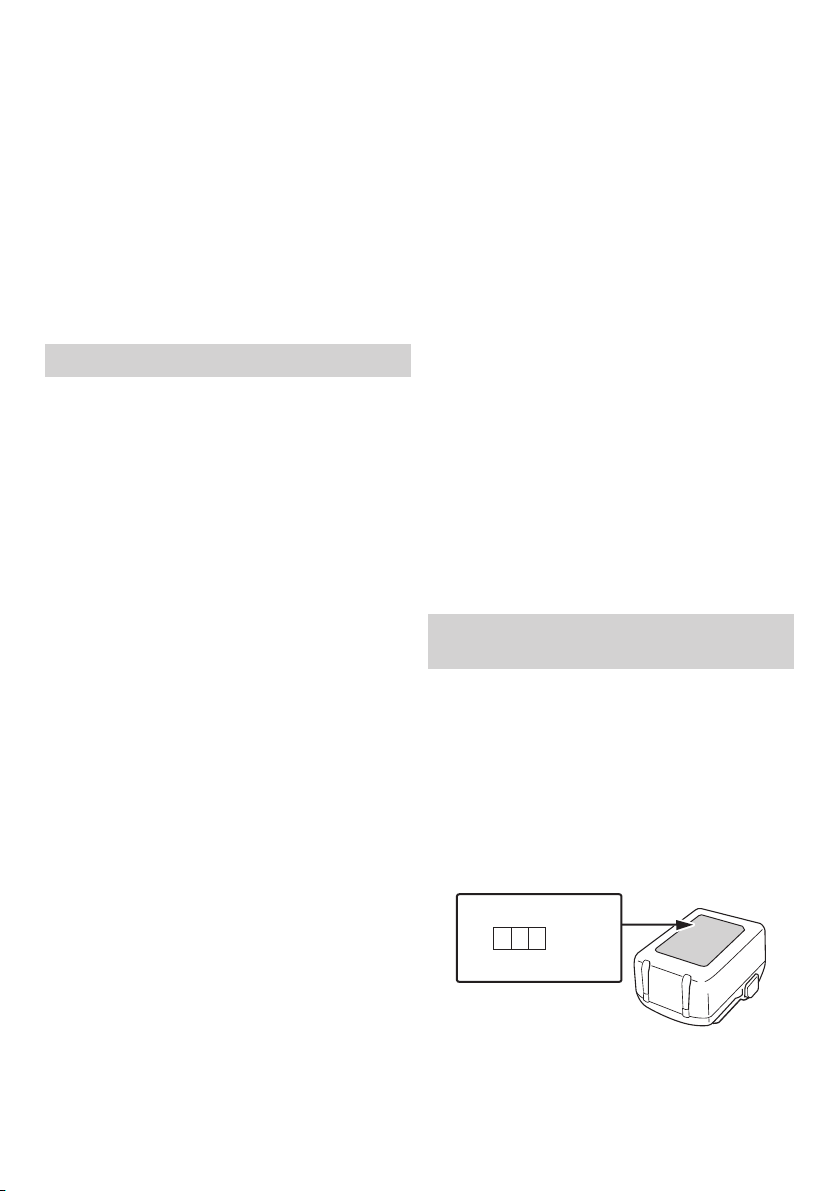

Wh
Power Output
2 to 3 digit number
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST

10
USB DEVICE CONNECTION
PRECAUTIONS (UC18YSL3)
When an unexpected problem occurs, the data in a USB
device connected to this product may be corrupted or lost.
Always make sure to back up any data contained in the
USB device prior to use with this product.
Please be aware that our company accepts absolutely no
responsibility for any data stored in a USB device that is
corrupted or lost, nor for any damage that may occur to a
connected device.
WARNING
○ Prior to use, check the connecting USB cable for any
defect or damage.
Using a defective or damaged USB cable can cause
smoke emission or ignition.
○ When the product is not being used, cover the USB port
with the rubber cover.
Buildup of dust etc. in the USB port can cause smoke
emission or ignition.
NOTE
○ There may be an occasional pause during USB
recharging.
○ When a USB device is not being charged, remove the
USB device from the charger.
Failure to do so may not only reduce the battery life of a
USB device, but may also result in unexpected
accidents.
○ It may not be possible to charge some USB devices,
depending on the type of device.
NAMES OF PARTS
The numbers in the list below correspond to Fig.1–Fig.19.
1Tool
2Front cap
3Grip
4Grip (B)
5On-lock Switch
6Trigger switch
7Handle
8Impact rate selector switch
9Display lamp
10 Name plate
11 Battery
12 Side handle
13 Motor
14 Tail cover
15 LED light
16 Housing
17 Cylinder Case Cover
18 Latch
19 Charge indicator lamp
20 Remaining battery indicator switch
21 Remaining battery indicator lamp
22 Display panel
23 Grease
24 Band
25 Handle bolt
26 Mount
27 Band attachment area
28 Sliding grooves (Product)
29 Terminal (Product)
30 Air gun
31 Terminal (Battery)
32 Sliding grooves (Battery)
33 Rubber cover
34 USB port
35 USB cable
SYMBOLS
WARNING
The following show symbols used for the machine.
Be sure that you understand their meaning before
use.
H3641DA: Cordless Demolition Hammer
Low Vibration Handle
To reduce the risk of injury, user must read
instruction manual.
Direct current
V
Rated voltage
Bpm Full-load impact rate
kg
Weight *1
(According to EPTA-Procedure 01/2014)
Switching ON
0
Switching OFF
Impact rate selector switch
Display lamp
L
Low impact rate
H
High impact rate
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST

11

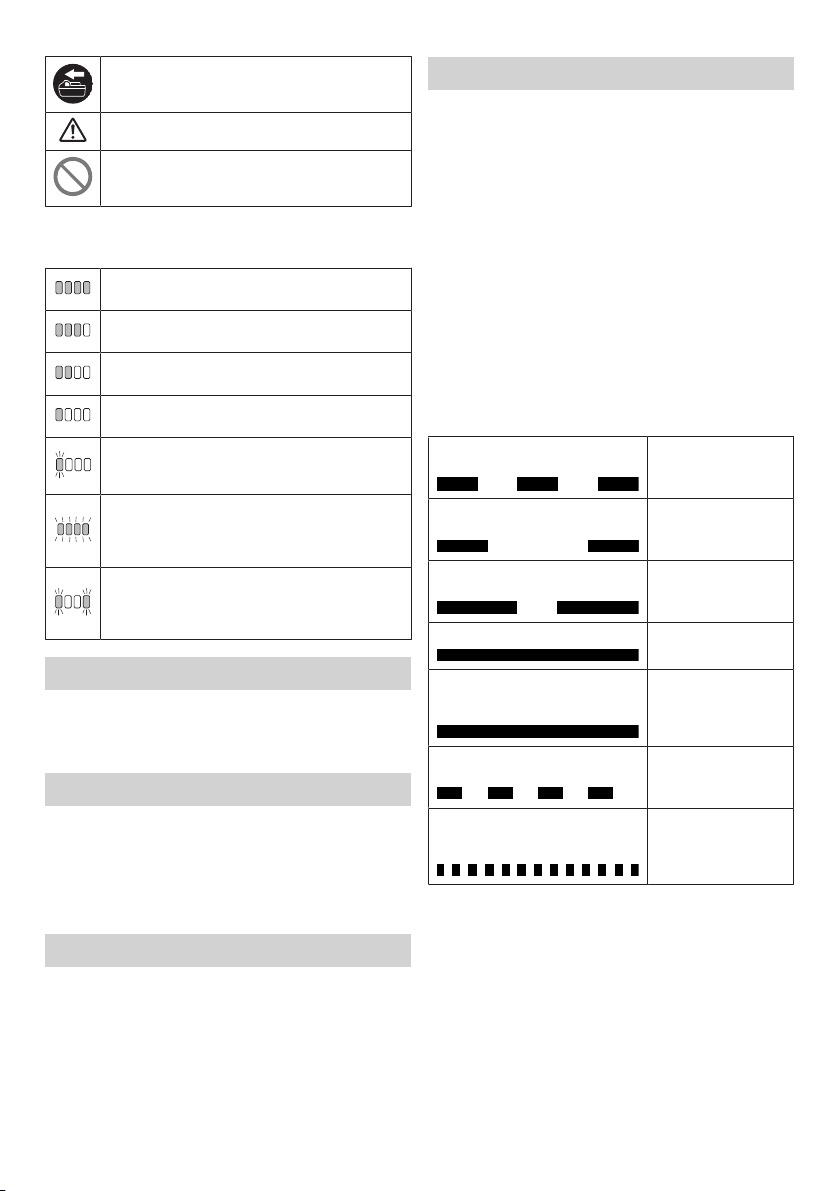

Disconnect the battery
Warning
Prohibited action
*1 Depending on attached battery. The heaviest weight is
measured with BSL36B18X.
Battery
Lights ;
The battery remaining power is over 75%.
Lights ;
The battery remaining power is 50%–75%.
Lights ;
The battery remaining power is 25%–50%.
Lights ;
The battery remaining power is less than 25%.
Blinks ;
The battery remaining power is nearly empty.
Recharge the battery soonest possible.
Blinks ;
Output suspended due to high temperature.
Remove the battery from the tool and allow it to
fully cool down.
Blinks ;
Output suspended due to failure or malfunction.
The problem may be the battery so please
contact your dealer.

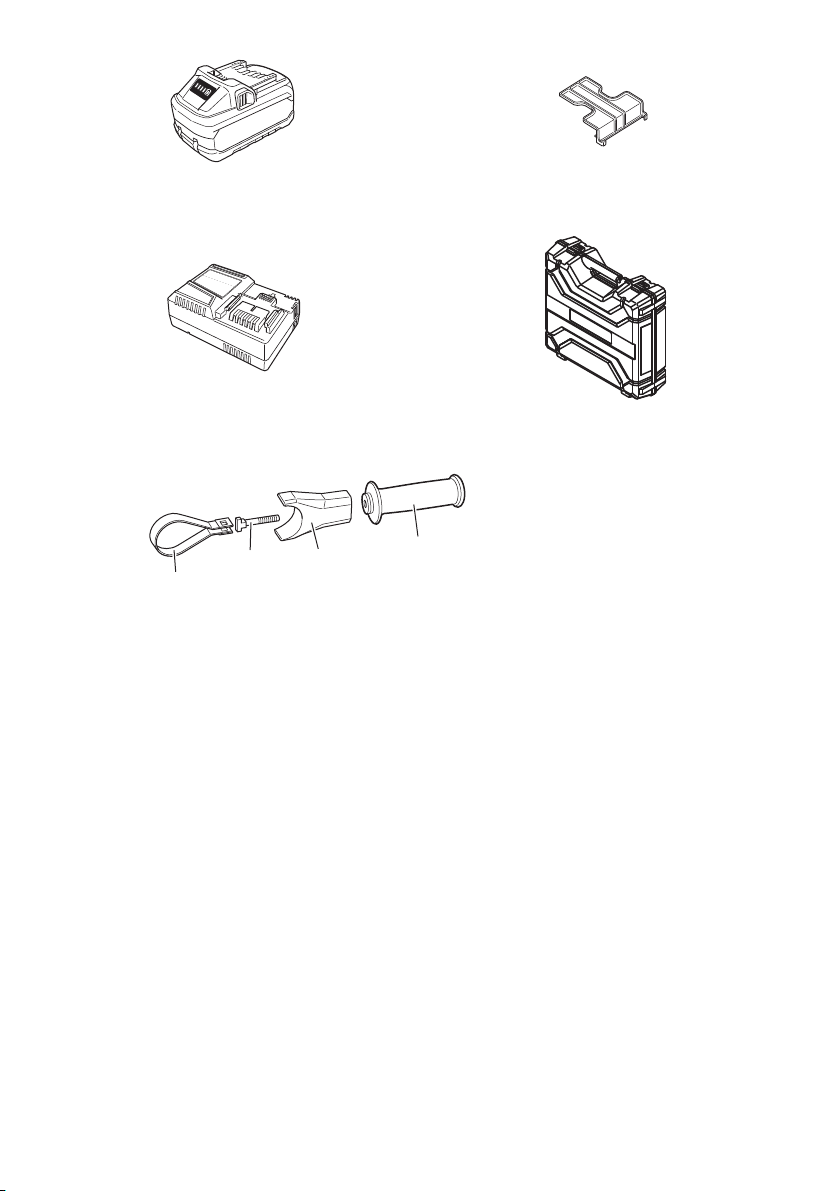

STANDARD ACCESSORIES
In addition to the main unit (1 unit), the package contains
the accessories listed on page15.
Standard accessories are subject to change without notice.
APPLICATIONS
Demolishing concrete, chiseling off concrete, grooving, bar
cutting.
Application examples:
Installation of piping and wiring, sanitary facility installation,
machinery installation, water supply and drainage work,
interior jobs, harbor facilities and other civil engineering
works.
SPECIFICATIONS
The specifications of this machine are listed in the Table on
page 15.
NOTE
○ Existing batteries (BSL3660/3626X/3626/3625/3620,
BSL18xx and BSL14xx series) cannot be used with this
tool.
○ Due to HiKOKI’s continuing program of research and
development, the specifications herein are subject to
change without prior notice.
CHARGING
Before using the power tool, charge the battery as follows.
<UC18YSL3>
1. Connect the charger’s power cord to the
receptacle.
When connecting the plug of the charger to a
receptacle, the charge indicator lamp will blink in red.
(See Table1)
2. Insert the battery into the charger.
Firmly insert the battery into the charger as shown in
Fig.3 (on page 2).
3. Charging
When inserting a battery in the charger, charging will
commence and the charge indicator lamp will blink in
blue.
When the battery becomes fully recharged, the charge
indicator lamp will light up in green. (See Table1)
(1) Charge indicator lamp indication
The indications of the charge indicator lamp will be as
shown in Table1, according to the condition of the
charger or the rechargeable battery.
Table 1: Indications of the charge indicator lamp
ON/OFF at 0.5sec. intervals
(RED) Before charging *1
Lights for 0.5sec. at intervals of
1sec. (BLUE) Charged at less than
50%
Lights for 1sec. at intervals of
0.5sec. (BLUE) Charged at less than
80%
Lights continuously (BLUE) Charged at more
than 80%
Lights continuously (Continuous
buzzer sound: about 6sec.)
(GREEN) Charging complete
ON/OFF at 0.3sec. intervals
(RED) Overheat standby *2
ON/OFF at 0.1sec. intervals
(Intermittent buzzer sound:
about 2sec.) (PURPLE) Charging impossible
*3
NOTE
*1 If the red lamp continues to blink even after the charger
has been attached, check to confirm that the battery
has been fully inserted.
*2 Battery overheated. Unable to charge.
Although charging will start once the battery has cooled
down even when left in situ, the best practice is to
remove the battery and allow it to cool down in a
shaded, well-ventilated location before charging.
*3 Malfunction in the battery or the charger
– Fully insert the battery.
– Check to confirm that no foreign matter is stuck to
the battery mount or terminals. If there are no
foreign objects, it is probable that the battery or
charger is malfunctioning. Take it to your authorized
Service Center.
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST

12
○ When the battery charger has been continuously used,
the battery charger will be heated, thus constituting the
cause of the failures. Once the charging has been
completed, give 5minutes rest until the next charging.
(2) Regarding the temperatures and charging time of the
battery (See Table2)
Table 2
Model UC18YSL3
Type of battery Li-ion
Charging voltage 14.4–18 V
Temperatures at which the
battery can be recharged 0°C–50°C
Charging time for
battery capacity,
approx. (At 20°C)
1.5Ah 15min
2.0Ah 20min
2.5Ah 25min
3.0Ah
20min
(BSL1430C,BSL1830C:
30min)
4.0Ah 26 min
(BSL1840M: 40min)
5.0Ah 32min
6.0Ah 38min
Charging time for
multi volt battery
capacity, approx.
(At 20°C)
1.5Ah
(×2unit) 20min
2.5Ah
(×2unit) 32min
4.0Ah
(×2unit) 52min
Number of battery cells 4–10
Charging voltage for USB 5V
Charging current for USB 2A
Weight 0.6kg
NOTE
○ The recharging time may vary according to the ambient
temperature and power source voltage.
○ If charging takes a long time
– Charging will take longer at extremely low ambient
temperatures. Charge the battery in a warm location
(such as indoors).
– Do not block the air vent. Otherwise the interior will
overheat, reducing the charger's performance.
– If the cooling fan is not operating, contact a HiKOKI
Authorized Service Center for repairs.
4. Disconnect the charger’s power cord from the
receptacle.
5. Hold the charger firmly and pull out the battery.
NOTE
Be sure to pull out the battery from the charger after
use, and then keep it.
Regarding electric discharge in case of new
batteries, etc.
As the internal chemical substance of new batteries and
batteries that have not been used for an extended period is
not activated, the electric discharge might be low when
using them the first and second time. This is a temporary
phenomenon, and normal time required for recharging will
be restored by recharging the batteries 2–3 times.
How to make the batteries perform longer.
(1) Recharge the batteries before they become completely
exhausted. When you feel that the power of the tool
becomes weaker, stop using the tool and recharge its
battery. If you continue to use the tool and exhaust the
electric current, the battery may be damaged and its life
will become shorter.
(2) Avoid recharging at high temperatures. A rechargeable
battery will be hot immediately after use. If such a
battery is recharged immediately after use, its internal
chemical substance will deteriorate, and the battery life
will be shortened. Leave the battery and recharge it
after it has cooled for a while.
MOUNTING AND OPERATION
Action Figure Page
Removing and inserting the battery 2 2
Charging 3 2
Remaining battery indicator 4 2
Inserting SDS-max tools 5 3
Removing SDS-max tools 6 3
Deciding working position of tool 7 3
Installing the side handle 8 3
Switching on and off 9 4
Locking-on the On/Off switch 10 4
Releasing the On/Off switch 11 4
Impact rate change*112 4
How to use the demolition hammer*213 5
How to use the LED light 14 5
Cleaning of the battery installation
compartment 15 5
Charging a USB device from a
electrical outlet 16-a 5
Charging a USB device and battery
from a electrical outlet 16-b 5
How to recharge USB device 17 6
When charging of USB device is
completed 18 6

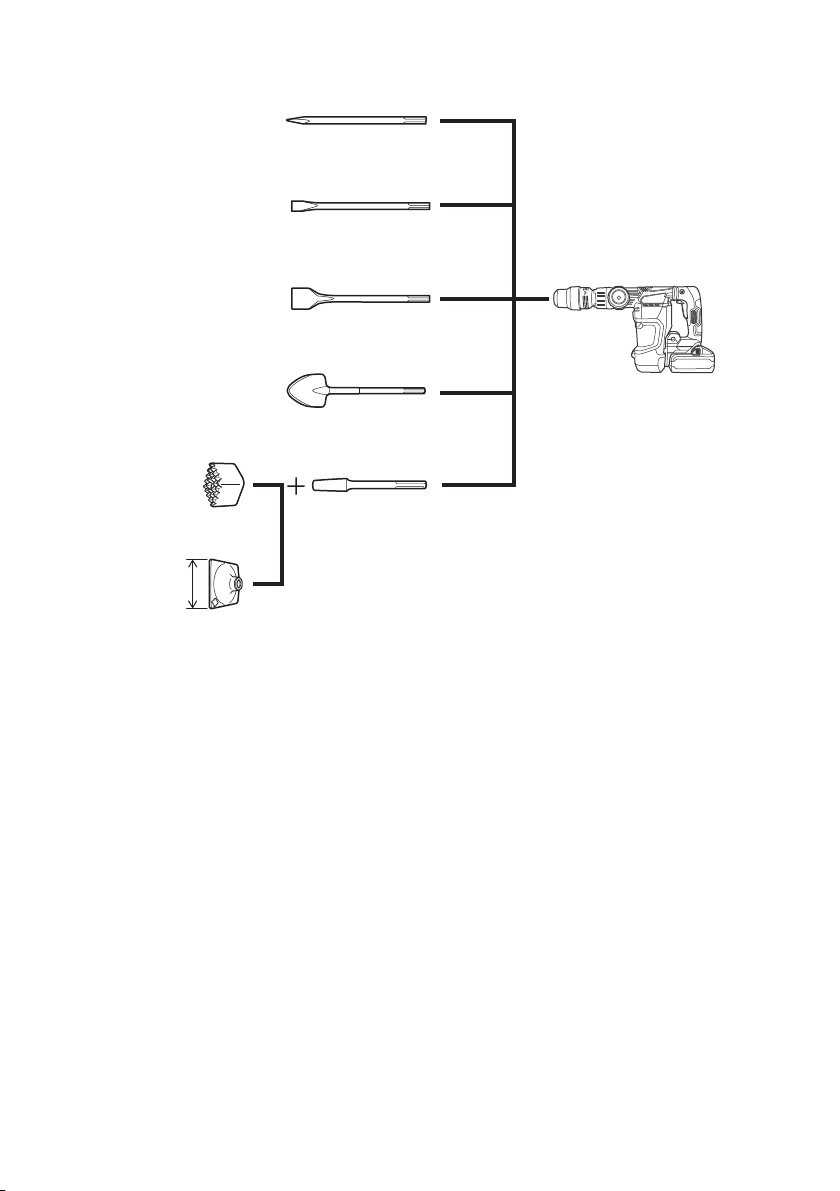

Selecting accessories*3― 16, 17
*1 When conducting chipping operations or alignment
operations, change the tool’s impact rate in accordance
with the task by using the impact rate selector switch.
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST

13
NOTE
○ Impact rate cannot be adjusted until a battery is
installed to the power tool and the switch has been
triggered once.
○ While the tool’s motor is operating, impact rate cannot
be adjusted by pressing the impact rate selector switch.
To adjust impact rate, switch off the tool.
Once the motor has stopped, press the impact rate
selector switch to adjust the impact rate.
*2 Operate this Demolition Hammer by utilizing its empty
weight. The performance will not be better even if it is
pressed or thrust forcibly against the work surface.
Hold this Demolition Hammer with a force just sufficient
to counteract the reaction.
*3 For detailed information regarding each tool, contact a
HiKOKI authorized service center.
Warming up (Fig.13)
The grease lubrication system in this unit may require
warming up in cold regions.
Position the end of the bit so makes contact with the
concrete, turn on the switch and perform the warming up
operation. Make sure that a hitting sound is produced and
then use the unit.
ABOUT THE PROTECTION
FUNCTIONS
This product features functions that are designed to protect
the tool itself as well as the battery. While the switch is
pulled, if any of the safeguard functions are triggered during
operation, the display lamp will blink as described in
Table3. When any of the safeguard functions are
triggered, immediately remove your finger from the switch
and follow the instructions described under corrective
action.

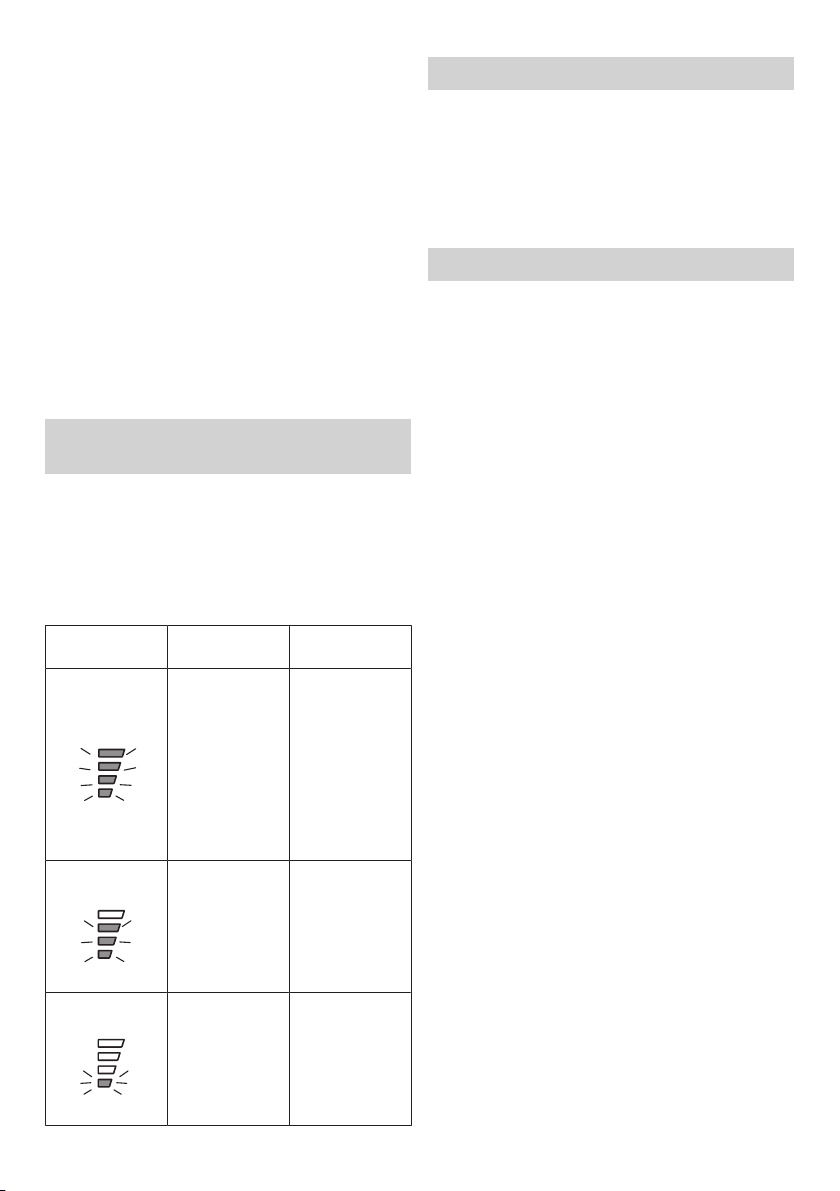

Table 3
Display lamp
flashing Cause Solution
Flash
Internal
temperature has
risen beyond the
unit’s specified
temperature.
(Temperature
increase
protection
function)
Turn off the unit
and allow it to
cool down for
about 15 to
30minutes.
When the
temperature
goes down,
press the impact
rate selector
switch to
recover.
Flash
Excessive
pressure applied
to the tool has
resulted in an
overload.
(Overload
protection
function)
Press the impact
rate selector
switch to
recover. Try to
avoid tasks that
will apply excess
pressure to the
unit.
Flash Sensor signal
read error.
(Control
monitoring
function)
Press the impact
rate selector
switch to
recover. Repair
may be required
if this error
continuously
occurs.
GREASE REPLACEMENT
This Demolition Hammer is of full air-tight construction to
protect against dust.
Therefore, this Demolition Hammer can be used without
lubrication for long periods. Replace the grease as
described below.
Grease Replacement Period
After purchase, replace grease after every 6 months of
usage. Ask for grease replacement at the nearest
authorized Service Center.
MAINTENANCE AND INSPECTION
CAUTION
Be sure to turn off the switch and remove the battery
before maintenance and inspection.
1. Inspecting the tool
Since use of as dull tool will degrade efficiency and
cause possible motor malfunction, sharpen or replace
the tool as soon as abrasion is noted.
2. Inspecting the mounting screws
Regularly inspect all mounting screws and ensure that
they are properly tightened. Should any of the screws
be loose, retighten them immediately. Failure to do so
could result in serious hazard.
3. Maintenance of the motor
The motor unit winding is the very “heart” of the power
tool. Exercise due care to ensure the winding does not
become damaged and/or wet with oil or water.
4. Inspection of terminals (tool and battery)
Check to make sure that swarf and dust have not
collected on the terminals.
On occasion check prior, during and after operation.
CAUTION
Remove any swarf or dust which may have collected on
the terminals.
Failure to do so may result in malfunction.
5. Cleaning on the outside
When the power tool is stained, wipe with a soft dry
cloth or a cloth moistened with soapy water. Do not use
chloric solvents, gasoline or paint thinner, for they melt
plastics.
6. Cleaning the battery installation compartment and
the battery
After demolishing concrete, if concrete dust has
accumulated on the battery installation compartment
and the battery, clean off the accumulated concrete
dust with an air gun or a dry cloth before using the tool.
(Fig.15)
Also, after cleaning, ensure that the battery can be
installed and removed smoothly from the tool.
CAUTION
Using the tool when the battery is covered with concrete
dust may lead to accidents such as the battery falling
during use.
Furthermore, such use may cause a malfunction or
contact failure between the battery and the terminals.
7. Storage
Store the power tool and battery in a place in which the
temperature is less than 40°C and out of reach of
children.
NOTE
Storing lithium-ion batteries.
Make sure the lithium-ion batteries have been fully
charged before storing them.
Prolonged storage (3 months or more) of batteries with
a low charge may result in performance deterioration,
significantly reducing battery usage time or rendering
the batteries incapable of holding a charge.
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST

14
However, significantly reduced battery usage time may
be recovered by repeatedly charging and using the
batteries two to five times.
If the battery usage time is extremely short despite
repeated charging and use, consider the batteries dead
and purchase new batteries.
CAUTION
In the operation and maintenance of power tools, the
safety regulations and standards prescribed in each
country must be observed.
Important notice on the batteries for the HiKOKI
cordless power tools
Please always use one of our designated genuine
batteries. We cannot guarantee the safety and
performance of our cordless power tool when used with
batteries other than these designated by us, or when the
battery is disassembled and modified (such as
disassembly and replacement of cells or other internal
parts).
NOTE
Due to HiKOKI’s continuing program of research and
development, the specifications herein are subject to
change without prior notice.
TROUBLESHOOTING
Use the inspections in the table below if the tool does not operate normally. If this does not remedy the problem, consult
your dealer or the HiKOKI Authorized Service Center.
Symptom Possible cause Remedy
Tool doesn’t run No remaining battery power Charge the battery.
Battery isn’t securely attached. Push in the battery until a click is
heard.
Concrete dust has accumulated on
the terminals of the battery
installation compartment as well as
on the battery sliding grooves.
Clean off the accumulated concrete
dust with an air gun or a dry cloth.
Tool suddenly stopped Tool was overburdened Remove the cause of the
overburdening.
Battery or tool is overheated. Allow the tool and battery to
thoroughly cool.
Tool bits
-can’t be attached
-fall off
The shape of the attachment portion
doesn’t match
For the SDS-max shank type, use a
bit with a diameter that is within the
designated range.
Concrete can’t be smoothly
demolished.
The bit is worn Sharpen or replace with a new bit.
Battery cannot be installed. Attempting to install a battery other
than that specified for the tool.
Please install a multi volt type battery.
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST

15
S
p
e
c
i
f
i
c
a
t
i
o
n
H3641DA
V 36 V
Bpm 1500–2880 /min
kg
5.8–6.1 kg
H3641DA
H2
1
1
1
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST

16
BSL36..18.. 329897
UC18YSL3 (14.4 V–18 V) 380908
373245
331247 373244 380210
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST

17
280 mm : 313471
400 mm : 313472
280 mm : 313473
400 mm : 313474
W50×400mm : 313475
400 mm : 313476
200 mm : 313479
313477
L = 150 mm : 313478
L
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST

18
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST

19
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST

Shinagawa Intercity Tower A, 15-1, Konan 2-chome,
Minato-ku, Tokyo, Japan
308
Code No. C99749411 M
Printed in China
2023/07/18 13:39:10Stylesheet: ASIA Version: 2023.6.21
H3641DA_C99749411_308_AUST
