Hioki LR5041 User manual

LR5041
LR5042
LR5043 Instruction Manual
VOLTAGE LOGGER
EN
June 2022 Revised edition 6
LR5041B980-06 22-06H
Read carefully before use.
Keep for future reference.
When using the instrument for the
rst time Troubleshooting
Part Names/Functions
and Display Indicators p.12 Maintenance and Service p.91
Troubleshooting p.92
Settings List p.29 Error Displays p.94
[600329176]
HIOKI LR5041B980-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Contents
i
Contents
Introduction ..............................................................................1
Verifying Package Contents....................................................3
Safety Information....................................................................5
Operating Precautions.............................................................6
Measurement Preparation to Data Analysis ..........................8
Chapter 1
Overview__________________________________ 11
1.1 Product Overview and Features .............................11
1.2 Part Names/Functions and Display Indicators .....12
1.3 Display Organization ...............................................14
Chapter 2
Measurement Preparations___________________ 17
2.1 Installing (or Replacing) the Battery ......................17
2.2 Connecting a Connection Cable ............................20
2.3 Installing the PC Application Program ..................23
Chapter 3
Settings___________________________________ 29
3.1 Settings List .............................................................29
3.2 Making Settings on the Logger ..............................31
3.3 Making Settings from the LR5000 Utility
Program ....................................................................36
Chapter 4
Measurement and Analysis___________________ 43
4.1 Pre-Measurement Inspection .................................43
4.2 Installing the Logger ...............................................44
4.3 Starting and Stopping Recording ..........................46
4.4 Confirming Currently Measured Values and Data
Recording .................................................................49
LR5041B980-06
HIOKI LR5041B980-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Contents
ii
4.5 Automatically Importing (Saving) Recorded Data
to a Computer, and Graph Display ........................ 49
4.6 Manually Importing (Saving) Recorded Data to a
Computer, and Graph Display ............................... 59
4.7 Displaying a Graph of Saved Recording Data ..... 62
4.8 Printing Recorded Data .......................................... 64
Chapter 5
Processing Recorded Data ___________________65
5.1 Scaling ..................................................................... 67
5.2 Calculating Electric Power ..................................... 68
5.3 Calculating Energy Cost ........................................ 69
5.4 Calculating Operating Rate .................................... 70
5.5 Integration ............................................................... 71
5.6 Calculating Dew-Point Temperature ..................... 72
5.7 Two-Data-Item Arithmetic Calculations ................ 73
5.8 Converting Over-Threshold Data Values .............. 74
Chapter 6
Organizing Data ____________________________75
6.1 Copying and Moving Data ...................................... 76
6.2 Deleting Data ........................................................... 77
6.3 Combining Data ...................................................... 78
6.4 Extracting Data ....................................................... 79
Chapter 7
Options Settings (LR5000 Utility Program) ______81
7.1 Changing the Saving Method for Imported Data ... 82
7.2 Changing the Connection Monitoring Method,
and Logger Settings Displays ............................... 83
Chapter 8
Specifications______________________________85
8.1 Measurement Specifications ................................. 85
8.2 Functional Specifications ...................................... 86
HIOKI LR5041B980-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Contents
iii
8.3 Miscellaneous ..........................................................87
8.4
LR5091 Communication Adapter Specifications ...88
Chapter 9
Maintenance and Service ____________________ 91
9.1 Cleaning ...................................................................92
9.2 Disposing of the Logger .........................................92
9.3 Troubleshooting ......................................................92
9.4 Error Displays ..........................................................94
Appendix_________________________________ A 1
Appendix 1 About Recording Modes..............................A 1
Appendix 2 Recording Intervals and Maximum
Recording Times..........................................A 2
Appendix 3 Battery Life Approximation.........................A 2
Index _________________________________Index 1
HIOKI LR5041B980-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Introduction
1
Thank you for purchasing the HIOKI Model LR5041, LR5042, LR5043 Voltage Log-
ger. To obtain maximum performance from the logger, please read this manual
first, and keep it handy for future reference.
Microsoft and Excel are either registered trademarks or trademarks of Microsoft Corpora-
tion in the United States and other countries.
Introduction
The latest edition of the instruction manual
The contents of this manual are subject to change, for example as a
result of product improvements or changes to specifications.
The latest edition can be downloaded from Hioki’s website.
Trademarks
Notation
Indicates a prohibited action.
(p. ) Indicates the location of reference information.
Indicates the location of reference information.
*Indicates that descriptive information is provided below.
[ ] Menus, commands, dialogs, buttons in a dialog, and other
names on the screen and the keys are indicated in brack-
ets.
SET
(Bold charac-
ters)
Bold characters within the text indicate operating button
labels.
Windows Unless otherwise specified, “Windows” represents Win-
dows 7 or Windows 10.
HIOKI LR5041B980-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Introduction
2
The screen of this logger displays characters in the following manner.
We define measurement tolerances in terms of rdg. (reading) and dgt.
(digit) values, with the following meanings:
Accuracy
rdg.
(reading or displayed value) The value currently being measured and indicated
on the measuring instrument.
dgt.
(resolution)
The smallest displayable unit on a digital measuring
instrument, i.e., the input value that causes the digi-
tal display to show a "1" as the least-significant digit.
Mouse Operation
Click Press and quickly release the left button of the mouse.
Right-click Press and quickly release the right button of the mouse.
Double click Quickly click the left button of the mouse twice.
Drag While holding down the left button of the mouse, move the
mouse and then release the left button to deposit the chosen
item in the desired position.
Activate Click on a window on the screen to activate that window.
HIOKI LR5041B980-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Verifying Package Contents
3
When you receive the logger, inspect it carefully to ensure that no damage
occurred during shipping. In particular, check the accessories, panel switches, and
connectors. If damage is evident, or if it fails to operate according to the specifica-
tions, contact your dealer or Hioki representative.
Quantities in parentheses ( ).

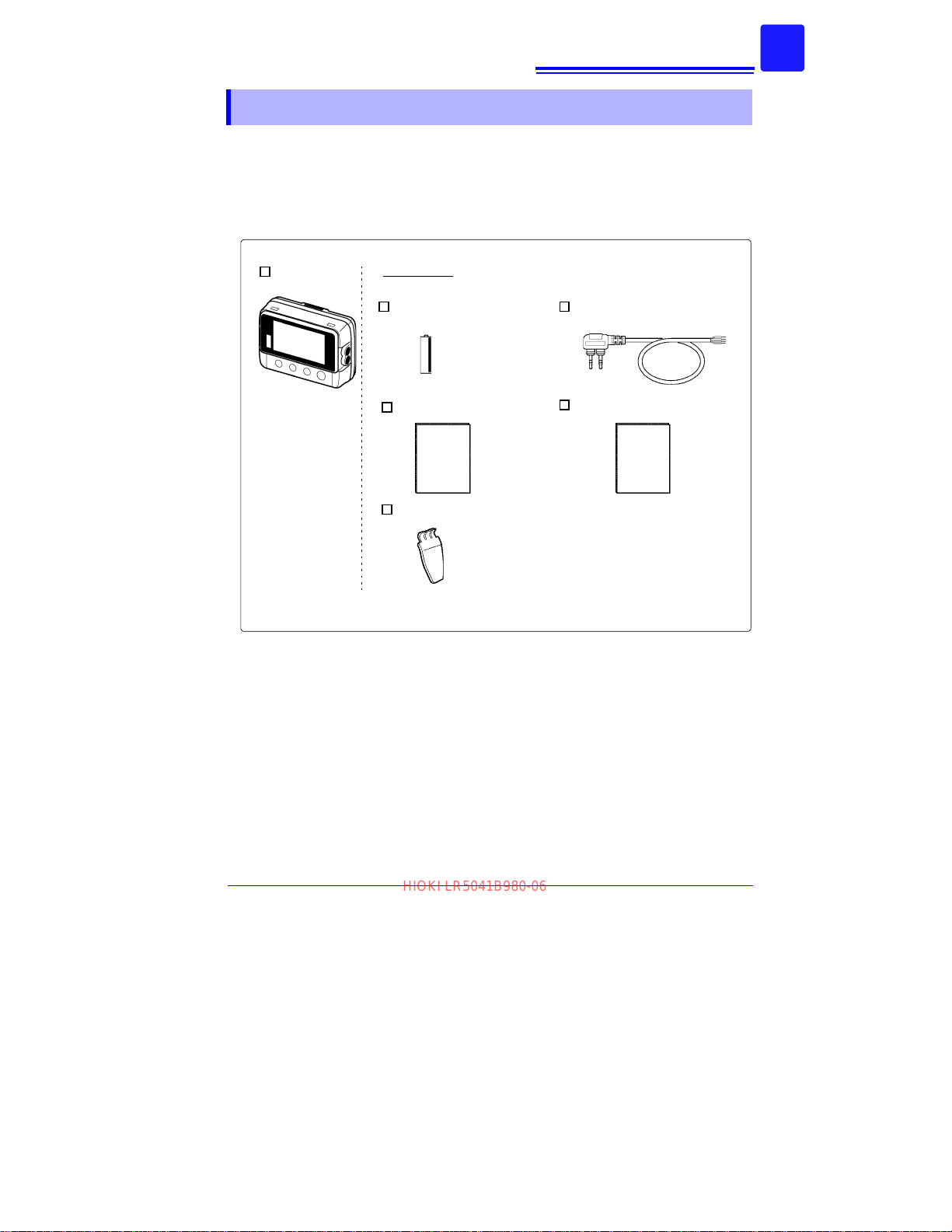

Verifying Package Contents
Logger (1)
LR6 alkaline battery (1)
(Pre-installed in the logger.)
Accessories
See: Other specified options:"Options" (p.4)
LR9802 Connection Cable (1)
Instruction Manual (1)
Operation Manual (1)
Stand (1)
HIOKI LR5041B980-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Verifying Package Contents
4
The options listed below are available for the instrument. To order an option, please
contact your authorized Hioki distributor or reseller. Options are subject to change.
Please check Hioki's website for the latest information.
Use the original packing mater ials when transporting the logger, if possible.
Pack the logger so that it will not sustain damage during shipping, and include a
description of existing damage. We do not take any responsibility for damage incurred
during shipping.
Options
LR5092-20 Data Collector
(Includes LR5000 Utility Program* CD [PC
application software], LR03 alkaline battery
x2, Instruction manual, Operation manual,
and USB Cable)
LR9802 Connection Cable
(Cable length: Approx. 1 m)
LR5091 Communication Adapter(1)
(Includes LR5000 Utility Program* CD [PC
application software] and USB Cable)
* :The latest version can be downloaded
from our web site.
See: LR5091 specification: (p.88) LR9901 Wall-Mounted Holder
Z5004 Magnetic Strap
See: Method of mounting: (p.45)
See: Method of mounting: (p.45)
Transporting Precautions
HIOKI LR5041B980-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Safety Information
5
This manual contains information and warnings essential for safe operation of the
logger and for maintaining it in safe operating condition. Before using it, be sure to
carefully read the following safety precautions.
Markings on the logger have the following meanings.
Markings on the logger have the following meanings.
The following symbols in this manual indicate the relative importance of cautions and warnings.
Safety Information
This logger is designed to comply with IEC 61010 Safety Standards, and
has been thoroughly tested for safety prior to shipment. However, mis-
handling during use could result i n injury or death, as well as damage to
the logger. However, using the logger in a way not described in this
manual may negate the provided safety features.
Be certain that you understand the instructions and precautions in the
manual before use. We disclaim any responsibility for accidents or inju-
ries not resulting directly from logger defects.
Safety Symbols
In the manual, the symbol indicates particularly important infor-
mation that the user should read before using the logger.
The symbol printed on the logger indicates that the user should
refer to a corresponding topic in the manual (marked with the
symbol) before using the relevant function.
Indicates DC (Direct Current).
Symbols for Various Standards
Indicates that the product conforms to regulations set out by the EU
Directive.
This symbol indicates that the product conforms to safety regu-
lations set out by the EC Directive.
Danger Levels
Indicates that incorrect operation presents an extreme hazard
that could result in serious injury or death to the user.
Indicates that incorrect operation presents a significant hazard
that could result in serious injury or death to the user.
Indicates that incorrect operation presents a possibility of
injury to the user or damage to the logger.
Indicates advisory items related to performance or correct
operation of the logger.
HIOKI LR5041B980-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Operating Precautions
6
Follow these precautions to ensure safe operation and to obtain the full ben-
efits of the various functions.
Operating temperature and humidity: -20 to70°C (-4.0 to 158.0°F), 80%RH or less
(non-condensating)
Storage temperature and humidity : -20 to70°C (-4.0 to 158.0°F), 80%RH or less
(non-condensating)
*IP54 :This indicates the degree of protection provided by the enclosure of the
device against use in hazardous locations, entry of solidforeign objects,
and the ingress of water.
5 : Protected against access to hazardous parts with wire measuring 1.0
mm in diameter. Dust-proof type (The penetration of dust cannot be pre-
vented completely, but quantities of dust that may hinder the stated op-
eration of equipment or safety cannot penetrate the enclosure.Åj
4 : The equipment inside the enclosure is protected against the harmful ef-
fects of water splashed against the enclosure from any direction.
Operating Precautions
Installation Precautions
Avoid the following locations that could cause an accident or damage to the logger.
Exposed to direct
sunlight
Exposed to high tem-
perature
In the presence of
corrosive or explosive
gases
Exposed to oil, other
chemicals, or solvents
Exposed to high
humidity or condensa-
tion
Exposed to strong
electromagnetic
fields
Near electromagnetic
radiators
Subject to vibration
Near induction heat-
ing systems
(e.g., high-frequency
induction heating sys-
tems and IH cooking
utensils)
• The protection rating for the enclosure of this device (based on
EN60529) is *IP54.
• Although this logger is designed to resist the ingress of dust and
water, it is not entirely water- or dust-proof, so to avoid shock or dam-
age, do not use it in a wet or dusty environment.
Avoiding Logger Damage
To avoid damage to the logger, protect it from physical shock when
transporting and handling. Be especially careful to avoid physical shock
from dropping.
HIOKI LR5041B980-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Operating Precautions
7
Before using the logger the first time, verify that it operates normally to ensure that the
no damage occurred during storage or shipping. If you find any damage, contact your
dealer or Hioki representative.
CD Handling
• Always hold the disc by the edges, so as not to make fingerprints on
the disc or scratch the printing.Never touch the recorded side of the
disc. Do not place the disc directly on anything hard.
• Do not wet the disc with volatile alcohol or water, as there is a possibil-
ity of the label printing disappearing.
• To write on the disc label surface, use a spirit-based felt pen. Do not
use a ball-point pen or hard-tipped pen, because there is a danger of
scratching the surface and corrupting the data. Do not use adhesive
labels.
• Do not expose the disc directly to the sun's rays, or keep it in condi-
tions of high temperature or humidity, as there is a danger of warping,
with consequent loss of data.
• To remove dirt, dust, or fingerprints from the disc, wipe with a dry
cloth, or use a CD cleaner. Always wipe from the inside to the outside,
and do no wipe with circular movements. Never use abrasives or sol-
vent cleaners.
• Hioki shall not be held liable for any problems with a computer system
that arises from the use of this CD, or for any problem related to the
purchase of a Hioki product.
Preliminary Checks
Before using the logger, make sure that the insulation on the con-
nection cables is undamaged and that no bare conductors are
improperly exposed. Using the logger in such conditions could
cause an electric shock, so contact your dealer or Hioki represen-
tative for replacements.
HIOKI LR5041B980-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Measurement Preparation to Data Analysis
8
The steps from measurement preparation to data analysis are illustrated with a typ-
ical measurement example.
Example Case: Record a factory flow sensor output signal (1-5 V) at one-minute
intervals for one month, and store the data on a computer.
Quantities in parentheses ( ).
Measurement Preparation to Data Analysis

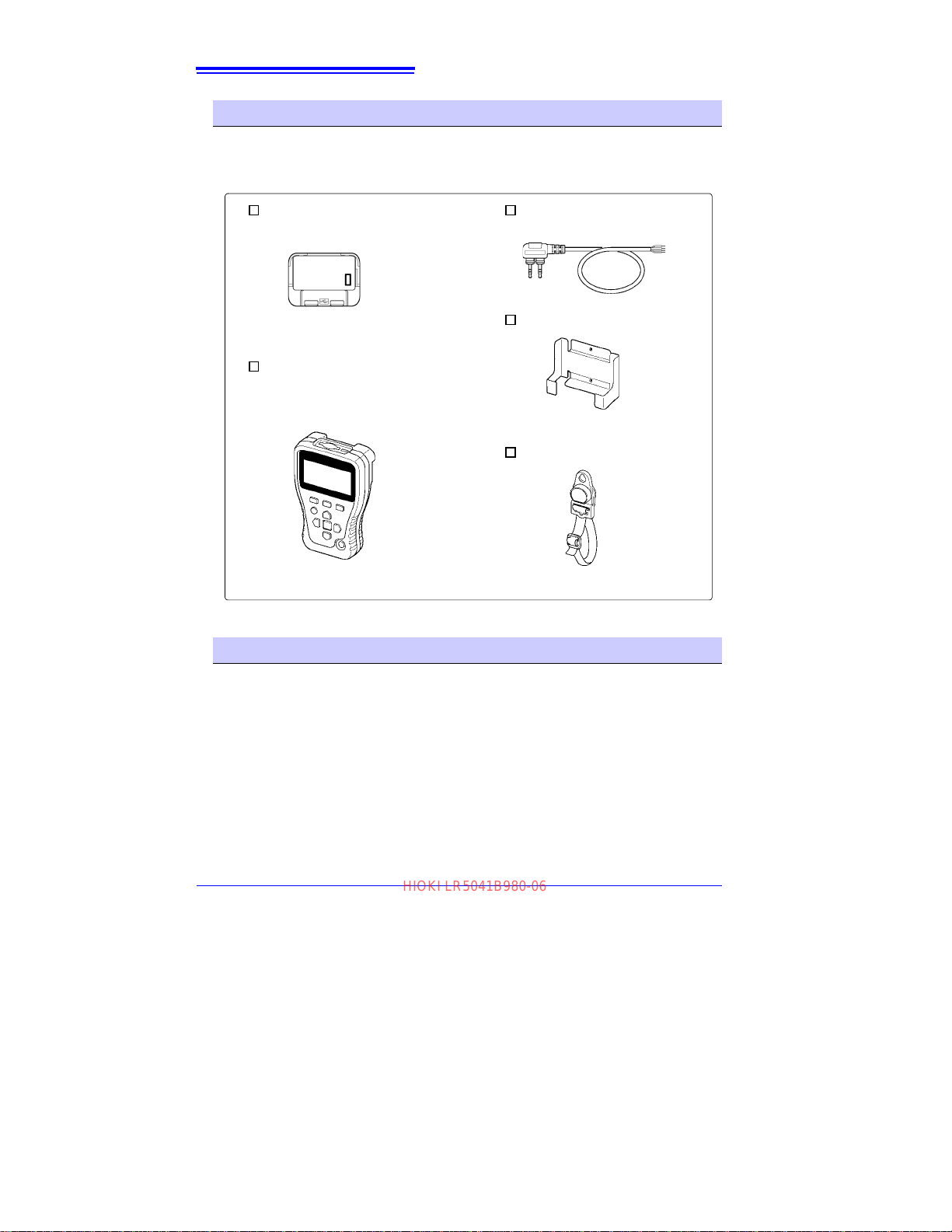

Required Items:
Logger (1) LR6 alkaline battery (1) LR9802 Connection Cable (1)
LR5091 Communication Adapter (1)
(LR5000 Utility Program* CD [PC ap-
plication software] and USB Cable)
Computer (1)
Procedure:
1Install the battery in the logger.
See: "2.1" (p.17)
2Connect the LR9802 Connection Cable to
the logger.
See: "2.2" (p.20)
1
2
HIOKI LR5041B980-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Measurement Preparation to Data Analysis
9
3Install the LR5000 Utility Program on the
computer.
See: "2.3" (p.23)
4Select the recording interval for the logger
(in this case, 1 minute).
See: "Recording Interval Setting" (p.31)
(The setting can be made also from the
LR5000 Utility Program.) (p.39)
5Set the logger to the correct date and time
(in this case, 15 May 2010, 13:00).
See: "Real-Time Clock Setting" (p.32)
(With the LR5000 Utility Program, the log-
ger can be set to the computer time.)
(p.42)
6Set the stop method to [OFF].
(This setting provides one-time measurement:
recording stops when memory becomes full.)
See: "Stop Method Setting (for when
memory becomes full)" (p.33)
(The setting can be made also from the
LR5000 Utility Program.) (p.39)
5
4
3
6
HIOKI LR5041B980-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Measurement Preparation to Data Analysis
10

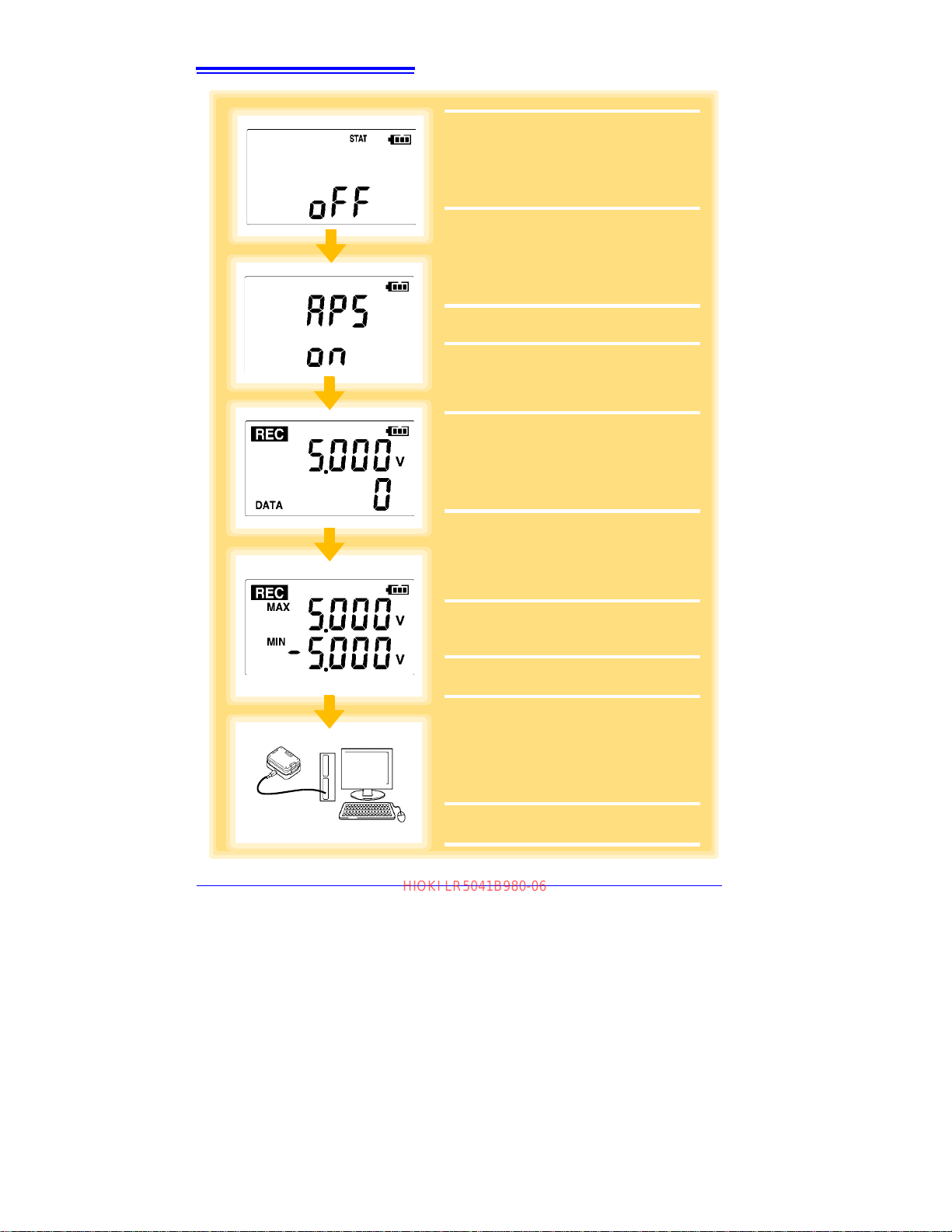

7Set the recording mode to [OFF].
(This setting provides instantaneous mea-
surement.)
See: "Recording Mode Setting" (p.34)
(The setting can be made also from the
LR5000 Utility Program.) (p.39)
8Set the power save setting to [ON].
(The on (enabled) setting is recommended
for long-term recording.)
See: "Power Save Setting" (p.34)
(The setting can be made also from the
LR5000 Utility Program.) (p.38)
9Pre-measurement inspection (p.43)
10 Install the logger at the measurement
site in the factory.
See: "4.2" (p.44)
(It can be wall-mounted.)
11 Hold REC/STOP on the logger for two
seconds to start recording.
(Confirm that the recording data count is
incrementing and that recording is actually
occurring.)
See: "4.3" (p.46)
12 Switch the logger display by pressing the
(+) and (-) buttons to check maximum
and minimum recorded values.
(Confirm that recording is actually occurring.)
See: "4.4" (p.49)
13 After a month, hold REC/STOP on the log-
ger again for two seconds to stop recording.
See: "4.3" (p.46)
14 Retrieve the logger from the measure-
ment site.
15 Import recorded data from the logger to
a connected computer. For analysis, dis-
play the data in a graph.
See: "4.5" (p.49)
(The data is automatically saved when
imported to the computer. By default, it is
also automatically displayed in a graph.)
16 Print recorded data as needed.
See: "4.8" (p.64)
8
11
7
15
12
(LR5042 Example)
HIOKI LR5041B980-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

1.1 Product Overview and Features
11
3
1
Chapter 1 Overview
This instrument is a compact portable data logger for measuring, displaying, and
recording DC voltage.
Overview Chapter 1
1.1 Product Overview and Features
Advanced functions included
• Record statistical values(p.33), (p.39)
• Scaling (p.40), (p.67)
• Alarm display (p.41)
• Preheat output (p.35)
• Data can be imported while recording.
• Records up to 60,000 measurements
Splash-proof
ingress protection
(IP54)
Large display shows mea-
sured DC voltage value and
recorded data count
Measures DC voltage (one chan-
nel).
Browse and manage data with
LR5000 Utility Program on a PC.
The LR5000 Utility Program PC applica-
tion is very easy to install.
After installation, data management and
browsing is easy with auto-start, data dis-
play and saving.
• Data is preserved independently
of battery state
• Recording continues (for approx.
30 s) during battery replacement
Measurement
Sites
Analysis Site
Measures the output of vari-
ous sensors in the factory
Suitable for ESCO, ISO, and simi-
lar measurement applications.
HIOKI LR5041B980-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

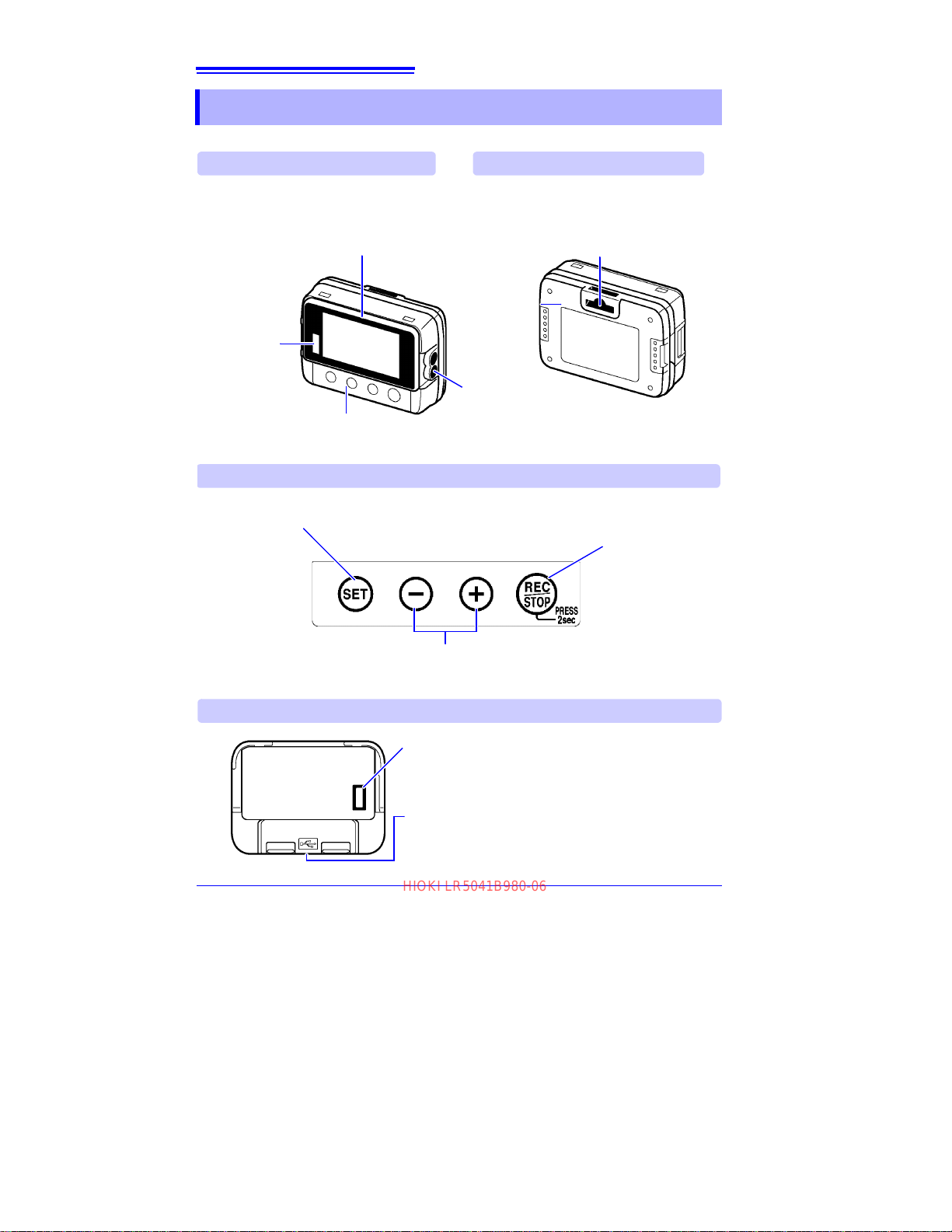

1.2 Part Names/Functions and Display Indicators
12
1.2 Part Names/Functions and Display Indicators
IR Port
(p.49)
Communicates
with the LR5091
Communication
Adapter or
LR5092-20 Data
Collector
Front
LCD (p.13)
The display blanks after 30 seconds of oper-
ator inactivity (auto power save).The display
reappears by pressing a button.
Whenthedisplay isvisible, itrefreshesabout
once per second.
Battery Cover
(p.17)
SET button
Displays settings.
Back
Operation Buttons
(-) button, (+) button
Changes Measurement display contents.
Changes setting values on the Settings display.
Connection cable Jacks
(p.20)
Connect a connection cable.
Operation buttons
LR5091 Communication Adapter
IR Port (p.49)
Communicates with the logger.
USB Port (p.36)
ConnectaUSBcable here to communicatewitha computer.
(Mini-B receptacle)
Stand/Strap Attachment Hole (p.44)
Attach the logger to a wall or other surface by
hanging it on a screw. (Supported screw head
dimensions: up to approx. 6.8 mm in diameter
and approx. 2.5 mm in thickness)
REC/STOP button
Hold for two seconds to start/stop recording.
From a setting display, switches to measurement
display.
HIOKI LR5041B980-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

1.2 Part Names/Functions and Display Indicators
13
3
1
Chapter 1 Overview
The display indicators provide the following information.
Display Indicators
ENDLESS indicator
Indicates the Stop Method Setting display.
Also appears on the Measurement display to indicate
endless recording (p.33) is enabled.
STAT indicator
Indicates the Recording Mode Setting display.
Also appears on the Measurement display to
indicate statistic recording (p.34) is enabled.
Not used by the logger.
Battery Status Indicator
Indicates the battery charge status. (p.18)
* Setting is available from the LR5000 Utility Program or via the LR5092-20 Data Col-
lector.
See: "3.3 Making Settings from the LR5000 Utility Program" (p.36),
LR5092-20 Data Collector Instruction Manual
REC Indicator
Indicates recording in progress. (Blinks when waiting to record.)
AL indicator
When the alarm* function is enabled, this indicates when a mea-
sured value is outside of the specified (upper/lower value*) range.
Measurement
Channel
MAX indicator
Indicates that the
value displayed at
the right is the max-
imum.
MIN indicator
Indicates that the
value displayed
at the right is the
minimum.
DATA indicator
Indicates that the value displayed
at the right is the data count.
TIME indicator
Indicates the Date-Time Setting display.
INTVL indicator
IndicatestheRecordingIntervalSettingdisplay.
Units
Indicates the unit of
measurement on
each channel.
(not displayed when
scaling* is enabled)
HIOKI LR5041B980-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

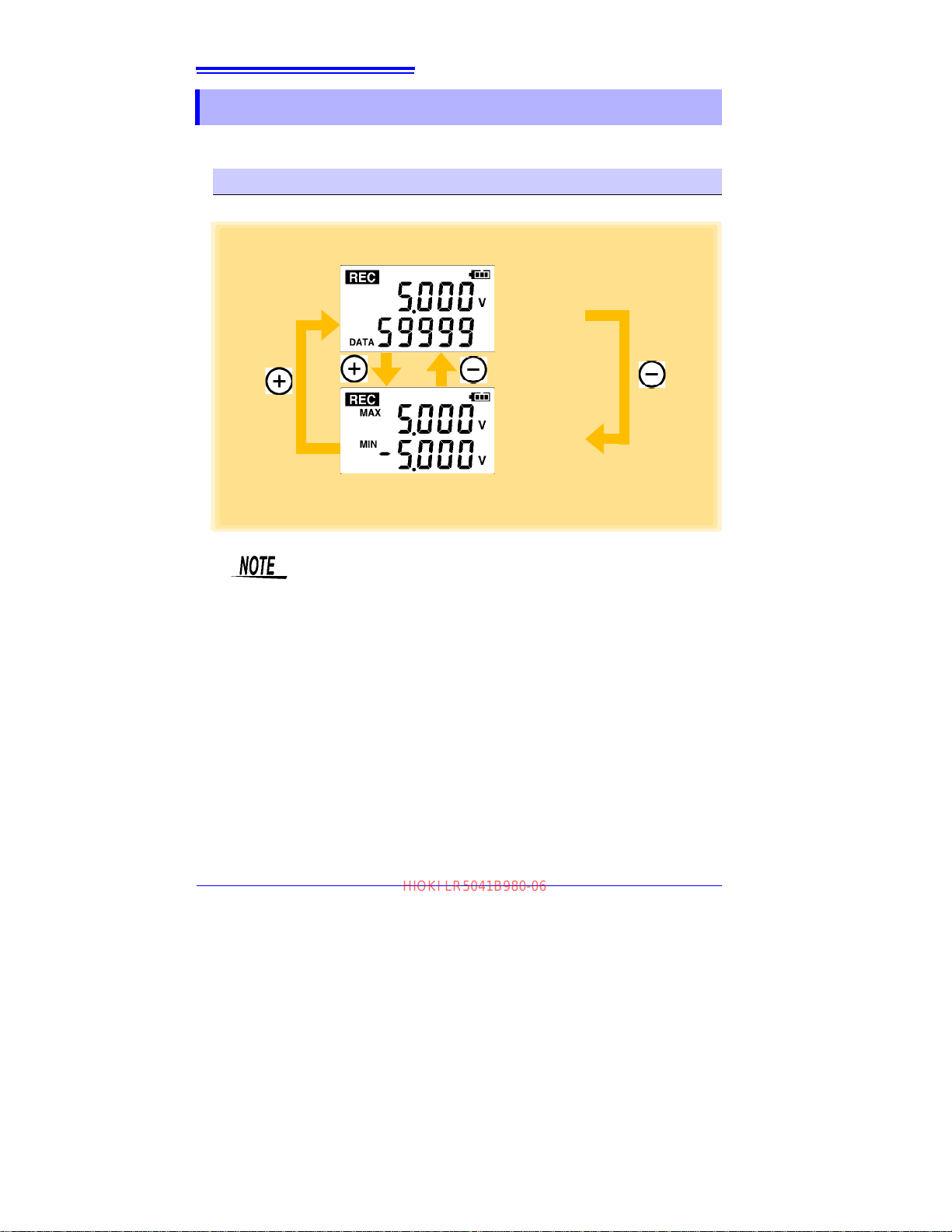

1.3 Display Organization
14
The logger has two general display types: Measurement and Settings.
The (+) and (-) buttons switch the display type.
1.3 Display Organization
Measuring display
• For instantaneous recording, the maximum and minimum values are
obtained from all the data measured at each recording interval.
• For statistical recording, the maximum and minimum values are
obtained from all the data measured every second.
• The maximum and minimum values are not displayed when the
recorded data count is 0.
Measured value
Recorded data
count
Maximum value
Minimum value
(LR5042 Display Example)
HIOKI LR5041B980-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

1.3 Display Organization
15
3
1
Chapter 1 Overview
Select the display with the SET button. Press (+) and (-) to change a setting.
Press the REC/STOP button to switch to the Measurement display from any other.
Setting display
Recording Interval Setting
(p.31)
Month Setting (p.32)
Day Setting (p.32) Minute Setting (p.32)
Measuring display
Battery life is extended when on
(enabled).
(Default is on.)
See: "Appendix 3 Battery
Life Approximation"
(p.A2)
When on (statistical recording), in-
stantaneous, maximum, minimum,
andaveragevaluesarerecorded at
each interval. Battery life is shorter.
(Default is off.)
(Record instantaneous values)
See: "Appendix 3 Battery Life
Approximation" (p.A2)
Select what happens when memory
becomes full.
When on, the oldest data is overwrit-
ten, and when off, recording stops.
(Default is on.)
(LR5042 Display Example)
Power Save Setting (p.34)
Preheat Time Setting (p.35)
Recording Mode Setting
(p.34)
Stop Method Setting (p.33)
Hour Setting (p.32)
Year Setting (p.32)
HIOKI LR5041B980-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

1.3 Display Organization
16
• When no operation occurs for 30 seconds with the Settings display,
automatically switches to Measurement display.
• When the battery indicator appears, settings cannot be changed
(although they can still be displayed).
• Settings cannot be changed while recording. However, settings can
still be displayed by pressing the SET button from the Measurement
display.
HIOKI LR5041B980-06
