Hirschmann SPIDER PL User manual

Installation SPIDER PL
Release 08 09/2018
Technical support
https://hirschmann-support.belden.com
User Manual
Installation
Industrial Ethernet Rail Switch
SPIDER Premium Line

The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.
© 2018 Hirschmann Automation and Control GmbH
Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use.
The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.
Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.
You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Installation SPIDER PL 9/12/18

Installation SPIDER PL
Release 08 09/2018 3
Contents
Safety instructions 5
About this Manual 13
Key 14
1 Description 15
1.1 General device description 15
1.2 Device name and product code 16
1.3 Device view 18

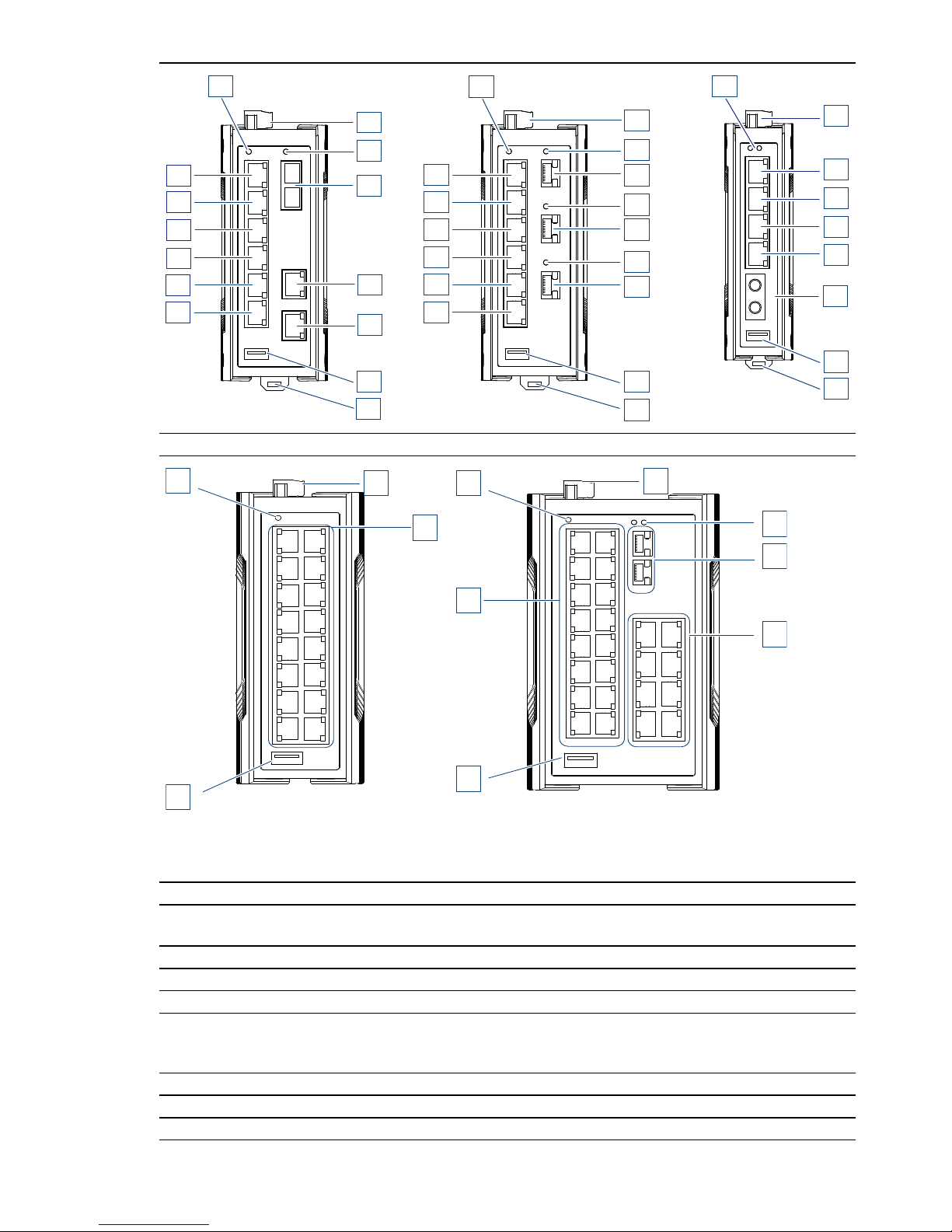

1.3.1 Front view 18
1.4 Power supply 20
1.5 Ethernet ports 21
1.5.1 Pin assignments 22
1.6 Display elements 23
1.6.1 Device state 23
1.6.2 Port status 24
2 Configuration interface 25
2.1 USB interface 25
3 Signal contact 26
4 Installation 27
4.1 Checking the package contents 27
4.2 Mounting the device 28
4.2.1 Installing the device onto the DIN rail 28
4.2.2 Mounting on a flat surface 30
4.3 Grounding the device 31
4.4 Installing an SFP transceiver (optional) 31
4.5 Connecting the terminal block 32
4.6 Operating the device 33
4.6.1 Installing terminal blocks, switching on the supply
voltage 33
4.6.2 Connecting data cables 33

4Installation SPIDER PL
Release 08 09/2018
5 Configuration (optional) 34
5.1 Configuration readout 39
6 Monitoring the ambient air temperature 40
7 Maintenance and service 41
8Disassembly 42
8.1 Removing an SFP transceiver (optional) 42
8.2 Removing the device 43
9 Technical data 45
9.1 General technical data 45
9.2 Dimension drawings 47
9.3 Stability 49
9.4 Electromagnetic compatibility (EMC) 50
9.5 Network range 52
9.6 Power consumption/power output 55
10 Scope of delivery, order numbers and
accessories 56
11 Underlying technical standards 59
A Open Source Software used in the product 60
B Further support 68

Installation SPIDER PL
Release 08 09/2018 5
Safety instructions
General safety instructions
You operate this device with electricity. Improper usage of the device
entails the risk of physical injury or significant property damage. The
proper and safe operation of this device depends on proper handling
during transportation, proper storage and installation, and careful
operation and maintenance procedures.
Before connecting any cable, read this document, and the safety
instructions and warnings.
Operate the device with undamaged components exclusively.
The device is free of any service components. In case of a damaged
or malfunctioning device, turn off the supply voltage and return the
device to Hirschmann for inspection.
Certified usage
Use the device solely for the application cases described in the
Hirschmann product information, including this manual.
Operate the device solely according to the technical specifications.
See “Technical data” on page 45.
Installation site requirements
When you are selecting the installation location, make sure you
observe the climatic threshold values specified in the technical data.
Operate the device at the specified ambient temperature (temperature
of the ambient air at a distance of 2 inches (5 cm) from the device) and
at the specified relative humidity exclusively.
Use the device in an environment with a maximum pollution degree
that complies with the specifications in the technical data.
Install the device in a fire enclosure according to EN 60950-1.
Qualification requirements for personnel
Only allow qualified personnel to work on the device.
Qualified personnel have the following characteristics:
Qualified personnel are properly trained. Training as well as practical
knowledge and experience make up their qualifications. This is the
prerequisite for grounding and labeling circuits, devices, and systems
in accordance with current standards in safety technology.
Qualified personnel are aware of the dangers that exist in their work.
Qualified personnel are familiar with appropriate measures against
these hazards in order to reduce the risk for themselves and others.
Qualified personnel receive training on a regular basis.

6Installation SPIDER PL
Release 08 09/2018
Device casing
Only technicians authorized by the manufacturer are permitted to open
the casing.
Never insert pointed objects (narrow screwdrivers, wires, etc.) into the
device or into the connection terminals for electric conductors. Do not
touch the connection terminals.
Keep the ventilation slits free to ensure good air circulation.
See “General technical data” on page 45.
Mount the device in the vertical position.
At ambient air temperatures > 140 °F (+60 °C):
The surfaces of the device housing may become hot. Avoid touching
the device while it is operating.
Requirements for connecting electrical wires
Before connecting the electrical wires, always verify that the
requirements listed are complied with.
Requirements for connecting the signal contact
Before connecting the signal contact, always verify that the requirements
listed are complied with.
Requirements for connecting the supply voltage
Before connecting the supply voltage, always verify that the requirements
listed are complied with.
The following requirements apply without restrictions:
The electrical wires are voltage-free.
The cables used are permitted for the temperature range of the application case.
Relevant for North America:
Exclusively use 60/75 °C (140/167 °F) or 75 °C (167 °F) copper (Cu) wire.
Table 1: Requirements for connecting electrical wires
The following requirements apply without restrictions:
The voltage connected complies with the requirements for a safety extra-low voltage
(SELV) as per IEC/EN 60950-1.
The connected voltage is limited by a current limitation device or a fuse.
Observe the electrical threshold values for the signal contact.
See “General technical data” on page 45.
Table 2: Requirements for connecting the signal contact

Installation SPIDER PL
Release 08 09/2018 7
National and international safety regulations
Verify that the electrical installation meets locally or nationally applicable
safety regulations.
Prerequisites:
All of the following requirements are complied with:
The supply voltage corresponds to the voltage specified on the type plate
of the device.
The power supply conforms to overvoltage category I or II.
The power supply has an easily accessible disconnecting device (for
example a switch or a plug). This disconnecting device is clearly identified.
So in the case of an emergency, it is clear which disconnecting device
belongs to which power supply cable.
The power supply cable is suitable for the voltage, the current and the
physical load. Hirschmann recommends a wire diameter of 0.5 mm² to
0.75 mm² (AWG20 up to AWG18).
The following requirements apply alternatively:
Relevant when the device is supplied via 1 voltage input:
Alternative 1 The power supply complies with the requirements for a limited power source
(LPS) as per EN 60950-1.
Alternative 2 Relevant for North America:
The power supply complies with the requirements according to NEC Class 2.
Alternative 3 All of the following requirements are complied with:
The power supply complies with the requirements for a safety extra-low
voltage (SELV) as per IEC/EN 60950-1.
Supply with DC voltage:
A fuse suitable for DC voltage is located in the plus conductor of the power
supply.
The minus conductor is on ground potential. Otherwise, a fuse is also
located in the minus conductor.
Regarding the properties of this fuse:
See “General technical data” on page 45.
Supply with AC voltage:
A fuse is located in the outer conductor of the power supply.
The neutral conductor is on ground potential at both voltage inputs.
Otherwise, a fuse is also located in the neutral conductor.
Regarding the properties of this fuse:
See “General technical data” on page 45.
Table 3: Requirements for connecting the supply voltage

8Installation SPIDER PL
Release 08 09/2018
Relevant for use in explosion hazard areas (Hazardous
Locations, Class I, Division 2)

 
  
2UGLQDU\/RFDWLRQ
1RQ+D]DUGRXV$UHD
1RQ([SORVLYH$WPRVSKHUH
([SORVLYH$WPRVSKHUH&ODVV,
LYLVLRQ*URXSV$%& 
+D]DUGRXV/RFDWLRQ
)RU8VHLQ+D]DUGRXV/RFDWLRQV&ODVV, LYLVLRQ*URXSV$%& 




 

:$51,1*±(;3/26,21+$=$5 ±68%67,787,212)$1<&20321(1760$<
,03$,568,7$%,/,7<)25+$=$5 286/2&$7,21625(;3/26,9(
$70263+(5(6
:$51,1*±(;3/26,21+$=$5 ± 2127 ,6&211(&7(48,30(1781/(66
32:(5+$6%((16:,7&+( 2))257+($5($,6.12:172%(
121+$=$5 286
86%FRQQHFWLRQ












5HOD\FRQWDFWV


















Installation SPIDER PL
Release 08 09/2018 9

 
  









7DEOH
 









 
 



10 Installation SPIDER PL
Release 08 09/2018
ATEX directive 2014/34/EU – specific regulations for safe
operation
Relevant for SPIDER PL devices labeled with an ATEX certificate number
when operating in explosive gas atmospheres according to ATEX
Directive 2014/34/EU, the following applies:
Make sure that the device has the following label:
DEKRA 16ATEX0108X
The modules shall be installed in a suitable enclosure in accordance
with EN 60079-15 providing a degree of protection of at least IP54
according to EN 60529, taking into account the environmental
conditions under which the equipment will be used.
Provisions shall be made to prevent the rated voltage from being
exceeded by transient disturbances of more than 119 V.
Connectors shall be connected or disconnected exclusively in dead-
voltage state.
The USB port shall remain disconnected.
IECEx – Certification Scheme for Explosive Atmospheres
For SPIDER PL devices labeled with an IECEx certificate number, the
following applies:
Make sure that the device has the following label:
IECEx DEK 16.0064X
The modules shall be installed in a suitable enclosure in accordance
with EN 60079-15 providing a degree of protection of at least IP54
according to EN 60529, taking into account the environmental
conditions under which the equipment will be used.
Provisions shall be made to prevent the rated voltage from being
exceeded by transient disturbances of more than 119 V.
Connectors shall be connected or disconnected exclusively in dead-
voltage state.
The USB port shall remain disconnected.

Installation SPIDER PL
Release 08 09/2018 11
CE marking
The labeled devices comply with the regulations contained in the following
European directive(s):
2011/65/EU (RoHS)
Directive of the European Parliament and of the Council on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment.
2014/30/EU (EMC)
Directive of the European Parliament and the council for standardizing the
regulations of member states with regard to electromagnetic
compatibility.
In accordance with the above-named EU directive(s), the EU conformity
declaration will be at the disposal of the relevant authorities at the
following address:
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
www.hirschmann.com
The device can be used in the industrial sector.
Interference immunity: EN 61000-6-2
Emitted interference: EN 55032
Warning! This is a class A device. This device can cause interference in
living areas, and in this case the operator may be required to take
appropriate measures.
Note: The assembly guidelines provided in these instructions must be
strictly adhered to in order to observe the EMC threshold values.
LED or laser components
LED or LASER components according to IEC 60825-1 (2014):
CLASS 1 LASER PRODUCT
CLASS 1 LED PRODUCT

12 Installation SPIDER PL
Release 08 09/2018
FCC note:
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference; (2) this device must accept any interference received,
including interference that may cause undesired operation.
Appropriate testing has established that this device fulfills the
requirements of a class A digital device in line with part 15 of the FCC
regulations.
These requirements are designed to provide sufficient protection against
interference when the device is being used in a business environment.
The device creates and uses high frequencies and can also radiate these
frequencies. If it is not installed and used in accordance with this
operating manual, it can cause radio transmission interference. The use
of this device in a residential area can also cause interference, and in this
case the user is obliged to cover the costs of removing the interference.
Recycling note
After usage, this device must be disposed of properly as electronic waste,
in accordance with the current disposal regulations of your county, state,
and country.

Installation SPIDER PL
Release 08 09/2018 13
About this Manual
The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.
Documentation mentioned in the "Installation" user manual that is not
supplied with your device in print can be found as PDF download on the
Internet at the Hirschmann product pages (www.hirschmann.com).

14 Installation SPIDER PL
Release 08 09/2018
Key
The symbols used in this manual have the following meanings:
Listing
Work step
Subheading

Installation SPIDER PL
Release 08 09/2018 15
1 Description
1.1 General device description
The SPIDER PL devices are designed for the special requirements of
industrial automation. They meet the relevant industry standards, provide
very high operational reliability, even under extreme conditions, and also
long-term reliability and flexibility.
The devices allow you to set up switched industrial Ethernet networks that
conform to the IEEE 802.3 standard.
You have numerous options of combining the device characteristics. You can
determine the possible combinations using the Configurator which is
available in the Belden E-Catalog (www.e-catalog.beldensolutions.com) on
the web page of the device.

16 Installation SPIDER PL
Release 08 09/2018
1.2 Device name and product code
The device name corresponds to the product code. The product code is
made up of characteristics with defined positions. The characteristic values
stand for specific product properties.
Item Characteristic Characteristic
value
Description
1 ... 9 Product SPIDER PL SPIDER Premium Line
10 (hyphen) –
11 Data rate 2 10/100 Mbit/s
3 10/100 Mbit/s and 10/100/1000 Mbit/s
4 10/100/1000 Mbit/s
12 Power over Ethernet
(PoE)
0 without PoE support
13 (hyphen) –
14 ... 17 Number
Twisted pair ports
01T1
04T1
05T1
06T1
07T1
08T1
16T1
24T1
18 ... 19 Optical fiber port 1 M2 DSC multimode socket for 100 Mbit/s F/O
connections
S2 DSC singlemode socket for 100 Mbit/s F/O
connections
M4 ST multimode socket for 100 Mbit/s F/O
connections
O6 SFP slot for 100/1000 Mbit/s F/O
connections
Z6 SFP slot for 100 Mbit/s F/O connections
99 without
20 ... 21 Optical fiber port 2 M2 DSC multimode socket for 100 Mbit/s F/O
connections
S2 DSC singlemode socket for 100 Mbit/s F/O
connections
O6 SFP slot for 1000 Mbit/s connections
Z6 SFP slot for 100 Mbit/s F/O connections
99 without
22 ... 23 Optical fiber port 3 Z6 SFP slot for 100 Mbit/s F/O connections
99 without
Table 4: Device name and product code

Installation SPIDER PL
Release 08 09/2018 17
24 Temperature range T Extended −40 °F ... +158 °F
(−40 °C ... +70 °C)
Deratinga
E Extended
with Conformal
Coating
−40 °F ... +158 °F
(−40 °C ... +70 °C)
25 Certificates and
declarations
Z9 CE, FCC, EN61131
Y9 Z9 + UL 61010
X9 Z9 + UL 61010 + ISA 12.12.01
W9 Z9 + ATEX Zone 2
R9 CE, FCC, EN 61131, EN 60950, E1
TY Z9 + UL 61010 + GL/DNV
UY CE, FCC, EN 61131, EN 60950,
UL 61010, GL/DNV
WV WU + EN 50121-4 + E1
WW WU + IEC 61850,
IEEE 1613 + EN 50121-4
27 ... 28 Customer-specific
version
HH Hirschmann standard
HK Voltage terminal with spring
HU Hub Mode N: N Port mirroring
29 ... 30 Configuration HH Hirschmann standard
See “General technical data” on page 45.
HV Extended voltage range
See “General technical data” on page 45.
a. For the device variant SPIDER PL-20-06T1Z6Z6Z6..., the maximum permitted ambient air
temperature has to be reduced to +140 °F (+60 °C).
Item Characteristic Characteristic
value
Description
Table 4: Device name and product code

18 Installation SPIDER PL
Release 08 09/2018
1.3 Device view
1.3.1 Front view
Front view using example of the device variants SPIDER PL-40...
SPIDER PL 40-08T1...
1 LED display elements for device status
2 6-pin, pluggable terminal block for power supply and signal contact
3 ... 6 4 × RJ45 socket for 10/100/1000 Mbit/s twisted Pair connections
7USBinterface
8 Rail lock slide for DIN rail mounting
9 ... 12 4 × RJ45 socket for 10/100/1000 Mbit/s twisted Pair connections
SPIDER PL-40-05T1...
1 LED display elements for device status
2 6-pin, pluggable terminal block for power supply and signal contact
3 ... 7 5 × RJ45 socket for 10/100/1000 Mbit/s twisted Pair connections
8USBinterface
9 Rail lock slide for DIN rail mounting
SPIDER PL-40-01T1...
1 LED display elements for device status
2 6-pin, pluggable terminal block for power supply and signal contact
3 LED display elements for port status
4 RJ45 socket for 10/100/1000 Mbit/s twisted Pair connections
5 SFP slot for 100/1000 Mbit/s F/O connections
6 Rail lock slide for DIN rail mounting
2
3
4
5
6
2
3
4
5
6
7
8
1
9
SPIDER PL-40-05T1... SPIDER PL-40-01T1...
1
7
2
31
11
22
33 4
4
5
5
6
78
4
5
6
8
SPIDER PL-40-08T1...
12
11
10
9
1

Installation SPIDER PL
Release 08 09/2018 19
Front view using example of the device variants SPIDER PL-20... and SPIDER PL-30...
SPIDER PL-20-08T1...
(depending on the device variant)
1 LED display elements for device status
2 6-pin, pluggable terminal block for power supply and signal contact
3 LED display elements for port status
4 depending on device variant
DSC multimode socket for 100 Mbit/s F/O connections
DSC singlemode socket for 100 Mbit/s F/O connections
5 ... 6 2 × RJ45 socket for 10/100 Mbit/s twisted pair connections
7 USB interface
8 Rail lock slide for DIN rail mounting
SPIDER PL-20-06T1... SPIDER PL-20-04T1...
SPIDER PL-20-08T1...
10
9
14
13
12
11
1
7
2
3
4
5
6
8
1
16
15
14
13
12
11
9
2
4
5
6
7
8
10
3
2
3
4
5
6
7
8
9
1
111
222
33
3
444
5
55
66
7
8
9
25
26
3
2
5
6
7
1
2
1
34
56
78
910
11 12
13 14
15 16 17 18
19 20
21 22
23 24
4
SPIDER PL-20-24T1...
SPIDER PL-30-24T1...
SPIDER PL-20-16T1...
4
12
12
34
56
78
910
11 12
13 14
15 16
3

20 Installation SPIDER PL
Release 08 09/2018
1.4 Power supply
You have the following options to supply your device with voltage:
Power supply via a 6-pin terminal block
A 6-pin terminal block is available for the power supply to the device.
You will find more information here:
See “Installing terminal blocks, switching on the supply voltage” on
page 33.
9 ... 14 6 × RJ45 socket for 10/100 Mbit/s twisted pair connections
SPIDER PL-20-06T1...
1 LED display elements for device status
2 6-pin, pluggable terminal block for power supply and signal contact
3, 5, 7 LED display elements for port status
4, 6, 8 SFP slot for 100 Mbit/s F/O connections
9 USB interface
10 Rail lock slide for DIN rail mounting
11 ... 16 6 × RJ45 socket for 10/100 Mbit/s twisted pair connections
SPIDER PL-20-04T1...
1 LED display elements for device status
2 6-pin, pluggable terminal block for power supply and signal contact
3 ... 6 4 × RJ45 socket for 10/100 Mbit/s twisted pair connections
7 depending on device variant
ST multimode socket for 100 Mbit/s F/O connections
DSC multimode socket for 100 Mbit/s F/O connections
DSC singlemode socket for 100 Mbit/s F/O connections
8 USB interface
9 Rail lock slide for DIN rail mounting
SPIDER PL-20-16T1...
1 LED display elements for device status
2 6-pin, pluggable terminal block for power supply and signal contact
3 16× RJ45 socket for 10/100 Mbit/s twisted pair connections
4 USB interface
SPIDER PL-20-24T1...
SPIDER PL-30-24T1...
1 LED display elements for device status
2 6-pin, pluggable terminal block for power supply and signal contact
3 LED display elements for port status
42×SPIDER PL-20-24T1...
SFP slot for 100 Mbit/s F/O connections
SPIDER PL-30-24T1...
SFP slot for 100/1000 Mbit/s fiber optic connections
5 8 × RJ45 socket for 10/100 Mbit/s twisted pair connections
6 USB interface
7 16 × RJ45 socket for 10/100 Mbit/s twisted pair connections
