Hoist Fitness HD1700 User manual

Note: Both Serial Number and Model Number are Required when Ordering Parts
OWNERS MANUAL
CATALOG NUMBER
Customer Service
Fa x
[phone]
[phone]
[phone]
HD1700
LAT/HIGH ROW
RECORD SERIAL NUMBER HERE
0102-003

INSTRUCTIONS (Step 1).............................................................
FRAME ASSEMBLY (Step 2)........................................................
CABLE ASSEMBLY (Step 3).........................................................
CABLE ADJUSTMENT/GENERAL MAINTENANCE ...............
HARDWARE LISTING ................................................................
.................................................................
WEIGHT TRAINING TIPS
WEIGHT TRAINING EXERCISE LOG ...................................
GENERAL MAINTENANCE INFORMATION ..........................
MAINTENANCE SCHEDULE........................................................
LIMITED WARRANTY ................................................................
PRE-ASSEMBLED PARTS ...........................................................
PARTS LISTING ..........................................................................
BOLT SIZING CHART ................................................................
WASHER SIZING CHART ..........................................................
WEIGHT RATIOS .......................................................................
DECAL PLACEMENT
........................................................
Page - 1 HD1700 Assembly
CONTENTS
2
4
17
18
23
25
26
28
29
31
33
39
40
42
44
45
OWNERS
MANUAL

Page - 2HD1700 Assembly
Socket Wrench
1/2”, 9/16" and 3/4" Sockets
3/4” Open End Wrench
Crescent Wrench
Rubber Mallet
Tape Measure
TOOLS REQUIRED
Before beginning assembly please take the time to read the
instructions thoroughly. Please use the various lists in this
manual to make sure that all parts have been included in your
shipment.
Use only Hoist replacement parts when servicing.
Failure to do so will void your warranty and could result in
personal injury.
Hoist equipment is designed to provide the smoothest, most
effective exercise motion possible. After assembly, you should
check all functions to ensure correct operation. If you
experience problems, first recheck the assembly instructions to
locate any possible errors made during assembly. If you are
unable to correct the problem, call your authorized Hoist dealer.
Be sure to have your serial number and this manual when
calling. When all parts have been accounted for, continue on .
When ordering use the part number and description
from the lists.
OWNERS
MANUAL
INSTRUCTIONS
Step 1

Page - 3 HD1700 Assembly
OWNERS
MANUAL

FRAME ASSEMBLY
Step 2
Page - 4HD1700 Assembly
OWNERS
MANUAL

FRAME ASSEMBLY
Step 2a
1 - Weight Frame Upright
2 - Top Pulley Mount
3 - Weight Stack Mount
4 - Rear Tie
5 - Front Support
Part Descriptions
A - 1/2”-13UNC x 4 3/4” Hex Head Bolt (WZ)
B - 1/2”-13UNC x 3” Hex Head Bolt (WZ)
AA - 1/2” Washer
BA - 1/2” Nylok Nut
Hardware Descriptions
Page - 5 HD1700 Assembly
OWNERS
MANUAL
Start assembly by attaching both (1)’s to (3). Attach (2) to the top of
both (1)’s. Then attach (4) and (5) to (3). bolts. They will
be tighten in a later step.
Hand Tighten

Page - 6HD1700 Assembly
OWNERS
MANUAL
AA
AA
BA
4
AA
CA
CA AA
B
3
CA
BA
AA
AA
B
AA
1
AA B
BA
5
1
A
AA
AA
BA AA
AA
2

FRAME ASSEMBLY
Step 2b
2 - Top Pulley Mount
5 - Front Support
6 - Front Upright
7 - Gusset Plate
Part Descriptions
B - 1/2”-13UNC x 3” Hex Head Bolt (WZ)
C - 1/2”-13UNC x 3 1/4” Hex Head Bolt (WZ)
AA - 1/2” Washer
BA - 1/2” Nylok Nut
CA - Rubber Foot Pad
CS - 19mm dia. x 57.5mm lg. Axle
CT - 11/16” Flanged Spacer
Hardware Descriptions
Page - 7 HD1700 Assembly
OWNERS
MANUAL

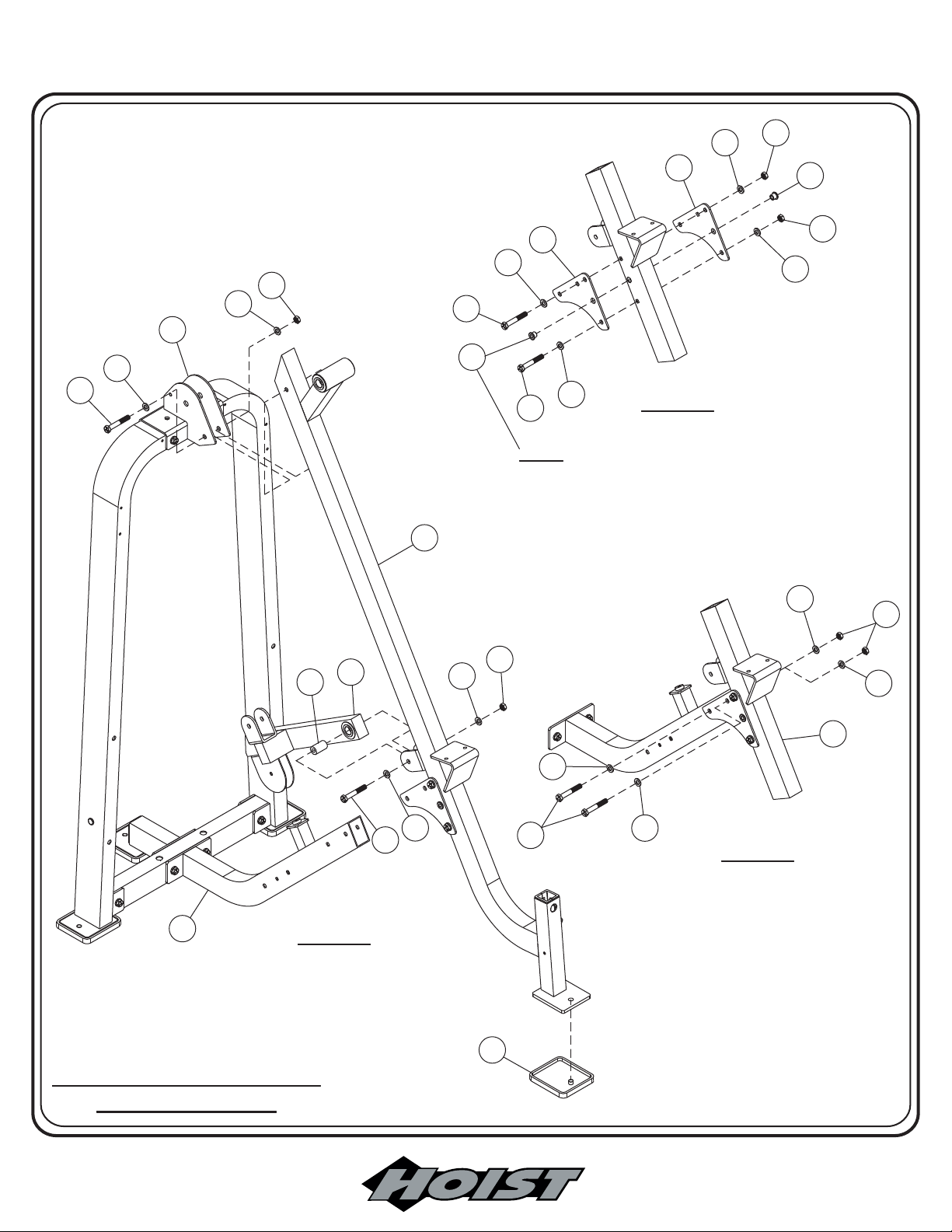

Continue assembly by attaching both (7)’s to (6); when
securing both (7)’s, and (5) together, slide (CT) into the holes on (7) and
(6) before securing with (B) to ensure proper alignment. (CT) acts as a
spacer for a pulley which is installed in a later step.. Attach (6) to (2) and
(5). Then insert (CS) into (8) and attach (8) to (6). all
bolts. If the Resistance Lever Arm (8) does not swing freely.
Turn back the nut (BA) till the arm swings freely.
NOTE:
Wrench Tighten
NOTE:

Page - 8
OWNERS
MANUAL
CS
*ASSEMBLY SHOWN IN THREE
STEPS FOR CLARITY.
*ASSEMBLY SHOWN IN THREE
STEPS FOR CLARITY.
STEP -3-STEP -3-
STEP -1-STEP -1-
STEP -2-STEP -2-
2
AA
BA
B
8BA
AA
CAA
6
AA
B
AA
7
BA
7
AA
AA
B
AA
AA
CA
BA
6
AA
AA
5
AA
HD1700 Assembly
B
CT
BA
CT
NOTE: WHEN SECURING BOTH (7)’S, (6),
AND (5) TOGETHER, SLIDE (CT) INTO HOLES
ON (7) AND (6) BEFORE SECURING WITH (B) TO
ENSURE PROPER ALIGNMENT. (CT) ACTS AS A
SPACER FOR A PULLEY WHICH IS INSTALLED IN
A LATER STEP.
NOTE: WHEN SECURING BOTH (7)’S, (6),
AND (5) TOGETHER, SLIDE (CT) INTO HOLES
ON (7) AND (6) BEFORE SECURING WITH (B) TO
ENSURE PROPER ALIGNMENT. (CT) ACTS AS A
SPACER FOR A PULLEY WHICH IS INSTALLED IN
ALATER STEP.

FRAME ASSEMBLY
Step 2c
6 - Front Upright
8 - Resistance Lever Arm
9 - Weighted Connector
10 - Arm
11 - Handle Assembly
12 - Bearing Housing
Part Descriptions
C - 1/2”-13UNC x 3 1/4” Hex Head Bolt (WZ)
E - 1/2”-13UNC x 6” Hex Head Bolt (WZ)
F - 3/8”-16UNC x 3/4” Button Head Bolt (WZ)
R - 3/8”-16UNC x 1” Socket Head cap Screw
AA - 1/2” Washer
AB - 3/8” Washer
AE - 3/8” Lock Washer
BA - 1/2” Nylok Nut
CS - 19mm dia. x 57.5mm lg. Axle
CE - 25.4mm dia. x 120mm lg. Axle
CF - Rubber Sleeve
CG - Aluminum Bolt on Cap
Hardware Descriptions
Page - 9 HD1700 Assembly
OWNERS
MANUAL
Continue assembly by inserting (CE) into (6), then attach (10) to (CE).
bolts. Check to see that the Arm Assembly rotates
freely. If not, turn back the nut on the bolt for the axle just enough so that the
Arm Assembly rotates freely. Slide a (CF) onto each tube end of (10). Then
install an (11) to each side capturing (CF) between (11) and Button Head Bolt
(F). bolts. Slide a (12) onto each (11).
for the correct rear slot positioning of (12). Install the range limiting bolt (F)
through the slots in each (12). bolts. Attach (CG) to the top
of each (12). the retaining nuts then turn the nuts back just
enough so that each (12) rotates freely. Now insert both (CS)’s into (9), then
attach to (10) at the top and to (8) at the bottom. when attaching
(9) to (10), take special precaution when handling the arm. If released, the
front of (10) will swing up with a considerable amount of force, and could
cause bodily injury. bolts.
Wrench Tighten NOTE:
Wrench Tighten See the Assembly Note
Wrench Tighten
Wrench Tighten
WARNING:
Wrench Tighten NOTE: Check to see that the Arm
Assembly and the Weighted Connector rotates freely. If not, turn back the nut
on the bolt for the axle just enough so that the Arm Assembly and Weighted
Connector rotates freely.

Page - 10HD1700 Assembly
OWNERS
MANUAL
*ASSEMBLY SHOWN IN THREE
STEPS FOR CLARITY.
*ASSEMBLY SHOWN IN THREE
STEPS FOR CLARITY.
ASSEMBLY NOTE:ASSEMBLY NOTE:
This view shows the proper positioning of assembly
12. Notice how the slots in these assemblies are not
centered with the part but have been rotated more
to one side instead. The sides of the parts which
contain more of the slot are positioned to the inside.
This view shows the proper positioning of assembly
12. Notice how the slots in these assemblies are not
centered with the part but have been rotated more
to one side instead. The sides of the parts which
contain more of the slot are positioned to the inside.
This view is shown from the rear for clarityThis view is shown from the rear for clarity
STEP -2-
NOTE: REPEAT ASSEMBLY ON
OPPOSITE SIDE.
STEP -2-
NOTE: REPEAT ASSEMBLY ON
OPPOSITE SIDE.
STEP -3-STEP -3-
STEP -1-STEP -1-
AE
CG
12
CF
11
BA
10
AB
F
AE
AB
R
9
AA
6
AA
AA
10
CE
F
E
CS
C
AA
AA
BA
10
AA
CS
AA
C
8
BA
BA
WARNING: when
attaching (9) to (10),
take special precaution
when handling the
arm. If released, the
front of (10) will swing
up with a considerable
amount of force and
could cause bodily
injury, or damage the
machine.
WARNING: when
attaching (9) to (10),
take special precaution
when handling the
arm. If released, the
front of (10) will swing
up with a considerable
amount of force and
could cause bodily
injury, or damage the
machine.

WEIGHT STACK ASSEMBLY
Step 2d
1 - Weight frame Upright
2 - Top Pulley Mount
3 - Weight Stack Mount
6 - Front Upright
13 - Guide Rod Top Mount
14 - Latch Assembly
15 - Guide Rod
22 - 20 lb. Intermediate Weight
23 - 12 1/2 lb. Intermediate Weight
24 - 8 1/4 lb. Top Plate
Part Descriptions
C - 1/2”-13UNC x 3 1/4” Hex Head Bolt (WZ)
G - 3/8”-16UNC x 3/4” Square Head Set Screw
U - 5/16”-18UNC x 5/16”-Scocket Set Screw
AA - 1/2” Washer
BA - 1/2” Nylok Nut
CH - Weight Stack Bumper
CK - Latch Spring
CL - Latch Pin
CM - C-Clip
Hardware Descriptions
Page - 11 HD1700 Assembly
OWNERS
MANUAL
Continue assembly by attaching (14) and (CK) to (6). Now slide (15)
through (CH) and slide them both into (3). Tilt both (15)’s forward
enough to allow room to slide the Weight Plates on. Slide all 10 (22)’s and
all 5 (23)’s onto both (15)’s. Now slide (24) onto both (15)’s. Slide (13)
over both (15)’s. Angle both (15)’s vertical and secure (13) to both (1) and
(2). Secure both (15)’s to (13) using set screw (U). bolts.Wrench Tighten

Page - 12HD1700 Assembly
OWNERS
MANUAL
AA
U
G
C
CK
2
3
CL
1
AA
1
U
15
CH
BA
23
15
22
14
6
CM 24
13

FRAME ASSEMBLY
Step 2e
12 - Bearing Housing
16 - U-Bracket
27 - Handle Weldment
Part Descriptions
H - 1/2”-13UNC x 3 1/2” Hex Head Bolt (WZ)
J - 5/16”-18UNC x 1” Button Head Bolt (WZ)
AA - 1/2” Washer
AC - 5/16” Washer
AF - 5/16” Lock Washer
BA - 1/2” Nylok Nut
CB - 25.4mm dia. x 63mm lg. Axle
CN - Handle
CP - 25.4mm dia. x 148mm lg. Axle
CQ - 3/4” Thrust Washer
CR - 3/4” Thrust Bearing
Hardware Descriptions
Page - 13 HD1700 Assembly
OWNERS
MANUAL
Continue assembly by inserting (CP) into (CN). Then attach both to
(27). Now attach (27) to (16). Insert (CB) into (12) and attach (16) to
(12). bolts. Check to see that the Handle
Weldment and U-Bracket rotates freely. If not, turn back the nut on the
bolt for the axle just enough so that the Handle Weldment and U-Bracket
rotates freely.
Wrench Tighten NOTE:

Page - 14HD1700 Assembly
OWNERS
MANUAL
AA
27
AF
12 AA
16
BA
CB
AA CQ
CR
CQ
BA
AF
CN
AC
J
AC
CP
J
H

PULLEY ASSEMBLY
Step 2f
2 - Top Pulley Mount
5 - Front Support
8 - Resistance Lever Arm
Part Descriptions
D - 3/8”-16UNC x 3” Hex Head Bolt (WZ)
K - 3/8”-16UNC x 2 1/2” Hex Head Bolt (WZ)
L - 3/8”-16UNC x 1 3/4” Hex Head Bolt (WZ)
AB - 3/8” Washer
BB - 3/8” Nylok Nut
CC - 1/2” Flanged spacer
CD - 4 1/2” Pulley
CT - 11/16” Flanged Spacer
Hardware Descriptions
Page - 15 HD1700 Assembly
OWNERS
MANUAL

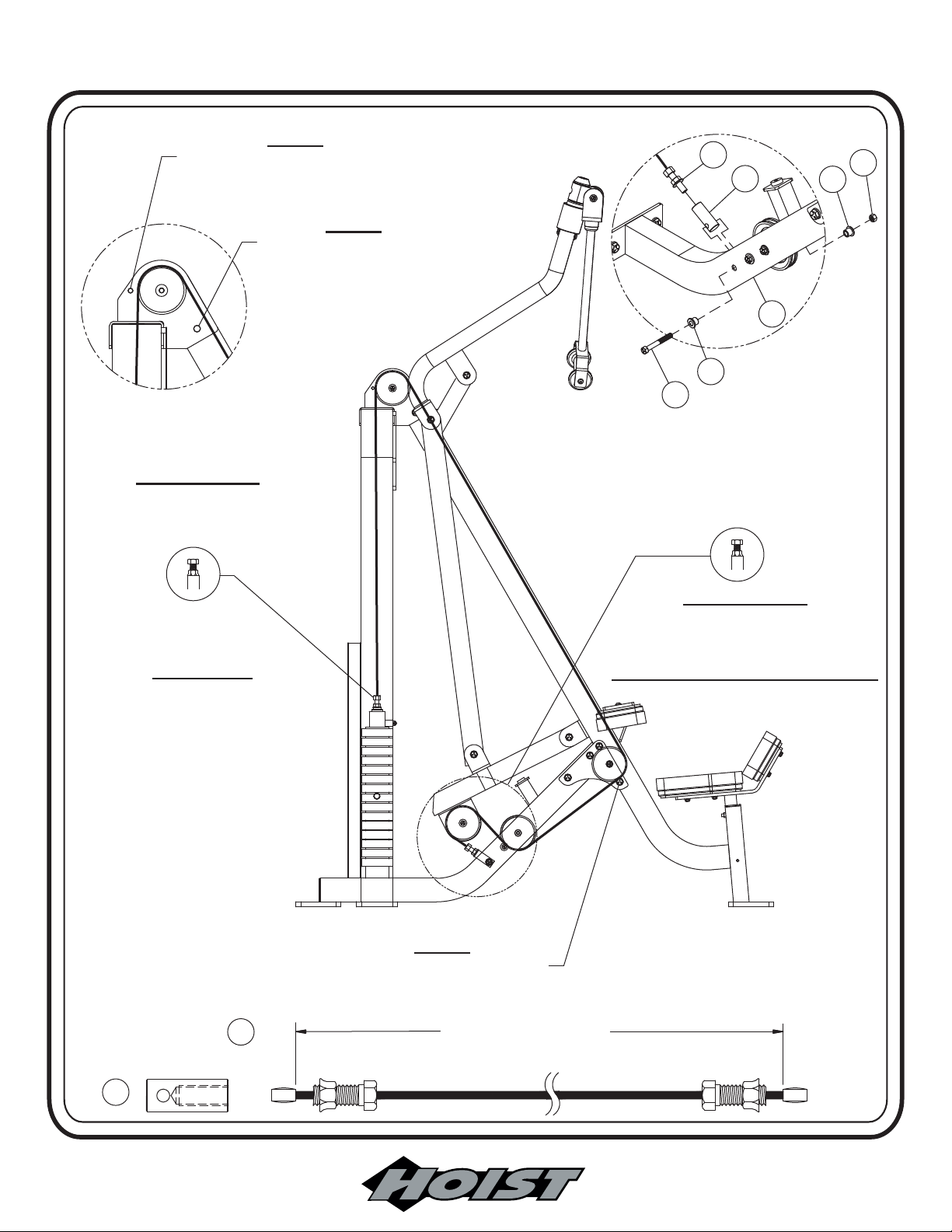

The following page shows each pulleys location and the hardware
used to install it. When installing each pulley, refer to the Cable
Installation diagram on page 18 to ensure the cable is routed properly
around each pulley and is on the correct side of any cable guard pins or
bolts. all bolts.Wrench Tighten

Page - 16HD1700 Assembly
OWNERS
MANUAL
*SEE DETAIL -A- FOR
PULLEY ASSEMBLY.
*SEE DETAIL -A- FOR
PULLEY ASSEMBLY.
DETAIL -A-DETAIL -A-
CT
CD
8
BB
AB
K
5
L
2
CT
BB
D
CD
AB
BB
AB
CC
CD
CC
AB
D
6
6
CT
DETAIL -C-
ROTATED AND PLATE CUT
AWAY FOR CLARITY.
DETAIL -C-
ROTATED AND PLATE CUT
AWAY FOR CLARITY.
BB
CD
*SEE DETAIL -B- FOR
PULLEY ASSEMBLY.
*SEE DETAIL -B- FOR
PULLEY ASSEMBLY.
DETAIL -B-DETAIL -B-
*SEE DETAIL -C- FOR
PULLEY ASSEMBLY.
*SEE DETAIL -C- FOR
PULLEY ASSEMBLY.
5

CABLE INSTALLATIONS
Step 2g
5 - Front Support
25 - HD1700 Lat/Highrow Cable
Part Descriptions
K - 3/8”-16UNC x 2 1/2” Hex Head Bolt (WZ)
BB - 3/8” Nylok Nut
CC - 1/2” Flanged Spacer
CV - Cable Mount
Hardware Descriptions
Page - 17 HD1700 Assembly
OWNERS
MANUAL
Continue assembly by installing (25) to machine. Cable will be
secured to (5) with (CU). See Detail -A- for installation.
bolts. check to see that the Cable Mount rotates freely. If not,
turn back the nut on the bolt just enough so that the Cable Mount rotates
freely.
Wrench Tighten
NOTE:

FINE TUNING:
LOOSEN JAM NUT AND THREAD BOLT
IN/OUT TO GIVE THE CABLE PROPER
TENSION. RE-TIGHTEN JAM NUT.
FINE TUNING:
LOOSEN JAM NUT AND THREAD BOLT
IN/OUT TO GIVE THE CABLE PROPER
TENSION. RE-TIGHTEN JAM NUT.
Page - 18HD1700 Assembly
OWNERS
MANUAL
NOTE:
BE SURE CABLE RUNS BETWEEN
PULLEY AND FRAME BOLT.
NOTE:
BE SURE CABLE RUNS BETWEEN
PULLEY AND FRAME BOLT.
NOTE:
BE SURE CABLE RUNS BETWEEN THE
PULLEY AND THE GUARD PIN.
NOTE:
BE SURE CABLE RUNS BETWEEN THE
PULLEY AND THE GUARD PIN. CC
FINE TUNING:
LOOSEN JAM NUT AND THREAD BOLT
IN/OUT TO GIVE THE CABLE PROPER
TENSION. RE-TIGHTEN JAM NUT.
NOTE: SEE DETAIL -A- FOR INSTALLATION.
FINE TUNING:
LOOSEN JAM NUT AND THREAD BOLT
IN/OUT TO GIVE THE CABLE PROPER
TENSION. RE-TIGHTEN JAM NUT.
NOTE: SEE DETAIL -A- FOR INSTALLATION.
136 13/16” [3475mm]136 13/16” [3475mm]
CV
25
25 BB
CC
5
CV
K
WARNING:
CABLE BOLT MUST BE THREADED
A MINIMUM OF 1/2” INTO ITS RECEIVER
WITH JAM NUT TIGHTENED SECURELY TO
ENSURE PROPER CONNECTION.
WARNING:
CABLE BOLT MUST BE THREADED
AMINIMUM OF 1/2” INTO ITS RECEIVER
WITH JAM NUT TIGHTENED SECURELY TO
ENSURE PROPER CONNECTION.
NOTE:
BE SURE CABLE RUNS OVER
TOP SIDE OF FRAME BOLT.
NOTE:
BE SURE CABLE RUNS OVER
TOP SIDE OF FRAME BOLT.
DETAIL A
NOTE: when securing (DH), Wrench
Tighten bolts till snug, then back off
1/2 turn or until (DH) swings freely.
DETAIL A
NOTE: when securing (DH), Wrench
Tighten bolts till snug, then back off
1/2 turn or until (DH) swings freely.

UPHOLSTERY ASSEMBLY
Step 2h
6 - Front Support
17 - Leg Pad Mount
18 - Seat Pad Mount
19 - Leg Upholstery
20 - Back Upholstery
21 - Seat Upholstery
Part Descriptions
M - 3/8”-16UNC x 1 1/4” Button Head Bolt (WZ)
P - 5/16”-18UNC x 1 1/2” Button Head Bolt (WZ)
Q - 5/16”-18UNC x 1 1/4” Button Head Botl (WZ)
AB - 3/8” Washer
AC - 5/16” Washer
AF - 5/16” Lock Washer
BB - 3/8” Nylok Nut
Hardware Descriptions
Page - 19 HD1700 Assembly
OWNERS
MANUAL
Continue assembly by attaching (17) to (6). Then you will attach
both (19)’s to (17). Now attach (20) and (21) to (18). Then slide (18) into
(6). bolts.Wrench Tighten
