UserManual
IS104GS-2F
6-port Gigabit managed switch

1
Installation ManualIntroduction
<User Manual> mainly introduces the hardware features, installation methods,
and precautions during the installation of IS104GS-2F.
This manual includes the following sections:
Chapter 1: Product introduction. Briefly describe the basic functions and
features of the switch, detailed hardware and software specificationsand
appearance information.
Chapter 2: Hardware Connections. Guide the connection of switch with other
devicesand precautions.
Chapter 3: Product Installation. Guide the hardware installation method and
precautions.
Chapter 4: Product Packaging and Use Recommendations.

2
Chapter 1 Product Introduction
1.1 Product introduction

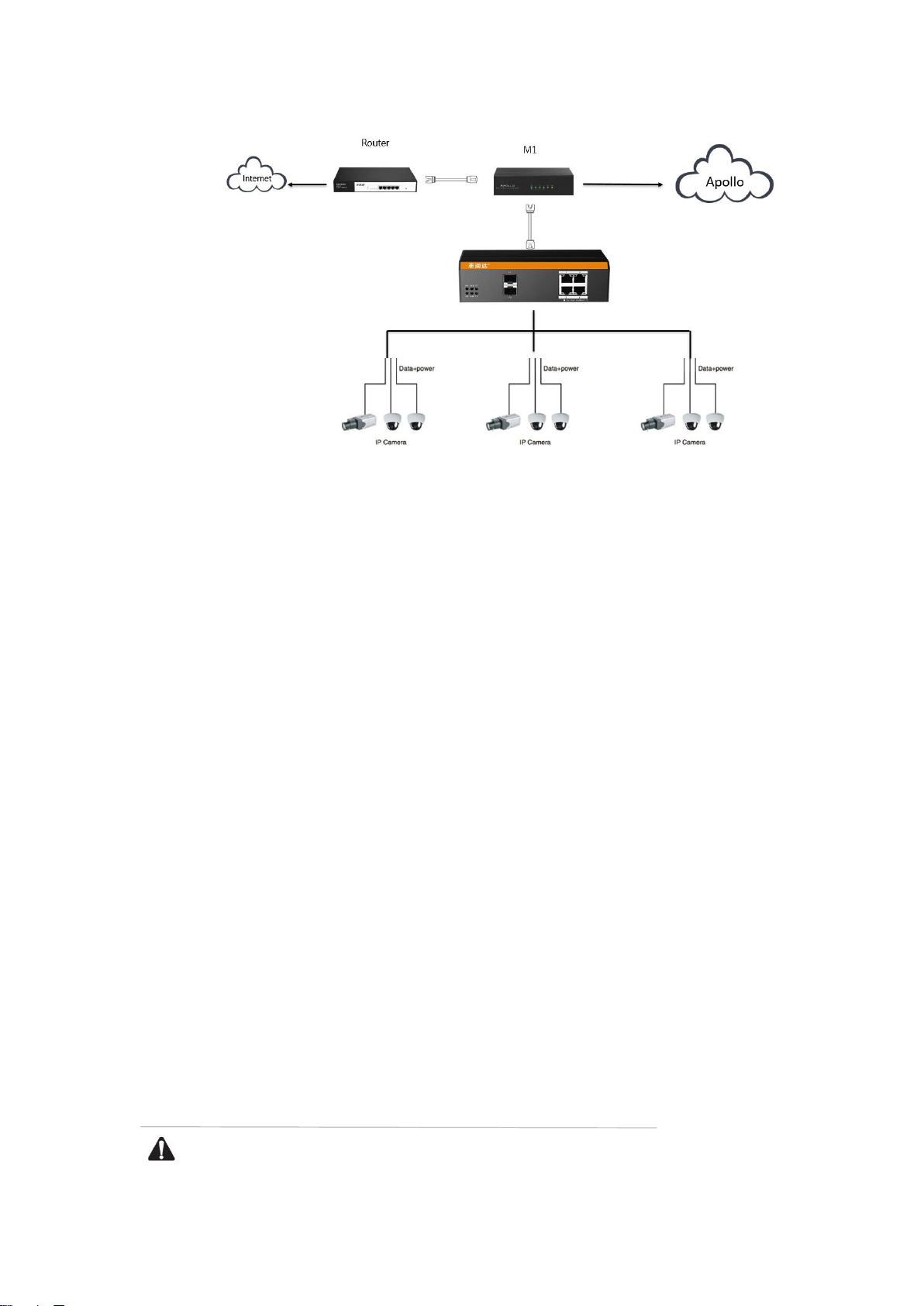

The IS104GS-2F is a 6-port Gigabit-managed industrial Ethernet switch
that provides 4 Gigabit ports and 2 Gigabit SFP ports. It is especially suitable for
applications where AC power is not easily available or high wiring costs. It
support EMC industrial grade 4 protection; corrugated high-strength aluminum
profile housing, IP40 grade, low power design, seismic rail mounting, -40°C-75°
C operating temperature, can work in harsh environments; IS104GS-2F also
supports Apollo cloud one-stop management platform for status checking and
management monitoring. It is a reliable solution for video surveillance and
other harsh industrial environments.
1.2 Features
Full Gigabit Ethernet port
4 full Gigabit RJ45 network port, and 2 Gigabit SFP ports, breaking the
traditional 100M limitation, data transmission will not stuck
Broadcom high performance industrial grade chip for more stable
performance
Broadcom high-performance industrial-grade chips that dramatically
increase network data processing rates
Powerful working environment

3
EMC industrial grade 4 protection; corrugated high-strength aluminum
profile housing, IP40 grade, low power design, seismic rail mounting, -40 °
C-75°C operating temperature, can work in harsh environments
Support Apollo cloud platform one-stop management
Support cloud platform to visualize management of switches and attached
power devices, making operation and maintenance management easier
1.3 Software and hardware specifications
Hardware specification
Chip
Broadcom high performance chip
Flash
16MB
RAM
64MB DDR
Port
410/100/1000M RJ45 port
2 1000M SFP port
Indicator
6Link/Act Indicator
ALMAlarm indicator
P1、P2Power Indicator 1 SYS Indicator
Performance
Forward mode: store and forward
Backplane bandwidth: 12Gbps
Packet forwarding rate: 8.9Mpps
Support 8K MAC address table depth

4
Standard
protocol
IEEE 802.3: Ethernet Media Access Control (MAC)
Protocol
IEEE 802.3i: 10BASE-T Ethernet
IEEE 802.3u: 100BASE-TX Fast Ethernet
IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ad: Standard method for performing link
aggregation
IEEE 802.3x: Flow Control
IEEE 802.1p: LAN Layer 2 Qos/Cos
protocol for traffic prioritization
(multicast filtering)
IEEE 802.1q: VLAN Bridge Operation
IEEE 802.1d: STP spanning tree
IEEE 802.1s: MSTP Spanning Tree
IEEE 802.1w: RSTP Spanning Tree
Industry
Standard
EMI:FCC CFR47 Part 15, EN55022/CISPR22, Class A
EMS:
IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

5
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM;
Data Port: ±6kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V
(150kHz-80MHz)
IEC60068-2-6 (Vibration)
IEC60068-2-27 (Shock)
IEC60068-2-32 (Free Fall)
Operation
environment
Working temperature: -40 ~ 75 ° C
Storage temperature: -40 to 75 ° C
Relative humidity: 5% to 95% (no condensation)
Certification
CE, FCC, RoHS
Mean time
between
failures(MTBF)
100,000 hrs
Warranty
3 years
Lightning
protection
Network port: ±6KV power port: ±4KV
ESD
Contact: ±8KV Air: ±15KV
Physical
specification
Input:12-56VDC
Housing: IP40 grade protection, corrugated high
strength metal housing

6
Installation: DIN rail mounting
Size: 163mm × 46.5mm × 110mm, weight: 1kg
Software specification
Global control
button
AI Loop Protect
AI VLAN
Hardware
watchdog
Support
Traffic Statistics
Support
Port energy
saving
Support
DHCP
Support DHCP Snooping
VLAN
Support 4KVLANs
Support 802.1Q VLAN、MAC VLAN ,IP VLAN
Voice VLAN
MAC address
Follow the IEEE 802.1d standard
Support MAC address automatic learning and aging
Support static, dynamic, filtering address table
Safety features
Password protection

7
Support restrict user access based on port number,
IP address, and MAC address
SupportHTTPS、SSL V3、TLS V1、SSH V1/V2
SupportIP-MAC-PORT ternary binding
Support ARP protection, IP source protection, DoS
protection
Support DHCP Snooping and DHCP attack
protection
Support 802.1X authentication, AAA
Support port security, port isolation
Support CPU protection
QoS
Support 8 port queues
Support port priority, 802.1P priority, DSCP priority
Supports SP, WRR, and RR priority scheduling
algorithms
Supports automatic identification, managementand
retrieval of information about attached devices
Spanning tree
Supports STP (IEEE 802.1d), RSTP (IEEE 802.1w) and
MSTP (IEEE 802.1s) protocols
Support loop protection, root bridge protection, TC

8
protection, BPDU protection, BPDU filtering
Multicast
Suppor IGMP v1/v2 Snooping
Support fast leave mechanism
Support multicast VLAN
Supports multicast filtering, packet statistics, and
unknown multicast discards.
Storm
suppression
Support multicast suppression
Support broadcast suppression
Support unknown unicast suppression
Link aggregation
Support static aggregation
Support dynamic aggregation
Support IP, MAC, hybrid load balancing mode
Supports up to 32 aggregation groups
IPv6
SupportIPv6 Ping、IPv6 Tracert、IPv6 Telnet
SupportIPv6 SSH 、IPv6 SSL
Management
and maintenance
Support WEB network management (HTTP, HTTPS,
SSL V3)
Support CLI (Telnet, SSH V1/V2, local serial port)
Support SNMP V1/V2/V3,
SupportLLDP、RMON
Support ARP protection, IP source protection, DoS

9
protection
Support SNMP protocol
Support Apollo cloud platform one-stop
management and maintenance
Support CPU monitoring, memory monitoring
Support system log, grading warning
Support Ping, Tracert detection, cable detection
1.4 Appearance
Indicator
Status
Description
P1、P2
On
Thecorrespondingpower supply working
normally.
Off
The correspondingpower supply is not

10
connected or working abnormal.
SYS
Blinking
System is running normally
Off / always
bright
System operation is abnormal / start
unsuccessful
ALM
On
Alarm start up
Off
Alarm not triggered
Link/ACT
F1、F2
Blinking
SFP port is working normal
Off
SFP port is working abnormally / port is
not connected
Chapter 2. Hardware Connection
2.1 Connect to RJ45 port
Connect the switch and the RJ45 port of the network device with a
network cable.

11
2.2 Connect to the SFP port
The SFP port of the IS104GS-2F supports only Gigabit fiber modules. It is
recommended to use standard SFP module products.
The process of installing a fiber module on a switch is as follows:
1. Grasp the fiber module from the side and insert it smoothly along the SFP
port slot of the switch until the fiber module is in close contact with the switch;
2. Confirm the Rx and Tx ports of the fiber module when connecting. Insert
one end of the fiber into the Rx and Tx ports to ensure that the Tx and Rx ends
of the interface are correctly connected, and the other end of the fiber is
connected to another device.
3. After power-on, check the status of the corresponding indicator. If the
indicator is on, the link is up. If not, please check the line and confirm that the
peer device is enabled.
Attention:

12
It is not allowed to excessively bend the fiber, and its radius of curvature should
be no less than 10cm;
Ensure the cleanliness of the fiber end face;
Please do not look directly into the fiber optic connector with your eyes, as this
may cause eye damage.
2.3 Check before power-on
Check that the power supply of the power outlet meets the switch
specifications.
Check that the power supply, switch, and rack are properly grounded.
Check whether the switch is connected to other network devices.
2.4 Device initialization
The switch will automatically initialize after the power is turned on and the
power switch is turned on.
The indicator light will appear as follows:
After the power is turned on, the power indicator remains steady, the SYS light
enters the blinking state, and the system runs normally.
The indicator of each port indicates the connection status of each port,
indicating that the switch has started to work normally.

13
Chapter 3 Product Installation
Before installation, confirm the operating environment of the equipment:
power supply voltage, installation space, installation method, etc. Please
carefully confirm the following installation requirements:
- Check for cables and connectors required for installation
- Check whether the cable is in place (not more than 100m)
according to reasonable configuration requirements.
- The product does not provide mounting components, the user
must prepare the components of the selected installation type: screws, nuts and
tools to ensure reliable installation
Power requirements: 12-56VDC
Environmental requirements:
Working temperature: -40 ~ 75 ° C
Storage temperature: -40 to 75 ° C

14
Relative humidity: 5% to 95% (no condensation)
Power input
5pin 5.08mm terminal
Input range: 12-56VDC
P1&P2 dual redundant power supply,
Support reverse connection protection
Ground protection
Connect to ground
Rail mounting

15
Chapter 4, Packing list and userecommendations
4. 1 Product packaging
Item
Quantity
Description
Switch
1 set
\
Phoenix terminal
1*5,1*2 each per
one unit
Connect to power and alarm
switch
Warranty card
1 piece
For after-sales maintenance
User Manual
1 copy
Used to guide users to install
switches
4.2 Recommendations
1. For safety reasons, non-professionals should not open the product casing;
2. Pay attention to the danger of strong electricity and safe protection when
the product is powered on;
3. Do not use the switch in a humid environment to prevent water from
entering the fuselage through the casing, resulting in damage to the machine;
4. In the state of power-on of the product, please do not plug and unplug
the cable if non special case;
5. Please do not place heavy objects on the switch to avoid accidents;
6. It is recommended to use the switch indoors. It is recommended to add a
waterproof box when using it outdoors.
Note: The pictures in the manual are for reference only, whichever is subject to

16
the actual product.
