Hored S5700-12G-12F User manual

User Manual
S5700-12G-12F
24ports Gigabit Layer3 management switch

1
Installation manual
The product installation manual mainly introduces the hardware
characteristics, installation methods and points to be noted in the
installation process of s5700-12G-12F switch.
This manual includes the following chapters:
Chapter 1: product introduction.Describe the basic functional
characteristics of the switch, detailed hardware and software
specifications and appearance information.
Chapter 2: hardware connectivity.Instruct the connection between
switch and other equipment and matters needing attention.
Chapter 3: product installation.Instruct switch hardware
installation method and matters needing attention.
Chapter 4: product packaging and usage recommendations

2
Chapter 1 product introduction
1.1 product introduction
S5700-12G - 12F is specially designed for building high-
performance full gigabit network requirements of gigabit
managed switches on the second floor, all products using a
new generation of high-performance hardware and
software platform, provides a flexible and cost-effective full
gigabit RJ45 port and port access convergence SFP, support
layer management functions, has complete security
protection mechanism, perfect the ACL/QoS policies and
rich VLAN function, easy to maintenance management,
satisfy the users for network equipment easy management,
high security and low cost of network requirements,
support the Apollo cloud one-stop management
platform,Implementation of status check and management
monitoring functions, suitable for campus, hotel and
enterprise park network access, convergence, core
application scenarios
1.2 product features
Full gigabit port
12 full gigabit RJ45 network ports, and 12 gigabit SFP
optical fiber ports, breaking through the traditional 100 MB

3
limit, data transmission without delay
Broadcom chips, more stable and robust performance
Broadcom high performance chip, can greatly improve
the network data processing speed
Support Apollo cloud platform one-stop management
Support the cloud platform to visually manage the
resources of switches and PD devices, making operation
and maintenance management simpler
1.3 Product hardware/software spec
Hareware
Chip
Broadcom
Flash
16MB
Storage
128MB DDR
Port
12 pcs 10/100/1000Mbps RJ45
12Gagibit 12SFP ports
1Console port
Function
Forward mode: store and forward
BD：48Gbps
Rate：35.7Mpps
Support 8KMAC
Anti-
Thunder
±6KV

4
ESD
Touch：±6KVAir：±8KV
Input
100-240V/50-60Hz
Size（L×
W×H）
440mm×180mm×44mm
Software
Product
standard
IEEE 802.3:（MAC）network standard
IEEE 802.3i:10BASE-Tnetwork
IEEE 802.3u:100BASE-TX speed network
IEEE 802.3ab:1000BASE-TGigabit
Network
IEEE 802.3z:1000BASE-XGigabit
Network（SFP）
IEEE 802.3ad:Standard method link
aggregation
IEEE 802.3x:Traffic Control
IEEE 802.1p:LAN layer 2 Qos/Cos
protocol for traffic priority (multicast
filtering function)
IEEE 802.1q:VLAN Bridge operation
IEEE 802.1d:STP Tree
IEEE 802.1s:MSTP Tree
IEEE 802.1w:RSTP Tree
DHCP
Support DHCP Snooping
VLAN
Support 4K 个 VLAN
Support802.1Q VLAN、MAC VLAN ,IP
VLAN
Voice VLAN

5
MAC
Address
Follow IEEE 802.1d standard
Support MACAddress automatic
learning and aging
Support static, dynamic, filter address
table
Safe
Special
spec
Password protection
Support user access restrictions based
on port number, IP address, MAC
address
Support HTTPS、SSL V3、TLS V1、SSH
V1/V2
Support IP-MAC-PORT all
Support ARP protect、IP protect、DoS
protect
Support DHCP Snooping、DHCP attack
support
Support 802.1X Certificate、AAA
Support port security and port isolation
Support CPU protect function
(ACL)
Support L2(Layer 2)～L4(Layer 4)Packet
filtering function
Support port mirroring, port
redirection, flow speed limit, QoS
remarking
(QoS)
Supports 8 port queues
Support port priority, 802.1p priority,

6
DSCP priority
Support SP, WRR, WFQ priority
scheduling algorithm
Support automatic identification,
management and acquisition of
information
Tree
Support STP(IEEE 802.1d)，RSTP(IEEE
802.1w)and MSTP(IEEE 802.1s)standard
Support loop protection, root bridge
protection, TC protection, BPDU
protection, BPDU filtering
Multicast
Support IGMP v1/v2 Snooping
Support for quick exit mechanism
Support Multicast VLAN
Supports multicast filtering, message
statistics and unknown multicast
discarding
Storm
control
Support multicast control
Support broadcast control
Support Unknown unicast control
Link
together
Support static aggregation
Support dynamic convergence
Support IP, MAC, mixed load balancing
mode
Maximum support is 32 aggregation
groups

7
IPv6
Support IPv6 Ping、IPv6 Tracert、IPv6
Telnet
Support IPv6 SSH 、IPv6 SSL
Manage
and
Maintain
Support WEB control（HTTP、HTTPS、
SSL V3）
Support CLI（Telnet、SSH V1/V2、
Local port）
Support SNMP V1/V2/V3
Support LLDP、RMON
Support SNMP standard
Support ARP protect、IP protect、DoS
protect
Support Apollo
Support CPU monitoring 、Storage
monitoring
Support system log, grading warning
Support Ping、Tracert test、line test

8
1.4 product appearance
Front
Contains indicator light, RJ45 port, shortcut function button,
RST button, SFP port, CONSOLE port, as shown below
Indicator light
S5700-12G-12F Indicator light:
Indicato
r light
name
color
Workin
g
statues
declaration
PWR
Power
light
red
lightin
g
Power normal
No
bright
Power out , power switch
not open, power
abnormal
Port
Screen
indicat
or
gree
n
yello
w
Green
lightin
g
Port working 1000Mbps
Yellow
lightin
g
Port working 10/100Mbps

9
flicker
Date transfer now
No
bright
No device connected
SFP
SFP
light
gree
n
Flicker
The corresponding SFP
port is connected
normally
No
bright
SFP port is not connected
properly
SYS
Syste
m
light
gree
n
Flicker
System working normal
No
bright
System working
abnormal,system
damaged
RJ45port
S5700-12G-12 support 12 units 10/100/1000Mbps
ports，
SFP port
S5700-12G-12F support 12 gigabit SFP Optical
module expansion slot, can insert gigabit SFP
module
RST button
When switch is powered on, press the button with a
needle and release the device to enter the restart
state. When the SYS lamp lights up and the device is
restarted, press the button for longer than 5S with a
needle and the device enters the reset state. When
SYS lights up and the device is reset successfully
Console port

10
Console Ports are used to connect serial ports to
computers or other terminals to manage or
configure switches

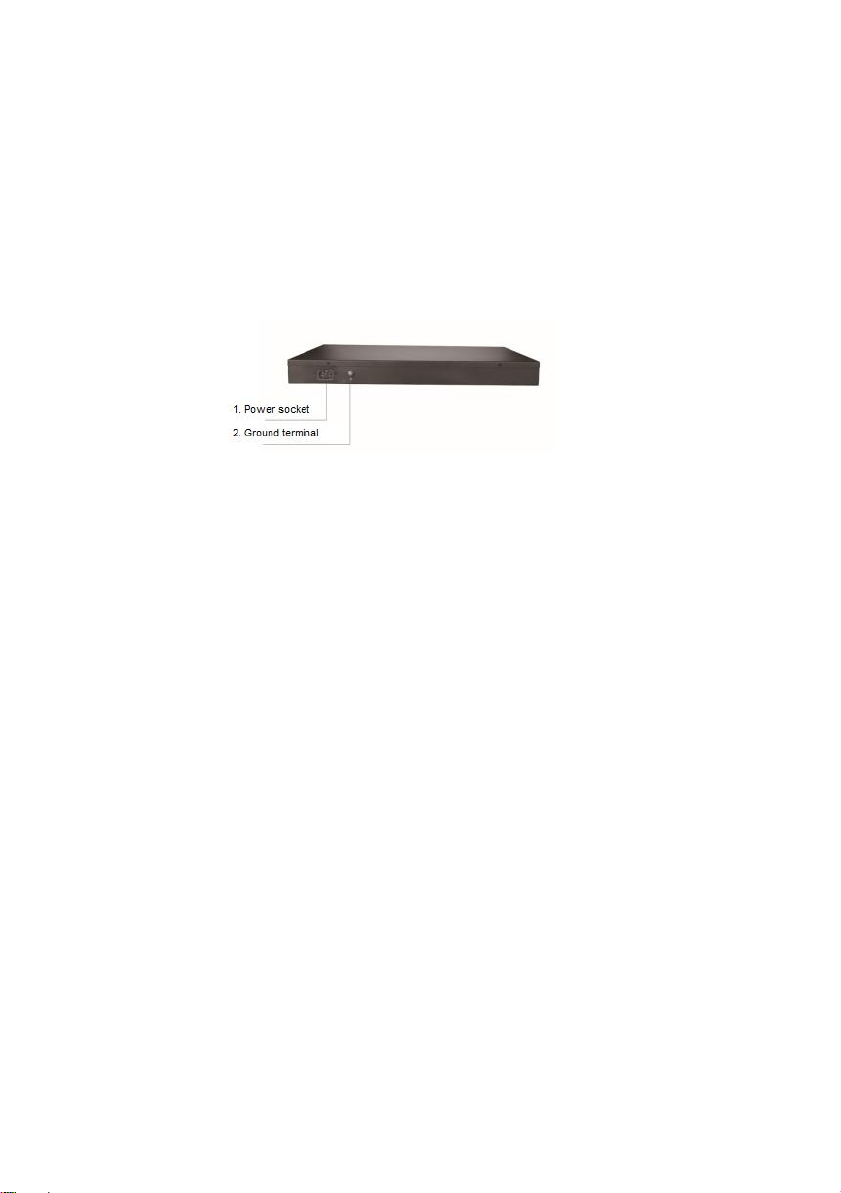

Background panel
Include: power socket, power switch, grounding
terminal
Power socket
Connect the power cord to the switch s5700-12G-
12F and the access power should be 100-240v ~
50/60hz ac power
Ground terminal
Please ground the wire in case of lightning strike.To
avoid lightning strike and extend the service life of
products
Chapter 2: hardware connection
2.1 port RJ45 connection
The RJ45 port of the switch and the opposite network
equipment with the network cable, and the s5700-12g-12f
in the networkcan be used as the core and convergence

11
layer equipmen
Note:
When the switch is connected with workstations, servers, routers
or other Ethernet devices, the network cable length should not be
more than 100 meters; Switch Ethernet port auto-mdi /MDIX
function is turned on by default. When 5 types of twisted pair
wires are used to connect Ethernet, standard network cable or
cross network cable can be used;
Do not connect RJ45 to the phone line.
2.2 Connect to the SFP port
The s5700-12G-12F SFP port only supports gigabit
fiber modules.It is recommended to use standard SFP
module products.The installation process of fiber optic
module of switch is as follows:

12
1.、Grab the fiber module from the side and insert it
smoothly along the SFP port slot of the switch until the
fiber module is in close contact with the switch;
2.、Confirm the Rx and Tx ports of the optical fiber
module during connection, insert one end of the optical
fiber into the Rx and Tx ports corresponding to ensure the
correct connection between the Tx and Rx ends of the
interface, and connect the other end of the optical fiber to
another equipment;
3、After power on, please check the state of
corresponding indicator light.light on, it means that the link
is normally connected; light off, it means that the link is not
connected. Please check the circuit and confirm that the
opposite device is enabled
Note:
It is not allowed to excessively bend the fiber, and its radius of
curvature should be no less than 10cm ;
Ensure the cleanliness of the fiber end face;
Please do not look directly into the fiber optic connector with
your eyes, as this may cause eye damage.
2.3 Check before power-on
Check that the power supply of the power outlet meets the
switch specifications.
Check that the power supply, switch, and rack are properly
grounded.
Check whether the switch is connected to other network
devices.

13
2.4 device initialization
The switch will automatically initialize after the power is
turned on and the power switch is turned on.
The indicator light will appear as follows:
1、After the power is turned on, the power indicator
remains steady. When SYS enters the flashing state, the
system runs normally.
2、The indicator of each port indicates the
connection status of each port, indicating that the switch
has started to work normally.
Chapter 3 product installation
3.1 Installation precautions:
Note: To avoid damage to the equipment and personal injury
caused by improper use, please observe the following precautions.
Installation safety precautions
power supply remains off during the installation process.
Wear an ESD-preventive wrist strap and ensure that the ESD-
preventive wrist strap is in good contact with the skin to avoid
potential safety hazards.
Switch only can work normally under the correct power
supply. Please confirm that the power supply voltage matches the
voltage indicated by the switch.

14
Before powering on the switch, please make sure that
the power circuit is not overloaded, so as not to affect the normal
operation of the switch and cause unnecessary damage.
To avoid the risk of electric shock, do not open the case
while the switch is working, even if it is not charged, do not open
it yourself;
Before cleaning the switch, first pull out the power plug
of the switch. Do not wipe with a moist fabric. Do not use liquid to
clean.
humidity
In order to ensure long-term stable operation of the switch and
prolong its service life, please maintain a certain temperature and
humidity in the environment. Too high or too low ambient
humidity is likely to cause leakage, deformation and even
corrosion of metal parts. If the temperature is too high, the aging
process of the insulation material will be accelerated, which will
seriously affect the service life of the equipment. The normal
operation and storage temperature / humidity of this series of
switches are as follows
environment description
Temperature
relative humidity
Working environment
0℃~40℃
10%～90% RH not
congeal
Storage environment
-40℃～70℃
5%～90% RH not
congeal
elevation

15
Products with this mark are only suitable for safe use in areas
below 2000m above sea level .
dustproof
Dust falling on the surface of the switch can cause electrostatic
adsorption and poor contact of the metal contacts. Although the
device itself has made certain measures in anti-static, when the
static electricity exceeds a certain intensity, it will still cause fatal
damage to the electronic components on the internal circuit board.
To avoid the static electricity affecting the normal operation of the
device, please pay attention to the following:
1、Regular dust removal to keep indoor air clean;
2、Make sure that the equipment is well grounded to ensure
the smooth transfer of static electricity.
interference
Electromagnetic interference will affect the electronic components
such as capacitors and inductors inside the device by means of
capacitive coupling, inductive coupling, impedance coupling, etc.
To reduce the adverse effects caused by electromagnetic
interference, please pay attention to the following:
1、The power supply system takes necessary measures
against grid interference;
2、The switch should be away from high-frequency, high-
power, high-current equipment, such as wireless transmitters;
3、Take electromagnetic shielding measures when necessary.
lightning protection needs
When a lightning strike occurs, a strong current is generated in an
instant, and the air in the discharge path is instantaneously heated
to 20,000 degrees Celsius, and an instantaneous large current is

16
enough to cause fatal damage to the electronic device. For better
lightning protection, please note the following:
1、Confirm that the rack is in good contact with the ground;
2、Make sure the power outlet is in good contact with the
ground;
3、Reasonable wiring to avoid internal induction lightning;
4、When using outdoor wiring, it is recommended to use a
signal Installation rack requirements
Regardless of whether the switch is installed in a rack or other
horizontal workbench, please note the following:
1、Verify that the rack or table is stable, strong, and capable
of withstanding a weight of at least 5.5 kg;
2、Confirm that the rack itself has a good cooling system, or
keep the room well ventilated;
3、Make sure the rack is well grounded, and the distance
between the power socket and the switch is less than 1.5 meters.
tool preparation
The Phillips screwdriver, electrostatic wrist strap, and cable fiber
may be used during installation.
3.2 The product installation
19 inch standard rack mount
The S5700- 12G- 12F is designed to fit a 19 -inch standard rack
and can be easily mounted to a rack. The specific installation steps
are as follows:
1、 Check the grounding and stability of the rack;
2、 Install the two L -shaped brackets in the accessories on both
sides of the switch panel and fix them with the screws provided in
the accessories.

17
3、 the switch is placed in position within the frame, is supported
by the carriage; screw the L -shaped bracket fixed to the fixed rack
guide slot ends, the switch to ensure a stable, horizontally
mounted on the machine frame,
Note:
Good grounding of the rack is an important guarantee for anti-
static, anti-leakage, lightning protection and anti-interference of
the equipment. Therefore, ensure that the grounding wire of the
rack is properly installed.
The equipment installed in the rack is generally from bottom to
top to avoid overload installation;
Avoid placing other heavy objects on the surface of the switch to
avoid accidents;

18
3.3 Web Login
Step1、,In the normal operation of the device, connect the
computer to the switch's RJ45 port by network cables
Step2、 Manually changed the computer IP address to
192.168.254.X (X is 2 ~ 254), subnet mask is
255.255.255.0

19
Step3、Open computer's browser, type 192.168.254.1 in the
address box, hit the Enter key
Step4、 Enter the default username and password “admin” and
then click Login
Step5、Entered the switch web management interface
successfully when you see picture as below, you can
begin to configure the switch
