Hored S5700-24F-8G-4TF User manual

User Manual
S57 00 -24F-8G-4TF
24 Port 10G Core Network Switch

1
Installation manual
The product user's manual mainly introduces the software and
hardware parameters, installation method and matters needing
attention in the installation process of S5700-24F-8G-4TF switch.
This manual includes the following chapters:
Chapter 1: product introduction. Describe the basic functional
characteristics of the switch, detailed hardware and software
specifications and appearance information.
Chapter 2: hardware connectivity .Instruct the connection
between switch and other equipment and matters needing
attention.
Chapter 3: product installation. Instruct switch hardware
installation method and matters needing attention.
Chapter 4: product packaging and usage recommendations.

2
Chapter 1 product introduction
1.1 product introduction
The S5700-24F-8G-4TF three-tier, stackable administrative
switch is designed for small and medium enterprises (SMEs), large
enterprises and Internet service providers (ISPs).They offer high
performance, flexibility, fault tolerance, and advanced software
capabilities to achieve maximum return on investment.S5700-24f-
8g-4tf switches with gigabit Ethernet RJ45 and SFP ports, 10G
SFP+ ports, advanced security features and advanced quality of
service (QoS), can be used as core, distribution or access layer
switches, with high-end port density, switch stack and easy
management, is an ideal choice for all kinds of commercial
network applications.
1. 2 product features
Full gigabit port
full gigabit RJ45 Combo ports, 4 10 gigabit SFP optical
fiber ports, 24 gigabit SFP ports, breaking the traditional

3
100 MB limit, data transmission does not slow down
Broadcom high-end chip, performance is more stable and
strong
Broadcom's high-end chips can greatly improve the
speed of network data processing
Support stacked function
Support physical stack of 9 switches, virtual stack of 32
switches, support ring/Daisy chain stack link
Support Apollo cloud platform one-stop management
Support the cloud platform to visually manage the
resources of switches and PD devices, making operation
and maintenance management simpler

4
1.3 Product software and hardware technical
specifications
Hardware
Chip
Broadcom high performance chip
Flash
16MB
storag
e
256MB DDR
port
8 10/100/1000Mbps RJ45 ports（Combo）
4 10G SFP ports
24 Gigabit SFP ports
1 RJ45 Console port， 1 10/100/1000Mbps
management RJ45 port
1 USB 2.0,1 Mini-usb Console port
perfor
mance
Forward mode: store and forward
Back width：128Gbps
Rate：96Mpps
Support 16K MAC
Thund
±6KV

5
er
proof
ESD
touch：±6KV air：±8KV
Input
100-240V/50-60Hz
Size（L
×W×
H）
440mm×320mm×44mm
software feature
Route
Support RIP V1/V2,OSPFv1\OSPFv2dynamic
routing
Support static route
DH
CP
Support DHCP Service
Support DHCP Relay
Support DHCP Snooping
VLAN
Support 4K VLAN
Support 802.1Q VLAN、MAC VLAN ,IP VLAN
Voice VLAN

6
MAC
list
Follow IEEE 802.1d standard
Support MAC Address automatic learning
and aging
Support static, dynamic, filter address table
Safety
perfor
mance
password protection
Support user access restrictions based on
port number, IP address, MAC address
Support HTTPS、SSL V3、TLS V1、SSH
V1/V2
Support IP-MAC-PORT 3 in one
Support ARP protect、IP protect、DoS
protect
Support DHCP Snooping、DHCP attack
protect
Support 802.1X AC、AAA
Support port security and port isolation
Support CPU protect function
Support L2(Layer 2)～L4(Layer 4)Packet

7
ACL
filtering function
Support port mirroring, port redirection,
flow speed limit, QoS remarking
QoS
Supports 8 port queues
Support port priority, 802.1p priority, DSCP
priority
Support SP, WRR, WFQ priority scheduling
algorithm
Support automatic identification,
management and acquisition of information
Tree
Support STP(IEEE 802.1d)，RSTP(IEEE
802.1w) and MSTP(IEEE 802.1s)standard
Support loop protection, root bridge
protection, TC protection, BPDU protection,
BPDU filtering
Multic
Support IGMP v1/v2 Snooping
Support for quick exit mechanism
Support Multicast VLAN

8
ast
Supports multicast filtering, message
statistics and unknown multicast discarding
Storm
control
Support multicast control
Support broadcast control
Support Unknown unicast control
Link
togeth
er
Support static aggregation
Support dynamic convergence
Support IP, MAC, mixed load balancing
mode
Maximum support is 32 aggregation groups
IPv6
Support IPv6 Ping、IPv6 Tracert、IPv6 Telnet
Support IPv6 SSH 、IPv6 SSL
Support WEB Management（HTTP、
HTTPS、SSL V3）
Support CLI（Telnet、SSH V1/V2、Local
port）
Support SNMP V1/V2/V3

9
Manag
e and
Mainta
in
Support LLDP、RMON
Support ARP protect 、IP protect、DoS
protect
Support Apollo
Support CPU monitoring 、Storage
monitoring
Support system log, grading warning
Support Ping、Tracert test、line test
1.4 Product appearance
The front panel

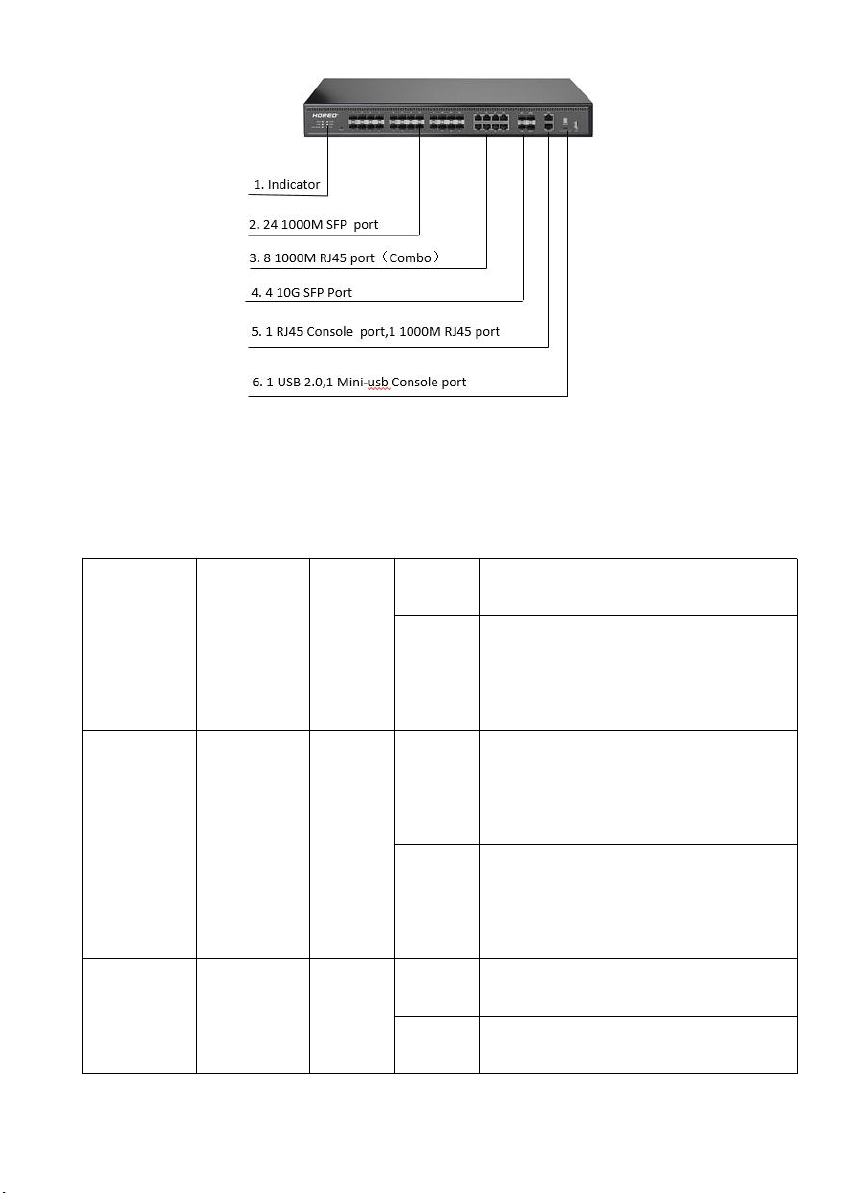

Contains indicator light, RJ45 port, SFP port, CONSOLE port,
USB port, as shown below

10
Indicator light
S5700-24F-8G-4TF Indicator light
PWR
Power
light
red
on
Power normal
off
Power out , power switch
not open, power abnormal
LINK/AC
T
Device
connect
light
green
flicker
The corresponding RJ45
port is connected
off
The corresponding RJ45
port is unconnected
SYS
System
light
green
flicker
System working normal
off
System working

11
abnormally, System
damaged
XG
SFP
light
green
flicker
The corresponding RJ45
port is unconnected
off
The corresponding RJ45
port is unconnected
RJ45 port
S5700-24F-8G-4TF support 8 10/100/1000mbps adaptive
RJ45 Combo port, 1 RJ45 Console port, 1 gigabit RJ45
management port
SFP port
The S5700-24F-8G-4TF provides 4 10G SFP uplink port
and 24 gigabit SFP ports, which can be inserted into
gigabit SFP modules
RST button
When the switch is powered on, press the button with a
needle and release the device to enter the restart state.

12
When the SYS lamp lights up and the device is restarted,
press the button for longer than 5S with a needle and
the device enters the reset state. When SYS lights up and
the device is reset successfully.
The Console port
Console port is used to connect to serial ports on
computers or other terminals to manage or configure
switches.
Rear panel
Includes: power socket, power switch, grounding terminal
Power socket
Connect the power cord to the switch S5700-24F-8G-4TF

13
and the access power should be 100-240v ~ 50/60hz ac power
Ground terminal
Please ground the wire in case of lighting strike. To avoid
lightning strike and extend the service life of products
Chapter 2: hardware connection
2.1 Connect the RJ45 port
Connect the network cable to the RJ45 port of the
switch and the opposite network device

14
2.2 Connect to the SFP port
The s5700-24F-8G-4TF SFP port only supports gigabit
fiber modules.It is recommended to use standard SFP
module products.The installation process of fiber optic
module of switch is as follows:
1、Grasp the fiber module from the side and insert
it smoothly along the SFP port slot of the switch until the fiber
module is in close contact with the switch;
2、Confirm the Rx and Tx ports of the fiber module when
connecting, insert one end of the fiber into the Rx and Tx ports,
ensure that the Tx and Rx ends of the interface are correctly
connected, and the other end of the fiber is connected to another
device;
3、After power-on, check the status of the corresponding
indicator. If the indicator is on, the link is up. If the indicator is off,

15
the link is down. Check the line and confirm that the peer device is
enabled.
Note:
It is not allowed to excessively bend the fiber, and its radius of
curvature should be no less than 10cm ;
Ensure the cleanliness of the fiber end face;
Please do not look directly into the fiber optic connector with
your eyes, as this may cause eye damage.
2.3 Check before power-on
Check that the power supply of the power outlet meets the switch
specifications.
Check that the power supply, switch, and rack are properly
grounded.
Check whether the switch is connected to other network devices.
2.4 device initialization

16
The switch will automatically initialize after the power is turned on
and the power switch is turned on.
The indicator light will appear as follows:
1、After the power is turned on, the power indicator remains
steady. When SYS enters the flashing state, the system runs
normally.
2、The indicator of each port indicates the connection status
of each port, indicating that the switch has started to work
normally.
Chapter 3 product installation
3.1 Installation Precautions
Note: To avoid damage to the equipment and personal injury
caused by improper use, please observe the following precautions.
safety precautions
power supply remains off during the installation process.
Wear an ESD-preventive wrist strap and ensure that the ESD-

17
preventive wrist strap is in good contact with the skin to avoid
potential safety hazards.
Switch only can work normally under the correct power
supply. Please confirm that the power supply voltage matches the
voltage indicated by the switch.
Before powering on the switch, please make sure that
the power circuit is not overloaded, so as not to affect the normal
operation of the switch and cause unnecessary damage.
To avoid the risk of electric shock, do not open the case
while the switch is working, even if it is not charged, do not open
it yourself;
Before cleaning the switch, first pull out the power plug
of the switch. Do not wipe with a moist fabric. Do not use liquid to
clean.
humidity
In order to ensure long-term stable operation of the switch and
prolong its service life, please maintain a certain temperature and
humidity in the environment. Too high or too low ambient
humidity is likely to cause leakage, deformation and even

18
corrosion of metal parts. If the temperature is too high, the aging
process of the insulation material will be accelerated, which will
seriously affect the service life of the equipment. The normal
operation and storage temperature / humidity of this series of
switches are as follows
Environmenta
l description
temperat
ure
Relative humidity
working
environment
0°C~40°C
10% to 90% RH does not condense
Storage
environment
-40 ° C ~
70 ° C
5% to 90% RH does not condense
elevation
Products with this mark are only suitable for safe use in areas
below 2000m above sea level .

19
dustproof
Dust falling on the surface of the switch can cause electrostatic
adsorption and poor contact of the metal contacts. Although the
device itself has made certain measures in anti-static, when the
static electricity exceeds a certain intensity, it will still cause fatal
damage to the electronic components on the internal circuit board.
To avoid the static electricity affecting the normal operation of the
device, please pay attention to the following:
1、Regular dust removal to keep indoor air clean;
2、Make sure that the equipment is well grounded to ensure
the smooth transfer of static electricity.
interference
Electromagnetic interference will affect the electronic components
such as capacitors and inductors inside the device by means of
capacitive coupling, inductive coupling, impedance coupling, etc.
To reduce the adverse effects caused by electromagnetic
interference, please pay attention to the following:
1、The power supply system takes necessary measures
against grid interference;
