Horizon Fitness T202-03 User manual

T202-03
CT7.2
Read the TREADMILL GUIDE before using this OWNER’S MANUAL.
Lisez le guide du TAPIS ROULANT avant de vous référer au MANUEL DU PROPRIÉTAIRE.
Lea la GUÍA DE LA CAMINADORA antes de utilizar este MANUAL DEL PROPIETARIO.
TREADMILL OWNER’S MANUAL
MANUEL DU PROPRIÉTAIRE DU TAPIS ROULANT
MANUAL DEL PROPIETARIO DE LA CAMINADORA

2
2 ENGLISH
28 FRANÇAIS
54 ESPAÑOL

3
IMPORTANT PRECAUTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be followed, including the following: Read all instructions
before using this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately
informed of all warnings and precautions. If you have any questions after reading this guide, contact Customer Tech Support
at the number listed on the back cover of the OWNER’S MANUAL.
This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional
setting. Failure to comply will void the warranty.

4
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
•Never use the treadmill before securing the safety tether clip to your clothing.
•If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop
exercising immediately and consult your physician before continuing.
•When exercising, always maintain a comfortable pace.
•Do not wear clothes that might catch on any part of the treadmill.
•Always wear athletic shoes while using this equipment.
•Do not jump on the treadmill.
•At no time should more than one person be on treadmill while in operation.
•This treadmill should not be used by persons weighing more than specified in the OWNER’S MANUAL WARRANTY
SECTION. Failure to comply will void the warranty.
•When lowering the treadmill deck, wait until rear feet are firmly on the floor before stepping on the deck.
•Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp
cloth only; never use solvents. (See MAINTENANCE)
•The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on
or taking off parts.
•Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
•Connect this exercise product to a properly grounded outlet only.
WARNING
TO REDUCE THE RISK OF ELECTRICAL SHOCK:
Always unplug the treadmill from the electrical outlet immediately after using, before cleaning, performing maintenance and putting on or
taking off parts.
DANGER

5
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
•At NO time should children under the age of 13 or pets be within 10 feet of the machine.
•At NO time should children under the age of 13 use the treadmill.
•Children over the age of 13 or disabled persons should not use the treadmill without adult supervision.
•Use the treadmill only for its intended use as described in the treadmill guide and owner’s manual.
•Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.
•Never operate the treadmill if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged,
or immersed in water. Contact Customer Tech Support at the number on the back cover to schedule service.
•Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.
•Never operate the treadmill with the air opening blocked. Keep the air opening clean, free of lint, hair, and the like.
•To prevent electrical shock, never drop or insert any object into any opening.
•Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
•To disconnect, turn all controls to the off position, then remove plug from outlet.
•Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages, porches, pool
rooms, bathrooms, car ports or outdoors. Failure to comply may void the warranty.
•This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional
setting. Failure to comply will void the warranty.
•Do not remove the console covers unless instructed by Customer Tech Support. Service should only be done by an
authorized service technician
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been exposed
to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is warmed up to room
temperature before first time use. Failure to do so may cause premature electronic failure.
WARNING
WARNING
This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

6

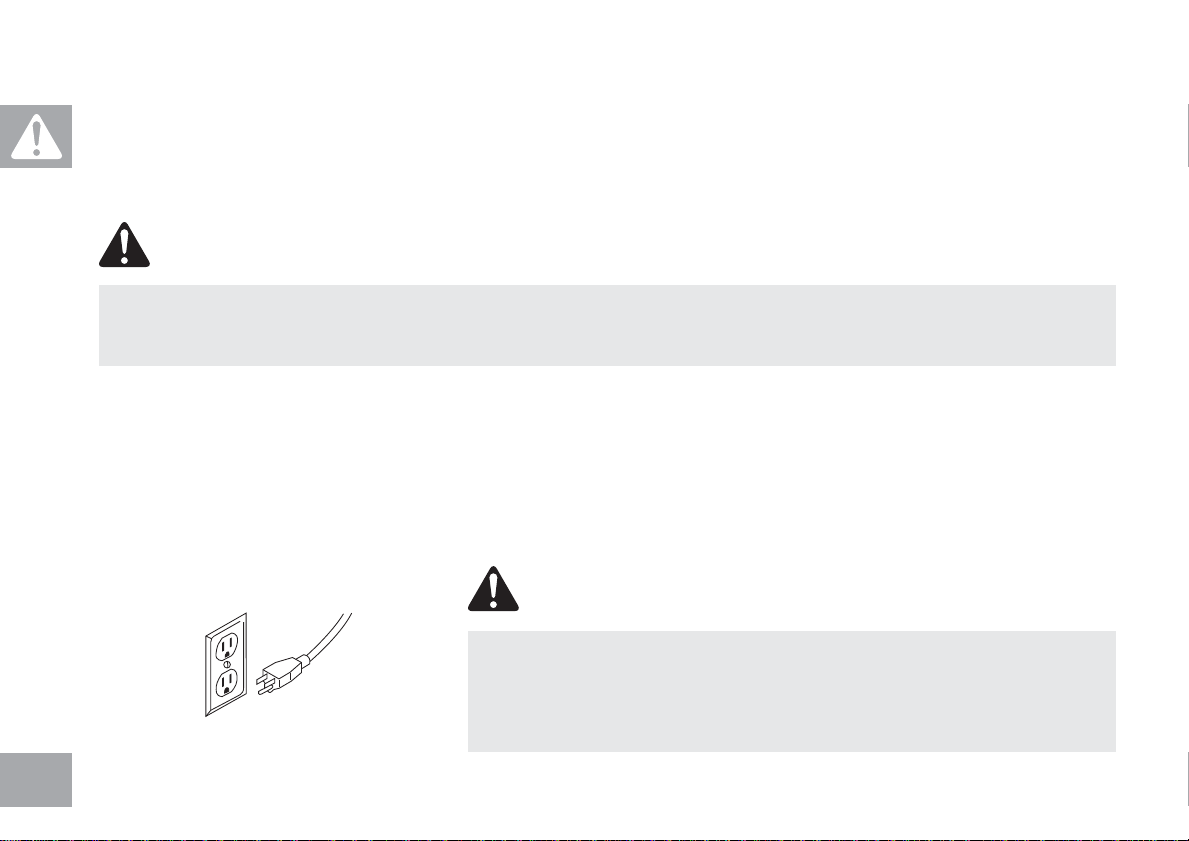

GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path of least resistance
for electrical current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with local codes and ordinances.
Connect this exercise product to a properly grounded outlet only.
Never operate product with a damaged cord or plug even if it is working
properly. Never operate any product if it appears damaged, or has been
immersed in water. Contact Customer Tech Support for replacement or repair.
WARNING
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified
electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug
provided with the product. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 110-120 Volt circuit and has a grounding plug that looks like the plug in the illustration.
Make sure that the product is connected to an outlet having the same configuration as the plug. No adapter should be used with
this product.
This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut off the power to that circuit
and observe if any other devices lose power. If so, move devices to a different circuit. Note: There are usually multiple outlets
on one circuit. This treadmill should be used with a minimum 20-amp circuit.
GROUNDED
POWER
CORD
3-POLE
GROUNDED
OUTLET

7

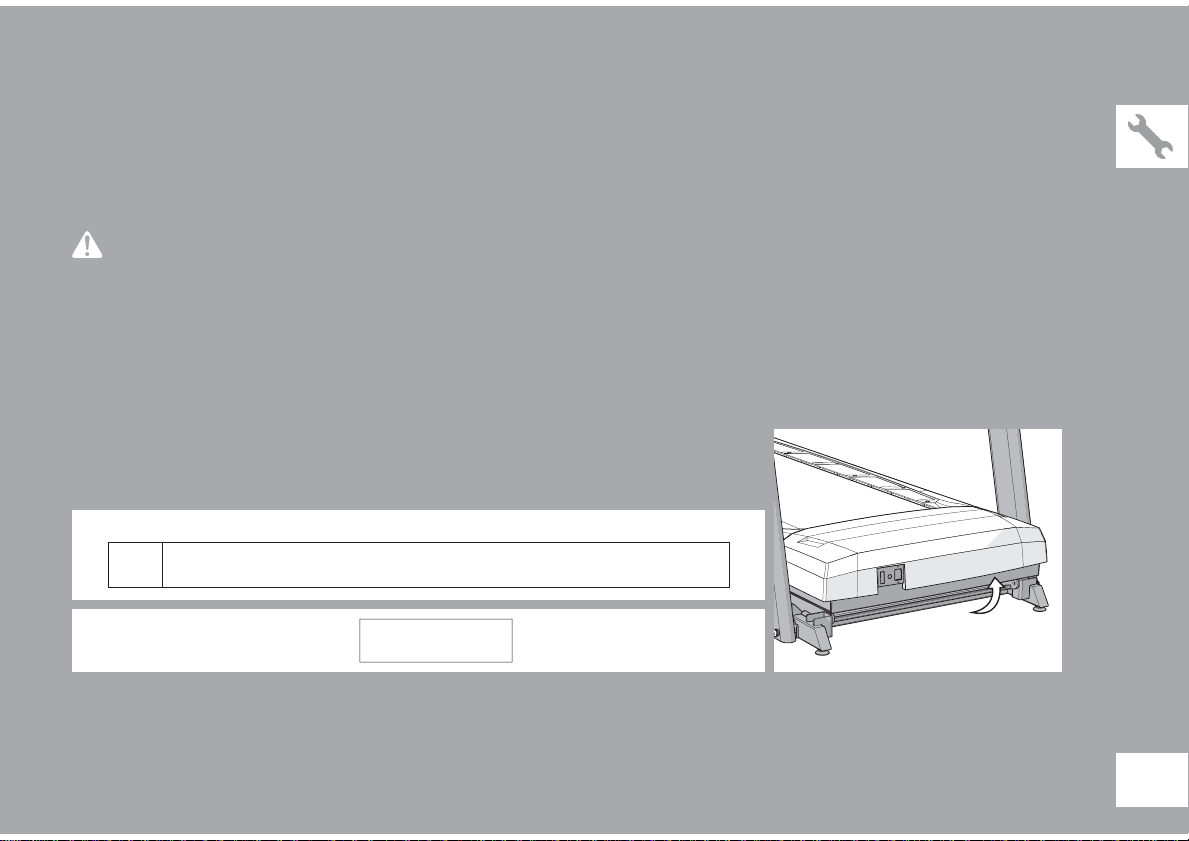

SERIAL NUMBER LOCATION
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the
assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed
correctly, the treadmill could have parts that are not tightened and will seem loose and may cause irritating noises. To
prevent damage to the treadmill, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your treadmill’s serial number located on a white barcode sticker
near the on/off power switch and power cord and enter it in the space provided below.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
SERIAL NUMBER:
TM
MODEL NAME: HORIZON TREADMILL
WARNING

8

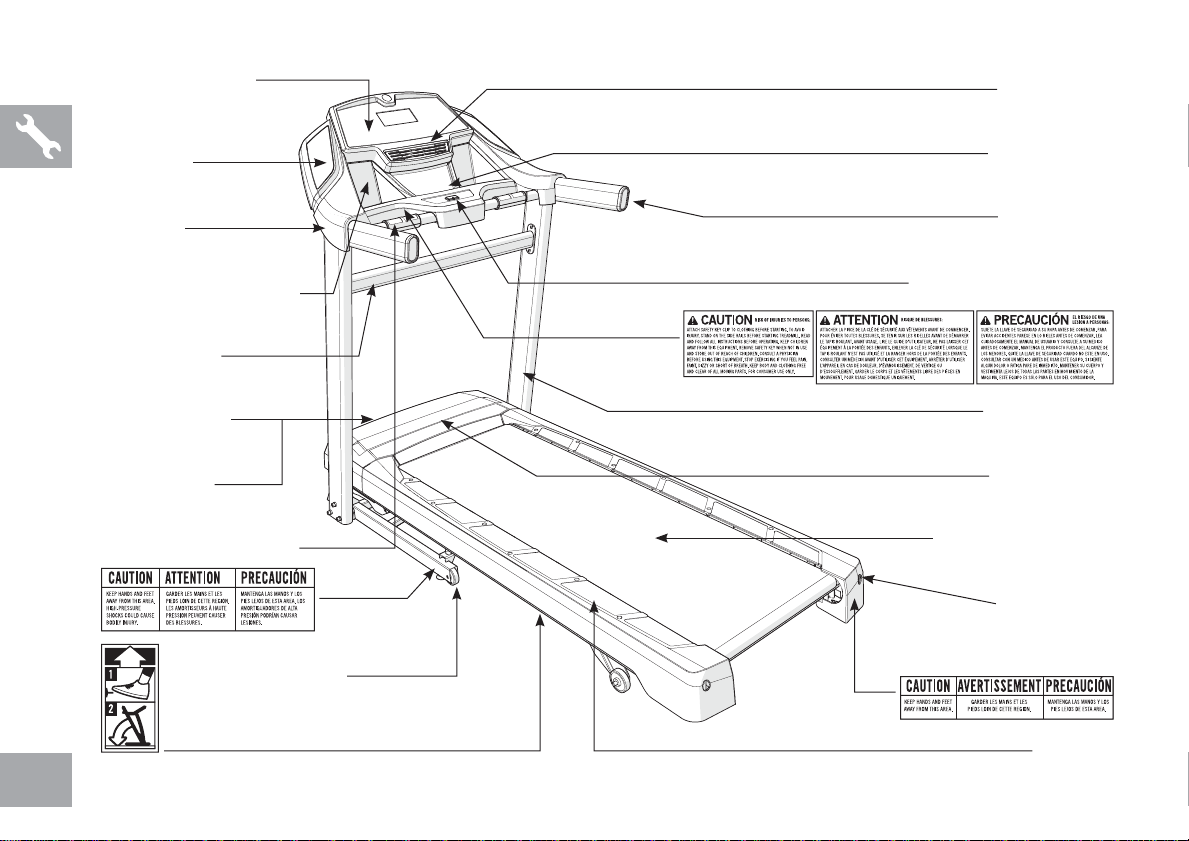

CONSOLE DISPLAY
AND CONTROLS
SPEAKERS
CONSOLE
WATER BOTTLE HOLDER
SUPPORT BAR
ON/OFF SWITCH
POWER CORD
HEART RATE GRIP BARS
TRANSPORT WHEEL
FOOT LOCK LATCH
(UNDERNEATH DECK)
CONSOLE FAN
READING RACK
HANDLEBARS
SAFETY KEY PLACEMENT
CONSOLE MAST
MOTOR COVER
RUNNING BELT / DECK
REAR ROLLER
TENSION / ADJUSTMENT BOLTS
SIDE RAIL

9
TOOLS REQUIRED:
6 mm T-Wrench (included)
6 mm L-Wrench (included)
4 mm L-Wrench (included)
Phillips Screwdriver (not included)
PARTS INCLUDED:
2 Console Masts
1 Console Assembly
2 Console Pockets
1 Support Bar
1 Hardware Kit
1 Safety Key
1 Power Cord
1 Audio Adapter Cable
1 Bottle of Silicone Lubricant
(for 2 applications)
If you have questions or if there
are any missing parts, contact
Customer Tech Support. Contact
information is located on the
back cover of this manual.
NEED HELP?
•DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill
from packaging until specified to do so in the assembly instructions. You may
remove the plastic wrap from console masts.
•FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
WARNING
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place
a protective covering on your floor. Take CAUTION when handling and transporting
this unit. Never open box when it is on its side. Once the banding straps have been
removed, do not lift or transport this unit unless it is fully assembled and in the upright
folded position, with the lock latch secure. Unpack and assemble the unit where it
will be used. The enclosed treadmill is equipped with high-pressure shocks and may
spring open if mishandled. Never grab hold of any portion of the incline frame and
attempt to lift or move the treadmill.
PRE ASSEMBLY
•During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded. It is recommended you complete the full assembly of your
unit before completely tightening any ONE bolt.
•Several parts have been pre-lubricated to aid in assembly and usage. Please
do not wipe this off. If you have difficulty, a light application of lithium bike
grease is recommended.
IMPORTANT NOTES

10
A
1
2
ASSEMBLY STEP 1
A Cut the yellow banding straps and lift the
running deck upward to remove all contents
from underneath the running deck.
B Open HARDWARE FOR STEP 1.
C Attach LEFT CONSOLE MAST (1) to MAIN
FRAME (2) using 3 BOLTS (A).
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
A HEX SOCKET BOLT M8X1.25PX60L 3

11
A
4
2
3

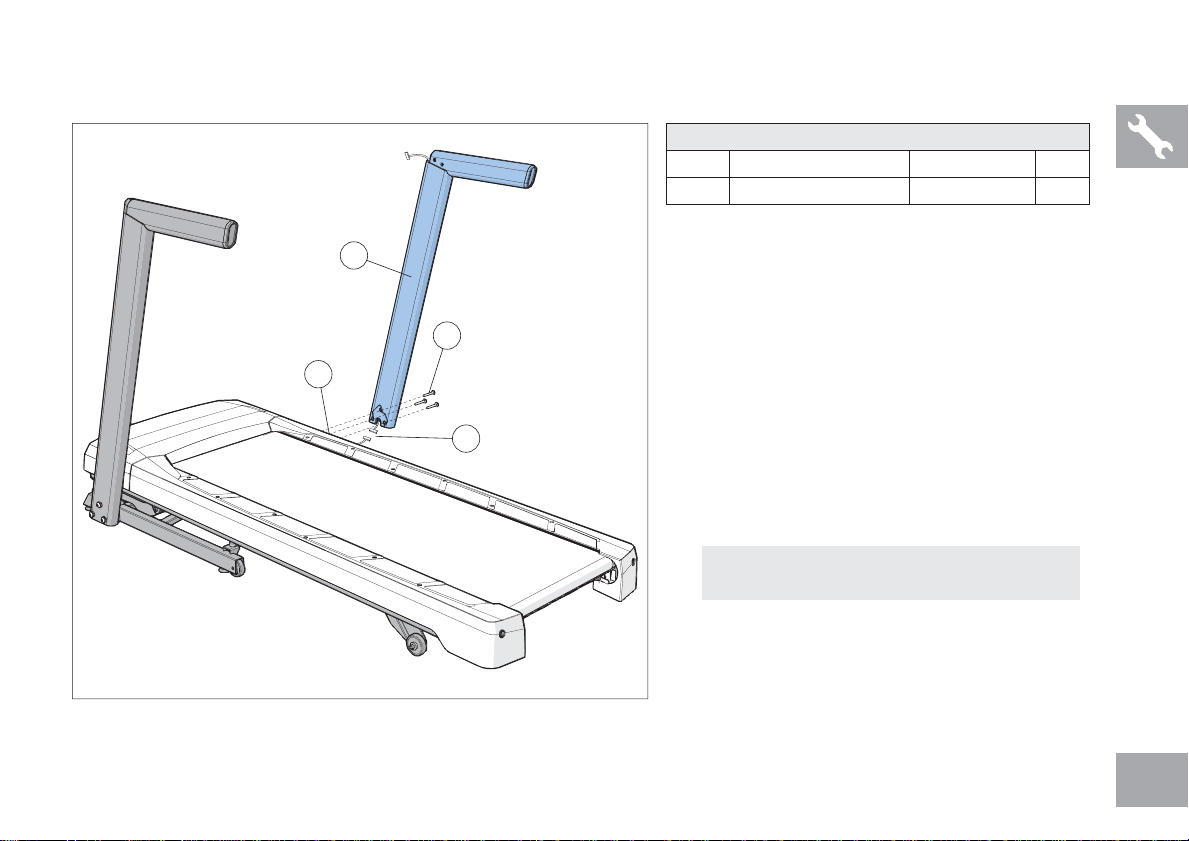

A Pull the CONSOLE CABLE (3) away from the
treadmill base frame. Connect the CONSOLE
CABLE (3) from the MAIN FRAME (2) to the
CONSOLE CABLE (3) in the bottom of the
RIGHT CONSOLE MAST (4). The other end of
the CONSOLE CABLE should be located at the
top of the mast.
B Open HARDWARE FOR STEP 2.
C Attach RIGHT CONSOLE MAST (4) to MAIN
FRAME (2) using 3 BOLTS (A).
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
A HEX SOCKET BOLT M8X1.25PX60L 3
ASSEMBLY STEP 2
NOTE: Be careful not to pinch the console
cable while attaching the right console mast.

12
5
B
6
ASSEMBLY STEP 3
A Open HARDWARE FOR STEP 3.
B Turn CONSOLE (5) over and align CONSOLE
POCKETS (6) with screw holes.
C Attach CONSOLE POCKETS (6) to CONSOLE
(5) using 10 SCREWS (B).
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
BSCREW 4X10L10
NOTE: Before securing the pockets, ensure
the snap tabs are outside the pocket recess.
NOTE: Gently loosen the screws if
necessary after assembly to snap them into
place and avoid breaking the tabs.

13
C
1
4
3
5

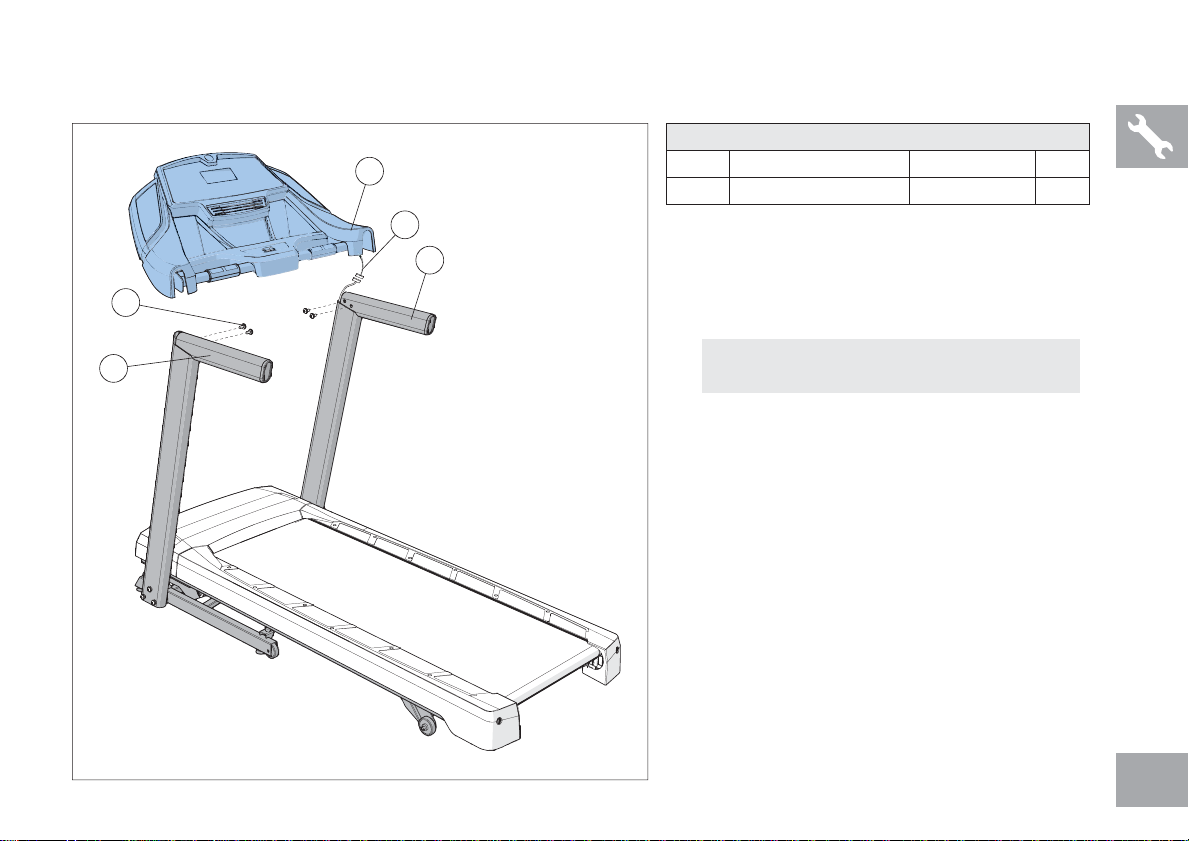

ASSEMBLY STEP 4
A Open HARDWARE FOR STEP 4.
B Gently place CONSOLE (5) on top of
CONSOLE MASTS (1 & 4).
C Connect the CONSOLE CABLES (3) and
ensure cables are tucked inside the CONSOLE
(5).
D Connect the CONSOLE (5) to the right
CONSOLE MAST (4) using 2 BOLTS (C).
E Repeat STEP D on left side.
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
C HEX SOCKET BOLT M8X1.25PX15L 4
NOTE: Be careful not to pinch the console
cables while attaching the console.

14
14
7
D
ASSEMBLY STEP 5
A Open HARDWARE FOR STEP 5.
B Align SUPPORT BAR (7) on top of CONSOLE
MASTS (1 & 4).
C Attach the SUPPORT BAR (7) to the
CONSOLE MASTS (1 & 4) using 4 BOLTS (D).
HARDWARE FOR STEP 5
PART TYPE DESCRIPTION QTY
D BUTTON HEAD BOLT M6X1.0PX15L 4
ASSEMBLY COMPLETE!
Before the first use, lubricate the treadmill deck by
following the instructions in the MAINTENANCE
section in the TREADMILL GUIDE.

15
TREADMILL OPERATION
This section explains how to use your treadmill’s console and programming. The BASIC OPERATION section in the
TREADMILL GUIDE has instructions for the following:
• LOCATION OF THE TREADMILL
• USING THE SAFETY KEY
• FOLDING THE TREADMILL
• MOVING THE TREADMILL
• LEVELING THE TREADMILL
• TENSIONING THE RUNNING BELT
• CENTERING THE RUNNING BELT
• USING THE HEART RATE FUNCTION

16
A EDHF C
G
I K
B
Q
M
Q
PNJ O L
RRR

17
CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.

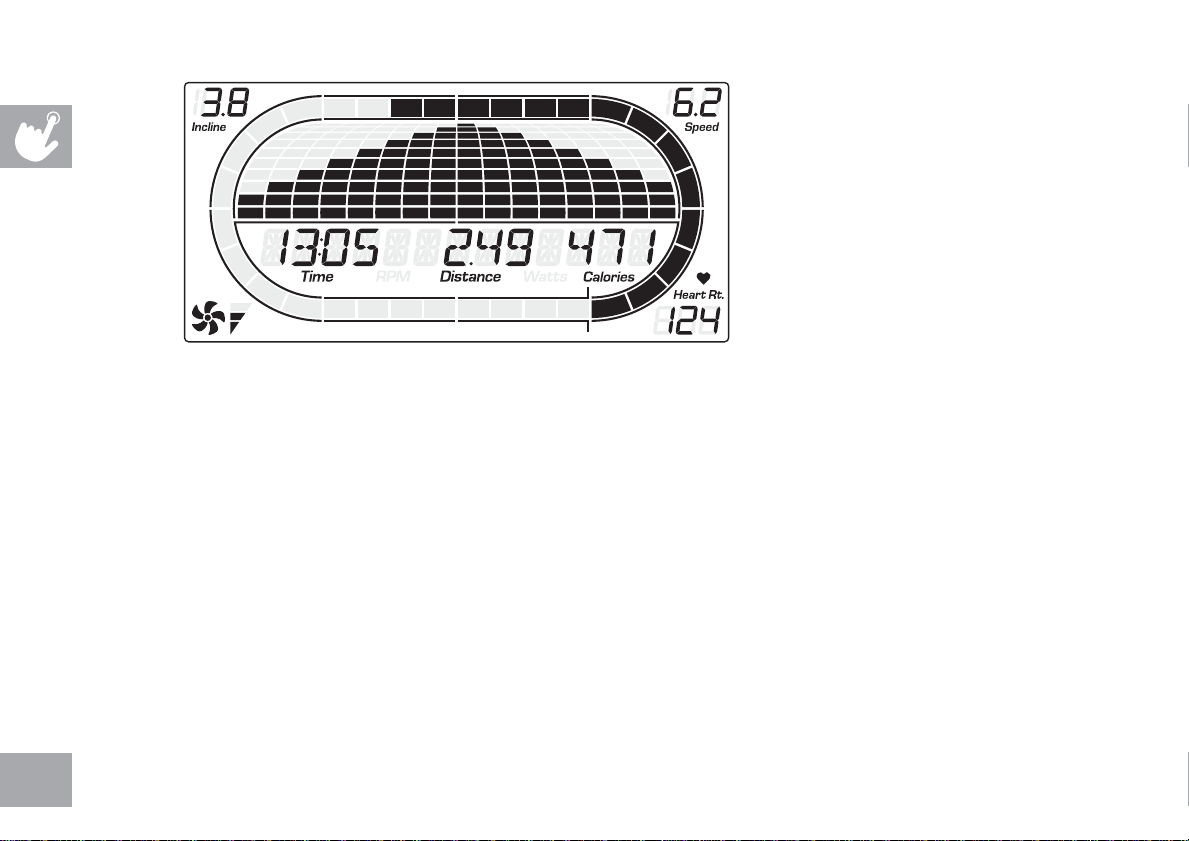

A) LCD DISPLAY WINDOW: time, distance, speed, calories, incline and heart rate.
B) PROGRAMMING KEYS: Used to cycle through programs and user setup.
C) ENTER: used to confirm selection.
D) PROGRAM KEYS: press to select workout.
E) GOAL CENTER: press to set or view your goal. See page 22 for more information.
F) AUDIO IN JACK: plug your media player into the console using the included audio adaptor cable.
G) VOLUME: used to adjust volume up or down.
H) FAN KEY: press to turn fan on, off, or adjust the setting.
I) INCLINE QUICK KEYS: used to reach desired incline quickly.
J) INCLINE KEYS: used to adjust incline level.
K) SPEED QUICK KEYS: used to reach desired speed quickly.
L) SPEED KEYS: used to adjust speed level.
M) READING RACK: holds reading material.
N) START / PAUSE: used to start workout, pause workout, and restart after pause.
O) STOP / HOLD TO RESET: used to stop machine and also will reset machine when held down.
P) SAFETY KEY: enables treadmill when safety key is inserted.
Q) SPEAKERS: plays music through speakers when connected to your media player.
R) STORAGE POCKETS: holds personal items, e.g. water bottle, brought with you.

18
DISPLAY WINDOW
• TIME: Shown as minutes : seconds. View the time remaining or the time elapsed in your workout.
• DISTANCE: Shown as miles. Indicates distance traveled or distance remaining during your workout.
• CALORIES: Total calories burned or remaining for your workout.
• INCLINE: Shown as percent. Indicates the incline level of the running surface.
• SPEED: Shown as MPH. Indicates how fast the belt is moving.
• HEART RATE: Shown as BPM (beats per minute). Used to monitor your heart rate (displayed when
contact is made with both pulse grips).
• PROGRAM PROFILES: Represents the profile of the program being used (speed during speed
based programs and incline during incline based programs).
• FAN: Indicates fan setting (low, medium, high).
• TRACK: Follows progress around a simulated track. Segments light up with every 12.5 meters
completed. One lap around the track is 400 meters (1/4 mile).

19
GETTING STARTED
1) Check to make sure no objects are placed on the belt that will hinder the movement of the treadmill.
2) Plug in the power cord and turn the treadmill ON.
3) Stand on the side rails of the treadmill.
4) Attach the safety key clip to part of your clothing making sure that it is secure and will not become
detached during operation.
5) Insert the safety key into the safety keyhole in the console.
6) Select User 1, User 2, or Guest using and press ENTER.
7) Set User Weight using and press ENTER.
8) You have two options to start your workout:
FINISHING YOUR WORKOUT
When your workout is complete, the console
will display “workout complete” and beep. Your
workout information will stay displayed on the
console for 30 seconds and then reset.
TO RESET THE CONSOLE
Hold STOP key for 3 seconds.
TO CLEAR CURRENT SELECTION
To clear the current program selection or screen,
hold the stop button for 3 seconds.
A) QUICK START UP
Simply press the START key to begin working out.
Time, distance, and calories will all count up from zero. OR...
B) SELECT A WORKOUT
1) Press desired WORKOUT BUTTON and press ENTER.
2) Select workout goal level or program using and press
ENTER.
3) Set workout program information using (see program
information for necessary settings) and press ENTER after
each selection.
4) Press START to begin workout.
NOTE: You can adjust the speed and incline during your workout.

20
PROGRAM INFORMATION
MANUAL: Adjust your speed and incline manually during your workout. User sets time, starting speed and
incline.
STEPS: Promotes healthy activity with 10 step-based workouts calculated using average stride length. Choose
from 1000, 2000, 3000, 4000, 5000, 6000, 7000, 8000, 9000, and 10,000 step workouts. User sets starting
speed and incline.
CALORIES: Set goals for burning calories with six workouts. Choose from 100, 200, 300, 400, 500, and 600
calorie burn workouts. User sets starting speed and incline. Calories burned are calculated using weight input
by user with the speed and incline of workout.
DISTANCE: Push yourself and go further during your workout with 10 distance workouts. Choose from 1 mile,
2 miles, 5k, 5 miles, 10k, 8 miles, 15k, 10 miles, 20k, and half marathon goals. User sets starting speed and
incline.
INTERVALS: An effective fat-burning workout that helps you get improve your fitness level. Choose from Speed
Intervals, Peak Intervals, and Endurance Intervals workouts. User sets time and starting level.
