Horizon Fitness T202 User manual

TREADMILL OWNER’S MANUAL
MANUEL DU PROPRIÉTAIRE DU TAPIS ROULANT
MANUAL DEL PROPIETARIO DE LA CAMINADORA
Read the TREADMILL GUIDE before using this OWNER’S MANUAL.
Lire le GUIDE D’UTILISATION DU TAPIS ROULANT avant de se référer au présent MANUEL DU PROPRIÉTAIRE.
Lea la GUÍA DE LA CAMINADORA antes de utilizar este MANUAL DEL PROPIETARIO.
T202

3ENGLISH
28 FRANÇAIS
54 ESPAÑOL

3
IMPORTANT PRECAUTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be followed, including the following:
Read all instructions before assembly or use of this treadmill. It is the responsibility of the owner to
ensure that all users of this treadmill are adequately informed of all warnings and precautions. If you
have any questions after reading this guide, contact Customer Tech Support at the number listed on
the back panel of the OWNER’S MANUAL.
This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental,
school or institutional setting. Failureto comply will void the warranty.

4
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
•Use this equipment only for its intended use as described in this Owner’s Manual.
•At NO time should children under the age of 14 use the equipment.
•At NO time should pets or children under the age of 14 be closer to the equipment than 10 feet / 3 meters.
•This equipment is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they are supervised or have been given instruction concerning use of the equipment by a person responsible for their
safety.
•Always wear athletic shoes while using this equipment. NEVER operate the exercise equipment with bare feet.
•Do not wear any clothing that might catch on any moving parts of this equipment.
•Heart rate monitoring systems may be inaccurate. Over exercising may result in serious injury or death.
•Incorrect or excessive exercise may result in serious injury or death. If you experience any kind of pain, including but not limited to chest
pains, nausea, dizziness, or shortness of breath, stop exercising immediately and consult your physician before continuing.
•Do not jump on the equipment.
•At no time should more than one person be on the equipment.
•Set up and operate this equipment on a solid level surface.
•Never operate the equipment if it is not working properly or if it has been damaged.
•Use handlebars to maintain balance when mounting and dismounting, and for additional stability while exercising.
•To avoid injury, do not expose any body parts (for example, fingers, hands, arms or feet) to the drive mechanism or other potentially
moving parts of the equipment.
•Connect this exercise product to a properly grounded outlet only.
•This equipment should never be left unattended when plugged in. When not in use, and prior to servicing, cleaning, or moving equipment,
turn off power, then unplug from outlet.
•Do not use any equipment that is damaged or has worn or broken parts. Use only replacement parts supplied by Customer Technical
Support or an authorized dealer.
•Never operate this equipment if it has been dropped, damaged, or is not working properly, has a damaged cord or plug, is located in a
damp or wet environment, or has been immersed in water.
TO REDUCE THE RISK OF ELECTRICAL SHOCK:
Always unplug the equipment from the electrical outlet before cleaning, performing maintenance and putting on or taking off parts.
WARNING
DANGER

5
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
•Keep power cord away from heated surfaces. Do not pull on this power cord or apply any mechanical loads to this cord.
•Do not remove any protective covers unless instructed by Customer Technical Support. Service should only be done by an authorized service
a technician.
•To prevent electrical shock, never drop or insert any object into any opening.
•Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
•This equipment should not be used by persons weighing more than the specified maximum weight capacity as listed in the equipment
Owner’s Manual. Failure to comply will void the warranty.
•This equipment must be used in an environment that is both temperature and humidity controlled. Do not use this equipment in locations
such as, but not limited to: outdoors, garages, car ports, porches, bathrooms, or located near a swimming pool, hot tub, or steam room.
Failure to comply will void the warranty.
•Contact Customer Technical Support or an authorized dealer for examination, repair and/or service.
•Never operate this exercise equipment with the air opening blocked. Keep the air opening and internal components clean, free of lint, hair,
and the like.
•Do not modify this exercise device or use unapproved attachments or accessories. Modifications to this equipment or use of unapproved
attachments or accessories will void your warranty and may cause injury.
•To clean, wipe surfaces down with soap and slightly damp cloth only; never use solvents.
•When exercising, always maintain a comfortable and controlled pace.
•To avoid injury, use extreme caution when stepping onto or off of a moving belt. Stand on the siderails when starting the treadmill.
•To avoid injury, attach safety clip to clothing before use.
•Disconnect the safety key from treadmill when not using to prevent uncontrolled usage by third parties.
•Ensure that the edge of the belt is parallel with the lateral position of the side rail and does not move under the side rail. If the belt is not
centered, it must be adjusted before use.
•When there is no user on the treadmill (unloaded condition) and when the treadmill is running at 12 km/ hour (7.5 mph), the A-weighted
sound pressure level is no greater than 70 dB when sound level is measured at typical head height.
•Noise emission measurement of treadmill under load is higher than with no load.
•When lowering the treadmill deck, wait until rear feet are firmly on the floor before stepping on the deck.
•Make sure the treadmill comes to complete stop before folding. Do not operate the treadmill when it is folded.
•When moving the treadmill, DO NOT lift treadmill or turn it upside down or place treadmill on its side. Treadmill is equipped with high-
pressure springs which can cause the lower base frame to spring open if mishandled, potentially causing injury. Transport unit ONLY on the
ground, and ONLY after it is fully assembled and in the upright folded position with the lock latch secured.
WARNING

6

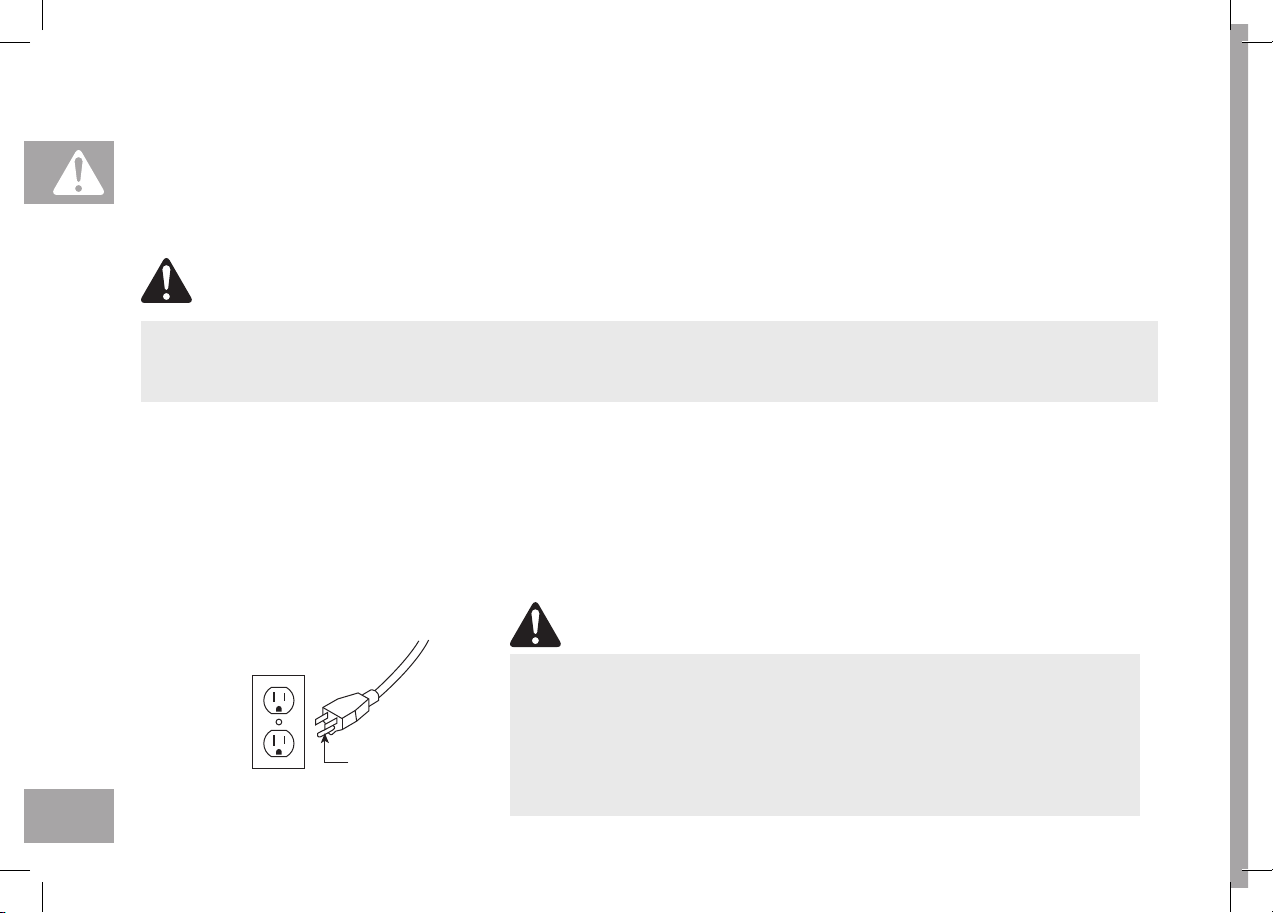

GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path of least resistance
for electrical current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with local codes and ordinances.
Connect this exercise product to a properly grounded outlet only.
Never operate product with a damaged cord or plug even if it is working
properly. Never operate any product if it appears damaged, or has been
immersed in water. Contact Customer Tech Support for replacement
orrepair.
3-POLE
GROUNDED
OUTLET
GROUNDING PIN
WARNING
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified
electrician or service provider if you are in doubt as to whether the product is properly grounded. Do not modify the plug
provided with the product. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 110-120 Volt circuit and has a grounding plug that looks like the plug in the illustration.
Make sure that the product is connected to an outlet having the same configuration as the plug. No adapter should be used
with this product.
This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut off the power to that
circuit and observe if any other devices lose power. If so, move devices to a different circuit. Note: There are usually multiple
outlets on one circuit. This treadmill should be used with a minimum 15-amp circuit.

7
ASSEMBLY
There are several steps during the assembly process where special attention must be paid. It is very important to follow
the assembly instructions and to ensure the product is assembled correctly to reduce the risk of injury. Make sure all parts
are firmly tightened before using the treadmill to ensure that the treadmill is stable and structurally sound.
Before proceeding, find your treadmill’s serial number located on a white barcode
sticker near the on/off power switch and power cord and enter it in the space
provided below.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
WARNING
SERIAL NUMBER:
TM

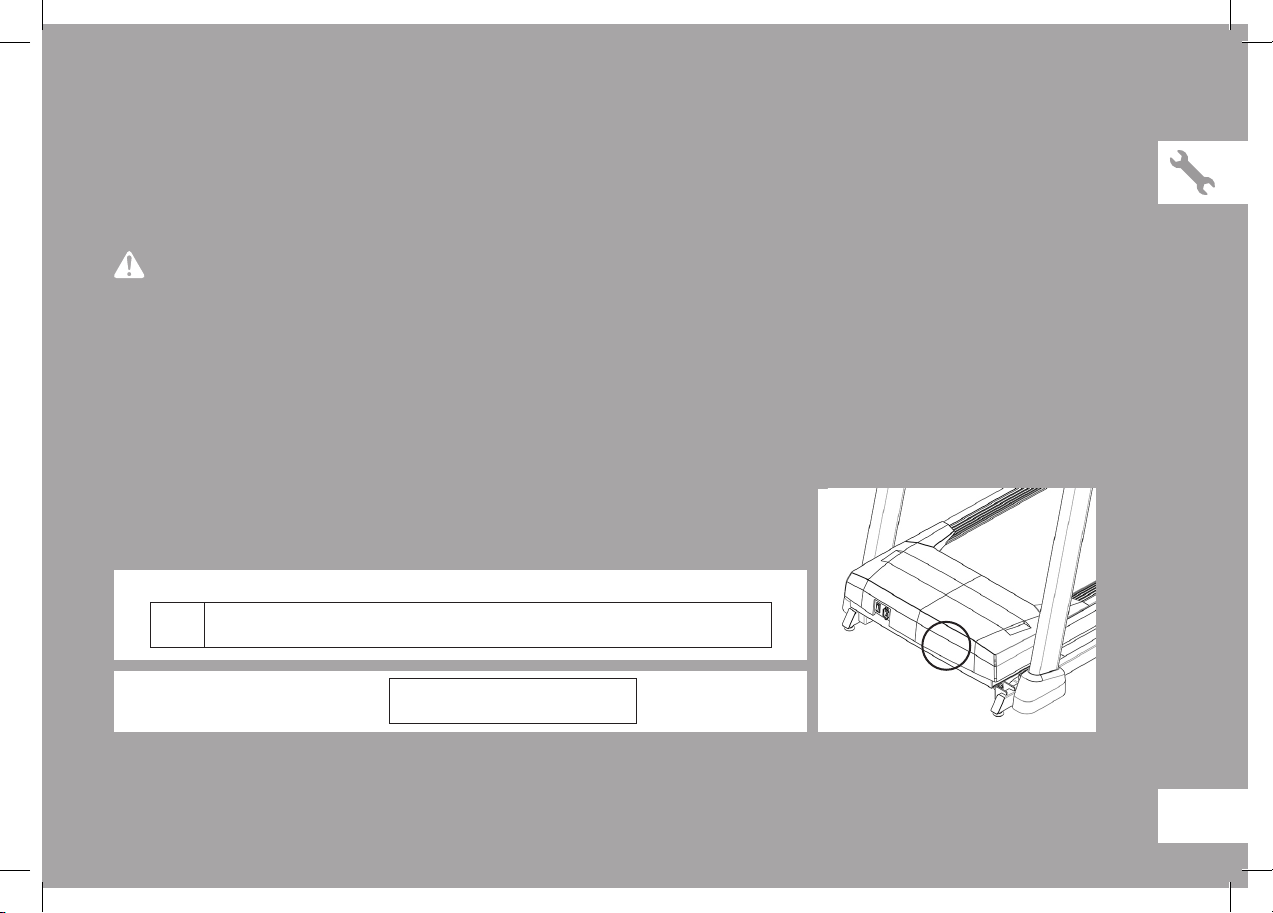

SERIAL NUMBER LOCATION
MODEL NAME: HORIZON TREADMILL

8

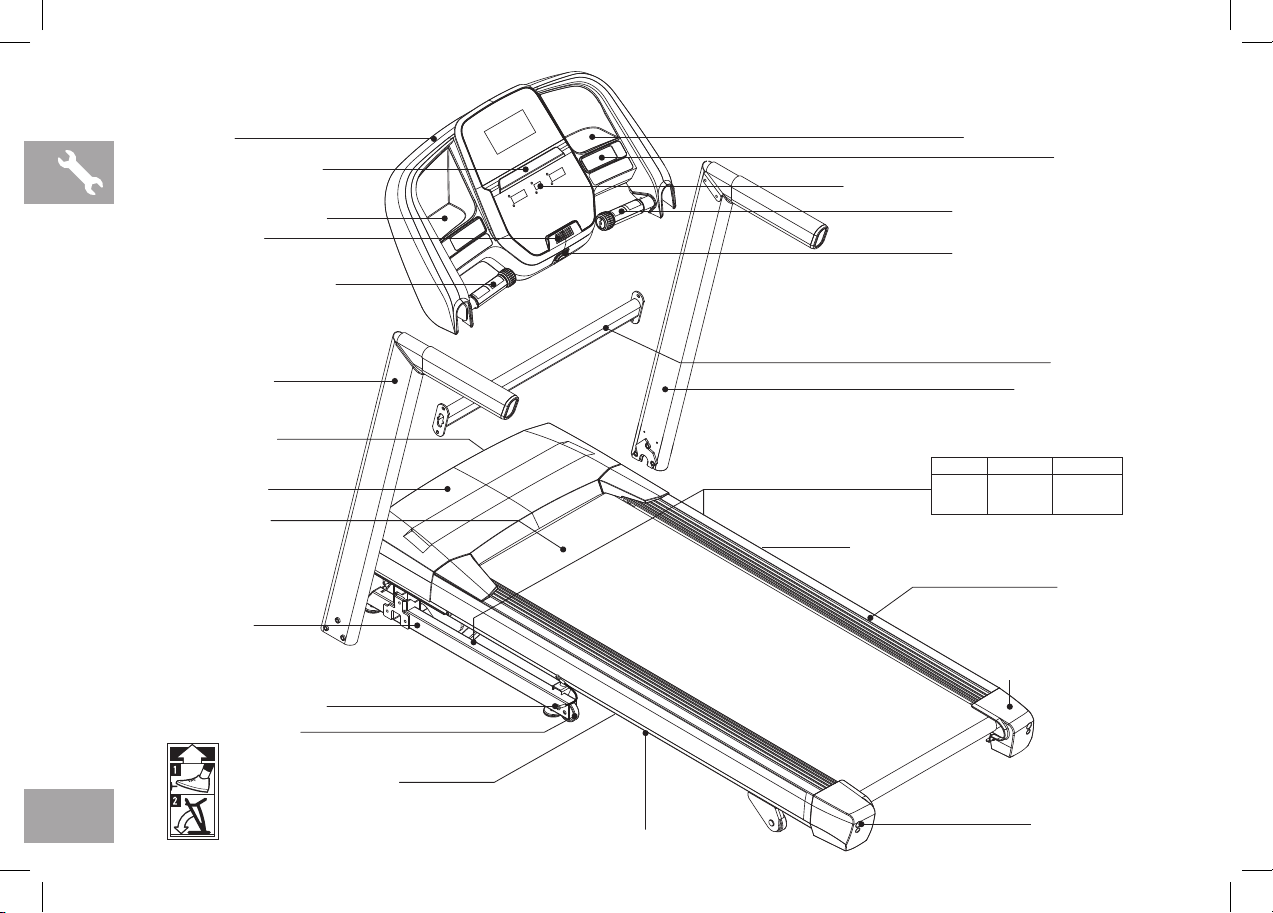

SPEAKERS
CONTROL PANEL AND DISPLAY WINDOWS
SAFETY KEY PLACEMENT
SIDE RAIL
ROLLER END CAP
REAR ROLLER
TENSION/ALIGNMENT BOLTS
CONSOLE MAST
FOOT LOCK LATCH (UNDERNEATH DECK)
WATER BOTTLE HOLDER
WATER BOTTLE HOLDER
PULSE GRIP HANDLEBARS
CONSOLE FAN
ON/OFF SWITCH
POWER CORD
TRANSPORT WHEEL
TABLET/READING RACK
FOOT LOCK LATCH DECAL
(UNDERNEATH FOOT LATCH)
KEEP HANDS AND FEET
AWAY FROM THIS AREA.
HIGH-PRESSURE SHOCKS
COULD
CAUSE BODILY INJURY.
CAUTION
GARDEZ VOS MAINS ET VOS
PIEDS À L’ÉCART DE CET
ENDROIT. DES COUPS
À HAUTE PRESSION
PEUVENT CAUSER DES
BLESSURES CORPORELLES.
ATTENTION PRECAUCIÓN
MANTENGA LAS MANOS
Y LOS PIES ALEJADOS DE
ESTA ÁREA. DESCARGAS
DE ALTA PRESIÓN
PODRÍAN OCASIONAR
LESIONES FÍSICAS.
CONSOLE
PULSE GRIP HANDLEBARS
CROSSBAR
CONSOLE MAST
MOTOR COVER
RUNNING BELT/
RUNNING DECK
BASE FRAME
RED TRANSPORT CABLE
DECK FRAME

9
TOOLS INCLUDED:
F6 mm T-Wrench
F6 mm L-Wrench
F5 mm L-Wrench
PARTS INCLUDED:
F1 Console Assembly
F2 Console Masts
F1 Crossbar
F1 Hardware Kit
F1 Safety Key
F1 Audio Adapter Cable
F1 Bottle of Silicone Lubricant
(for 2 applications)
If you have questions or
if there are any missing
parts, contact Customer
Tech Support. Contact
information is located on the
back panel of this manual.
NEED HELP?
DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill from
packaging until specified to do so in the assembly instructions. You may remove the
plastic wrap from console masts.
WARNING
WARNING
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially
threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease, such
as lithium bike grease is recommended.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
WARNING
Never open box when it is positioned upside-down or on its side.
Unpack and assemble the unit where it will be used.
The enclosed treadmill is equipped with high-pressure springs which can cause the
lower base frame to spring open if mishandled.
The red transport cables are installed between the upper deck frame and the lower
base frame to prevent the movement of the lower base frame. DO NOT remove red
transport cables until instructed to do so.

10
RED TRANSPORT
CABLE
RED TRANSPORT
CABLE

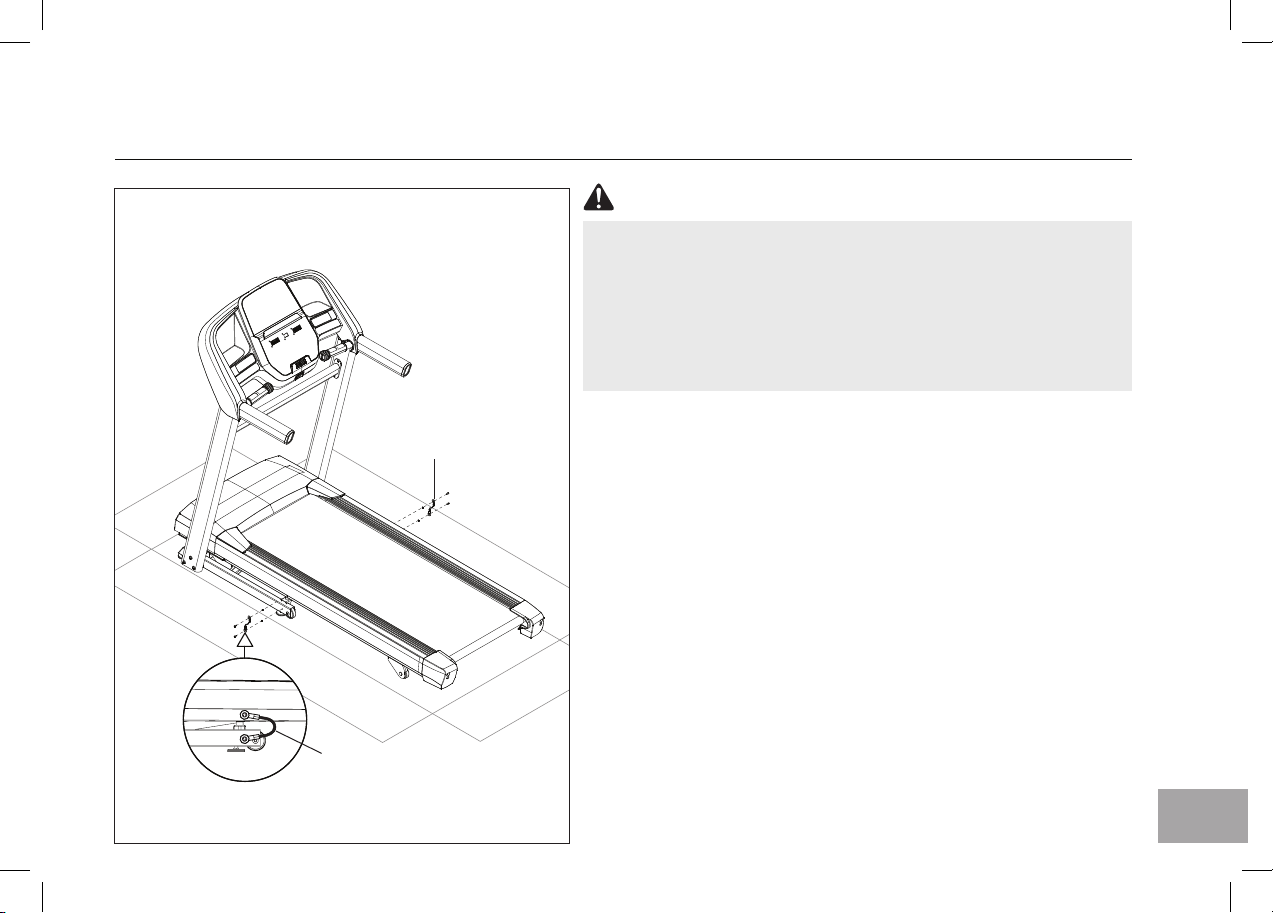

ASSEMBLY STEP- UNPACKING
BANDING STRAP
DECK FRAME
RED TRANSPORT CABLE
(LEFT & RIGHT SIDES)
BASE FRAME
A Place the treadmill carton on a level flat surface with the bottom of the box on the ground.
B Cut banding straps on outside of box and remove box lid.
C DO NOT lift treadmill out of the box. Instead, tear down corners of bottom of treadmill box as
shown. Treadmill should be assembled on flattened treadmill box as shown to protect floor surface.
D Cut the banding straps inside the box and remove everything but the treadmill frame.
E Partially lift the running deck upward from the rear to remove all contents from underneath the
running deck. Red transport cables on either side of treadmill will prevent the treadmill deck from
fully lifting.
WARNING
NEVER tip treadmill upside-
down or on its side. DO
NOT use tools to remove
the red transport cables
until instructed to do so.
If a component requires
tools to remove, wait until
the Assembly Instructions
instructs you how to safely
remove the component.

11

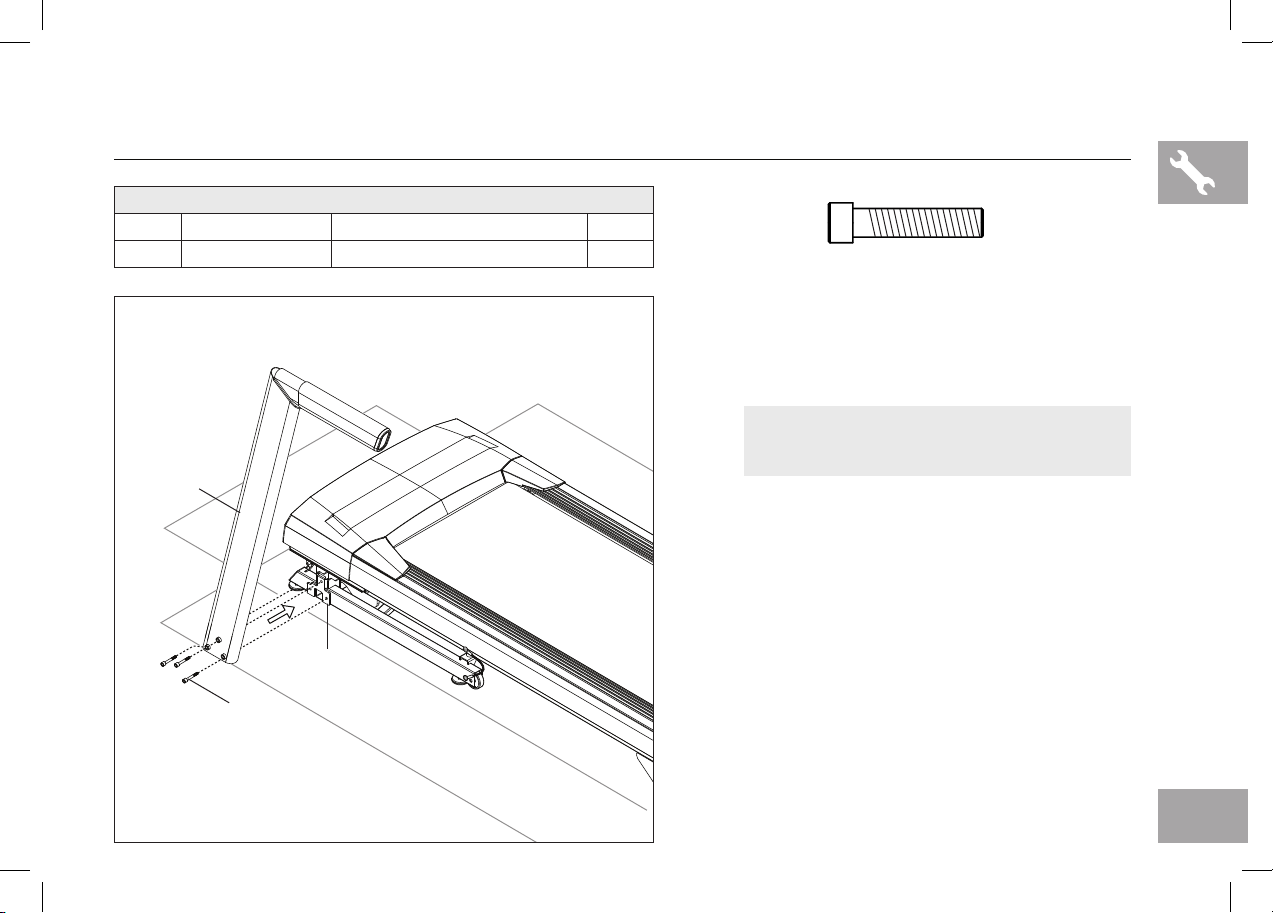

ASSEMBLY STEP 1
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
M8X1.25PX60L-30L 3A BOLT
A
2
1
A
1.1 Open HARDWARE FOR STEP 1.
1.2 Attach the LEFT CONSOLE MAST (1) to the BASE
FRAME (2) using 3 BOLTS (A).
NOTE: Do not fully tighten bolts until the end of
STEP 4.

12
ASSEMBLY STEP 2
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
M8X1.25PX60L-30LABOLT
2.1 Open HARDWARE FOR STEP 2.
2.2 Pull the CONSOLE CABLE (3) away from the treadmill
base frame. Connect the CONSOLE CABLE (3) from
the MAIN FRAME (2) to the CONSOLE CABLE (3)
in the bottom of the RIGHT CONSOLE MAST (4).
The other end of the CONSOLE CABLE (3) should be
located at the top of the mast.
2.3 Attach RIGHT CONSOLE MAST (4) to MAIN FRAME
(2) using 3 BOLTS (A).
3
NOTE: Do not fully tighten bolts until the end of
STEP 4.
4
3
3
A
2
3
NOTE: Be careful not to pinch any wires while
assembling the console.
A

13
ASSEMBLY STEP 3
3.1 Open HARDWARE FOR STEP 3.
3.2 Attach LEFT SIDE of the CROSSBAR (6) to the
UPRIGHT MAST (1) loosely using
2 BOLTS (A).
3.3 Attach RIGHT SIDE of the CROSSBAR (6) to the
UPRIGHT MAST (4) loosely using
2 BOLTS (A).
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
M6X1.0PX15L 4A BOLT A
NOTE: Do not fully tighten bolts until the end of
STEP 4.
A
1
6
4

14

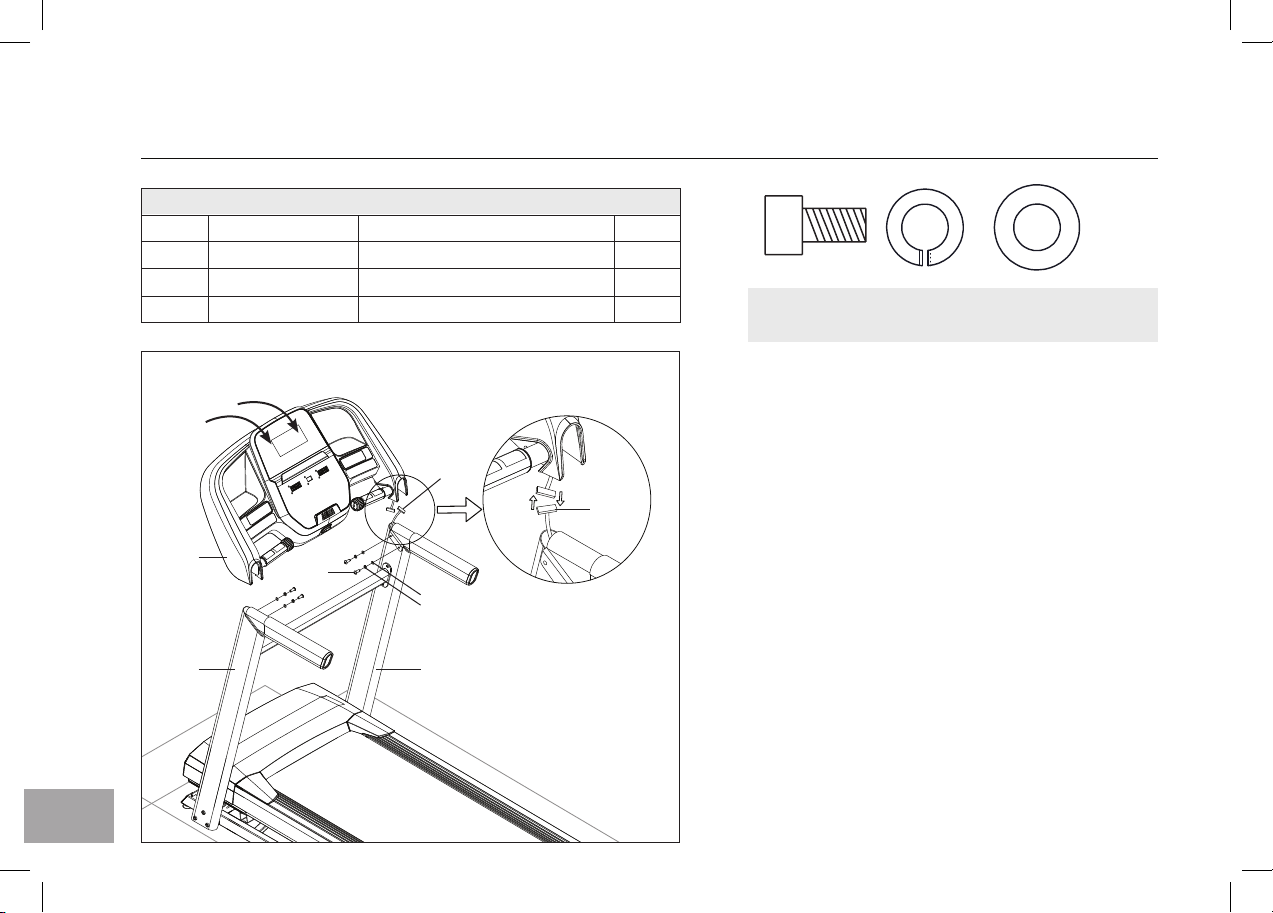

ASSEMBLY STEP 4
4.1 Open HARDWARE FOR STEP 4.
4.2 Gently place the CONSOLE (5) on top of the
CONSOLE MASTS (1&4). Attach the LEFT SIDE first
using 2 BOLTS (A), 2 SPRING WASHERS (B) and 2
FLAT WASHERS (C).
4.3 The CONSOLE CABLES (3) are tucked into the RIGHT
CONSOLE MAST (4). Using the lead wire carefully pull
the CONSOLE CABLE (3) out of the RIGHT CONSOLE
MAST (4). Detach and and discard the LEAD WIRE.
Connect the CONSOLE CABLES (3) and carefully tuck
wires in masts to avoid damage.
4.4 Attach the RIGHT SIDE of the CONSOLE (5) using
2 BOLTS (A), 2 SPRING WASHERS (B) and 2 FLAT
WASHERS (C).
4.5 Pull the top of the CONSOLE (5) towards the back of
the treadmill and HOLD while TIGHTENING THE LEFT
AND RIGHT SIDE BOLTS (A).
4.6 REMEMBER to tighten ALL BOLTS & SCREWS
completely now that assembly is finished.
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
M8X1.25PX15L 4A BOLT
8.2X13.0X1.4T
4B SPRING WASHER 8.0X13.0X1.5T
4C FLAT WASHER
ABC
B
C
A
(STEP 4.5)
NOTE: Be careful not to pinch any wires while
assembling the console.
4
3
3
1
5

15
ASSEMBLY STEP 5 - REMOVAL OF RED TRANSPORT CABLES
5.1 Ensure that treadmill is resting with all wheels supported by the floor.
5.2 On left side of treadmill, use the 5mm L-wrench (provided in box) to
remove the two bolts connecting the red transport cable to the upper
deck frame and the lower base frame.
5.3 Replace both bolts (one in the upper deck frame and one in the lower
base frame) and fully tighten to lock in place. Note that to prevent the
lower base frame from springing open during transport or disassembly
of the treadmill in the future, the red transport cable can be reattached
to the treadmill using these same bolts.
5.4 Perform same operation on right side of treadmill to remove the two
bolts connecting the red transport cable to the upper deck frame and
the lower base frame.
5.5 Replace both bolts and fully tighten to lock in place.
5.6 Save both red transport cables for future use by placing cables into
clear poly bag alongside the owner’s manual.
5.7 When red transport cables are not installed, transport unit ONLY on the
ground, and ONLY after it is fully assembled and in the upright folded
position with the lock latch secured.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN
INJURY!
Once the red transport cables have been detached from the treadmill,
high pressure springs can cause the lower base frame to spring open.
NEVER tip treadmill upside-down or on its side, and NEVER lift this unit if
red transport cables are not connecting the upper deck frame to the lower
base frame.
WARNING
RED TRANSPORT CABLE
RED TRANSPORT CABLE

16
ASSEMBLY COMPLETE!
Before the first use, lubricate the treadmill deck by
following the instructions in the MAINTENANCE section
in the TREADMILL GUIDE.

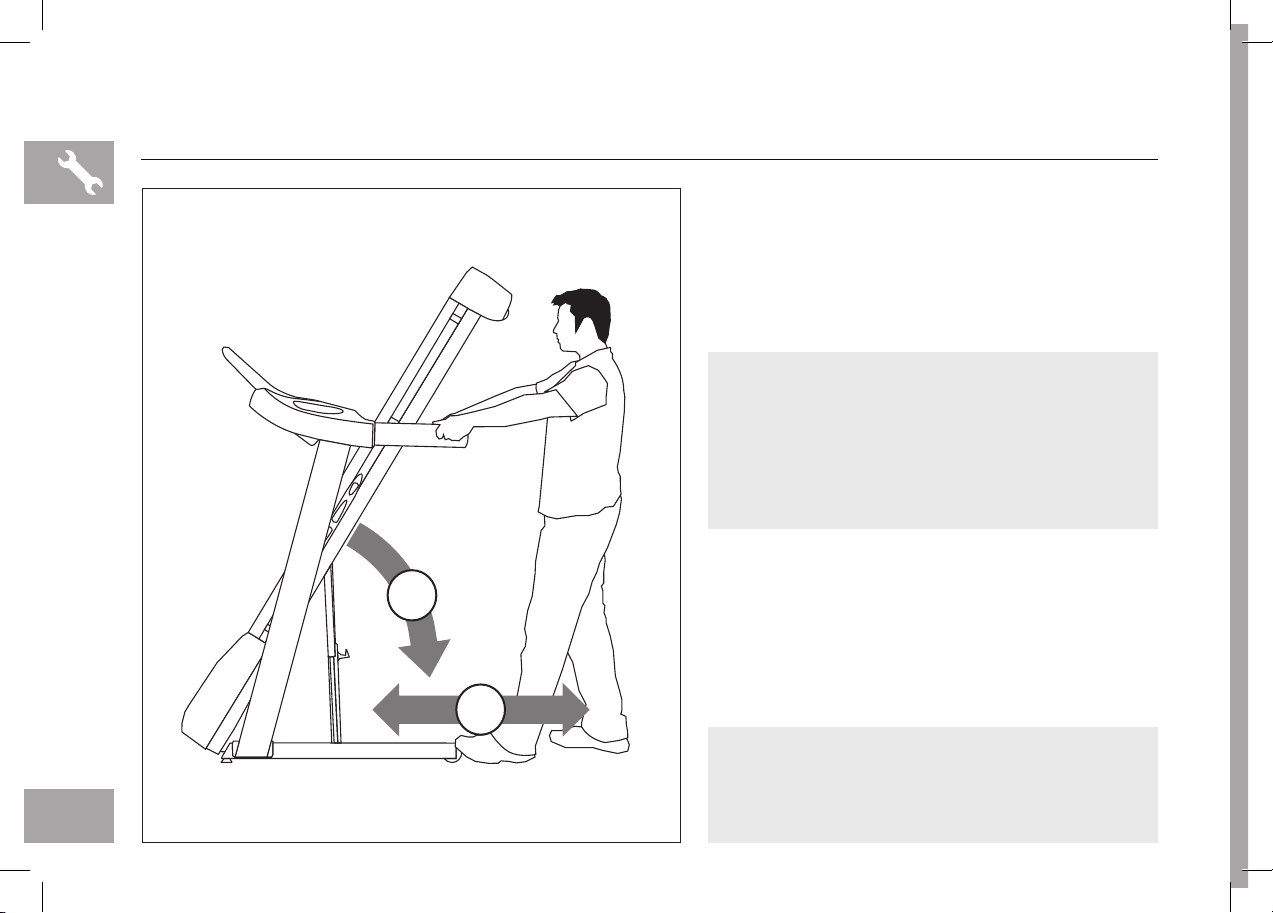

ASSEMBLY STEP 6 - MOVING TREADMILL
6.1 To move, make sure the treadmill is folded and securely
latched. Then firmly grasp the handlebars, tilt the
treadmill back (1) and roll (2).
6.2 Move treadmill off flattened box and into its final
position, ready for use. Dispose of cardboard box.
NOTE: If treadmill must be disassembled or lifted in the
future, use the 5mm L-wrench to re-attach red transport
cables to the upper deck frame and lower base frame on
both the left side and right side of the treadmill. Check to
ensure that the lower base frame cannot spring open before
lifting or disassembling treadmill.
1
2

17
TREADMILL OPERATION
This section explains how to use your treadmill’s console and programming.
The BASIC OPERATION section in the TREADMILL GUIDE has instructions for the following:
• LOCATION OF THE TREADMILL
• USING THE SAFETY KEY
• FOLDING THE TREADMILL
• MOVING THE TREADMILL
• LEVELING THE TREADMILL
• TENSIONING THE RUNNING BELT
• CENTERING THE RUNNING BELT
• USING THE HEART RATE FUNCTION

18
10 12
8
56
34
2
126
4810 12
0
CHANGE
DISPLAY
ENTER
DISTANCE
HEART RATE
TIME
CALORIES
SPEED
INCLINE
START STOP
Q
M M
P
N
IH
B
R
F G
A
J
C
O
Q
DS T U SEL K

19

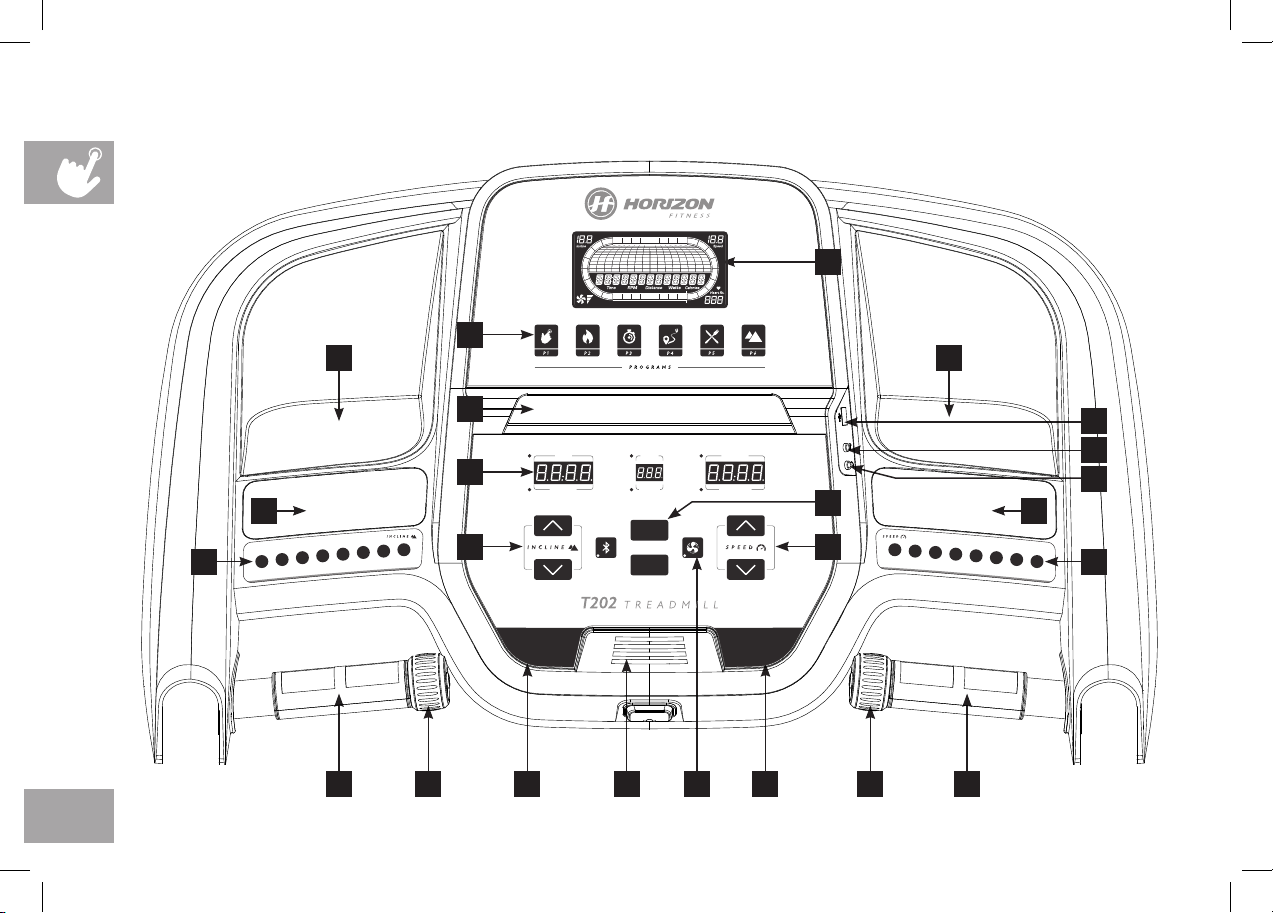

CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) LCD DISPLAY: Time, RPM, Distance, Watts, Calories, Incline, Speed, Heart Rate, Fan Speed.
B) LED DISPLAY: Time, Speed, Distance, Calories, Incline, Heart Rate.
C) WORKOUT INDICATORS:indicates what workout is set for the current program.
D) START:press to begin exercising, start your workout, or resume exercising after pause.
E) STOP:press to pause/end your workout. Hold for 3 seconds to reset the console.
F) INCLINE +/- KEYS: used to adjust incline in small increments (0.5% increments).
G) SPEED +/- KEYS:used to adjust speed in small increments (0.1 mph increments).
H) INCLINE QUICK KEYS: used to reach desired incline more quickly.
I) SPEED QUICK KEYS:used to reach desired speed more quickly.
J) CHANGE DISPLAY: press to change display feedback during workout.
K) FAN KEY:press to turn fan on and off.
L) FAN:personal workout fan.
M) SPEAKERS:music plays through speakers when your CD / MP3 player is connected to the console.
N) AUDIO IN JACK: plug your CD / MP3 player into the console using the included audio adaptor cable.
O) AUDIO OUT / HEADPHONE JACK: plug your headphones into this jack to listen to your music through the
headphones. Note: when headphones are plugged into the headphone jack the sound will no longer come out
through the speakers.
P) USB INPUT:1A/5V USB output power.
Q) WATER BOTTLE POCKETS: holds personal workout equipment.
R) TABLET/READING RACK:holds tablet or reading material.
S) HEART RATE PULSE GRIPS: used to measure heart rate.
T) INCLINE SCROLL WHEEL: used to adjust incline in small increments (.5%).
U) SPEED SCROLL WHEEL: used to adjust speed in small increments (.1 MPH).

20

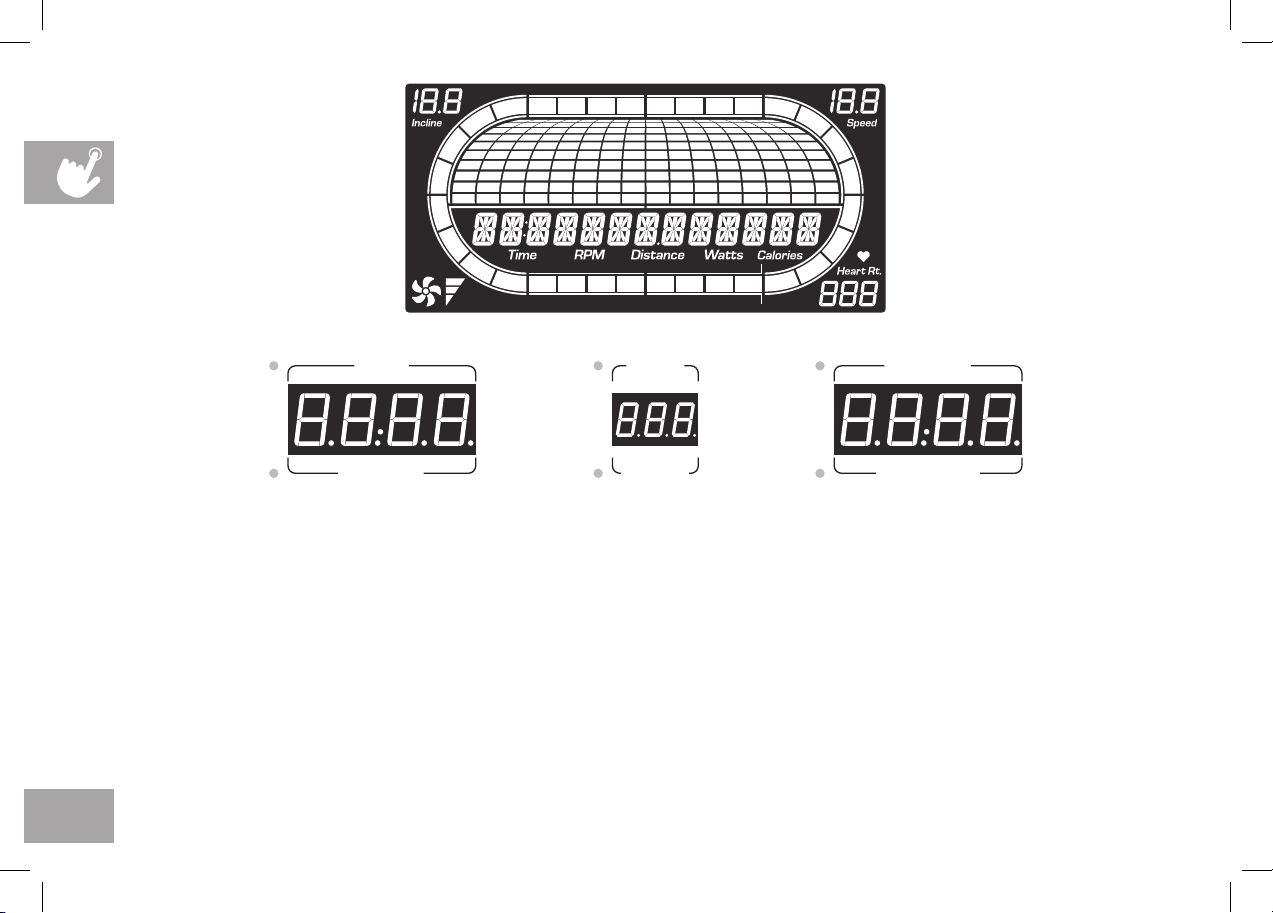

DISPLAY WINDOWS
• TIME:Shown as minutes : seconds. View the time remaining or the time elapsed in your workout.
• SPEED:Shown as MPH. Indicates how fast your walking or running surface is moving.
• DISTANCE:Shown as miles. Indicates distance traveled or distance remaining during your workout.
• CALORIES:Total calories burned or calories remaining left to burn during your workout.
• INCLINE:Shown as percent. Indicates the incline of your walking or running surface.
• HEART RATE:Shown as BPM (beats per minute). Used to monitor your heart rate (displayed when
contact is made with both pulse grips).
DISTANCE
HEART RATE
TIME
CALORIES
SPEED
INCLINE
