SAVE THESE INSTRUCTIONS
Read all instructions before using this treadmill. When using an electrical product, basic precautions
should always be followed, including the following: Read all instructions before using this treadmill. It is the
responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings
and precautions. If you have any questions after reading this manual, contact Customer Tech Support at the
number listed on the back panel of this manual.

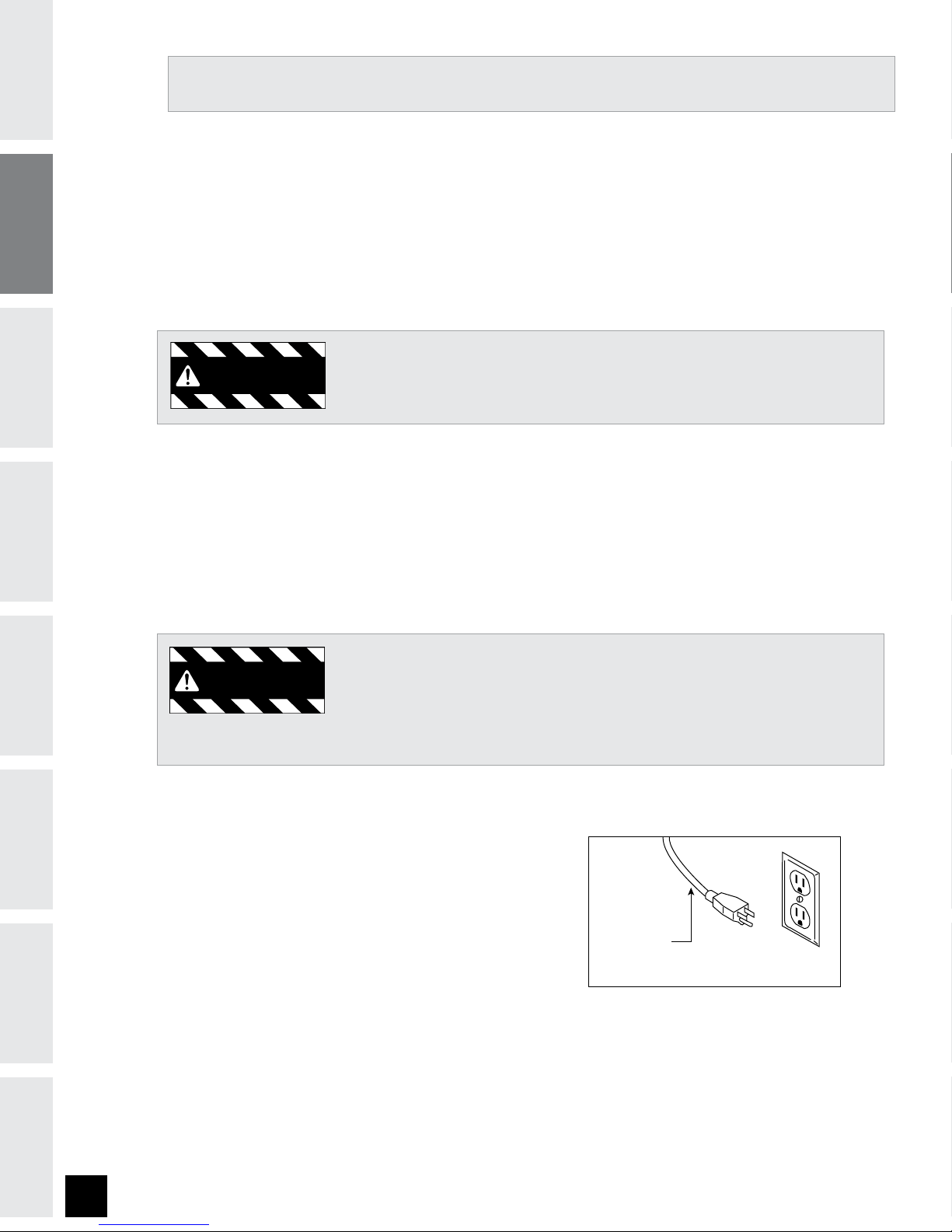

Connect this exercise product to a properly grounded outlet only. See grounding
instructions.
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path
of least resistance for electrical current to reduce the risk of electrical shock. This product is equipped with
a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly grounded. Do not modify the plug provided
with the product. If it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
This product is for use on a nominal 110-volt circuit and
has a grounding plug that looks like the illustration
below. This product must be used on a dedicated
circuit. To determine if you are on a dedicated circuit,
shut off the power to that circuit and observe if any other
devices lose power. If so, move devices to a different
circuit. Note: There are usually multiple outlets on one
circuit. It is recommended that the treadmill be used
with a 20 amp circuit for optimal performance.
IMPORTANT PRECAUTIONS
WARNING
WARNING
3-Pole Grounded Outlet
GROUNDED
TREADMILL
POWER CORD

5
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
At NO time should pets or children under the age of 12 be closer to the treadmill than 10 feet.
At NO time should children under the age of 12 use the treadmill.
Children over the age of 12 should not use the treadmill without adult supervision.
To reduce the risk of burns, fire, electrical shock or injury to persons:
• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness
of breath, stop exercising immediately and consult your physician before continuing.
• Do not wear clothes that might catch on any part of the treadmill.
• Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• Keep power cord away from heated surfaces.
• Do not insert or drop any object into any opening.
• Unplug treadmill before moving or cleaning it. To clean, wipe surfaces down with soap and slightly damp
cloth only; never use solvents. (See MAINTENANCE)
• At no time should more than one person be on treadmill while in operation.
• The treadmills should not be used by persons weighing more than 300 pounds. Failure to comply will
void the warranty.
• The treadmills are intended for in-home use only. Do not use this treadmill in any commercial, rental,
school or institutional setting. Failure to comply will void the warranty.
• Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages,
porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply may void the warranty.
• Use the treadmill only as described in this manual.
OTHER SAFETY TIPS FOR YOUR TREADMILL
OPERATION
To reduce the risk of damaging important components on your treadmill, it is strongly
recommended that your treadmill is plugged into a dedicated 20 amp circuit, without
the use of an additional extension cord and/or power strip. Failure to comply may void
the warranty.
IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets.
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been
exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is
warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure.
WARNING
WARNING

6
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY
IMPORTANT: READ THESE SAFETY INSTRUCTIONS BEFORE USE!
During the assembly process of the treadmill there are several areas that special attention must be paid.
It is very important to follow the assembly instructions correctly and to make sure all parts are firmly
tightened. If the assembly instructions are not followed correctly, the treadmill could have frame parts that
are not tightened and will seem loose and may cause irritating noises. There should be no side-to-side play
in the console masts or any forward and back play in the console assembly or handlebars. If there is any
play in these areas, the treadmill has not been properly assembled. To prevent damage to the treadmill, the
assembly instructions must be reviewed and corrective actions should be taken.
UNPACKING

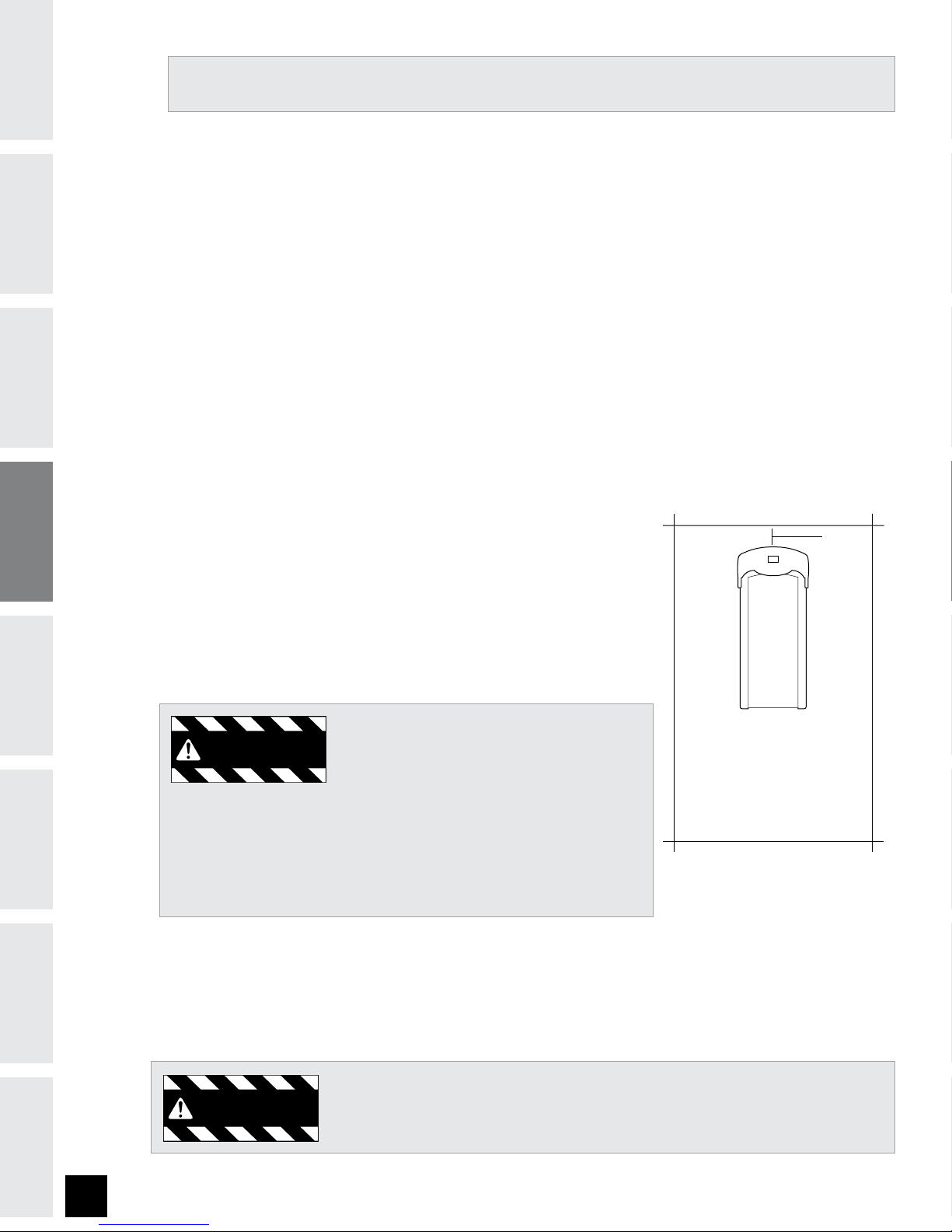

Place the treadmill carton on a level flat surface. It is recommended that you place a protective covering on
your floor. Take CAUTION when handling and transporting this unit. Never open box when it is on its side.
Once the banding straps have been removed, do not lift or transport this unit unless it is fully assembled
and in the upright folded position, with the lock latch secure. Unpack the unit where it will be used. The
enclosed treadmill is equipped with high-pressure shocks and may spring open if mishandled. Never grab
hold of any portion of the incline frame and attempt to lift or move the treadmill. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN INJURY!

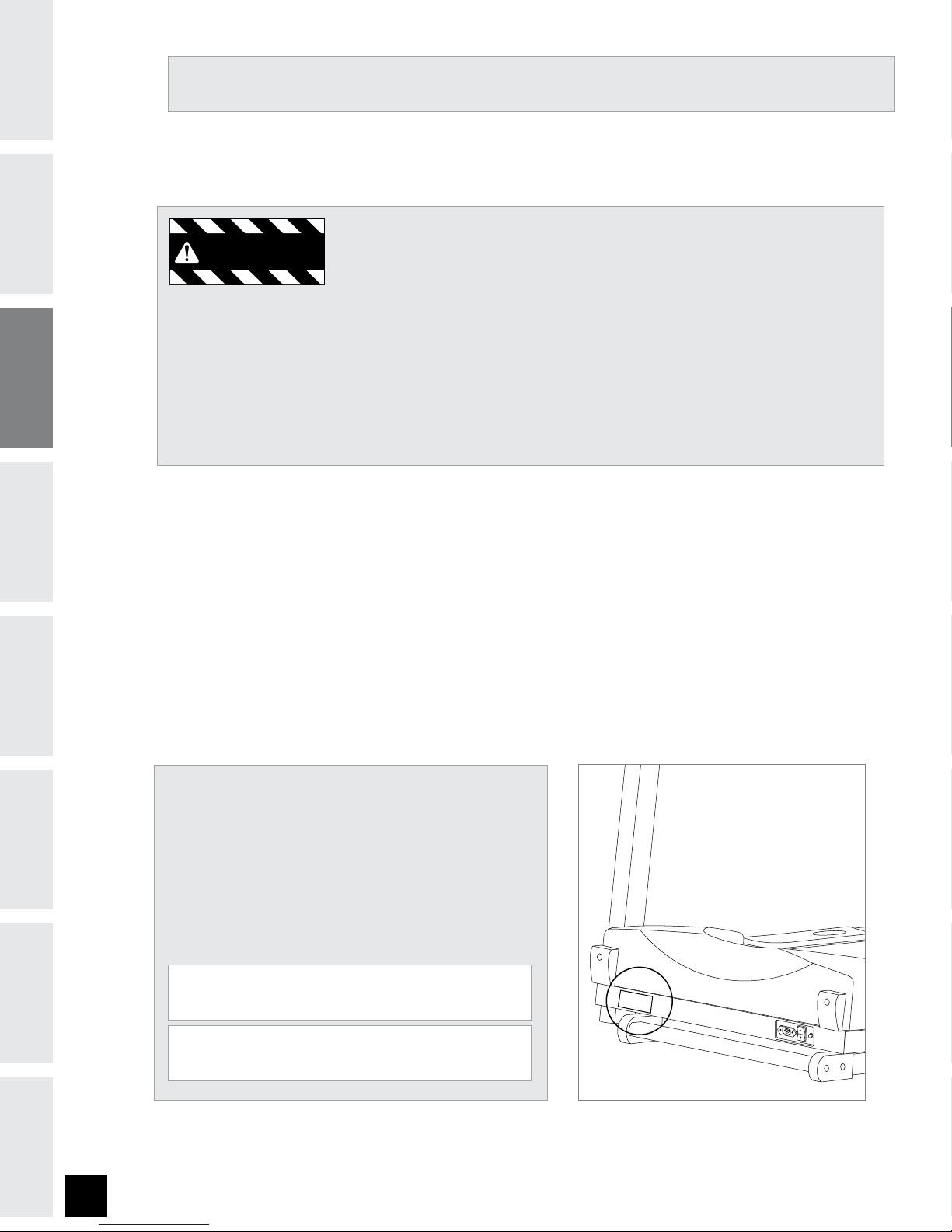

Before proceeding, find your treadmill’s serial number
and model name located to the left of the on/off
power switch and power cord and enter it in the space
provided below.
ENTER YOUR SERIAL NUMBER AND
MODEL NAME IN THE BOxES BELOW:
SERIAL NUMBER:
MODEL NAME:
* Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
* Also enter this serial number on your Warranty Card.
WARNING

7
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY

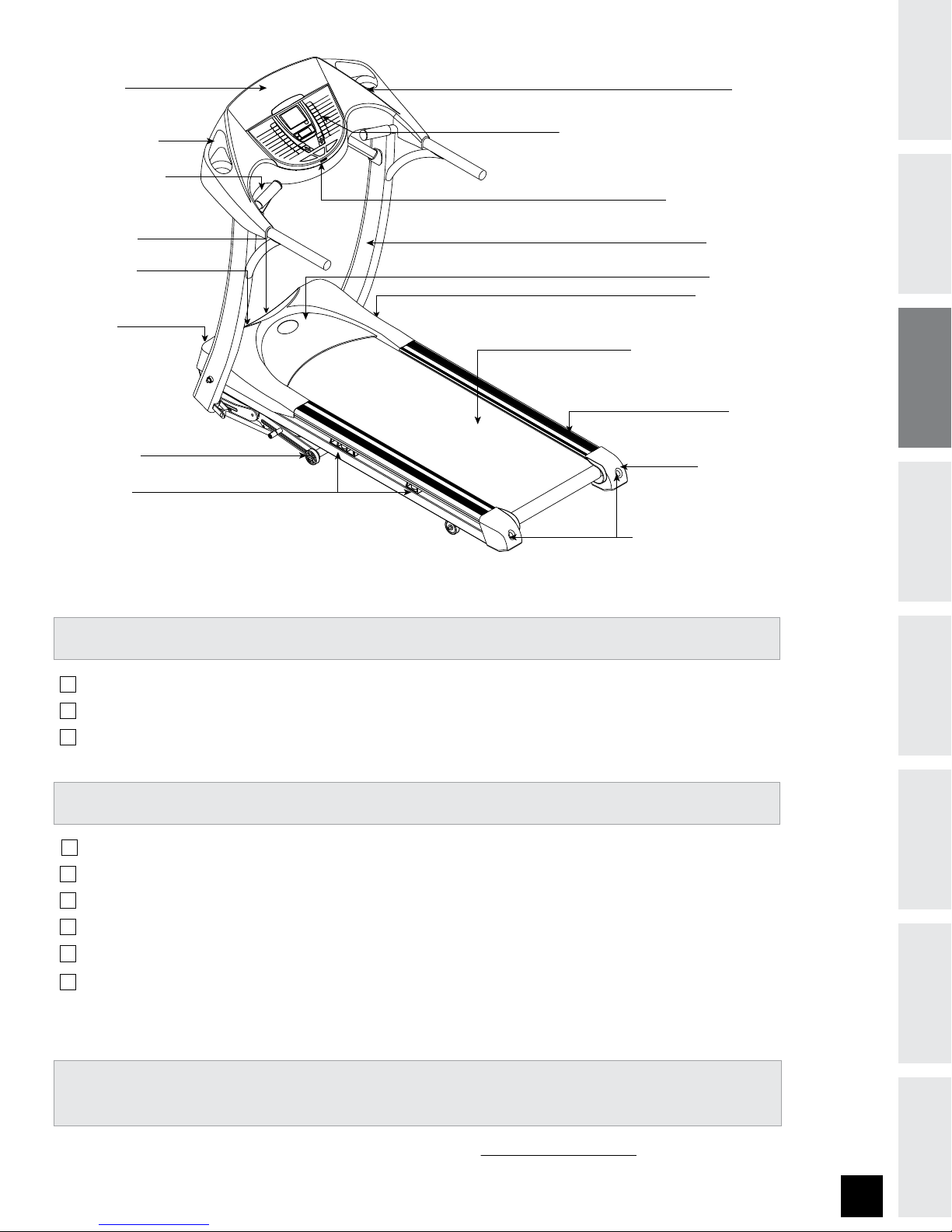

TOOLS INCLUDED
PARTS INCLUDED
1 Safety Key
1 Console Assembly (located under treadmill deck)
1 Power Cord
4 Hardware Packs
2 Support Bars
2 Handlebars
READING RACK
WATER BOTTLE HOLDER
GRIP PULSE HANDRAILS
ON/OFF SWITCH
CIRCUIT BREAKER
VS3™Cushioning
TRANSPORT WHEEL
POWER CORD
CONSOLE
TOUCH PAD PANEL WITH BLUE BACK-LIT DISPLAY
SAFETY KEY PLACEMENT
MOTOR COVER
RUNNING BELT / RUNNING DECK
SIDE RAIL
ROLLER END CAP
CONSOLE MAST
REAR ROLLER ADJUSTMENT BOLTS
FOOT LOCK LATCH
4 mm Allen Wrench
5 mm Allen Wrench
6 mm T-Wrench
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.
For a complete exploded diagram, visit us at www.horizonfitness.com

8
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
DO NOT CUT STRAPS UNTIL STEP 1-E!* Disassemble box and remove the
cardboard packaging that is not beneath the treadmill. Do not attempt to lift the
treadmill at this time. Remove plastic wrap from console masts.
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before
completely tightening any ONE bolt. NOTE: A light application of grease may aid in the installation of hardware.
Any grease, such as lithium bike grease is recommended.

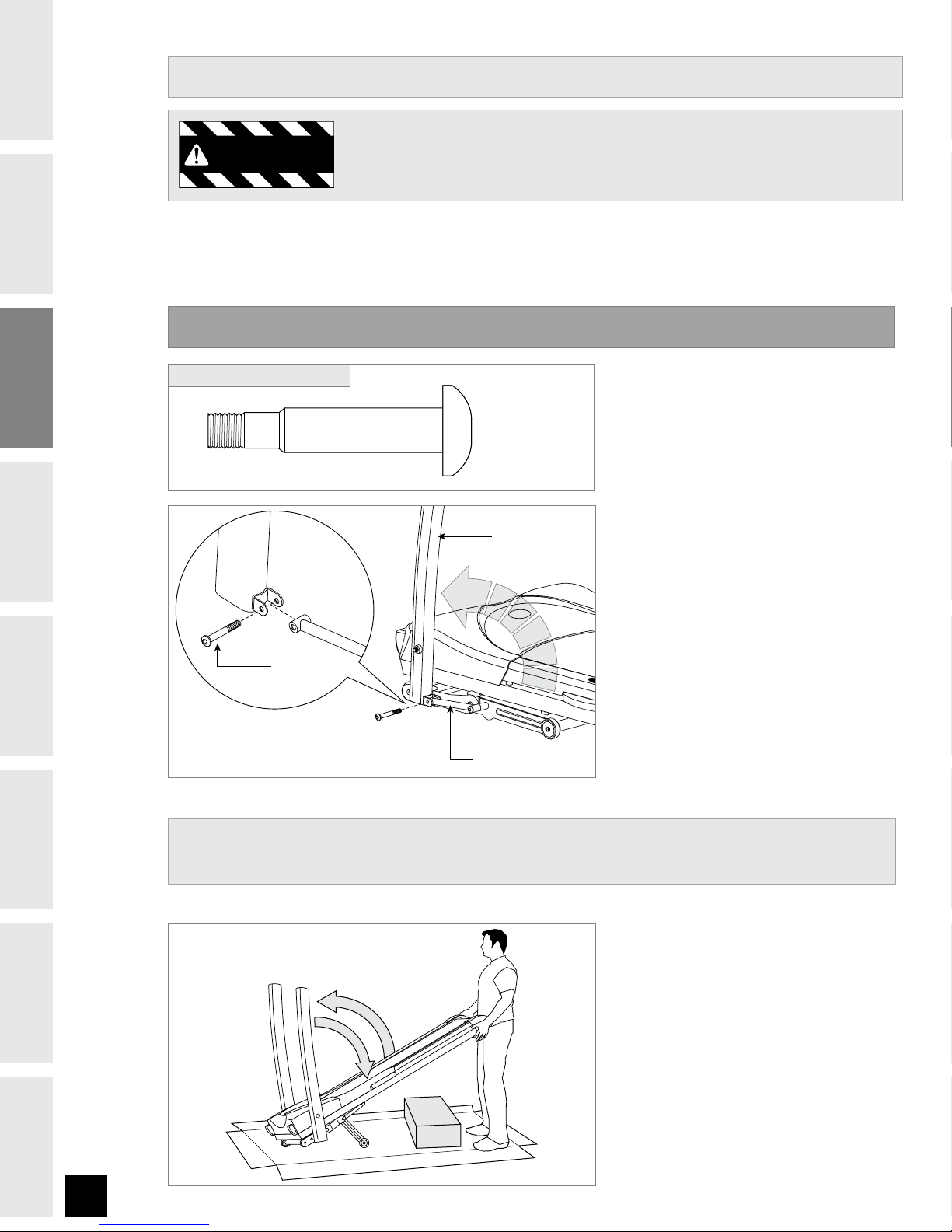

Open HARDWARE BAG 1.
Lift LEFT CONSOLE MAST into
upright position. Be sure to hold
the console mast firmly, as it
will not stay in the upright
position on it’s own.
Move LEFT SIDE LINKAGE ARM
into position. Insert BOLT (A)
and tighten.
Repeat on the right side.
Now cut the banding straps and
remove remaining packaging
material.*
Lift the RUNNING DECK until
lock latch on side of treadmill
is fully engaged.
Remove CONSOLE from box
and place out of the way.
Lower the treadmill RUNNING
DECK from the folded position
by stepping on LOCK LATCH on
lower right side.
PRE-ASSEMBLY
WARNING
ASSEMBLY STEP 1
1
3
2
A
B
C
D
E
F
G
H
#0-5"
NN
2UZ
HARDWARE BAG 1 CONTENTS :
LEFT CONSOLE MAST
LEFT SIDE LINKAGE ARM
BOLT A
* NOTE: If the straps have been removed before completing step 1-D and the linkage arms can not be aligned,
refer to the TROUBLESHOOTING section (page 28) in order to restore the treadmill to its proper position.

9
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY

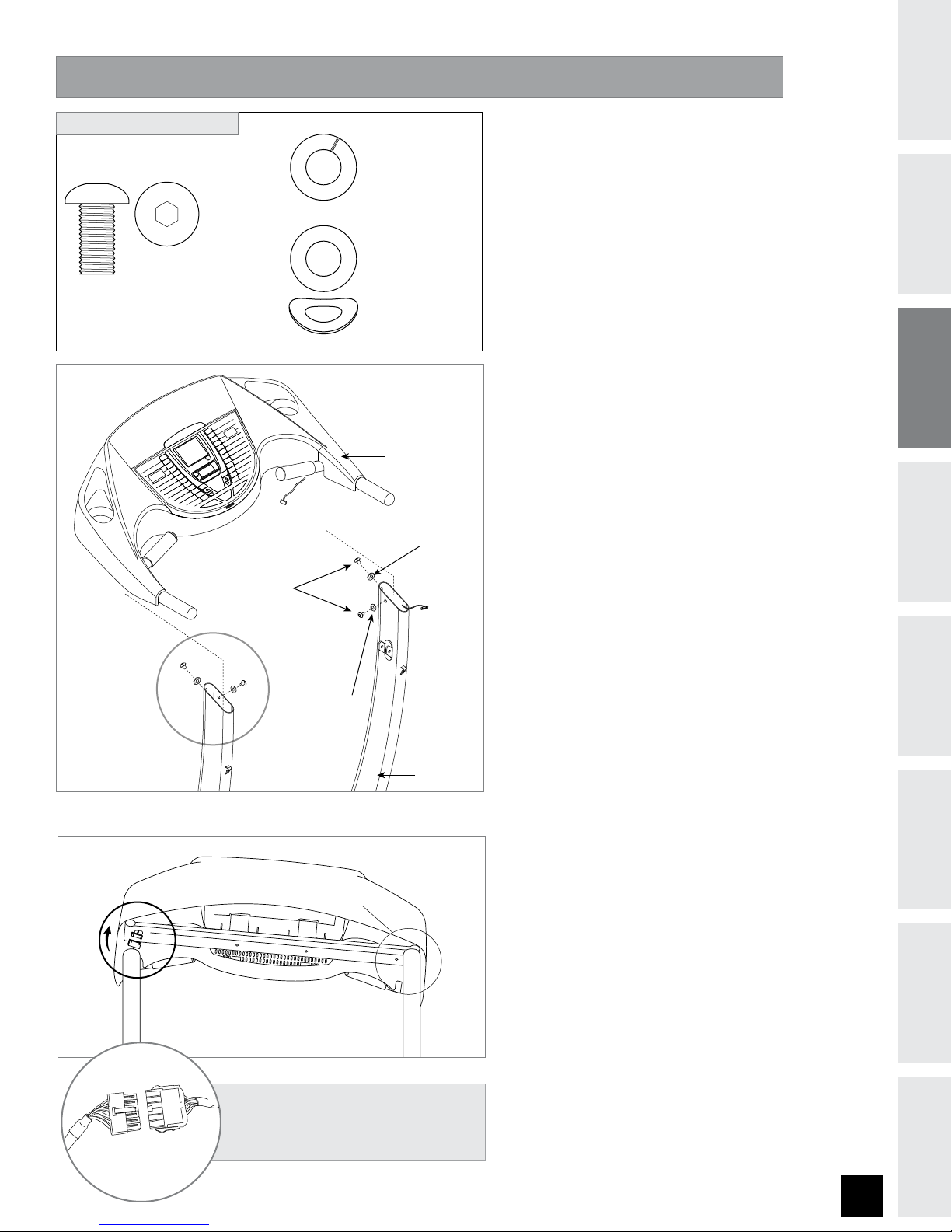

Open HARDWARE BAG 2.
With running deck in lowered
position, place CONSOLE
on upright masts. Slide the
brackets that are underneath the
console into the top holes of the
upright masts.
Place LOCK WASHER (C) and
BOLT (B) into flat side of LEFT
upright MAST and lightly tighten.
Place ARC WASHER (D) and BOLT
(B) into curved side of LEFT
upright MAST and lightly tighten.
Gently lift RIGHT side of the
console to connect the CONSOLE
CABLE. Carefully tuck wires in
mast to avoid damage. Note: Do
not pinch console cable. Be sure
the console cable prongs are
aligned and the ends are tightly
seated into each other.
Repeat steps C-D above to
assemble the right side upright
mast and console.
Tighten all bolts completely.
* NOTE: Be careful not to pinch any
wires while assembling the masts.
ASSEMBLY STEP 2
A
B
C
D
E
F
G
* Be sure to tighten bolts after all are lined up.
"3$
8"4)&3%
"TTFNCMFMFGU
TJEFmSTU
"TTFNCMFSJHIU
TJEFBGUFS4UFQ&
$0/40-&
$0/40-&
."45
#0-5#
-0$,
8"4)&3$
"44&.#-&%*/45&1%
#0-5#
NN
2UZ
UPQWJFX
BOHMFWJFX
-0$,8"4)&3$
2UZ
"3$8"4)&3%
2UZ
HARDWARE BAG 2 CONTENTS :

10
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES

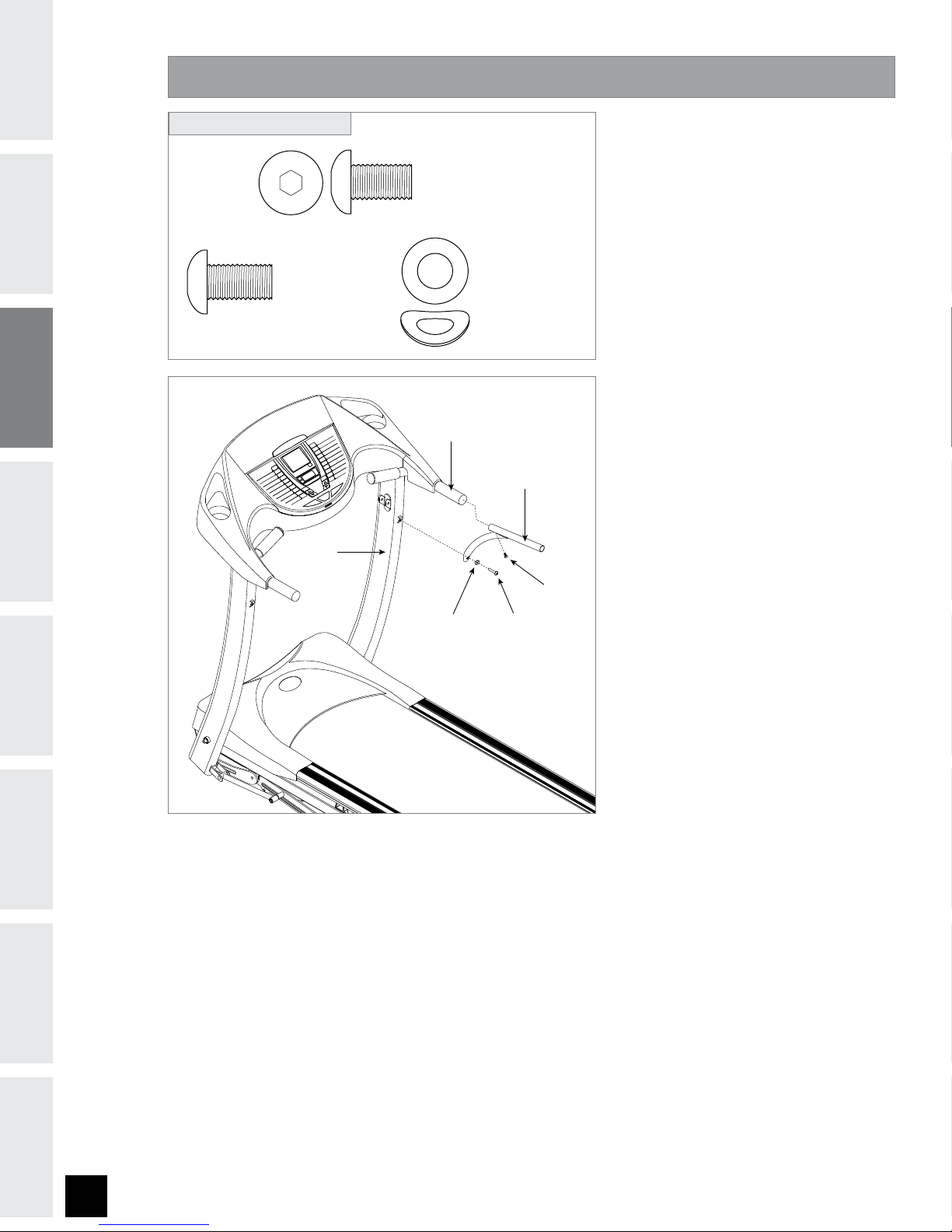

A Open HARDWARE BAG 3.
B Slide HANDLEBAR ExTENSION
onto the CONSOLE HANDLEBAR.
You will need to slide the
HANDLEBAR ExTENSION under
the console assembly plastic
by slightly lifting the plastic in
order to attach the connection
bolts.
C Insert BOLTS (E) into the
HANDLEBAR ExTENSION.
D Insert BOLT (F) and ARC
WASHER (D) through bottom
hole of HANDLEBAR ExTENSION
into CONSOLE MAST.
E Tighten all bolts.
F Repeat on other side.
ASSEMBLY STEP 3
)"/%-&#"3
&95&/4*0/
#0-5'
#0-5&
"3$8"4)&3%
$0/40-&."45
$0/40-&
)"/%-&#"3
HARDWARE BAG 3 CONTENTS :
BOLT (E)
12 mm
Qty: 2
BOLT (F)
15 mm
Qty: 2
angle view
ARC WASHER (D)
Qty: 2
top view

11
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
YOU’RE FINISHED!
POWER SWITCH CIRCUIT BREAKER

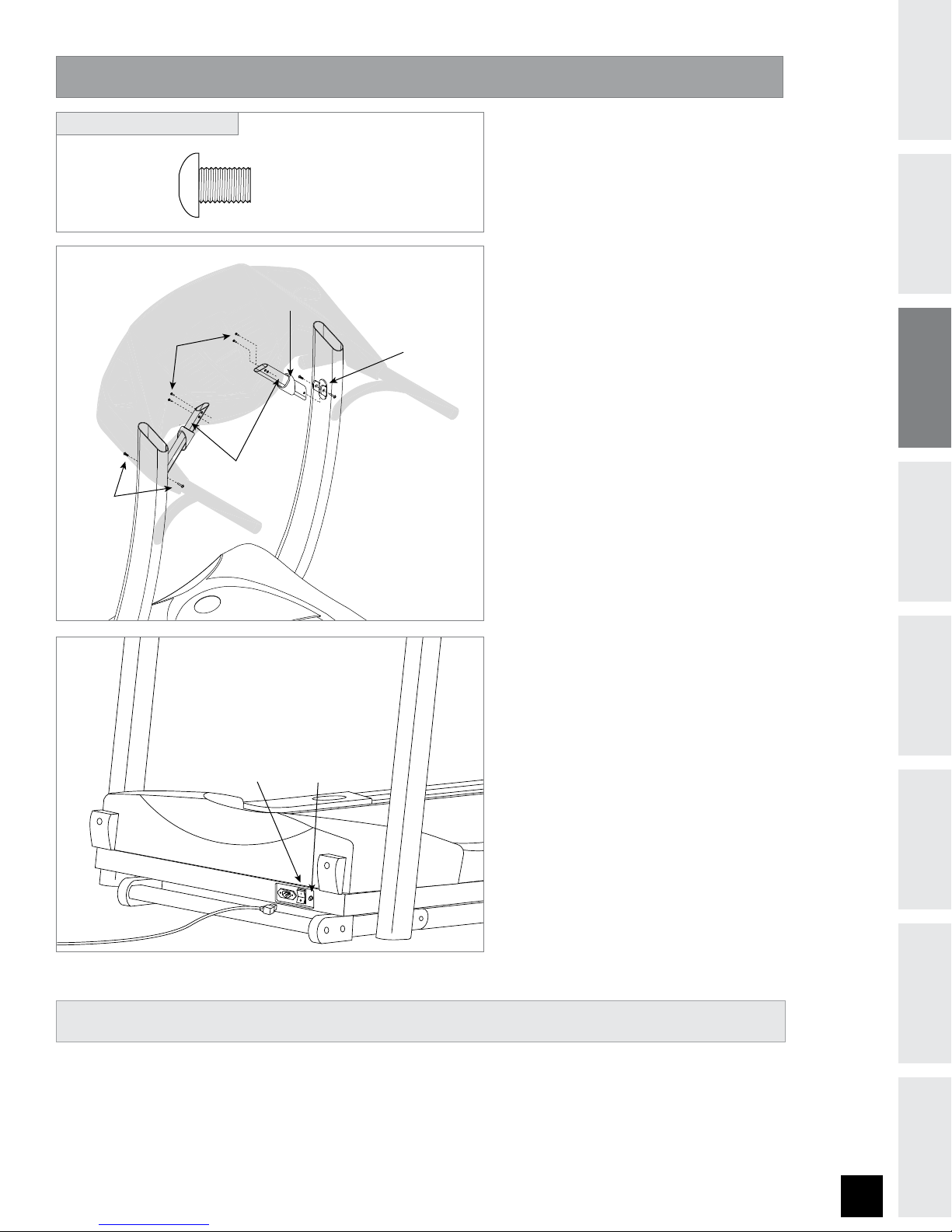

A Open HARDWARE BAG 4.
BSlide SUPPORT BARS into side
MOUNTING BRACKETS and
line up with top MOUNTING
BRACKETS.
CInsert 2 BOLTS (G) into the tops
and 2 BOLTS (G) into the bottoms
of each SUPPORT BAR.
DSlide SUPPORT BAR BOOTS down
to cover BOLTS (G).
EConnect power plug to the
treadmill and connect the cord to
a power outlet. The on/off switch
is located next to the power
cord. Flip this switch to the 'ON'
position, so that the switch is
lit. You will hear a beep and the
console will light up.
ASSEMBLY STEP 4
#0-5(
NN
2UZ
HARDWARE BAG 2 CONTENTS :
SUPPORT BAR BOOTS
BOLTS (G)
SUPPORT BARS
MOUNTING
BRACKET
BOLTS (G)

12
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
BEFORE YOU BEGIN
CONGRATULATIONS! on choosing your treadmill. You’ve taken an important step in developing and
sustaining an exercise program! Your treadmill is a tremendously effective tool for achieving your personal
fitness goals. Regular use of your treadmill can improve the quality of your life in so many ways.
HERE ARE JUST A FEW OF THE HEALTH BENEFITS OF EXERCISE:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
The key to reaping these benefits is to develop an exercise habit. Your new treadmill will help you eliminate
obstacles that prevent you from exercising. Inclement weather and darkness won't interfere with your
workout when you use your treadmill in the comfort of your home. This guide provides you with basic
information for using and enjoying your new machine.
LOCATION OF THE TREADMILL
Place the treadmill on a level surface. There should be 6 feet of clearance
behind the treadmill, 3 feet on each side and one foot in front for folding
and the power cord. Do not place the treadmill in any area that will block
any vent or air openings. The treadmill should not be located in a garage,
covered patio, near water or outdoors.
DO NOT STAND ON THE BELT
While you are preparing to use the treadmill, do not stand on the belt.
Place your feet on the side rails before starting the treadmill. Start
walking on the belt only after the belt has begun to move. Never start the
treadmill at a fast running speed and attempt to jump on!
SAFETY KEY
Your treadmill will not start unless the safety key is placed in position. Attach the clip end securely to your
clothing. This safety key is designed to cut the power to the treadmill if you should fall. Check the operation
of the safety key every 2 weeks.
NEVER USE THE TREADMILL WITHOUT SECURING THE SAFETY KEY CLIP TO YOUR
CLOTHING. PULL ON THE SAFETY KEY CLIP FIRST TO MAKE SURE IT WILL NOT
COME OFF YOUR CLOTHING.
WARNING
3 feet
6 feet
3 feet
1 foot
WARNING

13
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
PROPER USAGE
Your treadmill is capable of reaching high speeds. Always start off using a slower speed and adjust the speed in
small increments to reach a higher speed level. Never leave the treadmill unattended while it is running. When
not in use, remove the safety key, turn the on/off switch to off and unplug the power cord. Make sure to follow
the MAINTENANCE schedule located on page 30 in this manual. Keep your body and head facing forward. Do not
attempt to turn around or look backwards while the treadmill is running. Stop your workout immediately if you
feel pain, faint, dizzy or are short of breath.
Do not operate the treadmill if the power cord or plug is damaged.
If the treadmill appears to not be working properly, do not use the treadmill.
FOLDING
Firmly grasp the back end of the treadmill. Carefully
lift the end of the treadmill deck into the upright
position until the foot lock latch engages and
securely locks the deck into position. Make sure the
deck is securely latched before letting go. To unfold,
firmly grasp the back end of the treadmill. Gently
press down on the foot lock latch with your foot until
the lock latch disengages. Carefully lower the deck
to the ground.
MOVING
Your treadmill has a pair of transport wheels built
into the frame. To move, make sure the treadmill is
folded and securely latched. Then firmly grasp the
handlebars, tilt the treadmill back and roll.
Our Treadmills are heavy, use care and additional help if necessary when moving.
Do not attempt to move or transport treadmill unless it is in the upright, folded
position with the lock latch secured. Failure to follow these instructions could
result in injury.
WARNING
WARNING

14
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
CENTERING THE RUNNING BELT
The running belt has been properly adjusted at the
factory before it was shipped. At times the belt can
move off-center during shipment. Before operating the
treadmill, make sure the belt is centered and remains
centered to maintain smooth operation.
CAUTION: Do not run belt faster than 1/2 mph while
centering. Keep fingers, hair and clothing away from
belt at all times.

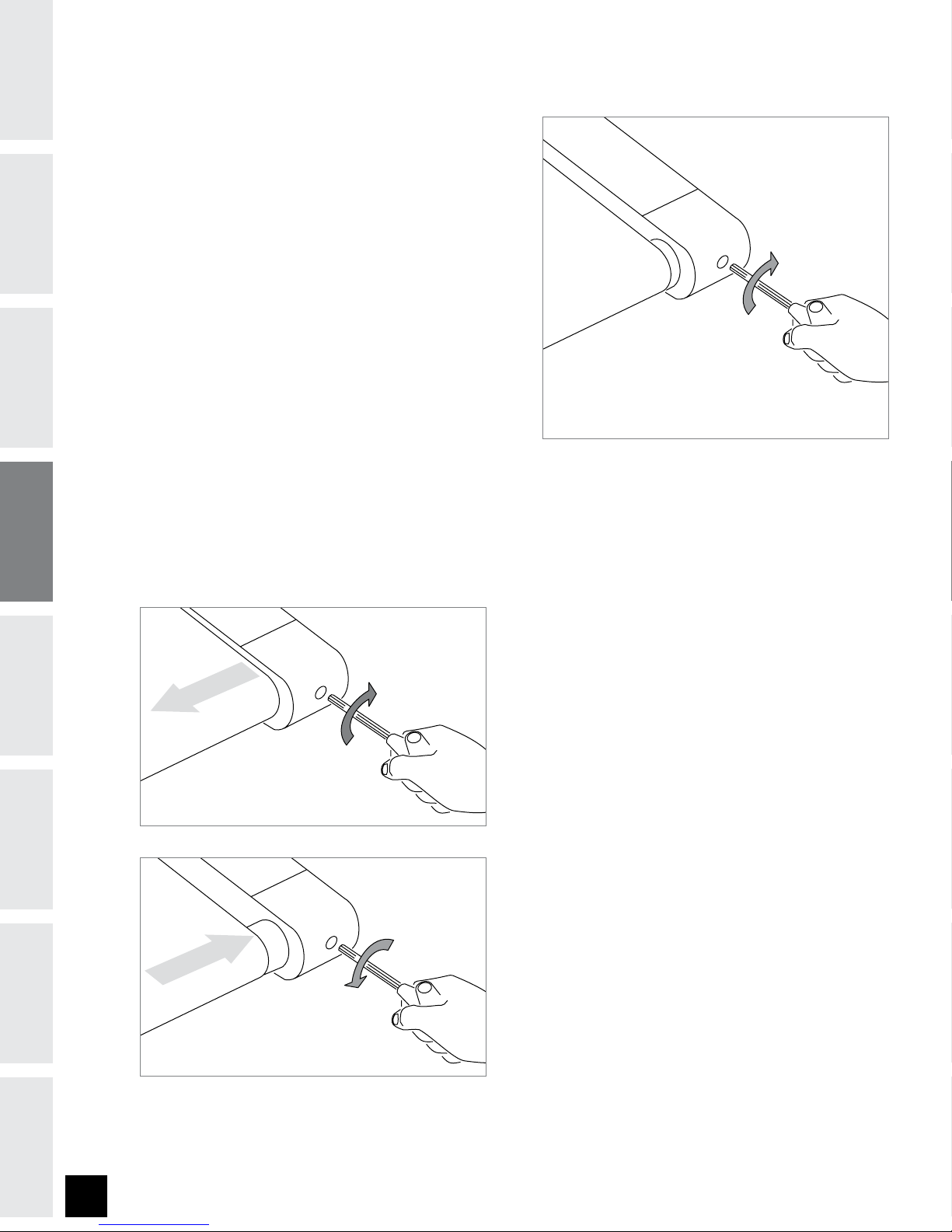

If the running belt is too far to the right side:
With the treadmill running at 1/2 mph, turn the right
adjustment bolt clockwise 1/4 TURN at a time (using
the supplied Allen wrench). Check the belt alignment.
Allow belt to run a full cycle to gauge if more adjustment
is needed. Repeat if necessary, until the belt remains
centered during use.
If the running belt is too far to the left side:
With the treadmill running at 1/2 mph, turn the right
adjustment bolt counter-clockwise 1/4 TURN at a time
(using the supplied Allen wrench). Check the belt
alignment. Allow belt to run a full cycle to gauge if more
adjustment is needed. Repeat if necessary, until the
belt remains centered during use.
Belt is too far to the right side
Belt is too far to the left side
TENSIONING THE RUNNING BELT
The running belt has been properly adjusted at the
factory before it was shipped. At times the belt can
move off-center during shipment.
CAUTION: Running belt should NOT be moving during
tensioning. Over-tightening the running belt can
cause excessive wear on the treadmill as well as its
components. Never over-tighten the belt.
If you can feel a slipping sensation when running on the
treadmill, the running belt must be tightened. In most
cases, the belt has stretched from use, causing the
belt to slip. This is a normal and common adjustment.
To eliminate this slipping, TURN THE TREADMILL OFF
and tension BOTH THE REAR ROLLER BOLTS using the
supplied Allen wrench, turning them 1/4 TURN to the
right as shown. Turn the treadmill on and check for
slipping. Repeat if necessary, but NEVER TURN the
roller bolts more than 1/4 turn at a time. Belt is properly
tensioned when the slipping sensation is gone.

15
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
Note: There is a thin protective sheet of clear plastic on the overlay of the console and should be removed.

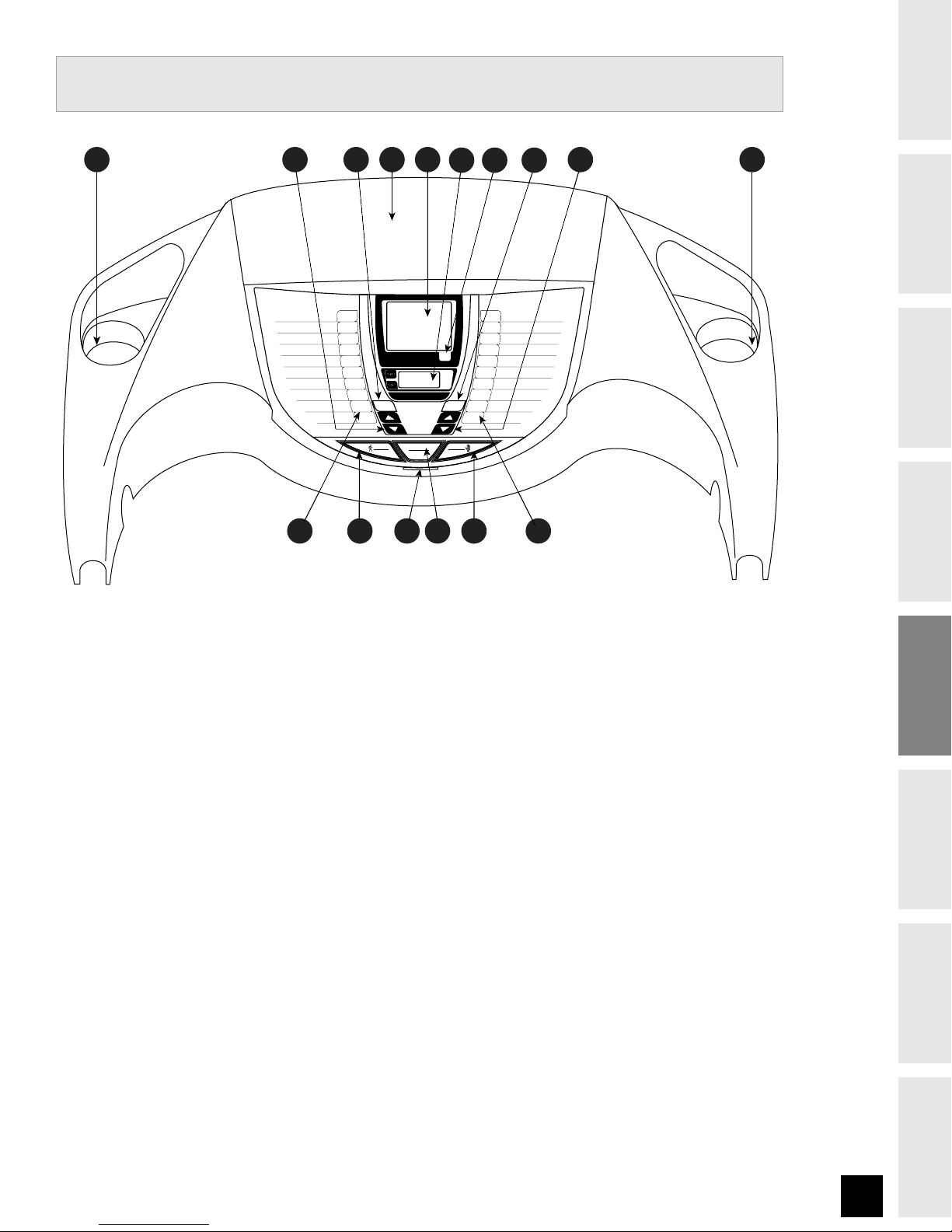

A) MONITOR DISPLAY: Speed, Time, Pulse, Pace, Incline, Calories and Program Profiles.
B) ODOMETER WINDOW: Displays: Distance, Trip, or Total Distance.
C) STOP: Press to pause/end your workout. Hold for 3 seconds to reset the treadmill.
D) START: Simply press to begin exercising or starts your program.
E) ENTER: Used to select Program, Level and Time. Press after QUICK-ADJUST KEYS to quickly set incline or speed.
F) QUICK-ADJUST INCLINE KEYS: Used to reach desired incline more quickly. Select before pressing ENTER key.
G) QUICK-ADJUST SPEED KEYS: Used to reach desired speed more quickly. Select before pressing ENTER key.
H) INCLINE ARROW KEYS: Used to adjust incline in small increments (0.5% increments).
I) SPEED ARROW KEYS: Used to adjust speed in small increments (0.1 mph increments).
J) 1/2 KEYS: Quick-adjust keys for increasing speed (0.5 mph increments) and incline (0.5% increments)
K) DISPLAY KEY: Press to change display feedback during workout. Hold to scan.
L) SAFETY KEY POSITION: Enables treadmill when safety key is inserted.
M) READING RACK: Holds reading material. (Remove sales sticker before use)
N) WATER BOTTLE / CD / MP3 HOLDERS: Holds personal workout equipment.
TREADMILL OPERATION
+
0.5 %
+
0.5 MPH
10 %
9%
8%
7%
6%
5%
4%
3%
2%
1%
10 MPH
9MPH
8MPH
7MPH
6MPH
5MPH
4MPH
3MPH
2MPH
1MPH
US ER 1
US ER 2
TRIP
TO TA L
HOLD TO RESET
PRESS # THEN PRESS ENTER TO CONFIRM INCLINE PRESS # THEN PRESS ENTER TO CONFIRM SPEED
ENTER
PROGRAM SELECT
START
QUICK START
STOP
HOLD TO RESET
ODOMETER
DISPLAY
D CL GEF
AMJH I
JB K
N N

16
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES

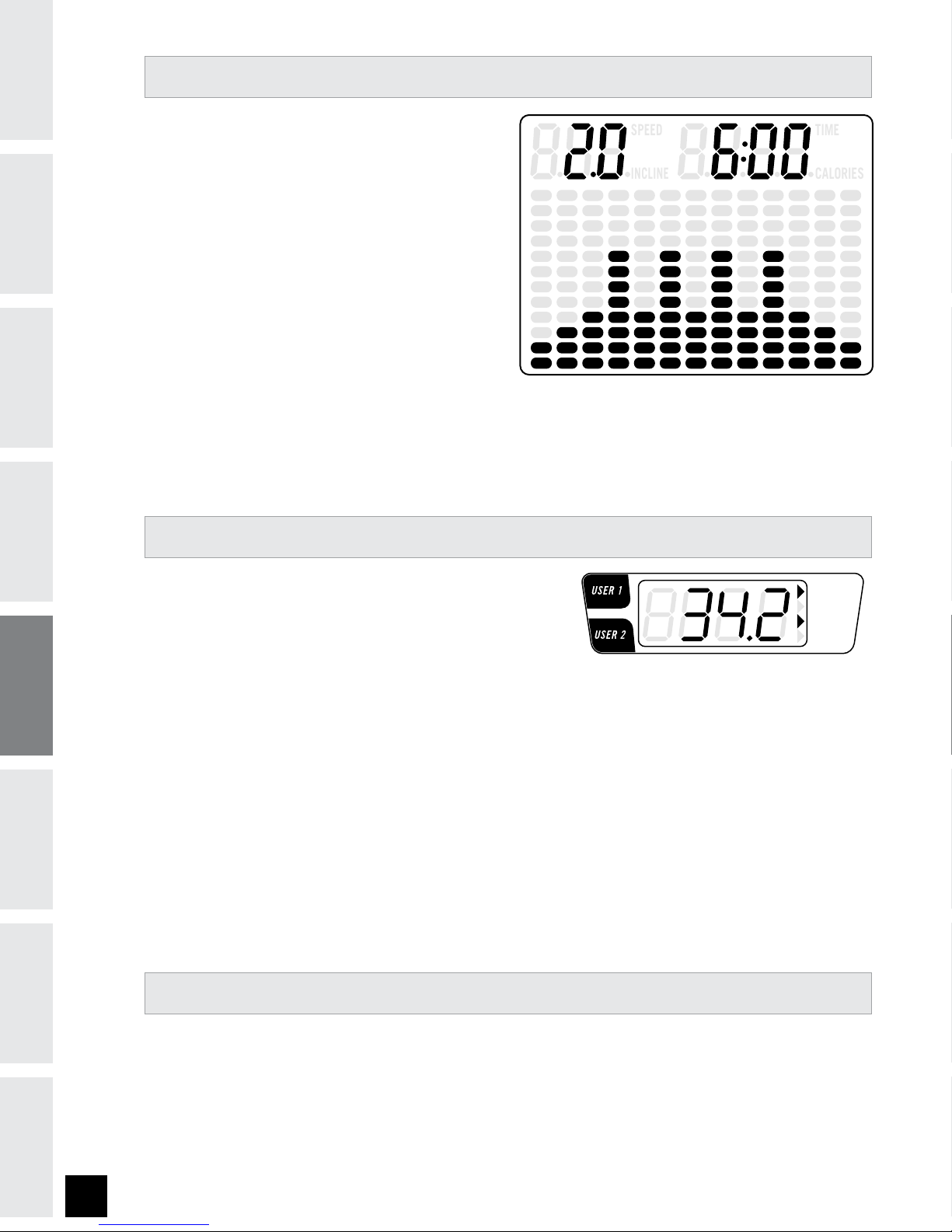

SPEED • Shown as MPH. Indicates how fast your
walking or running surface is moving.
TIME • Shown as Minutes:Seconds. View the time
remaining or the time elapsed in your workout.
PULSE • Shown as Beats Per Minute. Used to
monitor your heart rate (displayed when contact
is made with both pulse grips).
INCLINE • Shown as Percent. Indicates the incline
of your walking or running surface.
CALORIES • Total Calories burned during your workout.
PROGRAM PROFILES • Represents the profile of the program being used (speed during speed based
programs and incline during incline based programs).
PACE • The rate of covering a mile while running or walking at your current speed. For example: If at your
current speed it will take you 10 minutes to complete a mile, the treadmill will display ‘10.0’ as your pace.
USER 1/USER 2:
Logs User’s total accumulated distance of current workout.
- You will be prompted to select a USER during the final
step in program set-up (See Page 18).
- Upon pressing either USER 1 or USER 2 and then START, the Odometer window will default to zero and
begin accumulating current workout distance.
- NOTE: If you do not select a USER and just press START, the Odometer window will default to program
distance. Neither USER TRIP or USER TOTAL will accumulate.
USER TRIP: Logs User’s accumulated distance since the Trip feature was last reset.
- During your workout, press the USER button once and TRIP will be displayed.
- To reset TRIP DISTANCE, hold the USER button for 3 seconds. TRIP DISTANCE will reset to 0.0.
USER TOTAL: Logs User’s total accumulated distance on the treadmill. USER TOTAL cannot be reset.
- During your workout, press the USER button twice and TOTAL will be displayed.
- During your workout, press the USER button 3 times to return to current program’s distance.
Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your heart rate
to register. It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When gripping the pulse
handlebars, do not grip tightly. Holding the grips tightly may elevate your blood pressure. Keep a loose, cupping hold. You
may experience an erratic readout if consistently holding the grip pulse handlebars. Make sure to clean the pulse sensors to
ensure proper contact can be maintained. (See page 29).
MONITOR DISPLAY
HEART RATE
SPEED
PULSE
INCLINE
TIME
PACE
CALORIES
USING THE ODOMETER FUNCTION
64&3
64&3
53*1
505"-
)0-%503&4&5

17
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
1) Check to make sure nothing is on or will hinder the movement of the treadmill.
2) Plug in the power cord and turn the treadmill ON.
3) Stand on the side rails of the treadmill.
4) Attach the safety key clip to part of your clothing.
5) Insert the safety key into the safety keyhole in the console.
6) You have two options to start your workout:
GETTING STARTED / SELECTING A PROGRAM
PROGRAM INFORMATION
PROGRAM: MANUAL
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
A) QUICK START UP
Simply press the START key to begin working out. OR...
B) SELECT A PROGRAM
Select a PROGRAM using the SPEED ARROW keys.
Once a PROGRAM has been chosen, press ENTER.
SELECT A LEVEL
Select a PROGRAM LEVEL using the ARROW keys.
Once a PROGRAM LEVEL has been chosen, press ENTER.
SELECT A TIME
Select a Time using the ARROW keys or use the default time.
Once a TIME has been chosen, press START.
SET ODOMETER (See Page 16 for details).
Select a USER using the ODOMETER KEYS.
Once a USER has been chosen, press START to begin your workout.
Allows ‘On The Fly’ manual SPEED and INCLINE changes. Time-based goal.
FINISHING YOUR WORKOUT
When your workout is complete, the MONITOR DISPLAY will flash and beep. Your workout information will
stay displayed on the console for 30 seconds and then reset.
CLEAR CURRENT SELECTION
To clear the current program selection or screen, hold the STOP button for 4-5 seconds.
SCAN VIEWING SCREENS
To have the display screen rotate continuously (Speed and Time, Pulse and Distance, Incline and Calories),
hold the ENTER button for 4-5 seconds. Hold down ENTER again to turn off scan feature.

18
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
Challenges with various combinations of hills and valleys (INCLINE & SPEED levels). Time-based goal with 10
difficulty levels to choose from.
WEIGHT LOSS PROGRAM SEGMENTS (all segments last 30 seconds)
WARM-UP 12345678
SEGMENTS ARE REPEATED UNTIL SELECTED TIME IS REACHED
COOL-DOWN
Level 1 Elevation 0.0 0.5 1.5 1.5 1.0 0.5 0.5 0.5 1.0 1.5 0.5 0.0
Speed 1.0 1.5 2.0 2.5 3.0 3.5 4.0 3.5 3.0 2.5 2.3 1.5
Level 2 Elevation 0.0 0.5 1.5 1.5 1.0 0.5 1.0 0.5 1.0 1.5 0.5 0.0
Speed 1.3 1.9 2.5 3.0 3.5 4.0 4.5 4.0 3.5 3.0 2.6 1.8
Level 3 Elevation 0.5 1.0 2.0 2.0 1.5 1.0 1.0 1.0 1.5 2.0 1.0 0.5
Speed 1.5 2.3 3.0 3.5 4.0 4.5 5.0 4.5 4.0 3.5 3.0 2.0
Level 4 Elevation 0.5 1.0 2.0 2.0 1.5 1.0 1.0 1.0 1.5 2.0 1.0 0.5
Speed 1.8 2.6 3.5 4.5 4.5 5.0 5.5 5.0 4.5 4.5 3.4 2.3
Level 5 Elevation 1.5 1.5 2.5 2.5 2.0 1.5 1.5 1.5 2.0 2.5 1.5 1.0
Speed 2.0 3.0 4.0 4.5 5.0 5.5 6.0 5.5 5.0 4.5 3.8 2.5
Level 6 Elevation 1.5 1.5 2.5 2.5 2.0 1.5 1.5 1.5 2.0 2.5 1.5 1.0
Speed 2.3 3.4 4.5 5.0 5.5 6.0 6.5 6.0 5.5 5.0 4.1 2.8
Level 7 Elevation 1.5 2.0 3.0 3.0 2.5 2.0 2.0 2.0 2.5 3.0 2.0 1.5
Speed 2.5 3.8 5.0 5.5 6.0 6.5 7.5 6.5 6.0 5.5 4.5 3.0
Level 8 Elevation 1.5 2.0 3.0 3.0 2.5 2.0 2.0 2.0 2.5 3.0 2.0 1.5
Speed 2.8 4.1 5.5 6.0 6.5 7.0 7.5 7.0 6.5 6.0 4.9 3.3
Level 9 Elevation 2.0 2.5 3.5 3.5 3.0 2.5 2.5 2.5 3.0 3.5 2.5 2.0
Speed 3.0 4.5 6.0 6.5 7.0 7.5 8.0 7.5 7.0 6.5 5.3 3.5
Level 10 Elevation 2.0 2.5 3.5 3.5 3.0 2.5 2.5 2.5 3.0 3.5 2.5 2.0
Speed 3.3 4.9 6.5 7.0 7.5 8.0 8.5 8.5 7.5 7.0 5.6 3.8
(WARM-UP and COOL-DOWN last 5:00 minutes each and are included in program times)
PROGRAM: WEIGHT LOSS
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
Walk or run a series of alternating SPEED levels. Time-based goal with 10 difficulty levels to choose from.
INTERVALS PROGRAM SEGMENTS
(peak segments last 30 seconds, valley segments last 90 seconds)
MPH WARM-UP 1234
SEGMENTS ARE REPEATED UNTIL SELECTED
TIME IS REACHED
COOL DOWN
Level 1 1.0 1.5 2.0 4.0 2.0 4.0 1.5 1.0
Level 2 1.0 1.5 2.0 4.5 2.0 4.5 1.5 1.0
Level 3 1.3 1.9 2.5 5.0 2.5 5.0 1.9 1.3
Level 4 1.3 1.9 2.5 5.5 2.5 5.5 1.9 1.3
Level 5 1.5 2.3 3.0 6.0 3.0 6.0 2.3 1.5
Level 6 1.5 2.3 3.0 6.5 3.0 6.5 2.3 1.5
Level 7 1.8 2.6 3.5 7.0 3.5 7.0 2.6 1.8
Level 8 1.8 2.6 3.5 7.5 3.5 7.5 2.6 1.8
Level 9 2.0 3.0 4.0 8.0 4.0 8.0 3.0 2.0
Level 10 2.0 3.0 4.0 8.5 4.0 8.5 3.0 2.0
(WARM-UP and COOL-DOWN last 5:00 minutes each and are included in program times)
PROGRAM: INTERVALS
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR

19
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
Simulates various INCLINES and yardages for holes on a golf course, with 4 tee-off boxes and 9 or 18 holes to choose
from. Distance-based goal.
GOLF COURSE PROGRAM SEGMENTS
HOLE
NUMBER: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 TOTAL DISTANCE
Red tee
9 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.5 1.5 2482
Distance 309 359 283 256 113 387 91 351 333
White tee
9 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.5 1.5 2875
Distance 331 427 330 295 129 466 91 369 431
Blue tee
9 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.5 1.5 3003
Distance 345 460 337 308 142 484 97 389 441
Black tee
9 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.5 1.5 3250
Distance 376 502 374 327 187 500 106 416 462
Red tee
18 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.5 1.5 3.5 2.5 2.0 4.0 2.5 3.0 2.0 5.0 2.0 5198
Distance 309 359 283 256 113 387 91 351 333 301 301 165 288 434 312 310 150 455
White tee
18 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.5 1.5 3.5 2.5 2.0 4.0 2.5 3.0 2.0 5.0 2.0 6116
Distance 331 427 330 295 129 466 97 369 431 407 339 179 368 548 349 376 166 509
Blue tee
18 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.0 1.5 3.5 2.5 2.0 4.0 2.5 3.0 2.0 5.0 2.0 6348
Distance 345 460 337 308 142 484 97 389 441 413 349 187 376 560 373 383 383 532
Black tee
18 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.5 1.5 3.5 2.5 2.0 4.0 2.5 3.0 2.0 5.0 2.0 6737
Distance 376 502 374 327 187 500 106 416 462 430 373 201 393 572 396 401 178 543
Distance = Yards
PROGRAM: GOLF COURSE
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR

20
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
Challenge the computer to a Race, customize pace SPEED and DISTANCE. Program is designed to add motivation
to a workout by allowing you to compete against a selected pacer.
1. Once the RACE PROGRAM has been chosen, press ENTER.
2. Choose a desired Pace (Speed) using the SPEED ARROW KEYS and press ENTER. The selected pace
is the pace you will be racing against. You will choose your own speed after the program has started
and WARM-UP is complete.
3. Choose a desired Distance (Miles) using the SPEED ARROW KEYS and press ENTER.
4. Press START to begin workout.
Note: this is a distance-based program. The time it will take you to complete the race is determined by
the speed and distance selected.
•Upon pressing START, the program will be broken up into 13 segments. The first segment will be dedicated
to a WARM-UP, which will be half of the selected pace (Speed). The middle segments will consist of the
RACE, with the last segment dedicated to a COOL-DOWN, which will be half of the selected Pace (your speed
will automatically be reduced for cool-down segment). NOTE: The race distance does not include the time
for WARM-UP and COOL-DOWN (as they are a set time of 2.5 minutes each).
•You can adjust your own speed at any time during the program by pressing the SPEED ARROW KEYS or by
using the ONE-TOUCH SPEED KEYS.
•You can set the Pace (speed) from 1.0 mph - 12.0 mph (in .5 mph increments) and Distance from 1 - 10
miles (in 1 mile increments).
•If you beat the pacer to the finish line, the console will flash and scroll YOU WIN and begin your cool-down.
If the pacer wins, the console will flash and scroll PACER WINS. Then, you will finish the race and begin
your cool-down.
PROGRAM: RACE
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
