HTC U11 EYEs User manual

IMPORTANT:
Use a standard nano SIM only.
Don’t cut a micro or regular SIM card and insert it into the
nano SIM slot. It’s thicker than the standard nano SIM card and
may get stuck in the slot.
Don’t disassemble any part of the phone.
Don’t try to open the phone or remove the battery by force. This
may damage the phone or its electronics and will invalidate the
warranty.
Don’t throw the tray away.
You need it to insert your nano SIM and microSD ™ cards.
1. With the phone facing up,
insert the tip of the tray
eject tool that came in
the box (or a small bent
paperclip) into the tray
eject hole.
Push the tip all the way
into the hole until the card
tray ejects and then gently
pull the tray out.
2. With the gold contacts
facing down, place your
nano SIM cards into the
SIM 1 and SIM 2 holders
of the tray. Make sure to
align the cut-off corners
to the notches on the
holders.
Note: By default, SIM 1
will connect to the 4G
LTE/3G network, and SIM
2 will connect to 3G/2G.
To find out how to change
network connection
settings for your nano SIM
cards, see the user guide.
___ Inserting nano SIM and microSD cards
HTC U11 EYEs
gold contacts
cut-o corner
nano SIM
2
1
Note:
Do not insert
the tray eject
tool into the
microphone
hole.

3. SIM 2 and SD are labeled
on the same holder in the
tray. When you need to
use your microSD card,
remove your second nano
SIM card and then place
the microSD card on the
SIM 2/SD holder with the
gold contacts facing down
and narrow side facing
in. Both cards can’t be
inserted at the same time.
4. When reinserting the tray,
make sure it is facing up
so that the cards don’t fall
out. Hold the tray with
the SIM 2/SD card holder
between your fingers, and
then steadily slide the tray
all the way into the slot.
microSD
gold contacts
4
3
___ Using the protective case
Use the case that’s provided in the box to help protect your
phone from accidental bumps and scratches.
Attach the case to your phone.
Press on the four corners until
the case clicks into place.
To remove the case, take it
o from the bottom corner.

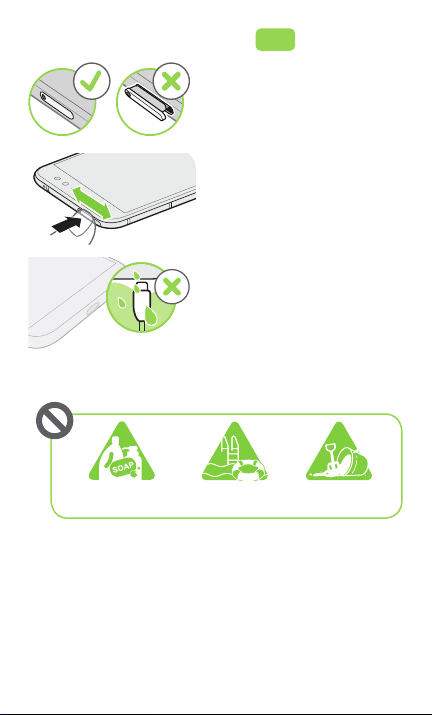

___ Water and dust resistant
To prevent water, dust and
other contaminants from
entering the nano SIM and
microSD slot, make sure the
tray is fully inserted into the
slot.
Make sure the cover does not
protrude from the side.
Do not attempt to charge or
otherwise use the USB port
when your phone is wet.
IP67
Do not expose the phone to or let the USB port come in contact
with the following:
Soap/detergent
/shower gel
Sand
Swimming pool water
/sea water/hot water
• Water containing soap, detergent, or shower gel
• Sea water, swimming pools, spas, hot water, and hot springs
• Any liquid besides tap water such as alcohol, juices, and
condiments
• Sand
For more tips on maintaining water and dust resistance for
your phone, see the user guide, HTC Help app, or the support
site. Also make sure to read the Safety and regulatory guide
that comes with the phone.

___ Restarting the phone
To restart your phone when it doesn’t respond to touch screen
or button presses, press and hold the POWER and VOLUME
DOWN buttons (for 12 to 15 seconds) until the phone vibrates,
and then release the buttons.
___ Need help?
Check out our friendly walkthroughs and self-help in
troubleshooting basic problems with the HTC Help app.
From the Home screen, swipe up to open the Apps screen,
and then find and tap Help. Or go to www.htc.com/support/
to find tutorials, the user guide, and more. Please also read the
Safety and regulatory guide that’s included in the box.
HELP
