Huawei Honor AUM-L29 User manual

Quick Start Guide
AUM-L29

Your Device at a Glance
Before you start, let's take a look at your new device.
lTo power on your device, press and hold the power button
until the screen turns on.
lTo power off your device, press and hold the power button,
and then touch .
lTo restart your device, press and hold the power button,
and then touch .
lPress and hold the power button for 10 or more seconds to
forcibly restart your device.
1
2
3
4
5
6
8
79
10
15
14
13
12
11
16
Rear camera Fingerprint scanner
Status indicator Infrared sensor
Card tray Front camera
Primary microphone Micro-USB port
Speaker Power button
Volume button Earpiece
1

Smart Sele
Butterighting
Flash
Secondary microphone Headset jack
2

Getting Started
lEnsure that the card is correctly aligned and that the
card tray is level when you insert it into your device.
lBe careful not to scratch your device or hurt yourself
when using the eject pin.
lStore the eject pin out of the reach of children to
prevent accidental swallowing or injury.
lDo not use cut or modied SIM or microSD cards with
your device as these may not be recognized and could
damage the card tray (slot).
Follow the instructions in the following gures to set up your
device. Please use the eject pin included.
Dual-SIM:
3

Dual Card Dual Standby Single
Pass (dual-SIM devices only)
Your device supports only dual card dual standby single pass,
which means you cannot use both SIM cards for calls or data
services simultaneously.
lWhen you are on a call using SIM card 1, SIM card 2 cannot
be used to make or answer calls. If someone calls SIM card
2, the caller will hear a voice message similar to "The
subscriber you dialed is out of the service area" or "The
subscriber you dialed cannot be connected for the moment,
please try again later." The actual message will vary by
service provider.
lWhen you are using SIM card 1's data service, SIM card 2's
data service will be disabled.
Your device's single pass feature helps reduce power
consumption and increase your device's standby time. It is not
related to your service provider's network conditions.
You can go to Settings > Wireless & networks > Dual SIM
settings, and enable Enable call forwarding between SIMs
to avoid the conicts mentioned above.
4

For More Information
If you encounter any problems while using your device, you
can obtain help from the following resources:
lGo to Tips for function details and usage tips.
lVisit http://hihonor.com to view device information and
other information.
lVisit http://consumer.huawei.com/en/support for the most
up-to-date contact information for your country or region.
Go to Settings and touch System > About phone > Legal to
view legal information for your product.
Go to Settings and touch System > About phone > Legal >
Safety information to view safety information for your
product.
Go to Settings and touch System > About phone >
Authentication info to view regulatory information for your
product.
All pictures and illustrations in this guide, including but
not limited to the product color, size, and display content,
are for your reference only. The actual product may vary.
Nothing in this guide constitutes a warranty of any kind,
express or implied.
5

Safety Information
Please read all of the safety information carefully before using
your device to ensure its safe and proper operation and to
learn how to dispose of your device properly.
Operation and safety
l To prevent possible hearing damage, do not
listen at high volume levels for long periods.
lUsing an unapproved or incompatible power adapter,
charger, or battery may damage your device, shorten its
lifespan, or cause a re, explosion, or other hazards.
lIdeal operating temperatures are 0 °C to 35 °C. Ideal
storage temperatures are -20 °C to +45 °C.
lPacemaker manufacturers recommend that a minimum
distance of 15 cm be maintained between a device and a
pacemaker to prevent potential interference with the
pacemaker. If using a pacemaker, hold the device on the
side opposite the pacemaker and do not carry the device in
your front pocket.
lKeep the device and the battery away from excessive heat
and direct sunlight. Do not place them on or in heating
devices, such as microwave ovens, stoves, or radiators.
lObserve local laws and regulations while using the device.
To reduce the risk of accidents, do not use your wireless
device while driving.
lWhile ying in an aircraft or immediately before boarding,
only use your device according to instructions provided. Use
of a wireless device in an aircraft may disrupt wireless
networks, present a hazard to aircraft operation, or be
illegal.
lTo prevent damage to your device's parts or internal
circuits, do not use it in dusty, smoky, damp, or dirty
environments or near magnetic elds.
lWhen charging the device, make sure the power adapter is
plugged into a socket near the devices and is easily
accessible.
lUnplug the charger from electrical outlets and the device
when not in use.
lDo not use, store or transport the device where ammables
or explosives are stored (in a gas station, oil depot, or
6

chemical plant, for example). Using your device in these
environments increases the risk of explosion or re.
lDispose of this device, the battery, and accessories
according to local regulations. They should not be disposed
of in normal household waste. Improper battery use may
lead to re, explosion, or other hazards.
Disposal and recycling information
The crossed-out wheeled-bin symbol on your product, battery,
literature or packaging reminds you that all electronic products
and batteries must be taken to separate waste collection
points at the end of their working lives; they must not be
disposed of in the normal waste stream with household
garbage. It is the responsibility of the user to dispose of the
equipment using a designated collection point or service for
separate recycling of waste electrical and electronic equipment
(WEEE) and batteries according to local laws.
Proper collection and recycling of your equipment helps ensure
electrical and electronic equipment (EEE) waste is recycled in a
manner that conserves valuable materials and protects human
health and the environment, improper handling, accidental
breakage, damage, and/or improper recycling at the end of its
life may be harmful for health and environment. For more
information about where and how to drop off your EEE waste,
please contact your local authorities, retailer or household
waste disposal service or visit the website http://
consumer.huawei.com/en/.
Reduction of hazardous substances
This device and its electrical accessories are compliant with
local applicable rules on the restriction of the use of certain
hazardous substances in electrical and electronic equipment,
such as EU REACH, RoHS and Batteries (where included)
regulations. For declarations of conformity about REACH and
RoHS, please visit our web site http://consumer.huawei.com/
certication.
EU regulatory conformance
Body worn operation
The device complies with RF specications when used near
your ear or at a distance of 0.50 cm from your body. Ensure
that the device accessories, such as a device case and device
7

holster, are not composed of metal components. Keep the
device away from your body to meet the distance requirement.
The highest SAR value reported for this device type when
tested at the ear is
AUM-L29 0.26 W/kg
And when properly worn on the body is
AUM-L29 0.88 W/kg
Statement
Hereby, Huawei Technologies Co., Ltd. declares that this device
is in compliance with the essential requirements and other
relevant provisions of Directive 2014/53/EU.
The most recent and valid version of the DoC (Declaration of
Conformity) can be viewed at http://consumer.huawei.com/
certication.
This device may be operated in all member states of the EU.
Observe national and local regulations where the device is
used.
This device may be restricted for use, depending on the local
network.
Restrictions in the 2.4 GHz band:
Norway: This subsection does not apply for the geographical
area within a radius of 20 km from the centre of Ny-Ålesund.
Frequency Bands and Power
(a) Frequency bands in which the radio equipment operates:
Some bands may not be available in all countries or all areas.
Please contact the local carrier for more details.
(b) Maximum radio-frequency power transmitted in the
frequency bands in which the radio equipment operates: The
maximum power for all bands is less than the highest limit
value specied in the related Harmonized Standard.
The frequency bands and transmitting power (radiated and/or
conducted) nominal limits applicable to this radio equipment
are as follows:
AUM-L29 GSM900:37dBm, GSM1800:34dBm,
WCDMA900/2100:25.7dBm, LTE Band
1/3/7/8/20/40 :25.7dBm, Wi-Fi 2.4G: 20dBm,
Bluetooth: 20dBm
Accessories and Software Information
Some accessories are optional in certain countries or regions.
Optional accessories can be purchased from a licensed vendor
as required. The following accessories are recommended:
8

Adapters: HW-050100X01 (X represents the different plug
types used, which can be either C, U, J, E, B, A, I, R, Z or K,
depending on your region)
Batteries: HB366481ECW-11
Earphones: 1293-3283-3.5MM-300, MEMD1532B528A00,
HA1-3W, EPAB542-2WH03-DH, 1293#+3283# 3.5MM-150,
HA1-3, MEMD1532B528000
The product software version is AUM-L29: AUM-L29
5.0.1.32(C900log). Software updates will be released by the
manufacturer to x bugs or enhance functions after the
product has been released. All software versions released by
the manufacturer have been veried and are still compliant
with the related rules.
All RF parameters (for example, frequency range and output
power) are not accessible to the user, and cannot be changed
by the user.
For the most recent information about accessories and
software, please see the DoC (Declaration of Conformity) at
http://consumer.huawei.com/certication.
9

Legal Notice
Trademarks and Permissions

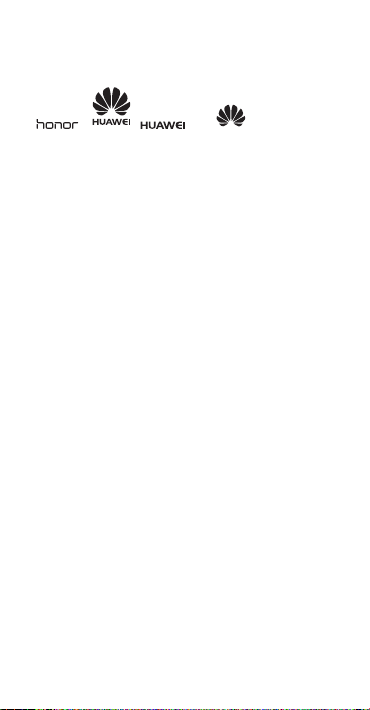

, , , and are trademarks
or registered trademarks of Huawei Technologies Co., Ltd.
Android™ is a trademark of Google Inc.
LTE is a trademark of ETSI.
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use of such
marks by Huawei Technologies Co., Ltd. is under license.
Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are
trademarks of Wi-Fi Alliance.
Privacy Policy
To better understand how we protect your personal
information, please see the privacy policy at http://
consumer.huawei.com/privacy-policy.
Copyright © Huawei Technologies Co., Ltd.
2018. All rights reserved.
THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND
DOES NOT CONSTITUTE ANY KIND OF WARRANTIES.
10

96724913_01
