INSTRUCTION MANUAL
255
PNEUDRAULIC INSTALLATION TOOL
© Huck International, Inc. 2000 HK1014 Rev. 03/18/03
HUCK FASTENERS
HUCK FASTENERS
HUCK FASTENERS
HUCK FASTENERS
HUCK FASTENERS
HUCK FASTENERS
HUCK FASTENERS
HUCK FASTENERS
255
U.S. PAT. 4597263
HUCK

MODEL 255 TOOL HUCK FASTENERS
2
EU Declaration of Conformity
Manufacturer:
Huck International, Inc., Installation Systems Division, 1 Corporate Drive, Kingston, NY,
12401, USA
Description of Machinery:
Model number 255 fastener installation tool
Relevant provisions complied with:
Council Directive related to Machinery, (89/392/EEC), (91/368/EEC), (93/44/EEC),
(93/68/EEC)
European Representative:
Rob Pattenden, Huck International, Ltd. Unit C Stafford Park 7, Telford Shropshire TF3
3BQ, England, United Kingdom
Authorized Signature/date:
I, the undersigned, do hereby declare that the equipment specified above conforms to
the above Directive(s) and Standard(s).
Signature: ___________________________________
Full Name: Henk Rosier
Position: Engineering Manager,
Installation Systems Division
Place: Kingston, New York, USA
Date: August, 1998
Huck Model 255 Sound Level
The sound level of the 255 tool cycling without fastener is
Sound Exposure Level (SEL) =84.4 dB (A)
Peak Value = 91.1 dB (C)
The noise of the fastener being installed in structure is
considered process noise, not tool noise. Sound
measurements of simulated process noise are available
upon written request from Huck International in Kingston,
NY, USA.
Huck Model 255 Vibration Level
For an eight hour work day, installing 3000 typical
Huck fasteners will result in an equivalent weighted
RMS vibration level (Aeq) of 8.1m/s2.
To calculate the equivalent vibration level for other
quantities of fasteners in an eight hour period, use the
formula:
Equivalent Vibration Level, Aeq (m/s2) = (n/480) x 1.3
where n = number of fasteners in eight hours, and
1.3(m/s2) = Aeq for 60 seconds.
Test data to support the above information is on file at
Huck International, Inc., Kingston, NY, USA. Vibration
measurements are frequency weighted in accordance with
ISO 8041 (1990).

MODEL 255 TOOL HUCK FASTENERS
3
EU DECLARATION OF CONFORMITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
TOOL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PRINCIPLE OF OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PREPARATION FOR USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
SERVICING THE TOOL
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Daily . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Weekly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-11
Fill and Bleed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-12
Assembly Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
SERVICE NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
CONTENTS

MODEL 255 TOOL HUCK FASTENERS
4
HUCK
U.S. PAT. 4597263
255
7.091
180.11
14.86
377.59
.959
24.36
1.920
48.77
ø
6.020
153.00
4.610
118.00
ø
3.957
100.51
4°
TOOL SPECIFICATIONS
• Stroke: .625
• Weight: 8.8 lbs
• Air Pressure: 90-100 psi
• Capacity: 7750 lbs @ 90 psi
• Speed/Cycles: 30 per minute
• Noise Level: 85 dBA @ 90 psi
INCHES
MM

MODEL 255 TOOL HUCK FASTENERS
5
SAFETY
!
This instruction manual must be read
with particular attention to the
following safety guide lines, by any
person servicing or operating this
tool.
1Safety Glossary
WARNINGS - Must be understood
to avoid severe personal injury.
CAUTIONS - show conditions that
will damage equipment and or
structure.
Notes - are reminders of required
procedures.
Bold, Italic type and underlining -
emphasizes a specific instruction.
2Huck equipment must be maintained in a
safe working condition at all times and
inspected on a regular basis for damage
or wear. Any repair should be done by a
qualified repairman trained on Huck
procedures.
3Repairman and Operator must read and
understand any Warning and Caution
stickers/labels supplied with equipment
before connecting equipment to any
primary power supply. As applicable,
each of the sections in this manual have
specific safety and other information.
4When repairing or operating Huck
installation equipment, always wear
approved eye protection. Where
applicable, refer to ANSI Z87.1 - 1989
5Disconnect primary power source
before doing maintenance on Huck
equipment.
6If any equipment shows signs of
damage, wear, or leakage, do not
connect it to the primary power supply.
7Make sure proper power source is used
at all times.
8Never remove any safety guards or
pintail deflector.
9Never install a fastener in free air.
Personal injury from fastener ejecting
may occur.
10 Do not abuse tool by dropping or using
it as a hammer. Reasonable care of
installation tools by operators is an
important factor in maintaining tool
efficiency, eliminating downtime, and in
preventing an accident which may
cause severe personal injury.

MODEL 255 TOOL HUCK FASTENERS
6
EXHAUST
HYDRAULIC
PISTON
AIR PISTON
RELIE
VALVE CHECK
VALVE
PULL PISTON
THROTTLE
VALVE
RESERVOIR
When the trigger is depressed, the throttle valve
moves to down position, and pressurized air is
directed to the bottom of the air piston, causing the
piston to move upward. The air above the piston
is exhausted and directed through the center of the
throttle valve and out the bottom of the tool. The
air piston has a rod and a hydraulic piston
attached. When the air piston rod moves upward,
a column of pressurized fluid is forced into head,
which moves the pull piston back. The attached
nose assembly moves with the pull piston to start
fastener installation.
When fastener installation is completed, the trigger
is released. Air pressure, with the assistance of a
spring, causes the throttle valve to return to its up
position. Pressurized air is re-directed to the top of
the air piston, causing the piston to move
downward. The air from below the piston is
exhausted through bottom of tool. The rod and
hydraulic piston move downward, hydraulic
pressure is reversed and the pull piston is returned
forward. Return pressure relief valve protects tool
against pressure spikes. The reservoir replenishes
hydraulic system as needed.
PRINCIPLE OF OPERATION
PULL RETURN

MODEL 255 TOOL HUCK FASTENERS
7
The Model 255 Installation Tool is shipped with a plastic
plug in the air inlet connector. The connector has 1/4-18
female pipe threads to accept the air hose fitting. Quick
disconnect fittings and 1/4” inside diameter air hose are
recommended. An air supply of 90-100 psi capable of 11.5
CFM must be available. Air supply should be equipped with
a filter-regulator-lubricator unit.
1. Remove plastic shipping plug from Air Inlet Connector
and put in a few drops of Automatic Transmission
Fluid, DEXRON III, or equivalent.
2. Screw quick disconnect fitting into Air Inlet Connector.
CAUTION: Do not use TEFLON tape on threads - - use
TEFLON in stick form only. (Huck P/N 503273)
3. Set air pressure on regulator to 90-100 psi.
4. Attach optional Air Hose (38), supplied with tool, to air
inlet connector.
5. Connect air hose to tool.
6. Cycle tool a few times by depressing and releasing
trigger.
7. Disconnect air hose from tool.
8. Remove Retaining Nut and Stop.
9. Select proper Nose Assembly from SELECTION
CHART for fastener to be installed.
10. Screw Collet Assembly (including lock collar and shim
if applicable) onto Spindle holding Pull Piston (11) with
3/8 hex key. (Wrench Tight)
11. Slide Anvil over Collet Assembly and into counterbore.
12. Slide Stop and Retaining Nut over Anvil and screw Nut
onto Head.
13. Connect air hose to tool and install fastener(s) in test
plate of proper thickness with proper size holes.
Inspect fastener(s).
NOTES:
1 Air quick disconnect fittings and air hoses are not
available from Huck International, Inc.
2 VIBRA-TITE should be used on collet threads for nose
assemblies without lock collars. All other noses should
be staked (please refer to nose assembly data sheets).
PREPARATION FOR USE
GENERAL
1. The efficiency and life of any tool depends upon proper
maintenance. Regular inspection and correction of
minor problems will keep tool operating efficiently and
prevent downtime. The tool should be serviced by
personnel who are thoroughly familiar with how it
operates.
2. A clean, well-lighted area should be available for
servicing the tool. Special care must be taken to
prevent contamination of pneumatic and hydraulic
systems.
3. Proper hand tools, both standard and special, must be
available.
4. All parts must be handled carefully and examined for
damage or wear. Always replace Seals, when tool is
disassembled for any reason. Components should be
disassembled and assembled in a straight line without
bending, cocking, or undue force. Disassembly and
assembly procedures outlined in this manual should be
followed.
5. Service Parts Kit 255KIT includes consumable parts
and should be available at all times. Other components,
as experiece dictates, should also be available.
DAILY
1. If a Filter-Regulator-Lubricator unit is not being used,
uncouple air disconnects and put a few drops of
Automatic Transmission Fluid or light oil into the air
inlet of the tool. If the tool is in continuous use, put a
few drops of oil in every two to three hours.
2. Bleed the air line to clear it of accumulated dirt or water
before connecting air hose to the tool.
3. Check all hoses and couplings for damage or air leaks,
tighten or replace if necessary.
4. Check the tool for damage or air/hydraulic leaks,
tighten or replace if necessary.
5. Check the nose assembly for tightness or damage,
tighten or replace if necessary.
6. Check oil level in tool reservoir, replenish if necessary.
WEEKLY
1. Disassemble and clean nose assemblies and
reassemble per applicable NOSE ASSEMBLY DATA
SHEET.
2. Check the tool and all connecting parts for damage or
oil/air leaks, tighten or replace if necessary.
SERVICING THE TOOL
!
WARNING: Inspect tool for damage or wear
before each use. Do not operate if damaged or
worn, as severe personal injury may occur.

MODEL 255 TOOL HUCK FASTENERS
8
MODEL 255 DISASSEMBLY INSTRUCTIONS
For component identification and Parts list, refer to
Figure 9.

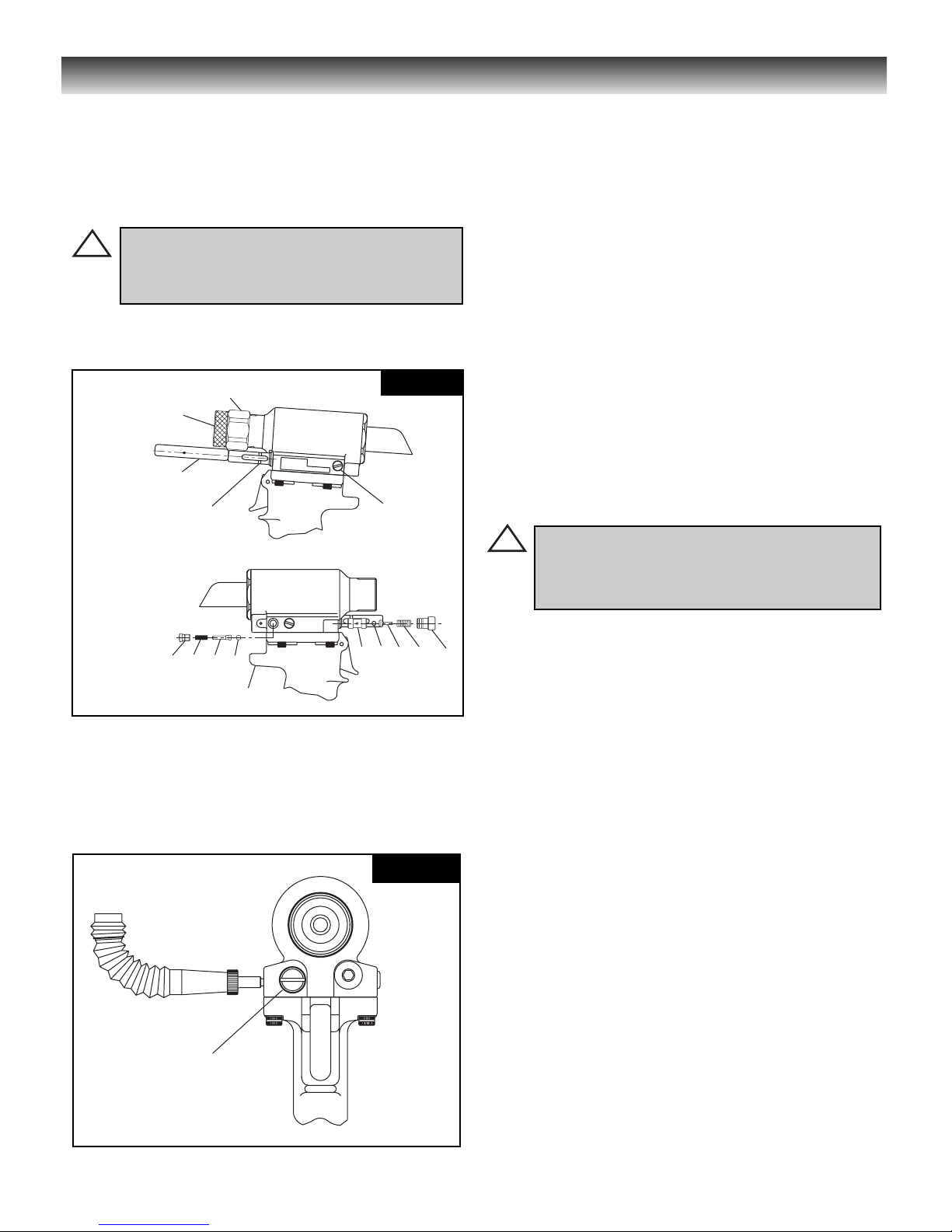

Disassembly
(Refer to Figures 1 thru 4 and 9)
NOTE:
The following procedure is for complete disassembly of
tool. Disassemble only components necessary to
replace damaged O-rings, Quad rings, Back-up rings, and
worn or damaged components. Always use soft jaw vice
to avoid damage to tool.
1. Disconnect air hose from tool.
2. Remove nose assembly. Follow instructions on Nose
Assembly Data sheet.
3. Insert Fill Tool P/N 112465 through reservoir housing
and screw into Reservoir Plunger (79) locking it in the
out position. (Fig. 1)
4. Unscrew Cap Screws (69) with 5/32 hex key.
Carefully lift Head (89) straight up from
Handle (1), remove Pull Gland (90) and
Return Gland (22) from separated
assemblies. Remove seals from glands.
(Fig. 1)
5. Unscrew Plug (83) of return Pressure Relief
Valve from front of head. Remove Spring
(84), Valve Guide (86), Sleeve (85) and Steel
Ball (87). A small magnet is helpful. (Fig. 1)
6. Unscrew Bleed Plug (64). Hold over waste oil
container and release fill tool slowly. (Fig. 1)
7. Unscrew Reservoir Housing (81) from head.
Remove two Springs (82). Slide Reservoir
Plunger (79) from head. Remove spacer and
Quad Ring (80). A pick may be used to
remove the quad ring. (Fig. 1)
8. Unscrew Plug (71) of reservoir check Valve
from side of head. Remove Spring (75),
check Valve Guide (76) and Stainless Steel
Ball (77). (Fig. 1)
9. If check Valve Seat (78) is damaged contact your Huck
representative. If Seat (88) is damaged it can be
removed by using the following procedure.
NOTE: If seat is taken out it can not be reused, it must
be replaced. (Fig. 9)
10. (Seat 88 removal) Note: all parts in the reservoir
check valve must be removed before Plug (70) can be
removed. Unscrew Plug (74), insert a #10 screw in the
thread of Plug (70), and pull to remove. Using a small
drift and hammer, from the rear side of the head, drive
Seat (88) out towards the front of the head. (Fig. 9)
11. Pintail Deflector (21) can be pulled off barbed end at
rear of Pull Piston (11).
12. Unscrew End Cap (20) from Head (89) with 1 9/16
open end wrench. (Fig. 9)
13. Place Spacer (123112-1) on Pull Piston (11), and
screw Assembly/disassembly Bullet (123111-1) onto
piston. Tap or press piston assembly out of head.
NOTE: This will push out front and rear gland assemblies
and wiper and wiper housing. (Fig. 2)
WARNING: Be sure air hose is disconnected
from tool before cleaning, or performing
maintenance. Severe personal injury may
occur if air hose is not disconnected.
!
255
U.S. PAT. 4597263
HUCK
LOCK-OUT POSITION
ILL TOOL
112465
SPACER
81 80 82 (2) 79
64
21 20 89
83
84
86
87
85
71 76 77
75
1
69 (4)
22 90
74 70
FIG. 1

MODEL 255 TOOL HUCK FASTENERS
9
14. Remove Screw (67) from Throttle Arm (66). Remove
throttle arm. Pull Throttle Valve (36) out of cylinder.
Remove Spring (40). (Fig. 9)
15. With a small punch and hammer, drive Roll Pin (5)
that retains the trigger from Handle (1). Remove
trigger pin (4). Remove ball end of Cable (2) from
throttle arm (66), and pull cable out of handle. (Fig. 9)
16. Remove Bleed Plug (64) from handle. (Fig. 1)
17. Hold tool inverted in vice. Unscrew three Button Head
Screws (45) with 1/8 hex key. (Fig. 3)
18. Remove Muffler End Cap (42), Bottom Exhaust
Gasket (46), Muffler (43) and O-ring (44). (Fig. 3)
19. Remove Retaining Ring (47) from Cylinder Assembly
(53). (Fig. 3) NOTE: Tap cylinder head down into
cylinder for easier removal of retaining ring.
20. Screw Button Head Screws (45) into Cylinder Head
(49). Carefully pry under screws to remove cylinder
head.
21. Push air piston all the way down in cylinder, and lay
tool on its side. Hold Self-locking Nut (41) with a 9/16
socket and extension and with 7/64 hex key, remove
piston Screw (32). (Fig. 4 & 9)
22. Turn cylinder and handle upside down and secure in a
vise.
23. Grip Self-locking Nut (41) under Air Piston (51) with
pliers and pull piston and rod assembly from handle
and cylinder assembly. (Fig. 3 & 4)
CAUTION: Care must be taken not to scratch piston
rod or cylinder during removal.
24. With a 1 3/8 socket and extension, remove Gland
Assembly (54). Handle and cylinder will now separate.
(Fig. 3)
25. Push Hydraulic Piston (31) out of handle. Push out
from top to bottom.
CAUTION: A plastic or wooden drift must be used to
avoid damaging the handle bore.
26. To remove Polyseal (61) from Gland Assembly (54),
remove Retaining Ring (59) and Spacer (60). (Fig. 9)
1
54
53
52
50
51
48
49
47
44
43
46
42
45
FIG. 3
91
92
10 (NOTE
POLYSEAL
DIRECTION)
14
15
9
123111-1
ASSEMBLY
BULLET
123112-1
SPACER
255
U.S. PAT. 4597263
HUCK
FIG. 2

MODEL 255 TOOL HUCK FASTENERS
10
Assembly
(Refer to Figures 1 thru 5 and 9.)
Clean components with mineral spirits, or similar solvent.
Inspect for wear/damage and replace as necessary.
Replace all seals of disassembled components. Use O-
rings, Quad rings and Back-up rings in Service Parts Kit,
P/N 255KIT Smear LUBRIPLATE 130AA or PARKER-O-
LUBE on O-rings, Quad rings, Back-up rings and mating
parts to ease assembly. Assemble tool taking care not to
damage O-rings, Quad rings, or Back-up rings.
1. Holding handle inverted in a vice, Place Cylinder (53)
on handle with Timing Pin positioned in matching hole.
Assemble Gland Assembly (54). (Fig. 9) Screw
complete gland assembly into handle. Torque to 100 -
120 ft. lbs. using 1 3/8 socket wrench.
2. Push Air Piston/Rod assembly with Quad Ring (50) in
place into Air Cylinder until it bottoms at top of
Cylinder. (Fig. 3)
3. Turn tool upright. Install Hydraulic Piston Assembly
(31) (with O-ring (33) and Back-up Rings (27) in place)
in handle. Press in from top of handle taking care not
to damage seals. (Fig. 4)
4. Push Screw (32) with O-ring (35) in place through
Hydraulic Piston (34) and screw into top of piston rod.
Hold Self-locking Nut (41) with 9/16 socket and
extension and torque Screw (32) using 7/64 hex key to
55 - 60 in. lbs.
5. Hold handle in vise with bottom facing up. Push
Cylinder Head (49) with O-ring (48) in place squarely
into cylinder. Install Retaining Ring (47). (Figs. 3 & 9)
6. Position O-ring (44) and Muffler (43) on center of
Cylinder Head (49). Place Gasket (46) on Cylinder
Assembly (53). NOTE: Lip must face Muffler End
Cap (42). Place Muffler End Cap (42) on top of
Gasket (46), and secure with 3 Button Head Screws
(45) using 1/8 hex key. (Fig. 3)
7. Turn tool upright. Drop Spring (40) into Throttle valve
hole in cylinder. Push Throttle Valve (36) with O-rings
(37 & 39) in place into cylinder. (Fig. 9)
8. Assemble Trigger (3) Cable (2) and Trigger Pin (4),
and slide cable into Handle (1). Align hole in trigger
with hole in handle and install Roll Pin (5) with a
hammer and punch. (Fig. 9)
9. Slide Throttle Arm (66) onto ball end of Throttle Cable.
Swing arm until other end fits over throttle valve. Push
Screw (67) through Throttle Arm (66). Tighten with
5/32 hex key.
10. If Air Hose Assembly (38) was removed, reinstall in
Cylinder Assembly (53).
11. (If seat (88) is being replaced) Push Plug (70) (with
O-ring 72 & Back-up Ring 25 in place) into head.
Install Screw (74). (Fig. 9)
12. Install O-ring (72) and Back-up rings (25) onto seat.
Drive seat and seal assembly in using soft drift taking
care not to damage ball seat surface. (Fig. 1 & 9)
13. Assemble Pull Piston (11) with new Seals (12 & 13).
Lubricate with LUBRIPLATE or PARKER SUPER-O-
LUBE. (Fig. 9)
14. Thread Assembly Bullet (123111-1) onto Pull Piston
(11) and push entire assembly into head. (Fig. 2)
NOTE: Spacer (123112-1) is not needed for this
procedure.
15. Push Front Gland (97) with O-ring (14), Back-up Ring
(15), Polyseal (10), Wiper Housing (91) and Wiper Seal
(9) in place onto Pull Piston (11). (Fig. 2)
41
31 Piston Assembly
FIG. 4
MODEL 255 ASSEMBLY INSTRUCTIONS

MODEL 255 TOOL HUCK FASTENERS
11
16. Install O-rings (16 & 18) and Back-up Rings (17 & 19)
on Rear Gland (93). Push complete assembly into
head, screw in End Cap (20) and tighten. (Fig. 9)
17. Install O-ring (72) & Back-up Ring (25) on Plug (83).
Install Ball (87), Valve Guide (86), Sleeve (85), Spring
(84) and Plug (83) into head. (Fig. 1 & 9).
18. Install O-ring (65) on Plug (71). Install Ball (77), Guide
(76), Spring (75) and Plug (71) into head.
19. Push Pintail Deflector (21) onto barbed end of Pull
Piston (11). (Fig. 9)
20. Place O-ring (65) on Bleed Plug (64) and screw
assembly into Handle (1). (Fig. 9)
21. Install O-rings (24 & 30) & Back-up Rings (25 & 29) on
Pull Gland (28). Install O-rings (24 & 26) & Back-up
Rings (25 & 27) on Return Gland (23). Push Gland
Assemblies (22 & 90) into handle. Push Head Assembly
(89) down on glands. Place tool in a vise, head down,
and install 4 Cap Screws (69) and torque to 170 inch
pounds. (Fig. 5)
22. Tool is now completely assembled and ready for Fill &
Bleed.
FILL AND BLEED MODEL 255
Equipment Required:
- Shop airline with 90 - 100 psi max.
- Air regulator
- Fill bottle, 120337, (supplied with tool).
- Large flat blade screwdriver
- Optional Stall Nut 120824
- Nose assembly
- Fasteners (Optional)
Preparation:
1. Install air regulator
in airline and set
pressure to 20-40
psi.
2. Fill bleed bottle
almost full of
DEXRON III - ATF
or equivalent.
(Fig.6)
Refill tool only when red line on plunger drops below the
red line on the reservoir housing or when tool is rebuilt.
USE: AUTOMATIC TRANSMISSION FLUID DEXRON III,
OR EQUIVALENT.
Step 1
Screw Fill Tool P/N 112465 into Reservoir Plunger, pull
Plunger into Housing and lock Fill Tool in full forward
position by tilting handle (long side touching tool) and
locking in place. (Fig.7)
Step 2
Remove Plugs (83) and (71) and all guides, springs and
balls from ports in head. Reinstall Plug (83) in head in
Relief Valve port (front of tool). (Fig 7 & 8)
Step 3
Screw retaining nut onto head assembly. Screw stall nut
(optional see note:) onto piston and tighten to ensure full
thread engagement. Back off retaining nut until it engages
stall nut. Check piston location. Piston must be all the way
forward and locked with stall nut and retaining nut.
NOTE: If Stall Nut is not used, piston must be pushed to the
full forward position before installing valves.
Step 4
Attach the tool air source momentarily to seat air piston at
bottom of cylinder. Disconnect tool. With fill port facing up,
(check valve on side) lay tool on its side.
Step 5
Install fill bottle in head fill port (check valve hole).
(Fig. 7 & 8)
89
169 (4)
22 90
FIG. 5
WARNING: Avoid contact with hydraulic fluid.
Hydraulic fluid must be disposed of in
accordance with Federal, State and Local
Regulations. Please see MSDS for Hydraulic
fluid shipped with tool.
!
ILL POINT
120337 ILL BOTTLE
ASSEMBLY
FIG. 6

MODEL 255 TOOL HUCK FASTENERS
12
Step 6
Connect tool to shop air regulated to 20 to 40 psi. Cycle
tool 20 - 30 times. Watch for air bubbles escaping from
the tool into bottle. (You may rock the tool to free trapped
air in the tool.) Do not allow the air to re-enter the tool.
Step 7
When air bubbles no longer appear in bottle, remove fill
bottle while tool is lying on its side.
Step 8
Install the check valve Ball (77), Guide (76) and Spring
(75). Replace the Plug (71). (Fig. 7)
Note: When cycling tool, always hold bottle up as shown
in Figure 8 to prevent drawing in air from empty part of
bottle.
Step 9
Turn tool so front of head faces you and remove the relief
valve Plug (83) and install relief valve Ball (87), Guide
(86), Sleeve (85) and Spring (84). Replace the Plug (83).
Step 10
Unlock Fill Tool and check Reservoir red line. At this
point cycle tool with Stall Nut attached (Optional. See
note.) and retaining nut locked in the full forward position
(“Dead Stall”). Reservoir should not drop below the red
line on the reservoir housing.
NOTE: Dead Stalling is not necessary if Optional Stall nut
was not used; just cycle tool.
Step 11
Re-lock the fill tool in out position.Lay tool on its left side
and remove Bleed Plug (64). Top off reservoir by placing
a few drops of oil in hole and wait for air bubbles to
escape. Push a pin or a scribe into hole to check for
trapped air bubbles. Replace plug. (Fig. 7)
Step 12
Unlock the fill tool and cycle tool as in step 10. Reservoir
may drop slightly. If so, repeat step 11 until when you
touch the fill tool handle it has no pressure against it and
it drops out of the lock position, and the plunger does not
drop when tool is cycled. NOTE: This usually requires 3
to 4 times topping off.
Step 13
Remove fill tool and stall nut (if used). Install a nose
assembly and pull several fasteners to test function.
!
WARNING - Failure to re-lock the fill tool will
result in oil being ejected from the head under
pressure during the topping off of the
reservoir. Severe personal injury may result.
120824 STALL NUT
8
RED LINE
INDICATOR
255
U.S. PAT. 4597263
HUCK
ILL TOOL 112465
64
83
84
86
87
85
71 76 77
75
1
FIG. 7
83
FIG. 8
WARNING: Air pressure MUST be set to 20 to
40 psi to prevent possible injury from high
pressure spray. If plug (71) is removed, fill
bottle must be in place before cycling tool.
!

MODEL 255 TOOL HUCK FASTENERS
13
93
18 16 17
54
53
52
SECTION A-A
89
72
2588878685847225
83
82 81 80 79 64 65
78
77
76
75
74
73
25726571706564
62
61
60
59 58
57
56
55
32
33
34 35
27
(31) PISTON
ASSEMBLY
30
29
25
24 28
26
27
23
25
24
68
66
67
69 69
65
64
63
46
47
48
49
50
51
45 44 43 4542 41
40
39
38
37
36
31
90
22
20
16
11
(54) GLAND ASSEMBLY
(22) RETURN
GLAND ASSEMBLY
(90) PULL GLAND
ASSEMBLY
1
2
3
4
5
67
891 92 12
13
15 14 17 93 21
910
18
AA
(Note direction
of polyseal)
19
19
ASSEMBLY DRAWING
FIG. 9

MODEL 255 TOOL HUCK FASTENERS
14
50 501460 Quad Ring 1
51 100315 Piston, Air 1
52 112414 Piston Rod 1
53 115556 Cylinder Assembly 1
54 116173 Gland Assembly 1
55 500786 O-ring 1
56 501074 Quad Ring 1
57 501090 Back-up Ring 1
58 500784 O-ring 1
59 505939 Retaining Ring 1
60 123904 Spacer 1
61 506611 Polyseal 1
62 123903 Gland 1
63 500424 Screw 2
64 100309 Bleed Plug 3
65 505438 O-ring 4
66 120005 Throttle Arm 1
67 116916 Screw 1
68 125656 Guard 1
69 500102 Screw, Cap 4
70 120204 Plug 1
71 111068 Plug 1
72 505446 O-ring 3
73 120203 Pin 1
74 120129 Screw 1
75 100874 Spring 1
76 111067 Guide 1
77 502929 Ball 1
78 111139 Seat 1
79 112405 Reservoir Plunger 1
80 501408 Quad Ring 1
81 112403 Housing/Spacer Assembly 1
82 505864 Spring 2
83 114530 Plug 1
84 505863 Spring 1
85 120127 Sleeve 1
86 120128 Valve Guide 1
87 502506 Ball 1
88 114528 Seat 1
89 126079 Head Assembly 1
90 112501 Pull Gland Assembly 1
91 123138 Wiper Housing 1
92 126081 Front Gland 1
93 126085 Rear Gland 1
1 125641 Handle & Sleeve Assembly 1
2 125643 Cable 1
3 124333 Trigger 1
4 505496 Trigger Pin 1
5 500621 Roll Pin 1
6 108279 Pintail Tube 1
7 110670 Stop 1
8 117824 Retaining Nut 1
9 505894 Wiper Seal 1
10 506160 Polyseal 1
11 126083 Piston, Pull 1
12 113251 Back-up Ring 2
13 500851 O-ring 1
14 500823 O-ring 1
15 126088 Back-up Ring 1
16 505887 O-ring 1
17 113253 Back-up Ring 1
18 505791 O-ring 1
19 113754 Back-up Ring 1
20 112491 End Cap 1
21 124211 Pintail Deflector 1
22 112502 Return Gland Assembly 1
23 112427 Return Gland 1
24 500776 O-ring 2
25 501082 Back-up Ring 6
26 500778 O-ring 1
27 501084 Back-up Ring 3
28 112426 Gland 1
29 501087 Back-up Ring 1
30 500781 O-ring 1
31 118865 Hydraulic Piston Assembly 1
32 117773 Screw 1
33 503768 O-ring 1
34 117774 Piston, Hydraulic 1
35 500773 O-ring 1
36 115505 Throttle Valve 1
37 504408 O-ring 2
38 115436 Air Hose Assembly 1
39 504407 O-ring 1
40 116272 Spring 1
41 121241 Self-locking Nut 1
42 116585 Muffler End Cap 1
43 115554 Muffler 1
44 500777 O-ring 1
45 504127 Screw, Button Head 3
46 125724-2 Gasket 1
47 505025 Retaining Ring 1
48 500873 O-ring 1
49 111959 Cylinder Head 1
ITEM PART# DESCRIPTION QTY ITEM PART# DESCRIPTION QTY

MODEL 255 TOOL HUCK FASTENERS
15
Always check out the simplest possible cause of a
malfunction first. For example, an air hose not connected.
Then proceed logically, eliminating each possible cause
until the cause is located. Where possible, substitute
known good parts for suspected bad parts. Use
TROUBLESHOOTING CHART as an aid in locating and
correcting malfunction.
NOTE:
“Piston drift” is when the air piston is in the down position,
but the hydraulic pull piston is not in the full follward
position. This causes an out of sequence condition.
1 Tool fails to operate when trigger is depressed.
a) Air line not connected
b) Throttle Valve O-rings (37 & 39), worn or
damaged.
c) Throttle Valve Cable (2) is broken.
2 Tool does not complete fastener installation and
break pintail.
a) Air pressure too low
b) Air Piston Quad-ring (50) worn or damaged.
c) Reservoir empty or low, refer to Fill and Bleed
section.
d) Air in hydraulic system, refer to Fill and Bleed
section.
e) Reservoir Springs (82) worn or damaged
f) Check for piston drift
3 Pintail stripped and/or swaged collar not ejected.
a) Check for broken or worn jaws in nose assembly,
refer to nose assembly data sheet.
b) Check for loose Retaining Nut (8)
c) Check for piston drift.
4Tool has piston drift.
a) Loose collet crashing into the front of the anvil,
this causes the relief valve to open allowing the
piston to drift. Tighten the collet and refer to Fill
and Bleed section.
b) Worn or damaged Return Pressure Relief Valve
in tool, inspect Seat (88), O-ring (72), Back-up
Rings (25), Steel Ball (87) and Valve Spring (84).
Replace if necessary.
c) Worn or damaged Piston Assembly (31); inspect
O-ring (33), O-ring (35) and Back-up rings (27).
Replace if necessary.
5Hydraulic fluid exhausts with air or leaks at base of
handle.
a) Worn or damaged Gland Assembly (54), inspect
Polyseal (61), O-rings (58 and 55), Quad-ring (56)
and Back-up ring (57) replace if necessary.
6. Hydraulic fluid leaks at rear of Pull Piston (11)
a) Worn or damaged Rear Gland (93): Inspect
O-rings (16 and 18) and Back-up Rings (17 and
19). Replace if necessary.
7. Hydraulic fluid leaks at front of Pull Piston (11).
a) Worn or damaged Front Gland (92): Inspect
Polyseal (10), O-ring (14) and Back-up Ring (15).
Replace if necessary.
8. Pull Piston (11) will not return.
a) Throttle Valve (36) stuck: Lubricate O-rings (37 &
39).
b) Throttle Arm (66), Cable (2) or Trigger (3) binding.
9. Air leaks at air Cylinder Head (49).
a). Worn or damaged O-ring (48). Replace if
necessary.
ACCESSORIES
Stall Nut (Fig. 7) - 120824
Service Tool Kit - 126104
Includes:
Assembly Bullet (Fig.2) - 123111-1
Spacer (Fig. 2) - 123112-1
TROUBLESHOOTING

MODEL 255 TOOL HUCK FASTENERS
16
----------------- SERVICE NOTES ------------------

----------------------------------------------------------------------------
1. CHEMICAL PRODUCT/COMPANY IDENTIFICATION
----------------------------------------------------------------------------
HYDROCLEAR(R) DEXRON(R) III/MERCON(R) Automatic Transmission Fluid
MSDS Code: ATFC0089 Revised: 14-Mar-2000
"HYDROCLEAR" is a registered trademark of Conoco.
"DEXRON" is a registered trademark of General Motors Corp.
"MERCON" is a registered trademark of Ford Motor Company.
Product Use: Automatic Transmission Fluid
Conoco Blend Code: 46682
MANUFACTURER/DISTRIBUTOR
Conoco Inc.
P.O. Box 2197
Houston, TX 77252
PHONE NUMBERS
Product Information: 1-281-293-5550
Transport Emergency: CHEMTREC 1-800-424-9300 (U.S. & Canada)
703-527-3887 (elsewhere; call collect)
Medical Emergency: 1-800-441-3637
-------------------------------------------------------------------------
2. COMPOSITION/INFORMATION ON INGREDIENTS
-------------------------------------------------------------------------
COMPONENTS %
Base oils >85
Proprietary additives <15
If oil mist is generated, exposure limits apply (see Section 8).
-------------------------------------------------------------------------
3. HAZARDS IDENTIFICATION
-------------------------------------------------------------------------
--- EMERGENCY OVERVIEW ---
APPEARANCE / ODOR
Red liquid / mild petroleum hydrocarbon odor.
OSHA REGULATORY STATUS
This material is classified as nonhazardous under OSHA Regulations.
HMIS RATING
Health: 1; Flammability: 1; Reactivity: 0
___________________________________
Potential Health Effects
Primary Route of Entry: Skin
The product, as with many petroleum products, may cause minor skin, eye, and
lung irritation, but good hygienic practices can minimize these effects.
Normal use of this product does not result in generation of an oil mist. However if
an oil mist is generated, overexposure can cause minor and reversible irritation to
the eyes, skin, and especially the lungs. Proper personal protective equipment
and sufficient ventilation can provide adequate protection.
Carcinogenicity Information
None of the components present in this material at concentrations equal to or
greater than 0.1% are listed by IARC, NTP, OSHA or ACGIH as a carcinogen.
------------------------------------------------------------------------
4. FIRST AID MEASURES
------------------------------------------------------------------------
INHALATION
If inhaled, remove to fresh air. If not breathing, give artificial respiration. If
breathing is difficult, give oxygen. Call a physician.
SKIN CONTACT
Wash skin thoroughly with soap and water. If irritation develops and persists,
consult a physician.
EYE CONTACT
In case of contact, immediately flush eyes with plenty of water for at least 15
minutes. Call a physician.
INGESTION
Material poses an aspiration hazard. If swallowed, do not induce vomiting.
Immediately give 2 glasses of water. Never give anything by mouth to an
unconscious person. Call a physician.
If vomiting occurs naturally, have victim lean forward to reduce the risk of
aspiration.
Notes to Physicians
Activated charcoal mixture may be administered. To prepare activated charcoal
mixture, suspend 50 grams activated charcoal in 400 mL water and mix
thoroughly. Administer 5 mL/kg, or 350 mL for an average adult.
---------------------------------------------------------------------------
5. FIRE FIGHTING MEASURES
---------------------------------------------------------------------------
Flammable Properties
Flash Point (typical): 370 F (188 C)
Flash Point (minimum): 351 F (177 C)
Method: COC
NFPA Classification: Class IIIB Combustible Liquid.
NFPA Rating: Health 0; Flammability 1; Reactivity 0
Extinguishing Media
Water Spray, Foam, Dry Chemical, CO2.
Fire Fighting Instructions
Water or foam may cause frothing. Use water to keep fire-exposed containers
cool. Water may be used to flush spills away from exposures.
Products of combustion may contain carbon monoxide, carbon dioxide, and other
toxic materials. Do not enter enclosed or confined space without proper protective
equipment including respiratory protection.
---------------------------------------------------------------------------
6. ACCIDENTAL RELEASE MEASURES
---------------------------------------------------------------------------
Safeguards (Personnel)
NOTE: Review FIRE FIGHTING MEASURES and HANDLING (PERSONNEL)
sections
before proceeding with clean-up. Use appropriate PERSONAL PROTECTIVE
EQUIPMENT during clean-up.
Remove source of heat, sparks, and flame.
Initial Containment
Dike spill. Prevent material from entering sewers, waterways, or low areas.
Spill Clean Up
Recover free liquid for reuse or reclamation. Soak up with sawdust, sand, oil dry
or other absorbent material.
---------------------------------------------------------------------------
7. HANDLING AND STORAGE
---------------------------------------------------------------------------
Handling (Personnel)
Avoid breathing vapors or mist. Avoid contact with eyes. Avoid prolonged or
repeated contact with skin. Wash thoroughly after handling. Wash contaminated
clothing prior to reuse.
Handling (Physical Aspects)
Close container after each use. Do not pressurize, cut, weld, braze, solder, grind,
or drill on or near full or empty container. Empty container retains residue (liquid
and/or vapor) and may
explode in heat of a fire.
Storage
Store in accordance with National Fire Protection Association recommendations.
Store in a cool, dry place. Store away from heat, sparks and flames, oxidizers.
Close container after each use.
---------------------------------------------------------------------------
8. EXPOSURE CONTROLS/PERSONAL PROTECTION
---------------------------------------------------------------------------
Engineering Controls
VENTILATION
Normal shop ventilation.
Personal Protective Equipment
RESPIRATORY PROTECTION
None normally required except in emergencies or when conditions cause
excessive airborne levels of mists or vapors. Select appropriate NIOSH-approved
respiratory protective equipment when exposed to sprays or mists. Proper
respirator selection should be determined by adequately trained personnel and
based on the contaminant(s), the degree of potential exposure, and published
respirator protection factors.
PROTECTIVE GLOVES
Should be worn when the potential exists for prolonged or repeated skin contact.
NBR or neoprene recommended.
EYE PROTECTION
Safety glasses with side shields.
OTHER PROTECTIVE EQUIPMENT
Coveralls with long sleeves if splashing is probable.

Applicable Exposure Limits
If oil mist is generated, exposure limits apply.
PEL (OSHA) : 5 mg/m3, 8 Hr. TWA
TLV (ACGIH) : 5 mg/m3, 8 Hr. TWA, STEL 10 mg/m3
---------------------------------------------------------------------------
9. PHYSICAL AND CHEMICAL PROPERTIES
---------------------------------------------------------------------------
Physical Data
Boiling Point: Not Available
Vapor Pressure: Nil
Vapor Density: >1 (Air=1.0)
% Volatiles: Nil
Evaporation Rate: Nil
Solubility in Water: Insoluble
Odor: Petroleum Hydrocarbon (mild).
Form: Liquid.
Color: Red.
Specific Gravity: 0.87 @ 60 F (16 C)
Density: 7.14 lb/gal
---------------------------------------------------------------------------
10. STABILITY AND REACTIVITY
---------------------------------------------------------------------------
Chemical Stability
Stable.
Conditions to Avoid
Heat, sparks, and flames.
Incompatibility with Other Materials
Incompatible or can react with oxidizers.
Decomposition
Normal combustion forms carbon dioxide; incomplete combustion may produce
carbon monoxide.
Polymerization
Polymerization will not occur.
---------------------------------------------------------------------------
11. TOXICOLOGICAL INFORMATION
---------------------------------------------------------------------------
Animal Data
Mouse skin painting studies have shown that highly refined petroleum lube base
oils similar to ingredients in this product have not caused skin tumors.
---------------------------------------------------------------------------
12. ECOLOGICAL INFORMATION
---------------------------------------------------------------------------
Ecotoxicological Information
No specific aquatic data available for this product.
---------------------------------------------------------------------------
13. DISPOSAL CONSIDERATIONS
---------------------------------------------------------------------------
Waste Disposal
Treatment, storage, transportation, and disposal must be in accordance with
applicable Federal, State/Provincial, and Local regulations. Do not flush to
surface water or sanitary sewer system.
Container Disposal
Empty drums should be completely drained, properly bunged, and promptly
shipped to the supplier or a drum reconditioner. All other containers should be
disposed of in an environmentally safe manner.
---------------------------------------------------------------------------
14. TRANSPORTATION INFORMATION
---------------------------------------------------------------------------
Shipping Information
DOT: Not regulated.
ICAO/IMO: Not restricted.
---------------------------------------------------------------------------
15. REGULATORY INFORMATION
---------------------------------------------------------------------------
U.S. Federal Regulations
OSHA HAZARD DETERMINATION
This material is not known to be hazardous as defined by OSHA's Hazard
Communication Standard, 29 CFR 1910.1200.
CERCLA/SUPERFUND
Not applicable; this material is covered by the CERCLA petroleum exclusion.
SARA, TITLE III, 302/304
It is possible material may contain extremely hazardous substances at
concentrations below 1.0% so that a large-enough spill could warrant an
Emergency Release Report.
SARA, TITLE III: 311/312 HAZARD CLASSIFICATIONS
Acute: No
Chronic: No
Fire: No
Reactivity: No
Pressure: No
SARA, TITLE III, 313
This material is not known to contain any chemical(s) at a level of 1.0% or
greater (0.1% for carcinogens) on the list of Toxic Chemicals and subject to
release reporting requirements.
TSCA
Material and/or components are listed in the TSCA Inventory of Chemical
Substances (40 CFR 710).
RCRA
This material has been evaluated for RCRA characteristics and does not meet
hazardous waste criteria if discarded in its purchased form. Because of product
use, transformation, mixing, processing, etc., which may render the resulting
material hazardous, it is the product user's responsibility to determine at the time
of disposal whether the material meets RCRA hazardous waste criteria.
CLEAN WATER ACT
The material contains the following ingredient(s) which is considered hazardous if
spilled into navigable waters and therefore reportable to the National Response
Center (1-800-424-8802).
Ingredient(s): Petroleum Hydrocarbons
Reportable Quantity: Film or sheen upon, or discoloration of any water surface
CLEAN WATER ACT
This material is not known to contain hazardous substances in sufficient quantity
to make it subject to CERCLA regulations.
State Regulations (U.S.)
CALIFORNIA "PROP 65"
This material may contain trace amount(s) of an ingredient(s) known to the State
of California to cause cancer, birth defects, or other reproductive harm. Read and
follow all label directions.
PENNSYLVANIA WORKER & COMMUNITY RIGHT TO KNOW ACT
This material is not known to contain any ingredient(s) subject to the Act.
Nonhazardous ingredient information is withheld as a trade secret in accordance
with Section 11 of the Act.
Canadian Regulations
This is not a WHMIS Controlled Product.
---------------------------------------------------------------------------
# 16. OTHER INFORMATION
---------------------------------------------------------------------------
NOTE: This product or any other hydrocarbon-based lubricant should not be
used in non-diaphragm compressors that produce "breathing air" unless the
outlet is monitored continuously for carbon monoxide. These lubricants can
produce carbon monoxide when subjected to high temperatures.
________________
The data in this Material Safety Data Sheet relates only to the specific material
designated herein and does not relate to use in combination with any other
material or in any process.
Responsibility for MSDS : MSDS Coordinator
Address : Conoco Inc.
> : PO Box 2197
> : Houston, TX 77252
Telephone : [phone] Web Site : www.Conoco.com

HUCK FASTENERS
LIMITED WARRANTIES
Tooling Warranty: Huck warrants that tooling and other
items (excluding fasteners, and hereinafter referred as
"other items") manufactured by Huck shall be free from
defects in workmanship and materials for a period of
ninety (90) days from the date of original purchase.
Warranty on "non standard or custom manufactured
products": With regard to non-standard products or
custom manufactured products to customer's
specifications, Huck warrants for a period of ninety (90)
days from the date of purchase that such products shall
meet Buyer's specifications, be free of defects in
workmanship and materials. Such warranty shall not be
effective with respect to non-standard or custom products
manufactured using buyer-supplied molds, material,
tooling and fixtures that are not in good condition or repair
and suitable for their intended purpose.
THERE ARE NO WARRANTIES WHICH EXTEND
BEYOND THE DESCRIPTION ON THE FACE HEREOF.
HUCK MAKES NO OTHER WARRANTIES AND
EXPRESSLY DISCLAIMS ANY OTHER WARRANTIES,
INCLUDING IMPLIED WARRANTIES AS TO
MERCHANTABILITY OR AS TO THE FITNESS OF THE
TOOLING, OTHER ITEMS, NONSTANDARD OR
CUSTOM MANUFACTURED PRODUCTS FOR ANY
PARTICULAR PURPOSE AND HUCK SHALL NOT BE
LIABLE FOR ANY LOSS OR DAMAGE, DIRECTLY OR
INDIRECTLY, ARISING FROM THE USE OF SUCH
TOOLING, OTHER ITEMS, NONSTANDARD OR
CUSTOM MANUFACTURED PRODUCTS OR BREACH
OF WARRANTY OR FOR ANY CLAIM FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Huck's sole liability and Buyer's exclusive remedy for any
breach of warranty shall be limited, at Huck's option, to
replacement or repair, at FOB Huck's plant, of Huck
manufactured tooling, other items, nonstandard or custom
products found to be defective in specifications,
workmanship and materials not otherwise the direct or
indirect cause of Buyer supplied molds, material, tooling
or fixtures. Buyer shall give Huck written notice of claims
for defects within the ninety (90) day warranty period for
tooling, other items, nonstandard or custom products
described above and Huck shall inspect products for which
such claim is made.
Tooling, Part(s) and Other Items not manufactured by
Huck.
HUCK MAKES NO WARRANTY WITH RESPECT TO
THE TOOLING, PART(S) OR OTHER ITEMS
MANUFACTURED BY THIRD PARTIES. HUCK
EXPRESSLY DISCLAIMS ANY WARRANTY
EXPRESSED OR IMPLIED, AS TO THE CONDITION,
DESIGN, OPERATION, MERCHANTABILITY OR
FITNESS FOR USE OF ANY TOOL, PART(S), OR
OTHER ITEMS THEREOF NOT MANUFACTURED BY
HUCK. HUCK SHALL NOT BE LIABLE FOR ANY LOSS
OR DAMAGE, DIRECTLY OR INDIRECTLY, ARISING
FROM THE USE OF SUCH TOOLING, PART(S) OR
OTHER ITEMS OR BREACH OF WARRANTY OR FOR
ANY CLAIM FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES.
The only warranties made with respect to such tool, part(s)
or other items thereof are those made by the manufacturer
thereof and Huck agrees to cooperate with Buyer in
enforcing such warranties when such action is necessary.
Huck shall not be liable for any loss or damage resulting
from delays or nonfulfillment of orders owing to strikes,
fires, accidents, transportation companies or for any
reason or reasons beyond the control of the Huck or its
suppliers.
Huck Installation Equipment
Huck International, Inc. reserves the right to make
changes in specifications and design and to discontinue
models without notice.
Huck Installation Equipment should be serviced by trained
service technicians only.
Always give the Serial Number of the equipment when
corresponding or ordering service parts.
Complete repair facilities are maintained by Huck
International, Inc. Please contact one of the offices listed
below.
Eastern
One Corporate Drive Kingston, New York 12401-0250
Telephone [phone] FAX [phone]
Canada
6150 Kennedy Road Unit 10, Mississauga, Ontario,
L5T2J4, Canada.
Telephone [phone] FAX [phone]
Outside USA and Canada
Contact your nearest Huck International Office, see back
cover.
In addition to the above repair facilities, there are
Authorized Tool Service Centers (ATSC's) located
throughout the United States. These service centers offer
repair services, spare parts, Service Parts Kits, Service
Tools Kits and Nose Assemblies. Please contact your
Huck Representative or the nearest Huck office listed on
the back cover for the ATSC in your area.

HUCK FASTENERS
Huck Acceptance is World-wide
Huck Fastener maintains company offices throughout the United States and
Canada with subsidiary offices in many other countries. Sales engineers and
systems specialists located in your area can help in solving your fastener problems.
Huck Fasteners world-wide locations:
Americas
Huck International, Inc.
World Headquarters
3724 East Columbia
Tucson, AZ 85714
800-234-4825
520-747-9898
FAX: [phone]
Huck International, Inc.
Aerospace Fastener Division
3724 East Columbia
Tucson, AZ 85714
800-234-4825
520-747-9898
FAX: [phone]
Huck International, Inc.
Aerospace Fastener Division
PO Box 5268
900 Watsoncenter Rd.
Carson, CA 90749
800-421-1459
310-830-8200
FAX: [phone]
Huck International, Inc.
Industrial Fastener Division
PO Box 8117
8001 Imperial Drive
Waco, TX 76714-8117
800-388-4825
254-776-2000
FAX: [phone]
Huck International, Inc.
Installation Systems
Division
1 Corporate Drive
Kingston, NY 12401
800-431-3091
845-331-7300
FAX: [phone]
www.hucktools.com
Huck International Ltd.
6150 Kennedy Road, Unit 10
Mississagua, Ontario L5T2J4
Canada
905-564-4825
FAX: [phone]
Huck International, Inc.
Avenida Parque Lira. 79-402
Tacubaya Mexico, D.F.
C.P. 11850
FAX: [phone]
TELEX: 1173530 LUKSME
Far East
Huck Australia, Pty. Ltd.
Private Bag 6
Rowville, Victoria
Australia 3178
03-764-5500
Toll Free: 008-335-030
FAX: [phone]
Europe
Huck International Ltd.
Unit C, Stafford Park 7
Telford, Shropshire
England TF3 3BQ
0952-290011
FAX: [phone]
Huck S.A.
Clos D’Asseville
BP4
95450 Us Par Vigny
France
33-1-30-27-9500
FAX: [phone]
