Hybrid+ HMH GOBO II User manual

User Manual
Please read the instructions carefully before use

1A
TABLE OF CONTENTS
1. Safety Instructions
2. Technical Specifications
3. Installation
4. How to set the unit
5. How to control the fixture
6. DMX512 Configuration
7. DMX512 Connections
8. Trouble shooting
9. Fixture Cleaning

2A
1. Safety Introductions
WARNING
Please keep this User Manual for future consultation. If you sell the fixture to another
user, be sure that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the fixture.
Before operating, ensure that the voltage and frequency of power supply match the
power requirements of the fixture.
It’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
Disconnect main power before servicing and maintenance.
Use safety chain when fixes this fixture. Don’t handle the fixture by taking its head only,
but always by taking its base.
Maximum ambient temperature is Ta : 40℃. Don’t operate it where the temperature is
higher than this.
In the event of serious operating problem, stop using the fixture immediately. Never try
to repair the fixture by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance
center. Always use the same type spare parts.
Do not connect the device to any dimmer pack.
Do not touch any wire during operation and there might be a hazard of electric shock.
To prevent or reduce the risk of electrical shock or fire, do not expose the fixture to rain
or moisture.
The housing must be replaced if they are visibly damaged.
Do not look directly at the LED light beam while the fixture is on.
Warning
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
Do not open the unit within five minutes after switching off.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
Please read the instructions carefully which includes important
information about the installation, operation and maintenance.

3A
Caution
There are no user serviceable parts inside the fixture. Do not open the housing or attempt
any repairs yourself. In the unlikely situation, your unit may require service, please contact
your nearest dealer.
2. Technical Specifications
● 9 and 11 DMX channels
● 4 Operational Modes: DMX, Master/Slave, auto ,sound activated
● Light Source: 1x60W White LED
● Power supply: 100 - 240Vac (50-60Hz)
● Power consumption: 60W
● Packing Size:L295×W220×H270mm
● Weight: 3.4kg
3. Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is
firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure
to which you are attaching the unit is secure and is able to support a weight of 10 times of
the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the
unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place where is out
of the touch of people and has no one pass by or under it.
4. How To Set The Unit

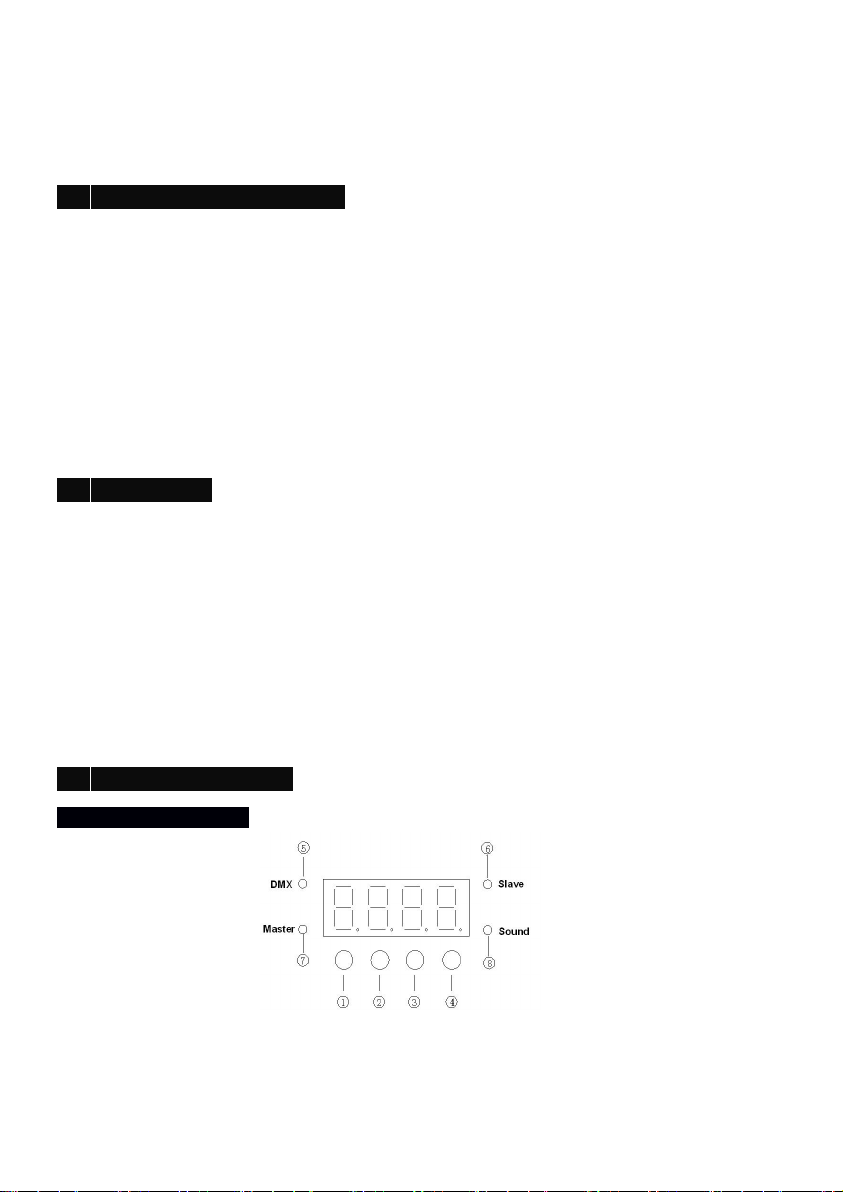

4.1 Display and button
Button: ①MENU To select the program function
②UP Increase parameter
③DOWN Reduce parameter

4A
④ENTER Enter sub menu
Note:(1) In about 10 seconds, if no buttons was pressed, the LED display will be off.
Press any button to turn the display on again.
(2)After pressing a button, all the parameters will be saved after about 2 seconds .
(3)No matter what the program in which mode, once to detect the DMX or SLAVE
signal, the program will jump into DMX or SLAVE mode automatically. Then, if
DMX/SLAVE signal was disconnect, the program will return to the original mode.
4.2 Main Function Chart
Display
Value
Noted
Addr
1-512
DMX address select
ChNd
9Ch
9 channels mode
11Ch
11 channels mode
SLNd
MAST
Master mode
SL 1
DMX mode
SL 2
Slave mode
Shnd
Sh 0
Show 0 mode
Sh 1
Show 1 mode
Sh 2
Show 2 mode
Sh 3
Show 3 mode
Soud
on
Sound mode on
oFF
Sound mode off
SEnS
001--100
Sound sensitive
bLNd
bLAc
Black out when slave
mode
HLod
Memory DMX control
effects the last time
Soun
Sound run when
slave mode
Auto
Auto run when slave
mode
LEd
on
LED display on
oFF
LED display off after 5
second no operation

5A
dISP
YES
Display forward
no
Display reverse
rPan
no
Pan forward
YES
Pan reverse
rTiL
no
Tilt forward
YES
Tilt reverse
rESt
YES
Reset
5. How to control the fixture
There are two ways to control the fixture
A. Universal DMX controller
B. Master/Slave operation
A. Universal DMX controller
The fixture can be set the DMX address remotely by universal DMX controller. First, you
need to programming two scenes into a chase, and then link the fixtures to the universal
DMX controller. When you run the chase, all the fixtures of the chain will be set the series
DMX address automatically. The fixture uses four channels. Please refer to the following
diagram to set the address for the first four units.
001
010
019
028
OR
001
012
023
034
B. Master/Slave operation
The fixture will allow you to link 16 fixtures together and operate without a controller. In
Master/Slave mode, the first fixture will control the others to give an automatic, sound
activated, synchronized light show. This function is good when you want an instant show.
The first fixture it’s DMX input cable will have nothing connect it, and the other fixtures will
be set in slave mode automatically. Their DMX input cables connect the last fixture DMX
output cable (daisy chain). Any fixture can act as a Master or as a Slave
6. DMX512 Configuration
9 channel mode
Channel
Value
Function
CH1
0-255
Pan
CH2
0-255
Tilt
CH3
0-9
Open
10-19
Color 1
20-29
Color 2

6A
30-39
Color 3
40-49
Color 4
50-59
Color 5
60-69
Color 6
70-79
Color 7
80-89
Color 8
90-99
Color 9
100-109
Color 10
110-119
Color 11
120-129
Color 12
130-139
Color 13
140-149
Open
150-255
Color rainbow from slow to fast
CH4
0-7
Open
8-15
Gobo 1
16-23
Gobo 2
24-31
Gobo 3
32-39
Gobo 4
40-47
Gobo 5
48-55
Gobo 6
56-63
Gobo 7
64-71
Open
72-79
Gobo 1 Shake
80-87
Gobo 2 Shake
88-95
Gobo 3 Shake
96-103
Gobo 4 Shake
104-111
Gobo 5 Shake
112-119
Gobo 6 Shake
120-127
Gobo 7 Shake
128-255
Gobo rainbow from slow to fast
CH5
0-249
Strobe from slow to fast
250-255
Open
CH6
0-255
Dimmer

7A
CH7
0-255
Pan/Tilt speed from fast to slow
CH8
0-59
No function
60-159
Auto mode
160-255
Sound mode
CH9
0-20
No function
21-100
Pan auto mode
101-200
Tilt auto mode
201-249
Pan/Tilt auto mode
250-255
Reset after 5 sec.
11 channel mode
Channel
Value
Function
CH1
0-255
Pan
CH2
0-255
Pan fine
CH3
0-255
Tilt
CH4
0-255
Tilt fine
CH5
0-9
Open
10-19
Color 1
20-29
Color 2
30-39
Color 3
40-49
Color 4
50-59
Color 5
60-69
Color 6
70-79
Color 7
80-89
Color 8
90-99
Color 9
100-109
Color 10
110-119
Color 11
120-129
Color 12
130-139
Color 13
140-149
Open
150-255
Color rainbow from slow to fast
CH6
0-7
Open

8A
8-15
Gobo 1
16-23
Gobo 2
24-31
Gobo 3
32-39
Gobo 4
40-47
Gobo 5
48-55
Gobo 6
56-63
Gobo 7
64-71
Open
72-79
Gobo 1 Shake
80-87
Gobo 2 Shake
88-95
Gobo 3 Shake
96-103
Gobo 4 Shake
104-111
Gobo 5 Shake
112-119
Gobo 6 Shake
120-127
Gobo 7 Shake
128-255
Gobo rainbow from slow to fast
CH7
0-249
Strobe from slow to fast
250-255
Open
CH8
0-255
Dimmer
CH9
0-255
Pan/Tilt speed from fast to slow
CH10
0-59
No function
60-159
Auto mode
160-255
Sound mode
CH11
0-20
No function
21-100
Pan auto mode
101-200
Tilt auto mode
201-249
Pan/Tilt auto mode
250-255
Reset after 5 sec.
7. DMX512 Connections
The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.

9A
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin
adapter-cable.
2. Connect the fixture together in a “daisy chain” by XLR plug cable from the output
of the fixture to the input of the next fixture. The cable cannot be branched or
split to a “Y” cable. Inadequate or damaged cables, soldered joints or corroded
connectors can easily distort the signal and shut down the system
3. The DMX output and input connectors are pass-through to maintain the DMX
circuit when one of the units’ power is disconnected.
4. At last fixture, the DMX cable has to be terminated with a terminator to reduce
signal errors. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin
3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
5. Each lighting fixture needs to have an address set to receive the data sent by
the controller. The address number is between 0-511 (usually 0 & 1 are equal to
1).
6. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin1: GND, Pin2: Negative signal (-), Pin3: Positive signal (+)
5 pin XLR: Pin1: GND, Pin2: Negative signal (-), Pin3: Positive signal (+)
Pin4/5: Not Used.
8. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The fixture does not work, no light
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and
DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB
of the fixture or the previous one.
4. Try to use another DMX controller.

10A
5. Check if the DMX cables run near or run alongside to high voltage cables that may
cause damage or interference to DMX interface circuit.
C. Some fixtures don’t respond to the easy controller
1. You may have a break in the DMX cabling. Check the LED for the response of the
master/ slave mode signal.
2. Wrong DMX address in the fixture. Set the proper address.
D. No response to the sound
1. Make sure the fixture does not receive DMX signal.
2. Check microphone to see if it is good by tapping the microphone.
9. Fixture Cleaning
The cleaning of internal must be carried out periodically to optimize light output. Cleaning
frequency depends on the environment in which the fixture operates: damp, smoky or
particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least every
30/60 days.
