Hybrid+ HSF12.4 User manual

USER MANUAL
6/8/12/52 CHANNEL
LED PIXEL BAR
HSF12.4

PAGE 1
WELCOME
Congratulations on your purchase of the HSF 12.4 Hybrid 6/8/12/52 channel LED Pixel Bar,
engineered and designed by Hybrid.
Please read the instructions carefully which includes important
information about the installation, operation and maintenance.
SAFETY INTRODUCTIONS
Please keep this User Manual for future consultation. If you sell the fixture to another user,
be sure that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the fixture.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the fixture.
It’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
Disconnect main power before servicing and maintenance.
Use safety chain when fixes this fixture. Don’t handle the fixture by taking its head only, but
always by taking its base.
Maximum ambient temperature is Ta : 40°c. Don’t operate it where the temperature is
higher than this.
In the event of serious operating problem, stop using the fixture immediately. Never try to
repair the fixture by yourself. Repairs carried out by unskilled people can lead to damage or
malfunction. Please contact the nearest authorized technical assistance center. Always use
the same type spare parts.
Do not connect the device to any dimmer pack.
Do not touch any wire during operation and there might be a hazard of electric shock.
To prevent or reduce the risk of electrical shock or fire, do not expose the fixture to rain or
moisture.
The housing must be replaced if they are visibly damaged.
Do not look directly at the LED light beam while the fixture is on.

PAGE 2
WARNING
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain
or moisture.
Do not open the unit within five minutes after switching off.
The housing, the lenses, or the ultraviolet filter must be replaced if they are
visibly damaged.
TECHNICAL SPECIFICATIONS
Power supply: AC100-240V 50/60Hz
Fuse: F3A/250V
Power consumption: 96W
Channel: 6/8/12/52 DMX channels
Operation mode: Auto, sound Activated DMX512, Master/Slave,
IR remote control

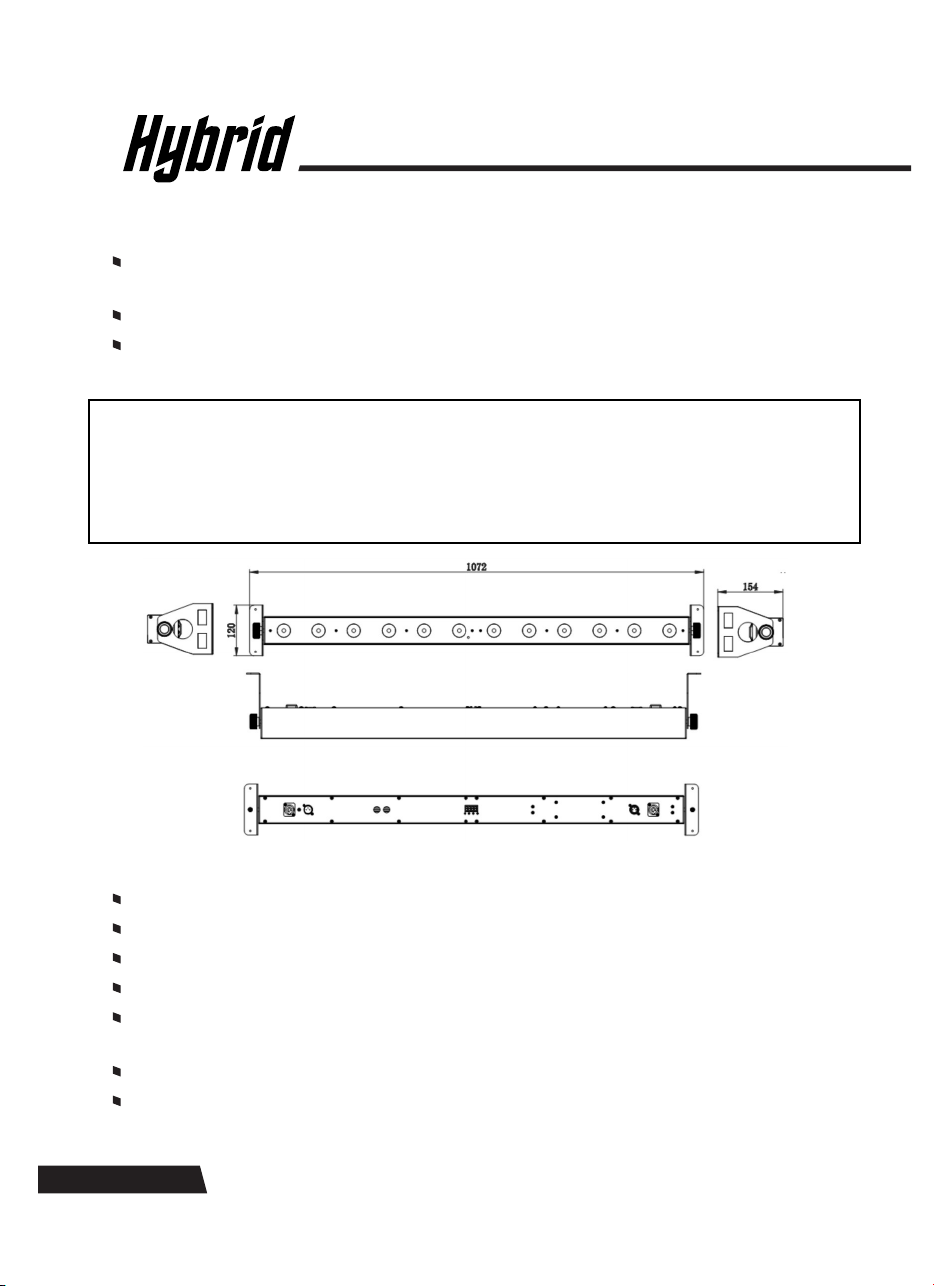

Dimension: L1072×W120×H154mm
Weight: 4.75kg
CAUTION
There are no user serviceable parts inside the fixture. Do not open the
housing or attempt any repairs yourself. In the unlikely situation,
your unit may require service, please contact your nearest dealer.

PAGE 3
USER MANUAL - HMH12.4 PROFESSIONAL LED PIXEL BAR
INSTALLATION
The unit should be mounted via its screw holes on the bracket. Always
ensure that the unit is firmly fixed to avoid vibration and slipping while
operating. Always ensure that the structure to which you are attaching the
unit is secure and is able to support a weight of 10 times of the unit’s weight.
Also always use a safety cable that can hold 12 times of the weight of the unit
when installing the fixture. The equipment must be fixed by professionals.
And it must be fixed at a place where is out of the touch of people and has no
one pass by or under it
Note:
1. In 10 seconds, if no button was pressed , the LED display will turn off. Press any button will turn on the
LED display again. The parameter will not change when the LED display is turned on at first.
2. Whenever has any button be pressed, program will save all parameter after 2 seconds,
3. No matter what the program in which mode, once to detect the DMX or SLAVE signal, the program
will jump into DMX or SLAVE mode automatically. Then, if DMX or SLAVE signal was disconnect , the
program will return to the original mode

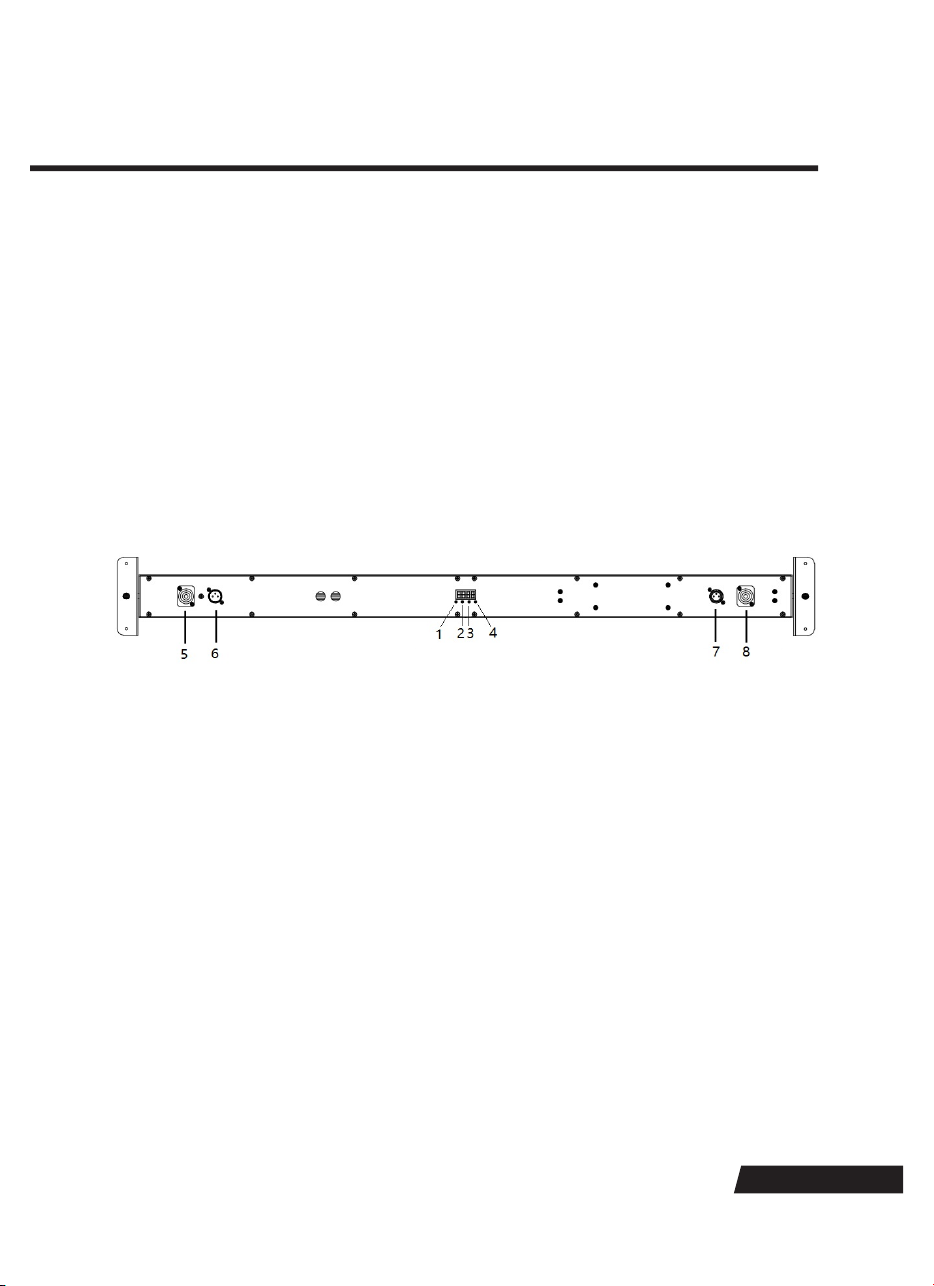

1. MENU
2.
UP
3.
DOWN
4. ENTER
5. Power input
6. DMX input
7. DMX output
8. Power output
To select the program function
Increase parameter
Reduce parameter
Enter sub menu
Connect to supply mains power
For DMX512 Link, use 3pin XLR cable plug to input DMX Signal
For DMX512 Link, use 3pin XLR cable plug to link the next unit
Connect to supply mains power for the next unit
HOW TO SET THE UNIT
Display and buttons

PAGE 4
Display Value Noted
Addr A001-A512 DMX Address select
CHnd 6Ch
8Ch
12Ch
52Ch
6channel mode
8channel mode
12channel mode
52channel mode
SLnd nASt
SL1
SL2
Master mode
Slave mode 1
Slave mode 2
SoUn SO0-SO16
Se0 - Se99
Sound mode
Sound Sensitive
Auto Aut1-Aut16 Auto mode
Colo Co1 – Co15 Static color mode
Nanu red
Gree
bLue
Uhit
1-255
1-255
1-255
1-255
Disp Dsip Display reverse
Ver V10 Software version
MAIN FUNCTION CHART

USER MANUAL - HMH12.4 PROFESSIONAL LED PIXEL BAR
PAGE 5
HOW TO CONTROL THE FIXTURE
1. Black Out
2. Auto
3. Sound
4. Strobe
5. Fade/Jump
6. Sensitivity
7. R
8. G
9. B
10. A/UV/0
11. W
12. +
13. -
14. 1~9
Turn on /off
Auto show
Sound active
Strobe mode
Speed adjust
Sound sensitivity adjust
Red dimmer in the dimming mode
Green dimmer in the dimming mode
Blue dimmer in the dimming mode
No effect
White dimmer in the dimming mode
Increase parameter (include Auto/Sound mode select,
strobe speed adjust, sound sensitivity adjust, adjust the
brightness of R, G, B, W).
Reduce parameter (include Auto/Sound mode select,
strobe speed adjust, sound sensitivity adjust, adjust the
brightness of R, G, B, W).
monochromatic mode
Using universal DMX controller to control the units, you have to set DMX address from 1 to 512 channel
so that the units can receive DMX signal. Press the MENU, then find Addr, press ENTER, when the 1 is
showing on the display. Pressing ENTER. Use DOWN and UP button change the DMX512 address.

PAGE 6
DMX512 CONFIGURATION
Channel Value Function
CH1 0-255 RED dimmer
CH2 0-255 GREEN dimmer
CH3 0-255 BLUE dimmer
CH4 0-255 WHITE dimmer
CH5 0-247 Auto program
248-255 Sound mode
CH6 0-255 Chase speed from slow to fast
Channel Value Function
CH1 0-255 Master dimmer
CH2 0-255 Strobe
CH3 0-255 RED dimmer
CH4 0-255 GREEN dimmer
CH5 0-255 BLUE dimmer
CH6 0-255 WHITE dimmer
CH7 0-247 Auto program
248-255 Sound mode
CH8 0-255 Chase speed from slow to fast
Channel Value Function
CH1 0-255 Master dimmer
CH2 0-255 Strobe
CH3 0-255 RED1 dimmer
CH4 0-255 GREEN1 dimmer
6 channels mode:
8 channels mode:
12 channels mode:

USER MANUAL - HMH12.4 PROFESSIONAL LED PIXEL BAR
PAGE 7
Channel Value Function
CH1 0-255 Master dimmer
CH2 0-255 Strobe
CH3 0-255 RED1 dimmer
CH4 0-255 GREEN1 dimmer
CH5 0-255 BLUE1 dimmer
CH6 0-255 WHITE1 dimmer
CH7 0-255 RED2 dimmer
CH8 0-255 GREEN2 dimmer
CH9 0-255 BLUE2 dimmer
CH10 0-255 WHITE2 dimmer
CH11 0-255 RED3 dimmer
CH12 0-255 GREEN3 dimmer
CH13 0-255 BLUE3 dimmer
CH14 0-255 WHITE3 dimmer
CH15 0-255 RED4 dimmer
CH16 0-255 GREEN4 dimmer
CH17 0-255 BLUE4 dimmer
52 channels mode:
CH5 0-255 BLUE1 dimmer
CH6 0-255 WHITE1 dimmer
CH7 0-255 RED2 dimmer
CH8 0-255 GREEN2 dimmer
CH9 0-255 BLUE2 dimmer
CH10 0-255 WHITE2 dimmer
CH11 0-247 Auto program
248-255 Sound mode
CH12 0-255 Chase speed from slow to fast

PAGE 8
CH18 0-255 WHITE4 dimmer
CH19 0-255 RED5 dimmer
CH20 0-255 GREEN5 dimmer
CH21 0-255 BLUE5 dimmer
CH22 0-255 WHITE5 dimmer
CH23 0-255 RED6 dimmer
CH24 0-255 GREEN6 dimmer
CH25 0-255 BLUE6 dimmer
CH26 0-255 WHITE6 dimmer
CH27 0-255 RED7 dimmer
CH28 0-255 GREEN7 dimmer
CH29 0-255 BLUE7 dimmer
CH30 0-255 WHITE7 dimmer
CH31 0-255 RED8 dimmer
CH32 0-255 GREEN8 dimmer
CH33 0-255 BLUE8 dimmer
CH34 0-255 WHITE8 dimmer
CH35 0-255 RED9 dimmer
CH36 0-255 GREEN9 dimmer
CH37 0-255 BLUE9 dimmer
CH49 0-255 BLUE12 dimmer
CH50 0-255 WHITE12 dimmer
CH51 0-247 Auto program
248-255 Sound mode
CH52 0-255 Chase speed from slow to fast

PAGE 11
USER MANUAL - HMH12.4 PROFESSIONAL LED PIXEL BAR

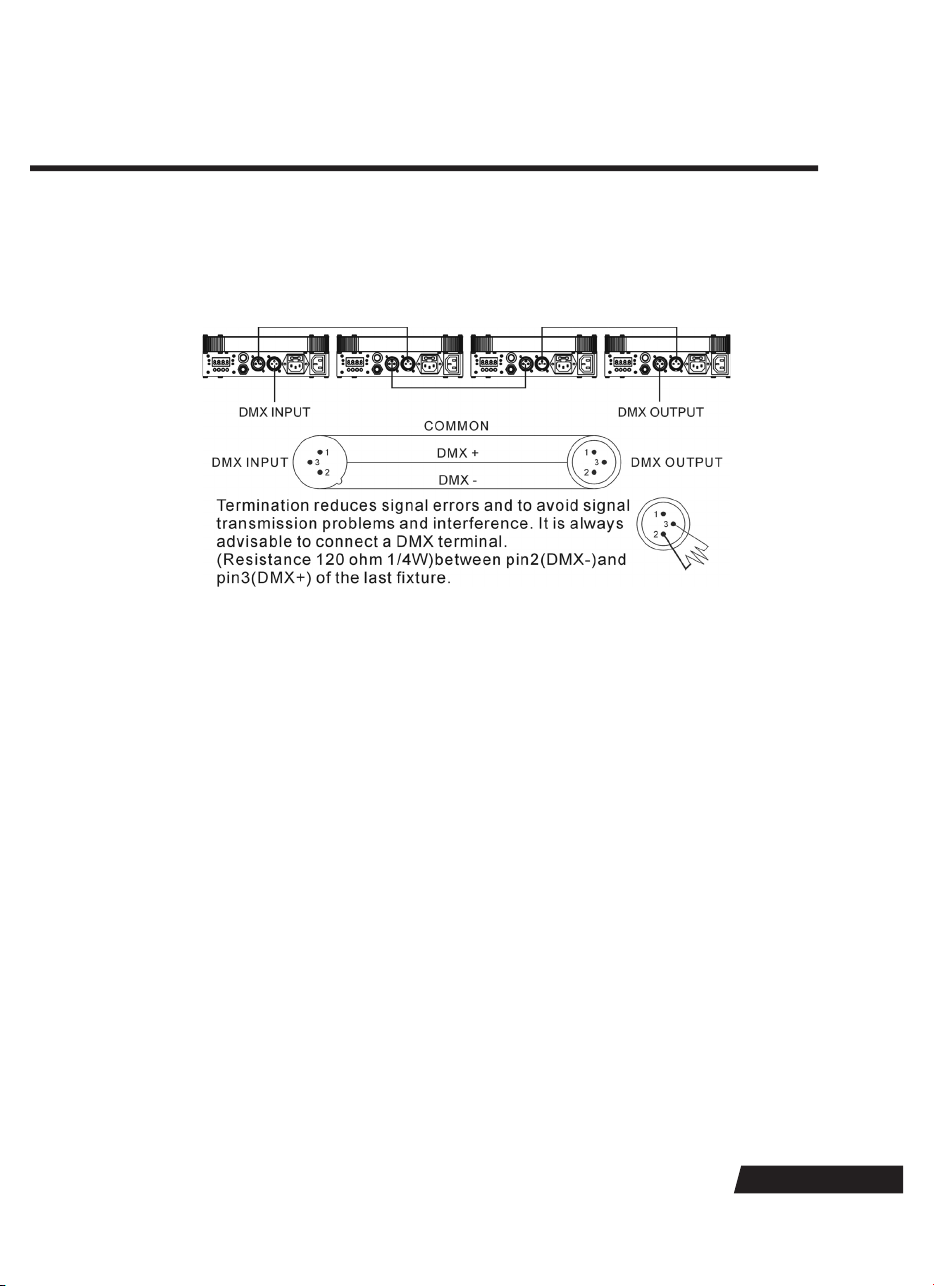

DMX512 CONNECTIONS
The DMX512 is widely used in intelligent lighting control, with a maximum of
512 channels
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3
pin adapter-cable.
2. Connect the fixture together in a “daisy chain” by XLR plug cable from
the output of the fixture to the input of the next fixture. The cable cannot
be branched or split to a “Y” cable. Inadequate or damaged cables,
soldered joints or corroded connectors can easily distort the signal and
shut down the system
3. The DMX output and input connectors are pass-through to maintain the
DMX circuit when one of the units’ power is disconnected.
4. At last fixture, the DMX cable has to be terminated with a terminator to
reduce signal errors. Solder a 120-ohm 1/4W resistor between pin
2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-
output of the last fixture.
5. Each lighting fixture needs to have an address set to receive the data sent
by the controller. The address number is between 0-511 (usually 0 &
1 are equal to 1).
6. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin1: GND, Pin2: Negative signal (-), Pin3: Positive signal (+)
5 pin XLR: Pin1: GND, Pin2: Negative signal (-), Pin3: Positive signal (+
Pin4/5: Not Used.

PAGE 12
TROUBLESHOOTING
FFollowing are a few common problems that may occur during operation.
Here are some suggestions for easy troubleshooting:
A. The fixture does not work, no light
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
B.Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if
link properly.
2. If the DMX LED is on and no response to the channel, check the address
settings and DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on
connectors or on PCB of the fixture or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables
that may cause damage or interference to DMX interface circuit.
C. Some fixtures don’t respond to the easy controller
1. You may have a break in the DMX cabling. Check the LED for the response
of the master/ slave mode signal.
2. Wrong DMX address in the fixture. Set the proper address.
D.No response to the sound
1. Make sure the fixture does not receive DMX signal.
2. Check microphone to see if it is good by tapping the microphone.

PAGE 13
USER MANUAL - HMH12.4 PROFESSIONAL LED PIXEL BAR
FIXTURE CLEANING
The cleaning of internal must be carried out periodically to optimize light
output. Cleaning frequency depends on the environment in which the fixture
operates: damp, smoky or particularly dirty surrounding can cause greater
accumulation of dirt on the fixture’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal
optics at least every 30/60 days.
