Hybrid+ HS 1500 User manual

Channel 1:Flash speed
Channel 2:off ,brightness adjustment
ADDRESS
DIP
1
2
3
4
5
6
7
8
9
10
OFF
0
0
0
0
0
0
0
0
0
ON
1
2
4
8
16
32
64
128
256
512
.
Setting of function
10
9~2
1
Function
OFF
ADDRESS
DMX512 control
ON
NO USE
OFF
Speed and Light control
ON
NO USE
ON
Line and Light control
Technology Parameter:
1、Voltage:220-240 Vac / 50-60 Hz
2、Rated Power：1500W
3、Fuse：20A
4、Lamp：1500W
5、Size：53×30×19cm
6、N.W.：3.5Kg
7、G.W.：3Kg
User Manual
Please read the instructions carefully before use

Index
1、Introduction
2、Warning
3、Operation
4、Paramcter
5、Maintenance
Introduction
1500W digital strobe,this light have 3 work methods:DMX
receive,automatic and controller control.Suit use in any entertainment place.
Foatures:
*Use 1500W high cuality flash tube,high brightness.
*DMX-512control,2 DMX channels—brightness,flash speed.
*DIP function and address selection switch.
Warning:
1、Please read this brochure carefully before your operation,Please obey
the operation index and keep it well.
2、It suit use indoor,the light should be placed at the aeration place,to
avoid short-circuit by the moisture and rain.
3、Please power off when cleaning the light.
4、Nover install the light close to the hot place,to avoid increase the
lemperarure of the light to damage the light.
5、Never jam the airy hole,make sure the aeration and cooling well.
6、Light must conncet to the power which have the earth line,the power
supply should be accordance with the rated voltage of the light.
7、Never insert the irrelative goods,to avoid the goods touch the high
voltage part to lead the part short-circuit and fire,or shock
accident,influence the normal work of the light.
8、You must ask the professional for maintenance if you meet some
problem.
Operation
》Stand alone operation:：
*Set the DIP 10 at ON,DIP 1 at OFF,connect to the power,adjusting the 2
bution of the brightness and speed tothe suitable position.
》Controller operation:

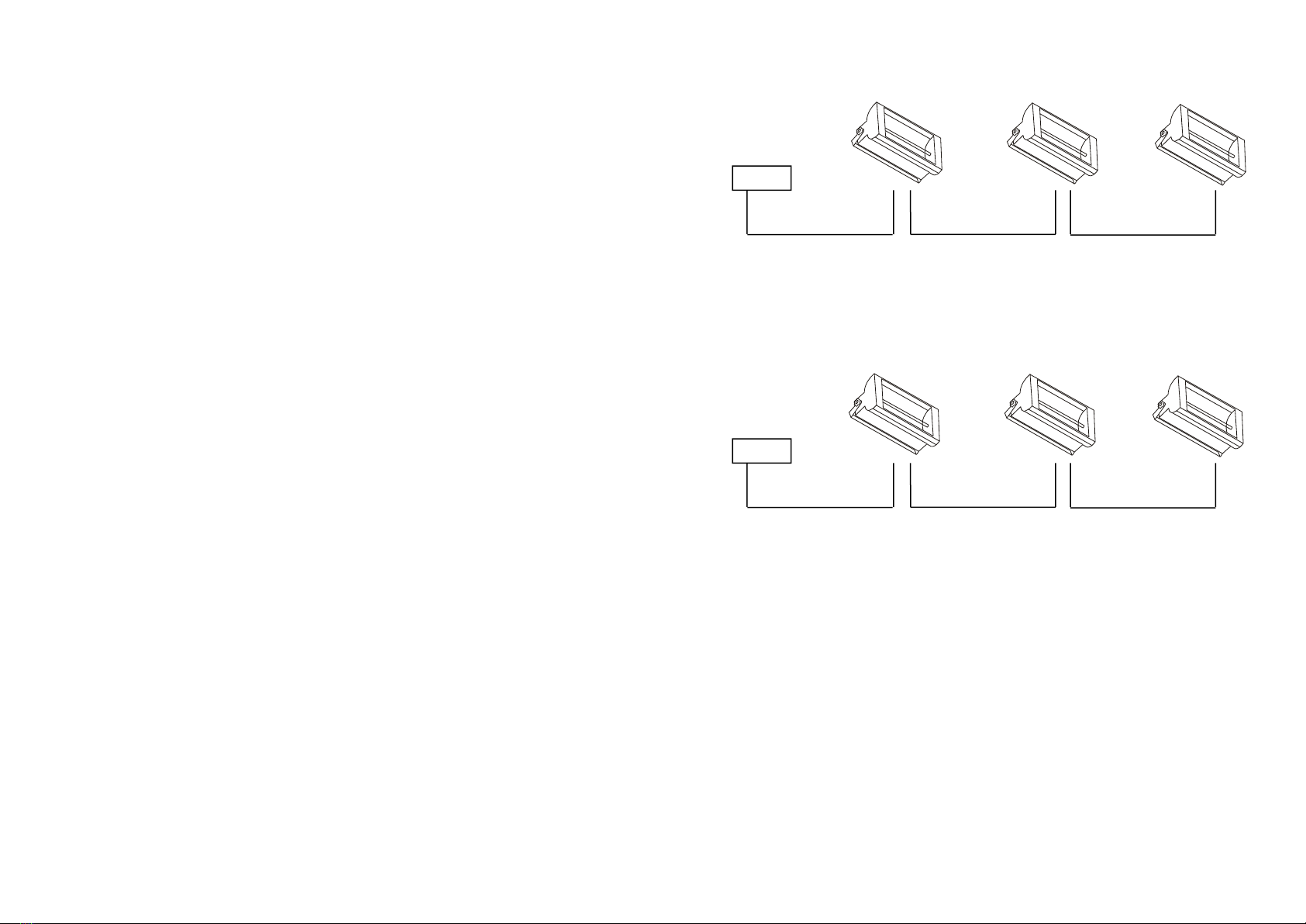

*Connect the signal cable according to the chart 1,set the DIP 10 and DIP
1at the ON position in the same time.Connect to the power,adjusting the
brightness of the light,then,you can use the controller adjust the flash speed of
the light.Various strobe connect in a line up to a synchronous effect.
controller
OUT IN OUT IN OUT IN
LINE LINE LINE
一
DMX controller operation:
*Connect the signal cable according to the chart 2 set the DIP 1 at ON,set
the DIP 10 at OFF,set the IP code,connect to the power,then,use the controller
adjust the flash speed and brightness of the light.Various strobe connect in a
line up to a synchronous effect.
DMX controller
OUT IN OUT IN OUT IN
DMX DMX DMX
二
1、Connection of DMX 512：
Controller have output DMX512 signal standard.Connection via the
“input” and “output”—3XLR connector finish.Control signal cable must
connect to the corresponding 3 pin XLR connector when outputting,1
earth,2(-),3(+).Or exchange solder 2 and 3.the length of the signal,cable
should within 100m,prevent the interference of other appliance because of the
over long signal cable.
2、Setting of the IP code:
This light must controller by DMX512all the light of this model must be set a
digital start IP code,easy for corresponding light and corresponding control
signal have funetion.This digital start address is the frequency phase code,the
start of the light is obey to the digital control signal which sent by the
console.This light have 2 digital control frequency phase at present.The
address range is 1~512.
