hygena Valencia 656/5776 User manual

MADE IN
BRITAIN
Dimensions
Width - 50cm
Depth - 59cm
Height - 87cm
Valencia - 500mm Base Cabinet
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 2 - 31/07/14
Important - Please read these instructions fully before starting assembly
ALR2651
hygena
656/5776
633/2882
633/2710
205/4009
633/2806
192/3722
Cabinet
Black Door Pack
Cream Door Pack
Oak Door Pack
White Gloss Door Pack
White HN Door Pack
Issue 2 - 31/07/14 - Replaced Grey and Plum codes with Oak and White HN codes.

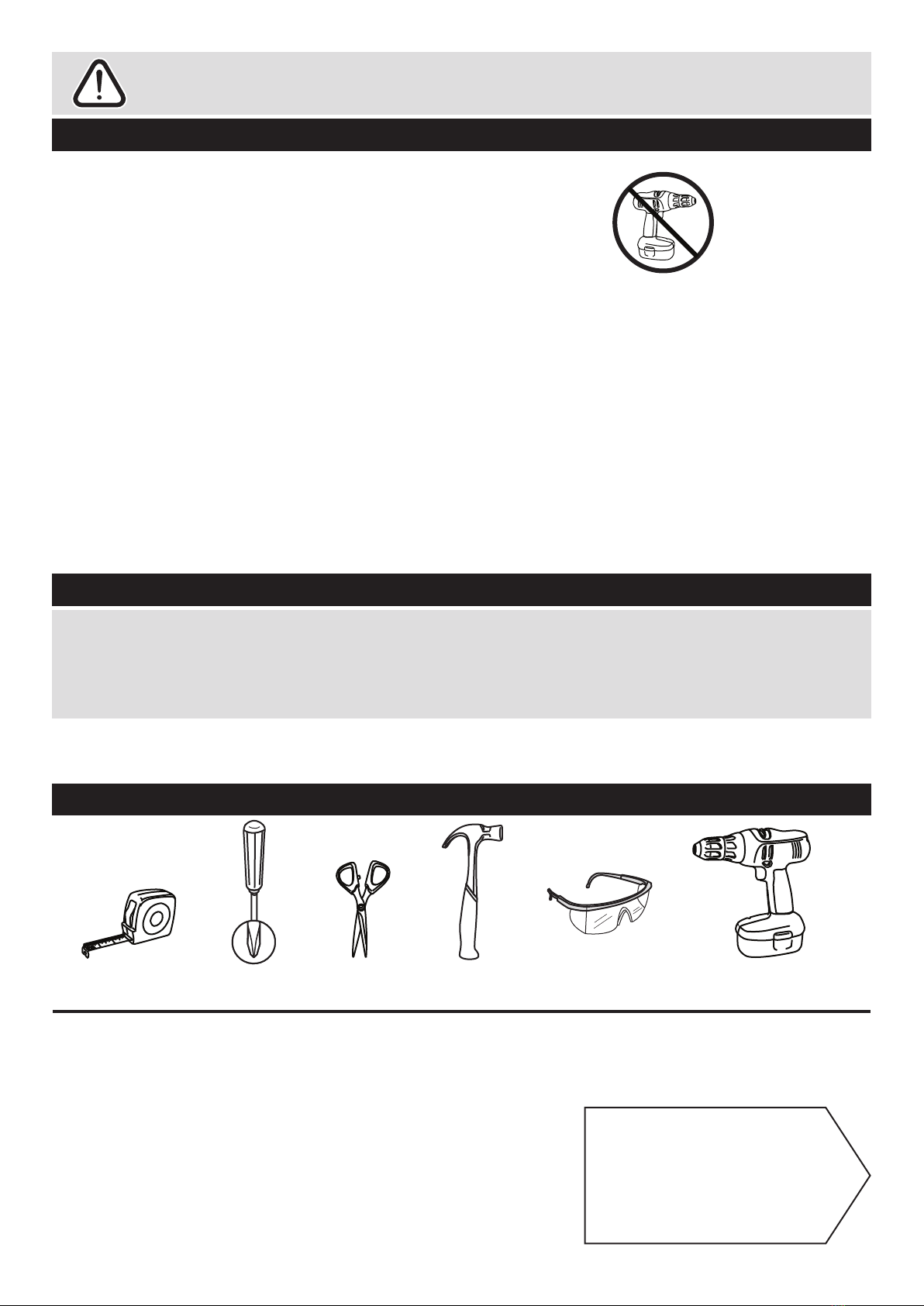

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 16.5kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 1, 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Tools required
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Electric drill
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
brackets supplied.
• Dispose of all packaging
carefully and responsibly.

Components - Panels
Please check you have all the panels listed below
2
1
80%
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
5
2
6
4
3
Left Side (DPF068A)
(720 x 560mm)
Right Side (DPF069A)
(720 x 560mm)
Back (DPF077A)
(479 x 680mm)
Loose Shelf (DPF075A)
(468 x 431mm)
Base (DPF074A)
(469 x 494mm)
Cross Rail (DPF076A)
(469 x 96mm) x 2
7Door (DPF147B)
(497 x 716mm)
The front surface
of this door is
protected with a
peel-off film

Please check you have all the fittings listed below
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 10
B
Metal dowel (F901) x 8
C
D
Large locking
nut (F900) x 8
F
G H I a
I c
I d
I e
I b
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
J K
13mm Screw (F63) x 4
E
13mm Screw (F79) x 6
Connecting Sleeve (F432) x 2 19mm Connecting bolt (F461) x 2
L M
25mm Screw (F50) x 5
N
Hinge Cover (F119) x 2
Bracket (F945) x 4 Shelf support (F110) x 4
Hinge Plate
(F117) x 2
Hinge Arm (F118) x 2
Leg Bracket
(F127) x 2
Leg Socket
(F120) x 4
Leg Clip
(F128) x 2
16mm Screw
(F129) x 16
Leg (F122) x 4
hygena
O
O
a
b
25mm Screw (F132) x 2
Handle (F214) x 1

Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below

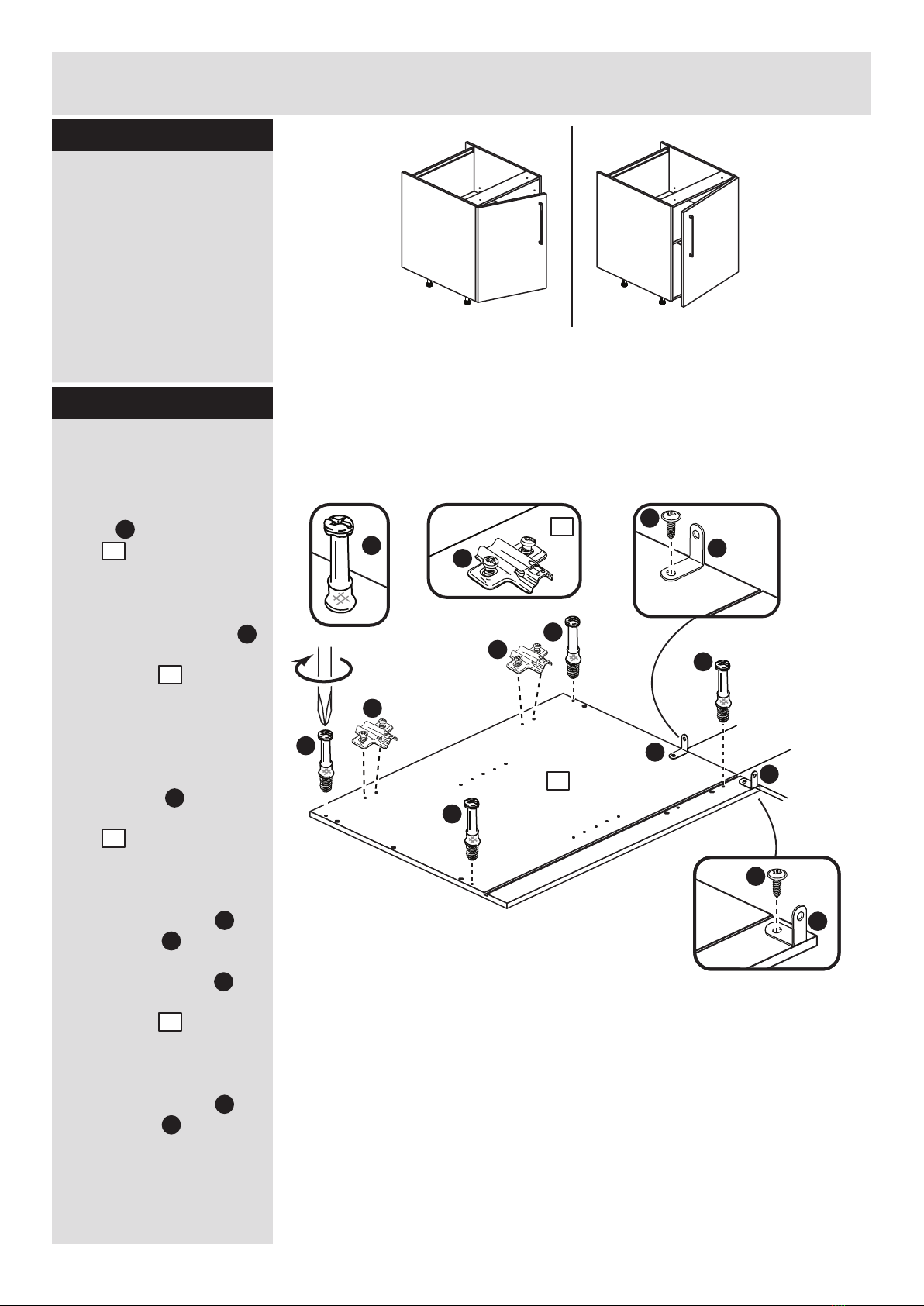

Step 1
80% x 1
Choose which way
you would like the
door to open
You can fit the door to
the left side or right side.
If you would
like your door
to open this
way, fit the
hinge plates
to the left side
If you would
like your door
to open this
way, fit the
hinge plates to
the right side
Step 2
L
Prepare the left side
Refer to step 1 and, if
required, fit 2 hinge
plates onto the left
side , making sure
that the slot is facing
towards the front edge.
Screw 4 metal dowels
into the holes shown on
the left side .
Note: Tighten metal
dowels up fully against
the panels.
Fit a bracket flush to
the top edge of the left
side , about 150mm
in from the groove, see
diagram.
Secure the bracket
using screw .
Fit another bracket
flush to the back edge of
the left side , about
5mm down from the top
edge, see diagram.
Secure the bracket
using screw .
Note: The brackets must
be flush with the
top/back edge of the
panel.
1
B
1
J
J
1
J
1
E
J
E
B
B
B
B
L
L
5mm
150mm
J
J
J
E
1
B
1
LJ
E

5mm 150mm
5
Step 3
80% x 1
A
A
A
Assembly Instructions
Step 4
L
Prepare the right side
Refer to step 1 and, if
required, fit 2 hinge
plates onto the right
side , making sure
that the slot is facing
towards the front edge.
Screw 4 metal dowels
into the holes shown on
the right side .
Fit a bracket flush to
the top edge of the right
side , about 150mm
in from the groove, see
diagram.
Secure the bracket
using screw .
Fit another bracket
flush to the back edge of
the right side , about
5mm down from the top
edge, see diagram.
Secure the bracket
using screw .
2
B
2
J
J
2
J
2
E
J
E
Prepare the base
Insert 4 large locking
nuts into the base
as shown.
Note: Arrow on locking
nut must point towards
hole in edge of panel.
Tap 6 wooden dowels
into the base as
shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
C
C3
10mm
A
A
3
A
A
A
C
C
C
C
3
L
2
J
J
J
E
B
B
B
B
L
2L
J
E

Assembly Instructions
6
Step 5
Step 6
Step 7
4
A
A
C
C
C
Prepare the 2 cross
rails
Insert 2 large locking
nuts into the cross
rails as shown.
Tap 2 wooden dowels
into the cross rails as
shown.
4
4
A
Finished
front edge
Join the right side and
base
Push the base onto
the right side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
B
C
2
3
3
3
2
C
C
I aI a
I b
b: c: d:
I a
I a
I a
I a
3

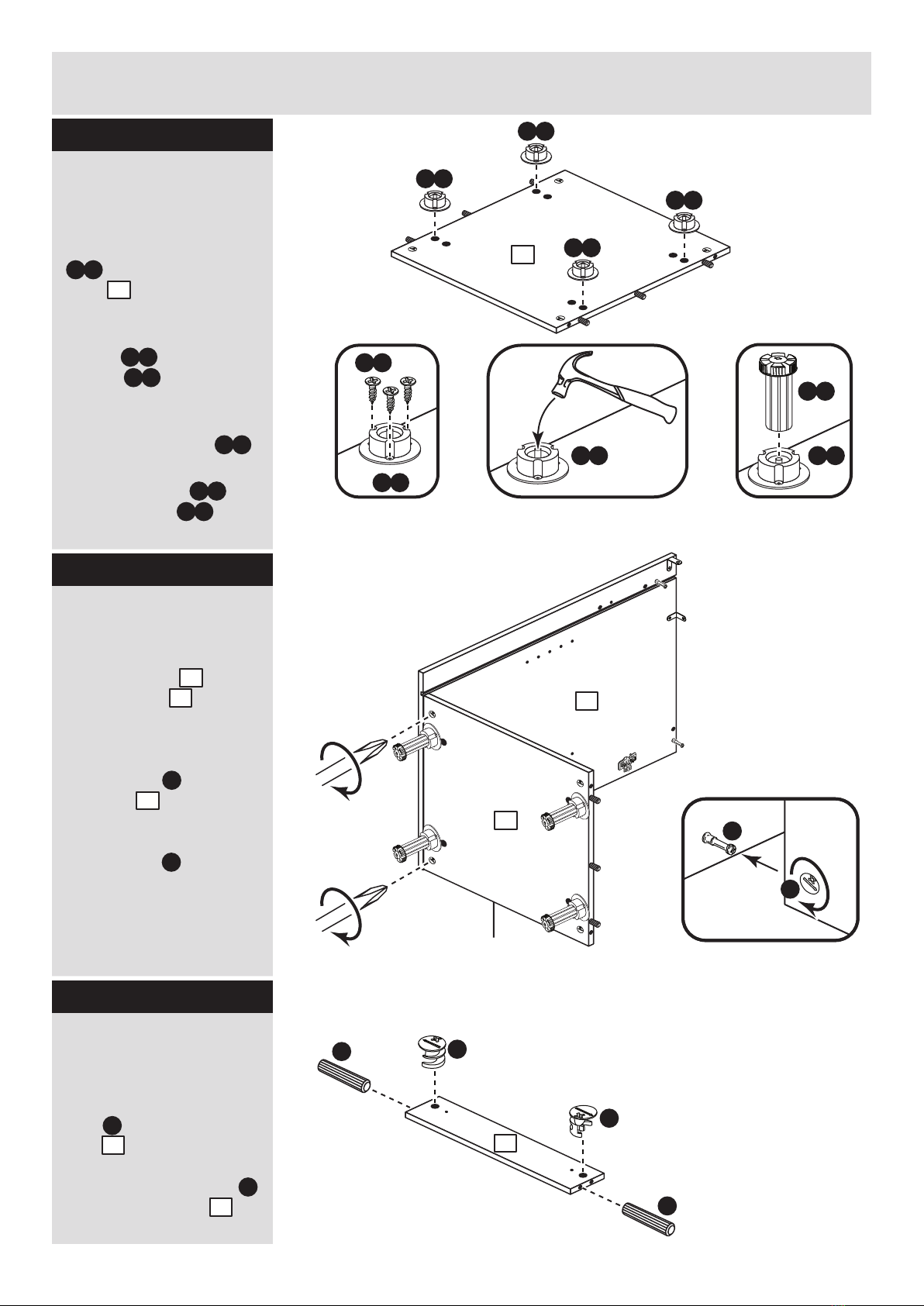

Fit the legs to the
base
a: Push the leg sockets
. into the holes in the
base as shown.
b: Secure each leg
socket with 3
screws .
c: Tap in the centre plug
on each leg socket .
d: Push the leg into
the leg socket .
I a
I a
I a
I e
I e
3
x 3
I a
I a
I b
x 2

Assembly Instructions
7
Step 8
Step 9
Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the large locking
nut fitted to the 2
cross rails and the 2
fitted to the base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
3
1
C
C
4
4
2
Fit the 2 cross rails
Push each cross rail
onto the right side .
Use a screwdriver to
tighten the large locking
nut fitted to each
cross rail .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
4
4
2
C
C
4
Support this cross rail
until the left side has been
fitted in the next step.
2
4
4
1
4
3

Assembly Instructions
8
Step 10
Step 11
Secure the back
The bottom edge of the
back must be flush
with the bottom edge of
the base .
Secure the back to
the back edge of the
base using 3 screws
. .
Stand the unit up for
the next stage.
6
6
3
3
F
Fit the back
Slide the back along
the grooves in the side
panels and .
6
1 2 6
2
4
3
2
4
1
3
6
F
F
F
1

Assembly Instructions
9
Step 12
Secure the unit to the
wall
Using the brackets
fitted to the back edge of
the sides and
screw the unit to the
wall.
Fixings are not supplied
as they will need to suit
the wall type, and the
length of screw will
depend on the distance
of the back of the unit to
the wall.
J
5mm
Warning: Take
care when
drilling the wall
that you do not
drill into any pipes, wires
etc. If in doubt, consult
an expert.
Step 13
Joining units together
Fittings have been
supplied so you are able
to join units together.
Make sure that your first
unit is level.
Push the other unit up
against first unit and
ensure both units are
level.
Check that the ends are
flush and in line, then
clamp them together.
Using a 5mm drill bit,
drill 2 holes (approximate
positions shown circled)
in the side panel into the
adjoining side panel of
the other unit.
Push the connecting
sleeves into the holes
and then screw the
connecting bolts in
from the other side.
G
H
G
H
1
2
1 2

Assembly Instructions
10
Step 14
Fit the loose shelf
Insert 4 shelf studs at
the required height.
Lower the loose shelf
down onto the shelf
studs .
Step 16
K
K
5

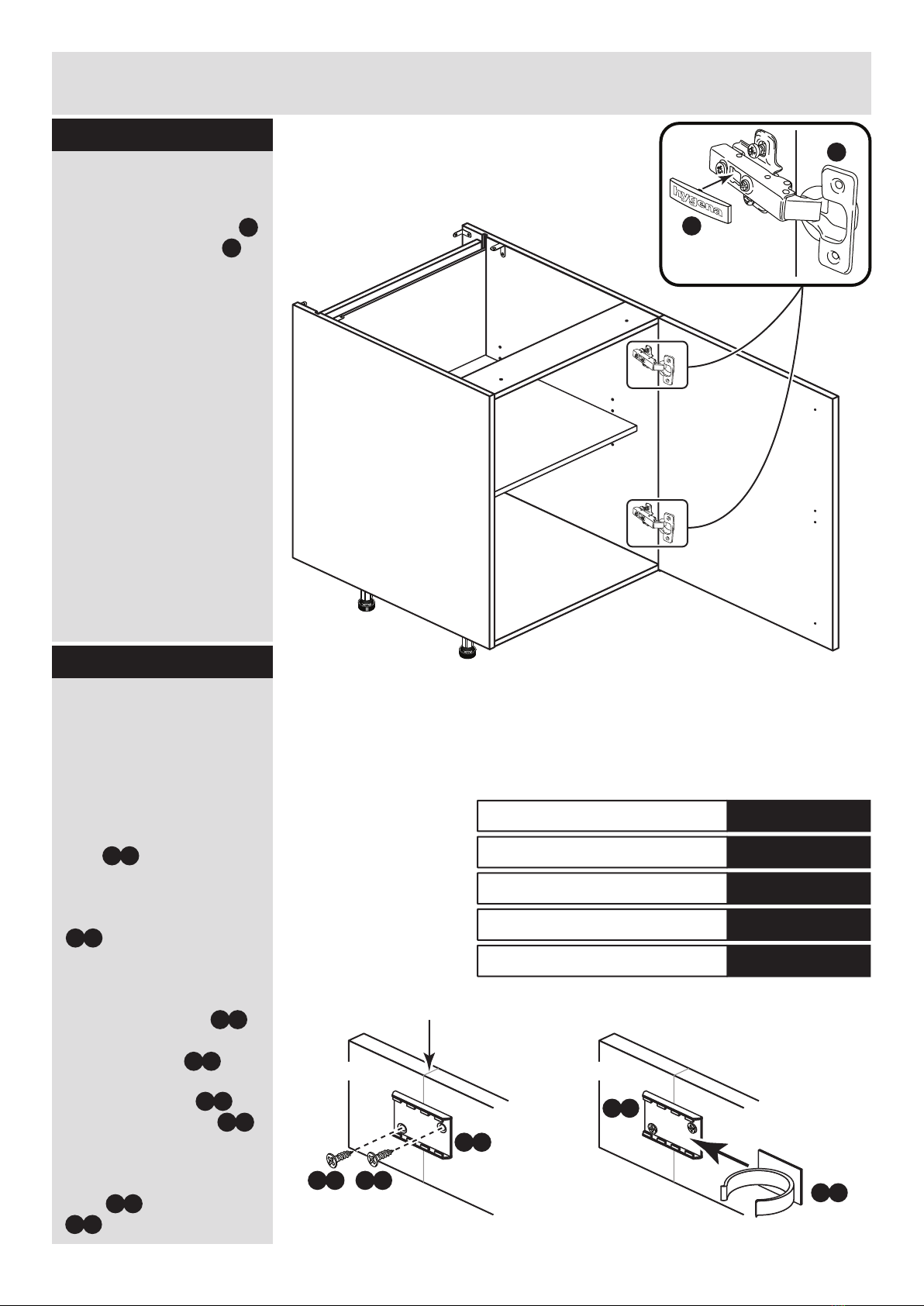

Prepare the door
Push fit the 2 hinges
into the door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the front edge of the
door.
Step 15
Fit the unit to worktop
To fit the unit to the
worktop use 2 screws
to screw up through the
holes in the cross rail
as shown.
Then use 2 screws to
screw up through the
brackets as shown.
D
M
7
F
E
J
4
7M
M
90
M
D
D
D
D
1
2
Kx 4
5
F
F
E
E
4

Assembly Instructions
11
Step 17
Small piece of
waste wood
Drill these 2 holes if
you have fitted the
hinges to the left side.
Drill these 2 holes if you
have fitted the hinges
to the right side.
DO NOT drill
any other holes
DO NOT drill
any other holes
or
Drill the handle holes
in the door
Important: Please follow
these instructions
carefully.
Lay the door down
onto a smooth surface.
Important: Carefully
choose which holes you
need to drill.
This will depend on
which side you fitted the
hinge plates .
Check that the holes and
hinges are in the same
place as the diagrams.
Note: We recommend
the use of a small piece
of waste wood, placed
behind the hole while
drilling, to reduce the
possibility of any
breakout.
Using the pilot hole in
the rear face of the door,
. drill through the
holes indicated opposite,
using a 2.5mm diameter
drill.
Turn the door over
and open out the 2.5mm
holes that you have just
drilled by drilling back
through them with a
5mm drill.
Note: Drill bits are not
provided.
7
L
7
7
ONLY drill
these 2 holes
ONLY drill
these 2 holes
Small piece of
waste wood
7
7
PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY
TO CHOOSE WHICH 2 HOLES YOU WILL NEED TO DRILL

O a
Assembly Instructions
12
Step 18
a:
b:
c:
This shows the door being fitted to hinge
plates on the right side.
You may have fitted them to the left side.
Push and
click
Push
d:
Fit door and handle
2 people are needed
here
Note: The easiest way to
attach the door is to
fit the top hinge first,
then align and fit the
other hinge.
a: Push the hooks on
the hinge arm
underneath the front of
the hinge plate .
b: Press the front of the
hinge arm against the
hinge plate until it
clicks into place.
c: If you need to
seperate the hinge arm
. from the hinge plate,
. press the button at
the end of the hinge arm
and lift it off of the hinge
plate.
d: Attach the handle
. to the door
using the 2 screws
packed with it.
L
M
M
L
LM
L
M
L
L
M
7
M
L
M
O a
O b
7
b
7
O b
O b

Assembly Instructions
13
Step 19
Adjust the door if
needed
a: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
b: Forward and Back
adjustment.
Loosen screw B on hinge
arm and move door in or
out as required.
Retighten screw B.
c: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C
a:
b:
c:
A
A
C
B

Assembly Instructions
14
Step 20
Fit the hinge covers
Push the hinge covers
onto the hinge arms .
Step 21
N
M
h
ygen
a
N
M
Pencil mark
Plinth
I c
I c
I d
Plinth
I e I e
Fit the plinth
After cutting the plinth to
the required length, offer
the plinth up to the unit
and using a pencil, mark
the position of the unit’s
legs on the back of
the plinth.
Position the leg bracket
. so it is in the centre
of the pencil mark and
half way up the plinth.
Fix the leg bracket
to the back of the plinth
using 2 screws .
Slide the leg clip
into the leg bracket
Offer the plinth up to the
unit and push the leg
clips onto the legs
. .
I b
I b
I c
I c
I c
I d
I d
.
I e
608/2345
608/2369
205/5668
198/9917
608/2352
Black Plinth Pack
Cream Plinth Pack
Oak Plinth Pack
White HN Plinth Pack
White Gloss Plinth Pack

Assembly Instructions
15
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 22
ALR2651
Fit other products to
the unit
To fit other products to
this unit e.g. worktops
etc., please follow the
instructions packed with
them.
We recommend that you
consult a qualified joiner
or kitchen fitter.
Assembly is complete
Warning: The
unit is heavy.
Lift with care.

MADE IN
BRITAIN
Dimensions
Width - 50cm
Depth - 59cm
Height - 87cm
Valencia - 4 Drawer Cabinet
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 2 - 31/07/14
Important - Please read these instructions fully before starting assembly
ALR2654
hygena
hygena
656/5848
633/2909
633/2734
205/4528
633/2820
204/6718
R
Cabinet
Black Drawer Pack
Cream Drawer Pack
Oak Drawer Pack
White Gloss Drawer Pack
White HN Drawer Pack
Issue 2 - 31/07/14 - Replaced Grey and Plum codes with Oak and White HN codes.

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 16.5kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2, 3 and 4.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.

Components - Panels
Please check you have all the panels listed below
2
1
80%
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
2
7
4
3
Back (DPF077A)
(479 x 680mm)
6
Base (DPF074A)
(469 x 494mm)
Cross Rail (DPF076A)
(469 x 96mm) x 2
5Drawer Back (DPF130A)
(439 x 98mm) x 4
Left Side (DPF087A)
(720 x 560mm)
Right Side (DPF088A)
(720 x 560mm)
Drawer Base (DPF129A)
(439 x 448mm) x 4
8Drawer Front (DPF151B)
(497 x 176mm) x 4

Please check you have all the fittings listed below
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 10
B
Metal dowel (F901) x 8
C
D
Large locking
nut (F900) x 8
F
G H I a
I c
I d
I e
I b
J K
13mm Screw (F63) x 72
E
13mm Screw (F79) x 6
Connecting Sleeve (F432) x 2 19mm Connecting bolt (F461) x 2
L M
N O
S
P
Q
R
25mm Screw (F50) x 5
Bracket (F945) x 4
Leg Bracket
(F127) x 2
Leg Socket
(F120) x 4
Leg Clip
(F128) x 2
16mm Screw
(F129) x 16
Leg (F122) x 4
13mm Screw (F52) x 48
Left Runner (F139) x 4
L
R
Left Soft Close Unit (F141) x 4
Right Soft Close Unit (F142) x 4
Left Soft Close
Catch (F143) x 4
Right Soft Close
Catch (F144) x 4
Left Drawer
Side (F145) x 4
Right Drawer
Side (F146) x 4
L
R
Right Runner (F140) x 4 Door Handle
(F214) x 4
T a
T b
25mm Screw (F132) x 8
