Hytera MD62X User manual

Preface
Thanks for your favor in our product. This manual is helpful for you to quickly know how to use the
product. For detailed features and operations, please refer to the Feature Description and Operation
Manual along with the product.
To avoid body injury or property loss caused by misoperation, please read the Safety Information
Booklet carefully before use.
This manual is applicable to the following product:
MD62X Digital Mobile Radio (X may represent 2, 5, 6 or 8)

Icon Conventions
: Indicates functions that are available on digital channel only.
: Indicates functions that are available on analog channel only.
Functions marked with no icon are available on both analog and digital channels.
Disclaimer
Hytera Communications Corporation Limited (the Company) endeavors to achieve the accuracy and
completeness of this manual, but no warranty of accuracy or reliability is given. All the specifications and
designs are subject to change without notice due to continuous technology development. No part of this
manual may be copied, modified, translated, or distributed in any manner without the express written
permission of us.
We do not guarantee, for any particular purpose, the accuracy, validity, timeliness, legitimacy or
completeness of the Third Party products and contents involved in this manual.
If you have any suggestions or would like to learn more details, please visit our website at:
http://www.hytera.com.

RF Radiation Information
This product must be restricted to operations in an occupational/controlled RF exposure environment.
Users must be fully aware of the hazards of the exposure and able to exercise control over their RF
exposure to qualify for the higher exposure limits.
RF Radiation Profile
Radio Frequency (RF) is a frequency of electromagnetic radiation in the range at which radio signals are
transmitted. RF technology is widely used in communication, medicine, food processing and other fields.
It may generate radiation during use.
RF Radiation Safety
In order to ensure user health, experts from relevant industries including science, engineering, medicine
and health work with international organizations to develop standards for safe exposure to RF radiation.
These standards consist of:
United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2
sub-part J;
American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE)
C95. 1-1992;
Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999;
International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998;
FCC Regulations
Federal Communication Commission (FCC) requires that all radio communication products should meet
the requirements set forth in the above standards before they can be marketed in the U.S, and the
manufacturer shall post a RF label on the product to inform users of operational instructions, so as to
enhance their occupational health against exposure to RF energy.
Operational Instructions and Training Guidelines
To ensure optimal performance and compliance with the occupational/controlled environment RF energy
exposure limits in the above standards and guidelines, users should transmit not more than 50% of the
time and always adhere to the following procedures:
Antenna gain must not exceed 5dBi for UHF or 3.5dBi for VHF.
The antenna installation must comply with the requirements of manufacturer or supplier, and it must
be at least one meter away from human body.

EU Regulatory Conformance
As certified by the qualified laboratory, the product is in compliance with the essential requirements and
other relevant provisions of the Directive 1999/5/EC.
Please note that the above information is applicable to EU countries only.

Contents
1. Items in the Package..........................................................................................................................1
2. Product Overview...............................................................................................................................1
2.1 Front Panel .....................................................................................................................................2
2.2 Rear Panel......................................................................................................................................3
2.3 Programmable Keys .......................................................................................................................3
2.4 LCD Icon.........................................................................................................................................3
2.5 LED Indicator ..................................................................................................................................4
3. Installation ..........................................................................................................................................5
3.1 Instructions .....................................................................................................................................5
3.2 Installation Tools.............................................................................................................................5
3.3 Installation Parts .............................................................................................................................6
3.4 Installation Procedure .....................................................................................................................7
4. Basic Operations................................................................................................................................8
4.1 Turning the Radio On/Off................................................................................................................8
4.2 Adjusting the Volume ......................................................................................................................8
4.3 Selecting a Zone.............................................................................................................................8
4.4 Selecting a Channel........................................................................................................................9
5. Call Services.....................................................................................................................................10
5.1 Private Call ................................................................................................................................9
5.2 Group Call ...............................................................................................................................10
5.3 Call on Analog Channel (Without Signaling) ............................................................................11
5.4 Emergency Call ............................................................................................................................11
6. Troubleshooting.................................................................................................. 错误！未定义书签。
7. Available Features............................................................................................................................12
8. Care and Cleaning............................................................................................................................14
9. Optional Accessories.......................................................................................................................15

1
1. Items in the Package
Please unpack carefully and check if all items listed below are received. If any item is missing or
damaged, please contact your dealer.
Radio Palm Microphone
Microphone Hanger and
Screws
Mounting Bracket Kit Fuse Documentation Kit
Power Cord
Note
The frequency band is marked on the label of antenna; if not, please refer to the label on the radio for
frequency band information.

2
2. Product Overview
2.1 Front Panel
No. Part Name No. Part Name
1 Volume Control 7 Speaker
2 LED Indicator 8 Programmable Keys
3 LCD Display 9 Microphone Connector
4 Programmable Keys 10 Microphone Installation Index
5 Channe selector 11
6 Power On/Off Key 12

3
2.2 Rear Panel

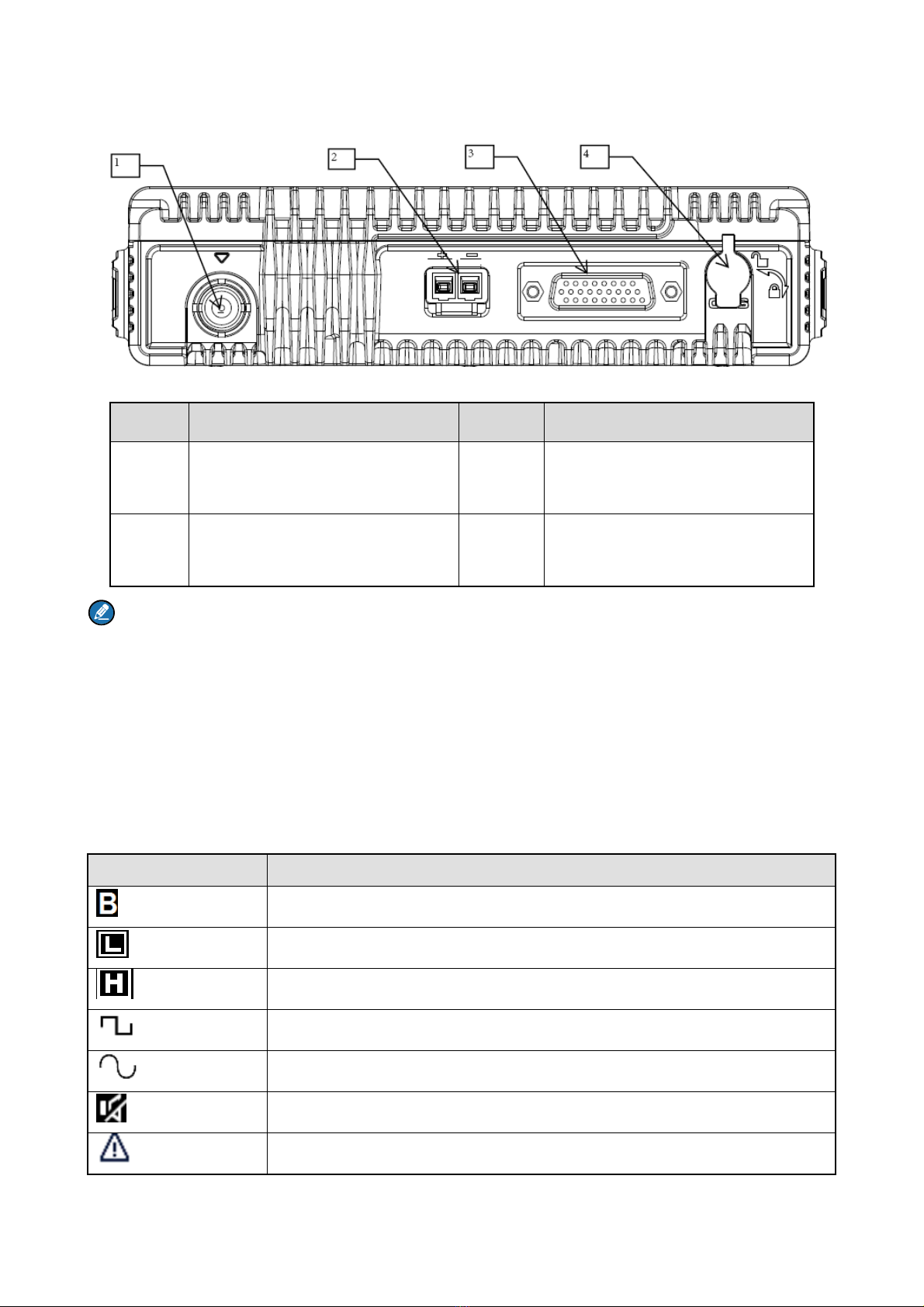

No. Part Name No. Part Name
1
RF Antenna Connector (BNC
female)
3 Accessory Connector
2 Power Inlet 4
GPS Antenna Connector (SMA
female)
Note: The GPS antenna connector is available for MD62X mobile radios only.
2.3 Programmable Keys
For enhanced convenience, you may request your dealer to program the SK1, SK2, P1, P2 and P3 keys
as shortcuts to certain feature.
2.4 LCD Icon
Icon Radio Status
Blue Tooth is open and connet
Low TX power for the current channel.
High TX power for the current channel.
Digital channel
Analog channel
The Monitor feature is active.
The radio is in emergency state or an emergency call is received.

4
Icon Radio Status
The radio is roaming.
The radio is scanning.
More bars indicate stronger signal strength.
2.5 LED Indicator
LED Indication Radio Status
The LED indicator flashes
green.
Powering on
The LED indicator glows
red.
Transmitting
The LED indicator glows
green.
Receiving
The LED indicator flashes
orange slowly.
Scanning or Roaming
The LED indicator flashes
orange rapidly.
Emergency
The LED indicator glows
orange.
Call hang time. No voice is being transmitted or received on the traffic
channel during a call. Within such period, you can hold down the PTT
key to talk to the other party.
Note: Unless otherwise specified, the PTT key mentioned in this manual indicates that of the palm
microphone.

5

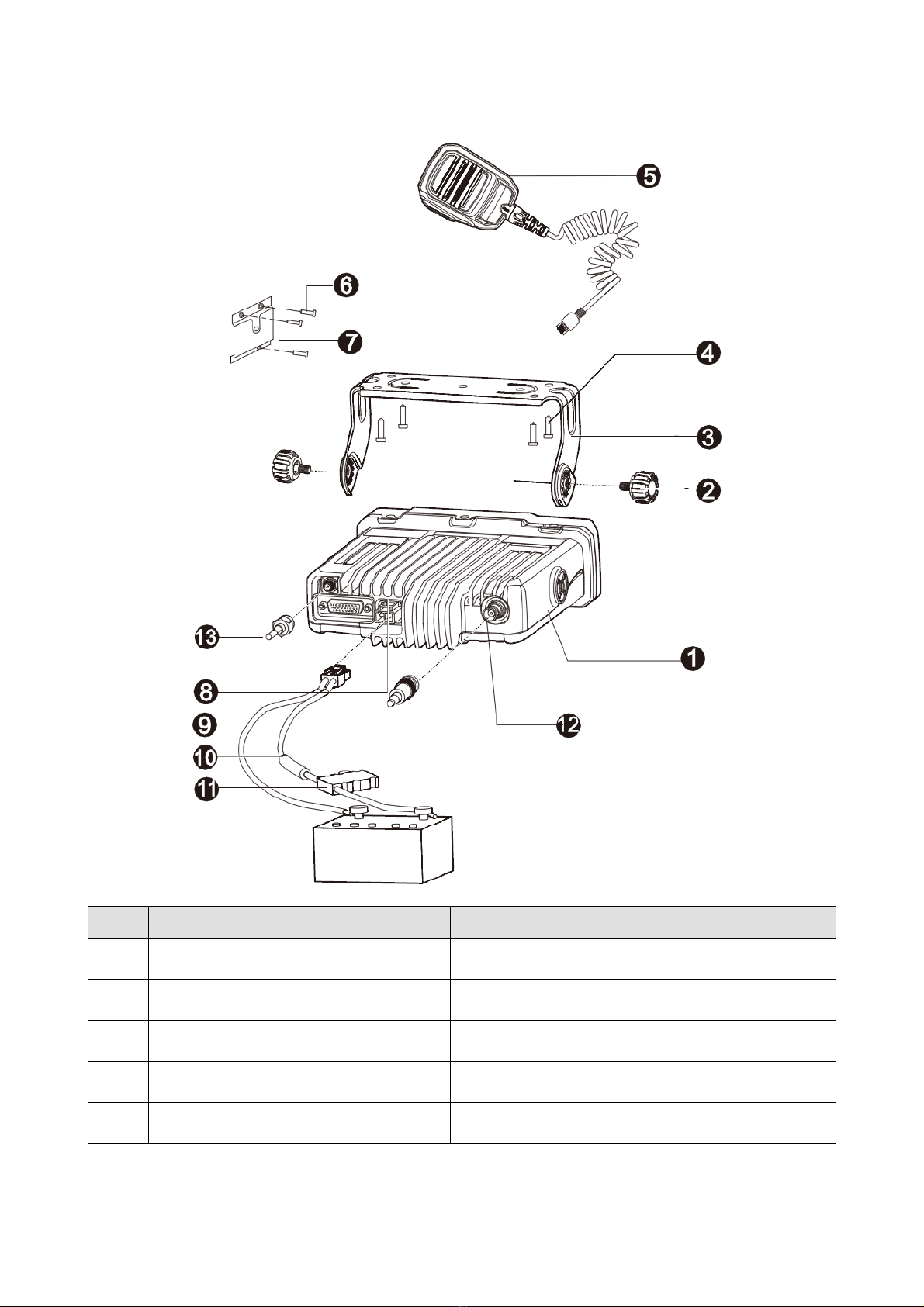

3. Installation
3.1 Instructions
Before you install the radio in a vehicle, be sure to read the following instructions carefully:
The radio must work with a13.6V ± 15%negative ground electrical system only. Ensure to check the
ground polarity and voltage of the vehicle power supply prior to installation.
Install the radio in a location where you can reach the front panel conveniently.
Check how long the screws will extend from the bottom surface of the radio before installation. Drill
the mounting hole cautiously to avoid damage to the vehicle wiring and other parts.
Install the radio with mounting bracket supplied by the Company, to avoid radio looseness in case of
accidents. The loose radio may cause bodily injury.
Connect the antenna and power cord to the radio before you install it in the bracket. And make sure
the antenna and power cord are dedicated for digital radios of the Company.
Keep sufficient clearance at the back of the radio for wiring.
Be sure to use the fuse with the same specification for DC power cord upon replacement.
If there are any other device in the vicinity of this radio, the distance between the antenna of this radio
and the antenna of such RF device shall be no less than 10 meters.
3.2 Installation Tools
Electric Drill
Cross head screwdriver
Hex socket sleeve (for 4.8 * 20mm self-tapping screws)
