IBASE Technology INOSP-152-RE Series User manual

INOSP-152-RE series
INOSP-192-RE series
Industrial All-in-One Panel PC
User’s Manual
Version 1.0
(Jan. 2021)

ii
INOSP-152/192User Manual
Copyright
© 2018 IBASE Technology, Inc. All rights reserved.
No part of this publication may be reproduced, copied, stored in a retrieval system, translated
into any language or transmitted in any form or by any means, electronic, mechanical,
photocopying, or otherwise, without the prior written consent of IBASE Technology, Inc.
(hereinafter referred to as “IBASE”).
Disclaimer
IBASE reserves the right to make changes and improvements to the products described in
this document without prior notice. Every effort has been made to ensure the information in
the document is correct; however, IBASE does not guarantee this document is error-free.
IBASE assumes no liability for incidental or consequential damages arising from
misapplication or inability to use the product or the information contained herein, nor for any
infringements of rights of third parties, which may result from its use.
Trademarks
All the trademarks, registrations and brands mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.

INOSP-152/192User Manual
iii
Compliance
This is a class A product. In a domestic environment, this product may cause radio
interference in which case users may be required to take adequate measures.
This product has been tested and found to comply with the limits for a Class B
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with manufacturer’s instructions, may cause
harmful interference to radio communications.
Operation is subject to the following two conditions:
• This product may not cause harmful interference
• This product must accept any interference received including interference that maycause
undesired operation.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment causes harmful interference to radio or television reception which can be
determined by turning the equipment off and on, you may correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiveris
connected.
• Consult the distributor or an experienced radio/TV technician for help.
WEEE
This product must not be disposed of as normal household waste, in
accordance with the EU directive of for waste electrical and electronic
equipment (WEEE - 2012/19/EU). Instead, it should be disposed of by
returning it to a municipal recycling collection point. Check local
regulations for disposal of electronic products.

iv
INOSP-152/192User Manual
Green IBASE
This product is compliant with the current RoHS restrictions and
prohibits use of the following substances in concentrations exceeding
0.1% by weight (1000 ppm) except for cadmium, limited to 0.01% by
weight (100 ppm).
•Lead (Pb)
•Mercury (Hg)
•Cadmium (Cd)
•Hexavalent chromium (Cr6+)
•Polybrominated biphenyls (PBB)
•Polybrominated diphenyl ether (PBDE)
Important Safety Information
Carefully read the precautions before using the device.
Environmental conditions:
Lay the device horizontally on a stable and solid surface during installation in
case the device may fall, causing serious damage.
Leave plenty of space around the device for ventilation.
Use this product in environments with ambient temperatures between 0˚C and
50˚C.
DO NOT LEAVE THIS DEVICE IN AN ENVIRONMENT WHERE THE
STORAGE TEMPERATURE MAY BE BELOW -20°C OR ABOVE 60°C. To
prevent from damages, the device must be used in a controlledenvironment.
Keep the device away from humidity to avoid fog or condensation from
accumulating on the inner surface of the panel.
Care for your IBASE products:
Before cleaning the device, turn it off and unplug all cables such as power in case
a small amount of electrical current may still flow.
Use neutral cleaning agents or diluted alcohol to clean the device chassis with a
cloth. Then wipe the chassis with a dry cloth.
Vacuum the dust with a computer vacuum cleaner to prevent the air vent or slots
from being clogged.

INOSP-152/192User Manual
v
WARNING
Attention during use:
Operate with fingers on the panel. Sharp-pointed articles are prohibited.
Do not use this product near water.
Do not spill water or any other liquids on your device.
Do not place heavy objects on the top of the device.
Operate this device from the type of power indicated on the marking label. If you
are not sure of the type of power available, consult your distributor or local
power company.
Ensure that you apply correctly the power supply voltage.
Do not walk on the power cord or allow anything to rest on it.
If you use an extension cord, make sure that the total ampere rating of the
product plugged into the extension cord does not exceed its limits.
Avoid Disassembly
You are not suggested to disassemble, repair or make any modification to the device.
Disassembly, modification, or any attempt at repair could generate hazards and
cause damage to the device, even bodily injury or property damage, and will void any
warranty.
CAUTION
Replace only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instructions.
Warranty Policy
IBASE standard products:
24-month (2-year) warranty from the date of shipment. If the date of shipment
cannot be ascertained, the product serial numbers can be used to determine
the approximate shipping date.
3rd-party parts:
12-month (1-year) warranty from delivery for the 3rd-party parts that are not
manufactured by IBASE, such as CPU, CPU cooler, memory, storage devices,
power adapter, panel and touchscreen.
◆Products, however, that fail due to misuse, accident, improper installation or
unauthorized repair shall be treated as out of warranty and customers shall be
billed for repair and shipping charges.

vi
INOSP-152/192User Manual
Technical Support & Services
1. Visit the IBASE website at www.ibase.com.tw to find the latest information about
the product.
2. If you need any further assistance from your distributor or sales representative,
prepare the following information of your product and elaborate upon the
problem.
 Product model name
 Product serial number
 Detailed description of the problem
 The error messages in text or in screenshots if there is any
 The arrangement of the peripherals
 Software in use (such as OS and application software, including the version
numbers)
3. If repair service is required, you can download the RMA form at
http://www.ibase.com.tw/english/Supports/RMAService/. Fill out the form and
contact your distributor or sales representative.

INOSP-152/192User Manual
vii
Table of Contents
Compliance....................................................................................................iii
Important Safety Information.......................................................................iv
WARNING .......................................................................................................v
Warranty Policy..............................................................................................v
Technical Support & Services .....................................................................vi
Chapter 1 General Information................................................................1
Chapter 2 Hardware Installation ...........................................................10
Chapter 3 Driver Installation .................................................................13
Chapter 4 BIOS Setup............................................................................21
Appendix ......................................................................................................36

1
Chapter 1
General Information
The information provided in this chapter includes:
 Features
 Packing List
 Specifications
 Overview
 Dimensions

2
INOSP-152/192 User Manual
1.1 Introduction
INOSP series, a stainless-steel panel PC, utilizes the qual-core 1.91GHz
Intel® Processor E3845 providing high computing performance and low power
consumption. It includes 15- and 19-inch size.
The INOSP series supports a wide range 10V~30V DC power input with
optional 24V DC IP56 stainless steel power adaptor, which makes it ideal for
food, livestock, chemical, mining, petrol and factory automation or any other
industrial applications.
1.2 Features
Totally IP65 and IP69K certificated
Sealed resistive touch screen
Durable stainless-steel housing
Providing USB3.0 interface with M12 connector
Wide-range DC power input 10V to 30V

1
General Information
3
1.3 Packing List
Your product package should include the items listed below. If any of the
items below is missing, contact the distributor or the dealer from whom you
purchased the product.
INOSP-xx2-RE or INOSP-xx2-RE-F x 1
M12 connector dust cover for INOSP-xx2-RE or x 5
M12 connector dust cover for INOSP-xx2-RE-F x 7
Motherboard User manual and driver CD x 1
1.4 Optional Accessories
IBASE provides optional accessories as follows. Please contact us or your
dealer if you need any.
SSPA-24: IP56 stainless steel power adapter
M12 power cable C501PW35203A21000P
M12 USB 2.0 cable C501USB1804A32000P
M12 USB 3.0 cable C501USB1540A22000P
M12 GbE LAN cable A012CB01200101000P
M12 DSUB cable A012CB01210101000P

4
INOSP-152/192 User Manual
1.5 Specifications
Product Name
INOSP-152-RE(-F)
INOSP-192-RE(-F)
System
Motherboard
IB897
Operating
System
Windows 7, Windows 10, Linux kernel 3.X+
CPU
Intel E3845
Chipset
Integrated
Memory
1 x DDR3L SO-DIMM 4 GB, up to 8 GB
Storage
2.5” HDD/SSD
Graphics
Intel® HD graphics
Power Supply
DC-In 10~ 30V
BIOS
AMI BIOS
Watchdog
Watchdog Timer 256 segments, 0, 1, 2…255 sec/min
iSmart
Yes (auto-scheduler / power resume)
Chassis
Stainless steel with hairline
Membrane
Control
None
Mounting

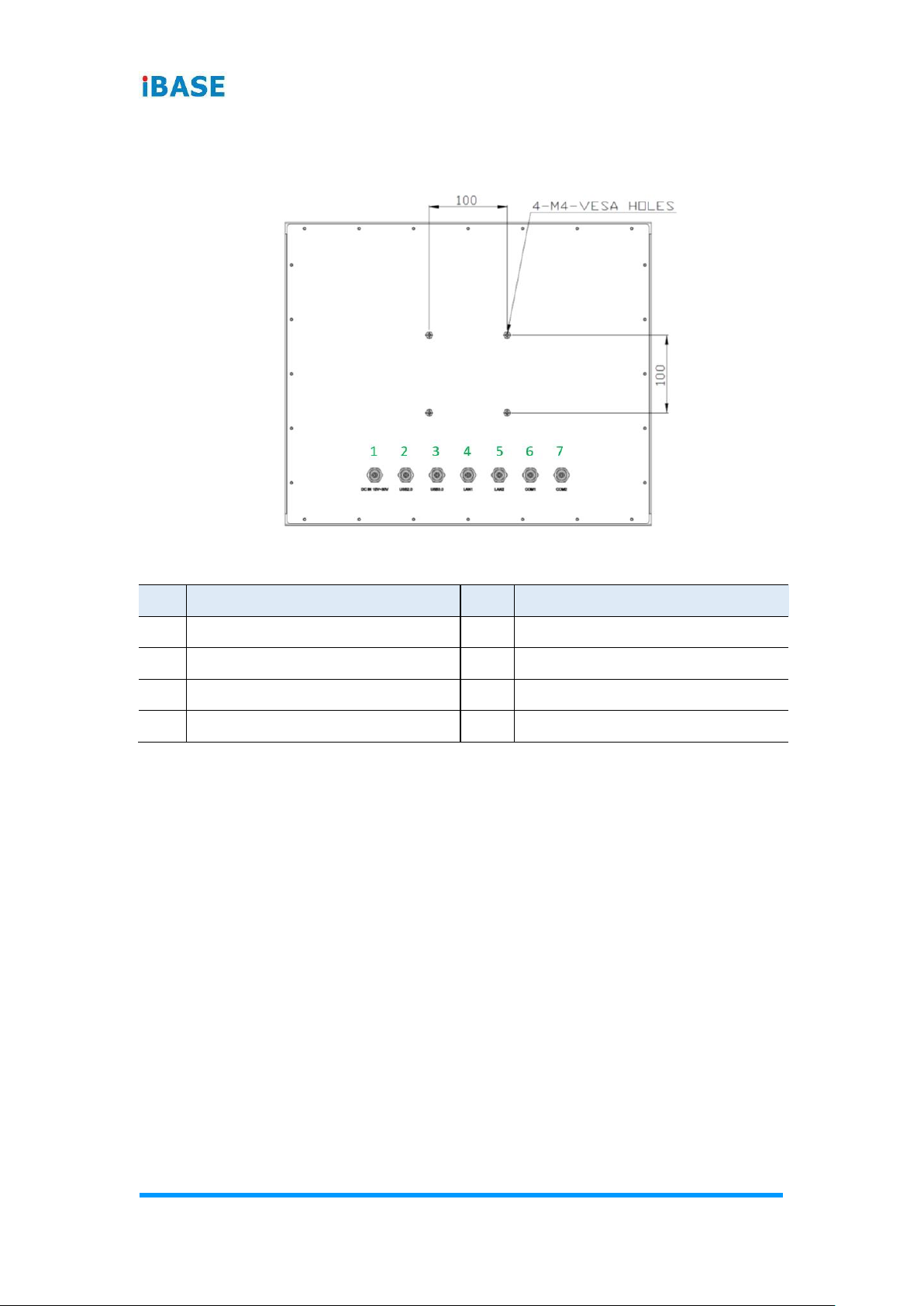

VESA 100 x 100 mm

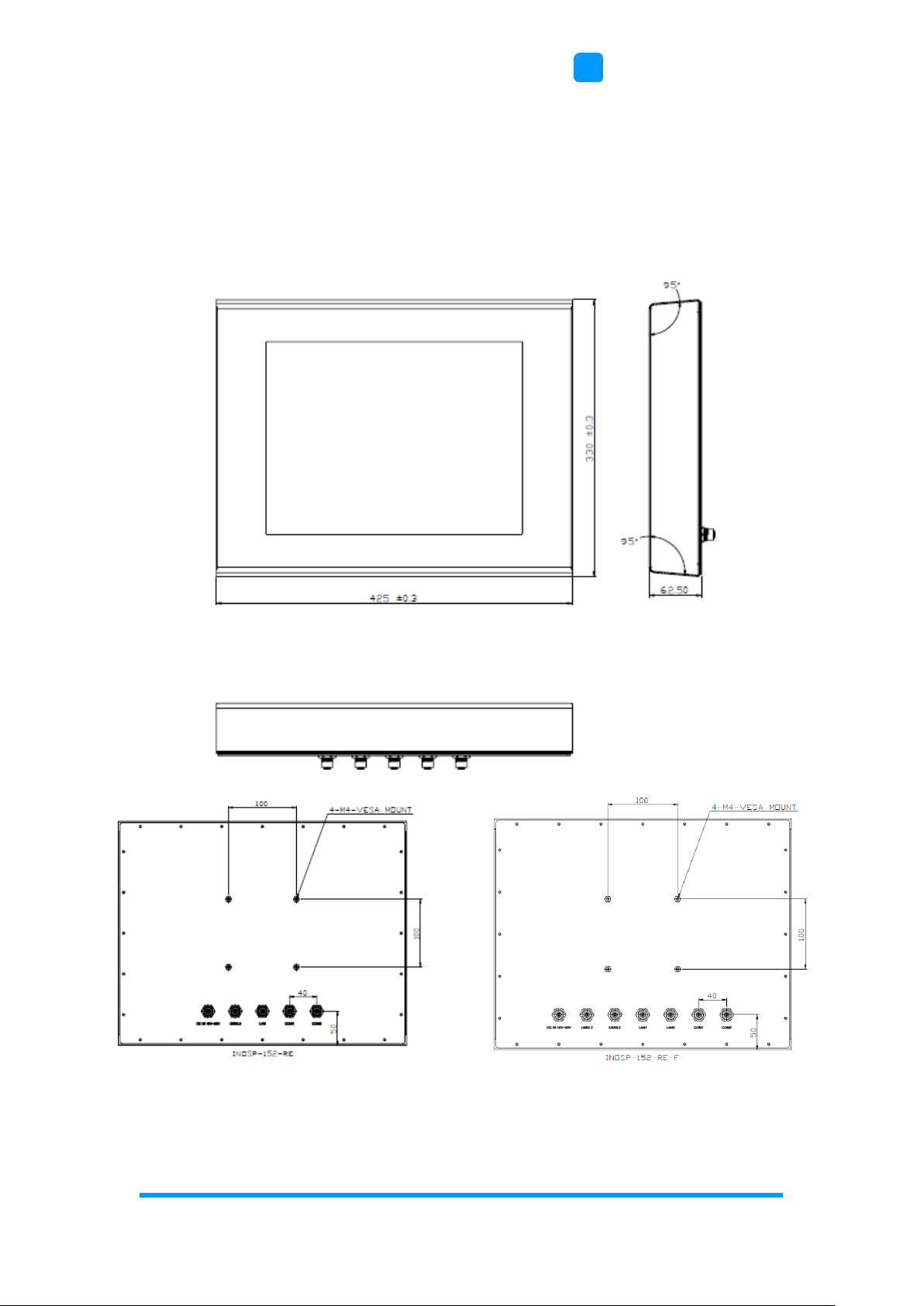

Dimensions
(W x H x D)
425 x 330x 62.5 mm
(16.73” x 12.99” x 2.46”)
470 x 390x 62.5 mm
(18.50” x 15.35” x 2.46”)
Net Weight
8.5 kg (16.52 lb)
10.5 kg (23.13 lb)
Ingress
Protection
IP65 and IP69K
Certificate
CE, FCC Class B, LVD

1
General Information
5
Product Name
INOSP-152-RE(-F)
INOSP-192-RE(-F)
Display & Touchscreen
Display Type
15” TFT-LCD
19” TFT-LCD
Resolution
Max. 1024 x 768
Max. 1280 x 1024
Color
Max. 16.2M
Max. 16.7M
Viewing Angle
H/V: 160°/ 160°
H/V: 170°/ 160°
Luminance
500 cd/m2
350 cd/m2
Contrast
800:1
1000:1
Backlight
Lifetime
50000 hrs
50000 hrs
Touch Type
Resistive touch
Touch Interface
USB
Light
Transmission
80%
Point of Touch
1
System I/O Ports and functions
Power

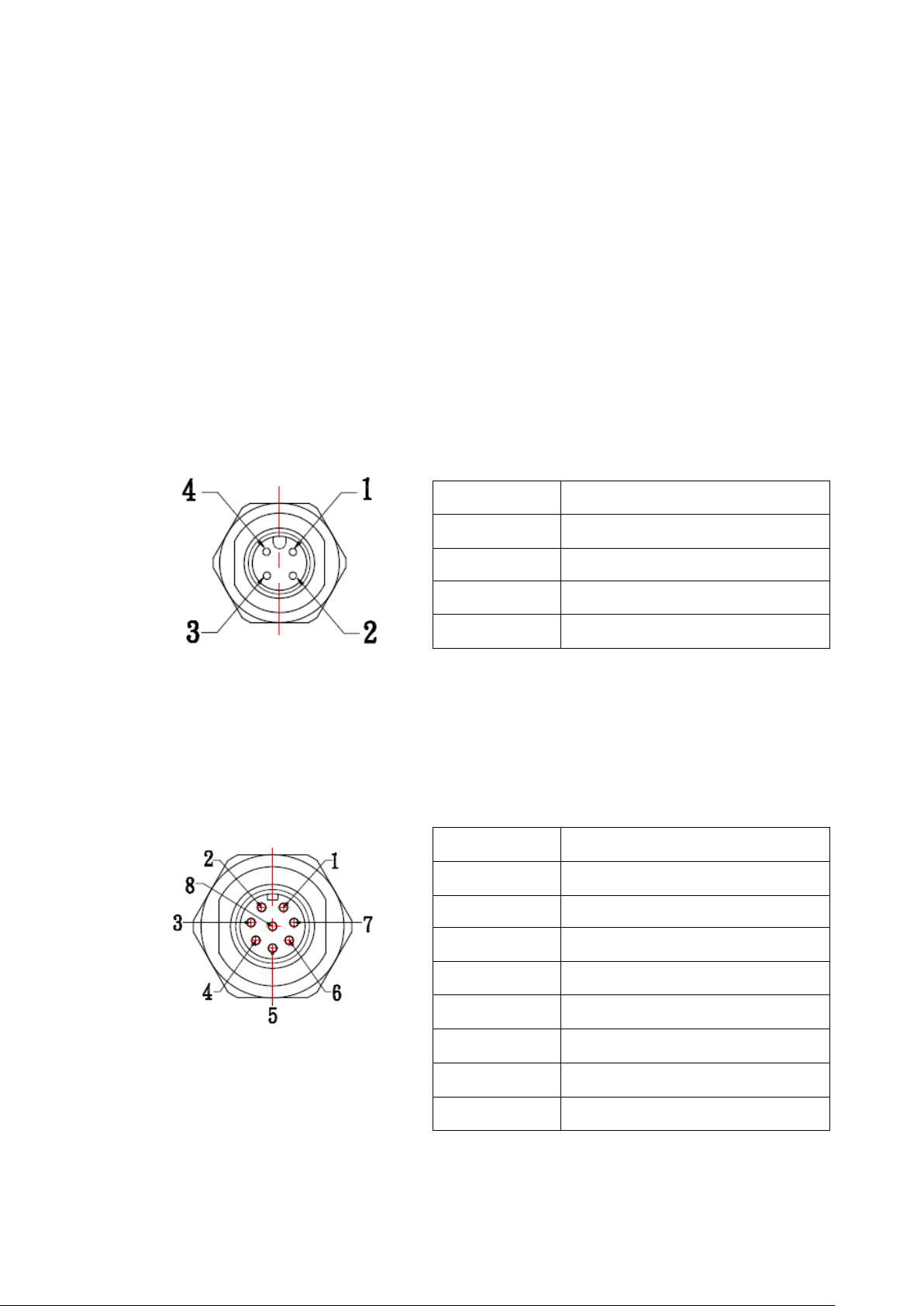

1 x M12 4 pin
LAN
1 x M12 8 pin for GbE LAN
Second LAN as an option
Serial
1 x M12 8 pin for RS-232/422/485 COM1
1 x M12 8 pin for RS-232 COM2
USB
1 x M12 4 pin for USB 2.0
1 x M12 8 pin for USB 3.0 for option
Display
None addition graph output
Storage
1 x 2.5” SATA 64GB SSD
Audio
None
Internal
Expansion Bus
 1 x Mini-PCIe (x1) slot (full/half-size) with USB
 1 x Mini-PCIe (x1) slot (half-size) with USB
Expansion Slot
N/A

6
INOSP-152/192 User Manual
Product Name
INOSP-152-RE(-F)
INOSP-192-RE(-F)
Environment
Temperature
 Operating: 0 ~ 50 °C (32 ~ 122 °F)
 Storage: --20 ~ 60 °C (-4 ~ 140 °F)
Relative
Humidity
10 ~ 90% (non-condensing)
All specifications are subject to change without prior notice.

1
General Information
7
1.6 Overview –INOSP-152/192-RE series
1.6.1 Oblique & Rear View for INOSP-152/192-RE
1.6.2 I/O View for INOSP-152/192-RE
No.
Name
No.
Name
1
Power input
5
COM2 RS232
2
USB 2.0
3
LAN (GbE)
4
COM1 RS232/422/485

8
INOSP-152/192 User Manual
1.6.3 I/O View for INOSP-152/192-RE-F
No.
Name
No.
Name
1
Power input
5
LAN2(GbE)
2
USB 2.0
6
COM1 RS232/422/485
3
USB 3.0
7
COM2 RS232
4
LAN1(GbE)

1
General Information
9
1.7 Dimensions
Unit: mm
INOSP-152-RE series

1
0
INOSP-152/192 User Manual
INOSP-192-RE series

1
General Information
1
1
Chapter 2
Hardware Installation &
Motherboard Information
The information provided in this chapter includes:
 Information and locations of connectors
10 INOSP-152/192 User Manual

2.1 Hardware Installation
This section is all illustrated by the example of INOSP-152/192-RE
Avoid device disassembly: Because INOSP-152/192-RE systems are totally
IP65 and IP69K. You are not suggested to disassemble, repair or make any
modification to the device. Disassembly, modification, or any attempt at repair could
generate hazards and cause damage to the device. If you need to make any
change to the device, please contact iBASE.
2.1.1 I/O Pin definition
Power input
LAN port
INOSP-152/192User Manual 11
Pin
Subject
1
V+
2
FG
3
NC
4
V-
Pin
Subject
1
White/Orange
2
White/Blue
3
Blue
4
Brown
5
Green
6
White/Brown
7
Orange
8
White/Green
