CHAPTER 1 INTRODUCTION
1.1 General Description
BYARM-W071-PC, a 7” ARM Based i.MX6 All-in-One Panel PC, utilizes the
Freescale I.MX6 Dual-Core Processor that provides high computing
performance with low power consumption.
Well suited for industrial applications, BYARM-W071-PC comes with 1GB
DDR3L memory, one 4GB eMMC and one SD card slot for data storage. It has
one Gigabit Ethernet LAN, one RS-232/422/485 port and USB OTG. The unit
is equipped with front bezel IP65 protection and supports Android 4.x and
12V~24V DC power input.
BYARM-W071-PC Overview

2
BYARM-W071-PC User Manual
1.2 System Specifications
1.2.1 Hardware Specifications
Model Name
BYARM-W071-PC
System Mainboard
IB113A-PPC
CPU
Freescale i.MX6 Dual-Core @ 800MHz
Memory
1GB DDR3L memory
I/O Interface
1x USB (USB Host. A-Type)
1x USB OTG (mini USB B Type)
1x RS-232/422/485 via RJ45 connector
1x Power reset button Switch
1x 12V~24V DC-in power jack
Storage
1x 4GB eMMC onboard
1x SD card slot
Expansion Slots
None
Power Supply
12V~24V DC input
LCD Size
7” TFT LCD
LCD Color
16.7M
LCD Resolution
1024 x 600
LCD Brightness
500
LCD View Angle
(H°/V°)
160/160
Backlight MTBF
50,000 hrs
Touch Screen
Projected capacitive touch
Construction
Aluminum front bezel and White steel back
cover with aluminum heat-sink
Mounting
Panel mount and VESA50x50 mm
Dimensions
(W)x(D)x(H) mm
211.5 x 143.5 x 45.8
Operating
Temperature
-20°C~ 60°C
Storage Temperature
-30°C~80°C
Relative Humidity
10%~90% (non-condensing)
Protection Class
IP65 front bezel
Certification
CE/FCC Class B
Operating System
Support
Android4.X
‧ This specification is subject to change without prior notice.

Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
3
IBASE Technology Inc.
1.2.2 Dimensions
BYARM-W071-PC

4
BYARM-W071-PC User Manual
1.2.3 I/O View
1.3 Packing List
Part No.
Description
Quantity
1
40W power adaptor
1 pc
2
Panel mount bracket
1 set
3
Rubber
1 set

Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
5
IBASE Technology Inc.
1.4 Installation
1.4.1 Installing SD card
1. Remove the SD cover as shown in the picture to install the SD card.

6
BYARM-W071-PC User Manual
CHAPTER 2 MOTHERBOARD INTRODUCTION
2.1 Introduction
BYARM-W071-PC uses the iBASE designed motherboard B113A-PPC,
which has settings for BYARM-W071-PPC. IBASE technical support staff
needs to be contacted for any changes require in the motherboard settings.
IB113A-PPC is a 3.5" Disk-Size SBC with an ARM-based Freescale i.MX6
Cortex-A9 800Mhz processor. IB113A-PPC fulfill supports industrial ambient
operating temperature from -40C to +85C. The device offers 3D graphics
acceleration, while also supporting numerous peripherals, including
RS232/422/485, USB, USB OTG, one LAN port, that are well suited for
industrial applications. All components are selected from industrial grade parts
for wide-temperature environment operation.
Specifications –Mainboard
Product Name
IB113A-PPC
Form Factor
3.5" Disk-Size SBC, 102mm x 147mm
CPU
Freescale Cortex™-A9 i.MX6 Dual 800MHz, automotive
grade CPU
System Memory
1GB DDR3 on board
Data Memory
4GB eMMC on board
SD socket (up to 32GB)
Display
18/24 bit dual channel LVDS (up to 1920 x 1080)
Video Codec
Decode: 1080p, 30fps
Encode: 1080p, 30fps
LAN
1st LAN : 10/100/1000 Base-T Ethernet (Gb LAN)
Touch
USB/ I2C header on board ( for capacitive touch)
Audio
Audio pin header (1x microphone, 1x speaker)
RTC
Seiko RTC IC on board
Watchdog
256 Levels
Edge I/O
1x 1st 10/100/1000 LAN
1x USB 2.0 Host (Type-A)
1x USB OTG (mini-USB Type-B)
1x COM RS-232/422/485
1x SD socket (up to 32GB)
1x DC-in jack
1x Reset button

Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
7
IBASE Technology Inc.
Headers &
Expansion Slots
Headers:
1x GPIOx8 pin header
1x Debug port pin header
1x USB2.0 Host box header
1x I2C pin header
1x Dual channel LVDS box header (supports full HD)
1xAudio pin header (1x microphone, 1x speaker)
Slots:
1x Full size Mini PCIe with USB interface
Power
12V~24V DC-in
Operating
Temperature
-40°C~ 85°C (-40°F ~ 185°F)
Devices
WiFi / GPS / 3G module (option)
Software Support
Ubuntu Linux 12.04(kernel 3.0.35)/ Android 4.3
Relative Humidity
10%~90% (non-condensing)
This specification is subject to change without prior notice.
I/O View

8
BYARM-W071-PC User Manual
2.2 Jumper setting on IB113A-PPC
[Important] Do not adjust the jumper settings by yourself to avoid
unexpected problems. IBASE shall not be responsible for any resulting
product damage. Please contact your IBASE sales window or FAE before
making any changes.
Jumpers are used on IB113A-PPC to select various settings and features
according to your needs and applications. Contact your supplier if you have
doubts about the best configuration for your needs. The following lists the
connectors on IB113A-PPC and their respective functions.
Jumper Locations on IB113A-PPC
Top Side

Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
9
IBASE Technology Inc.

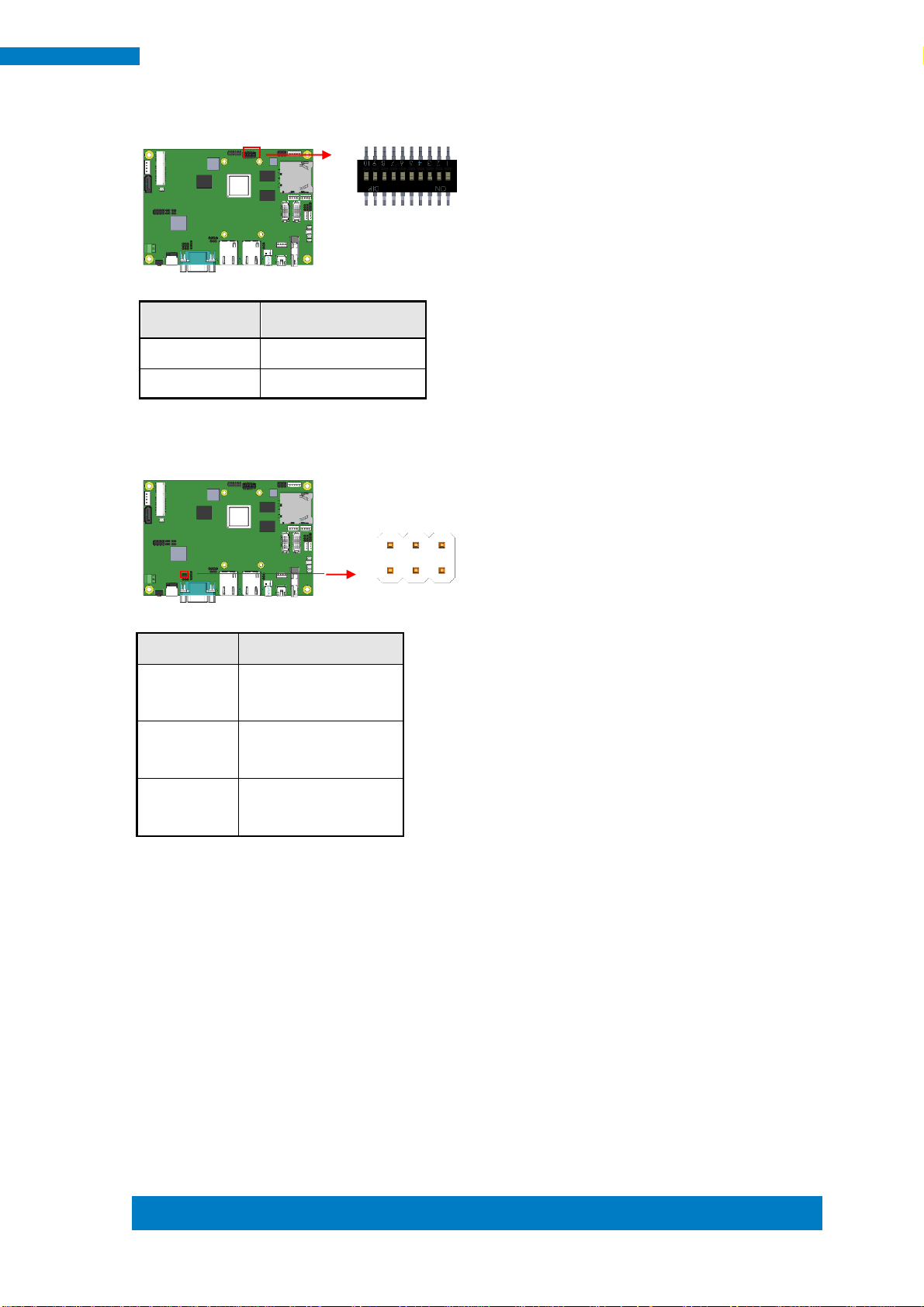

SW1: System Boot Configuration (factory use only)
SW1
Boot From
10101010
SD
01100110
EMMC
JP9: COM2 RS232, RS422, RS485 Selection
Mode
JP9
RS232
2-4 Short
3-5 Short
RS422
3-5 Short
4-6 Short
RS485
1-3 Short
4-6 Short
Default setting is RS232 mode. JP9 setting for COM2.
2
6
6
1
5
6

10
BYARM-W071-PC User Manual
JP6: USB +3.3V/+5V Power Setting(factory use only)
JP6
Setting
+3.3V
+5V
Default setting is +5V.
JP6 setting for J9.
JP4: LVDS +3.3V/+5V Power Setting (factory use only)
JP4
Setting
+3.3V
+5V
Default setting is +3.3V. ; JP4 setting for CH1, CH2.
3
1
1
1
3
3

Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
11
IBASE Technology Inc.

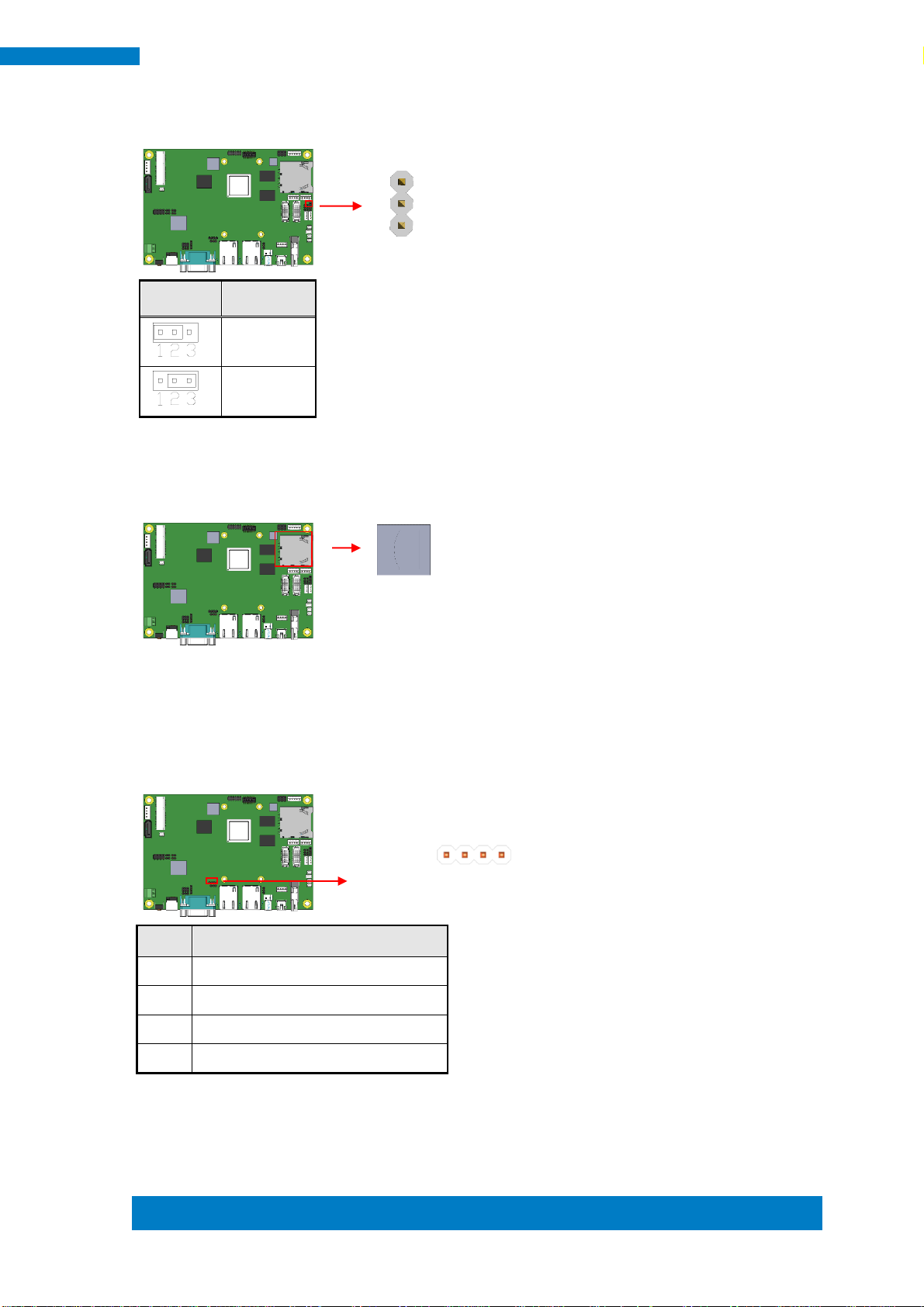

JP3: LED Brightness +5V/+12V Power Setting (factory use only)
JP3
Setting
+5V
+12V
Default setting is +5V.
JP3 setting for CH1, CH2
CN1: SD Card Connector
COM1 PORT: COM1 RS232 Connector
(Debug Port, factory use only)
Part Number: 0195-01-200-040
Description: Pin Header 2.0*2.0mm S/TSingle Row 4pin
Pin #
Signal Name
1
COM1 RX, Receive data
2
COM1 TX, Transmit data
3
GND, ground
4
NC
1
3
3
1 4
4

12
BYARM-W071-PC User Manual
COM2 : RS232/RS422/RS485 Serial Port
Pin #
Signal Name
RS-232
RS-422
RS-485
1
DCD
TX-
DATA-
2
RX
TX+
DATA+
3
TX
RX+
NC
4
DTR
RX-
NC
5
Ground
Ground
Ground
6
DSR
NC
NC
7
RTS
NC
NC
8
CTS
NC
NC
9
NC
NC
NC
Note: Please refer to JP9 setting for RS232, RS422 and RS485 mode selection.
CH1, CH2: LVDS Display Connector
Part Number: DF13-20DP-1.25V(95)
Description: P1.25 SMD 20PIN Male 180D 2R
Signal Name
Pin #
Pin #
Signal Name
LCD1_TX0_P
1
2
LCD1_TX0_N
Ground
3
4
Ground
LCD1_TX1_P
5
6
LCD1_TX1_N
Ground
7
8
LCD_VDD
LCD1_TX3_P
9
10
LCD1_TX3_N
LCD1_TX2_P
11
12
LCD1_TX2_N
Ground
13
14
Ground
LCD1_CLK_P
15
16
LCD1_CLK_N
BTL_PWM
17
18
LCD_VDD
BKLT_VCC
19
20
BKLT_VCC
19
1
3
20
2
3
