ICON Health & Fitness PFEL05815.3 User manual

CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Model No. PFEL05815.3
Serial No.
Write the serial number in the space
above for reference.
USER’S MANUAL
proform.com
Serial Number
Decal
To register your product and
activate your warranty today,
go to my.proform.com.
For service at any time, go to
proformservice.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE

2
WARNING DECAL PLACEMENT
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE HYBRID TRAINER .........................................................16
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
MAINTENANCE AND TROUBLESHOOTING ....................................................24
EXERCISE GUIDELINES ....................................................................26
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
PROFORM and IFIT are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of Apple
Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The
BLUETOOTH®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on the hybrid trainer before using the hybrid trainer.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to
ensure that all users of the hybrid trainer are
adequately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. The hybrid trainer is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the hybrid
trainer by someone responsible for their
safety.
4. Use the hybrid trainer only as described in
this manual.
5. The hybrid trainer is intended for home use
only. Do not use the hybrid trainer in a com-
mercial, rental, or institutional setting.
6. Keep the hybrid trainer indoors, away from
moisture and dust. Do not put the hybrid
trainer in a garage or covered patio or near
water.
7. Place the hybrid trainer on a level surface,
with at least 3 ft. (0.9 m) of clearance in the
front and rear of the hybrid trainer and 2 ft.
(0.6 m) on each side. To protect the floor or
carpet from damage, place a mat under the
hybrid trainer.
8. Inspect and properly tighten all parts each
time the hybrid trainer is used. Replace any
worn parts immediately.
9. Keep children under age 13 and pets away
from the hybrid trainer at all times.
10. The hybrid trainer should not be used
by persons weighing more than 350 lbs.
(159 kg).
11. Wear appropriate clothes while exercis-
ing; do not wear loose clothes that could
become caught on the hybrid trainer. Always
wear athletic shoes for foot protection while
exercising.
12. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
hybrid trainer.
13. Make sure that the pedal knobs are fully
tightened each time you use the hybrid
trainer.
14. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
15. The hybrid trainer does not have a freewheel;
the pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
16. Keep your back straight while using the
hybrid trainer; do not arch your back.
17. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
IMPORTANT PRECAUTIONS

4
all
STANDARD SERVICE PLANS

5
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM®
HYBRID TRAINER PRO. The HYBRID TRAINER PRO
provides an impressive selection of features designed
to make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the hybrid trainer. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Length: 6 ft. 1 in. (185 cm)
Width: 2 ft. 1 in. (64 cm)
Handlebar
Seat
Pivot Knob
Console
Book Rack
Large Pedal
Small Pedal
Pedal Brace
Heart Rate Monitor
Backrest
Accessory Tray
Leveling Foot
Adjustment Handle
Upper Body Arm

6

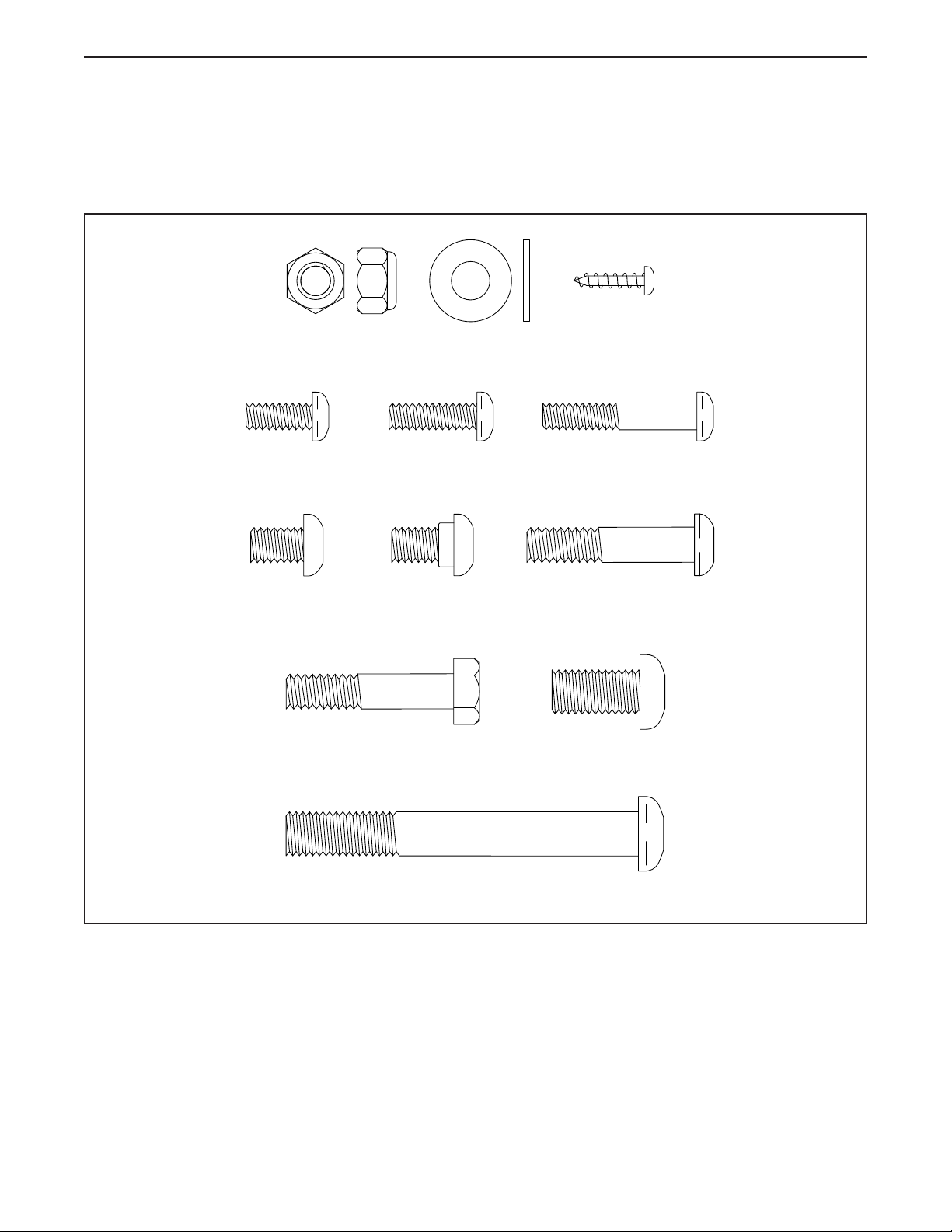

PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M10 x 80mm Screw (19)–4
M8 Locknut
(68)–10
M8 Washer
(87)–6
M8 x 38mm
Bolt (95)–4
M8 x 12mm
Screw (106)–6
M8 x 14mm
Shoulder
Screw (86)–6
M10 x 20mm
Screw (76)–6
M8 x 38mm Hex
Bolt (102)–6
M4 x 16mm
Screw (115)–6
M6 x 35mm Screw
(98)–4
M6 x 20mm
Screw (97)–4
M6 x 15mm
Screw (105)–8

7
• To hire an authorized service technician to
assemble the hybrid trainer, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish assembly.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
2. With the help of a second person, place some
of the packing materials (not shown) under the
Frame (1).
Orient the Rear Stabilizer (6) so that the large
holes (A) are facing the Frame (1). Attach
the Rear Stabilizer to the Frame with two
M10 x 80mm Screws (19).
Then, remove the packing materials from under
the Frame (1).
2
19
1
6
A
1. Go to my.proform.com on your computer and
register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Care
• allows us to notify you of upgrades and offers
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.
1

8
4
4. Set the Upright (2) near the Frame (1) as shown.
Locate the wire tie (C) in the Frame (1) and pull
the Main Wire (96) out of the underside of the
Frame.
Repeat this action to pull the Upper Wire
(not shown) out of the underside of the
Upright (2).
Then, untie and discard the wire ties (C, D).
96
3
3. Orient the Upright (2) and the Front Stabilizer (5)
so that the large holes (B) are facing the Upright.
Attach the Front Stabilizer (5) to the Upright (2)
with two M10 x 80mm Screws (19).
19
5
2
2
1
B
C
D

9
5
76
76
96
94
76
5. Tip: Avoid pinching the wires. Insert the
Upright (2) into the Frame (1).
Attach the Upright (2) with six M10 x 20mm
Screws (76); start all the Screws, and then
tighten them.
Then, connect the Upper Wire (94) to the Main
Wire (96).
Avoid pinching
the wires
Avoid pinching
the wires
6
6. Locate the wire tie (D) in the top of the Upright
(2) and pull the Upper Wire (94) out of the
Upright. Then, untie and discard the wire tie.
Tip: Avoid pinching the wires. Orient the Wire
Cover (20) so that the tab (E) is in the location
shown. Attach the Wire Cover to the Frame
(1) and the Upright (2) with two M4 x 16mm
Screws (115).
115
E
20
94
2
2
1
1
D

10
94
3
2
2
3
Grease
Avoid
pinching
the Upper
Wire (94)
8
13
94 80

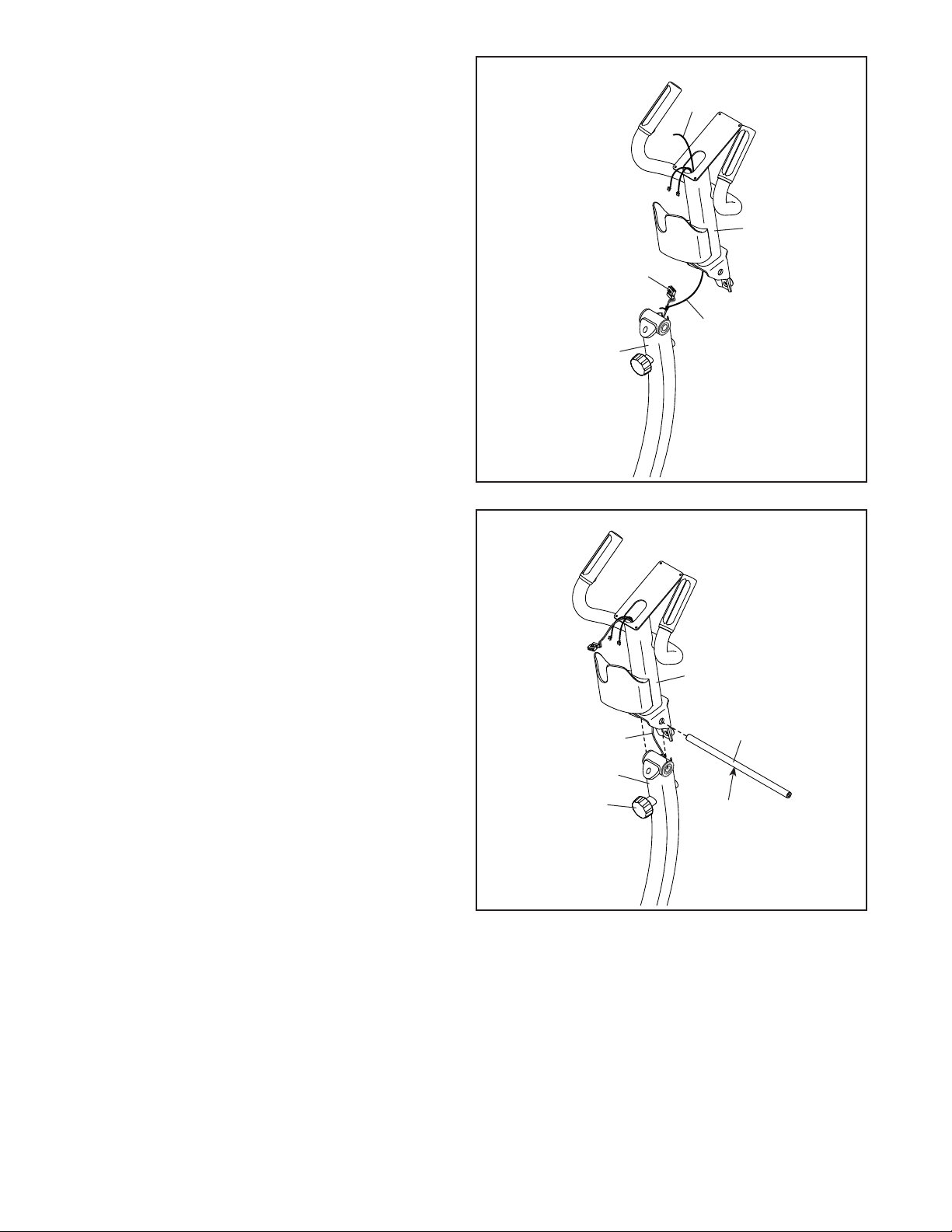

8. Using a plastic bag to keep your fingers clean,
apply a generous amount of the included grease
to the Pivot Axle (80).
Tip: Avoid pinching the Upper Wire (94). Slide
the Pivot Bracket (3) onto the Upright (2) and
hold it in place.
Next, insert the Pivot Axle (80) into the Pivot
Bracket (3) and into the Upright (2). Center the
Pivot Axle.
Then, tighten the Pivot Knob (13) into the Pivot
Bracket (3).
7
7. Have a second person hold the Pivot Bracket (3)
near the Upright (2).
Locate the wire tie (F) in the Pivot Bracket (3).
Tie the wire tie to the Upper Wire (94) and then
pull the other end of the wire tie until the Upper
Wire is routed through the Pivot Bracket.
F
F

11
9
10
86 83 87
8
9
9
105
Grease

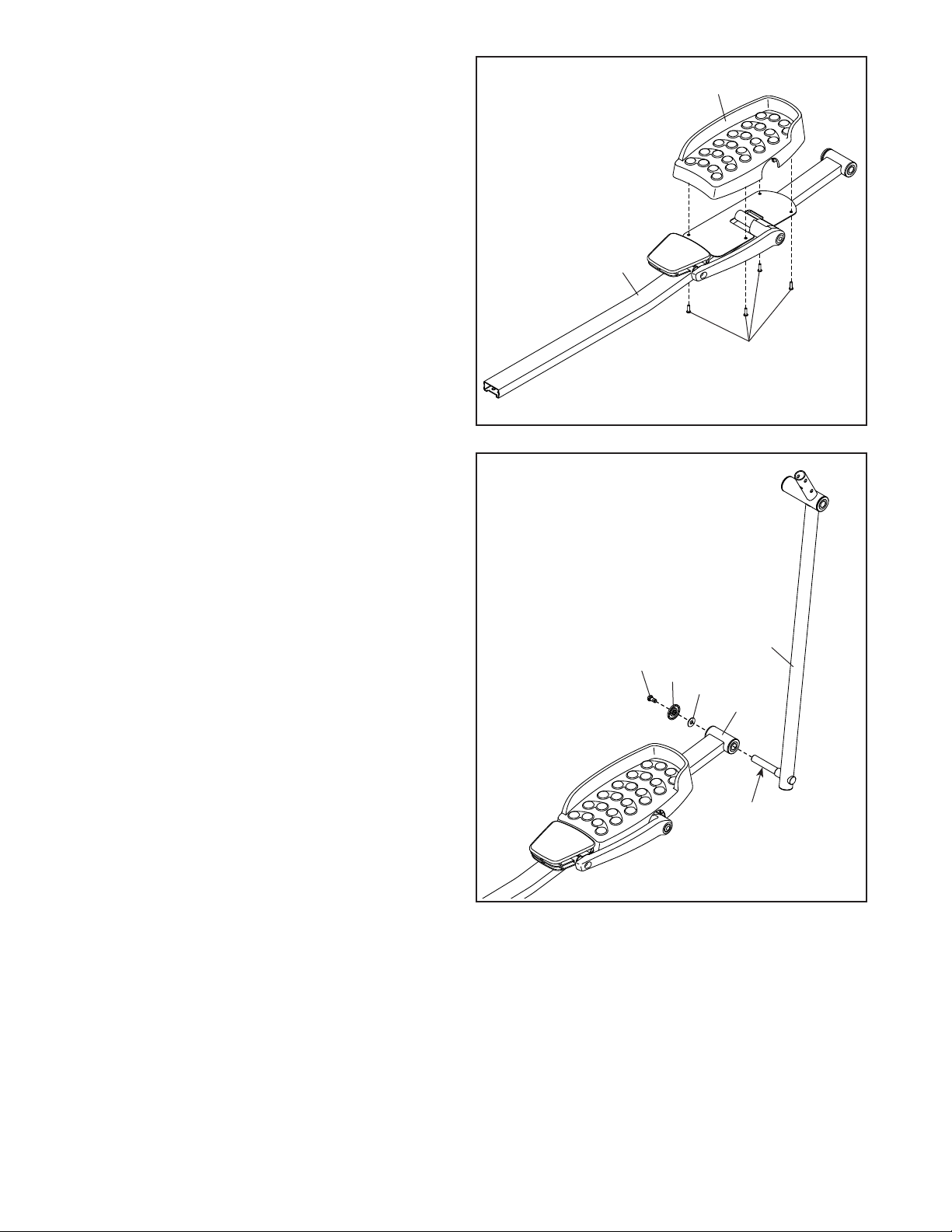

9. Identify the Right Pedal (70) and the Right Pedal
Arm (9), and orient them as shown.
Attach the Right Pedal (70) to the Right Pedal
Arm (9) with four M6 x 15mm Screws (105);
start all the Screws, and then tighten them.
Repeat this step for the Left Pedal (not
shown) and the Left Pedal Arm (not shown).
10. Identify the Right Pedal Arm (9) and the Right
Pivot Leg (8), and orient them as shown.
Apply a generous amount of the included grease
to the axle on the Right Pivot Leg (8).
Then, slide the Right Pedal Arm (9) onto the
Right Pivot Leg (8). Attach the Right Pedal Arm
with an M8 x 14mm Shoulder Screw (86), a Pivot
Cover (83), and an M8 Washer (87).
Repeat this step for the Left Pedal Arm (not
shown) and the Left Pivot Leg (not shown).
70

12
12

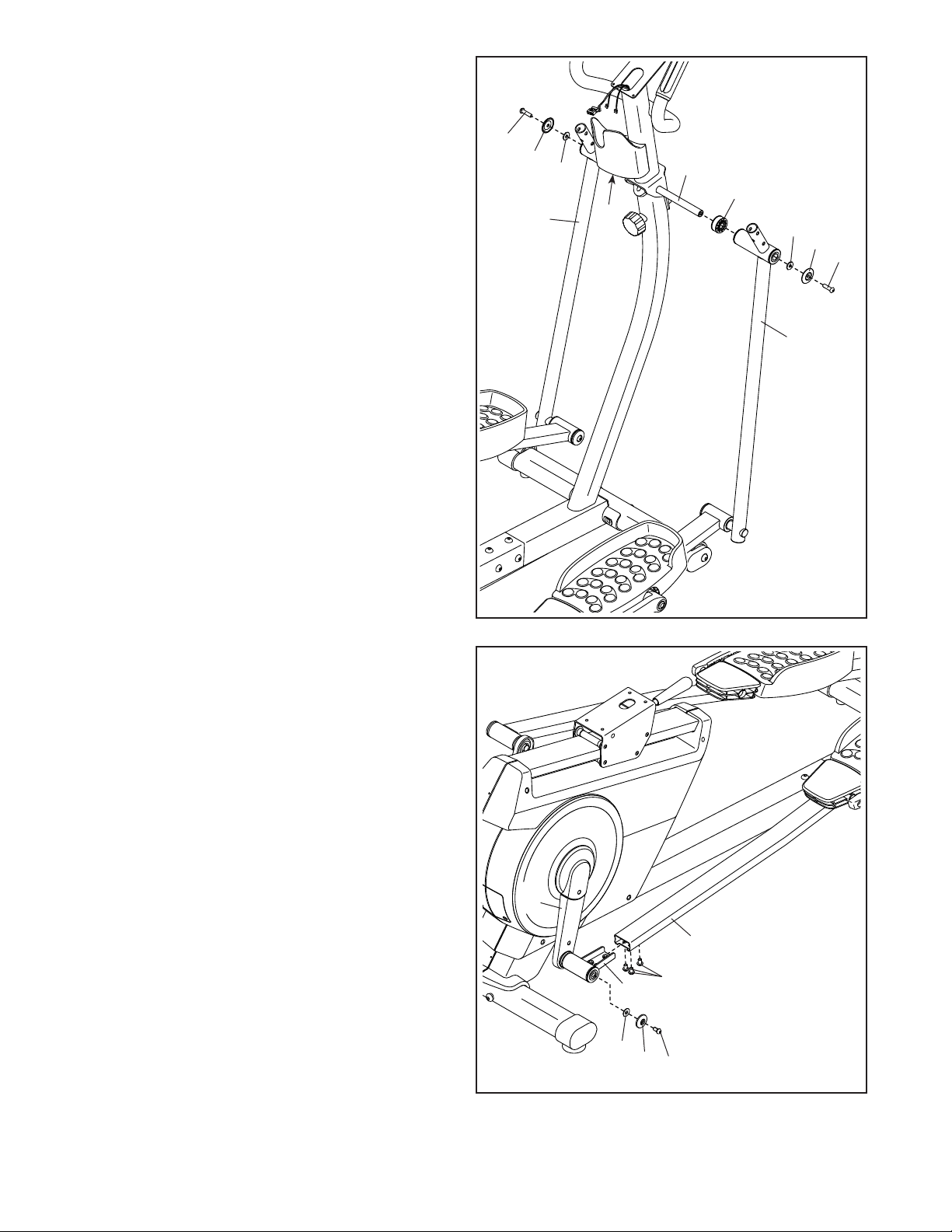

12. Remove and discard the packaging on the Right
Crank Bracket (30). Then, tighten an M8 x 14mm
Shoulder Screw (86) with a Pivot Cover (83) and
an M8 Washer (87) into the right Crank Arm (24).
Next, slide the Right Pedal Arm (9) onto the
Right Crank Bracket (30).
Attach the Right Pedal Arm (9) with three M8 x
12mm Screws (106); start all the Screws, and
then tighten them.
Repeat this step on the other side of the
hybrid trainer.
106
30
86
83
87
9
24
11
8
11
79
79
80
87
87
86
86
83
83
11. Slide a Pivot Spacer (79) onto each side of the
Pivot Axle (80).
Then, slide the Right and Left Pivot Legs (8, 11)
onto the Pivot Axle (80); make sure that the
Pivot Legs are on the correct sides.
Then, tighten an M8 x 14mm Shoulder Screw
(86), a Pivot Cover (83), and an M8 Washer (87)
into each end of the Pivot Axle (80) at the same
time.

13
14
115
94
103, 104
3
4
Avoid pinching
the wires
14. Untie and discard the wire tie on the Upper
Wire (94).
While a second person holds the Console (4)
near the Pivot Bracket (3), plug the Upper Wire
(94) and the Left and Right Pulse Wires (103,
104) into the receptacles on the Console.
The connectors on the Wires (94, 103, 104)
should slide easily into the receptacles and
snap into place. If a connector does not slide
easily into a receptacle, turn the connector and
try again. If you do not connect the connectors
properly, the Console (4) may become dam-
aged when you use the hybrid trainer.
Insert the excess wire into the Pivot Bracket (3).
Tip: Avoid pinching the wires. Attach the
Console (4) to the Pivot Bracket (3) with four
M4 x 16mm Screws (115); start all the Screws,
and then tighten them.
13
13. The Console (4) requires four D batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batter-
ies together. IMPORTANT: If the Console has
been exposed to cold temperatures, allow it
to warm to room temperature before insert-
ing batteries. Otherwise, you may damage
the console displays or other electronic
components.
Remove the screws and the battery cover (G)
from the back of the Console (4), insert batteries
into the battery compartment, and then reattach
the battery cover. Make sure to orient the bat-
teries as shown by the diagrams inside the
battery compartment.
To purchase an optional power adapter, call
the telephone number on the cover of this
manual. To avoid damaging the Console (4),
use only a manufacturer-supplied regulated
power adapter. Plug one end of the power
adapter into the receptacle inside the battery
compartment on the Console and route the
power adapter through the notch in the bat-
tery cover; plug the other end into an outlet
installed in accordance with all local codes and
ordinances.
G
4

14
16
61
68
29
93
95
I

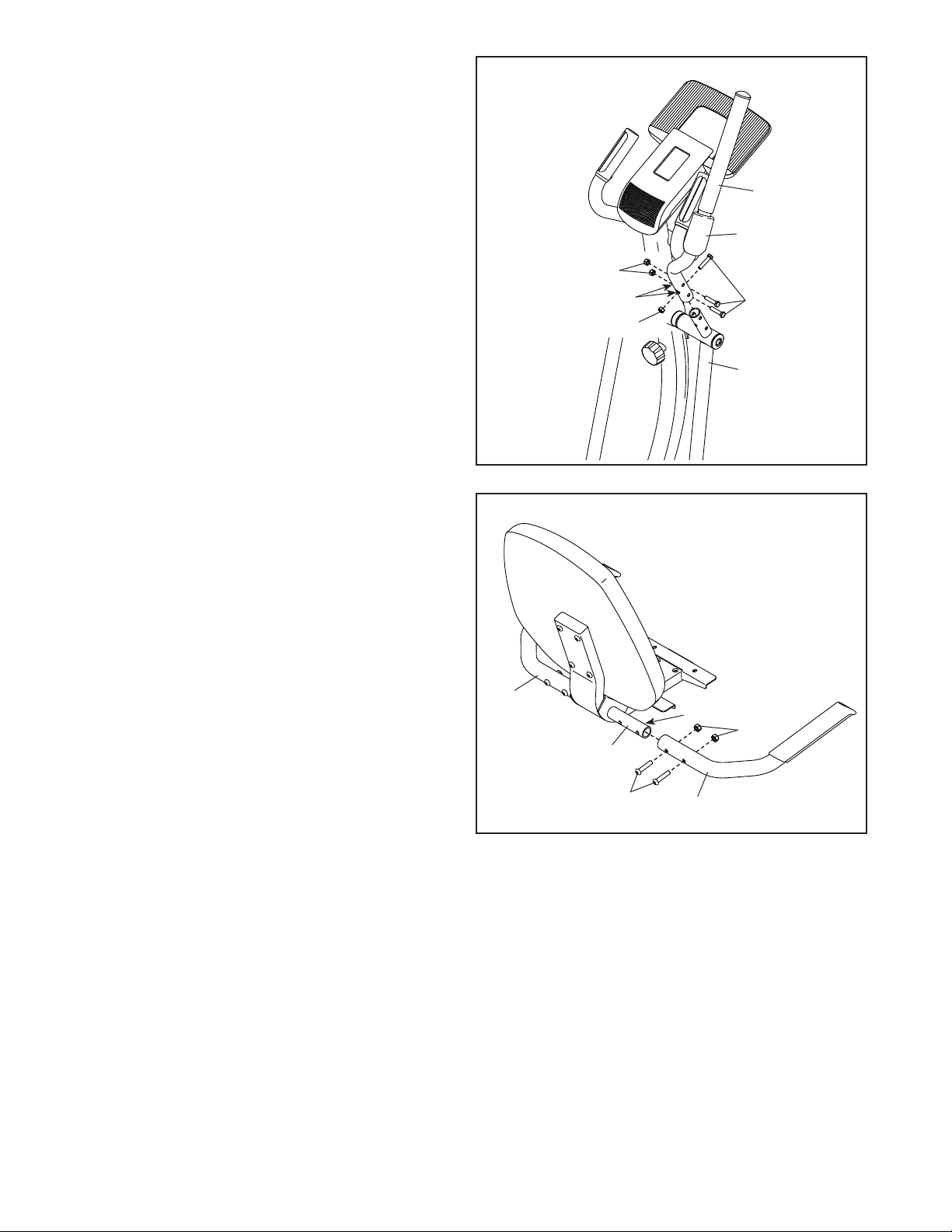

16. Identify the Right and Left Seat Handlebars
(29, 93).
Slide the Right Seat Handlebar (29) onto the
right side of the Seat Frame (61).
Attach the Right Seat Handlebar (29) with two
M8 x 38mm Bolts (95) and two M8 Locknuts
(68); make sure that the Locknuts are in the
hexagonal holes (I).
Repeat this step to attach the Left Seat
Handlebar (93).
15
102
7
8
78
68
68
15. Identify the Right Upper Body Arm (7).
Orient an Upper Body Cover (78) as shown,
and slide it upward onto the Right Upper Body
Arm (7).
Attach the Right Upper Body Arm (7) to the Right
Pivot Leg (8) with three M8 x 38mm Hex Bolts
(102) and three M8 Locknuts (68); start all the
Hex Bolts, and then tighten them. Make sure
that the Locknuts are inside the hexagonal
holes (H).
Then, slide the Upper Body Cover (78)
downward onto the Right Pivot Leg (8).
Repeat this step on the other side of the
hybrid trainer.
H

15
18

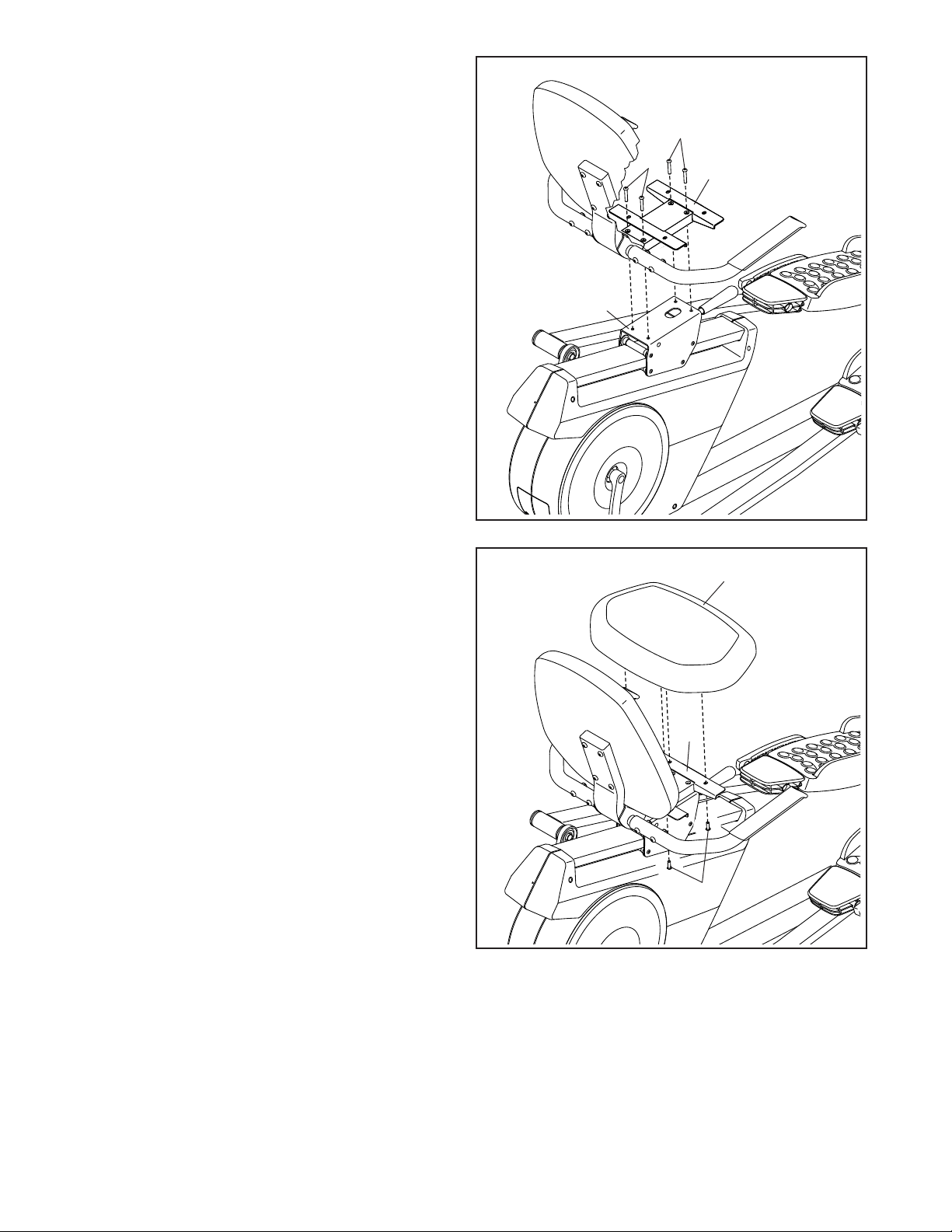

18. Attach the Seat (28) to the Seat Frame (61)
with four M6 x 20mm Screws (97) (only two are
shown); start all the Screws, and then tighten
them.
19. Make sure that all parts of the hybrid trainer are properly tightened. Extra parts may be included. To
protect the floor or carpet from damage, place a mat under the hybrid trainer.
28
61
97
17
17. Attach the Seat Frame (61) to the Seat Carriage
(32) with four M6 x 35mm Screws (98); start all
the Screws, and then tighten them.
61
98
98
32

16

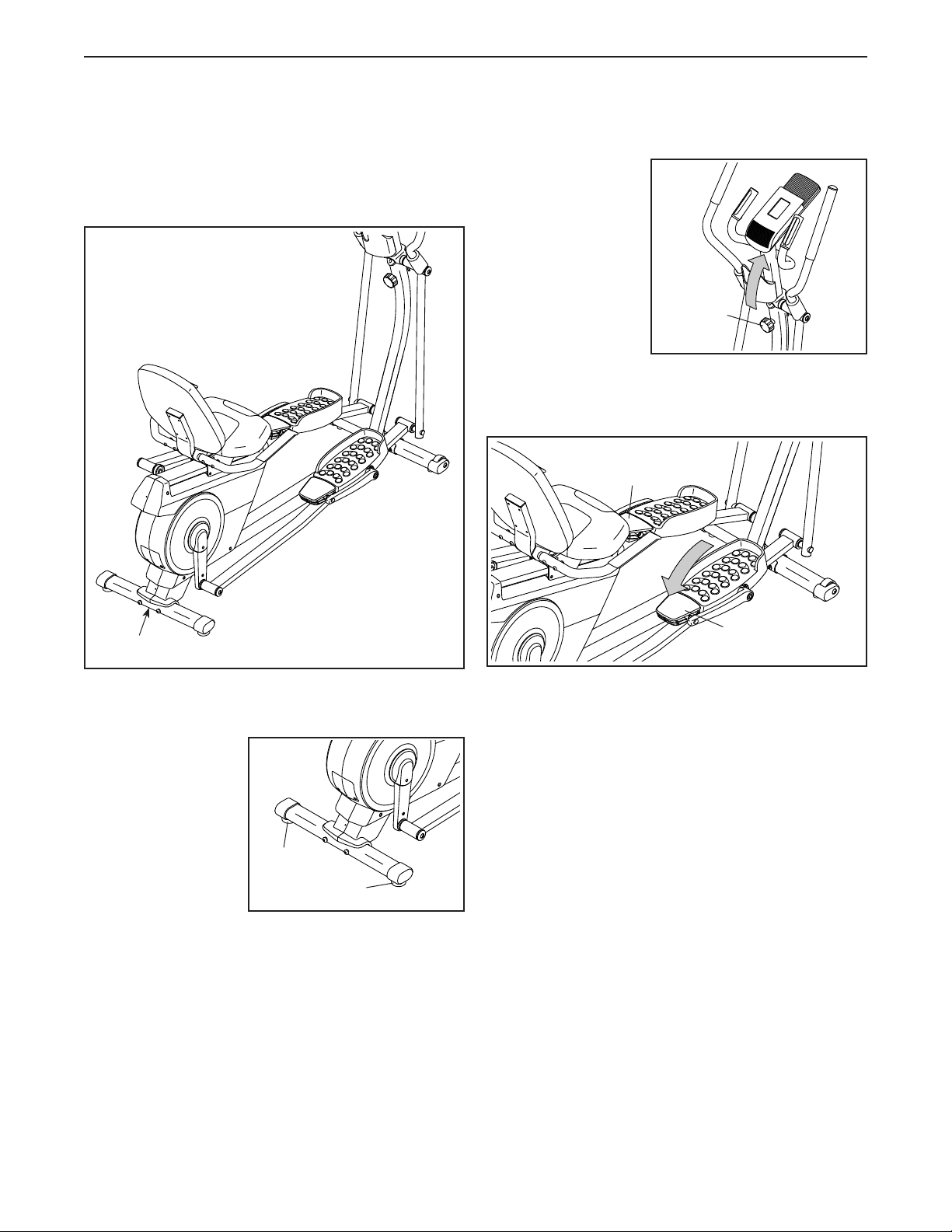

HOW TO MOVE THE HYBRID TRAINER
Lift the rear stabilizer (A) until the hybrid trainer will roll
on the wheels. Carefully move the hybrid trainer to the
desired location, and then lower it to the floor.
HOW TO LEVEL THE HYBRID TRAINER
If the hybrid trainer
rocks slightly on
your floor during
use, turn one or
both of the leveling
feet (B) beneath
the rear of the
frame until the
rocking motion is
eliminated.
HOW TO USE THE ELLIPTICAL MODE
To use the hybrid
trainer as an ellipti-
cal, first raise the
pivot bracket to the
high position and
tighten the pivot
knob (C) into the
upright.
Then, pivot the right and left small pedals (D, E) to the
low position.
A
B
B
C
D
E
HOW TO USE THE HYBRID TRAINER

17
To mount the hybrid trainer in the elliptical mode, hold
the handlebars (F) or the upper body arms (G) and
step onto the pedal (H) that is in the lower position.
Then, step onto the other pedal.
Push the pedals (H) until they begin to move with a
continuous motion. Note: The pedals can turn in
either direction. It is recommended that you move
the pedals in the direction shown by the arrow;
however, for variety, you can turn the pedals in the
opposite direction.
To dismount the hybrid trainer, wait until the pedals (H)
come to a complete stop. Note: The hybrid trainer
does not have a free wheel; the pedals will con-
tinue to move until the flywheel stops. When the
pedals are stationary, step off the higher pedal first.
Then, step off the lower pedal.
HOW TO USE THE RECUMBENT BIKE MODE
To use the hybrid
trainer as a recum-
bent bike, loosen
the pivot knob (C)
and move the pivot
bracket to the low
position.
Next, pivot the right and left small pedals (D, E) to the
high position.
Then, adjust the
seat forward or
backward to the
position that is the
most comfortable;
there should be a
slight bend in your
knees when the
small pedals are in
the farthest forward
position. To adjust
the seat, pull the
adjustment handle
(I) outward to the
side, slide the seat
to the desired position, and then pull the adjustment
handle inward to the center.
H
G
F
D, E
I
C

18
CONSOLE DIAGRAM FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using the handgrip heart rate monitor
or a compatible heart rate monitor. See page 22 for
information about purchasing an optional chest
heart rate monitor.
You can also connect your smart device to the console
and use an iFit®app to record and track your workout
information.
The console also offers twenty preset workouts—ten
workouts for the recumbent bike mode and ten work-
outs for the elliptical mode. Each workout automatically
changes the resistance of the pedals and prompts you
to vary your pedaling speed while guiding you through
an effective workout.
You can even connect your personal audio player to
the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see page 19. To use
the sound system, see page 20. To use a preset
workout, see page 21. To connect your smart
device to the console, see page 22. To connect
your heart rate monitor to the console, see page
22. To use the settings mode, see page 23.
Note: Before using the console, make sure that
batteries are installed (see assembly step 13 on page
13). If there is a sheet of plastic on the display,
remove the plastic.
Audi
ELPF05815
PFEL05815

19
HOW TO USE THE MANUAL MODE
1. Turn on the console.
Press any button or begin pedaling to turn on the
console.
When you turn on the console, the displays will turn
on, a tone will sound, and the console will be ready
for use.
2. Select the manual mode.
When you turn on the con-
sole, the manual mode will
be selected automatically.
If you have selected a
workout, reselect the manual
mode by pressing the On/
Reset button.
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the
resistance of the pedals by
pressing the Resistance
increase and decrease
buttons.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected
resistance level.
4. Follow your progress with the displays.
The speed meter—This
display will provide a visual
representation of your pedal-
ing speed. As you increase
or decrease your pedaling
speed, bars will appear or
disappear in the speed meter.
Note: During a preset workout, this display will
show a target speed zone for each segment of the
workout.
The upper display—This
display will show your pedal-
ing speed in revolutions
per minute (RPM) and your
power output in watts. The
display will change every few
seconds.
This display will also show the resistance level
of the pedals for a few seconds each time the
resistance level changes.
This display will also show
your heart rate (BPM) when
you use the handgrip heart
rate monitor or a compat-
ible heart rate monitor (see
step 5).
The center display—This
display will show the distance
(Dist.) you have pedaled in
miles or kilometers and the
elapsed time. The display will
change every few seconds.
Note: During a preset workout, the display will
show the time remaining in the workout instead of
the elapsed time.
The lower display—This
display will show your
pedaling speed in miles per
hour or kilometers per hour
and the approximate num-
ber of calories (Cals.) you
have burned. The display will change every few
seconds.
To select an information mode for continuous
display, press the Display button repeatedly until
the desired information is shown in the display.
To return to alternating the information that is
shown in the displays, press the Display button
repeatedly until the word SCAN appears in the
center display.
Change the volume level
of the console by pressing
the Volume increase and
decrease buttons.

20
To pause the console, stop pedaling. When the
console is paused, the displays will pause. To
continue your workout, simply resume pedaling.
To reset the displays to zero, press the On/Reset
button.
Note: The console can show pedaling speed and
distance in either miles or kilometers. To change
the unit of measurement, see THE SETTINGS
MODE on page 23.
5. Measure your heart rate if desired.
You can measure your heart rate using either
the handgrip heart rate monitor or a compatible
heart rate monitor. For information about pur-
chasing an optional chest heart rate monitor,
see page 22.
The console is compatible with all BLUETOOTH®
Smart heart rate monitors. To connect your heart
rate monitor to the console, see page 22.
Note: If you use both heart rate monitors at the
same time, the BLUETOOTH Smart heart rate
monitor will have priority.
If there are sheets of
plastic on the metal
contacts (A) on the
handgrip heart rate
monitor, remove the
plastic. In addition,
make sure that your
hands are clean. To
measure your heart
rate, hold the handgrip
heart rate monitor with
your palms resting against the contacts. Avoid
moving your hands or gripping the contacts
tightly.
When your pulse is detected, your heart rate will be
shown in the upper display. For the most accurate
heart rate reading, hold the contacts for at least
15 seconds.
If your heart rate is not shown, make sure that your
hands are positioned as described. Be careful not
to move your hands excessively or to squeeze the
contacts tightly. For optimal performance, clean
the contacts using a soft cloth; never use alcohol,
abrasives, or chemicals to clean the contacts.
6. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound, the console will pause,
and displays will pause.
If the pedals do not move for several minutes, the
console will turn off and the displays will be reset.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the
jack on the console and into a jack on your personal
audio player; make sure that the audio cable is fully
plugged in. Note: To purchase an audio cable, see
your local electronics store.
Next, press the play button on
your personal audio player.
Adjust the volume level using the
volume increase and decrease
buttons on the console or the
volume control on your personal audio player.
A
