WARNING DECAL PLACEMENT

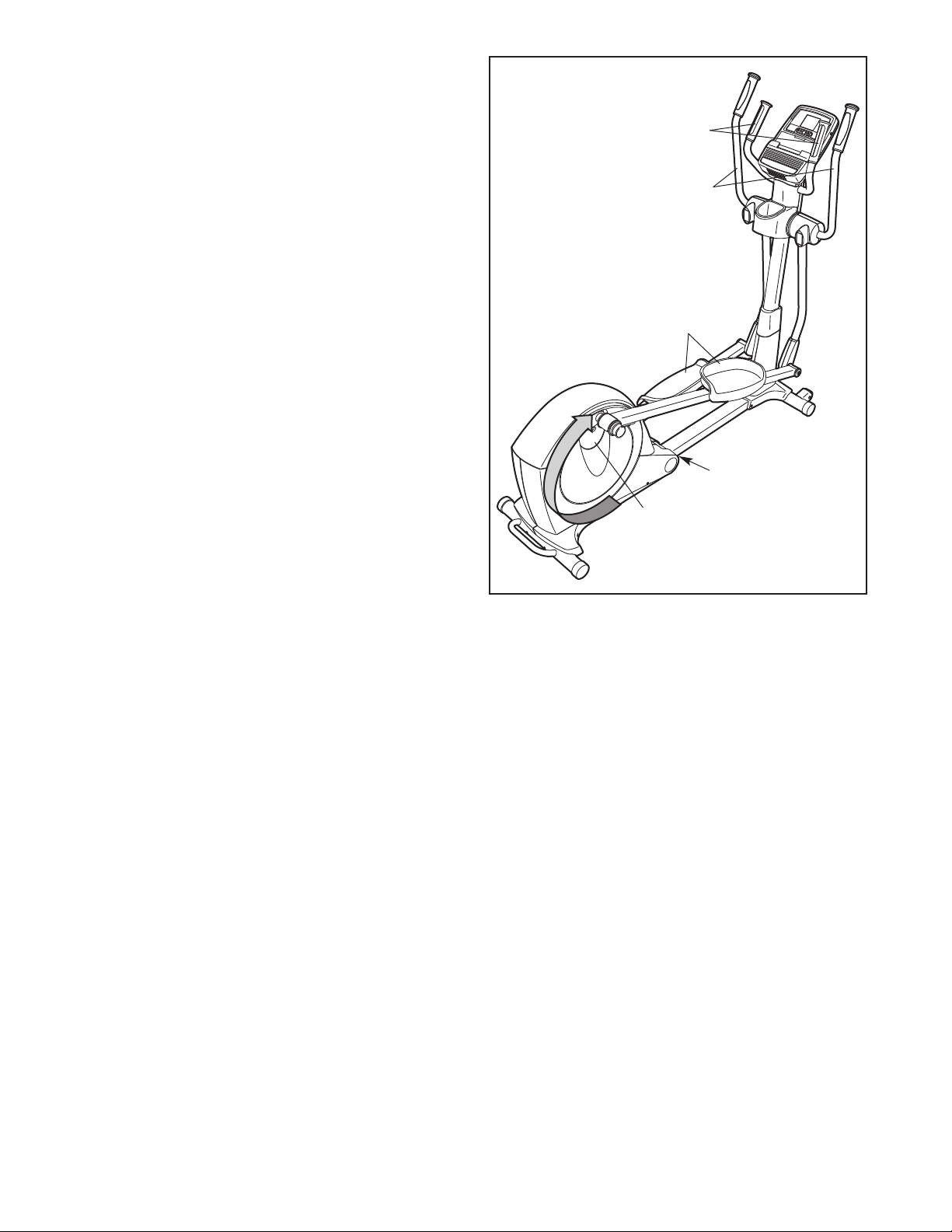

This drawing shows the location(s) of the
warning decal(s). If a decal is missing or
illegible, see the front cover of this manual
and request a free replacement decal.
Apply the decal in the location shown. Note:
The decal(s) may not be shown at actual size.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical exerciser before using your elliptical
exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. Use the elliptical exerciser only as described
in this manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
4. The elliptical exerciser is intended for
home use only. Do not use the elliptical exer-
ciser in a commercial, rental, or institutional
setting.
5. eep the elliptical exerciser indoors, away
from moisture and dust. Place the elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is at least 3 ft. (0.9 m) of
clearance in the front and rear of the ellipti-
cal exerciser and 2 ft. (0.6 m) on each side.
6. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
7. eep children under age 12 and pets away
from the elliptical exerciser at all times.
8. The elliptical exerciser should not be used by
persons weighing more than 275 lbs.
(125 kg).
9. Wear appropriate exercise clothes while
using the elliptical exerciser. Always wear
athletic shoes for foot protection while exer-
cising.
10. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical exerciser.
11. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
12. eep your back straight while using the ellip-
tical exerciser; do not arch your back.
13. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
14. When you stop exercising, allow the pedals
to slowly come to a stop.

4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM®
10.0 ZE elliptical exerciser. The 10.0 ZE elliptical exer-
ciser provides an impressive selection of features
designed to make your workouts at home more effec-
tive and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, note the
product model number and serial number before con-
tacting us. The model number and the location of the
serial number decal are shown on the front cover of
this manual.

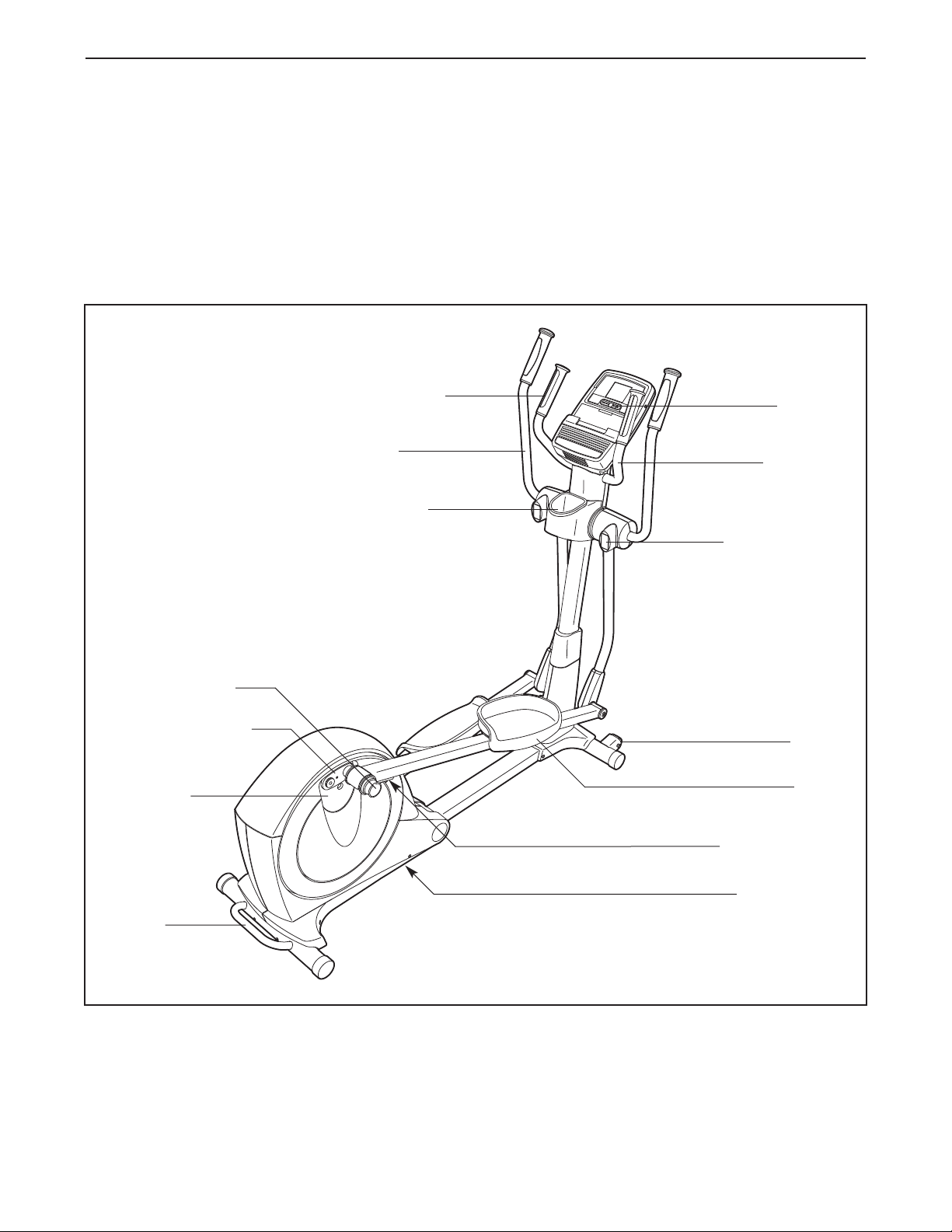

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handlebar
Upper Body Arm
Storage Magnet
Console
Wheel
Pedal
Pedal Arm Latch
Storage Latch
Water Bottle Holder*
Handgrip Pulse Sensor
Adjustment Knob
Handle
Crank Arm
Adjustment Bracket
*Water bottle is not included

5
ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver and a rubber
mallet .

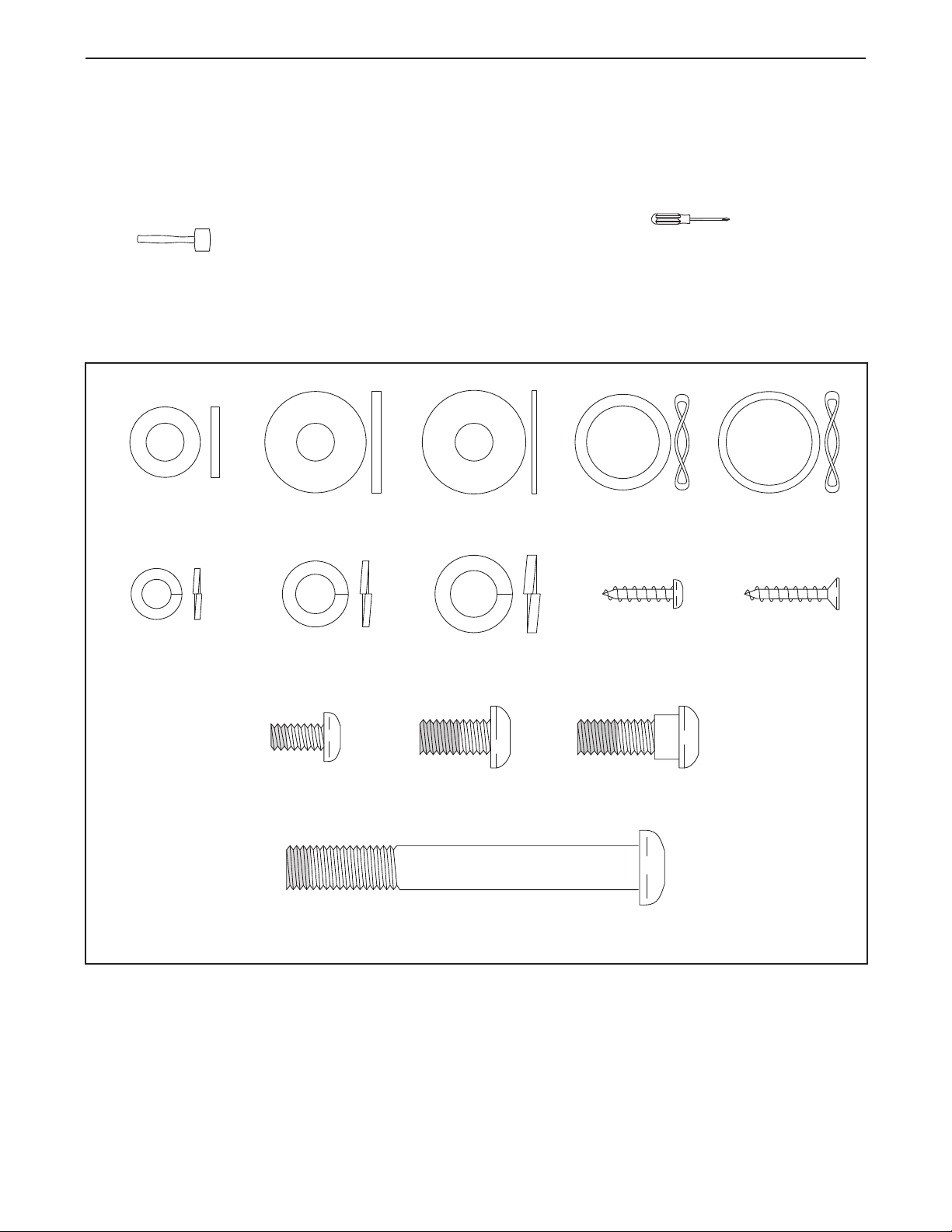

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware
kit, check to see if it has been preassembled.
M8 x 23mm x 2mm
Washer (126)–2
M8 x 16mm x 2mm
Washer (120)–2
M10 x 80mm Patch
Screw (100)–4
Medium Wave
Washer (119)–2
M8 x 23.5mm x 1mm
Washer (110)–2
M8 Split Washer
(103)–14
M10 Split
Washer (123)–4
Small Wave
Washer (118)–2
M6 Split Washer
(112)–8
M4 x 16mm
Screw (93)–12
M8 x 16mm Patch
Screw (102)–16
M8 x 23mm Shoulder
Patch Screw (121)–2
M6 x 12mm Patch
Screw (111)–8
MM4 x 19mm
Flat Head
Screw (117)–1

6
1.
Identify and orient the Front Stabilizer (3) as
shown.
While another person lifts the Frame (1), attach
the Front Stabilizer (3) to the Frame with two
M10 x 80mm Patch Screws (100) and two M10
Split Washers (123).
2. Identify and orient the Rear Stabilizer (4) as
shown.
While another person lifts the Folding Frame
(2), attach the Rear Stabilizer (4) to the Folding
Frame with two M10 x 80mm Patch Screws
(100) and two M10 Split Washers (123).
1
2
To make assembly easier, read the
information on page 5 before you begin.
3
1
2
4
100
123
123
100

7
3. Identify and orient the Upright (5) and the Top
Cover (23) as shown. Slide the Top Cover
upward onto the Upright.
Have a second person hold the Upright (5) and
the Top Cover (23) near the Frame (1).
Locate the wire tie in the Upright (5). Tie the
lower end of the wire tie to the Wire Harness
(60). Next, pull the upper end of the wire tie
upward out of the top of the Upright. Then, untie
and discard the wire tie.
Tip: To prevent the Wire Harness (60) from
falling into the Upright (5), secure the Wire
Harness with a rubber band or tape.
Tip: Avoid pinching the Wire Harness (60).
Insert the Upright (5) into the Frame (1).
Attach the Upright (5) with four M8 x 16mm
Patch Screws (102) and four M8 Split Washers
(103). Do not tighten the Patch Screws yet.
Slide the Top Cover (23) downward. Do not
press the Top Cover into the Frame (1) yet.
3
1
60
102
102
102
102
103
103
103
23
5
Wire Tie
Wire Tie
Avoid pinching the
Wire Harness (60)

8
5. See the upper drawing. Apply some of the
included grease to the axle on the Right Upper
Body Leg (6) and to a Medium Wave Washer
(119).
Slide a Leg Spacer (55) and the Medium Wave
Washer (119) onto the Right Upper Body Leg
(6). Make sure that the flat side of the Leg
Spacer is facing outward.
Identify the Right Pedal Arm (12), which is
marked with a “Right” sticker, and orient it as
shown. Slide the Right Pedal Arm onto the
Right Upper Body Leg (6).
Attach the Right Pedal Arm (12) with an M8 x
23mm Shoulder Patch Screw (121), an M8 x
16mm x 2mm Washer (120), an Axle Cover
(56), and an M8 x 23.5mm x 1mm Washer
(110).
See the lower drawing. Press the Right Pedal
Arm (12) onto the right Adjustment Sleeve (46).
Make sure that the Right Pedal Arm latches
into place.
Tighten an Adjustment Knob (45) onto the right
Adjustment Pin (44).
Repeat this step on the other side of the
elliptical exerciser.
4
5
4. Apply a generous amount of the included grease
to the Upright Axle (48) and to two Small Wave
Washers (118).
Insert the Upright Axle (48) into the Upright (5)
and center it. Slide a Small Wave Washer (118)
onto each end of the Upright Axle.
Identify the Right and Left Upper Body Legs (6,
7), which are marked with “Right” and “Left” stick-
ers, and orient them as shown.
Slide the Right and Left Upper Body Legs (6, 7)
onto each side of the Upright Axle (48).
Tighten two M8 x 16mm Patch Screws (102) with
M8 x 23mm x 2mm Washers (126) into the ends
of the Upright Axle (48) at the same time. Firmly
tighten the Patch Screws.
102
102
126
126
118
118
48
6
6
55
12
56
120
110
121
5
7
119
12
Grease
Grease
Grease
46 44
45

9
6
6. Identify the Right Pedal (14), which is marked
with a “Right” sticker, and orient it as shown.
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with four M6 x 12mm Patch Screws
(111) and four M6 Split Washers (112).
Attach the Left Pedal (15) to the Left Pedal
Arm (13) in the same way.
12
14
13
15
111
111
112
112
7
8
6
7
9
102
103
103
7. Identify the Right Upper Body Arm (8), which is
marked with a “Right” sticker, and orient it as
shown.
Attach the Right Upper Body Arm (8) to the
Right Upper Body Leg (6) with three M8 x
16mm Patch Screws (102) and three M8 Split
Washers (103).
Attach the Left Upper Body Arm (9) to the Left
Upper Body Leg (7) in the same way.

10
8
9

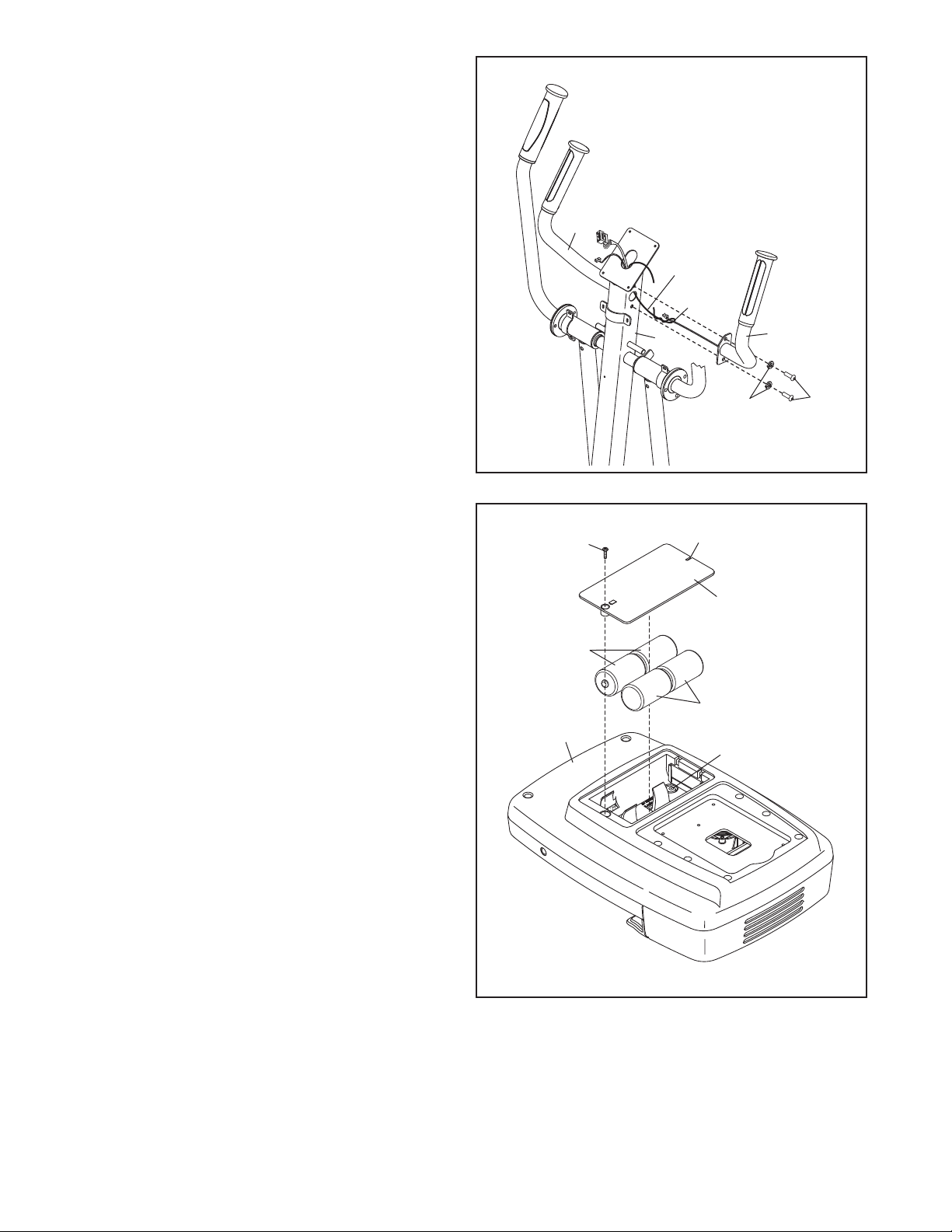

8. Identify the Right Handlebar (10), which is
marked with a “Right” sticker, and orient it as
shown.
Have a second person hold the Right
Handlebar (10) near the right side of the
Upright (5).
Locate the indicated wire tie in the Upright (5).
Tie the lower end of the wire tie to the Pulse
Wire (34) inside the Right Handlebar (10). Next,
pull the upper end of the wire tie upward out of
the top of the Upright. Then, untie and discard
the wire tie.
Tip: Avoid pinching the Pulse Wire (34).
Attach the Right Handlebar (10) to the Upright
(5) with two M8 x 16mm Patch Screws (102)
and two M8 Split Washers (103).
Attach the Left Handlebar (11) in the same
way.
102
103
34
10
33
11
5
Wire Tie
Slot
Battery Cover
Screw
Batteries
ack
Batteries
9. The Console (33) can use four D batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been
exposed to cold temperatures, allow it to
warm to room temperature before inserting
batteries. Otherwise, you may damage the
console displays or other electronic compo-
nents. Remove the screw, remove the battery
cover, insert the batteries into the battery com-
partment, and reattach the battery cover. Make
sure to orient the batteries as shown by the
diagram inside the battery compartment.
To purchase an optional AC adapter, contact
the store where you purchased this product
or call the telephone number on the cover of
this manual. To avoid damaging the console,
use only a manufacturer-supplied AC
adapter. Remove the battery cover, remove the
batteries, and plug one end of the AC adapter
into the jack inside the battery compartment on
the console; plug the other end into an outlet
installed in accordance with all local codes and
ordinances. Route the wire on the AC adapter
through the slot in the battery cover and reat-
tach the battery cover.
Avoid pinching the
Pulse Wire (34)

11
10. While a second person holds the Console (33)
near the Upright (5), connect the console wires
to the Wire Harness (60) and to the Pulse Wires
(34).
Insert the excess wire into the Console (33).
Tip: Avoid pinching the wires. Attach the
Console (33) to the Upright (5) with four M4 x
16mm Screws (93).
10
11
11. Attach the Rear Upright Cover (24) to the
Upright (5) with two M4 x 16mm Screws (93)
and an M4 x 19mm Flat Head Screw (117).
33
34
60
93
93
117
24
5
5
Console Wires
Avoid pinching
the wires

12
12. Attach the Front Upright Cover (25) around the
Upright (5) by pressing the tabs on the Front
Upright Cover into the Rear Upright Cover (24).
13
14. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
12
13. Identify the Right Rear and Front Leg Covers
(29, 30), which are marked with “Right” stickers.
Attach the Right Rear Leg Cover (29) to the
Right Upper Body Leg (6) with three M4 x
16mm Screws (93).
Attach the Right Front Leg Cover (30) around
the Right Upper Body Leg (6) by pressing the
tabs on the Right Front Leg Cover into the Right
Rear Leg Cover (29).
Attach the Left Rear and Front Leg Covers
(31, 32) in the same way.
See step 3. Tighten the four M8 x 16mm Patch
Screws (102).
Then, slide the Top Cover (23) downward and
press it over the Frame (1).
30
29
31
32
693
24
5
25
23
1

13
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
EXERCISER
When the elliptical exerciser is not in use, the frame
can be folded out of the way. First, lift the latch under
each pedal arm, and lift the pedal arms off the adjust-
ment sleeves on the crank arms.
Next, raise the pedal arms until they touch the mag-
nets on the upper body legs; the magnets will hold the
pedal arms in place. Then, hold the handle and lift the
frame until it locks in a vertical position.
To use the elliptical exerciser, first hold the handle,
press the latch button, and lower the frame.
Next, pull the pedal arms off the magnets on the upper
body legs. Then, lift the latches under the pedal
arms, and set the pedal arms on the adjustment
sleeves on the crank arms. Release the latches, and
make sure that the pedal arms are securely connected
to the adjustment sleeves.
HOW TO MOVE THE ELLIPTICAL EXERCISER
To move the elliptical exerciser, first fold it as
described at the left. Next, stand in front of the ellipti-
cal exerciser, hold the upright, and place one foot
against one of the wheels. Pull the upright until the
elliptical exerciser rolls on the front wheels. Carefully
move the elliptical exerciser to the desired position,
and then lower it to the floor.
HOW TO ADJUST THE STRIDE LENGTH OF THE
ELLIPTICAL EXERCISER
To adjust the stride length of the elliptical exerciser,
first pull one of the adjustment knobs until the adjust-
ment arm will pivot freely. Pivot the adjustment arm
until the adjustment knob is aligned with one of the
holes in the crank arm, and gently release the knob
into the hole.
Pivot the adjustment arm back and forth slightly to
make sure that the adjustment pin is engaged in one
of the holes in the crank arm.
Adjust the stride length on the other side of the ellipti-
cal exerciser in the same way. Make sure that both
sides of the elliptical exerciser are adjusted to the
same stride length.
Handle
Magnet
Latch Button
Sleeve
Crank
Arm
Latch
Pedal Arm
Adjustment
Arm
Adjustment
Knob
Crank
Arm
Holes
Adjustment
Pin

14
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, hold the upper body
arms or the handlebars and step onto the pedal that is
in the lowest position. Next, step onto the other pedal.
Push the pedals until they begin to move with a con-
tinuous motion. Note: The crank arms can turn in
either direction. It is recommended that you turn
the crank arms in the direction shown by the
arrow; however, for variety, you can turn the crank
arms in the opposite direction.
To dismount the elliptical exerciser, wait until the ped-
als come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the highest
pedal first. Then, step off the lowest pedal.
HOW TO ELIMINATE FLEXING IN THE CENTER OF
THE ELLIPTICAL EXERCISER
If the elliptical exerciser flexes in the center during
use, turn the leveling foot under the center of the
frame until the flexing is eliminated.
Pedals
Crank Arm
Leveling Foot
Handlebars
Upper Body Arms

15
FEATURES OF THE CONSOLE
This console offers an array of features designed to
make your workouts more effective and enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. While you exercise, the console will dis-
play continuous exercise feedback. You can also
measure your heart rate using the handgrip pulse sen-
sor.
The console offers eight preset workouts. Each work-
out automatically changes the resistance of the pedals
as it guides you through an effective workout.
The console also offers eight calorie goal workouts
designed to help you burn a set number of calories.
Each workout automatically controls the resistance of
the pedals while counting the approximate number of
calories you burn.
The console also features the iFit Interactive Workout
System, which enables the console to accept iFit
cards containing workouts designed to help you
achieve specific fitness goals. For example, lose
unwanted pounds with the 8-week Weight Loss work-
out. iFit workouts control the resistance of the pedals
while the voice of a personal trainer coaches you
through your workouts. iFit cards are available sepa-
rately. To purchase iFit cards, go to www.iFit.com
or call the telephone number on the front cover of
this manual. iFit cards are also available at select
stores.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see page 16. To use a
preset workout, see page 18. To use a calorie goal
workout, see page 19. To use an iFit workout, see
page 20. To use the sound system, see page 20. To
change console settings, see page 20.
Note: Before using the console, make sure that batter-
ies are installed (see assembly step 9 on page 10). If
there is a sheet of clear plastic on the display, remove
the plastic.
CONSOLE DIAGRAM

16
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
Amoment after you begin pedaling or press a but-
ton, the display will turn on.
2. Select the manual mode.
Each time you turn
on the console, the
manual mode will
be selected. If you
have selected a
workout, reselect
the manual mode
by pressing the
Workouts button
repeatedly until
zeros appear in the display.
3. Change the resistance of the pedals as
desired.
As you pedal,
change the resis-
tance of the pedals
by pressing the
Digital Resistance
increase and
decrease buttons. Note: After you press the but-
tons, it will take a moment for the pedals to reach
the selected resistance level.
4. Follow your progress with the display.
The lower left dis-
play—As you
exercise, the lower
left display can
show the elapsed
time and the dis-
tance (total number of revolutions) that you have
pedaled. Note: When a preset workout is selected,
the display will show the time remaining in the
workout instead of the elapsed time.
The lower right
display—The lower
right display can
show the your ped-
aling speed in
revolutions per
minute (rpm) and the approximate number of calo-
ries that you have burned. Note: When a calorie
goal workout is selected, the display will count
down the number of calories to be burned.
The display also shows your heart rate when you
use the handgrip pulse sensor (see step 5 on page
17).
The upper
display—The upper
display can show
the elapsed time,
the distance that
you have pedaled,
your pedaling speed, and the approximate number
of calories you have burned.
Press the Priority Display button repeatedly until
the upper display shows the information that you
are most interested in viewing. Note: While infor-
mation is shown in the upper display, the same
information will not be shown in the lower left or
lower right display.
The lower
display—The lower
display will show a
track representing
640 revolutions (1/4
mile or 400 meters).
As you exercise, indicators will appear in succes-
sion around the track until the entire track appears.
The track will then disappear and the indicators will
again begin to appear in succession.
Adjust the volume level of the console by pressing
the Volume increase and decrease buttons.

17
5. Measure your heart rate if desired.
If there are sheets
of clear plastic on
the metal con-
tacts on the
handgrip pulse
sensor, remove
the plastic. To
measure your
heart rate, hold the
handgrip pulse
sensor with your
palms resting
against the metal contacts. Avoid moving your
hands or gripping the contacts tightly.
When your pulse is
detected, a flashing
heart symbol will
appear in the dis-
play, and then your
heart rate will
appear. For the most accurate heart rate reading,
hold the contacts for at least 15 seconds. Note: If
you continue to hold the handgrip pulse sensor,
the display will show your heart rate for up to 30
seconds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
6. Turn on the fan if desired.
Press the Coolaire Fan button repeatedly to turn
on the fan or to turn off the fan. Note: If the pedals
do not move for about thirty seconds, the fan will
turn off automatically.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
tone will sound and the console will pause.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
Contacts

18
HOW TO USE A PRESET WOR OUT
1. Begin pedaling or press any button on the
console to turn on the console.
See step 1 on page 16.
2. Select a preset workout.
To select a preset
workout, press the
Workouts button
repeatedly until the
name of the desired
workout appears in
the display. The
workout duration
and a profile of the
resistance levels for
the workout will
also appear in the display.
3. Begin pedaling to start the workout.
Each workout is divided into 20 or 30 one-minute
segments. One resistance level is programmed for
each segment. Note: The same resistance level
may be programmed for consecutive segments.
The resistance level for the first segment will
appear in the display for a few seconds. During
the workout, the workout profile will show your
progress (see the drawing above). The flashing
segment of the profile represents the current seg-
ment of the workout. The height of the flashing
segment indicates the resistance level for the cur-
rent segment.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash. If a different resis-
tance level is programmed for the next segment,
the resistance level will appear in the display for a
few seconds to alert you. The resistance of the
pedals will then change.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Digital Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. A tone will sound and the time will
stop counting. To restart the workout, simply
resume pedaling.
4. Follow your progress with the display.
See step 4 on page 16.
5. Measure your heart rate if desired.
See step 5 on page 17.
6. Turn on the fan if desired.
See step 6 on page 17.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 17.
Profile

19
HOW TO USE A CALORIE GOAL WOR OUT
1. Begin pedaling or press any button on the
console to turn on the console.
See step 1 on page 16.
2. Select a calorie goal workout.

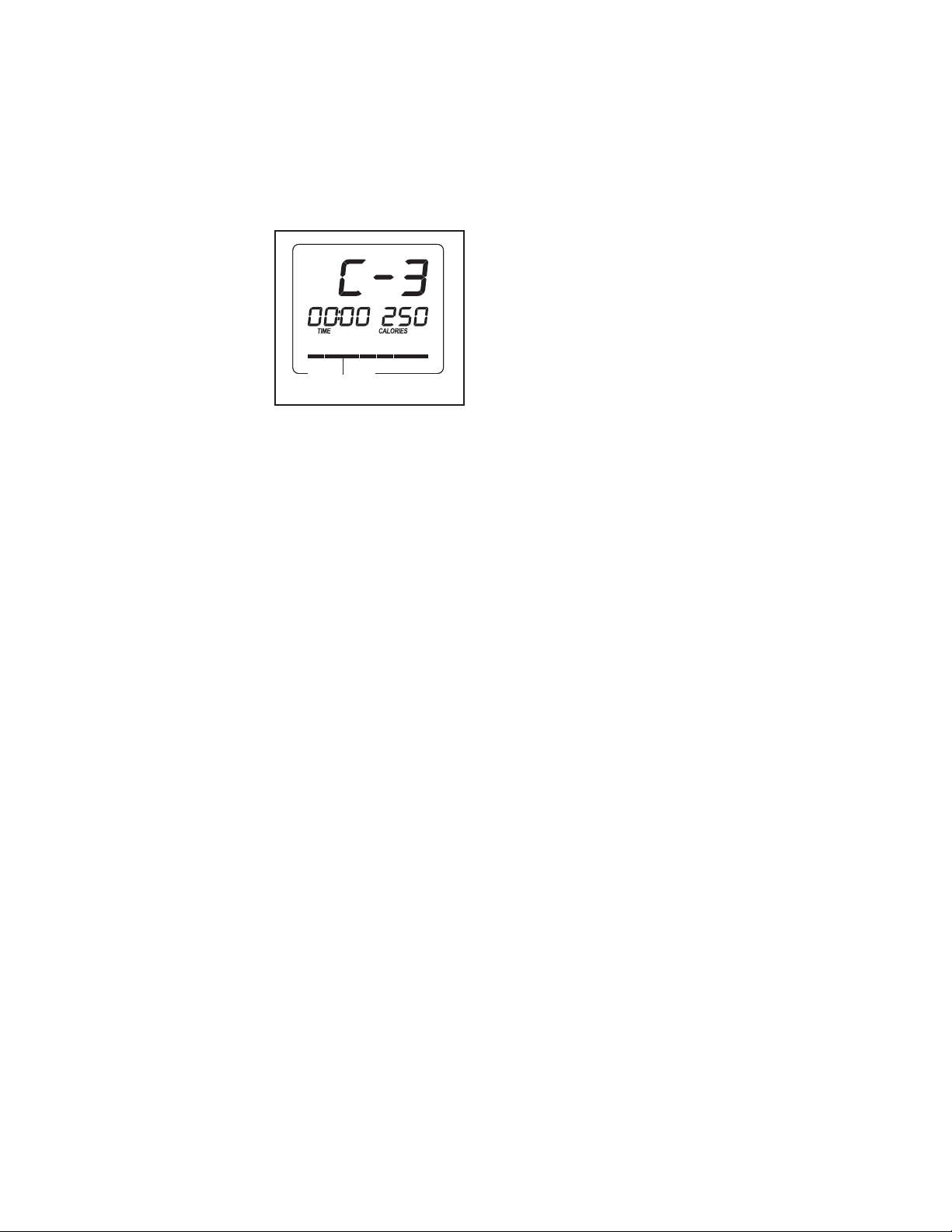

To select a calorie
goal workout, press
the Workouts but-
ton repeatedly until
the name of the
desired workout
appears in the dis-
play. The number of
calories to be
burned and a pro-
file of the
resistance levels for the workout will also appear
in the display.
3. Begin pedaling to start the workout.
Each weight loss workout will help you burn
approximately 150, 200, 250, 300, 350, 400, 450,
or 500 calories. During each workout, the console
will count down the approximate number of calo-
ries to be burned.
Each workout is divided into one-minute seg-
ments. One resistance level is programmed for
each segment. Note: The same resistance level
may be programmed for consecutive segments.
The resistance level for the first segment will
appear in the display for a few seconds. During
the workout, the workout profile will show your
progress (see the drawing above). The flashing
segment of the profile represents the current seg-
ment of the workout. The height of the flashing
segment indicates the resistance level for the cur-
rent segment.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash. If a different resis-
tance level is programmed for the next segment,
the resistance level will appear in the display for a
few seconds to alert you. The resistance of the
pedals will then change.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Digital Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment.
The workout will continue in this way until you
reach the calorie goal and the number of calories
to be burned is zero. To stop the workout at any
time, stop pedaling. A tone will sound and the time
will stop counting. To restart the workout, simply
resume pedaling.
Note: When you reach the calorie goal, the con-
sole will stop counting the elapsed time; however,
if you continue pedaling, the console will continue
to display your pedaling speed and the distance
you have pedaled.
4. Follow your progress with the display.
See step 4 on page 16.
5. Measure your heart rate if desired.
See step 5 on page 17.
6. Turn on the fan if desired.
See step 6 on page 17.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 17.
Profile

20
HOW TO USE AN IFIT WOR OUT
iFit cards are available separately. To purchase iFit
cards, go to www.iFit.com or see the front cover of this
manual. iFit cards are also available at select stores.
1. Begin pedaling or press any button on the
console to turn on the console.
See step 1 on page 16.
2. Insert an iFit card and select a workout.
To use an iFit workout, insert an iFit card into the
iFit slot; make sure that the iFit card is oriented so
the metal contacts are face down and are facing
the slot. When the iFit card is properly inserted,
the indicator next to the slot will turn on and words
will appear in the display.
Next, select the desired workout on the iFit card
by pressing the increase and decrease buttons
next to the iFit slot.
A moment after you select a workout, the voice of
a personal trainer will begin guiding you through
your workout. iFit workouts function in the same
way as preset workouts. To use the workout, see
steps 3 to 7 on page 18.
3. When you are finished exercising, remove the
iFit card.
Remove the iFit card when you are finished exer-
cising. Store the iFit card in a secure place.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the consoleʼs
sound system while you exercise, plug the audio cable
into the jack on the console and into a jack on your
MP3 player or CD player; make sure that the audio
cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume level using the volume con-
trol on your MP3 player or CD player or press the
Volume increase and decrease buttons on the con-
sole.
HOW TO CHANGE CONSOLE SETTINGS
The console features a user mode that allows you to
select a backlight option for the console and to view
console usage information.
1. Select the user mode.
To select the user mode, press and hold down the
Priority Display button for a few seconds until the
user mode information appears in the display.
2. Select a backlight option if desired.
The console has
three backlight
options. The ON
option keeps the
backlight on while
the console is on.
The AUTO option
keeps the backlight
on only while you
are pedaling. The
OFF option turns the backlight off.
The upper display will show the currently selected
backlight option. Press the Digital Resistance
decrease button repeatedly to select the desired
backlight option.
3. View console usage information if desired.
The lower left display will show the total number of
hours that the console has been used since the
elliptical exerciser was purchased.
4. Exit the user mode.
Press the Priority Display button to save the con-
sole settings and exit the user mode.
iFit Slot
iFit Card
