IMPORTANT PRECAUTIONS
WARNING : To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Before beginning any exercise program, con-
sult your physician. This is especially important
for persons over age 35 or persons with pre-
existing health problems.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial, rental,
or institutional setting.
5. Keep the elliptical indoors, away from mois-
ture and dust. Place the elliptical on a level sur-
face, with a mat beneath it to protect the oor
or carpet. Make sure that there is at least 3 ft.
(0.9 m) of clearance in the front and rear of the
elliptical and 2 ft. (0.6 m) on each side.
6. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
7. Keep children under age 12 and pets away
from the elliptical at all times.
8.The elliptical should not be used by persons
weighing more than 250 lbs. (115 kg).
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
10. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the el-
liptical.
11. The pulse sensor is not a medical device.
Various factors may affect the accuracy of heart
rate readings. The pulse sensor is intended
only as an exercise aid in determining heart
rate trends in general.
12. The elliptical does not have a freewheel; the
pedals will continue to move until the ywheel
stops. Reduce your pedaling speed in a con-
trolled way.
13. Keep your back straight while using the el-
liptical; do not arch your back.
14. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.

4
BEFORE YOU BEGIN
Thank you for purchasing the WESLO® Xline. The
elliptical provides an array of features designed to
make your workouts at home more effective and
enjoyable.
For your benet, read this manual carefully be-
fore you use the elliptical. If you have questions
after reading this manual, please see the front
cover of this manual. To help us assist you, note
the product model
number and serial number before contacting us.
The model number is WLIVEL86002.0 and the lo-
cation of the serial number decal are shown on the
front cover of this manual.
Before reading further, please familiarize yourself
with the parts that are labeled in the drawing be-
low.
115 Kg
115 Kg
115 Kg
ENGLISH
115 Kg
WARNING DECAL PLACEMENT
This drawing shows the location(s) of
the warning decal(s). If a decal is miss-
ing or illegible, call the telephone num-
ber on the front cover of this manual
and request a free replacement decal.
Apply the decal in the location shown.
Note: The decal(s) may not be shown
at actual size.

5
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove
the packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires an adjustable wrench and a Phillips
screwdriver .

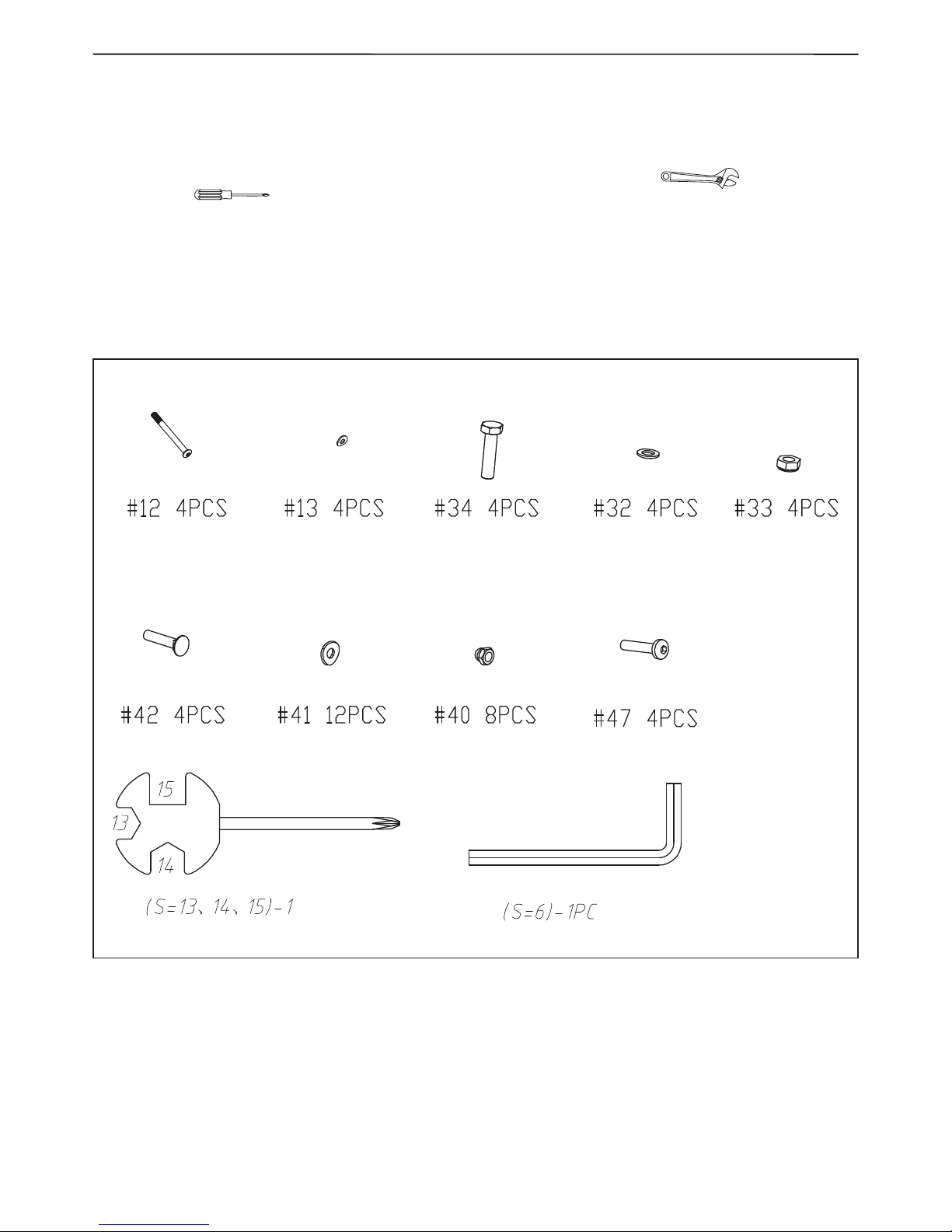

Use the part drawings below to identify the small parts used in assembly. The number in parenthe-
ses below each drawing refers to the key number of the part, from the PART LIST near the end of
this manual. The number following the parentheses is the quantity needed for assembly. Note: Some
small parts may have been preassembled. If a part is not in the hardware kit, check to see if it has
been preassembled.

6

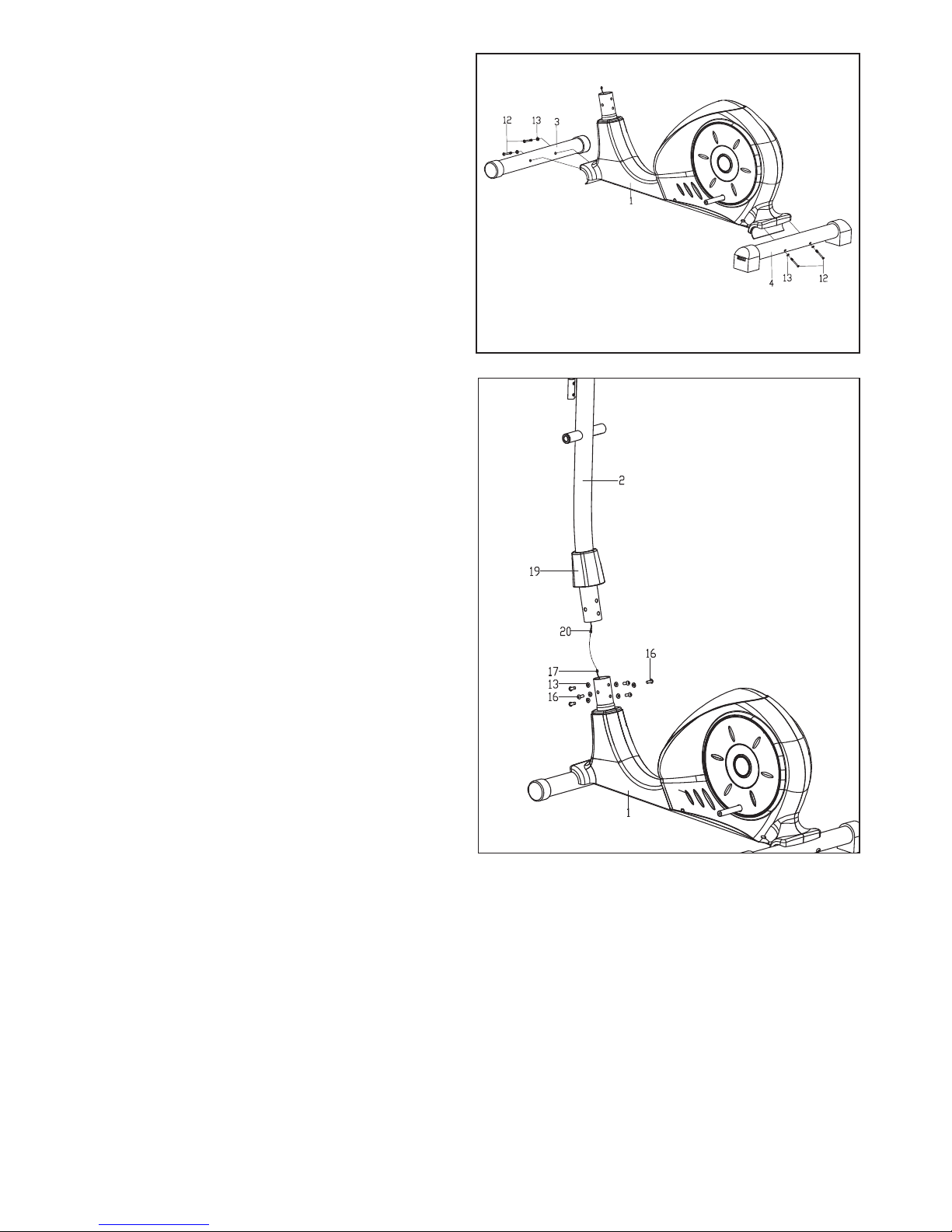

STEP 1
Attach the front stabilizer (3) and the rear stabilizer
(4) to the main frame (1) with the Carriage bolt (12)
and Arc washers (13) as shown.
STEP 2
Slip the Handlebar post cover (19) onto the han-
dlebar post (2);
Connect the Sensor connecting wire (20) to the
sensor wire (17), then x the handlebar post (2) on
the main frame (1), using the Inner hexagon bolt
(16), Arc washer (13) as shown.
Slip down the Front Cover (19) and t in the place.

7
STEP 3
Ⅰ.Insert the shaft (39) to the handlebar
post(2).
Ⅱ. Attach the left and right Swing tube
(6L/R) to the shaft (39) with Hex bolt (28),
spring washer (27), wave washer (23) and
Flat washer (26), But don’t tighten them
rst.
Ⅲ.Attach the left pedal support tube (5L) to
the Crank (21L) with Hex bolt (28), Spring
washer (27), Spacer (22), Flat washer
(26), and Wave washer (23), don’t tighten
them rst. The same way x the Right Ped-
al tube (5R) to the Crank (21R)
Ⅳ.Connect the swing tube (6L/R) and ped-
al support tube (5L/R) with hex bolt (36),
and nylon nut (37), and then lock the hex
bolt (28) and hex bolt (36), nally, cover
the end cap (29),(30),(35),(38)
Ⅴ. Attach the Pedal (10L/R) to the Pedal
tube (5L/R) with hex bolt (34), at washer
(32) and nylon nut (33).
STEP 4
Through the Pulse sensor wire (46) to the handle-
bar post (2) and then attach the xed handrail (8)
to the handlebar post (2) with hex bolt (47) arc
washer(41) and Acorn nut (40).
Attach the handlebar (7L/R) to the swing tube
(6L/R) with bolt (42), Arc washer (41) and Acorn
nut (40).

8

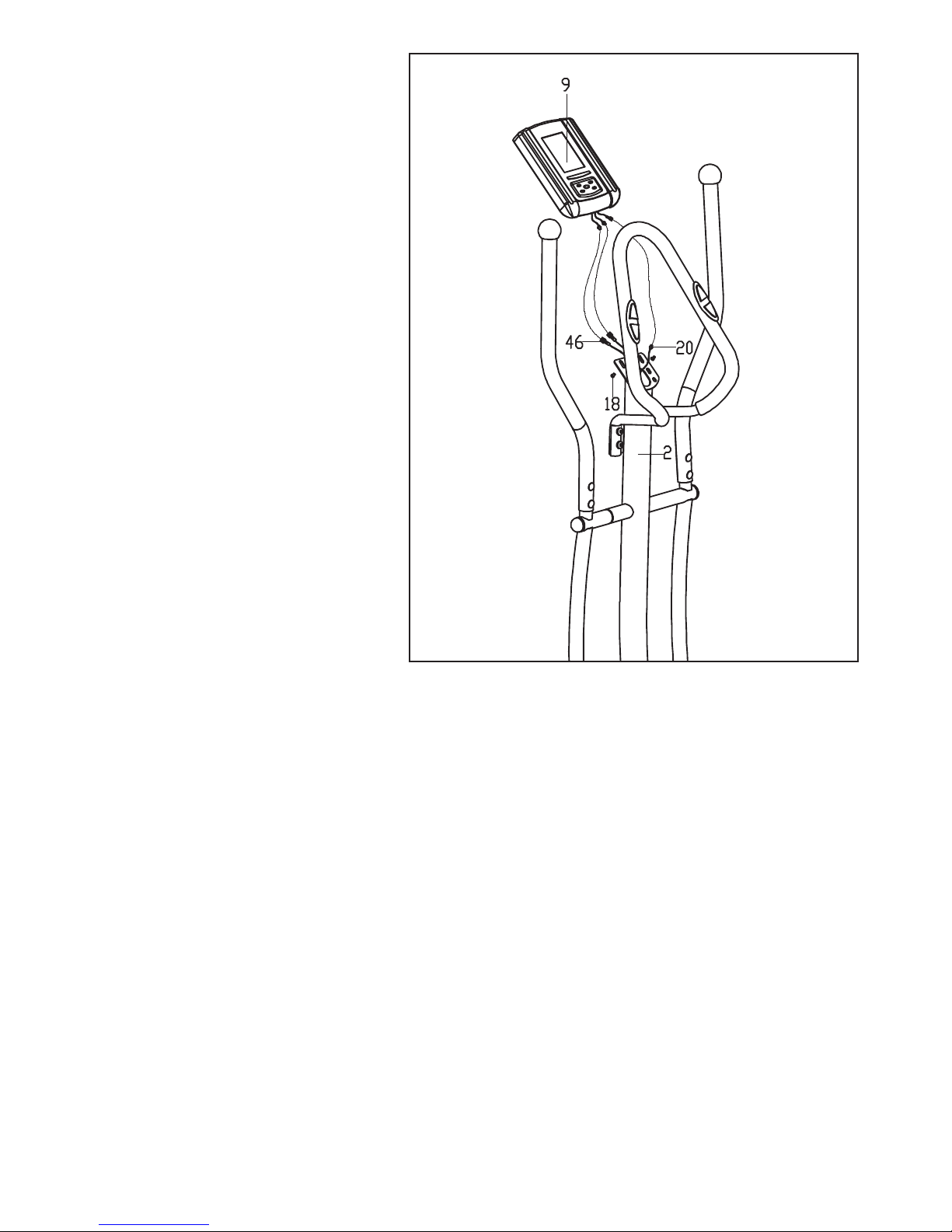

STEP 5
Connect the Connection wire (20) and
pulse sensor wire (46) with the wire of
the Meter (9), and then attach the Me-
ter (9) on the handlebar post (2) with
Cross pan head bolt (18).
Now your machine is ready for use.

9
HOW TO PLUG THE POWER ADAPTER
IMPORTANT: If the exercise bike has been exposed to cold temperatures, allow it to warm to room
temperature before plugging in the power adapter. If you do not do this, you may damage the console
displays or other electronic components.
Plug the power adapter into the receptacle on the frame of the
exercise bike.
Next, plug the power adapter into the plug adapter.
Then, plug the plug adapter into an appropriate outlet that
is properly installed in accordance with all local codes and
ordinances.
IMPORTANT: The adapter is only needed for the UK market. It
is useless for the other markets.
Power
adapter

10
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, hold the upper body
arms and step onto the pedal that is in the lowest
position. Then, step onto the other pedal. Push the
pedals until they begin to move with a continuous
motion.
Note: The pedal discs can turn in either direction. It is
recommended that you move the pedal discs in the
direction shown by the arrow;
however, for variety, you may turn the pedal discs
in the opposite direction.
The upper body arms are designed to add upper-
body exercise to your workouts. As you exercise,
push and pull the upper body arms to work your
arms, shoulders, and back. To focus on lower-body
exercise, hold the upper body arms but do not push
or pull them as you exercise.
To dismount the elliptical exerciser, wait until the
pedals come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the ywheel stops.
When the pedals are stationary, step off the highest
pedal rst. Then, step off the lower pedal.
MEASURE YOUR HEART RATE IF DESIRED
You can measure you heart rate using the
handgrip pulse sensor.
If there are sheets of clear plastic on the metal
contacts on the handgrip pulse sensor, remove
the plastic. In addition, make sure that your hands
are clean. To measure your heart rate, hold the
handgrip pulse sensor with your palms resting
against the metal contacts. Avoid moving your
hands or gripping the contacts tightly.
When you are nished exercising
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
HOW TO USE THE ELLIPTICAL
Contacts

11
CONSOLE FEATURES
Follow your progress with the display.
The console has seven displays that show the
following workout information:
Speed—This display shows your pedaling speed,
in revolutions per minute (rpm).
Time—This display shows the elapsed time.
Note: When a smart program is selected, the display
will show the time remaining in the program
instead of the elapsed time.
Distance—This display shows the distance you
have pedaled, in total revolutions.
Calories—This display shows the approximate
number of calories you have burned.
Watt—This display shows the watts you’ve
developed during the workout.
Programs [P]—This display shows the number
of the program you are going to or that you are
currently using.
HOW TO USE THE CONSOLE
Make sure that the product is correctly plug (see
page MAINTENANCE AND TROUBLESHOOTING).
If there is a sheet of clear plastic on the face of the
console, remove it.
1. Turn on the console
To turn on the console, press any button on the
console or simply begin pedaling.
2. Press the buttons :
UP:
Press this button to increase the resistance during the
workout or during the setting mode to increase the
values of Time, Distance, Calories, Age or gender or
the programs.
DOWN :
Press this button to decrease the resistance during
the workout or during the setting mode to decrease
the values of Time, Distance, Calories, Age or Gender
or programs.
ENTER :
During the time setting mode, press this button to
validate the hours and minutes.
During the setting mode, press this button to
validate the adjusted values.
During the STOP mode, press this button to reset
the values.
START/STOP:
For a quick start, press this button to start the
counting of the console, it will start at 0.
PULSE RECOVERY :
Press this button to activate the recovery test.
3. Start pedaling and follow your progress with
the display :
While you exercise, the console will display the
selected mode.
4. When you are nished exercising, the console
will automatically turn off.
If the pedals do not move for a few seconds, the
word STOP will appear in the display, and the
console will pause. The console has an “auto-
off” feature. If the pedals do not move and the
console buttons are not pressed for a few minutes,
the power will turn off automatically to save the
batteries.
How to use the Pulse Recovery Test :
It is a function to check the condition of pulse
recovery that is scaled from 1.0 to 6.0 while 1.0
means the best and 6.0 means the worst and the
increment is 0.1. In order to get rated correctly,
users must test it right after the workout nished by
pressing “TEST(RECOVERY) ” key and then stop
exercising. After the key is pressed, please also
apply the heart rate detector appropriately, the test
will last for 1 minute and the result will show in the
display. If the computer does not detect your current
heart rate, pressing “TEST(RECOVERY) ” will not
enter into pulse recovery test. During the pulse
recovery test, press “TEST(RECOVERY) ” to exit
the test and return to the stop status.
Warning : These Data do not have any medical
value. This test can only give a rough idea of
your changing shape after exercise.
HOW TO USE THE MANUAL MODE
1. Turn on the console.
CONSOLE FEATURES

12
To turn on the console, press the On/Reset button
or begin pedaling. The entire display will light for a
moment; the console will then be ready for use.
2. Select your age
When you turn on the console, the age 25 will ash on
the display.
Press into ENTER in order to adjust the value then press
again into ENTER.
You can select the programs.
3. Select the manual mode.
Once the age is selected, the word MANUAL will appear,
press ENTER.
You can now adjust the value Time, Distance and
Calories by pressing Up or Down.
Press ENTER to valid the value.
Finally press START / STOP to start.
For a quicker start, press the Quick start button and start
pedaling.
4. Change the resistance of the pedals as
desired.
As you pedal, change the resistance of the pedals by
pressing the Resistance increase and decrease buttons.
There are sixteen resistance levels. Note: After you’ve
pressed the buttons, it will take a moment for the pedals
to reach the selected resistance level.
5. Follow your progress with the display.
The console displays the elapsed time and the distance
you’ve pedaled. Note: When a smart program is selected,
the display will show the time remaining in the program
instead of the elapsed time.It also displays your pedaling
speed (in RPM or Km/h), the calories and fat calories
you’ve burnt and also your heart rate when you use the
handgrip pulse sensor.
6. Measure your heart rate if desired.
see HOW TO MEASURE YOUR HEART RATE page 9
7. When you are nished exercising, the console will
automatically turn to sleeping mode
If the pedals do not move for a few seconds, the word
STOP will appear in the display, and the console will
turn to sleeping mode. If the pedals do not move and
the console buttons are not pressed for a few minutes,
the temperature will appear on the display and then the
console will automatically turn off.
HOW TO USE THE PRESET PROGRAMS :
1. Turn on the console
To turn on the console, press any button on the
console or simply begin pedaling.
2.Select your age
See How to select your age on page 10
3. Select one preset program.
Once the age is selected, the word MANUAL will appear.
press UP and DOWN in order to select the program you
want. Press ENTER To Validate.
You can now adjust the value Time, Distance and
Calories by pressing Up or Down.
Press ENTER to valid the value.
Finally press START / STOP to start.
Note : Programs 1, 2, 4, 6, 7 and 9 being Performance
programs and programs 3, 4, 5, 8 and 10 being
Endurance programs.
Consult a coach for more details on the selection and
use of a program.
4. Change the resistance of the pedals as
desired.
As you pedal, change the resistance of the pedals by
pressing the Resistance increase and decrease buttons.
There are sixteen resistance levels. Note: After you’ve
pressed the buttons, it will take a moment for the pedals
to reach the selected resistance level.
5. Follow your progress with the display.
The console displays the elapsed time and the distance
you’ve pedaled. Note: When a smart program is selected,
the display will show the time remaining in the program
instead of the elapsed time.It also displays your pedaling
speed (in RPM or Km/h), the calories and fat calories
you’ve burnt and also your heart rate when you use the
handgrip pulse sensor.
WATT PROGRAM :
1. Turn on the console
To turn on the console, press any button on the
console or simply begin pedaling.
2.Select your age
See How to select your age on page 10
3. Select the Watt program.
Once the age is selected, the word MANUAL will appear.
press UP and DOWN in order to select the program
WATT. Press ENTER To Validate.
You can now adjust the value Time, Distance, calories
and Watts by pressing Up or Down.
Value from 30 to 350 Watts
Press ENTER to valid the value.
Finally press START / STOP to start.
HEART RATE CONTROL PROGRAMS :
1. Turn on the console
To turn on the console, press any button on the
console or simply begin pedaling.

13
2.Select your age
See How to select your age on page 10
Please Note that the Heart Rate programs require
to enter the age carefully in order to calculate the
maximum Heart Rate.
3.Select your preset program
Once the age is selected, the word MANUAL will appear.
press UP and DOWN in order to select the HRC program.
Press ENTER To Validate.
Each program corresponds to a specic target :
Program 55% HR corresponds to 55% of Max
HRC
Program 75% HR corresponds to 75% of Max
HRC
Program 90% HR corresponds to 90% of Max
HRC
Program TGT HR corresponds to Target Heart
Rate you will dene
The HRC is calculated as follow : 220- your age.
For instance, for a person of 35 years old : 220-35 =
185 pulse/min.
4. Entering your datas
You can now adjust the value Time, Distance and calories
by pressing Up or Down.
Press ENTER to valid the value.
Finally press START / STOP to start.
5. Change the resistance of the pedals as
desired.
As you pedal, change the resistance of the pedals by
pressing the Resistance increase and decrease buttons.
There are sixteen resistance levels. Note: After you’ve
pressed the buttons, it will take a moment for the pedals
to reach the selected resistance level.
6. Follow your progress with the display.
The console displays the elapsed time and the distance
you’ve pedaled. Note: When a smart program is selected,
the display will show the time remaining in the program
instead of the elapsed time.It also displays your pedaling
speed (in RPM or Km/h), the calories and fat calories
you’ve burnt and also your heart rate when you use the
handgrip pulse sensor.
USER SETTING PROGRAMS :
1.Select your age
See How to select your age on page 10
2. Select a Custom Program.
Once the age is selected, the word MANUAL will appear.
press UP and DOWN in order to select the program you
want.
The name of the programs will be written on the display
(CUSTOM1, CUSTOM2, CUSTOM3 and CUSTOM4)
Press ENTER To Validate.
You can now adjust the value Time, Distance and
Calories by pressing Up or Down.
Press ENTER to valid the value.
3.Entering your datas
Now, the rst column will be ashing and you’ll use
the UP and DOWN button to create your prole.
Press ENTER to validate, you’ll then move on the
2nd column. Do the same as before for the 10
columns. Finally press START/STOP button to start.
4. Change the resistance of the pedals as
desired.
As you pedal, change the resistance of the pedals
by pressing the Resistance increase and decrease
buttons. There are ten resistance levels. Note: After
you press the buttons, it will take a moment for the
pedals to reach the selected resistance level.
If the pedal do not move for a few seconds, the word
STOP will appear in the display, and the console will
pause. The console has an “auto-off” feature. If the
pedals do not move and the console buttons are not
pressed for a few minutes, the power will turn off
automatically to save the batteries.
6. Follow your progress with the display.
The console displays the elapsed time and the distance
you’ve pedaled. Note: When a smart program is selected,
the display will show the time remaining in the program
instead of the elapsed time.It also displays your pedaling
speed (in RPM or Km/h), the calories and fat calories
you’ve burnt and also your heart rate when you use the
handgrip pulse sensor.
BODYFAT TEST :
1. Turn on the console
To turn on the console, press any button on the
console or simply begin pedaling.
2.Select the body Fat Test
Press the UP and DOWN button to select the Body
Fat program. Wait until the FAT begin ashing.
Press the ENTER button to validate. This is a
special test designed to calculate users’ body fat
pourcentage (FAT%), Base Metabolic Rate (BMR),
Body Mass Index (BMI) and provide you a body
Type.
3.Entering your datas

14
Height is ashing, adjust to your size with the button
Up and Down and then validate with ENTER.
Adjust in the same way the value of WEIGTH, AGE,
SEX and validate each time by pressing ENTER.
Then, press the ST/SP button in order to start to
calculate.
During the body fat measurement, place both your
palms on the contact pads. The test
result are:
FAT%: The total body fat in our body measured by
percentage
BMR Basal Metabolic Rate (metabolism) is the
energy (measured in calories) expended
by the body at rest to maintain normal bodily
function.
BMI: means Body Mass Index, which is used for
body shape building.
During the body fat measurement, if your palms
do not contact the pulse sensor well, the computer
cannot receive any signal and it will display
ERROR2. Press START/STOP to try again.
During the test, you cannot exit the test when press
any button. After the test nish, press UP, DOWN to
exit the body fat measurement program and switch
to other program.
Slim Healthy Fleshy Over WT Obese
BODY1 BODY2 BODY3 BODY4 BODY5
＜14% 14%～20% 20.1%～25% 25.1%～35% ＞35%
＜17% 17%～23% 23.1%～28% 28.1%～38% ＞38%
Female/≤30 years old ＜17% 17%～24% 24.1%～30% 30.1%～40% ＞40%
＜20% 20%～27% 27.1%～33% 33.1%～43% ＞43%
Body Shape
FAT%
Age/
Gender
Male/≤30 years old
Male/＞30 years old
Female/＞30 years old

15
EXERCISE GUIDELINES
WARNING:
Before beginning this or any exercise pro-
gram, consult your physician. This is espe-
cially important for persons over the age of 35
or persons with pre-existing health problems.
The pulse sensor is not a medical device. Vari-
ous factors may affect the accuracy of heart
rate readings. The pulse sensor is intended
only as an exercise aid in determining heart
rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper in-
tensity is the key to achieving results. You can use
your heart rate as a guide to nd the proper intensity
level. The chart below shows recommended heart
rates for fat burning and aerobic exercise.
To nd the proper intensity level, nd your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age dene your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is
the heart rate for maximum fat burning, and the high-
est number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the rst few minutes of exercise, your
body uses carbohydrate calories for energy. Only af-
ter the rst few minutes of exercise does your body
begin to use stored fat calories for energy. If your
goal is to burn fat, adjust the intensity of your exer-
cise until your heart rate is near the lowest number in
your training one. For maximum fat burning, exercise
with your heart rate near the middle number in your
training zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in prepara-
tion for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
he rst few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as
you exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the exibility of your
muscles and helps to prevent post-exercise prob-
lems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular ex-
ercise, you may complete up to ve workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.

16
EXPLODED DRAWING—Model No. WLIVEL86002.0 part 1

17
EXPLODED DRAWING—Model No. WLIVEL86002.0 part 2
８６

18
PART LIST—Model No. WLIVEL86002.0
Item
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
Description
Mushroom end cap
Round end cap
Pulse sensor wire
Inner hex bolt
Foam grip
Adapter
Tension cable
Bering
Hex bolt
Hex nut
Sensor
Self-tapping screw
Front cover
Bolt
Belt tray
Axle
Flat washer
Spring washer
Nylon nut
Hex bolt
Bolt
U-shaped washer
Hex nut
Nut
Bearing
Flywheel
Spacer
Flywheel axle
Hex bolt
Spring washer
Spring
Magnetic board
Magnetic
Magnetic axle
Belt
Screw
Chain cover
Seal-capping
Turn plate
Flange nut
Spring washer
Motor
Qty.
2
2
2
4
1
1
1
2
1
2
1
2
2
4
1
1
6
6
4
2
2
2
2
2
2
1
1
1
2
2
1
1
8
1
1
27
2
2
2
2
2
1
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
Description
Main frame
Handlebar post
Front stabilizer
Rear stabilizer tube
Pedal support tube
Swing tube
Handlebar
Fixed handlebar
Meter
Pedal
Front stabilizer end cap
Carriage bolt
Arc washer
Rear stabilizer
Self-tapping screw
hexagon bolt
Sensor wire
Cross pan head bolt
Handlebar post cover
Sensor connecting wire
Crank
Spacer
Wave washer
Bushing
Pedal tube joint
Flat washer
Spring washer
Hex bolt
End cap
End cap
Hex bolt
Flat washer
Nylon nut
Hex bolt
End cap
Hex bolt
Thin nylon nut
End cap
shaft
Acorn nut
Arc washer
Bolt
Foam grip
Qty.
1
1
1
1
2
2
2
1
1
2
2
4
10
2
4
6
1
2
1
1
2
2
4
10
2
4
4
4
2
4
2
6
6
4
4
2
2
2
1
8
12
4
2

19
IInspect and tighten all parts of the exercise cycle
regularly.
Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of mild detergent.
Important: To avoid damaging the console, keep
liquids away from the console and keep the console
out of direct sunlight.
MAINTENANCE AND TROUBLESHOOTING

ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
IMPORTANT RECYCLING INFORMATION FOR E. U. CUSTOMERS
This electronic product must not be disposed of in municipal waste. To preserve
the environment, this product must be recycled after its useful life as required by
law. Please use recycling facilities that are authorized to collect this type of waste in
your area. In doing so, you will help to conserve natural resources and improve
European standards of environmental protection. If you require more information about
safe and correct disposal methods, please contact your local city ofce or the
establishment where you purchased this product.
TECHNICAL SPECS.
Product dimensions : (L x l x h) : 128 x 62 x 165 cm
Product weight: 35 Kg
Printed in China © 2012 Icon Health & Fitness, Inc.
