ICON Health & Fitness NETL14716.0 User manual

Model No. NETL14716.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Serial
Number
Decal
USER'S MANUAL
www.iconeurope.com
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 1D, The Gateway
Fryers Way, Silkwood Park
OSSETT
WF5 9TJ
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA

2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE TREADMILL ..............................................................18
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
MAINTENANCE AND TROUBLESHOOTING.....................................................34
EXERCISE GUIDELINES ....................................................................37
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION ......................................................... Back Cover

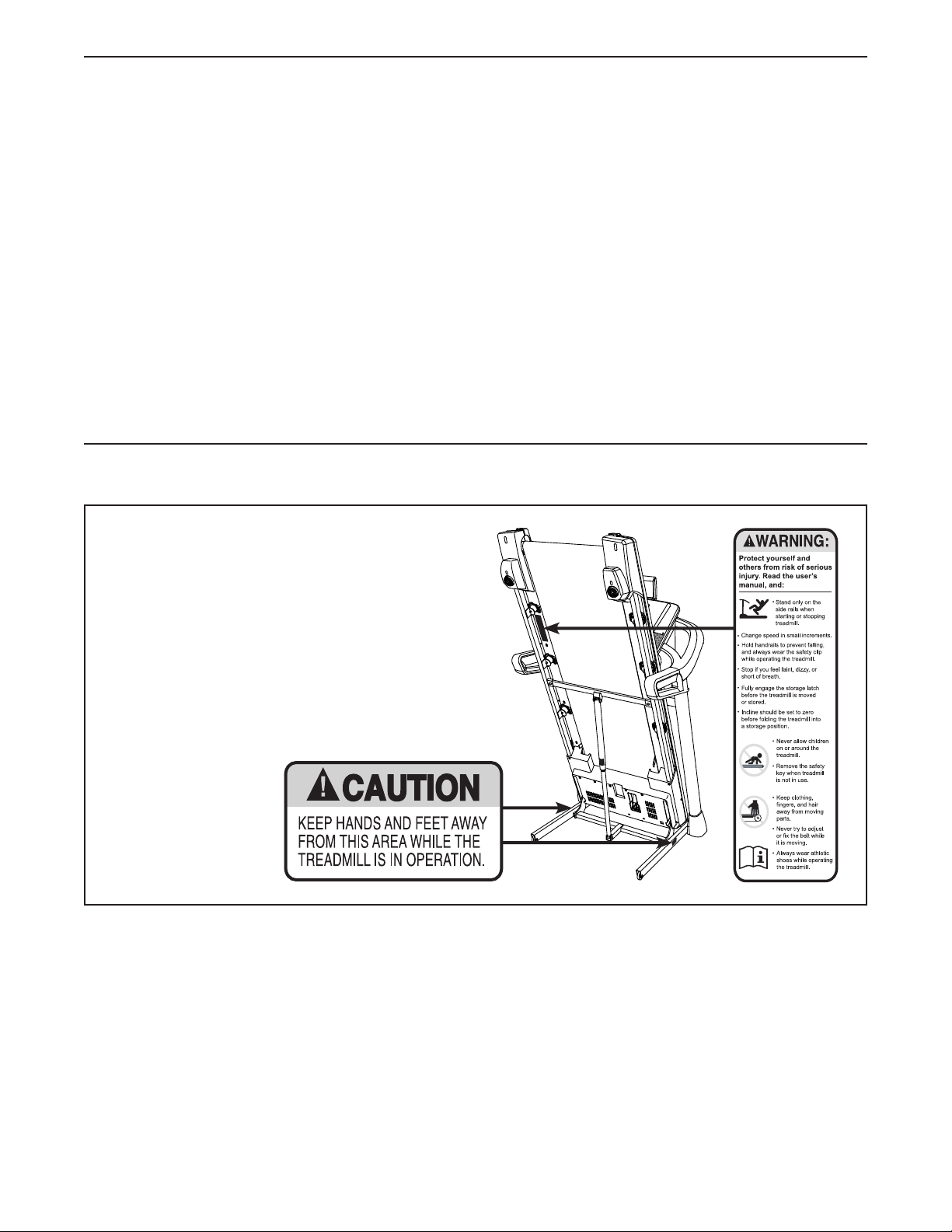

This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call
the telephone number on the front cover of
this manual and request a free replacement
decal. Apply the decal in the location shown.
Note: The decals may not be shown at actual
size.
WARNING DECAL PLACEMENT
305284
TABLE OF CONTENTS
IFIT is a registered trademark of ICON Health & Fitness, Inc. App store is a trademark of Apple Inc., registered
in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The BLUETOOTH®word
mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. IOS is a trademark
or registered trademark of Cisco in the U.S. and other countries and is used under license.
NORDICTRACK is a registered trademark of ICON Health & Fitness, Inc.

3
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The treadmill is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use
of the treadmill by someone responsible for
their safety.
4. Use the treadmill only as described in this
manual.
5. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
6. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
7. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
8. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
9. Keep children under age 13 and pets away
from the treadmill at all times.
10. The treadmill should be used only by per-
sons weighing 330 lbs. (150 kg) or less.
11. Never allow more than one person on the
treadmill at a time.
12. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
13. When connecting the power cord (see page
18), plug the power cord into an earthed
circuit. No other appliance should be on the
same circuit. When replacing the fuse in the
power cord adapter, insert an ASTA-approved
BS1362, 13-amp fuse into the fuse carrier.
14. If an extension cord is needed, use only a
3-conductor, 14-gauge (1 mm2) cord that is
no longer than 5 ft. (1.5 m).
15. Keep the power cord away from heated
surfaces.
16. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
MAINTENANCE AND TROUBLESHOOTING
on page 34 if the treadmill is not working
properly.)
17. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 20). Always wear the clip while using the
treadmill.
18. Always stand on the foot rails when starting
or stopping the walking belt. Always hold the
handrails while using the treadmill.
19. When a person is walking on the treadmill,
the noise level of the treadmill will increase.
20. Keep fingers, hair, and clothing away from
the moving walking belt.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
IMPORTANT PRECAUTIONS

4
21. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
22. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
23. Never leave the treadmill unattended while it
is running. Always remove the key, press the
power switch into the off position (see the
drawing on page 5 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
24. Do not attempt to move the treadmill until it
is properly assembled. (See ASSEMBLY on
page 7 and HOW TO FOLD AND MOVE
THE TREADMILL on page 33.) You must be
able to safely lift 45 lbs. (20 kg) to move the
treadmill.
25. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
26. Do not change the incline of the treadmill by
placing objects under the treadmill. Never
insert any object into any opening on the
treadmill.
27. Inspect and properly tighten all parts each
time the treadmill is used.
28. DANGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
29. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
SAVE THESE INSTRUCTIONS

5
Thank you for selecting the new NORDICTRACK®
C 990 treadmill. The C 990 treadmill provides an
impressive selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

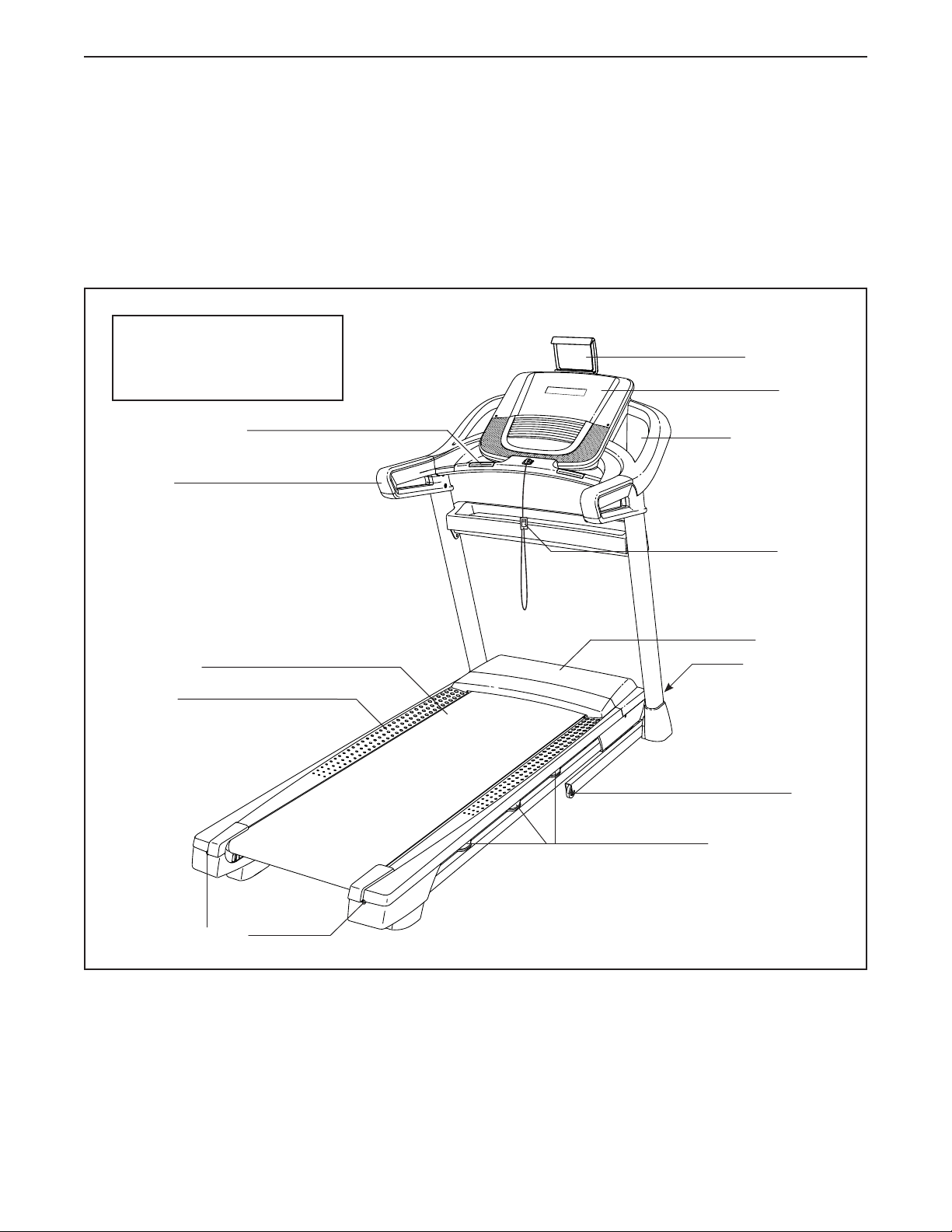

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Heart Rate Monitor
Tablet Holder
Console
Key/Clip
Accessory Tray
Power Switch
Walking Belt
Motor Hood
Wheel
Foot Rail
Idler Roller
Adjustment Screws
Platform Cushions
Length: 6 ft. 8 in. (203 cm)
Width: 3 ft. (91 cm)
Weight: 194 lbs (88 kg)

6
PART IDENTIFICATION CHART
Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included.
#8 x 3/4"
Screw (2)–8
3/8" Star
Washer (13)–8
5/16" Star
Washer (11)–14
#10 x 3/4"
Screw (9)–2
#8 x 1/2" Ground
Screw (10)–1
#8 x 1/2"
Screw (1)–12
#8 x 5/8"
Machine
Screw (38)–4
#10 Star
Washer (5)–2
5/16" x 2 1/2"
Screw (28)–4
3/8" x 2 1/4" Screw (7)–4
3/8" x 1 3/4" Screw (62)–2
3/8" x 1 1/4"
Screw (63)–2

7
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• Assembly requires the following tools:
the included hex keys
one Phillips screwdriver
To avoid damaging parts, do not use power tools.
ASSEMBLY
1
1. Go to www.iconsupport.eu on your computer
and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Service
• allows us to notify you of upgrades and offers
Note: If you do not have internet access, call
Customer Service (see the front cover of this
manual) and register your product.

8

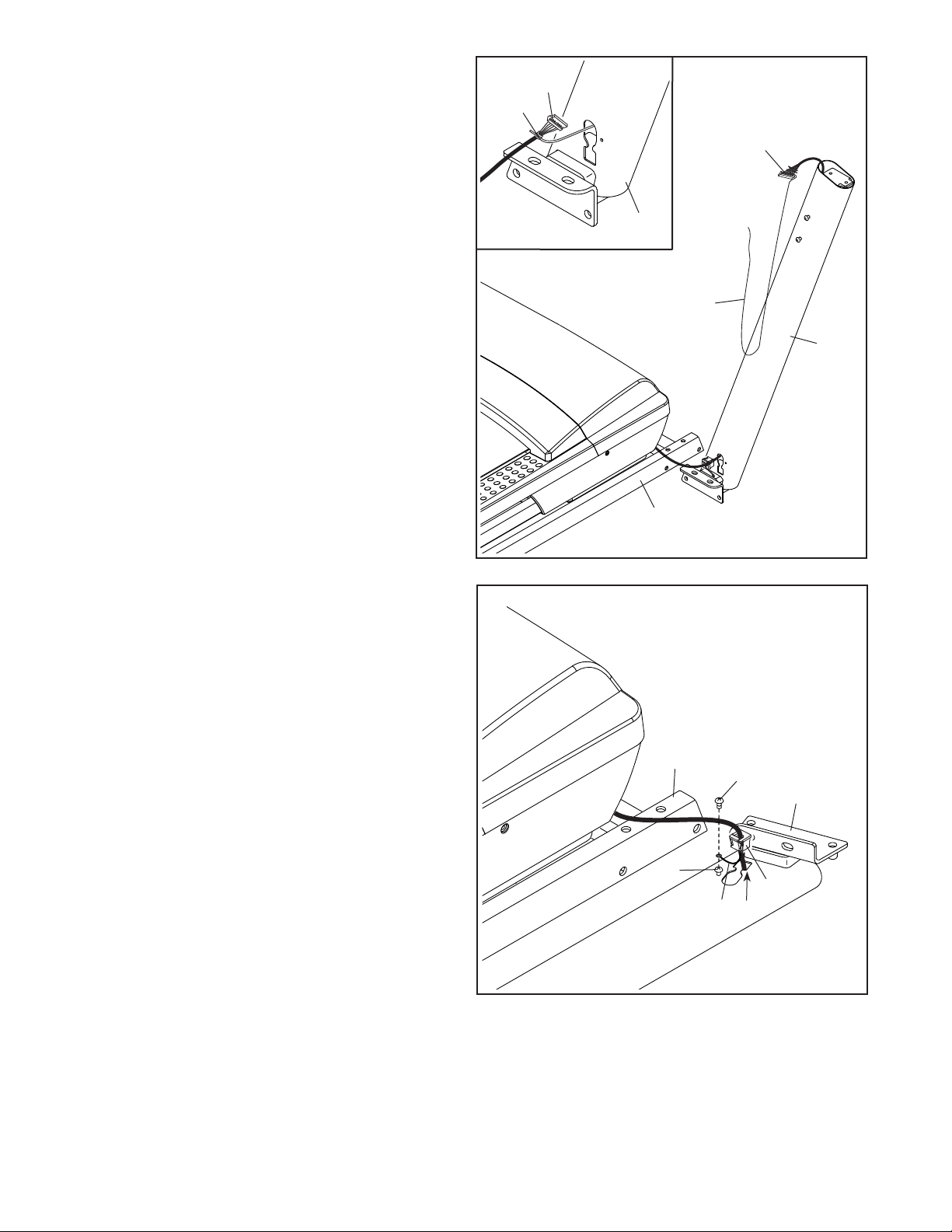

3. Lay the Right Upright (90) near the Base (94).
Press the Grommet (77) into the square hole (B)
in the Right Upright. Make sure not to pinch
the ground wire.
If there is a screw (C) preattached to the Right
Upright (90), remove and discard it.
Then, attach the ground wire (D) to the Right
Upright (90) with a #8 x 1/2" Ground Screw (10). 94
90
10
90
A
281
77
DB
C
2. Make sure that the power cord is unplugged.
Remove the tie securing the Upright Wire (81) to
the front of the Base (94).
Next, identify the Right Upright (90). Have a sec-
ond person hold the Right Upright near the Base
(94).
See the inset drawing. Tie the wire tie (A) in
the Right Upright (90) securely around the end
of the Upright Wire (81). Then, insert the Upright
Wire into the lower end of the Right Upright as
you pull the other end of the wire tie through the
Right Upright.
94
90
81
A
3

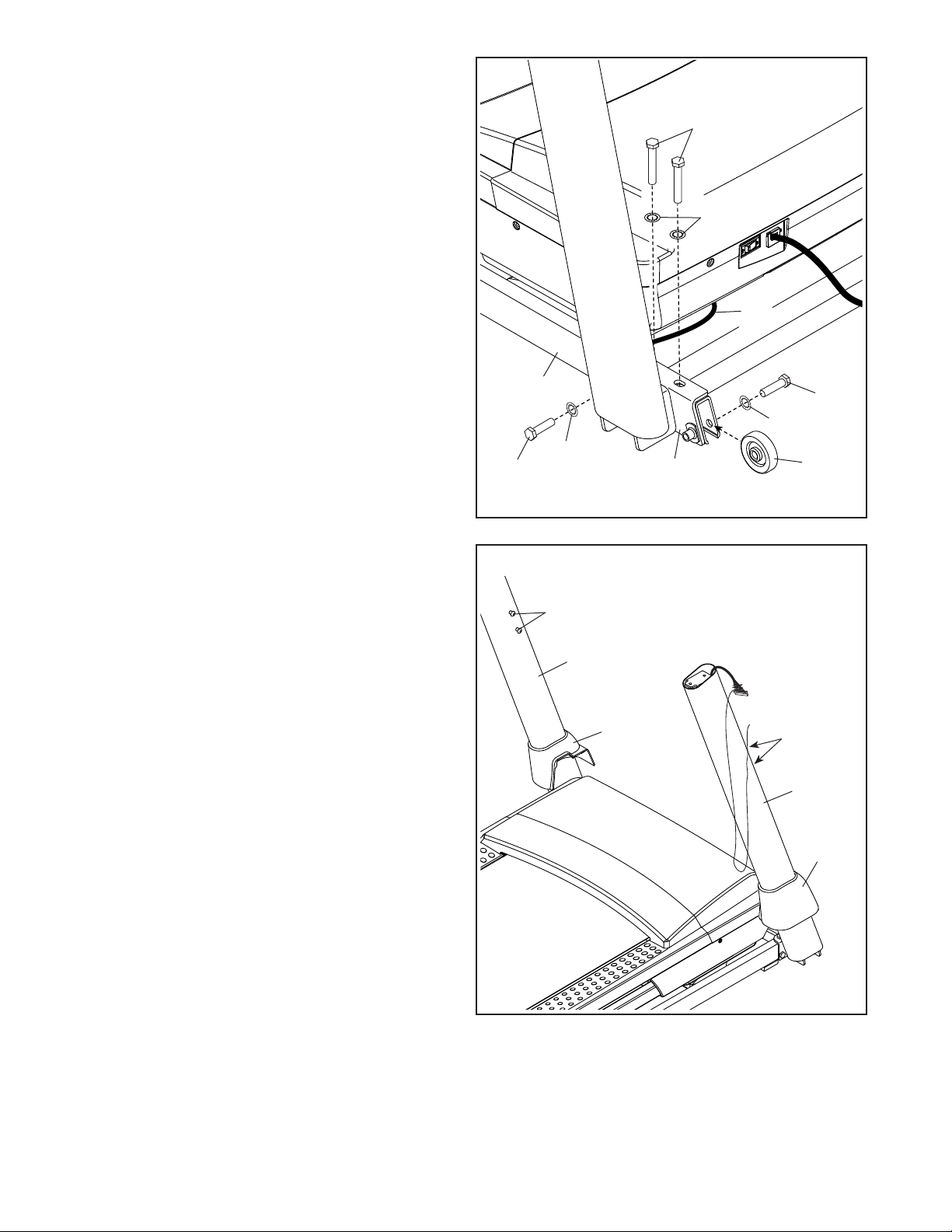

9
4
63
62
25
94
13
13
90
7
13
5. Remove and save the four 5/16" x 3/4"
Screws (4).
Identify the Left and Right Base Covers (82, 83).
Slide the Left Base Cover onto the Left Upright
(89), and slide the Right Base Cover onto the
Right Upright (90). Do not press the Base
Covers into place yet.
82
90
83
5
89
81
4. Hold the Right Upright (90) against the Base
(94). Make sure not to pinch the Upright Wire
(81).
Attach the Right Upright (90) and a Wheel (25)
with two 3/8" x 2 1/4" Screws (7), a 3/8" x 1 1/4"
Screw (63), a 3/8" x 1 3/4" Screw (62), and four
3/8" Star Washers (13) as shown; do not fully
tighten the Screws yet.
Attach the Left Upright (not shown) and the
other wheel (not shown) in the same way.
Note: There are no wires on the left side.
4
4

10
6. Identify the left handrail assembly (E). Attach
the left handrail assembly to the Left Upright
(89) with two 5/16" x 2 1/2" Screws (28) and two
5/16" Star Washers (11); do not fully tighten
the Screws yet.
Then, remove and discard the indicated
screw (F).
6
89
EF
28
11
7. Insert the Upright Wire (81) into the bottom of
the right handrail assembly (G) and out of the
front as shown.
Attach the right handrail assembly (G) to the
Right Upright (90) with two 5/16" x 2 1/2" Screws
(28) and two 5/16" Star Washers (11). Make
sure not to pinch the Upright Wire (81); do
not fully tighten the Screws yet.
Then, remove and discard the indicated
screw (F).
28
11
G
90
81
7
F

11
8. Tighten four #8 x 3/4" Screws (2) into the left and
right handrail assemblies (E, G) and into the Left
and Right Uprights (89, 90).
8
G
E
89
90
2
2
64
18
92
93
I
9

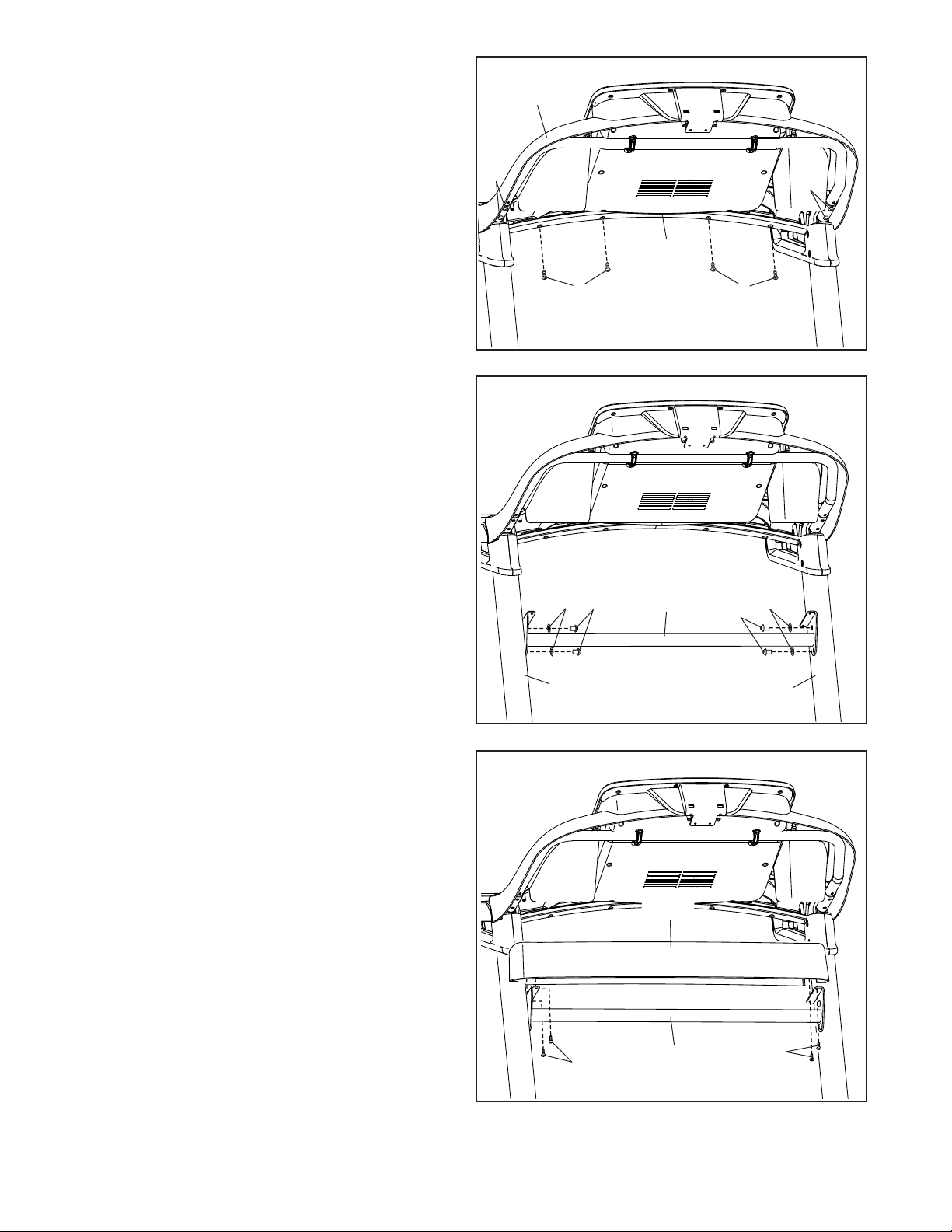

9. Set the Console Base (64) face down on a soft
surface to avoid scratching the Console Base.
If there are ties (H) securing the Pulse Crossbar
(93) to the Console Base, remove the ties.
Remove and discard the four indicated screws
(I). Then, remove the Pulse Crossbar (93).
Remove and save the four 5/16" x 3/4"
Screws (4) and the six #8 x 3/4" Screws (2).
Then, lift out the two Console Clamps (92) and
the Console Frame (18).
4
4
2
2
2
2
H
H

12
64
27
36
1
1
1
10
10. Identify the Right and Left Trays (27, 36).
Attach the Trays (27, 36) to the Console Base
(64) with eight #8 x 1/2" Screws (1); do not
overtighten the Screws.
Reattach the Console Frame (18) with the six #8
x 3/4" Screws (2) and the two Console Clamps
(92) that you removed in step 9; do not over-
tighten the Screws.
1
18
92
92
2
2
22
11. IMPORTANT: To avoid damaging the Pulse
Crossbar (93), do not use power tools and do
not overtighten the #10 x 3/4" Screws (9).
Orient the Pulse Crossbar (93) as shown. Attach
the Pulse Crossbar to the Handrails (86) with two
#10 x 3/4" Screws (9) and two #10 Star Washers
(5); start both Screws, and then tighten them.
Make sure not to pinch the Upright Wire (81).
Firmly tighten the four 5/16" x 2 1/2" Screws
(28).
11 9
9
5
5
28
28
86
93
86
81

13
12
J
L
M
M
A81
81
86
93
13. Set the console assembly (J) on the brackets on
the Handrails (86). Make sure not to pinch any
wires.
Attach the console assembly (J) to the brackets
on the Handrails (86) with the four 5/16" x 3/4"
Screws (4) that you removed in step 9 and four
5/16" Star Washers (11); do not fully tighten
the Screws yet.
Insert the excess Upright Wire (81) into the con-
sole assembly. Pull the two ties (L) tight against
the Upright Wire and cut off the ends of the ties.
13
86
4
4
81
86
11 11
J
L
12. With the help of a second person, hold the con-
sole assembly (J) near the Handrails (86) (only
one side is shown).
Connect the ground wires (K) from the console
assembly to the Console Ground Wires (58) on
the Pulse Crossbar (93).
Next, insert the Upright Wire (81) through the
two indicated looped ties (L) on the console
assembly (J).
See the inset drawing. Connect the Upright
Wire (81) to the console wire (M). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF YOU DO NOT CONNECT THE
CONNECTORS PROPERLY, THE CONSOLE
MAY BECOME DAMAGED WHEN YOU TURN
ON THE POWER. Then, remove the wire tie (A)
from the Upright Wire.
K
58

14
14. Attach the Pulse Crossbar (93) to the console
assembly (J) with four #8 x 1/2" Screws (1); start
all four Screws, and then tighten them.
Then, firmly tighten the four 5/16" x 3/4"
Screws (4).
14
93
44
1 1
J
15. Carefully slide the Upright Crossbar (12)
between the Left and Right Uprights (89, 90).
Attach the Upright Crossbar with the four 5/16"
x 3/4" Screws (4) that you removed in step 5
and four 5/16" Star Washers (11); start all four
Screws, and then tighten them.
15
11 411
90 89
12 4
16. Attach the Tray (31) to the Upright Crossbar
(12) with four #8 x 3/4" Screws (2); start all four
Screws, and then tighten them.
16
2
12
2
31

15
17
17. Note: If the treadmill is assembled on a
smooth surface, it may roll forward in this
step.
Remove the two 5/16" x 3/4" Screws (4) from the
Latch Crossbar (41).
Raise the Frame (56) to the upright position.
Have a second person hold the Frame until
step 19 is completed.
Orient the Latch Crossbar (41) as shown. Make
sure that the “This side toward belt” sticker
(N) is facing the treadmill. Attach the Latch
Crossbar to the brackets (O) on the Frame (56)
with the two 5/16" x 3/4" Screws (4) and two
5/16" Star Washers (11).
56
41 N
O
O
4
4
11
11
94
53
6
34
18
18. Remove the 5/16" Nut (34) and the 5/16" x 1 3/4"
Bolt (6) from the bracket on the Base (94).
Next, orient the Storage Latch (53) as shown.
Attach the lower end of the Storage Latch (53)
to the bracket on the Base (94) with the 5/16" x
1 3/4" Bolt (6) and the 5/16" Nut (34) as shown.
Then, raise the Storage Latch (53) to a vertical
position, and remove the tie (P).
P

16
20. Firmly tighten the four 3/8" x 2 1/4" Screws
(7), the two 3/8" x 1 3/4" Screws (62), and
the two 3/8" x 1 1/4" Screws (63). Note: Do
not overtighten the 3/8" x 1 3/4" Screws; the
Wheels (25) must be able to turn freely.
Next, set the Left Inner Base Cover (99) onto the
lower end of the Left Upright (89). Slide the Left
Base Cover (82) downward and press it onto the
Left Inner Base Cover.
Then, set the Right Inner Base Cover (100) onto
the lower end of the Right Upright (90). Slide the
Right Base Cover (83) downward and press it
onto the Right Inner Base Cover.
99
83
82
62
89
7
7
63
62
100
63
20
90
41
3
56
34
53
19
19. Remove the 5/16" Nut (34) and the 5/16" x 2 1/4"
Bolt (3) from the bracket on the Latch Crossbar
(41).
Align the upper end of the Storage Latch (53)
with the bracket on the Latch Crossbar (41),
and insert the 5/16" x 2 1/4" Bolt (3) through the
bracket and the Storage Latch. This will push a
spacer (Q) out of the Storage Latch; discard
the spacer.
Next, tighten the 5/16" Nut (34) onto the 5/16" x
2 1/4" Bolt (3). Do not overtighten the Nut; the
Storage Latch (53) must be able to pivot.
Then, lower the Frame (56) (see HOW TO
LOWER THE TREADMILL FOR USE on page
33).
Q
25
25

17
22. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex key in a secure
place; the hex key is used to adjust the walking belt (see pages 35 and 36). Note: Extra hardware may be
included.
21
98
Start First
21. Press the two tabs on the Tablet Holder (98) into
the slots (R) in the console assembly (J).
Attach the Tablet Holder (98) to the console
assembly (J) with four #8 x 5/8" Machine Screws
(38). Note: Start the two top Machine Screws
rst, and then start the two bottom Machine
Screws. Be careful not to overtighten the
Machine Screws.
IMPORTANT: The Tablet Holder (98) is
designed for use with most full-size tablets.
Do not place any other electronic device or
object in the Tablet Holder.
J
R38

18
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should malfunc-
tion or break down, earthing provides a path of least
resistance for electric current to reduce the risk of
electric shock. This product’s power cord has an
equipment-earthing conductor and an earthing plug.
IMPORTANT: If the power cord is damaged, it must
be replaced with a manufacturer-recommended
power cord.
Follow the steps below to plug in the power cord.
1. Plug the indicated end of the power cord into the
socket on the treadmill.
2. Plug the power cord into an appropriate outlet that
is properly installed and earthed in accordance with
all local codes and ordinances.
DANGER: Improper connection of
the equipment-earthing conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product
is properly earthed. Do not modify the plug
provided with the product—if it will not fit
the outlet, have a proper outlet installed by a
qualified electrician.
HOW TO USE THE TREADMILL
IT
FR/SP
UK
GR
RU
HU
Socket on Treadmill
IT
FR/SP
UK
GR
RU
HU
UK
GR
FR/SP
IT
AUS
AUS
Outlet
UK Australia
Outlet
Power Cord

19

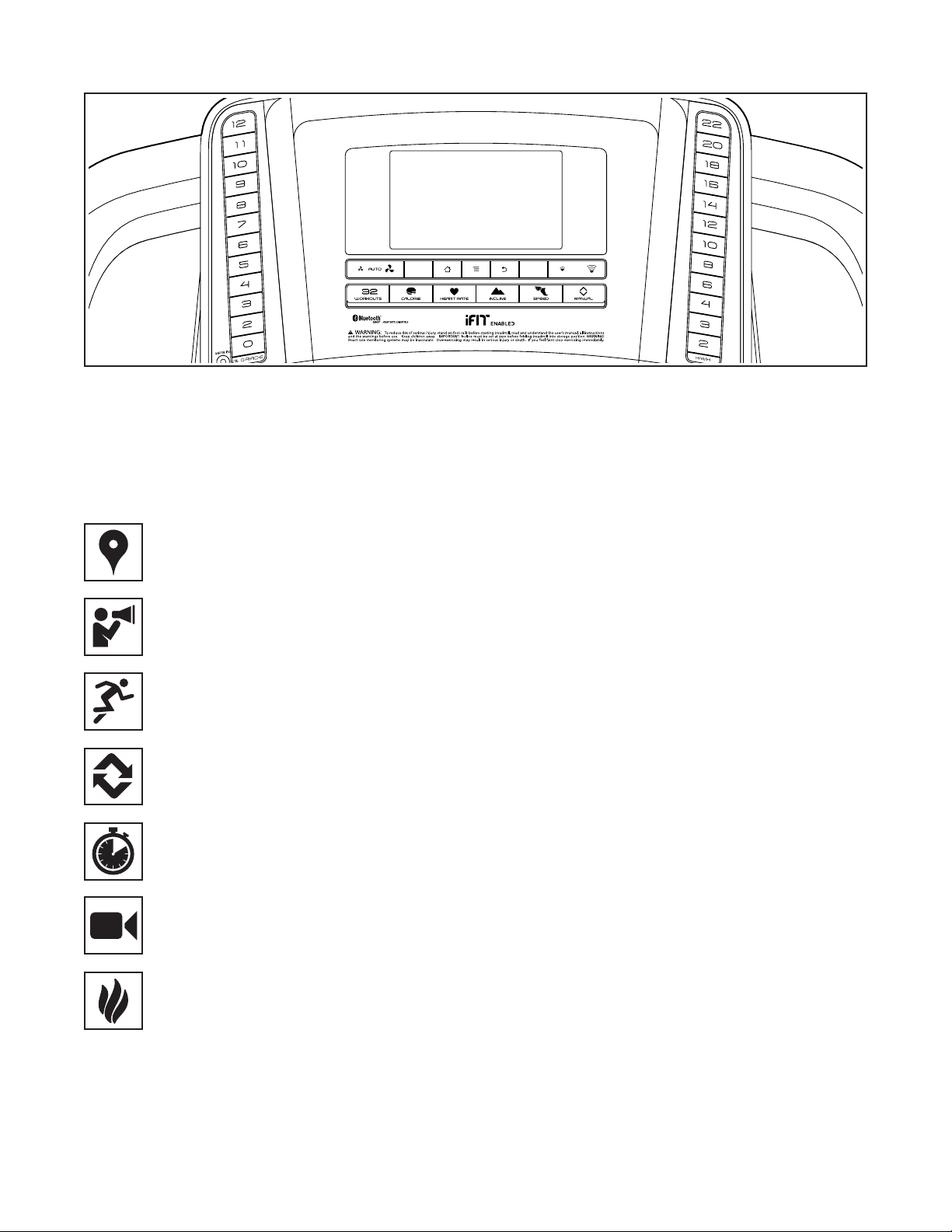

CONSOLE DIAGRAM
MAKE YOUR FITNESS GOALS A REALITY WITH
IFIT.COM
With your new iFit-enabled fitness equipment, you can
use an array of features on iFit.com to make your fit-
ness goals a reality:
Run anywhere in the world with customiz-
able Google Maps.
Download training workouts designed to
help you reach your personal goals.
Measure your progress by competing
against other users in the iFit community.
Upload your workout results to the iFit cloud
and track your accomplishments.
Set calorie, time, or distance goals for your
workouts.
Watch high-definition videos with simulated
workouts.
Choose and download sets of weight-loss
workouts.
Go to iFit.com to learn more.
FEATURES OF THE CONSOLE
The advanced treadmill console offers a selection of
features designed to make your workouts more effec-
tive and enjoyable.
When you use the manual mode, you can change the
speed and incline of the treadmill with the touch of a
button. As you exercise, the console will display instant
exercise feedback. You can also measure your heart
rate using the handgrip heart rate monitor or a compat-
ible heart rate monitor. See page 29 for information
about purchasing an optional chest heart rate
monitor.
In addition, the console features a selection of onboard
workouts. Each workout automatically controls the
speed and incline of the treadmill as it guides you
through an effective exercise session. In addition, you
can set a calorie, time, distance, or pace goal.
You can even browse the Internet or listen to your
favorite workout music or audio books with the con-
sole’s sound system while you exercise.
To turn on the power, see page 20. To learn how
to use the touch screen, see page 20. To set up
the console, see page 21.

20
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console display
or other electrical components.
Plug in the power cord
(see page 18). Next, locate
the power switch on the
treadmill frame near the
power cord. Press the
power switch into the reset
position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is dis-
played in a store. If the demo mode is turned on,
the screen will show a demo presentation after you
plug in the power cord and press the power switch
into the reset position, before you insert the key. To
turn off the demo mode, see step 7 on page 28.
Next, stand on the
foot rails of the
treadmill. Locate the
clip attached to the
key, and slide the
clip securely onto
the waistband of
your clothes. Then,
insert the key into
the console. Note: It
may take a minute for the console to be ready for
use. IMPORTANT: In an emergency, the key can be
pulled from the console, causing the walking belt
to slow to a stop. Test the clip by carefully taking
a few steps backward; if the key is not pulled from
the console, adjust the position of the clip.
Note: The console can display speed and distance
in either miles or kilometers. To find which unit of
measurement is selected, see step 4 on page 28.
For simplicity, all instructions in this section refer to
kilometers.
HOW TO USE THE TOUCH SCREEN
The console features a tablet with a full-color touch
screen. The following information will help you become
familiar with the tablet’s advanced technology:
• The console functions similarly to other tablets. You
can slide or flick your finger against the screen to
move certain images on the screen, such as the
displays in a workout (see step 5 on page 22).
However, you cannot zoom in and out by sliding your
fingers on the screen.
• The screen is not pressure sensitive. You do not
need to press hard on the screen.
• To type information into a text box, touch the text box
to view the keyboard. To use numbers or other char-
acters on the keyboard, touch the ?123 button. To
view more characters, touch the Alt button. Touch the
Alt button again to return to the number keyboard. To
return to the letter keyboard, touch the ABC button.
To use a capital character, touch the button with an
upward-facing arrow. To use multiple capital charac-
ters, touch the arrow button again. To return to the
lowercase keyboard, touch the arrow button a third
time. To clear the last character, touch the button
with a backward-facing arrow and an X.
Use the buttons on the console to navigate the
tablet. Press the home button to return to the main
menu. Press the settings button to access the set-
tings main menu (see page 28). Press the back
button to return to the previous screen.
ETNT14115
Back
Home Settings
Reset
Key
Clip
