ICON Health & Fitness NordicTrack X9i User manual

USER’S MANUAL
www.nordictrack.com
Model No. NTL19115.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today, go
to www.nordictrackservice.com/
registration.
CUSTOMER CARE
For service at any time, go to
www.nordictrackservice.com.
Or call 1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
Serial
Number
Decal

2
TABLE OF CONTENTS
IFIT is a registered trademark of ICON Health & Fitness, Inc. App store is a trademark of Apple Inc., registered
in the U.S. and other countries. Google Maps and Google Play are trademarks of Google Inc. The BLUETOOTH®
word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license.
NORDICTRACK is a registered trademark of ICON Health & Fitness, Inc.

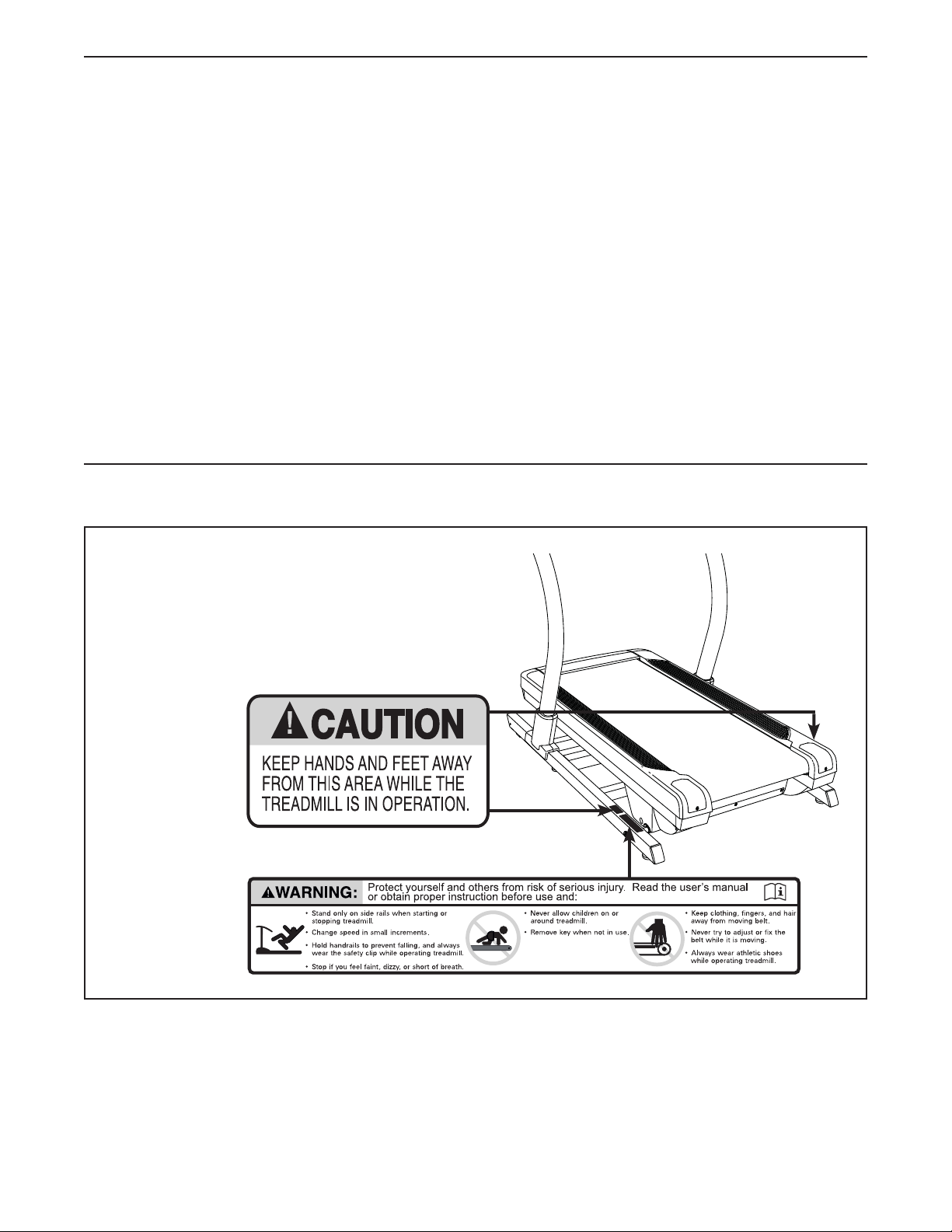

This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call the
telephone number on the front cover of this
manual and request a free replacement decal.
Apply the decal in the location shown. Note: The
decals may not be shown at actual size.
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
THE CHEST HEART RATE MONITOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
HOW TO USE THE INCLINE TRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO MOVE THE INCLINE TRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
MAINTENANCE AND TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

3
1. It is the responsibility of the owner to
ensure that all users of this incline trainer
are adequately informed of all warnings and
precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The incline trainer is not intended for use
by persons with reduced physical, sensory,
or mental capabilities or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of
the incline trainer by someone responsible
for their safety.
4. Use the incline trainer only as described in
this manual.
5. The incline trainer is intended for home use
only. Do not use the incline trainer in any
commercial, rental, or institutional setting.
6. Keep the incline trainer indoors, away from
moisture and dust. Do not put the incline
trainer in a garage or covered patio, or near
water.
7. Place the incline trainer on a level surface,
with at least 8 ft. (2.4 m) of clearance behind
it and 2 ft. (0.6 m) on each side. Do not place
the incline trainer on any surface that blocks
air openings. To protect the floor or carpet
from damage, place a mat under the incline
trainer.
8. Do not operate the incline trainer where
aerosol products are used or where oxygen
is being administered.
9. Keep children under age 13 and pets away
from the incline trainer at all times.
10. The incline trainer should be used only by
persons weighing 350 lbs. (159 kg) or less.
11. Never allow more than one person on the
incline trainer at a time.
12. Wear appropriate exercise clothes while
using the incline trainer. Do not wear loose
clothes that could become caught in the
incline trainer. Athletic support clothes are
recommended for both men and women.
Always wear athletic shoes. Never use the
incline trainer with bare feet, wearing only
stockings, or in sandals.

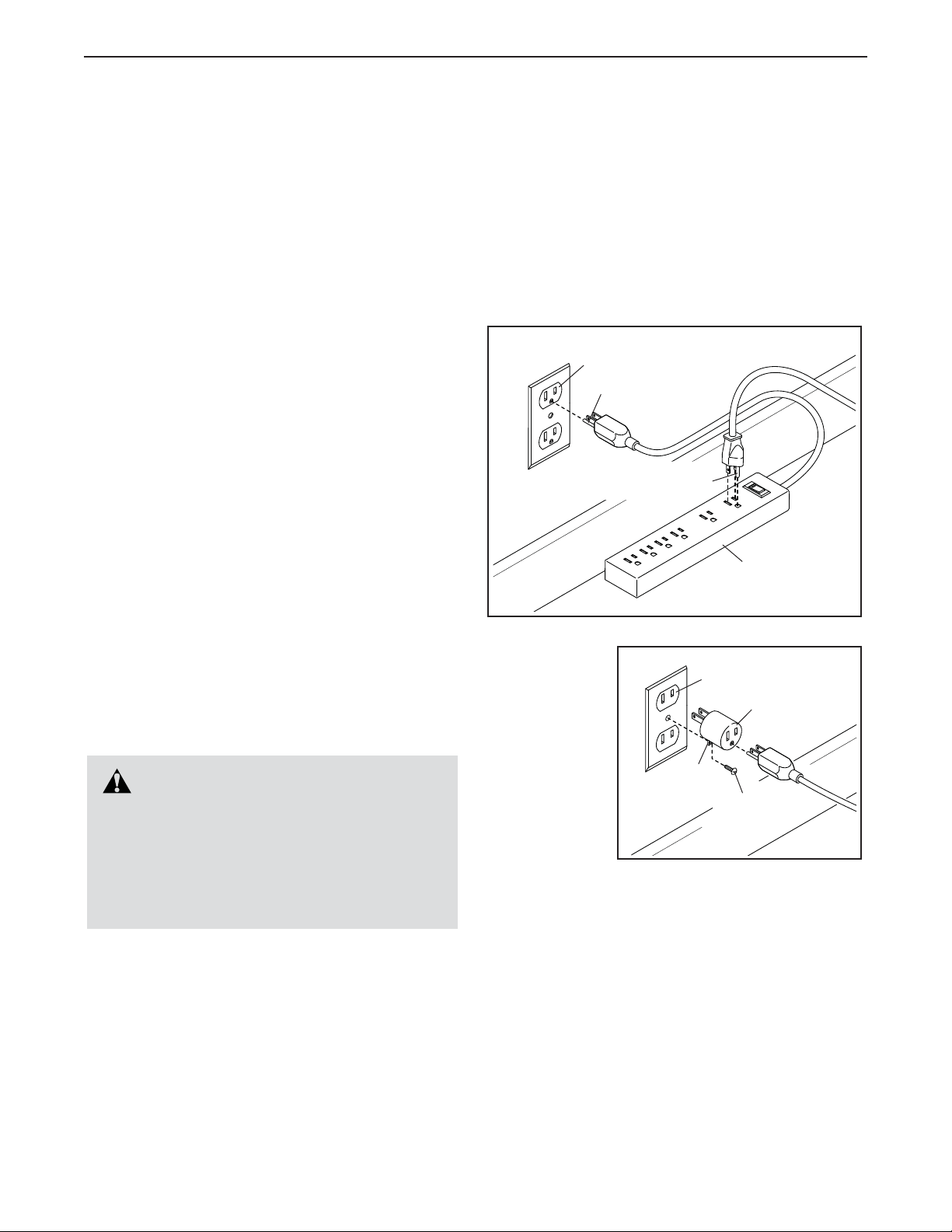

13. Plug the power cord into a surge suppressor
(not included), and plug the surge suppres-
sor into an appropriate outlet (see page 15).
To avoid overloading the circuit, do not plug
other electrical devices, except for low-power
devices such as cell phone chargers, into
the surge suppressor or into an outlet on the
same circuit.
14. Use only a surge suppressor that meets all of
the specifications described on page 15. To
purchase a surge suppressor, see your local
NORDICTRACK dealer, call the telephone
number on the front cover of this manual, or
see your local electronics store.
15. Failure to use a properly functioning surge
suppressor could result in damage to the
control system of the incline trainer. If the
control system is damaged, the walking belt
may slow, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.
16. Keep the power cord and the surge suppres-
sor away from heated surfaces.
17. Never move the walking belt while the
power is turned off. Do not operate the
incline trainer if the power cord or plug
is damaged, or if the incline trainer is not
working properly. (See MAINTENANCE
AND TROUBLESHOOTING on page 30 if the
incline trainer is not working properly.)
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all
important precautions and instructions in this manual and all warnings on your incline trainer before
using your incline trainer. ICON assumes no responsibility for personal injury or property damage
sustained by or through the use of this product.
IMPORTANT PRECAUTIONS

4
18. Read, understand, and test the emergency
stop procedure before using the incline
trainer (see HOW TO TURN ON THE POWER
on page 17). Always wear the clip while using
the incline trainer.
19. Always stand on the foot rails when starting
or stopping the walking belt. Always hold the
handrails while using the incline trainer.
20. When a person is walking on the incline
trainer, the noise level of the incline trainer
will increase.
21. The incline trainer is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
22. Keep fingers, hair, and clothing away from
the moving walking belt.
23. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
24. Never leave the incline trainer unattended
while it is running. Always remove the key,
press the power switch into the off position

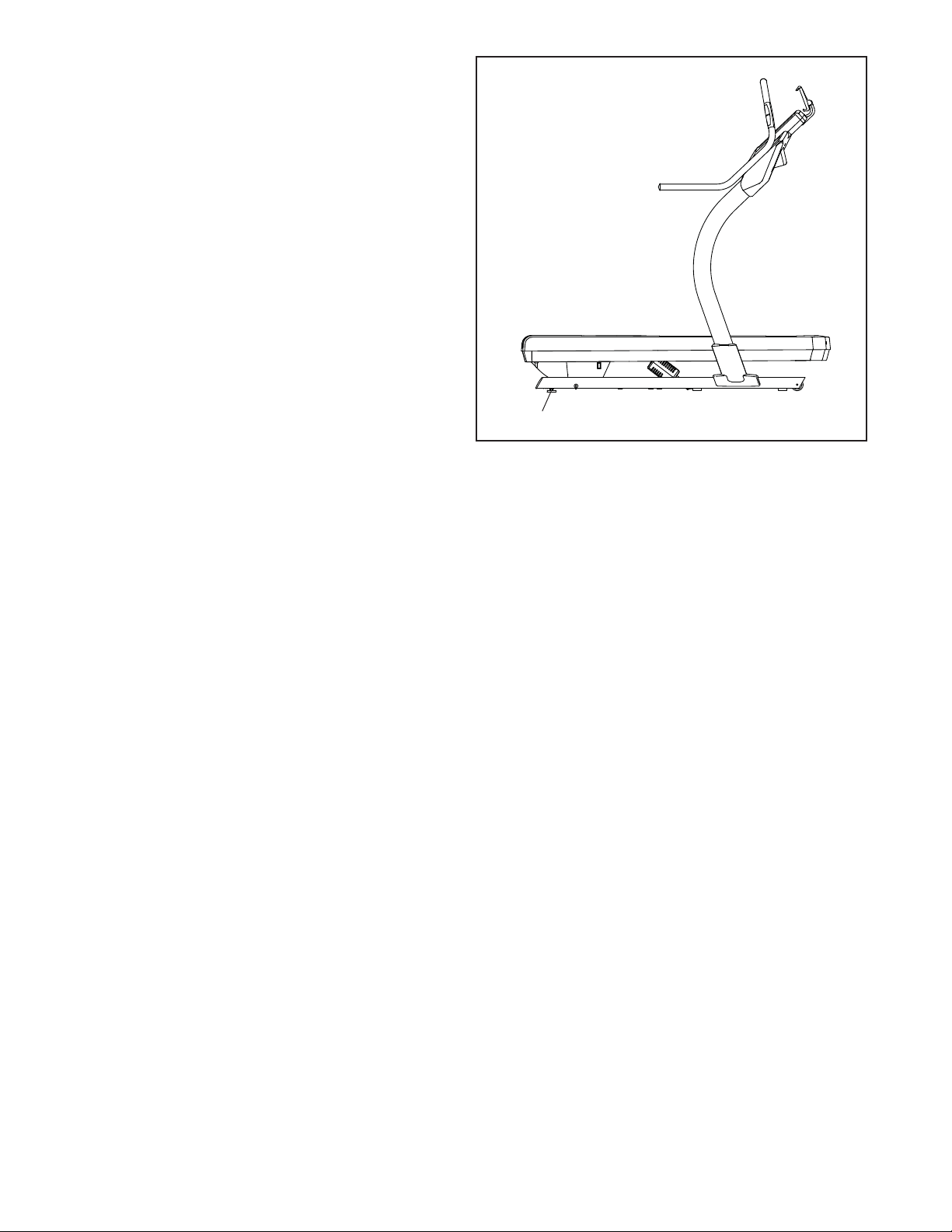

(see the drawing on page 7 for the location of
the power switch), and unplug the power cord
when the incline trainer is not in use.
25. Do not attempt to move the incline trainer
until it is properly assembled. (See
ASSEMBLY on page 9, and HOW TO MOVE
THE INCLINE TRAINER on page 29.) You must
be able to safely lift 45 lbs. (20 kg) to raise,
lower, or move the incline trainer.
26. Never insert any object into any opening on
the incline trainer.
27. Inspect and properly tighten all parts each
time the incline trainer is used.
28. DANGER: Always unplug the power
cord immediately after use, before cleaning
the incline trainer, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
29. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
30. IMPORTANT: To satisfy exposure compliance
requirements, the antenna and transmitter
in the console must be at least 8 in. (20 cm)
from all persons and must not be near or
connected to any other antenna or transmit-
ter. The incline trainer console contains FCC
ID OMCIABR12.
SAVE THESE INSTRUCTIONS

5

6
all
STANDARD SERVICE PLANS

7
Thank you for selecting the revolutionary
NORDICTRACK®X9I INCLINE TRAINER. The X9I
INCLINE TRAINER offers a selection of features
designed to make your workouts at home more effec-
tive and enjoyable.
For your benefit, read this manual carefully before
using the incline trainer. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with

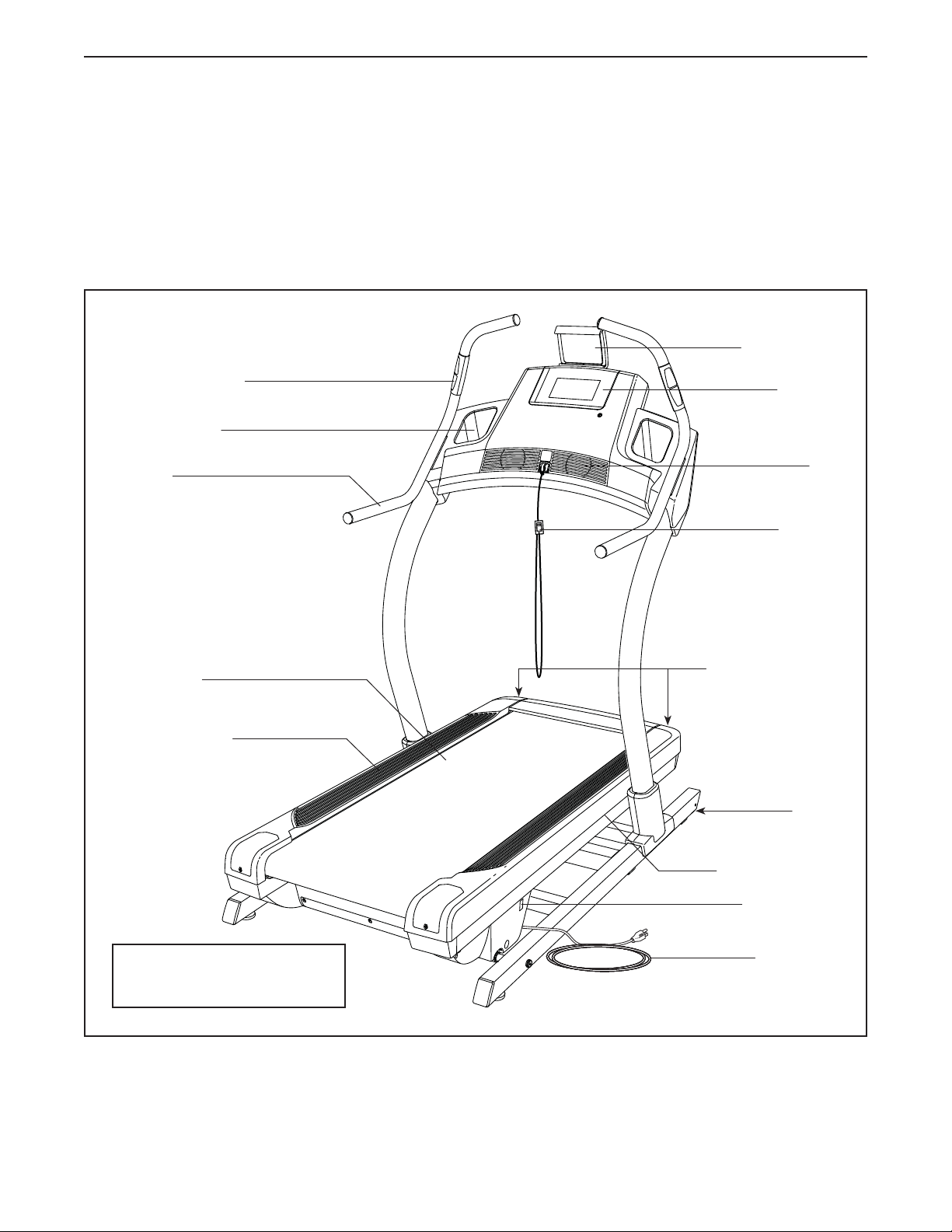

the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Console
Tablet Holder
Fan
Key/Clip
Power Switch
Walking Platform
Power Cord
Platform Cushion
Wheel
Idler Roller
Adjustment Screws
Accessory Tray
Walking Belt
Heart Rate Monitor
Length: 5 ft. 10 in. (178 cm)
Width: 3 ft. 4 in. (101 cm)

8
PART IDENTIFICATION CHART

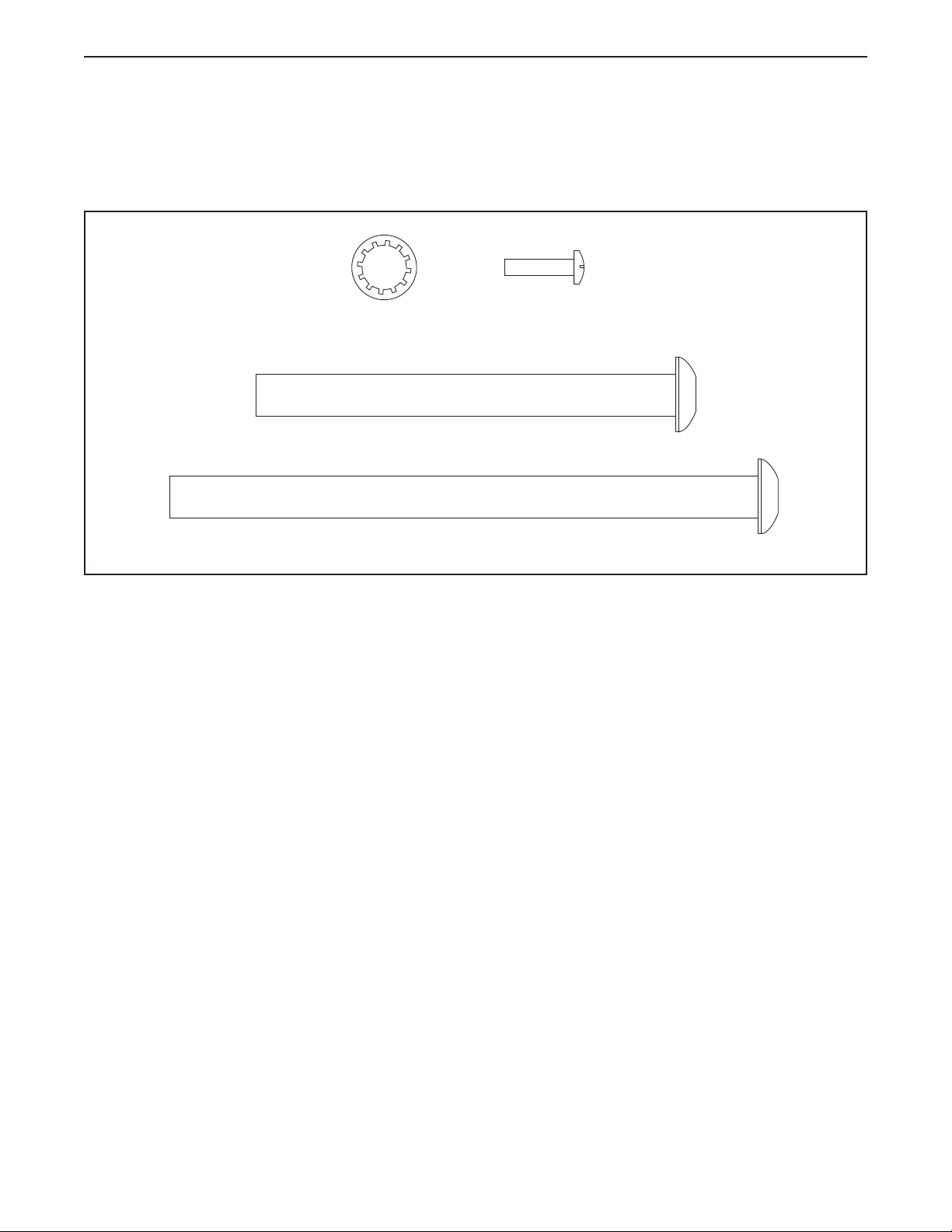

Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included.
3/8" Star
Washer (3)–8
3/8" x 3 3/4" Screw (2)–2
3/8" x 5 1/2" Screw (1)–2
#8 x 5/8" Machine
Screw (8)–4

9
ASSEMBLY
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
• After shipping, there may be an oily substance on
the exterior of the incline trainer. This is normal.
If there is an oily substance on the incline trainer,
wipe it off with a soft cloth and a mild, non-abra-
sive cleaner.
• To identify small parts, see page 8.
• Assembly requires the following tools:
the included hex keys
To avoid damaging parts, do not use power tools.
1. Go to www.nordictrackservice.com/
registration on your computer and register
your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Care
• allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
Customer Care (see the front cover of this
manual) and register your product.
1
2. Make sure that the power cord is unplugged.
Remove the four 3/8" x 3 1/4" Screws (18)
from the Base (74) (only one side is shown).
Save the Screws.
2
74
18

10
4. Set the Uprights (83) on the Base (74). Make
sure that the hole with the Upright Wire (75)
is on the right side.
Attach the right Upright (83) to the Base (74)
with two of the 3/8" x 2 3/4" Screws (22) and
two of the 3/8" x 3 1/4" Screws (18) that you just
removed and four 3/8" Star Washers (3); do not
fully tighten the Screws yet. Make sure that
the Base Wire (52) is not pinched.
Attach the left Upright (not shown) in the
same way. Note: There is not a wire on the
left side. Fully tighten the four 3/8" x 2 3/4"
Screws (22) and the four 3/8" x 3 1/4" Screws
(18).
3. Remove the four 3/8" x 2 3/4" Screws (22)
from the Uprights (83). Save the Screws. 3
83
22
22
4
22
3
3
52
74
75
18
83
3
3

11
6
1
2
B
C
6. Identify the right handrail assembly (A). Hold the
right handrail assembly near the right side of
the console assembly (B), and connect the two
pulse wires (C).
Next, set the right handrail assembly (A) on the
console assembly (B). Make sure that no wires
are pinched.
Attach the right handrail assembly (A) with a 3/8"
x 5 1/2" Screw (1) and a 3/8" x 3 3/4" Screw (2);
start both Screws, and then tighten them.
Attach the left handrail assembly (not shown)
in the same way.
A
5. Connect the Base Wire (52) to the Upright Wire
(75).
See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER.
Then, remove the tie from the Base Wire (52),
and insert the connectors into the holes in the
right Upright (83) and the Base (74).
5
52
75
75
52
83
Tie
Hole
Hole
74

12
7. Slide the Right Inside Upright Cover (70) against
the lower end of the right Upright (83). Press
the Right Outside Upright Cover (71) against
the Right Inside Upright Cover until it snaps
into place. Make sure that the wires are not
pinched.
Attach the Left Inside Upright Cover and the
Left Outside Upright Cover (not shown) in the
same way. Note: There is not a wire on the left
side.
7
8
70
71
83
Wires
8. Press the two tabs on the Tablet Holder (65) into
the slots (D) in the console assembly (B).
Attach the Tablet Holder (65) to the console
assembly (B) with four #8 x 5/8" Machine Screws
(8). Note: Start the two top Machine Screws
first, and then start the two bottom Machine
Screws. Be careful not to overtighten the
Machine Screws.
IMPORTANT: The Tablet Holder (65) is
designed for use with most full-size tablets.
Do not place any other electronic device or
object in the Tablet Holder.
65
Start First
B
D
8

13
77
9. If necessary, move the incline trainer to the
desired location (see HOW TO MOVE THE
INCLINE TRAINER on page 29).
After the incline trainer is placed in the location
where it will be used, make sure that the incline
trainer rests firmly on the floor. If the incline
trainer rocks even slightly, turn the Leveling
Feet (77) as needed until the rocking motion is
eliminated.
9
10. Make sure that all parts are properly tightened before you use the incline trainer. Keep the included hex
keys in a secure place. One of the hex keys is used to adjust the walking belt (see page 31). To protect the
floor or carpet from damage, place a mat under the incline trainer. To avoid damage to the console, keep the
incline trainer out of direct sunlight. Note: Extra parts may be included.

14
HOW TO PUT ON THE HEART RATE MONITOR
If the heart rate monitor looks like the one shown
in drawing 1, press the transmitter (A) onto the snap
fasteners on the chest strap (B). If the heart rate
monitor looks like the one shown in drawing 2,
insert the tab (C) on one end of the chest strap (D) into
one end of the transmitter (E). Then, press the end of
the transmitter under the buckle (F) on the chest strap;
the tab should be flush with the transmitter.
Next, wrap the heart
rate monitor around
your chest in the loca-
tion shown; the heart
rate monitor must be
under your clothes,
tight against your skin.
Make sure that the logo
is right-side-up. Then, attach the other end of the chest
strap. Adjust the length of the chest strap, if necessary.
Next, pull the trans-
mitter and the chest
strap away from your
body a few inches
and locate the two
electrode areas (G).
Using saliva or con-
tact lens solution, wet the electrode areas. Then, return
the transmitter and the chest strap to a position against
your chest.
CARE AND MAINTENANCE
• Thoroughly dry the electrode areas with a soft towel
after each use. Moisture may keep the heart rate
monitor activated, shortening the life of the battery.
• Store the heart rate monitor in a warm, dry place. Do
not store the heart rate monitor in a plastic bag or
other container that may trap moisture.
• Do not expose the heart rate monitor to direct sun-
light for extended periods of time, and do not expose
it to temperatures above 122° F (50° C) or below 14°
F (-10° C).
• Do not excessively bend or stretch the heart rate
monitor when using or storing it.
• To clean the transmitter, use a damp cloth and a
small amount of mild soap. Then, wipe the transmit-
ter with a damp cloth and thoroughly dry it with a soft
towel. Never use alcohol, abrasives, or chemicals
to clean the transmitter. Hand wash and air dry the
chest strap.
TROUBLESHOOTING
• If the heart rate monitor does not function when posi-
tioned as described at the left, move it slightly lower
or higher on your chest.
• If heart rate readings are not displayed until you
begin perspiring, re-wet the electrode areas.
• For the console to display heart rate readings, you
must be within arm’s length of the console.
• If there is a battery cover on the back of the trans-
mitter, replace the battery with a new battery of the
same type.
• The heart rate monitor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical condi-
tions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
• The operation of the heart rate monitor can be
affected by magnetic interference from high power
lines or other sources. If you suspect that magnetic
interference is causing a problem, try relocating the
fitness equipment.
THE CHEST HEART RATE MONITOR
1 2
G
A
B
EF
CD

15
HOW TO USE THE INCLINE TRAINER
HOW TO CONNECT THE POWER CORD
Use a Surge Suppressor
Your incline trainer, like other electronic equipment,
can be damaged by sudden voltage changes in your
home’s power. Voltage surges, spikes, and noise
interference can result from weather conditions or from
other appliances being turned on or off. To decrease
the risk of damaging the incline trainer, always
use a surge suppressor with the incline trainer. To
purchase a surge suppressor, see precaution 14 on
page 3.
Use only a surge suppressor that is UL 1449 listed as a
transient voltage surge suppressor (TVSS). The surge
suppressor must have a UL suppressed voltage rating
of 400 volts or less and a minimum surge dissipation of
450 joules. The surge suppressor must also be electri-
cally rated for 120 volts AC and 15 amps. There must
be a monitoring light on the surge suppressor to indi-
cate whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the incline
trainer and serious injury to users.
Plug in the Power Cord
The incline trainer must be grounded. If it should
malfunction or break down, grounding provides a path
of least resistance for electric current to reduce the risk
of electric shock. The incline trainer power cord has a
plug with a grounding pin (see drawing 1 on this page).
Plug the power cord into a surge suppressor, and plug
the surge suppressor into an appropriate outlet that is
properly installed and grounded in accordance with all
local codes and ordinances. The outlet must be on a
nominal 120-volt circuit capable of carrying 15 or
more amps. To avoid overloading the circuit, do
not plug other electrical devices, except for low-
power devices such as cell phone chargers, into
the surge suppressor or into an outlet on the same
circuit. IMPORTANT: If the incline trainer is con-
nected to an AFCI-equipped outlet and your circuit
breaker trips repeatedly when the incline trainer is
used, see the front cover of this manual to pur-
chase an arc filter.
A temporary
adapter may
be used to
connect the
surge sup-
pressor to
a 2-pole
receptacle
if a properly
grounded
outlet is not
available.
The lug or wire extending from the adapter must
be connected with a metal screw to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a quali-
fied electrician to determine whether the outlet box
cover is grounded. The temporary adapter should
be used only until a properly grounded outlet can
be installed by a qualified electrician.
DANGER: Improper connec-
tion of the power cord increases the risk of
electric shock. Do not modify the plug—if
it will not fit an outlet, have a proper outlet
installed by a qualified electrician. If you are
unsure whether the incline trainer is properly
grounded, contact a qualified electrician.
1
Surge
Suppressor
Grounding Pin
Grounded Outlet
2
Adapter
2-pole Receptacle
Lug
Grounding Pin
Metal
Screw

16
MAKE YOUR FITNESS GOALS A REALITY WITH
IFIT.COM
With your new iFit-enabled fitness equipment, you can
use an array of features on iFit.com to make your fit-
ness goals a reality:
Run anywhere in the world with customiz-
able Google Maps.
Download training workouts designed to
help you reach your personal goals.
Measure your progress by competing
against other users in the iFit community.
Upload your workout results to the iFit cloud
and track your accomplishments.
Set calorie, time, or distance goals for your
workouts.
Watch high-definition videos with simulated
workouts.
Choose and download sets of weight-loss
workouts.
Go to iFit.com to learn more.
FEATURES OF THE CONSOLE
The advanced incline trainer console offers a selec-
tion of features designed to make your workouts more
effective and enjoyable.
When you use the manual mode, you can change the
speed and incline of the incline trainer with the touch
of a button. As you exercise, the console will display
instant exercise feedback. You can also measure your
heart rate using the handgrip heart rate monitor or the
chest heart rate monitor.
In addition, the console features a selection of onboard
workouts. Each workout automatically controls the
speed and incline of the incline trainer as it guides you
through an effective exercise session. In addition, you
can set a calorie, time, distance, or pace goal.
You can also use your tablet to control the speed and
incline of the incline trainer, or to access workouts.
You can even browse the Internet or listen to your
favorite workout music or audio books with the con-
sole’s sound system while you exercise.
To turn on the power, see page 17. To learn how
to use the touch screen, see page 17. To set up
the console, see page 18.

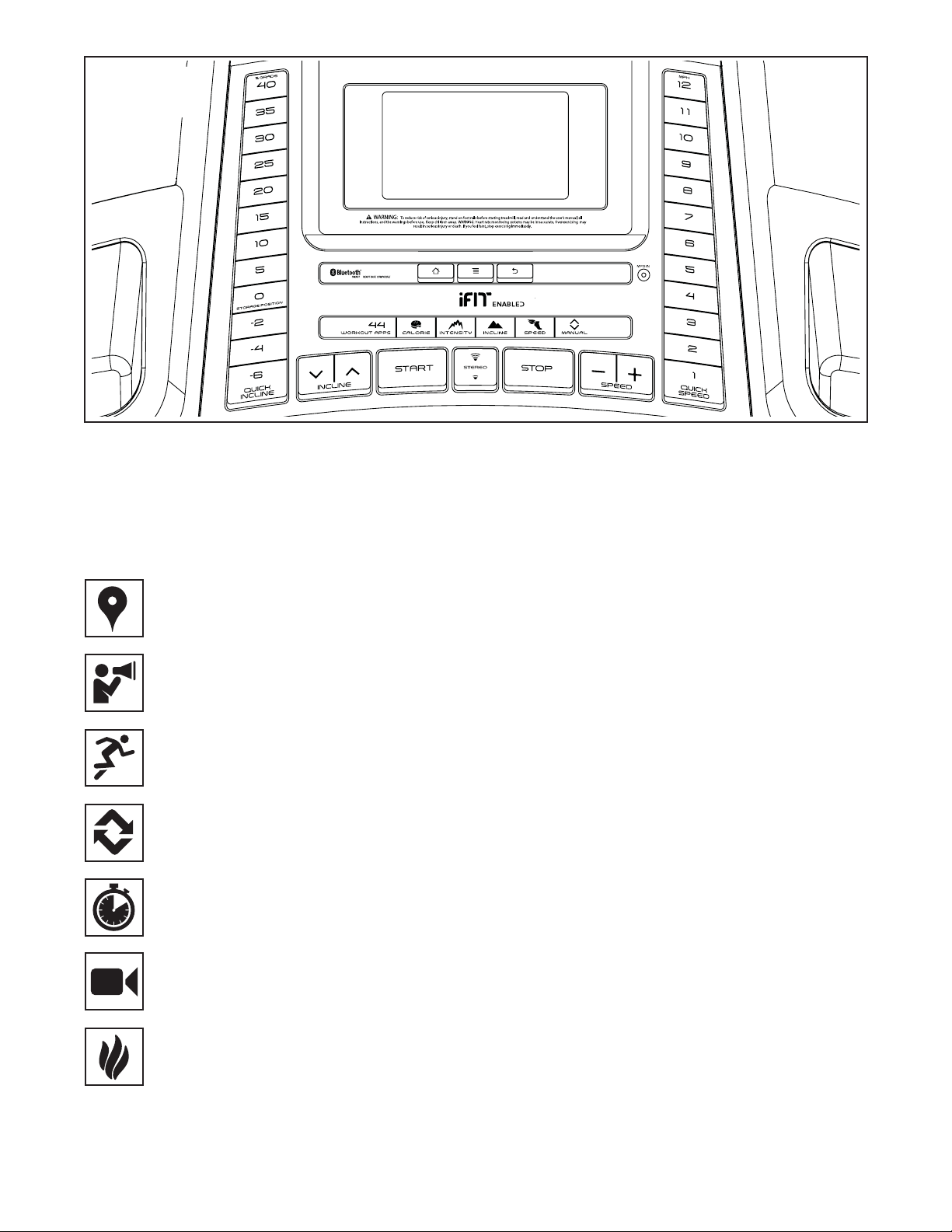

CONSOLE
DIAGRAM

17
HOW TO TURN ON THE POWER
IMPORTANT: If the incline trainer has been
exposed to cold temperatures, allow it to warm to
room temperature before you turn on the power. If
you do not do this, you may damage the console
displays or other electrical components.

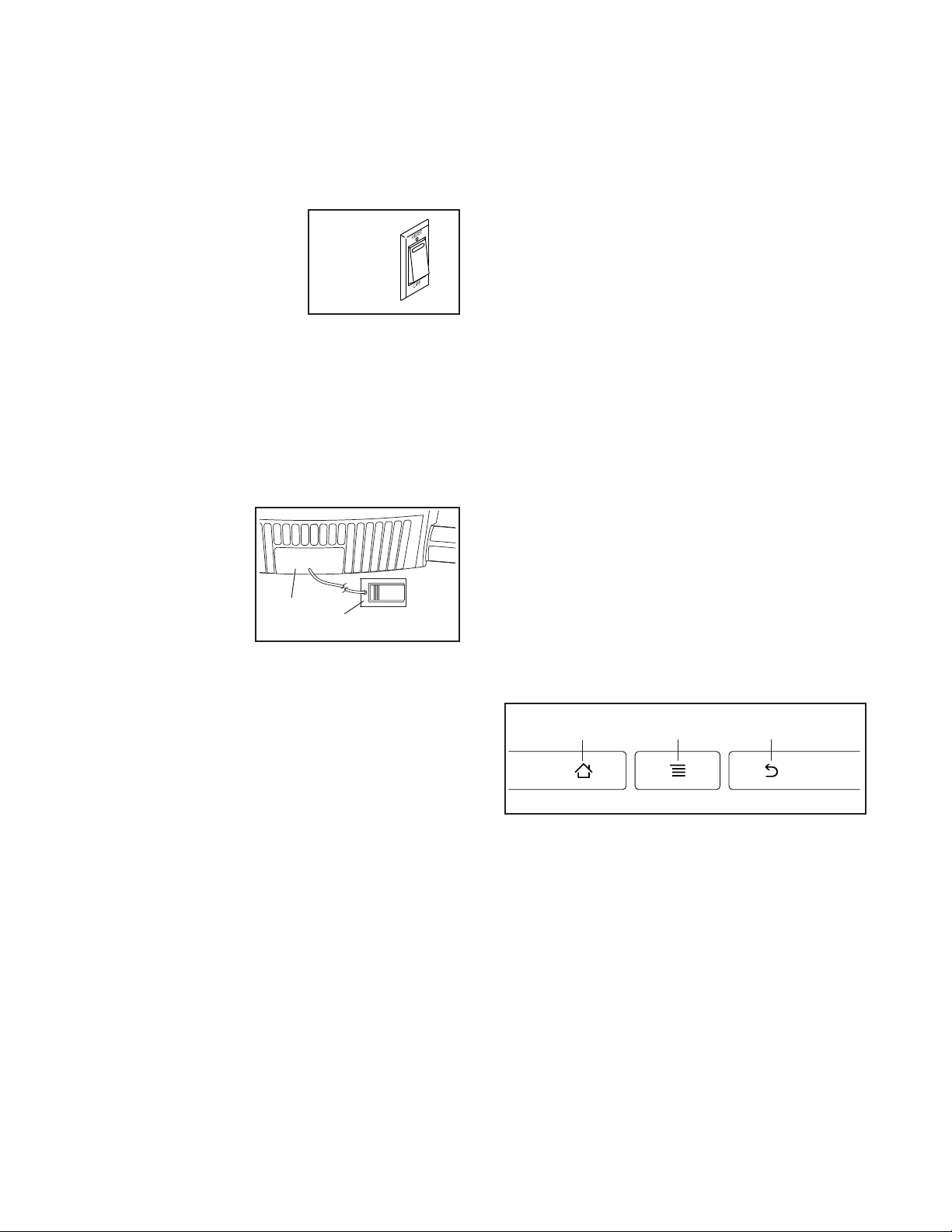

Plug in the power cord
(see page 15). Next, locate
the power switch on the
incline trainer frame near
the power cord. Press the
power switch into the reset
position.
IMPORTANT: The console features a display demo
mode, designed to be used if the incline trainer is
displayed in a store. If the demo mode is turned on,
the screen will show a demo presentation after you
plug in the power cord and press the power switch
into the reset position, before you insert the key. To
turn off the demo mode, see step 7 on page 25.
Next, stand on
the foot rails of
the incline trainer.
Locate the clip
attached to the key,
and slide the clip
securely onto the
waistband of your
clothes. Then, insert
the key into the console. Note: It may take a minute
for the console to be ready for use. IMPORTANT:
In an emergency, the key can be pulled from the
console, causing the walking belt to slow to a
stop. Test the clip by carefully taking a few steps
backward; if the key is not pulled from the console,
adjust the position of the clip.
Note: The console can display speed and distance in
either miles or kilometers. To find which unit of mea-
surement is selected, see step 4 on page 24. For
simplicity, all instructions in this section refer to miles.
HOW TO USE THE TOUCH SCREEN
The console features a tablet with a full-color touch
screen. The following information will help you become
familiar with the tablet’s advanced technology:
• The console functions similarly to other tablets. You
can slide or flick your finger against the screen to
move certain images on the screen, such as the
displays in a workout (see step 5 on page 19).
However, you cannot zoom in and out by sliding your
fingers on the screen.
• The screen is not pressure sensitive. You do not
need to press hard on the screen.
• To type information into a text box, touch the text box
to view the keyboard. To use numbers or other char-
acters on the keyboard, touch the ?123 button. To
view more characters, touch the Alt button. Touch the
Alt button again to return to the number keyboard. To
return to the letter keyboard, touch the ABC button.
To use a capital character, touch the button with an
upward-facing arrow. To use multiple capital charac-
ters, touch the arrow button again. To return to the
lowercase keyboard, touch the arrow button a third
time. To clear the last character, touch the button
with a backward-facing arrow and an X.
Use the buttons on the console to navigate the
tablet. Press the home button to return to the main
menu. Press the settings button to access the set-
tings main menu (see page 24). Press the back
button to return to the previous screen.
Reset
Back
Home Settings
Key Clip

18
HOW TO SET UP THE CONSOLE
Before using the incline trainer for the first time, set up
the console.
1. Connect to your wireless network.
Note: In order to access the Internet, download
iFit workouts, and use several other features of
the console, you must be connected to a wireless
network. See HOW TO USE THE WIRELESS
NETWORK MODE on page 27 to connect the
console to your wireless network.
2. Check for firmware updates.
First, see step 1 on page 24 and step 2 on page
25 and select the maintenance mode. Then,
see step 3 on page 25 and check for firmware
updates.
3. Calibrate the incline system.
See step 4 on page 27 and calibrate the incline
system of the incline trainer.
4. Create an iFit account.
Touch the globe button near the lower-left corner of
the screen and touch the iFit button.
The browser will open to the iFit.com home page.
Follow the prompts on the website to sign up for
your iFit membership. Note: For information about
navigating in the browser, see page 25.
The console is now ready for you to begin working out.
The following pages explain the various workouts and
other features that the console offers.
To use the manual mode, see page 18. To use
an onboard workout, see page 20. To use a
set-a-goal workout, see page 21. To use a pulse
workout, see page 22. To use an iFit workout, see
page 23.
To use the equipment settings mode, see page
24. To use the sound system, see page 2526.
To use the Internet browser, see page 25. To use
the maintenance mode, see page 25. To use the
wireless network mode, see page 27. To use a
tablet with the console, see page 28.
IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the incline trainer. The first time you
use the incline trainer, observe the alignment of the
walking belt, and center the walking belt if neces-
sary (see page 31).
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
17. Note: It may take a minute for the console
to be ready for use.
2. Select the main menu.
When you turn on the power, the main menu will
appear after the console boots up. Touch the home
button in the lower-left corner of the screen to
return to the main menu at any time.
3. Start the walking belt and adjust the speed.
Touch the
Start button on
the screen or
press the Start
button on the
console to start
the walking
belt. You can
also press the
Manual button on the console, and then touch the
Resume button on the screen. The walking belt will
begin to move at 1 mph. As you exercise, change
the speed of the walking belt as desired by press-
ing the Speed increase and decrease buttons.
Each time you press one of the buttons, the speed
setting will change by 0.1 mph; if you hold down
the button, the speed setting will change in incre-
ments of 0.5 mph.

19
If you press one of the numbered Speed buttons,
the walking belt will gradually change speed until it
reaches the selected speed setting.
To select a speed setting that includes a decimal—
such as 3.5 mph—press two numbered buttons in
succession. For example, to select a speed setting
of 3.5 mph, press the 3 button and then immedi-
ately press the 5 button. Note: This will not function
if the console is set to metric units.
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Start button.
4. Change the incline of the incline trainer as
desired.
To change the incline of the incline trainer, press
the Incline increase and decrease buttons or one of
the numbered Quick Incline buttons. Each time you
press one of the buttons, the incline will gradually
change until it reaches the selected incline setting.
Note: The first time you adjust the incline, you must
first calibrate the incline system (see step 4 on
page 27).
5. Monitor your progress with the displays.
The console
offers sev-
eral display
modes. The
display mode
that you select
will determine
which workout
information is
shown. To select the desired display mode, simply
flick or slide the screen. You can also view addi-
tional information by touching the red boxes on the
screen.
As you walk or run on the incline trainer, the screen
can show the following workout information:
• The incline level of the incline trainer
• The elapsed time
• The time left (Note: The manual mode does not
have a time left countdown.)
• The approximate number of calories you have
burned
• The approximate number of calories you are
burning per hour
• The distance that you have walked or run
• The number of vertical feet you have climbed
• The speed of the walking belt
• A track representing 1/4 mile (400 m)
• Your pace in minutes per mile
• Your current lap number
• Your heart rate (see step 6)
If desired, adjust the volume by pressing the
volume buttons on the console.
To pause the workout, touch one of the menu
buttons on the screen or press the Stop button
on the console. To continue the workout, touch
the Resume button or the Start button. To end the
workout session, touch the End Workout button.

20
6. Measure your heart rate if desired.
Note: If you use the handgrip heart rate moni-
tor and the chest heart rate monitor at the same
time, the console will not display your heart
rate accurately. For information about the chest
heart rate monitor, see page 14. Note: The console
is compatible with BLUETOOTH®Smart heart rate
monitors.

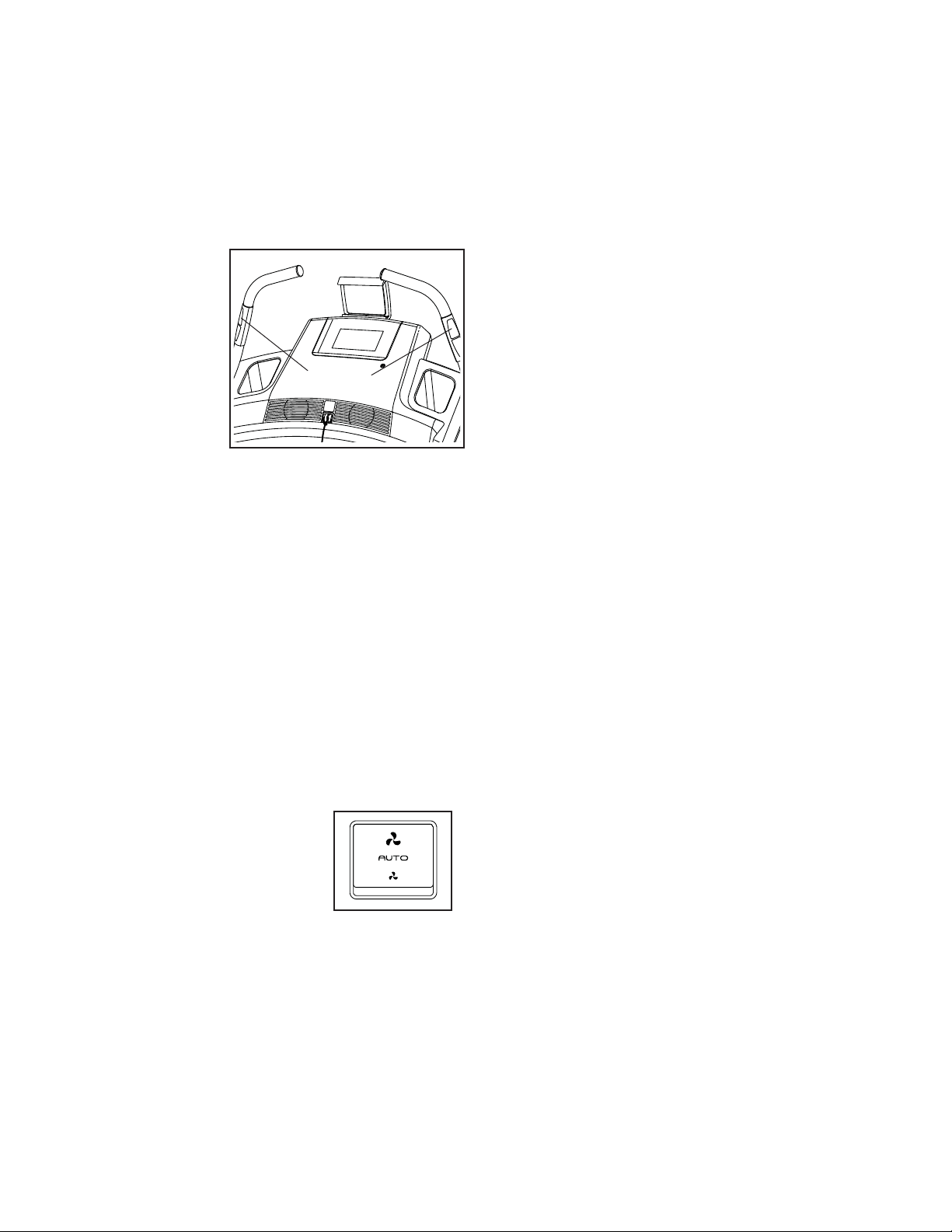

Before using
the handgrip
heart rate
monitor,
remove the
sheets of
plastic from
the metal
contacts.
In addition,
make sure
that your
hands are clean.
To measure your heart rate, stand on the foot
rails and hold the contacts with your palms for
approximately ten seconds; avoid moving your
hands. When your pulse is detected, your heart
rate will be shown. For the most accurate heart
rate reading, continue to hold the contacts for
about 15 seconds.
7. Turn on the fan if desired.
The fan features several speed settings and an
auto mode. When the auto mode is selected,
the speed of the fan will automatically increase
and decrease as the speed of the walking belt
increases and decreases.
Press the fan buttons
repeatedly to select a fan
speed or the auto mode or
to turn off the fan.
8. When you are finished exercising, remove the
key from the console.
Step onto the walking platform and touch the home
button or the back button on the screen or press
the Stop button on the console. A workout sum-
mary will appear on the screen. After you view
the workout summary, touch the Finish button to
return to the main menu. You may also be able to
either save or publish your results using one of the
options on the screen. Then, remove the key from
the console and put it in a secure place.
When you are finished using the incline trainer,
press the power switch into the off position and
unplug the power cord. IMPORTANT: If you do
not do this, the incline trainer’s electrical com-
ponents may wear prematurely.
HOW TO USE AN ONBOARD WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on
page 17.
2. Select an onboard workout.
To select an onboard workout, press the Calorie
button, the Intensity button, the Incline button, or
the Speed button on the console. Note: You can
also touch the runner button on the screen to select
the workouts menu.
Then, select the desired workout. The screen will
show the name, duration, and distance of the work-
out. The screen will also show the approximate
number of calories you will burn during the workout
and a profile of the incline settings of the workout.
Contacts
