IDTECK iTDC Operating instructions

2011 Jan IDTECK. © All rights reserved
1
2014 IDTECK. © All rights reserved
IDTECK TROUBLE SHOOTING

2011 Jan IDTECK. © All rights reserved
2
1) How to set up in/output configuration according to number of doors. l 4
2) Error occurs when installing SQL Database. l 9
3) All the software have been installed, but error message appears and can’t log-in to the software. l 13
1) Door does not open. l 16
2) Communication does not work. l 24
3) Response speed of Event has slowed. l 32
4) I would like to print T&A report, but I can’t find the report. l 33
5) I don’t know how to do a database backup. l 34
6) Can I recover a database backup file? l 37
7) How can I have a backup database automatically with arranged schedule? l 40
8) I have used the software for long time. The software has slowed down and “Database Insert Error”
message appears. l 47
1. Installation
2. Management
Contents
3. Technical Training (Communication & System Integration)

2011 Jan IDTECK. © All rights reserved
3
1. Installation (iTDC / iTDC PRO)
1) How to set up in/output configuration according to number of doors.
2) Error occurs when installing SQL Database.
3) All the software have been installed, but error message appears
and can’t log-in to the software.

2011 Jan IDTECK. © All rights reserved
4
1) How to set up in/output configuration according to number of doors.
Solution

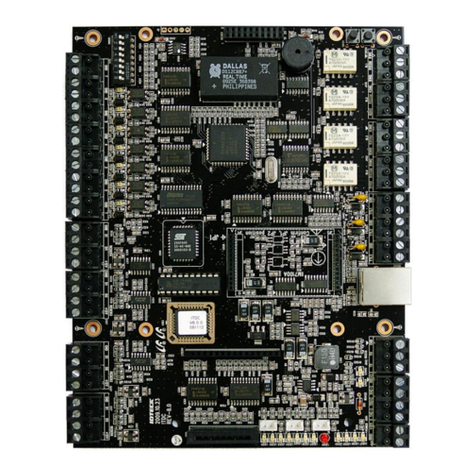

①IN/OUTPUT Configuration for 1~2 Door Control (Basic Configuration)
※ 2 Doors / Using In Reader Only (2 Readers) : Connect to iTDC Main Board
2 Doors / Using In-Out Reader (4 Readers) : Same with Configuration of Door 1 & 2 for 3 Door Control
(Refer to Next Page)
Input Ports #1
Exit Button for Door 1
Output to Output Port #1
Input Ports #2
Door Contact for Door 1
Output to Output Port #2
Input Ports #3
Exit Button for Door 2
Output to Output Port #3
Input Ports #4
Door Contact for Door 2
Output to Output Port #4
Output Ports #1
Door Lock for Door 1
Input Port #1,
Output for Reader #1
Output Ports #4
Alarm for Door 2
Input Port #4,
Output for Reader #2
Output Ports #3
Door Lock for Door 2
Input Port #3,
Output for Reader #2
Output Ports #2
Alarm for Door 1
Input Port #2,
Output for Reader #1
iTDC Main Board

2011 Jan IDTECK. © All rights reserved
5
②IN/OUTPUT Configuration for 3 Door Control (Basic Configuration)
※ 1 Door / Using In-Out Reader : Connect to iTDC Main Board
2~3 Door / Using In Reader Only : Connect to EIO88 Board
iTDC Main Board
Output Ports #2 (MAIN)
Alarm for Door 1
Input Port #2,
Output for Reader #1 & 2
Input Ports #1 (MAIN)
Exit Button for Door 1
Output to Output Port #1
Output Ports #1 (MAIN)
Door Lock for Door 1
Input Port #1,
Output for Reader #1 & 2
Input Ports #2 (MAIN)
Door Contact for Door 1
Output to Output Port #2
1) How to set up in/output configuration according to number of doors.

2011 Jan IDTECK. © All rights reserved
6
EIO88 Expansion Board
Output Ports #4 (EIO88)
Alarm for Door 3
Input Port #4,
Output for Reader #4
Output Ports #3 (EIO88)
Door Lock for Door 3
Input Port #3,
Output for Reader #4
Output Ports #2 (EIO88)
Alarm for Door 2
Input Port #2,
Output for Reader #3
Output Ports #1 (EIO88)
Door Lock for Door 2
Input Port #1,
Output for Reader #3
Input Ports #1 (EIO88)
Exit Button for Door 2
Output to Output Port #1 (EIO88)
Input Ports #2 (EIO88)
Door Contact for Door 2
Output to Output Port #2 (EIO88)
Input Ports #3 (EIO88)
Exit Button for Door 3
Output to Output Port #3 (EIO88)
Input Ports #4 (EIO88)
Door Contact for Door 3
Output to Output Port #4 (EIO88)
※ 1 Door / Using In-Out Reader : Connect to iTDC Main Board
2, 3 Door / Using In Reader Only : Connect to EIO88 Board
1) How to set up in/output configuration according to number of doors.

2011 Jan IDTECK. © All rights reserved
7
※Door 1, 2: Connect to iTDC Main Board
Door 3, 4: Connect to EIO88 Board (Refer to Next Page)
③IN/OUTPUT Configuration for 4 Door Control (Basic Configuration)
Input Ports #1
Exit Button for Door 1
Output to Output Port #1
Input Ports #2
Door Contact for Door 1
Output to Output Port #2
Input Ports #3
Exit Button for Door 2
Output to Output Port #3
Input Ports #4
Door Contact for Door 2
Output to Output Port #4
Output Ports #1
Door Lock for Door 1
Input Port #1, Output for Reader #1
Output Ports #4
Alarm for Door 2
Input Port #4, Output for Reader #2
Output Ports #3
Door Lock for Door 2
Input Port #3, Output for Reader #2
Output Ports #2
Alarm for Door 1
Input Port #2, Output for Reader #1
iTDC Main Board
1) How to set up in/output configuration according to number of doors.

2011 Jan IDTECK. © All rights reserved
8
Solution
Input Ports #1 (EIO88)
Exit Button for Door 3
Output to Output Port #1 (EIO88)
Output Ports #1 (EIO88)
Door Lock for Door 3
Input Port #1(EIO88), Output for Reader #3
Output Ports #4 (EIO88)
Alarm for Door 4
Input Port #4(EIO88), Output for Reader #4
Output Ports #3 (EIO88)
Door Lock for Door 4
Input Port #3(EIO88), Output for Reader #4
Input Ports #3 (EIO88)
Exit Button for Door 4
Output to Output Port #3 (EIO88)
Input Ports #4 (EIO88)
Door Contact for Door 4
Output to Output Port #4 (EIO88)
Input Ports #2 (EIO88)
Door Contact for Door 3
Output to Output Port #2 (EIO88)
Output Ports #2 (EIO88)
Alarm for Door 3
Input Port #2(EIO88), Output for Reader #3
EIO88 Expansion Board
※Door 1, 2: Connect to iTDC Main Board
Door 3, 4: Connect to EIO88 Board
1) How to set up in/output configuration according to number of doors.

2011 Jan IDTECK. © All rights reserved
9
2) Error occurs when installing SQL Database.
Solution
①Did You Install SQL Server 2005 Express Edition as Indicated Below?
※ Following products must be installed to the computer prior to installing SQL Server 2005
Express Edition
ㆍMicrosoft .NET Framework 2.0
ㆍMS-XML6
ㆍCheck ” I accept the licensing terms
and conditions”, Click Next 
ㆍClick Install ㆍInitial Installation Complete,
Click Next 

2011 Jan IDTECK. © All rights reserved
10
ㆍBegin Installation of SQL Server,
Click Next 
ㆍConfirm the SQL Server System
Configuration Check, Click Next 
ㆍInsert ”Name / Company “
ㆍUn-check “Hide advanced configuration
options”, Click Next 
ㆍSelect “Entire feature will be installed
on local hard drive” for Database Service
and Client Components, Click Next 
ㆍClick Next ㆍSelect ”Default Instance”,
Click Next 
2) Error occurs when installing SQL Database.

2011 Jan IDTECK. © All rights reserved
11
ㆍSelect ”Use the built-in System account”
ㆍSelect ”Local System”
ㆍCheck ”SQL Server 및 SQL Browser”, Click Next 
ㆍSelect ”Mixed Mode”, Insert Password,
Click Next 
ㆍFor Collation, use the default setting
or select the categories according to
the language in use, Click Next 
ㆍSelect ”Enable User Interface”,
Click Next 
ㆍClick Next ㆍClick Install 
2) Error occurs when installing SQL Database.

2011 Jan IDTECK. © All rights reserved
12
ㆍConfirm the Installation of all the
products 
ㆍClick Next when Installation is
Completed 
ㆍClick Finish 
ㆍRestart the computer when the
Installation is completed
2) Error occurs when installing SQL Database.

2011 Jan IDTECK. © All rights reserved
13
3) All the software have been installed, but error message appears and can’t log-in to the software
Solution
ㆍError Message 1 ㆍError Message 2
ㆍInsert Server Name / IP Address
: If the iTDC PRO II and Database are
installed on the same location,
insert “localhost”
ㆍInsert Server User ID
: Insert SQL Server User ID (“sa”)
ㆍInsert Server User Password
: Password configured while installing
SQL Server
ㆍClick “Connection Test” to check the
connection status
①After Installing the software, Did you Configure Database Server Definition?
: After installing the Database Server and iTDC PRO II S/W, you must configure Database Server
Definition as Below to Log-In to the software properly.

2011 Jan IDTECK. © All rights reserved
14
ㆍS/W screen for successful connection ㆍS/W screen for failed connection
ㆍSave the setting and restart the S/W
ㆍID: admin / PW: *leave it blank*
3) All the software have been installed, but error message appears and can’t log-in to the software

2011 Jan IDTECK. © All rights reserved
15
2. Management (iTDC / iTDC PRO)
1) Door does not open.
2) Communication does not work.
3) Response speed of Event has slowed.
4) I would like to print T&A report, but I can’t find the report.
5) I don’t know how to do a database backup.
6) Can I recover a database backup file?
7) How can I have a backup database automatically with arranged schedule?
8) I have used the software for long time. The software has slowed down
and “Database Insert Error” message appears.

2011 Jan IDTECK. © All rights reserved
16
Q3. Does the events appear on the software?
A4. Yes, events appear on the s/w. (Same as Answer ①& ②for Question A2)
A5. No, events do not appear on the s/w. (Same as Answer ③& ④for Question A2)
1) Door does not open
Q1. What kind of reader are you using? (RF or FINGERPRINT)
A1. I’m using fingerprint reader.
Q2. Do you see “Access Granted” message?
A2. Yes, I see “Access Granted” message.
A2. I’m using card reader.
A3. No, I see “Access Denied” message.

2011 Jan IDTECK. © All rights reserved
17
Solution
①Check If the ID Information is Properly Registered in the Controller!
: If the ID Information (ID Number + PW) is only registered in the fingerprint reader and not in the
controller, access will be granted in the fingerprint reader but the door will not open.
ID must be registered in the controller, too.
[Set up] >> [Set System Data] >> Use [Card Holders] to register ID information
[Access Control] >> Use [Card Holder Management] to register ID information
[Set up] >> [Set System Data] >> [Card Holders] [Access Control] >> [Card Holder Management]
1) Door does not open
A2. Yes, I see “Access Granted” message.

2011 Jan IDTECK. © All rights reserved
18
②Is the Access Group Setting Configured to Registered ID?
: Door will open properly when the registered IDs are configured to designated access group.
[Access Control] >> [Card Holder Management] >> [Access Group]
[Access Control] >> [Card Holder Management] >> [Access Group]
1) Door does not open

2011 Jan IDTECK. © All rights reserved
19
③What is the recommended cable length of Wiegand cable for Connecting
Controller and Reader?
: Data interference may occur if the recommended length of cable is not used.
Please check the recommended cable length (distance) and install the products within the range.
The maximum distance of Wiegand cable between controller and reader is 150m, but it is
recommended to install the products within 30~40m for stable system operation.
※ Refer to the product manual for recommended cable and distance.
Install within 30~40m
1) Door does not open

2011 Jan IDTECK. © All rights reserved
20
④Are you using separate power source for reader and controller?
: When using separate power source for reader and controller, if the ground is not connected,
it may cause a potential difference between reader and controller and not transfer the data properly.
Use same power source for reader and controller
Connect ground wire when using separate power sources for reader and controller
FGR006
In case using same power source for reader and controller
1) Door does not open
