IKA Oven 125 control - dry glass User manual

20000023854
Operating instructions EN
DO 125 control_032019
IKA Oven 125 control - dry
IKA Oven 125 control - dry glass

2
Pos. Designation
1 Mains switch
2 Door handle
3 Device foot
4 Operator Panel and display
5 1. + 2. USB interfaces
3. Limits
4. Interface for external temperature sensor
6 Interface RS323
7Mains socket
8 Venting flap
9 Cable feed-through (external temperature sensor)
10 Oven light
11 Fan
12 Rack slide-in supports
Device setup/Dangerous spots
Dangerous spots
Device setup
Fig. 2
IKA Oven 125 control - dry/ IKA Oven 125 control - dry glass
IKA Oven 125 control - dry/ IKA Oven 125 control - dry glass
Fig. 1
1
4
2
3
5
5.1 5.2
5.3 5.4
8
9
67
10
9
11
12

3
Source language: German
Contents
Page
Device setup/Dangerous spots ........................................................................................................................................ 2
EU-Declaration of conformity.......................................................................................................................................... 4
Explanation of warning symbols ..................................................................................................................................... 4
Safety instructions .......................................................................................................................................................... 4
Intended use ................................................................................................................................................................... 6
Use...................................................................................................................................................................................................... 6
Area of use .......................................................................................................................................................................................... 6
Useful information .......................................................................................................................................................... 6
General................................................................................................................................................................................................ 6
Calibration and adjustment.................................................................................................................................................................. 6
Temperature monitoring....................................................................................................................................................................... 7
Transportation and storage............................................................................................................................................. 7
Unpacking....................................................................................................................................................................... 8
Installation ...................................................................................................................................................................... 8
Operator panel and display ........................................................................................................................................... 11
Setting the temperature limit ........................................................................................................................................ 12
Commissioning.............................................................................................................................................................. 12
Menu settings ............................................................................................................................................................... 13

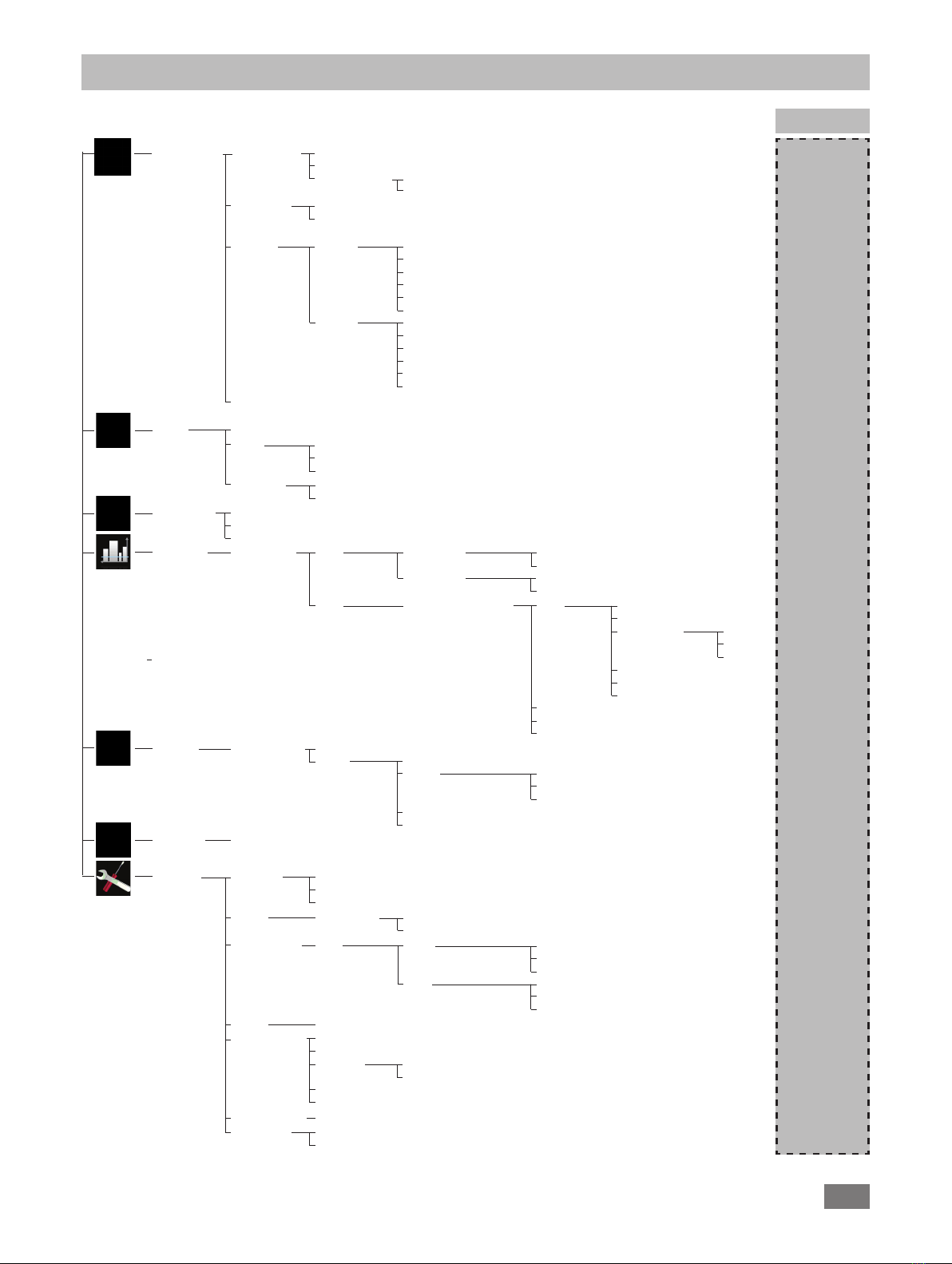

Menu structure .................................................................................................................................................................................. 13
Navigation in the menu...................................................................................................................................................................... 14
Menu details...................................................................................................................................................................................... 14
Operation.......................................................................................................................................................................16
Temperature.......................................................................................................................................................................................16
Counter and Timer............................................................................................................................................................................. 17
Fan speed.......................................................................................................................................................................................... 17
Ventilation flap.................................................................................................................................................................................. 17
Graph................................................................................................................................................................................................ 18
Light.................................................................................................................................................................................................. 18
Key lock............................................................................................................................................................................................. 18
Interface and output ..................................................................................................................................................... 18
Maintenance and cleaning ........................................................................................................................................... 20
Accessories.................................................................................................................................................................... 20
Warranty ....................................................................................................................................................................... 20
Error codes.................................................................................................................................................................... 21
Technical data ............................................................................................................................................................... 22

4
Indicates an (extremely) hazardous situation, which, if not avoided, will result in death or serious injury.
Indicates a hazardous situation, which, if not avoided, can result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, can result in injury.
Indicates practices which, if not avoided, can result in equipment damage.
Indicates a hazardous situation that result from a hot surface!
Indicates crushing risk to fingers/hands.
Explanation of warning symbols
Safety instructions
CAUTION
CAUTION
We declare under our sole responsibility that this product corresponds to the directives 2006/42/EG, 2014/35/EU, 2014/30/EU and
2011/65/EU and conforms with the following standards or normative documents: EN 61010-1, EN 61010-2-010, EN 61326-1,
EN 60529, EN ISO 12100 and DIN 12880.
A copy of the complete EU Declaration of Conformity can be requested at [email protected].
Declaration of conformity
General information:
• Read the operating instructions completely before
starting up and follow the safety instructions.
• Keep the operating instructions in a place where they can be
accessed by everyone.
DANGER
WARNING
CAUTION
NOTICE
Device setup
DANGER
Do not use the device in explosive
atmospheres, it is not EX-protected.
With substances capable of forming
an explosive mixture, appropriate
safety measures must be applied,
e.g. working under a fume hood.
To avoid bodily injury and property
damage, observe the relevant safe-
ty and accident prevention mea-
sures when processing hazardous
materials.
WARNING Please pay attention to the danger-
ous spots of the device in Fig. 2.
CAUTION Media may only be processed or
heated with this device in safe op-
eration without monitoring if their
flashpoint lies above the set safety
temperature limit. The set safety
temperature limit must be at least
25°C below the flashpoint of the
medium in use. (EN 61010-2-01)
CAUTION There is a crushing risk when open-
ing or closing the door. Keep your
hands away from squeezing edges.
• Set up the device in a spacious area on an even, stable, clean,
non-slip, dry and fireproof surface.
• Ensure that only trained staff work with the device.
• Follow the safety instructions, guidelines, occupational health
and safety and accident prevention regulations.
Transport and installation
CAUTION Ensure that your fingers do not get
crushed when setting down the
device.
• Beware of the high dead weight of the device when trans-
porting.
• Insucient ventilation may result in the formation of explo-
sive mixtures. Only use the device in well ventilated areas.
• Disconnect the mains plug before cleaning, maintenance and
transportation of the unit

5
• Secure the device with the anti-tilt device to ensure stability
while loading and unloading shelves and during operation.
Ensure the anti-tilt bracket is properly fixed, in particular when
the device is stacked.
• The feet of the equipment must be clean and undamaged.
Work with the device
WARNING Do not start up the device if:
- it is damaged
- cable is damaged.
The device must have cooled down
before loading/unloading.
Do not move any loaded racks.
Heavy loads can lead to tilting of
the device. Observe loading recom-
mendations for the shelves.
Never use the device for:
- heating food
- drying living beings
- heating room
WARNING The safety temperature limit must
be set in such a way that the maxi-
mum permitted temperature is not
exceeded. Check the safety tem-
perature limit regularly.
The safety temperature limit must
be set in such a way that the maxi-
mum permitted temperature is not
exceeded. Check the safety tem-
perature limit regularly.
CAUTION The area around the air outlet noz-
zle can get very hot at high operat-
ing temperatures.
Power supply/Switching off the device
• The voltage stated on the type plate must correspond to the
mains voltage.
• The device can only be disconnected by pulling out the mains plug.
• Socket must be earthed
• Protect the device and accessories from blows and impacts.
• The device will automatically restart in mode B and C follow-
ing any interruption to the power supply.
• Protect the power cable against kinks.
• Check power cables at regular intervals for possible material
fatigue.
• Mains cable should not come into contact with hot parts.
Heating
CAUTION When high operating temperatures
are used, the device may get very
hot, particularly at the openings at
the back.
Risk of burns caused by vapour or
hot surfaces. Pay attention to the
residual heat after switching off.
Accessories
NOTICE Use the locking brake when using
the roller frame or roller stand.
• Safe operation is only guaranteed with the accessories de-
scribed in the “Accessories” section
• Only use IKA approved accessories!
• Use only original IKA spare parts!
• Check the device and accessories for damage before each
use. Do not use damaged components.
Maintenance
• The device must only be opened by trained specialists, even
during repair. The device must be unplugged from the power
supply before opening. Live parts inside the device may still be
live for some time after unplugging from the power supply.
Disposal instructions
• End users are obliged by law to return all used disposable and
rechargeable batteries. Throwing them into the household
waste is prohibited! Disposable/rechargeable batteries con-
taining harmful substances are marked with this symbol to in-
dicate that they must not be disposed of as household waste.
• The device, accessories and packaging must be disposed of in
accordance with local and national regulations.

6
Intended use
Use
The IKA Oven 125 basic - dry is a drying oven for a wide range of
heating, drying and heating applications.
The device must only be used for heating up non-explosive sub-
Useful information
Calibration and adjustment
This menu shows how offset values can be entered after the re-
spective temperatures are approached and cross-checked with an
external measuring device (calibrated).
Individual load and ambient conditions might influence the tem-
perature behaviour of the chamber. This influence can be neutral-
ised by using the 3-point calibration and offset function. This func-
tion allows the temperature to be calibrated and adjusted at three
different temperature values.
Use a calibrated reference measuring device in case of adjustment.
The operation can be done at a single, or up to three temperature
levels:
CAL 1: Temperature calibration and adjustment at low tempera-
ture value.
CAL 2: Temperature calibration and adjustment at medium tem-
perature value.
CAL 3: Temperature calibration and adjustment at high tempera-
ture value.
stances and objects. Do not process substances or objects that
might cause explosive vapour.
Area of use (indoor use only)
- Laboratories - Schools
- Pharmacies - Universities - Industry
Your safety cannot be guaranteed:
• If the device is operated with accessories that are not supplied
or recommended by IKA.
• If the device is operated improperly or in contravention of the
IKA specifications.
• If the device or the printed circuit board are modified by third
parties.
General
Door open detection
CAUTION Hot air may stream out when the
door is opened. The inner chamber
may also stay at high temperatures
for some time.
NOTICE The heating function and oven fan
may be in operation even if the
door is open.
When the door is open the icon will be displayed and the
chamber light will be switched on.
Graph
The scaling of the temperature axis (Y-axis) is automatically deter-
mined, depending on the target temperature and the actual inter-
nal and external temperature.
The time axis (X-axis) is permanently scaled to 1 hour.
Data management
Data logging function is automatically active when USB storage
device is plugged in and tempering function is active.
The sampling time is fixed at 10 seconds. The data will be saved in
a read only CSV file (.csv) name “IKAyymmddhhmm” on the USB
storage device, where “yymmddhhmm” is the date and time of the
heating function is turned on.
Example: “IKA1812312359.csv”, data log on 2018 December 31 at
11:59pm. T he data that are being logged will be in sequence as follows.
1. Date (YY/MM/DD)
2. Time (HH:MM:SS)
3. Limit Temperature (°C / °F)
4. Set Temperature (°C / °F)
5. Control Temperature (Reference sensor)
6. Internal Actual Temperature (°C / °F)
7. External Actual Temperature (°C / °F)
8. Fan Speed (%)
9. Flap Opening (%)

7
Temperature monitoring
The temperature monitoring function is a constantly active function
whenever the heating operation of the device is turned “ON”. The
main purpose of this function is to notify the user in the case of
abnormal temperature behaviour such as overshoot and undershoot.
The hysteresis level is adjustable from 1.0 K to 20.0 K and the
factory default value would be 10.0 K. Furthermore, there will be
an additional option to turn “OFF” the heating operation when
temperature is behaving abnormally.
Case 1: Temperature overshoot
When the temperature overshoots the stable set temperature and
exceeds the predefined hysteresis limit, the icon will be shown
on the main screen of the device.
If the user has selected the option to turn “OFF” heating operation,
heating operation will be automatically turned “OFF” when the
temperature exceeds the predefined hysteresis limit or else heating
operation will continue.
Case 2: Temperature undershoot
When the temperature falls below from stable set temperature and
passes the predefined hysteresis limit, the icon will be shown on
the main screen of the device.
If the user has selected the option to turn “OFF” heating operation,
heating operation will be automatically turned “OFF” when the
temperature falls below the predefined hysteresis limit or else
heating operation will continue.
Case 3: Temperature exceeds hysteresis limit and recovers
If the user did not select the option to turn “OFF” heating operation,
whenever the temperature overshoots or undershoots the stable
set temperature and passes the predefined hysteresis limit, the
icon will be shown on the main screen of the device.
When the temperature recovers to the stable set temperature, the
icon will still remain on the main screen of the device until the
user stops the heating operation or changes the set temperature.
Case 4: Door Open during heating operation “ON”
Whenever door open is detected while entire heating operation
is turned “ON”, the temperature monitor function will be
automatically suspended.
The temperature monitoring function will automatically resume
when the temperature has reached the set temperature and is
stable.
The icon will only be remove when the tempering operation
is stopped and when the set temperature changes while the
tempering operation is operating.
Generally the graph below explains the temperature monitoring
function in 4 cases.
Transportation and storage
The device should only be trans-
ported by qualified persons with
suitable handling equipment, such
as a pallet truck and forklift!
The device must be protected against mechanical impact, vibra-
tions, dust deposits and corrosive ambient air during transporta-
tion and storage. It is also important to ensure that the relative
humidity does not exceed 80 %.
The device must be completely emptied before transportation and
storage.
The device can be transported:
NOTICE
- with a pallet truck. - by hand / unaided (4 persons).

8
Moving the device
NOTICE When transporting the device do
not use the door handle. This may
damage the device.
The device can be moved:
• with optional accessory (roller stand).
• on a pallet (transport straps).
• by hand (4 persons at least).
Installation
Unpacking
Unpacking
• Please unpack the device carefully.
• In case of any damage a detailed report must be sent imme-
diately (post, rail or forwarder).
Scope of delivery
• IKA Oven 125 control - dry or IKA Oven 125 control - dry glass
• 2 shelves
• Screwdriver (for safety temperature limiter)
• Tilt protection
• Mains cable
Setting up
Fixing against the wall is compul-
sory!
• Place the device on and even, clean, dry and fireproof surface
in well-ventilated environment.
Fixing the device to the wall
NOTICE The screws used for fixing are se-
lected according to the wall con-
ditions and they are not included.
WARNING
• USB cable
• User guide
• Calibrating certification
• Warranty card
NOTICE Transport and assembly is the
same for the drying cabinet with
glass door!
• Keep sucient distance from radiators and other heat sources.
• Keep at least 150 mm between walls and the device.
As indicated in the following figures, you should attach the device
to a wall with the tilt protectors included with the device.
Fasten the tilt protectors to the rear side of the device.
150 mm

9
Inserting the shelves
- Open the door. - Insert the shelves. - Load shelves evenly.
Stacking the device
CAUTION
Never stack more than two devices.
When stacking the device, four per-
sons are required to lift it.
B
NOTICE In order to keep enough space,
please use stacking adapter rec-
ommend by IKA.
< 150 mm > 150 mm
Stacking
adapter

10
Changing the door opening direction
When changing the door opening
direction, two persons are required
due to the heavy weight of the
door (about 15 kg).
WARNING
Open the door.
Hold the door and loosen the hinge pin with a suitable tool.
Remove the door carefully.
Alternate the position of the keepers and hinges with a 4 mm
hexagonal wrench.
Reverse and assemble the door. Make sure that the pin is in
the correct position while assembling the door.



+
-


+
-


11
Operator panel and display
Operator panel
C
D
A B
E
F
GHIJK
Pos. Designation Function
A Light button Switch light on/off
B Lock key: Lock/unlock keys.
C “Menu” button: Open/close main menu
D “Back” button: Back to previous menu item
E Rotary/push knob: Navigate, select and change menu inputs, start/stop
F Temperature selection button: Temperature input, screen quick access
G Selection button: No function
H Timer/counter selection button: Edit menu for timer/counter functions
I Fan speed selection button: Edit menu for the fan speed functions
J
Selection button for ventilation flap - open : Edit menu for ventilation flaps - open
K Graph selection button: Graph function display
Symbols at working screen
Symbol Description
Key lock is activated
USB storage medium is connected
USB B is connected
Light is switched on
Operating mode is activated
Power failure
Active profile
active profile
labworldsoft®is in operation
Oven door is open
External temperature sensor connected
Heating function
Temperature control function activated (ani-
mated)
Device heating (animated)
Counter switched off
Counter switched on (animated)
Time switch switched off
Time switch switched on (animated)
“Counter/Timer” display time-regulated
“Counter/Timer” display temperature
Oven fan switched off
Oven fan switched on (animated)
Ventilation flap opening or closing (animated)
Symbol for temperature monitoring
Input value confirmation

12
Setting the safety temperature limit
The maximum temperature that can be reached in the oven is lim-
ited by an adjustable safety temperature limiter. Once this limit has
been attained, the device switches off the heating.
Adjust the temperature limit (increase the value by turning clock-
wise / decrease the value by turning anticlockwise) using the
screwdriver supplied with the device.
The set safety temperature is displayed in the operating field (F).
Temperature limit
Factory setting: approximate max. value
Adjustment range: see “Technical data”.
WARNING
The safe temperature limit must
always be set to at least 25 °C
lower than the flash point of the
media used.
Commissioning
F
Check whether the voltage specified on the type plate matches the
mains voltage available.
The power socket used must be earthed.
Pos. Description
a Time
b Ventilation flap opening
c Fan target speed
d Counter/Timer display
e Temperature target value
f Actual oven temperature
g
Actual temperature of inserted
external temperature sensor
h Timer target value
a
b c d
e
f
g
h
If the above conditions are met, the device is ready for operation
after plugging in the mains plug. If these conditions are not met,
safe operation is not guaranteed and the device could be damaged.
Observe the ambient conditions (temperature, humidity, etc.) listed
under “Technical data”.
Switch on
After switching on (Fig. 1, 1) the start screen displays the firmware
version and device type, device designation, and user-defined de-
vice name.
Firmware Update Tool
After the start screen, the information start screen for the Firmware
Update Tool appears. You can use the tool to update the software of
your IKA device to the latest version. Firmware updates contain
new functions or optimisations of previous functions.
Working screen
After displaying the start screen and the firmware update
information, the working screen appears. The device is ready for
operation.
+
-

13
Menu settings
Menu structure Factory
settings
Temperature Control mode Exact PID.............
Fast PID...............
Int/probe sensor
...........................................
...........................................
Internal...............................
External...............................
...............................................................................
...............................................................................
...............................................................................
...............................................................................
activated
-
activated
-
Monitoring Hysteresis............
Heating OFF
(forced)...............
............................................................................................................................
............................................................................................................................
10.0 K
-
Calibrate Internal
External
Temperature 1....................
Temperature 2....................
Temperature 3....................
Delta temperature 1............
Delta temperature 2............
Delta temperature 3............
Temperature 1....................
Temperature 2....................
Temperature 3....................
Delta temperature 1............
Delta temperature 2............
Delta temperature 3............
...............................................................................
...............................................................................
...............................................................................
...............................................................................
...............................................................................
...............................................................................
...............................................................................
...............................................................................
...............................................................................
...............................................................................
...............................................................................
...............................................................................
60.0°C/140.0°F
160.0°C/320.0°F
300.0°C/572.0°F
0.0 K
0.0 K
0.0 K
60.0°C/140.0°F
160.0°C/320.0°F
300.0°C/572.0°F
0.0 K
0.0 K
0.0 K
Target value noti-
fication............... .......................................................................................................................................................... -
Timer Counter.............. .......................................................................................................................................................... -
Timer Days....................
Hours..................
Minutes...............
............................................................................................................................
............................................................................................................................
............................................................................................................................
-
-
-
Controller Time....................
Temperature........
............................................................................................................................
............................................................................................................................
-
activated
Operating
mode
A........................
B........................
C........................
.........................................................................................................................................................
........................................................................................................................................................
..........................................................................................................................................................
activated
-
-
Program Program 1-5 Start Loop count
Endless loop
Immediately.......
Delayed.............
Immediately.......
Delayed.............
....................................................
....................................................
....................................................
....................................................
-
-
-
-
Edit Program segments 1-5 Edit
Insert.................
Delete................
Save..................
Segment number........
Set runtime................
Temperature
control
Time hh:mm..............
Fan............................
Ventilation flap...........
..................................
..................................
..................................
...............
...............
Time........
± x.x K.....
Increase...
...............
...............
...............
...............
...............
...............
-
-
-
-
-
-
-
-
-
-
-
Profiles
Admin and User
1-4
Load....................
Edit
...........................................
Password.............................
Access
Delete.................................
Rename...............................
.........................
.........................
Settings.............
Program............
File manager......
.........................
.........................
....................................................
....................................................
....................................................
....................................................
....................................................
....................................................
...................................................
Admin
000
-
-
-
-
-
File
Manager
Information stor-
age
..................... .........................................................................................................................................................
-
-
Settings Language English...............
German...............
... .....................
............................................................................................................................
............................................................................................................................
............................................................................................................................
activated
-
-
Units Temperature °C.......................................
°F........................................
...............................................................................
...............................................................................
activated
-
Date and time Edit Date
Time
Day ..................
Month...............
Year ..................
Hour ................
Minute .............
Second .............
....................................................
....................................................
....................................................
....................................................
....................................................
...................................................
-
-
-
-
-
-
Sound ON...................... ............................................................................................................................ activated
Factory settings Settings...............
Programs.............
Calibrate
Profiles................
All.......................
...........................................
...........................................
Internal...............................
External...............................
...........................................
...........................................
...............................................................................
...............................................................................
...............................................................................
...............................................................................
...............................................................................
...............................................................................
-
-
-
-
-
-
Communication Device name........ ............................................................................................................................ -
Information Temperature........
Software..............
............................................................................................................................
............................................................................................................................
-
-

14
Navigation in the menu
NOTICE When the temperature control is
active, the menu is locked, while
all the selection buttons on the
main screen are active.
• Press the “Menu” key (C).
• Select the menu by turning the rotary/push knob (E) clockwise
or anticlockwise to select the desired menu or sub-menu, which
can then be selected by pressing the rotary/push knob (E).
• Push or turn the rotary/push knob (E) again to select the de-
sired menu option and edit the values or settings, or activate/
deactivate a function.
• Turn the rotary/push knob (E) on “OK” or press the “Back”
key (D) to end the procedure and return to previous menu or
working screen.
Internal / external temperature sensor
The temperature is regulated according to the internal/external
temperature sensor.
Temperature monitoring
You can monitor the temperature behaviour. If the temperature
behaviour exceeds the defined hysteresis value, the symbol ap-
pears at the actual temperature.
Hysteresis
This enables the temperature control function of the device to
switch off when the actual temperature exceeds the specified hys-
teresis value. It also defines the permitted tolerance of temperature
variation.
Calibration and adjustment
This makes it possible to adapt the temperature display, to get
more precise temperature regulation.
• Internal temperature sensor / external temperature sensor:
The external/internal temperature sensor is adapted here us-
ing the 3-point calibration.
Actual temperature note
Gives a notification when the actual temperature is in the range
of ± 1.0 K of the target temperature and the symbol is shown
next to the target temperature.
Timer (Zeitschaltuhr)
Counter (service hour counter)
The counter function counts as soon as the heating function is
active. The maximum value is 9:23:59 (Days: Hours: Minutes).
Timer (adjustable operating duration)
The timer function starts as soon as the temperature control func-
tion is active. The remaining time is shown on the display. When
the specified time has elapsed the heating function is switched
off. The maximum value is 9:23:59 (Days: Hours: Minutes).
Control
Counter and timer setting options:
• Time: The counter and timer are controlled depending on
the time. The counter and timer start running immediately,
whether the target temperature has been reached or not.
• Temperature: The counter and timer work according to tem-
perature. They only start running when the target tempera-
ture has been reached.
Menüdetails
Temperature control
Control mode
The option of changing between two PID modes, and the tem-
perature reference sensor.
Exact PID control
For use with temperature-
sensitive materials that must
be handled with care.
Advantages:
• Precise temperature control
• Minimum deviation above/below the target temperature
Disadvantage:
• Longer heating up time
Fast PID control
For use when a fast heating
up time is needed and there
should then be precise tem-
perature control.
Advantage:
• Short heating up time
Disadvantage:
• There will be a certain level of deviation above and below the
target temperature.

15
NOTICE
After the temperature method
is selected, the control hysteresis
can be controlled (± x.x K) by
turning and pressing the rotary/
push knob (E) once again.
3. Gradient-controlled (Ramp)
This enables even heating up with a defined gradient The
segment is closed after the target temperature has been
reached.
The gradient in K/min comes from the quotient of the
temperature difference and the time “Time hh:mm” specified in
the current segment.
The temperature difference is calculated from the target value
temperatures of the current and preceding segment.
NOTICE
The ramp function can only be
selected from the 2nd segment.
• “Time hh:mm” column (see “Control Mode”)
• “Fan” column ( Fan speed in % for this segment)
•“Ventilation flap” column (position of the ventilation flap for
this segment)
Delete
Deletes the selection highlighted in blue (segment or program).
Insert
Inserts a new program segment after the selected segment.
Rename
Allows you to rename the program.
Save
Saves the changes.
Programs
Under programs, 5 user-defined temperature-time profiles can be
created. A program can consist of up to 5 segments. Once a pro-
gram has been selected, the following options are available:
Start
Starts the program when loop mode is requested.
•Infinite loop: Upon completion of the last segment, the pro-
gram continues with the first segment until the user ends the
program by stopping a device function.
•Loop Count: Indicates the total number of loop cycles until pro-
gram end.
NOTICE
At the end of the program all device
functions are switched off.
Edit
The program parameters are edited/changed in a matrix of lines
(segments) and columns (functions):
• “Seg No.” column (Segment Number)
• “Temp” column (specifies the desired target temperature)
• “Control .Mode” column
The temperature-time profiles can be created using 3 different
methods. Choose the method you want by turning then
confirming (pressing) the rotary/push knob (E) .
1. Time-controlled (Time)
In “Control Mode Time” the target values and settings
of the segment are valid for the duration indicated in the
column “Time hh:mm”. The end of the segment is reached
when the time specified in the column “Time hh:mm” has
elapsed – regardless of whether the target temperature
specified in the column “Temp” has been reached or not.
2. Time-controlled (± x.x K)
a) Value in the column “Time hh:mm” =0
The segment is ended when the target temperature specified
in the “Temp” column is reached within the control hysteresis
(tolerance) specified in the column “Control Mode (± x.x K)”.
b) Value in the column “Time hh:mm” <>0
As a). Also, the target temperature that has been reached is
maintained for the time specified in the column “Time hh:mm”.
Profiles
The admin (standard profile) has access to all the settings. You can
create four additional profiles.
Load
Activates the selected profile.
Edit
Password:
Protects the configured profiles with a 3-character password.
Rename
Renames the profile.
Access
Allows a profile access to the settings listed below.
• Settings
• Program
• Data Manager
Delete
Deletes the profile highlighted in yellow (selected).
Mode C: Set values (set in mode A or B) cannot be changed. After
power on/power failure automatic restart of functions, depending
on previous settings.
Operating mode
Mode A: After power on/power failure no automatic restart of
functions.
Mode B: After power on/power failure automatic restart of func-
tions, depending on previous settings.

16
Datei Manager
Memory Info
User information on the memory that is available.
Einstellungen
Languages
The “Languages” option allows the user to select the desired lan-
guage.
Units
Here you can specify the measuring units for the temperature values
in °C or °F.
Datum und Zeit
In diesem Menü können die Einstellungen für das Datum und die
Uhrzeit vorgenommen werden.
Sound
The “Sound” option allows the user to activate/deactivate the key-
press sound and to set the volume.
Factory settings
The user can reset the device to the factory settings here.
The following parameters can be selected by the user for the reset.
Settings
• Programs
• Settings
• Profiles
• All
Communication
Device name:
This menu option can be used to edit the device name.
Information
Temperature:
It gives the user an overview of the device temperature parameters.
Software:
Displays the device software version used.
Operation
Temperature
Temperature control
NOTICE
The temperature calibration and
comparison for the external sensor
is not possible if the sensor is
plugged in.
The temperature can be changed during operation and when on
standby. The temperature regulation mode can be changed in the
settings.
On the working screen:
1. Press the Temperature selection button (F).
2. Press and turn the rotary/push knob (E) to set the temperature.
(Increase by turning clockwise, reduce by turning anti-
clockwise)
3. Press the rotary/push knob (E). The value is saved as a
measurement.
4. Press the back button (D) --> working screen.
5. The heating function is started automatically by pressing the
rotary/push knob (E) on the working screen. The animated
symbol appears on the display.
Control Mode
•Precise PID: Slow heating up time without exceeding the
temperature
•Fast PID: Fast heating up time, exceeding the temperature
minimally

17
Counter and Timer:
Timer
On the working screen:
1. Timer/counter (H) selection button:
2. Press the selection button under the time.
3. Press and turn the rotary/push knob (E) to set the tempera-
ture. (Increase by turning clockwise, reduce by turning anti-
clockwise)
4. Press the rotary/push knob (E). The value is saved as a mea-
surement.
5. Press the back button (D) --> working screen.
6. The counter/timer function is started automatically by press-
ing the rotary/push knob (E) on the working screen. The ani-
mated symbol appears on the display.
Control
Choose whether the timer should be started immediately or after
the target temperature has been reached.
Mode
Select the time function timer or counter.
Fan speed:
The fan speed can be changed during operation and when on
standby.
On the working screen:
1. Press the fan speed selection button (I).
2. Press the selection button under the fan speed.
3. Press and turn the rotary/push knob (E) to set the speed in
10% steps: 0% (stopped), 100% (full speed).
4. Press the rotary/push knob (E). The value is saved as a mea-
surement.
5. Press the back button (D) --> working screen.
6. The set fan speed value is started automatically by pressing
the rotary/push knob (E) on the working screen. The animated
symbol appears on the display.
Ventilation flap:
The ventilation flap can be changed during operation and when
on standby.
On the working screen:
1. Press
the ventilation flap open selection button (J).
2. Press the selection button under the ventilation flap value.
3. Press and turn the rotary/push knob (E) to set the position
of the flap. The ventilation flap can be set in 10% steps: 0%
(closed) - 100% (open). The symbol shows the current posi-
tion.
4. Press the rotary/push knob (E). The value is saved as a mea-
surement.
5. Press the back button (D) --> working screen.
6. The set ventilation flap position is started automatically by
pressing the rotary/push knob (E) on the working screen. The
animated symbol appears on the display.

18
Interface and output
The device can be connected to a PC and operated with the labora-
tory software labworldsoft
®
through USB interface (5).
NOTICE Please observe the system require-
ments as well as the operating in-
structions and help section of the
software.
RS 232 interface communication PC
Konfiguration:
•The functions of the interface connections between the stir-
rer machine and the automation system are chosen from the
signals specified in EIA standard RS 232 in accordance with
DIN 66 020 Part 1.
•For the electrical characteristics of the interface and the allo-
cation of signal status, standard RS 232 applies in accordance
with DIN 66 259 Part.
•Transmission procedure: asynchronous character transmission
in start-stop mode.
• Type of transmission: full duplex.
•Character format: character representation in accordance
with data format in DIN 66 022 for start-stop mode. 1 start
bit; 7 character bits; 1 parity bit (even); 1 stop bit.
• Transmission speed: 9600 bit/s.
• Data flow control: none
•Access procedure: data transfer from the stirrer machine to
the computer takes place only at the computer’s request.
USB interface:
The Universal Serial Bus (USB) is a serial bus for connecting the device
to the PC. Equipped with USB devices can be connected to a PC dur-
ing operation (hot plugging). Connected devices and their properties
are automatically recognised.
Use the USB interface in conjunction with labworldsoft®for opera-
tion in “Remote” mode and also to update the firmware.
USB device drivers:
First, download the latest driver for IKA®devices with USB inter-
face from: http://www.ika.com/ika/lws/download/usb-driver.zip.
Install the driver by running the setup file. Then connect the IKA®
device to the PC using the USB data cable.
The data communication is via a virtual COM port.
Command syntax and format:
The following applies to the command set:
•Commands are generally sent from the computer (master) to
the device (slave).
•The device sends only at the computer’s request. Even fault
indications cannot be sent spontaneously from the device to
the computer (automation system).
• Commands are transmitted in capital letters.
•Commands and parameters including successive parameters
are separated by at least one space (code: hex 0x20).
•Each individual command (incl. parameters and data) and
each response are terminated with blank CR LF (Code: hex
0x20 hex 0x0d hex 0x20 hex 0x0A) and have a maximum
length of 80 characters.
Light:
Activates the light
•Press and hold the light button (A). The symbol appears
on the display. This function can always be activated.
• Open/close the oven door.
Lock key:
•Press the Lock key (B) for 2 seconds to lock/unlock. All keys
and the rotary/push knob (E) are locked. The symbol
appears on the display.
Graph:
On the working screen:
1. Press
the graph selection button (K). The graph shows the
current measurements during operation.
2. Press the graph selection button (K) again. --> working screen.

19
• The decimal separator in a number is a dot (code: hex 0x2E).
The above details correspond as far as possible to the recom-
mendations of the NAMUR working party (NAMUR recom-
mendations for the design of electrical plug connections for
analogue and digital signal transmission on individual items of
laboratory control equipment, rev. 1.1).
Commands Function
IN_PV_2 Read the internal actual temperature
IN_PV_1 Read the external actual temperature
IN_SP_2 Read the internal setting temperature
IN_SP_1 Read the external target temperature
IN_SP_3 Read the safety setting temperature
IN_SP_4 Read the fan speed value
IN_SP_40 Read the flap open value
OUT_SP_2 X Set the internal setting temperature, X = 0 to
250 in steps of 0.1 °C
OUT_SP_12@n Setting WD2 safety limit temperature with set
value echo
OUT_SP_4 X
Fan target value, X = 0 to 100 in steps of 10 %
OUT_SP_40 X Flap target value, X = 0 to 100 in steps of 10 %
OUT_WD1@m Watchdog mode 1: if event WD1 should occur,
the heating functions are switched off and WD1
is displayed. Set watchdog time to m (20 - 1,500)
seconds, with watchdog time echo. This com-
mand launches the watchdog function and must
be transmitted within the set watchdog time.
The NAMUR commands and the additional specific IKA®com-
mands serve only as low level commands for communication be-
tween the device and the PC.
With a suitable terminal or communications programme these com-
mands can be transmitted directly to the device. The IKA
®
software
package, Labworldsoft
®
, provides a convenient tool for controlling
the device and collecting data under MS Windows, and includes
graphical entry features, for motor speed ramps for example.
OUT_WD2@m Watchdog mode 2: if event WD2 should occur,
the temperature target value is changed to the
WD safety temperature limit value. The warning
WD2 is displayed. The WD2 event can be reset
with OUT_WD2@0 - this also stops the watchdog
function. Set watchdog time to m (20 - 1,500)
seconds, with watchdog time echo. This com-
mand launches the watchdog function and must
be transmitted within the set watchdog time.
START_2 Start the heating function
STOP_2 Stop the heating function
RESET Switches off the device function
NOTICE When the USB cable is disconnected
while the device is running, the
device stays in PC mode. To reset
to function without PC, switch the
device off and on again.
USB B USB A
1
4
3 2
1
2
3
4
“Watchdog” function, monitoring the serial data flow:
The following applies to situations where the watchdog function is
enabled (see Namur instructions). If no new transmissions of these
commands from the PC take place within the preset watchdog
time, the heating function will be shut down according to the
watchdog mode selected or will be controlled using the preset
setpoints. An operating system crash, a PC power failure or a fault
in the connecting cable to the device can cause an interruption in
data transmission.
“Watchdog”– Mode 1
If an interruption in data transmission occurs which is longer than
the preset watchdog time, the heating function will be shut down
and the error message PC 1 will be displayed.
“Watchdog”– Mode 2
If an interruption in data transmission occurs which is longer than
the preset watchdog time, the temperature setpoint will be set to
the WD safety temperature setpoint. The PC 2 warning message
will be displayed.
Connections between device and external devices:
USB 2.0 cable A - B:
This cable is required to connect USB interface to a PC

20
Maintenance and cleaning
The device is maintenance-free. It is only subject to the natural wear
and tear of components and their statistical failure rate.
Cleaning:
For cleaning disconnect the mains plug!
Use only cleaning agents which have
been approved by IKA®to clean IKA®devices.
Dirt Cleaning agent
Dye Isopropyl alcohol
Construction
material
Water containing tenside/isopropyl alcohol
Cosmetics Water containing tenside/isopropyl alcohol
Foodstuff Water containing tenside
Fuel Water containing tenside
•For materials which are not listed, please request information
from IKA application support.
• Wear protective gloves while cleaning the device.
•Electrical devices may not be placed in the cleansing agent for
the purpose of cleaning.
• Do not allow moisture to get into the device when cleaning.
•If a different cleaning or decontamination method than the
method defined by IKA is planned, you must ascertain from
IKA that this method does not damage the device.
Spare parts order:
When ordering spare parts, please specify:
• Machine type.
• Serial number, see type plate.
Repair:
Please send the device for repair only after it has been
cleaned and is free from any materials which may consti-
tute a health hazard.
If you require servicing, return the device in its original packaging.
Storage packaging is not sufficient. Please also use suitable trans-
port packaging.
Warranty
In accordance with IKA warranty conditions, the warranty period
is 24 months. For claims under the warranty please contact your
local dealer. You may also send the machine directly to our factory,
enclosing the delivery invoice and giving reasons for the claim. You
will be liable for freight costs.
The warranty does not cover worn out parts, nor does it apply
to faults resulting from improper use, insucient care or mainte-
nance not carried out in accordance with the instructions in this
operating manual.
