IKUSI ONE SAT User manual

Programmable multichannel amplifier
ONE
SAT / 118 / Home
REF. 2844 / 2845 / 2849
User Guide

29
30 General safety instructions
30 Types of notices
31 Basic safety instructions
32 Introduction
33 General description
33 Main features
34 General equipment use
36 Equipment installation and configuration
36 Installation
36 Power connection
37 Quick menu guide
38 Language selection
38 Manual setting
41 Advanced settings
43 Self-installation
45 Maintenance
45 Equipment care
45 Troubleshooting
46 Technical specifications
46 ONE 118 Model (AFP-201)
47 ONE SAT Model (AFP-292)
48 ONE Home Model (AFP-HOME)
49 Technical annex
50 Warranty
51 Equipment recycling
52 CE Certificate
EN
Contents

30
General safety instructions
JRead all of this user manual carefully before plugging in the equipment.
JAlways have these instructions to hand during installation.
JFollow all of the instructions and safety notices regarding equipment handling.
Types of notices
The meaning of the safety notices used in this manual are described below.
DANGER OF DEATH OR INJURY
This safety notice indicates a possible danger for the life and health of people.
Not following these instructions may lead to serious consequences to health and
may even cause fatal injuries.
RISK OF EQUIPMENT DAMAGE
This safety notice indicates a possible dangerous situation. Not following these
instructions may lead to the equipment being damaged.
NOTE
This type of notice is a note containing applicable advice and useful information
for optimum use of the equipment.
HANDLING THE INSIDE OF THE EQUIPMENT IS FORBIDDEN
This notice forbids any work that may affect the working order of the equipment
or its warranty.
DO NOT DISPOSE OF AS URBAN WASTE
This type of notice indicates that the equipment must not be disposed of as
unselected urban waste.
DANGER
A
TTENTION

General safety instructions / Basic safety instructions
31
Basic safety instructions
DANGER OF DEATH OR INJURY
JDo not install the equipment during an electrical storm. This could lead to
electrostatic discharge from lightning.
JDo not open the equipment. This could lead to electric discharge.
RISK OF EQUIPMENT DAMAGE
JThe equipment must be appropriately ventilated. Install the equipment in a
dust-free location. Do not place the equipment in a location where the venti-
lation slots are covered or blocked. Install the equipment in a location with at
least 20 cm around it free of other objects.
JDo not expose the equipment to rain or moisture. Install the equipment in
a dry location with no inltration or condensation of water. Should a liquid
enter the equipment, disconnect it immediately from the mains.
JKeep the equipment away from ammable objects, candles and anything
that may cause a re.
JConnect the equipment to an easily accessible power socket. In the event of
an emergency, it will then be possible to quickly unplug the equipment.
JDo not expose the equipment to sources of heat (sun, heating, etc.).
DANGER
ATTENTION
EN

32
Introduction
General description
Main features
The ONE 118, ONE SAT and ONE Home models are programmable amplication headends
designed to selectively lter analogue and digital UHF channels. Suitable for single-family
and collective dwellings, they are the ideal solution for managing signals of different fre-
quencies and bandwidths.
FM and VHF signals are also amplied. The ONE SAT model also amplies satellite IF sig-
nals. Individual adjustment of each frequency lter, number of channels and automatic gain
control allows for level equalize of selected channels.
JProgramming:
FSelf-installation function.
FAll settings are automatically memorised.
FNo external programmer required, programmed directly from the headend.
KEY
1 BI-FM input
2 BIII-DAB input
3 VHF-UHF/EXT input *
4 UHF3 input
5 UHF2 input
6 UHF1 input
7 SAT-IF1 input *
8 Mains connector
9 Control button
10 Screen (LCD)
11 Front panel with cluster map
12 SAT-IF2 input with no amplication *
13 Output 2; TV+SAT2 *
14 Output test 2*
15 Output test 1
16 Output 1; TV+SAT1 **
17 Earthing
* ONE SAT model only
** In ONE 118 model TV only

33
Introduction / Main features
FReprogrammable as many times as required.
J10 tuneable UHF lters with the capacity to process 1 to 5 channels each.
JSignal processing:
FTerrestrial inputs with low noise gure (< 6 dB).
FSatellite input with low noise gure (< 9 dB).
FAutomatic signal level equalisation.
FAutomatic gain control.
JExtra functions:
FInternal conguration cloning with transferral to another equipment.
FEquipment locking by security code.
JDimensions : 290 mm x 240 mm x 20 mm
JWeight : 2 kg
The main features of the ONE 118 and ONE SAT models are described below.
ONE 118 Model
Recommended for small and medium-sized installations made up of 10 UHF lters deli-
vering an output level of 118 dBμV.
JInputs:
F5 terrestrial inputs = BI-FM, BIII-DAB, UHF1, UHF2, UHF3.
FBI-FM gain = 35 dB.
FBIII-DAB gain = 40 dB.
FUHF gain = 55 dB.
JOutputs:
F1 TV output.
F1 Test output.
FVHF/UHF output level = 118 dBµV. 1
1 IMD3-60 dB, DIN 45004B (see channel reduction table in Technical Annex)
ONE SAT Model
Recommended for small and medium-sized installations, comprising 10 UHF lters it in-
cludes one satellite input and two mixed television-satellite outputs. CTI compliant.
Compatible with UNICABLE TM
JInputs:
F6 terrestrial inputs= BI-FM, BIII-DAB, UHF1, UHF2, UHF3, VHF-UHF/EXT.
F2 satellite IF inputs.
FBI-FM gain = 30 dB (2 outputs) or 35 dB (1 output).
FBIII-DAB gain = 35 dB (2 outputs) or 40 dB (1 output).
FUHF gain = 55 dB (2 outputs) or 60 dB (1 output).
FVHF-UHF/EXT gain = 35 dB (2 outputs) or 40 dB (1 output).
EN

34
Introduction / General equipment use
FSAT1 gain = 40 dB.
FSAT2 gain = -1.5 dB.
JOutputs (2 congurable outputs):
a)
F2 TV+FI outputs
F2 Test outputs
FVHF output level = 113 dBµV.1
FUHF output level = 118 dBµV.1
FFI/SAT output level = 116 dBμV.2
b)
F1 TV+FI output
F1 Test output
FVHF output level = 118 dBµV.1
FUHF output level = 123 dBµV.1
FFI/SAT output level = 116 dBμV.2
1 Terrestrial: IMD3-60 dB, DIN 45004B
2 Satellite: IMD3 -35dB, EN50083-3. See channel reduction table in Technical Annex
ONE Home Model
Recommended for small installations made up of 10 UHF lters delivering an output level
of 118 dBμV.
JInputs:
F2 terrestrial inputs = BI-FM, UHF1
FBI-FM gain = 2 dB.
FUHF gain = 40 dB.
JOutputs:
F1 TV output.
F1 Test output.
FVHF/UHF output level = 113 dBµV. 1
1 IMD3-60 dB, DIN 45004B (see channel reduction table in Technical Annex)
General equipment use
Interaction with the equipment using the button and the interpreting of the instructions
displayed on the LCD screen are described below. The programme includes a main menu
formed by submenus that can be selected to modify the equipment operating settings.
Instructions displayed on the LCD screen
This symbol is displayed when manual setting is selected. It refers to the
clusters indicated on the panel.

35
Introduction / General equipment use
This symbol is displayed in the manual setting menu. Visually locate it on
the LCD screen and see the cluster map on the panel to see which of the
5 equipment clusters is selected.
This acronym is displayed in the main menu. Select it to go back to the
language selection menu.
This symbol is displayed in manual settings and advanced settings and
visually indicates the possibility of moving vertically.
This symbol is displayed in manual and advanced settings and always
includes a numeric value and visually indicates the gain level.
This icon is displayed when the equipment lock is enabled when the
equipment is switched on and after periods when the equipment is not in
use.
Vertical button movement
In the menus and submenus, move the button up or down to browse
upwards and downwards position by position.
In the settings, move the button up or down to modify values position by
position.
NOTE
Keep the button pressed up or down to browse or to modify
values more quickly.
Horizontal button movement
In the menus, move the button to the left or the right to select and go
back position by position.
In the settings, move the button to the left or the right to browse, select
and go back position by position.
NOTE
Keep the button pressed to the left or to the right to browse
more quickly.
Press button
In the menus, this selects the submenu.
In the submenus, this selects the setting.
In the settings, this selects the parameter value.
▲
▼
EN

36
Equipment installation and configuration / Installation
Equipment installation and configuration
Only the LCD screen and the button are required to congure the equipment. Follow the
steps below to install the equipment and congure the different parameters.
Installation
RISK OF EQUIPMENT DAMAGE
Mechanical handling of the equipment
while it is switched on may lead to it
being damaged. Do not plug the equi-
pment into the mains before or during
installation.
1) Fit and tighten the bolts and plugs securing
the equipment to the wall.
2) Connect the coaxial cable from the aerial to
the equipment.
3) Connect the coaxial cables from the outputs
to the equipment.
If only one of the 2 outputs is used, terminate
the spare port with a 75Ωloadplug.
Power connection
DANGER OF DEATH OR INJURY
Incorrect equipment power connection
may cause an electric shock. Follow the
steps below for the electrical installation
of the equipment.
1) Connect the ground cable.
2) Connect the power plug to the equipment
mains connector.
3) Connect the power plug to the mains socket.
ATTENTION
+12V
5A
POWER



QPSK IN


RF OUT




QPSK IN


RF OUT




QPSK IN


RF OUT




QPSK IN


RF OUT


SRF-111


SRF-111


SRF-111


SRF-111


SRF-111


+24V

+18V


+13V


+18V

+13V

:700 mA



INPUT
OUTPUT
AUX INPUT

GAIN
OUTPUT TEST
ON
INPUT TEST
HPA-120














+12V
5A
POWER



QPSK IN


RF OUT




QPSK IN


RF OUT




QPSK IN


RF OUT




QPSK IN


RF OUT


SRF-111


SRF-111


SRF-111


SRF-111


SRF-111


+24V

+18V


+13V


+18V

+13V

:700 mA



INPUT
OUTPUT
AUX INPUT

GAIN
OUTPUT TEST
ON
INPUT TEST
HPA-120








   












     



    

+12V
5A
POWER



QPSK IN


RF OUT




QPSK IN


RF OUT




QPSK IN


RF OUT




QPSK IN


RF OUT


SRF-111


SRF-111


SRF-111


SRF-111


SRF-111


+24V

+18V


+13V


+18V

+13V

:700 mA



INPUT
OUTPUT
AUX INPUT

GAIN
ON
HPA-120










DANGER

37
Equipment installation and configuration / Fast menu guide
Language
selection
(10-0-0)
(7-0-3)
Filter allocation
to aerials
(9-0-1)
(2-5-3)
(2-7-1)
General
gain
BI - BII inputBIII-DAB input
UHF output VHF-UHF/EXT
input
SAT-IF adjustment
Self-installation
Input preamps
Equipment
information Lock
Restore
values
cloning
Manual setting Advanced settings
Frequency
plan
Outputs numbers
conguration
Filter Adjustment
OUTPUT CONF
TV2 & TV1
Automatic
Gain Control
Deletion 61-69
channels
A.G.C.
OFF
LTE PROTECTION
OFF
Fast menu guide EN

38
Equipment installation and configuration / Quick menu guide
Quick menu guide
Language selection
NOTE
Over the following pages, the eld locating and selection method is primarily
indicated by the “vertical button movement” and “press button” icons. However,
horizontal button movement can be used to locate and select elds, as indicated
in the General equipment use section on Page 34.
NOTE
The equipment automatically accesses language selection a few sections after
the welcome message is displayed. Language selection can also be accessed by
going back from the main menu.
1) Locate and select the language: ESPAÑOL –
ENGLISH – FRANÇAISE.
2) Access the main menu.
Manual setting
1) In the main menu, locate and select MANUAL.
NOTE
The cluster map on the equipment panel
indicates the cluster related to each sub-
menu.
Filter allocation to aerials
NOTE
There are ve different congurations to
distribute the 10 lters among the 3 aerials.
1) Locate and select the aerial lter conguration
(the aerial distribution is displayed at the top
of the screen and the 10 lters available are
displayed at the bottom):
JFor one aerial:
a) Conguration (10 – 0 – 0)

39
Equipment installation and configuration / Manual setting
JFor two aerials:
b) Conguration (9 – 0 – 1)
c) Conguration (7 – 0 – 3)
JFor three aerials:
d) Conguration (2 – 5 – 3)
e) Conguration (2 – 7 – 1)
Mast-head amplifier power configuration
NOTE
Only where a mast-head amplier is tted
to the aerial.
1) Locate and select the UHF input voltage: VDC,
24 / 12.
2) Locate and select UHF input voltage enabling
(ON) / disabling (OFF):
a) UHF3 input voltage: Ψ3, ON / OFF
b) UHF2 input voltage: Ψ2, ON / OFF
c) UHF1 input voltage: Ψ1, ON / OFF
Filter adjustment
Frequency configuration
1) Locate and select the lter to adjust:
FIL, 1 – 10.
2) Locate and select the lter start channel:
BEG, 21 – 69.
3) Locate and select the lter end channel:
END, 21 – 69.
EN

40
Equipment installation and configuration / Manual setting
Gain configuration:
NOTE
If AUT is selected (recomended), the AGC
will try and maintain the output at factory
preset level. If M is selected the AGC will
maintain the output at the level you have
set.
1) Locate and select the gain conguration mode
AUT / M.
a) If AUT is selected: self-equalising is
congured.
b) If Mis selected: locate and select the gain
level 00 – 30.
General gain adjustment
1) Locate and select the gain submenu:
2) Locate and select the gain level:
a) BI - BII input: BI_BII, 0 - 25
b) BIII - DAB input: BIII_DAB, 0 - 20
c) VHF-UHF/EXT input: VHF_UHF, 0 - 20
d) UHF output: UHF, 0 - 20

41
Equipment installation and configuration / Advanced settings
SAT-IF output adjustment
LNB power configuration
NOTE
There are 5 different congurations to
select polarisation.
1) Locate and select polarisation:
a) No polarisation: LNB, OFF.
b) 18 V with tones: LNB, 18 V.
c) 18 V without tones: LNB, 18 V.
d) 13 V with tones: LNB, 13 V.
e) 13 V without tones: LNB, 13 V.
Output gain configuration:
1) Locate
GA and select level 0 - 20.
Emphasis among high frequencies
NOTE
If TILT is selected, the equipment applies
9 dB of pre-emphasises.
1) Locate and select TILT to change the level of
pre-emphasis between 0 and 9 dB.
Advanced settings
1) In the main menu, locate and select
ADVANCED.
Input preamps
NOTE
The gain difference between an enabled and a disabled amplier is 20 dB. Select
LO to enable an amplier.
If the gain is set to automatic in lter conguration, the system manages preamp
enabling according to the input level.
1) Locate and select UHF input preamps:
a) UHF3 input: Ψ3, HI / LO.
EN

42
Equipment installation and configuration / Advanced settings
b) UHF2 input: Ψ2, HI / LO.
c) UHF1 input: Ψ1, HI / LO.
Filters cloning
NOTE
Cloning begins automatically after the
following steps.
1) Connect two equipments using a coaxial cable
in the Test 1 output of each equipment (see
position (15) in the illustration in the General
Description section on page 32).
2) On the equipment receiving the information:
locate and select MASTER OFF, SLAVE ON.
3) On the equipment sending the information:
locate and select MASTER ON, SLAVE OFF.
NOTE
The time waited for cloning to be run
(steep 2 to 3) is 11 seconds. Where clon-
ing cannot be started, the equipment
returns to the higher menu.
Equipment locking
NOTE
The lock is enabled when the equipment is
re-connected.
1) Enter a sequence of 4 digits (LOCK, 0000).
2) Locate and select LOCK, ON.
NOTE
To unlock the equipment, enter and select
the 4-digit sequence on the start screen.
To cancel equipment locking, locate and
select LOCK, OFF. If you forget the
4-digit sequence see: Troubleshooting
section on page 45.

43
Equipment installation and configuration / Advanced settings

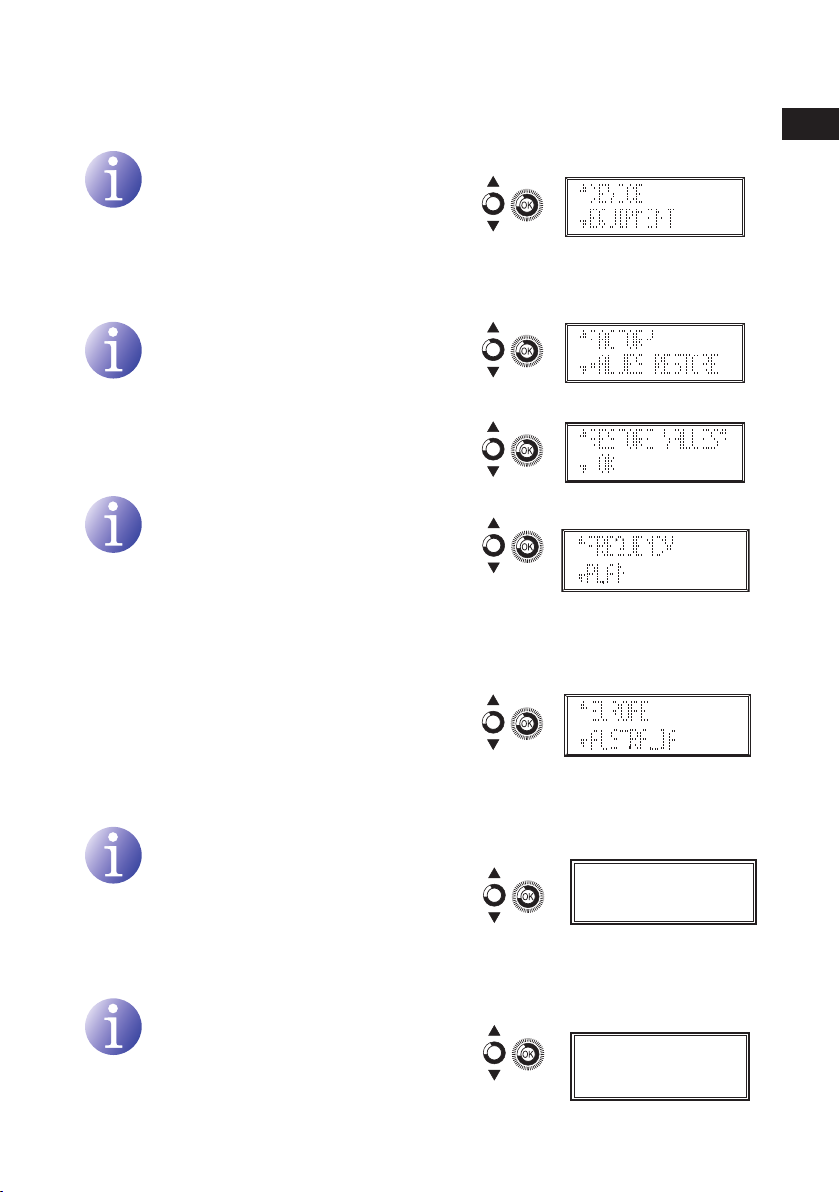

Specific equipment information
NOTE
Information on the equipment, the pro-
gramme version, the manufacturing date,
the number of hours operating, the tem-
perature and the equipment serial number
are displayed on the screen.
Restore factory values
CAUTION
This function will mean that all previous
congurations will be lost and the factory
values will be restored.
1) Select OK to restore factory values.
Frequency plan
NOTE
You can choose between two different
channel allocations for the UHF band.
These allocations depend on the geo-
graphic territory. By default the equip-
ment is configured for the European
allocation.
1) In the advanced menu, located and select
FREQUENCY PLAN.
a) If EUROPE is selected the channel alloca-
tion is for European standards.
b) If AUSTRALIAN is selected the channel
allocation is for Australian standard.
Automatic Gain Control
NOTE
You can choose to activate the automatic
gain control. By default the equipment is
configured in OFF position.
1) Locate and select A.G.C. in ON position.
Elimination of 61 to 69 channels
NOTE
You can choose to activate the the
elimination of the channels 61 to 69. By
default the equipment is configured in
OFF position.
1) Locate and select LTE PROTECTION in ON
position.
LTE PROTECTION
OFF
A.G.C.
OFF
EN

44
Equipment installation and configuration / Advanced settings

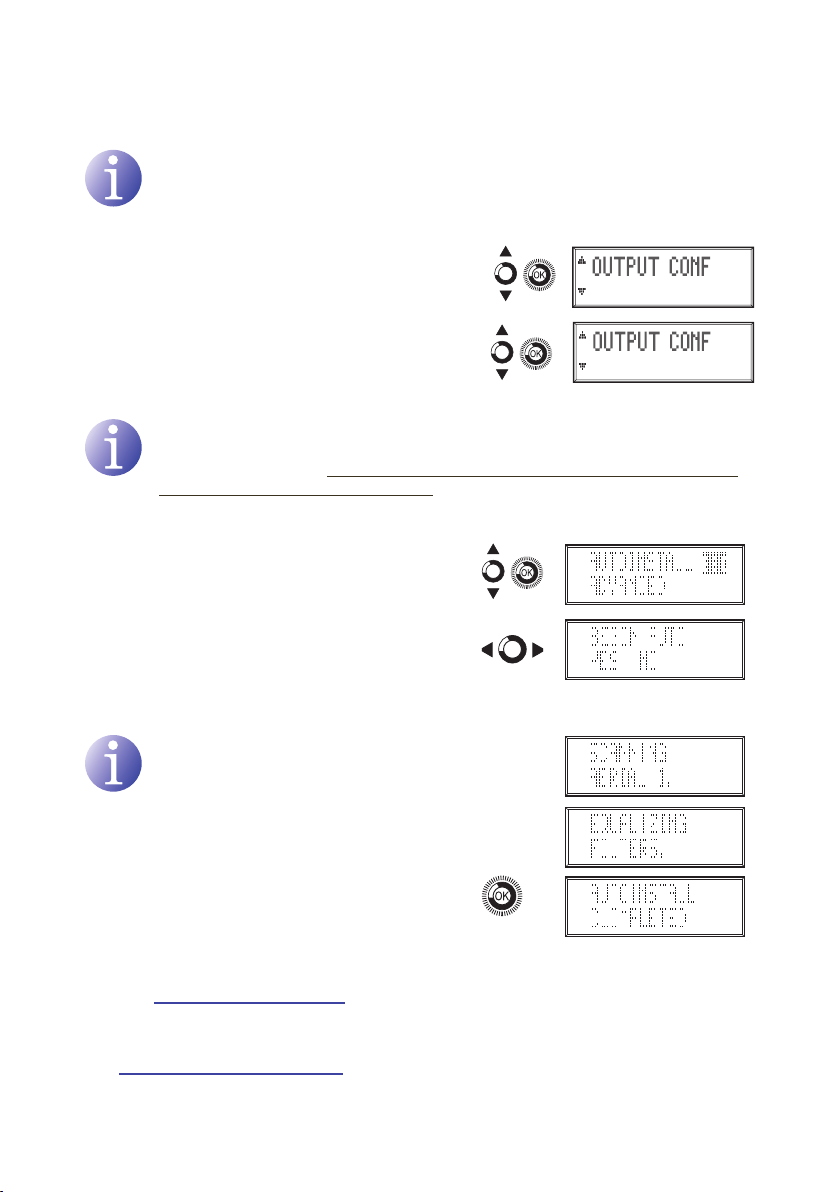

Outputs number configuration
NOTE
You can choose two types of conguration
for Outputs No: TV2 & TV1 or TV1.
By default your equipment is configu-
red for two outputs (TV1 & TV2).
1) In the advanced menu, located and select
OUTPUT CONFIGURATION TV2&TV1.
a) OUTPUT CONF TV2 & TV1 select.
b) OUTPUT CONF TV1 select.
Self-installation
NOTE
The equipment automatically congures the optimum operating frequency and
gain of the UHF lters. The equipment does not automatically configure the
output level of general (band) gains. This is because the output level must be
set by the installer to suit the network you are feeding.
1) In the main menu, locate and select
AUTOINSTALL.
a) If NO is selected: you will return to the
main menu.
b) If YES is selected: self-installation will
begin..
NOTE
The equipment displays information on
the status of self-installation. Please
wait a few seconds until it is completed
and AUTOINSTALL COMPLETED is
displayed.
2) Select OK to complete self-installation. The
unit will now show you the general (band) gain
settings for adjustment.
3) To change the output level of general gains,
see: General gain adjustment section on page
40.
4) To review the allocation of lters to aerials, see:
Allocation of filters to aerials section on Page
38.
TV1
TV2&TV1

45
Maintenance
Equipment care
HANDLING THE INSIDE OF THE EQUIPMENT IS FORBIDDEN
Do not dismantle or try to repair the equipment, its accessories or its compo-
nents. This will render the warranty null and void.
JDo not use the power cable if it is damaged.
JTo disconnect the power cable, pull carefully on the plug and not the cable.
JTo clean the panel and equipment connections:
FUnplug the equipment.
FClean with a slightly damp, soft cloth.
FAllow to dry completely before use.
JDo not spill liquid onto the equipment.
JKeep ventilation slots free of dust and any foreign bodies.
Troubleshooting
The most frequent problems arising during equipment installation are indicated below. If
you encounter any other type of problem, please contact the equipment sales team.
Problem Possible cause What to do
Forgotten unlock code. -Contact your point of sale.
Nothing displayed on
LCD screen.
The power cable is not con-
nected properly.
Check the power cable.
The channels do not
adjust to the programmed
output level.
Lack of signal or unsuitable
channel level.
Check that the channel
programmed in the highest
output channel has a signal and
appropriate level. This is used
as a reference for output level
adjustment.
The display shows that
there has been a short
circuit.
Bad connection in the UHF
input.
Check the input connection
cables. Unplug the network
connection cable and reconnect
it.
EN

46
Technical specifications
ONE 118 Model (AFP-201)
Inputs BI-FM
1
BIII-DAB
1
UHF1 UHF2 UHF3
3
Band width MHz 47-108 174-240 470-862
Input conguration
Number of programmable UHF
lters per input
- - 10 0 0
- - 9 0 1
- - 7 0 3
- - 2 5 3
- - 2 7 1
Gain dB 35 40 35 / 55
(switchable)
Gain adjustment dB 25 20 30
Noise gure dB <6 <6 <6
Optimum input margin dBµV 60-85 60-80 50-80
70-100
Return losses dB >10 >10 >10
Selectivity
(± 10 MHz of channel ends)
dB >10
Uncoupling between inputs dB - - >20
AGC tolerance dB - - ±1
Switchable preamp voltage V - - 0-12-24
Maximum preamp current mA - - 100
Output TV
Output level* dBµV 118 118 118
Output level adjustment dB 20
Return losses dB >10
Test outputs dB -30
Operations
Mains voltage 230 - 240 V~
Consumption 0.25 A / 25 W
Operating temperature -5 to 50 ºC
Mains connector IEC C8
* IMD3-60dB, DIN 45004B
(See channel reduction table in Technical Annex)

Technical specifications / ONE SAT Model (AFP-292)
47
ONE SAT Model (AFP-292)
Inputs BI-FM
1
BIII-DAB
1
UHF1 UHF2 UHF3
3
EXT
(VHF/UHF)
1
SAT-IF
1
FI-SAT
(passive)
1
Band width MHz 47-108 174-240 470-862
47-240 /
470-862
950-
2150 950- 2150
Input conguration
Number of programmable
UHF lters per input
- - 10 0 0 ---
- - 9 0 1 ---
- - 7 0 3 ---
- - 2 5 3 ---
- - 2 7 1 ---
Gain TV1&TV2 conf
TV1 conf
dB
30 35 35/55
(switchable)
35 40 -1.5
35 40
40/60
(switchable)
40 40
Gain adjustment dB 25 20 30 20 20 -
Noise gure dB <6 <6 <6 <6 <9 -
Optimum input
margin dBµV 60-85 60-80 50-80
70-100 60-80 68-88 -
Return losses dB >10 >10 >10 >10 >10 >10
Selectivity (± 10 MHz
of channel ends)
dB >10 ---
Uncoupling
between inputs dB - - >20 ---
AGC tolerance dB - - ±1 ---
Switchable preamp
voltage V - - 0-12-24 -0-13-18 -
Maximum preamp
current mA - - 100 -300 -
Preamp tones kHz - - - - 0-22 -
Slope adjustment dB - - - - 0-9 -
Outputs (2 options) TV+IF
Output
level*
TV1&TV2 conf
TV1 conf dBµV 113 113 118 113/118 116 -
118 118 123 113/123 116
Output level
adjustment dB 20 -
Return losses dB >10 -
Test outputs (2) dB -30
Operations
Mains voltage 230 - 240 V~
Consumption 0.25 A / 25 W
Operating temperature -5 to 50 ºC
Mains connector IEC C8
* Terrestrial: IMD3-60dB, DIN 45004B ; Satellite: IMD3 -35dB, EN50083-3.
(See channel reduction table in Technical Annex)
EN
