Impex APEX TC-1800 User manual

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
TC-1800
Retain This
Manual for
Reference
07-01-09
OWNER'S
MANUAL
APEX
POWER STATION
TC-1800
IMPEX®INC.
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: [phone] Fax: [phone]
www.impex-fitness.com
[email protected]
Meijer.com

TABLE OF CONTENTS
BEFORE YOU BEGIN...................................................................................... 1
IMPORTANT SAFETY NOTICES..................................................................... 2
HARDWARE IDENTIFIER.....…....................................................................... 4
ASSEMBLY INSTRUCTIONS........................................................................... 5
EXPLODED DIAGRAM…………………………………………………………… 12
PARTS LIST................................................................................................... 13
WARRANTY.................................................................................................…. 14
ORDERING PARTS.......................................................................................…14
BEFORE YOU BEGIN
Thank you for selecting the APEX TC-1800 by IMPEX®INC. For your safety and
benefit, read this manual carefully before using the machine. As a manufacturer,
we are committed to provide you complete customer satisfaction. If you have any
questions, or find there are missing or damaged parts, we guarantee you
complete satisfaction through direct assistance from our factory. To avoid
unnecessary delays, please call our TOLL-FREE customer service number. Our
Customer Service Agents will provide immediate assistance to you.
1
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.impex-fitness.com
[email protected]m
Meijer.com

IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply whenever
you operate a piece of exercise equipment. Be sure to read the entire manual before you
assemble or operate your machine. In particular, note the following safety precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
CARE AND MAINTENANCE
1. Inspect and tighten all parts before using the machine.
2. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.
3. Maximum user’s weight: 300 lbs.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35
OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS
BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY
FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE
USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS. 2
Meijer.com

WARNING LABEL PLACEMENT
The warning label shown here has been placed on the Stabilizer. If the labels are missing or illegible, please call
customer service at 1-800-888-8899 for replacements. Apply the labels in the location shown.
3
Meijer.com

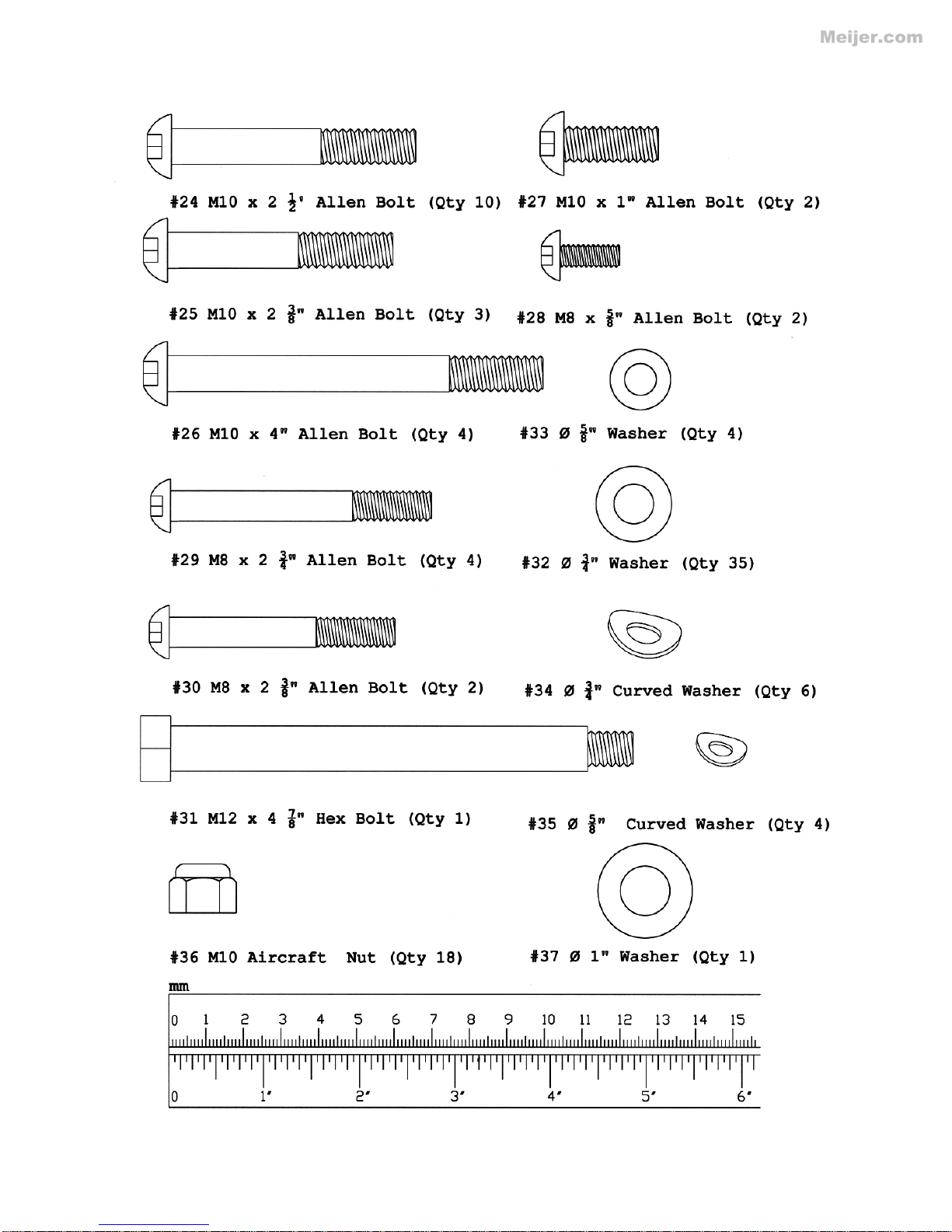

HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
4
Meijer.com

ASSEMBLY INSTRUCTION
Tools Required for Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches
NOTE: It is strongly recommended that two or more people assemble this machine to avoid
possible injury.
STEP 1 (See Diagram 1)
A.) Do not tighten Nuts and Bolts until instructed to do so.
B.) Connect the Left and Right Base Frame (#1 & #2) with the Stabilizer (#3). Secure each end of
Stabilizer with two M10 x 2 ½” Allen Bolts (#24), one 4 ¾” x 1 ¾” Bracket (#12), four Ø ¾”
Washers (#32), and two M10 Aircraft Nuts (#36).

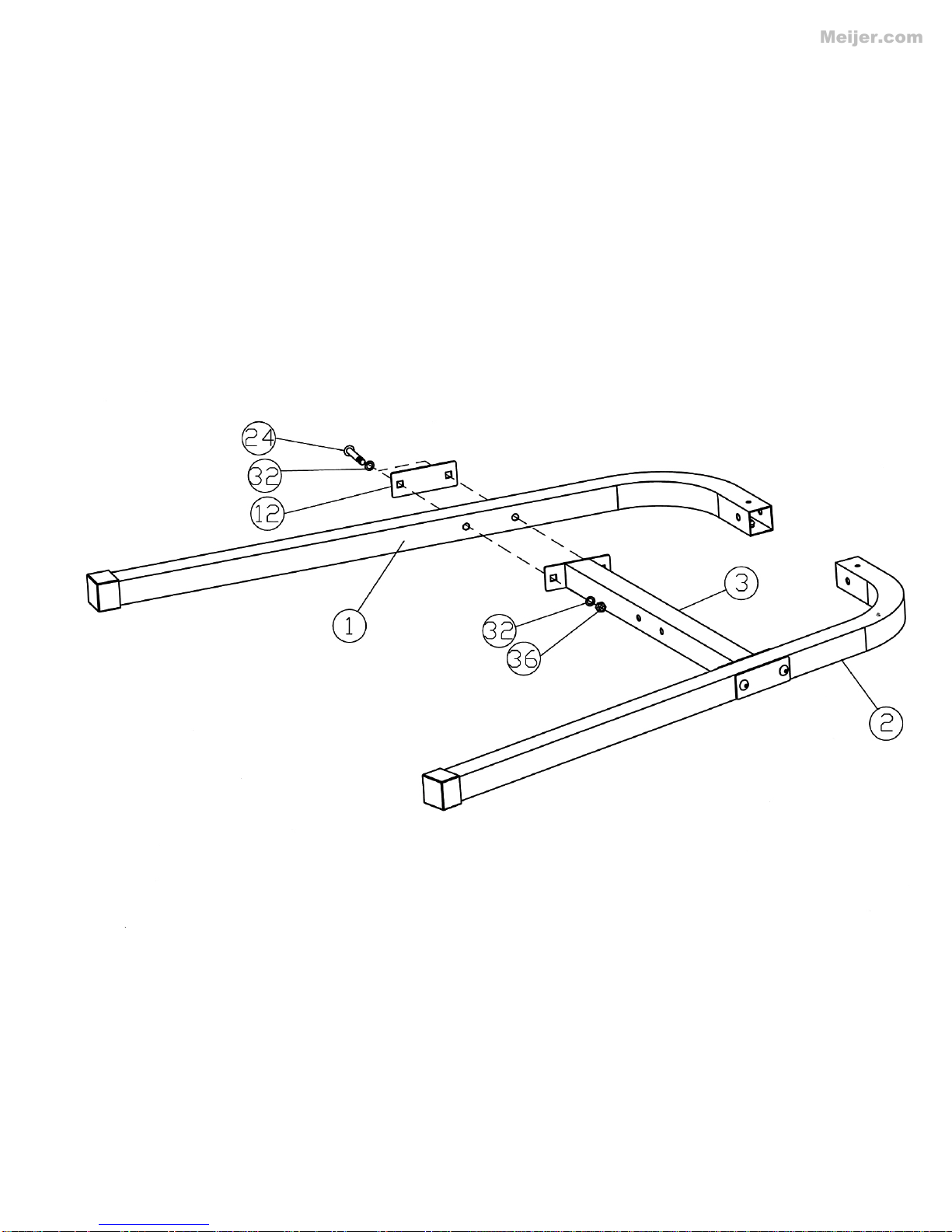

DIAGRAM 1
5
Meijer.com

STEP-2 (See Diagram 2)
A.) Attach the Lower Vertical Frame (#4) to the Stabilizer (#3). Secure it with two M10 x 2 ½”
Allen Bolts (#24), four Ø ¾” Washers (#32), and two M10 Aircraft Nuts (#36).
B.) Do not tighten the Nuts and Bolts yet. DIAGRAM 2
6
Meijer.com

STEP 3 (See Diagram 3)
A.) Attach the Rear Support Frame (#5) to the joint of Left & Right Base Frame (#1 & #2).
Secure them with M10 x 2 ½” Allen Bolts (#24), four Ø ¾” Washers (#32), and two M10
Aircraft Nuts (#36) from the side. Secure them with two M8 x 5/8” Allen Bolts (#28) and
two Ø 5/8” Washers (#33) from top.
B.) Insert the Upper Vertical Frame (#6) into Lower Vertical Frame (#4). Attach the Rear
Support Frame to Lower and Upper Vertical Frame. Secure them together with two M10 x
4” Allen Bolts (#26), one 5 ½” x 1 7/8” Curved Bracket (#13), four Ø ¾” Washers (#32),
and two M10 Aircraft Nuts (#36) from side, two M10 x 2 3/8” Allen Bolts (#25), four Ø ¾”
Washers (#32), and two M10 Aircraft Nuts (#36) from front.
C.)Securely tighten all Nuts and Bolts installed from Step-1 to Step-3.
7
Meijer.com

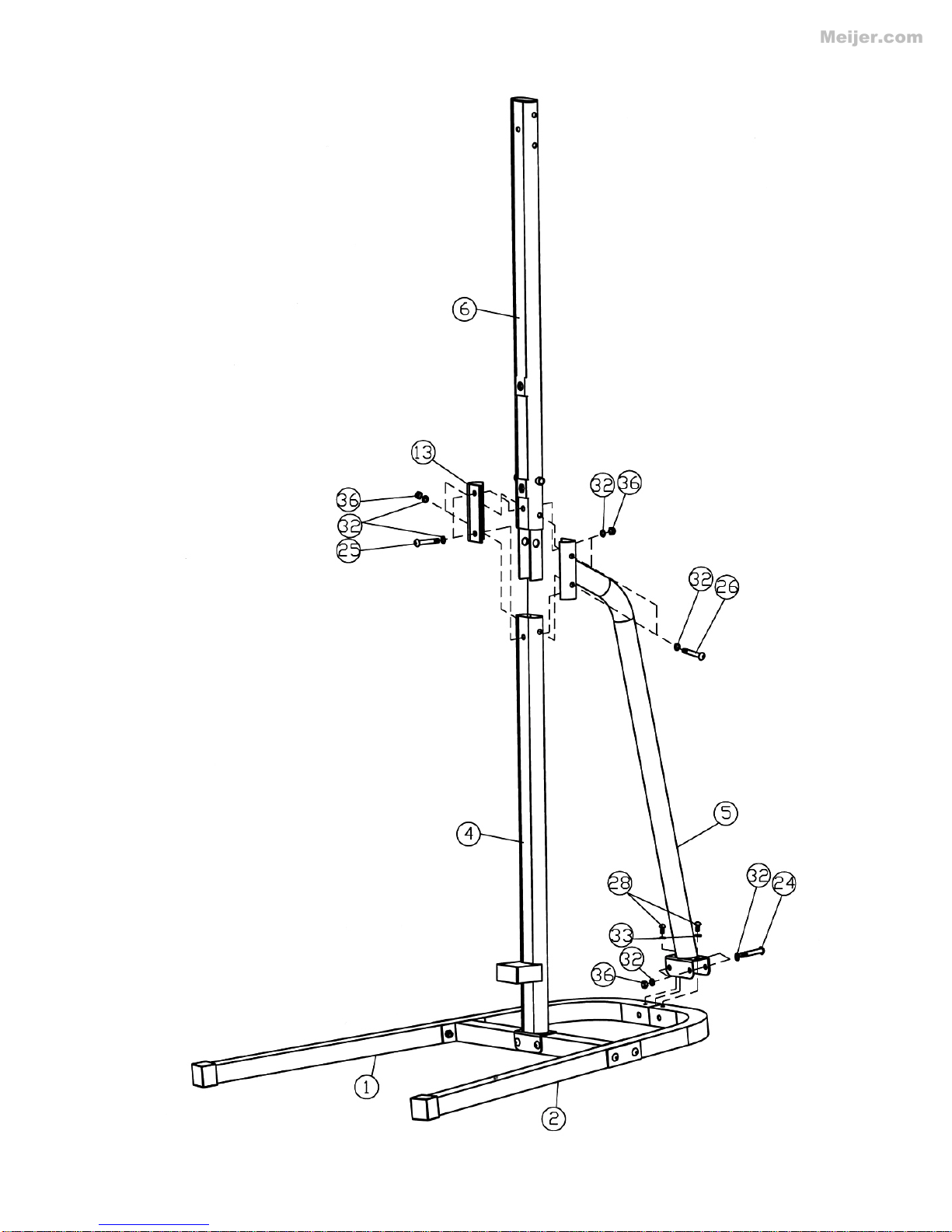

DIAGRAM 3
8
Meijer.com

STEP 4 (See Diagram 4)
A.) Attach the Left Dip Support (#7) to Right Dip Support (#8) to the Upper Vertical Frame (#6)
B.) Attach the holes on the bracket of Left and Right Dip Support to the holes on Upper Vertical
Frame (#6) from each side. Align the holes. Secure the Left and Right Dip Support, Upper
Vertical Frame together with one M12 x 4 7/8” Hex Bolt (#31), one Ø 1” Washers (#37), one Ø
¾” Washer (#32), and one M10 Aircraft Nut (#36). Do not over tighten the Nuts and Bolts.
Make sure the Left and Right Dip Support are able to move up freely.
C.) Secure the Left and Right Dip Support together with two M10 x 2 ½” (#24), four Ø ¾”Curved
Washers (#34), and two M10 Aircraft Nuts (#36).
D.) Attach the Left and Right Chin-up Handle (#9 & #10) to the Upper Vertical Frame. Secure them
together with two M10 x 4” Allen Bolts (#26), four Ø ¾” Washers (#32), and two M10 Aircraft
Nuts (#36) from side, one M10 x 2 3/8” Allen Bolt (#25), two Ø ¾” Washers (#32), and two M10
Aircraft Nut (#36) from front.
E.) Before doing Chin-up exercise, fold up the Left and Right Dip Support. Insert the L-shaped Lock
Pin (#23) through holes on Left Dip Support bracket into the open slot on the back of Upper
Vertical Frame to hold up both Dip Supports in position.
9
DIAGRAM 4
Meijer.com

10
STEP 5 (See Diagram 5)
A.) Attach the Backrest Board (#15) to the Upper Vertical Frame (#6). Secure it with two M8 x 2
3/8” Allen Bolts (#30) and two Ø 5/8” Washers (#33).
B.) Insert one Vertical Handle (#11) into the hole on Left Dip Support (#7). Secure it with one
Meijer.com

M10 x 1” Allen Bolt (#27) and one Ø ¾” Curved Washer (#34). Repeat same step to install
the other Vertical Handle to Right Dip Support (#8).
C.)Attach the Arm Pads to Left and Right Dip Support. Secure each Pad with two M8 x 2 ¾”

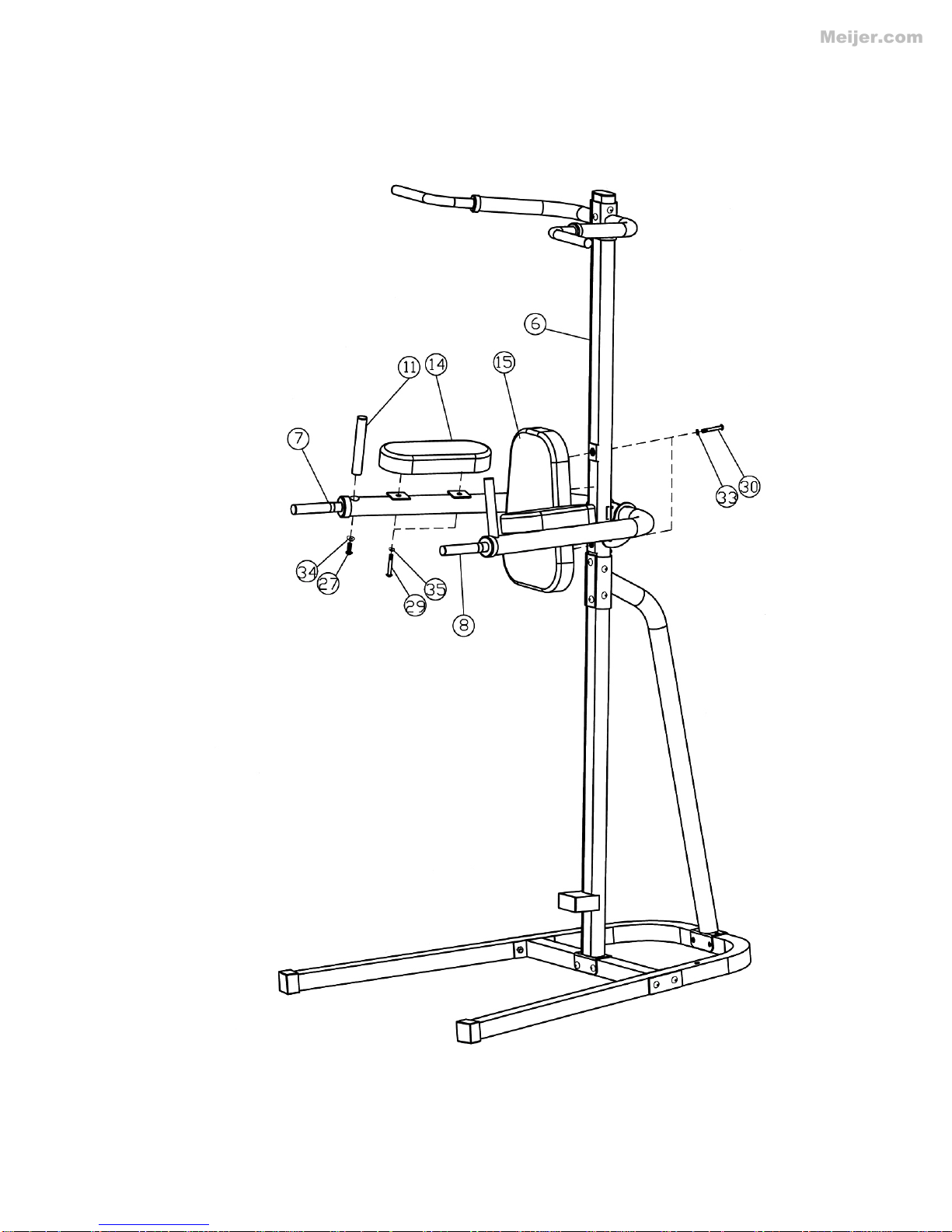

Allen Bolts (#29) and two Ø 5/8” Washers (#35). DIAGRAM 5
11
Meijer.com

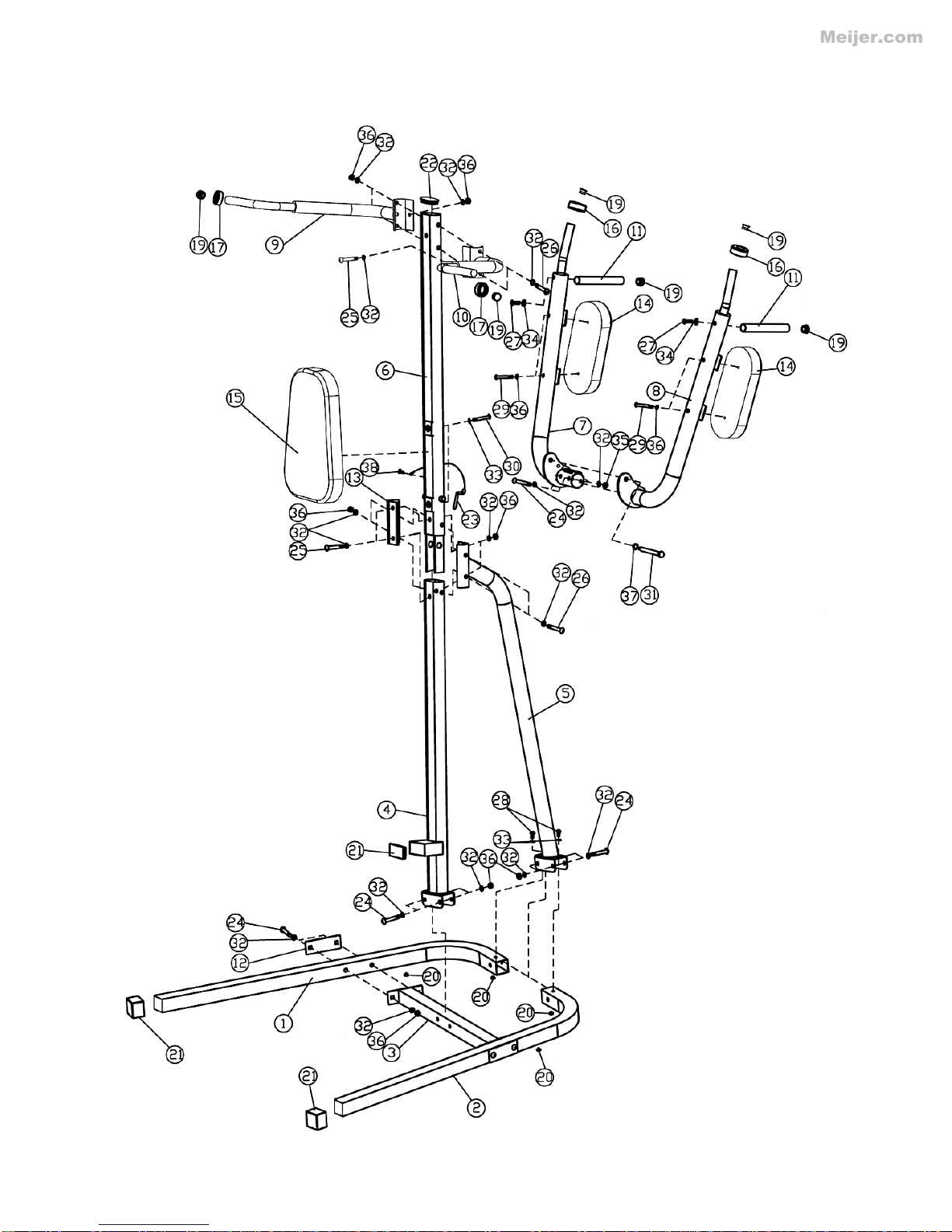

EXPLODED DIAGRAM
12
Meijer.com

Parts list
KEY NO. DESCRIPTION Q’ty
1 Left Base Frame 1
2 Right Base Frame 1
3 Stabilizer 1
4 Lower Vertical Frame 1
5 Rear Support Frame 1
6 Upper Vertical Frame 1
7 Left Dip Support 1
8 Right Dip Support 1
9 Left Chin-up Handle 1
10 Right Chin-up Handle 1
11 Vertical Handle 2
12 4 ¾” x 1 ¾” Bracket 2
13 5 ½” x 1 7/8” Curved Bracket 1
14 Arm Pad 2
15 Backrest Board 1
16 Ø 2” Sleeve 2
17 Ø 1 ½” Sleeve 2
18 1 ¾” End Cap 2
19 Ø 1” End Cap 6
20 Ø 1” Rubber Spacer 4
21 1 5/8” End Cap 1
22 1 5/8” x 3 1/8” End Cap 1
23 L-shaped Lock Pin 1
24 M10 x 2 ½” Allen Bolt 10
25 M10 x 2 3/8” Allen Bolt 3
26 M10 x 4” Allen Bolt 4
27 M10 x 1” Allen Bolt 2
28 M8 x 5/8” Allen Bolt 2
29 M8 x 2 ¾” Allen Bolt 4
30 M8 x 2 3/8” Allen Bolt 2
31 M12 x 4 7/8” Hex Bolt 1
32 Ø ¾” Washer 35
33 Ø 5/8” Washer 4
34 Ø ¾” Curved Washer 6
35 Ø 5/8” Curved Washer 4
36 M10 Aircraft Nut 18
37 Ø 1” Washer 1
38 M5 x 5/8” Philips Screw 1
13
Meijer.com

IMPEX®INC.
LIMITED WARRANTY
IMPEX Inc. ("IMPEX®") warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of two years on the Frame from
the date of purchase. This warranty extends only to the original purchaser. IMPEX's obligation
under this Warranty is limited to replacing or repairing, at IMPEX's option.
All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling
IMPEX Customer Service Department at 1-800-999-8899. All freights on products returned to
IMPEX must be prepaid by the customer. This warranty does not extend to any product or
damage to a product caused by or attributable to freight damage, abuse, misuse, improper or
abnormal usage or repairs not provided by an IMPEX authorized service center or for products
used for commercial or rental purposes. No other warranty beyond that specifically set forth
above is authorized by IMPEX.
IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or
in connection with the use or performance of the product or other damages with respect to any
economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of
removal, installation or other consequential damages or whatsoever natures. Some states do not
allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above
limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied
warranties of merchantability or fitness for a particular purpose is limited in its scope and duration
to the terms set forth herein. Some states do not allow limitations on how long an implied
warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal right. You may also have other rights which vary from state
to state. Register on-line www.impex-fitness.com
IMPEX®INC.
14777 Don Julian
City of Industry, CA 91746
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-
999-8899 during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific
standard time.
[e-mail]
When ordering replacement parts, always give the following information.
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase
14
