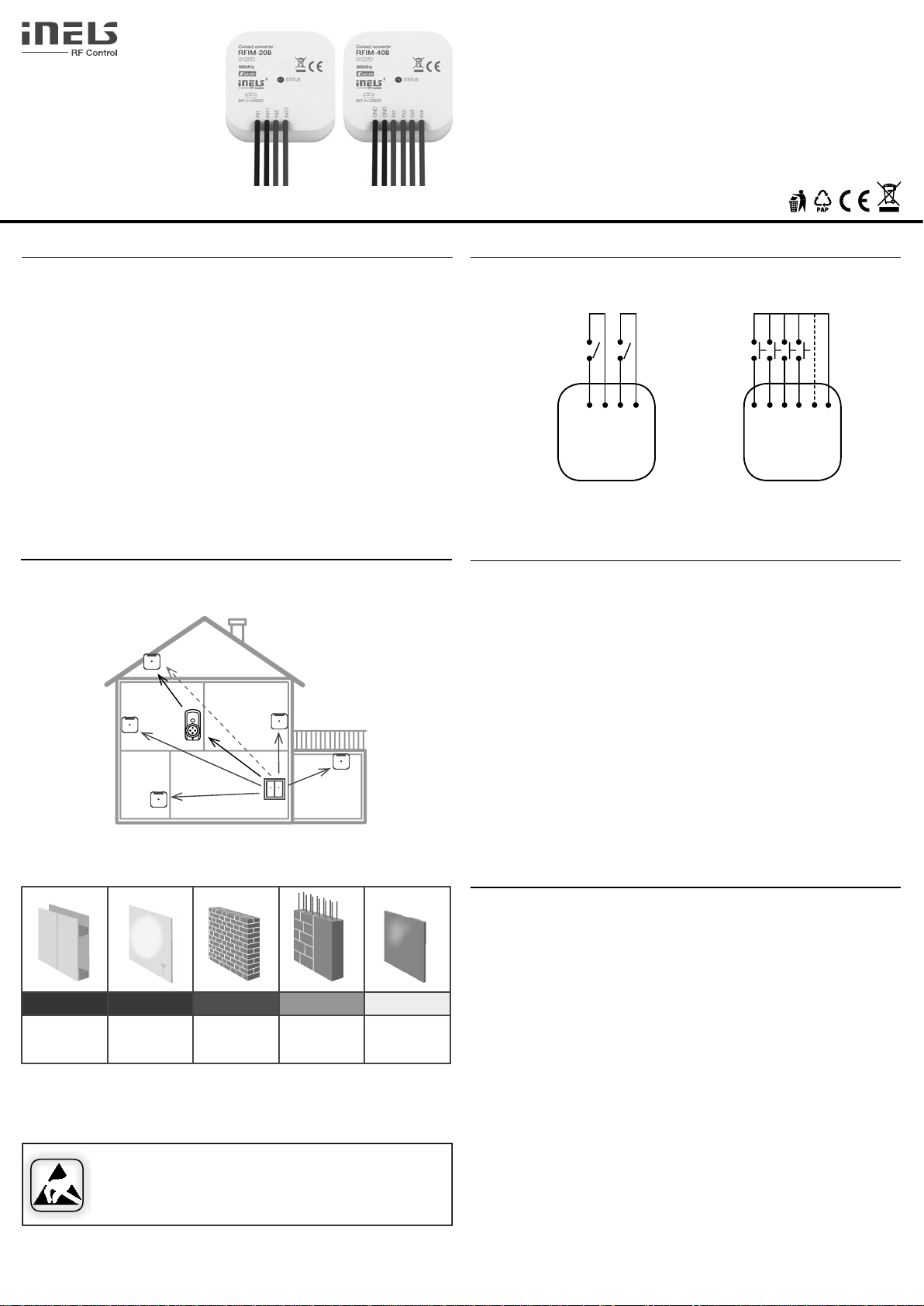

iNels RFIM-20B User manual

Rev.0
RFIM-20B
RFIM-40B
Made in Czech Republic
80 - 95 % 80 - 90 % 60 - 90 % 20- 60 % 0 - 10 %
1 / 2
x
RFRP-20
RFIM-40B
IN4
IN3 IN2 IN1GND
GND
RFIM-20B
IN2 IN1
IN22 IN11
Characteristics
Radio frequency signal penetration through various construction
materials
brick walls wooden structures
with plaster boards reinforced concrete metal partitions common glass
ELKO EP, s.r.o.
Palackého 493
769 01 Holešov, Všetuly
Czech Republic
Tel.: [phone]
e-mail: [email protected]
www.elkoep.com
EN
• the wireless contact converter changes your existing button to a wireless one.
- four inputs enable control of four units independently.
- battery power supply (2x 3V/CR2032) with battery life of around 5 years based on frequency
of use (included in the supply).
- only impulse control
• It can be used to transmit information on switching on the contact (detector, button, technology,
logic output).
• The BOX design lets you mount it right in an installation box under the button or switch.
• When pressing the button, it sends a set signal (ON/OFF, dimming, time switching OFF/ON, blinds
up / down).
• Sending a command is indicated by a red LED.
• Option of setting light scenes, where with a single press, you can control multiple units of iNELS
RF Control.
• Range up to 200 m (in open space), if the signal is insufficient between the controller and unit, use
the signal repeater RFRP-20 or protocol component RFIO2that support this feature.
• Communication frequency with protocol iNELS RF Control.
Wireless contact converter
When handling a device unboxed it is important to avoid contact with
liquids. Never place the device on the conductive pads or objects, avoid
unnecessary contact with the components of the device.
Safe handling
Connection
RF controlers can control:
• switches
RFSA-11B, RFSA-61B, RFSA-62B, RFSA-61M, RFSA-66M, RFSAI-61B, RFSC-11, RFSC-61, RFUS-11, RFUS-61,
RFJA-12B
• dimmers
RFDA-73/RGB, RFDA-11B, RFDA-71B, RFDEL-71B, RFDEL-71M, RFDSC-11, RFDSC-71, RFDAC-71B
• lighting
RF-RGB-LED-550, RF-White-LED-675
After inserting the battery, the red LED lights up continuously for 3 seconds and then for 5 seconds,
the selected controller function is indicated by flashing LED.
• double flash - standard RFIO2operating mode
• rapid flashing - mode of compatibility with older actuators
If you do not want to change the function of the controller, you must not press any buttons during
this time
To switch between RFIO2mode and compatibility mode:
If you need to change the operating mode of the controller, after inserting the battery, when the
LED is constantly lit. press buttons 1 and 3 simultaneously and hold until the LED starts to signal the
changed mode (double flash or rapid flash).
Then the buttons must be released. The selected function mode is stored in memory and after
replacing the battery, the controller continues to operate in the same mode.
If the controller is used in RFIO2mode, then it is necessary to instruct the controller and link to the
actuators switch to learn mode not only the actuator (according to the instructions for the actuator),
but also the controller in the following way: Remove the battery from the remote control, press
one of the buttons several times to discharge the device, and insert the battery again. When the
LED lights up, press button 1 and keep it pressed until the controller starts signaling the learning
mode with short flashing LEDs. Then release the button and the button now works in RFIO2learning
mode. To end the learning mode, remove the battery, press some of the buttons several times.
and then replace the battery. Now we press any button and the controller will start again in RFIO2
operating mode.
Indicators, settings
switch buttons

2 / 2
3
+
CR2032
1
6
2
5
4
1 2 3
+
CR2477
RFIM-20B
4 5 6
RFIM-40B
RFIM-20B RFIM-40B
Warning
Instruction manual is designated for mounting and also for user of the device. It is always a part of
its packing. Installation and connection can be carried out only by a person with adequate profes-
sional qualification upon understanding this instruction manual and functions of the device, and
while observing all valid regulations. Trouble-free function of the device also depends on transpor-
tation, storing and handling. In case you notice any sign of damage, deformation, malfunction or
missing part, do not install this device and return it to its seller. It is necessary to treat this product
and its parts as electronic waste after its lifetime is terminated. Before starting installation, make
sure that all wires, connected parts or terminals are de-energized. While mounting and servicing
observe safety regulations, norms, directives and professional, and export regulations for working
with electrical devices. Do not touch parts of the device that are energized – life threat. Due to
transmissivity of RF signal, observe correct location of RF components in a building where the
installation is taking place. RF Control is designated only for mounting in interiors. Devices are not
designated for installation into exteriors and humid spaces. The must not be installed into metal
switchboards and into plastic switchboards with metal door – transmissivity of RF signal is then im-
possible. RF Control is not recommended for pulleys etc. – radiofrequency signal can be shielded
by an obstruction, interfered, battery of the transceiver can get flat etc. and thus disable remote
control.
* on condition, that contact is permanently closed- battery life is approx. 1 month.
Attention:
When you instal iNELS RF Control system, you have to keep minimal distance 1 cm between each
units. Between the individual commands must be an interval of at least 1s.
By carefully pulling
on the wires, slide the
device into the box.
By carefully pulling
on the wires, slide the
device into the box.
The LED must be aligned
and go into the opening
in the front part of the
box.
The LED must be aligned
and go into the opening
in the front part of the
box.
Snap on the rear cover.
Snap on the rear cover.
Using a screwdriver,
carefully remove the rear
cover.
Using a screwdriver,
carefully remove the rear
cover.
By putting slight
pressure on the wires,
partially slide the device
out of the box.
By putting slight
pressure on the wires,
partially slide the device
out of the box.
Slide the CR2477
batteries into the battery
holders. Observe the
polarity.
Slide the CR2032
batteries into the battery
holders. Observe the
polarity.
Supply voltage:
Battery life:
Transmission indication / function:
Number of inputs:
Transmitter frequency:
Signal transmission method:
Range in free space:
Other data
Operating temperature:
Operating position:
Terminals (CY wire, cross-section):
Length of terminals:
Resist.of connection between ter-
minals - for switched on button:
- for disconnected contact:
Mounting:
Protection:
Contamination degree:
Dimensions:
Weight:
Open contact voltage:
Length of cable to contact:
Related standards:
1 x 3V battery CR 2477 2 x 3V battery CR 2032
5 years*
orange LED red LED
2 4
866 MHz, 868 MHz, 916 MHz
unidirectionally addressed message
up to 200 m
-10 ... +50 °C
any
4 x 0.75 mm2 6 x 0.75 mm2
90 mm
< 300 Ω
> 10 kΩ
free at lead-in wires
IP30
2
49 x 49 x 13 mm
45 g 50 g
pulse 12 V 3 V
max. 100 m of parallel lines max. 5 m
EN 60669, EN 300220, EN 301489 R&TTE Directive, Order. No 426/2000 Coll. (Directive 1999/EC) /
ELKO EP declares that the RFIM-20B/40B type of equipment complies with Directives 2014/30/EU, 2011/65/EU, 2015/863/EU
and 2014/35/EU. The full EU Declaration of Conformity is available at:
https://www.elkoep.com/wireless-contact-converter-rm-20b
https://www.elkoep.com/wireless-contact-converter-rm-40b
ELKO EP, s.r.o., Palackého 493, 769 01 Holešov, Všetuly, Czech Republic
Tel.: [phone], e-mail: [e-mail], www.elkoep.com
Insertion and replacement of a battery Technical parameters
