www.cypress.com Document No. 002-14914 Rev. *C 1
Contents
1 About This Document.................................................1
1.1 Purpose and Audience......................................1
1.2 Cypress Part Numbering Scheme.....................1
1.3 Acronyms and Abbreviations.............................1
2 IoT Resources............................................................2
3 Overview and Orientation..........................................3
3.1 Overview............................................................3
3.2 Orientation.........................................................3
4 Test Setup..................................................................3
4.1 System Requirements.......................................3
4.2 Test Equipment Setup.......................................4
4.3 Downloading the Minidriver and 
Configuration File ..............................................4
5 Setting Modes and Measuring Current
Consumption..............................................................6
5.1 Sleep Mode........................................................6
5.2 Standard 1.28s Inquiry Scan Mode....................8
5.3 Standard 2.56s Inquiry Scan Mode..................10
5.4 Standard Page Scan........................................11
5.5 SNIFF_500ms_Master Mode...........................12
5.6 SNIFF_500ms_Slave Mode.............................16
5.7 HV(3/2) for DUT as Master Mode ....................18
5.8 HV(3/2) for DUT as Slave Mode ......................22
5.9 EV(4/5) eSCO for DUT as Master Mode..........25
5.10 EV(4/5) eSCO for DUT as Slave Mode............28
5.11 Throughput ACL, 3DH5 Mode..........................31
6 References ...............................................................35
Document History Page ...................................................36
Worldwide Sales and Design Support ..............................37
1 About This Document
1.1 Purpose and Audience
This document is intended for use by Cypress and customers’ test engineers.
1.2 Cypress Part Numbering Scheme
Cypress is converting the acquired IoT part numbers from Broadcom to the Cypress part numbering scheme. Due
to this conversion, there is no change in form, fit, or function as a result of offering the device with Cypress part
number marking. The table provides Cypress ordering part number that matches an existing IoT part number.
Table 1. Mapping Table for Part Number between Broadcom and Cypress
1.3 Acronyms and Abbreviations
In most cases, acronyms and abbreviations are defined on first use. For a more complete list of acronyms and
other terms used in Cypress documents, go to: http://www.cypress.com/glossary.
AN214914
Measuring Current Consumption in Different Power Modes
Associated Part Family: BCM4324/CYW4334
This document provides procedures for measuring the amount of current consumed by BCM4324/CYW4334 devices in
different modes.
Broadcom Part Number Cypress Part Number
BCM4334 CYW4334

Measuring Current Consumption in Different Power Modes
www.cypress.com Document No. 002-14914 Rev. *C 2
2 IoT Resources
Cypress provides a wealth of data at http://www.cypress.com/internet-things-iot to help you to select the right IoT
device for your design, and quickly and effectively integrate the device into your design. Cypress provides cus-
tomer access to a wide range of information, including technical documentation, schematic diagrams, product bill
of materials, PCB layout information, and software updates. Customers can acquire technical documentation and
software from the Cypress Support Community website (http://community.cypress.com/).

Measuring Current Consumption in Different Power Modes
www.cypress.com Document No. 002-14914 Rev. *C 3
3 Overview and Orientation
3.1 Overview
This document provides procedures for measuring the amount of current consumed by BCM4324/BCM4334
devices while in different modes. The modes for which such procedures are provided include the following:
■Sleep mode
■Standard 1.28s Inquiry Scan mode
■Standard 2.56s Inquiry Scan mode
■Standard Page Scan mode
■SNIFF_500ms_Master mode
■SNIFF_500ms_Slave mode
■HV(3/2) for DUT as Master mode
■HV(3/2) for DUT as Slave mode
■EV(4/5) eSCO for DUT as Master mode
■EV(4/5) eSCO for DUT as Slave mode
■Throughput ACL, 3DH5 mode
Note: For information regarding the measurement of current consumption of Bluetooth Low Energy devices, refer
to the document cited in Reference [1] on page 2.
3.2 Orientation
The following provides information that the user needs to know before starting to make current consumption mea-
surements:
■Cypress BlueTool™ is used to place the device under test (DUT) in each mode. To obtain the latest version,
contact your Cypress representative.
■The equipment needed for making power consumption measurements is described in System Requirements
on page 3.
■It is assumed that you are familiar with BlueTool and that you know how to set up and use the equipment
needed for measuring current consumption.
■The procedure for downloading the BlueTool configuration and minidriver files to the DUT and reference board
is also provided (see Downloading the Minidriver and Configuration File on page 4). You must download these
files to the devices before you begin setting the various modes.
■In this document, HCI control: com4 refers to the DUT, and HCI Control: com5 refers to the reference board.
The actual COM port number may be different for each test system.
■The number key shortcuts to switch to the various HCI command lists refer to the number keys above the letter
keys on the keyboard.
■WLAN core is in reset (WL_REG_ON = low) for all measurements.
4 Test Setup
4.1 System Requirements
The system requirements are as follows:
■Host system
A PC running Microsoft® Windows® (either Windows XP or Windows 7) is required to use BlueTool.
■Test equipment
❐Agilent variable attenuator (Agilent 8496AAttenuator/110 dB)
❐Ammeter (Agilent 34410A digital Multimeter or Agilent 6705B DC Power Analyzer)
❐DUT (BCM4324/BCM4334)
❐Reference board (Reference boards are available from Cypress.)
❐USB/RS-232 serial DB9 (straight-through) cables
❐USB to UART converter
■Software

Measuring Current Consumption in Different Power Modes
www.cypress.com Document No. 002-14914 Rev. *C 4
BlueTool is a proprietary Cypress software tool for exercising, testing, scripting, debugging, and programming
devices that use Cypress Bluetooth chips. BlueTool runs on a standard PC running Microsoft Windows (either
Windows XP or Windows 7). BlueTool interfaces with the Cypress Bluetooth chips at the HCI protocol layer.
Firmware/configuration files and minidriver files for the BCM4324/BCM4334 are available via Cypress’s Customer
Support Portal (see IoT Resources on page 2).
4.2 Test Equipment Setup
Connect the test equipment as shown in Figure .
■Use USB/RS-232 (straight-through) cables to connect the DUT to the PC.
■Use USB/RS-232 (straight-through) cables to connect the reference board to the PC.
■Using appropriate lead wires, connect the attenuator to the RF port of both the DUT and reference board.
■Using appropriate lead wires, connect the ammeter to VBAT on the DUT.

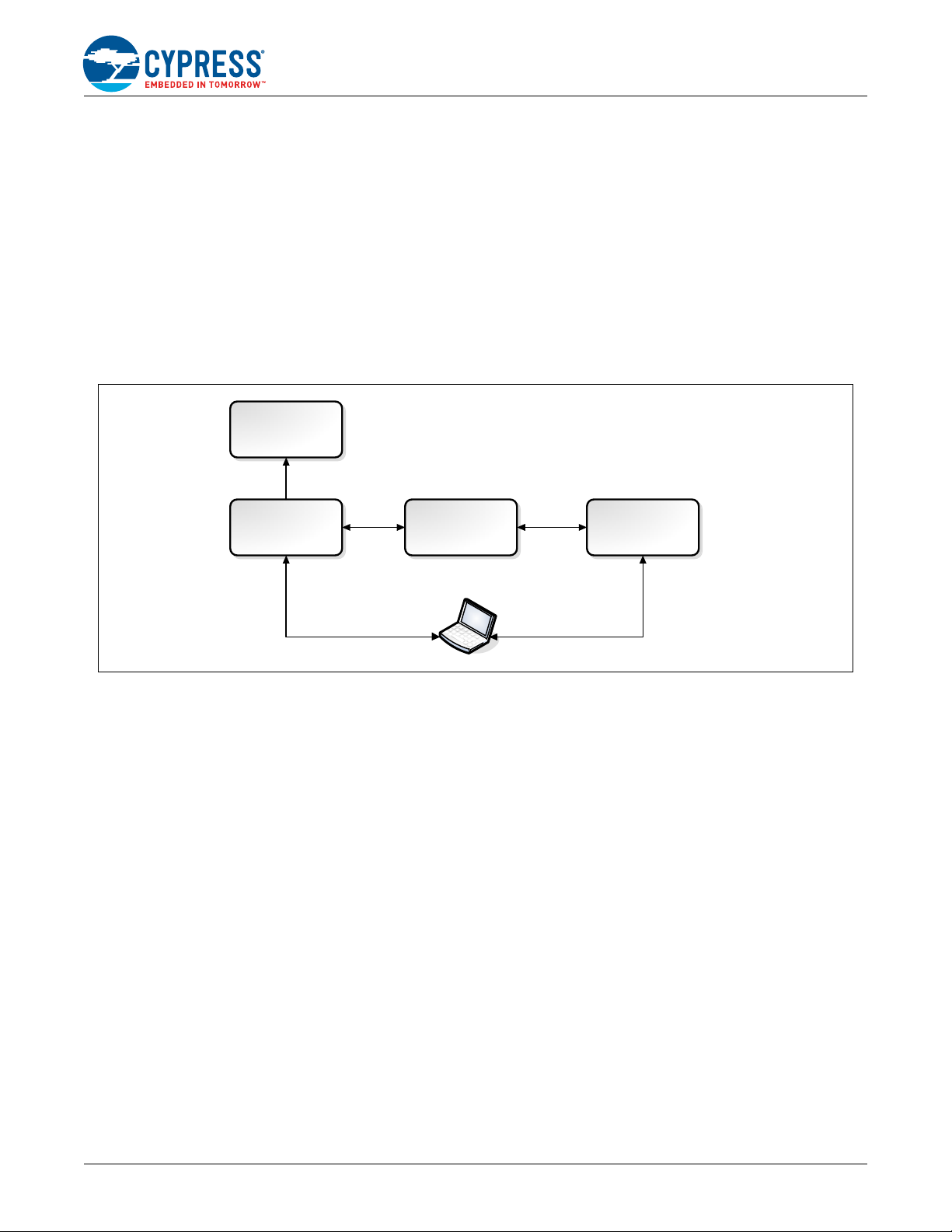

Figure 1. Test Equipment Setup
The range setting on the ammeter varies depending on the test mode. The ammeter range setting is specified in
the procedure for that test mode.
4.3 Downloading the Minidriver and Configuration File
This section provides instructions for downloading the minidriver and configuration file to the DUT and reference
board. You must download the minidriver and configuration file before you begin setting the various modes. Steps
for downloading the minidriver and configuration file include the following and apply to both the DUT and reference
board:
■Set the HCI Control Transport profile.
■Reset the DUT/reference board.
■Download the minidriver.
■Download the configuration file.
Before you begin, set up and turn on the test equipment and launch Cypress BlueTool.
Set the HCI Control Transport profile
1. Open a log window: On the View menu, click Log Window Details.
2. On the Transport menu, click HCI Control.
3. In HCI Control Window Transport:
a. Select UART.
b. In the top UART list, type the COM port of the PC to which each device is connected (com4 for the DUT
and com5 for the reference board).
c. In the bottom UART list, select 115200.
Ammeter
DUT Attenuator
Reference
Bluetooth
Device
To RF
port of
DUT
To RF port
of
reference
device
Connect ammeter to VBAT.
USB/RS-232
(straight-through)
Cable
USB/RS-232
(straight-through)
Cable

Measuring Current Consumption in Different Power Modes
www.cypress.com Document No. 002-14914 Rev. *C 5
d. Select the CTS flow control check box, and then click OK.
Reset the DUT/reference board
1. While in HCI Control, press the 3 key on the keyboard to select the Host controller & baseband commands.
2. In the list of Host controller & baseband commands, double-click Reset. In Log Window, verify that the DUT/
reference board has been reset.
Download the minidriver
1. In HCI Control, press the 0 key on the keyboard to select the Vendor-specific commands.
2. In the list of commands, double-click Download Minidriver. When the command has completed executing,
verify that the HCI protocol active check box has been cleared, that HCI Control is no longer active, and that
Transport Closed is displayed in Log Window.
Download the configuration file
1. On the Transport menu, click Download Firmware/Config.
2. In Select Download Firmware/Config Transport, select the COM port used by the DUT (com4)/referenceboard
(com5), and then click OK.
3. In Download: com4@115200/com5@115200:
a. In the Device configuration list, select the device you want to configure.
b. Select the Download configuration record check box.

Measuring Current Consumption in Different Power Modes
www.cypress.com Document No. 002-14914 Rev. *C 6
c. Select the From burn image check box.
d. Click Locate, and then open the configuration file.
e. Click Execute.
The download is completed when Download Completed is displayed in Log Window.
To download the configuration file for the reference board, repeat the procedure, making sure to change the UART
COM port to com5.
5 Setting Modes and Measuring Current Consumption
This section contains procedures for setting the BCM4324/BCM4334 to various modes for the purpose of measur-
ing the amount of current being consumed by the device when it is in each mode. This section also specifies the
ammeter range for making current readings in each mode.
5.1 Sleep Mode
This section explains how to set the BCM4324/BCM4334 to Sleep mode. Steps include the following and apply
only to the DUT:
■Set the HCI Control Transport profile.
■Reset the DUT.
■Set the Sleepmode parameters.
This section concludes by specifying the approximate ammeter range setting for measuring the current being con-
sumed by the DUT. Host Controller & Baseband commands
Before you begin, set up and turn on the test equipment and launch Cypress BlueTool.
Set the HCI Control Transport profile
1. Open a log window. On the View menu, click Log Window.

Measuring Current Consumption in Different Power Modes
www.cypress.com Document No. 002-14914 Rev. *C 7
2. Set the HCI Control Transport profile.
a. On the Transport menu, click HCI Control.
b. In HCI Control Window Transport:
■Select UART.
■In the top UART list, type the COM port of the PC to which the DUT is connected (com4).
■In the bottom UART list, select 115200.
■Select the CTS flow control check box, and then click OK.
Reset the DUT
1. While in HCI Control:com4@115200, press the 3 key onthe keyboard toselectthe Hostcontroller&baseband
commands.
2. In the list of Host Controller & Baseband commands, double-click Reset. In Log Window, verify that the DUT
has been reset.
Set the Sleepmode parameters
1. In HCI Control: com4@115200, press the 0 key on the keyboard to select the Vendor-specific commands.
2. In the list of Vendor-specific commands, double-click Set_Sleepmode_Param.
3. In HCI Command: Set_Sleepmode_Param (com4@15200):
a. Make the following settings:
■Sleep_ModeUART
■Idle_Threshold_Host0x0
■Idle_Threshold_HC0x0
■BT_WAKE_Active_ModeActive High
■Host_WAKE_Active_ModeActive High
■Select the following check boxes:
■Allow_Host_Sleep_During_SCO
■Combine_Sleep_Mode_And LPM
■Enable_Tristate_Control_Of_UART_Tx_Line
■Pulsed_HOST_WAKE

Measuring Current Consumption in Different Power Modes
www.cypress.com Document No. 002-14914 Rev. *C 8
Measure the current consumption
Set the approximate range of the ammeter to 0.01 mA and measure the current being consumed by the DUT.
5.2 Standard 1.28s Inquiry Scan Mode
This section explains how to set the BCM4324/BCM4334 to Standard 1.28s Inquiry Scan mode. Steps include the
following and apply only to the DUT:
■Set the HCI Control Transport profile.
■Reset the DUT.
■Set the Sleepmode parameters.
■Set the Scan Type.
■Generate 2048 slots of 1.28s activity.
■Set the Current IAC Lower Address Portion (LAP) parameters.
■Set the Write Scan Enable parameters.
This section concludes by specifying the approximate ammeter range setting for measuring the current being con-
sumed by the DUT.
Before you begin, set up and turn on the test equipment and launch Cypress BlueTool.
Set the HCI Control Transport profile
1. Open a log window. On the View menu, click Log Window.
2. Set the HCI Control Transport profile.
a. On the Transport menu, click HCI Control.
b. In HCI Control Window Transport:
■Select UART.
■In the top UART list, type the COM port of the PC to which the DUT is connected (com4).
■In the bottom UART list, select 115200.

Measuring Current Consumption in Different Power Modes
www.cypress.com Document No. 002-14914 Rev. *C 9
■Select the CTS flow control check box, and then click OK.
Reset the DUT
1. In HCI Control: com4@115200, press the 3 key on the keyboard to select the Host Controller & Baseband
commands.
2. In the list of Host Controller & Baseband commands, double-click Reset.
Set the Sleepmode parameters
1. In HCI Control: com4@115200, press the 0 key on the keyboard to select the to select the Vendor-specific
commands.
2. In the list of Vendor-specific commands, double-click Set_Sleepmode_Param.
3. In HCI Command: Set_Sleepmode_Param (com4@115200)
a. Make the following settings:
■Sleep_ModeUART
■Idle_Threshold_Host0x0
■Idle_Threshold_HC0x0
■BT_WAKE_Active_ModeActive High
■Host_WAKE_Active_ModeActive High
b. Select the following check boxes, and then click OK:
■Allow_Host_Sleep_During_SCO
■Combine_Sleep_Mode_And LPM
■Enable_Tristate_Control_Of_UART_Tx_Line
Set the Scan Type
1. In HCI Control: com4@115200, press the 3 key on the keyboard to select the Host Controller & Baseband
commands.
2. In the list of Host Controller & Baseband commands, double-click Write_Inquiry_Scan_Type.
3. In HCI Command: Write_Inquiry_Scan_Type (com4@115200), in the Scan_Type list, select Mandatory
Standard Scan, and then click OK.
Generate 2048 slots for 1.28s of activity
1. In the list of Host Controller & Baseband commands, double-click Write_Inquiry_Scan_Activity.
2. In HCI Command: Write_Inquiry_Scan_Activity (com4@115200):
a. For the Inquiry_Scan_Interval, type 2048 in the space provided.
b. For the Inquiry_Scan_Window, type 0x12 in the space provided.
c. Click OK.
Set the Current IAC Lower Address Portion (LAP) parameters
1. In the list of Host Controller & Baseband commands, double-click Write_Current_IAC_LAP.
2. In HCI Command: Write_Current_IAC_LAP (com4@115200):
a. For the Num_Current_IAC, type 1in the space provided.
b. For the IAC_LAP, type 10390288 in the space provided.
c. Click OK.
Set the Write Scan Enable parameters
1. In the list of Host Controller & Baseband commands, double-click Write_Scan_Enable.
2. In HCI Command: Write_Scan_Enable (com4@115200), in the Scan_Enable list, select Inquiry Scan
enabled, and then click OK.
Measure the current consumption
Set the approximate range of the ammeter to 0.2 mA and measure the current being consumed by the DUT.

Measuring Current Consumption in Different Power Modes
www.cypress.com Document No. 002-14914 Rev. *C 10
5.3 Standard 2.56s Inquiry Scan Mode
This section explains how to set the BCM4324/BCM4334 to Standard 2.56s Inquiry Scan mode. Steps include the
following and apply only to the DUT:
■Set the HCI Control Transport profile.
■Reset the DUT.
■Set the Sleepmode Parameters.
■Set the Scan Type.
■Generate 4096 slots for 2.56s of activity.
■Set the Current IAC Lower Address Portion (LAP) parameters.
■Set the Write Scan Enable parameters.
This section concludes by specifying the approximate ammeter range setting for measuring the current being con-
sumed by the DUT.
Before you begin, set up and turn on the test equipment and launch Cypress BlueTool.
Set the HCI Control Transport profile
1. Open a log window. On the View menu, click Log Window.
2. Set the HCI Control Transport profile.
a. On the Transport menu, click HCI Control.
b. In HCI Control Window Transport:
■Select UART.
■In the top UART list, type the COM port of the PC that the DUT is connected to (com4).
■In the bottom UART list, select 115200.
■Select the CTS flow control check box, and then click OK.
Reset the DUT
1. In HCI Control: com4@115200, press the 3 key on the keyboard to select the Host Controller & Baseband
commands.
2. In the list of Host Controller & Baseband commands, double-click Reset.
Set the Sleepmode parameters
1. In HCI Control: com4@115200, press the 0 key on the keyboard to select the Vendor-specific commands.
2. In the list of Vendor-specific commands, double-click Set_Sleepmode_Param.
3. In HCI Command: Set_Sleepmode_Param (com4@115200):
a. Make the following settings:
■Sleep_ModeUART
■Idle_Threshold_Host0x0
■Idle_Threshold_HC0x0
■BT_WAKE_Active_ModeActive High
■Host_WAKE_Active_ModeActive High
b. Select the following check boxes, and then click OK:
■Allow_Host_Sleep_During_SCO
■Combine_Sleep_Mode_And LPM
■Enable_Tristate_Control_Of_UART_Tx_Line
Set the Scan Type
1. In HCI Control: com4@115200, press the 3 key on the keyboard to select the Host Controller & Baseband
commands.
2. In the list of Host Controller & Baseband commands, double-click Write_Inquiry_Scan_Type.
3. In HCI Command: Write_Inquiry_Scan_Type (com4@115200), in the Scan_Type list, select Mandatory
Standard Scan, and then click OK.

Measuring Current Consumption in Different Power Modes
www.cypress.com Document No. 002-14914 Rev. *C 11
Generate 4096 slots for 2.56s of activity
1. In the list of Host Controller & Baseband commands, double-click Write_Inquiry_Scan_Activity.
2. In HCI Command: Write_Inquiry_Scan_Activity (com4@115200):
a. For the Inquiry_Scan_Interval, type 4096 in the space provided.
b. For the Inquiry_Scan_Window, type 0x18 in the space provided.
c. Click OK.
Set the Current IAC Lower Address Portion (LAP) parameters
1. In the list of Host Controller & Baseband commands, double-click Write_Current_IAC_LAP.
2. In HCI Command: Write_Current_IAC_LAP (com4@115200):
a. For the Num_Current_IAC, type 1in the space provided.
b. For the IAC_LAP, type 10390288 in the space provided.
c. Click OK.
Set the Write Scan Enable parameters
1. In the list of Host Controller & Baseband commands, double-click Write_Scan_Enable.
2. In HCI Command: Write_Scan_Enable (com4@115200), in the Scan_Enable list, select Inquiry Scan
enabled, and then click OK.
Measure the current consumption
Set the approximate range of the ammeter to 0.2 mA and measure the current being consumed by the DUT.
5.4 Standard Page Scan
This section explains how to set the BCM4324/BCM4334 to Standard Page Scan mode. Steps include the follow-
ing and apply only to the DUT:
■Set the HCI Control Transport profile.
■Reset the DUT.
■Set the Sleepmode parameters.
■Set the Scan Type.
■Generate 2048 slots for 1.28s of activity.
■Set the Write Scan Enable parameters.
This section concludes by specifying the approximate ammeter range setting for measuring the current being con-
sumed by the DUT.
Before you begin, set up and turn on the test equipment and launch Cypress BlueTool.
Set the HCI Control Transport profile
1. Open a log window. On the View menu, click Log Window.
2. Set the HCI Control Transport profile.
a. On the Transport menu, click HCI Control.
b. In HCI Control Window Transport:
■Select UART.
■In the top UART list, type the COM port of the PC that the DUT is connected to (com4).
■In the bottom UART list, select 115200.
■Select the CTS flow control check box, and then click OK.
Reset the DUT
1. While in HCI Control, press the 3 key on the keyboard to select the Host Controller & Baseband commands.
2. In the list of Host Controller & Baseband commands, double-click Reset.

Measuring Current Consumption in Different Power Modes
www.cypress.com Document No. 002-14914 Rev. *C 12
Set the Sleepmode parameters
1. While in HCI Control: com4@115200, press the 0 key on the keyboard to select the to select the Vendor-
specific commands.
2. In the list of Vendor-specific commands, double-click Set_Sleepmode_Param.
3. In HCI Command: Set_Sleepmode_Param (com4@115200):
a. Make the following settings:
■Sleep_ModeUART
■Idle_Threshold_Host0x0
■Idle_Threshold_HC0x0
■BT_WAKE_Active_ModeActive High
■Host_WAKE_Active_ModeActive High
b. Select the following check boxes, and then click OK:
■Allow_Host_Sleep_During_SCO
■Combine_Sleep_Mode_And LPM
■Enable_Tristate_Control_Of_UART_Tx_Line
Set the Scan Type
1. While in HCI Control: com4@115200, press the 3 key on the keyboard to select the Host Controller &
Baseband commands.
2. In the list of Host Controller & Baseband commands, double-click Write_Page_Scan_Type.
3. In HCI Command: Write_Page_Scan_Type (com4@115200), in the Scan_Type list, select Mandatory
Standard Scan, and then click OK.
Generate 2048 slots for 1.28s of activity
1. In the list of Host Controller & Baseband commands, double-click Write_Page_Scan_Activity.
2. In HCI Command: Write_Page_Scan_Activity (com4@115200):
a. For the Page_Scan_Interval, type 2048 in the space provided.
b. For the Page_Scan_Window, type 0x18 in the space provided.
c. Click OK.
Set the Write Scan Enable parameters
1. In the list of Host Controller & Baseband commands, double-click Write_Scan_Enable.
2. In HCI Command: Write_Scan_Enable (com4@115200), in the Scan_Enable list, select Page Scan enabled,
and then click OK.
Measure the current consumption
Set the approximate range of the ammeter to 0.2 mA and measure the current being consumed by the DUT.
5.5 SNIFF_500ms_Master Mode
This section explains how to set the BCM4324/BCM4334 to SNIFF_500ms_Master mode. Steps include the fol-
lowing (Some of the steps apply to the DUT, and others apply to the reference board.):
■Set the HCI Control Transport profile on the DUT.
■Reset the DUT.
■Set the Sleepmode parameters on the DUT.
■Set the HCI Control Transport profile on the reference board.
■Read the Bluetooth Device (BD) Address of the reference board.
■Set the Event Filter parameters on the reference board.
■Set the Write Scan Enable parameters on the reference board.
■Create a connection from the DUT.
■Reset the Write Scan Enable parameters on the reference board.
■Set the Write Link Policy parameters on the DUT.

Measuring Current Consumption in Different Power Modes
www.cypress.com Document No. 002-14914 Rev. *C 13
■Set the Write Link Policy parameters on the reference board.
■Set the Sniff Mode parameters on the DUT.
This section concludes by specifying the approximate ammeter range setting for measuring the current being con-
sumed by the DUT.
Before you begin, set up and turn on the test equipment and launch Cypress BlueTool.
Set the HCI Control Transport profile on the DUT
1. Open a log window. On the View menu, click Log Window.
2. On the Transport menu, click HCI Control.
3. In HCI Control Window Transport:
■Select UART.
■In the top UART list, type the COM port of the PC to which the DUT is connected (com4).
■In the bottom UART list, select 115200.
■Select the CTS flow control check box, and then click OK.
Reset the DUT
1. In HCI Control: com4@115200, press the 3 key on the keyboard to select the Host Controller & Baseband
commands.
2. In the list of Host Controller & Baseband commands, double-click Reset.
Set the Sleepmode parameters on the DUT
1. While in HCI Control: com4@115200, press the 0 key on the keyboard to select the Vendor-specific
commands.
2. In the list of Vendor-specific commands, double-click Set_Sleepmode_Param.
3. In HCI Command: Set_Sleepmode_Param:
a. Make the following settings:
■Sleep_ModeUART
■Idle_Threshold_Host0x0
■Idle_Threshold_HC0x0
■BT_WAKE_Active_ModeActive High
■Host_WAKE_Active_ModeActive Low
b. Select the following check boxes, and then click OK:
■Allow_Host_Sleep_During_SCO
■Combine_Sleep_Mode_And LPM
■Enable_Tristate_Control_Of_UART_Tx_Line
Set the HCI Control Transport profile on the reference board
1. Open a log window. On the View menu, click Log Window.
2. Set the HCI Control Transport profile.
a. On the Transport menu, click HCI Control.
b. In HCI Control Window Transport:
■Select UART.
■In the top UART list, type the COM port of the PC to which the reference board is connected (com5).
■In the bottom UART list, select 115200.
■Select the CTS flow control check box, and then click OK.
Read the BD Address of the reference board
1. On the Transport menu, click HCI Control.
2. In HCI Control Window Transport:
a. Select UART.

Measuring Current Consumption in Different Power Modes
www.cypress.com Document No. 002-14914 Rev. *C 14
b. In the top UART list, type the COM port of the PC to which the reference board is connected (com5).
c. In the bottom UART list, select 115200.
d. Select the CTS flow control check box, and then click OK.
3. While in HCI Control: com5@115200, press the 4 key on the keyboard to select the informational parameters
commands.
4. In the list of informational parameters commands, double-click Read_BD_ADDR.
Verify that the BD Address is displayed in Log Window and note the address for later use.
Set the Event Filter parameters on the reference board
1. While in HCI Control: com5@115200, press the 3 key on the keyboard to select the Host Controller &
Baseband commands.
2. In the list of Host Controller & Baseband commands, double-click Set_Event_Filter.
3. In HCI Command: Set_Event_Filter (com5@115200):
a. In the Filter_Type list, select Connection Setup.
b. In the Connection_Setup_Filter_Condition_Type list, select Allow Connections from all devices.
c. In the Auto_Accept_Flag list, select Do Auto accept the connection with role switch disabled, and
then click OK.
Set the Write Scan Enable parameters on the reference board
1. In the list of Host Controller & Baseband commands, double-click Write_Scan_Enable.
2. In HCI Command: Write_Scan_Enable (com5@115200), in the Scan_Enable list, select Inquiry and Page
Scan enabled, and then click OK.
Create a connection from the DUT
1. Reestablish the HCI Control Transport profile for the DUT (com4).
2. While in HCI Control: com4@115200, press the 1 key on the keyboard to select the Link Control commands.
3. In the list of Link Control commands, double-click Inquiry to display a list of found devices.
4. In the list of Link Control commands, double-click Create_Connection.
5. In HCI Command: Create_Connection (com4@115200):
a. In the BD_ADDR list, select the BD address (of the reference board) that was noted earlier.
b. Set the packet type by selecting the following check boxes:
■DM1
■DM3
■DM5
c. In the Page_Scan_Repetition_Mode list, select R0.
d. In the Page_Scan_Mode list, select Mandatory, and then click OK.

Measuring Current Consumption in Different Power Modes
www.cypress.com Document No. 002-14914 Rev. *C 15
6. In Log Window, verify that the devices have successfully connected and note the connection handle.
Reset the Write Scan Enable parameters on the reference board
1. Reestablish the HCI Control Transport profile for the reference board (com5).
2. While in HCI Control: com5@115200, press the 3 key on the keyboard to select the Host Controller &
Baseband commands.
3. In the list of Host Controller & Baseband commands, double-click Write_Scan_Enable.
4. In HCI Command: Write_Scan_Enable (com5@115200), in the Scan_Enable list, select No Scans enabled,
and then click OK.
Set the Write Link Policy parameters on the DUT
1. Reestablish the HCI Control Transport profile for the DUT (com4).
2. While in HCI Control: com4@115200, press the 2 key on the keyboard to select the Link Policy commands.
3. In the list of Link Policy commands, double-click Write_Link_Policy_Settings.
4. InHCICommand:Write_Link_Policy_Settings(com4@115200), selectthe Enable Sniff Mode checkbox,and
then click OK.
Set the Write Link Policy parameters on the reference board
1. Reestablish the HCI Control Transport profile for the reference board (com5).
2. While in HCI Control: com5@115200, press the 2 key on the keyboard to select the Link Policy commands.
3. In the list of Link Policy commands, double-click Write_Link_Policy_Settings.
4. InHCICommand:Write_Link_Policy_Settings(com4@115200), selectthe Enable Sniff Mode checkbox,and
then click OK.
Set the Sniff Mode parameters on the DUT
1. Reestablish the HCI Control Transport profile for the DUT (com4).
2. While in HCI Control: com4@115200, press the 2 key on the keyboard to select the Link Policy commands.
3. In the list of Link Policy commands, double-click Sniff_Mode.
4. In HCI Command: Sniff_Mode (com4@115200), make the following settings, and then click OK.

Measuring Current Consumption in Different Power Modes
www.cypress.com Document No. 002-14914 Rev. *C 16
❐Connection_Handle
❐Sniff_Max_Interval0x320
❐Sniff_Min_Interval0x320
❐Sniff_Attempt0x4
❐Sniff_Timeout0x0
Measure the current consumption
Set the approximate range of the ammeter to 0.2 mA and measure the current being consumed by the DUT.
5.6 SNIFF_500ms_Slave Mode
This section explains how to set the BCM4324/BCM4334 to SNIFF_500ms_Slave mode. Steps include the follow-
ing (Some of the steps apply to the DUT, and others apply to the reference board.):
■Set the HCI Control Transport profile on the DUT.
■Reset the DUT.
■Set the Sleepmode parameters on the DUT.
■Read and record the Bluetooth Device (BD) Address of the DUT.
■Set the Write Scan Enable parameters on the DUT.
■Set the Event Filter parameters on the DUT.
■Create a connection from the reference board.
■Set the Write Scan Enable parameters on the reference board.
■Set the Write Link Policy Settings parameters on the DUT.
■Set the Write Link Policy Settings parameters on the reference board.
■Set the Sniff Mode parameters on the reference board.
This section concludes by specifying the approximate ammeter range setting for measuring the current being con-
sumed by the DUT.
Before you begin, set up and turn on the test equipment and launch Cypress BlueTool.
Set the HCI Control Transport profile for the DUT
1. Open a log window. On the View menu, click Log Window.
2. On the Transport menu, click HCI Control.
3. In HCI Control Window Transport:
■Select UART.
■In the top UART list, type the COM port of the PC to which the DUT is connected (com4).
■In the bottom UART list, select 115200.
■Select the CTS flow control check box, and then click OK.
Reset the DUT
1. In HCI Control: com4@115200, press the 3 key on the keyboard to select the Host Controller & Baseband
commands.
2. In the list of Host Controller & Baseband commands, double-click Reset.
Set the Sleepmode parameters on the DUT
1. While in HCI Control: com4@115200, press the 0 key on the keyboard to select the Vendor-specific
commands.
2. In the list of Vendor-specific commands, double-click Set_Sleepmode_Param.
3. In HCI Command: Set_Sleepmode_Param:
a. Make the following settings:
■Sleep_ModeUART
■Idle_Threshold_Host0x0
■Idle_Threshold_HC0x0
■BT_WAKE_Active_ModeActive High

Measuring Current Consumption in Different Power Modes
www.cypress.com Document No. 002-14914 Rev. *C 17
■Host_WAKE_Active_ModeActive Low
b. Select the following check boxes, and then click OK:
■Allow_Host_Sleep_During_SCO
■Combine_Sleep_Mode_And LPM
■Enable_Tristate_Control_Of_UART_Tx_Line
Read and record the BD Address of the DUT
1. On the Transport menu, click HCI Control.
2. In HCI Control Window Transport:
a. Select UART.
b. In the top UART list, type the COM port of the PC to which the DUT is connected (com4).
c. In the bottom UART list, select 115200.
d. Select the CTS flow control check box, and then click OK.
3. While in HCI Control: com4@115200, press the 4 key on the keyboard to select the Informational Parameters
commands.
4. In the list of Informational Parameters commands, double-click Read_BD_ADDR.
5. Verify that the BD Address is displayed in Log Window and note the address for later use.
Set the Write Scan Enable parameters on the DUT
1. While in HCI Control: com4@115200, press the 3 key on the keyboard to select the Host Controller &
Baseband commands.
2. In the list of Host Controller & Baseband commands, double-click Write_Scan_Enable.
3. In HCI Command: Write_Scan_Enable (com4@115200), in the Scan_Enable list, select Inquiry and Page
Scan enabled, and then click OK.
Set the Event Filter parameters on the DUT
1. In the list of Host Controller & Baseband commands, double-click Set_Event_Filter.
2. In HCI Command: Set_Event_Filter (com4@115200):
a. In the Filter_Type list, select Connection Setup.
b. In the Connection_Setup_Filter_Condition_Type list, select Allow Connections from all devices.
c. In the Auto_Accept_Flag list, select Do Auto accept the connection with role switch disabled, and
then click OK.
Create a connection from the reference board
1. Reestablish the HCI Control Transport profile for the reference board (com5).
2. While in HCI Control: com5@115200, press the 1 key on the keyboard to select the Link Control commands.
3. In the list of Link Control commands, double-click Inquiry to display a list of found devices.
4. In the list of Link Control commands, double-click Create_Connection.
5. In HCI Command: Create_Connection (com5@115200):
a. In the BD_ADDR list, select the BD address (of the DUT) that was noted earlier.
b. Set the packet type by selecting the following check boxes:
■DM1
■DM3
■DM5
c. In the Page_Scan_Repetition_Mode list, select R0.
d. In the Page_Scan_Mode list, select Mandatory, and then click OK.
6. In Log Window, verify that the devices have successfully connected and note the connection handle for later
use.

Measuring Current Consumption in Different Power Modes
www.cypress.com Document No. 002-14914 Rev. *C 18
Set the Write Scan Enable parameters for the reference board
1. While in HCI Control: com5@115200, press the 3 key on the keyboard to select the Host Controller &
Baseband commands.
2. In the list of Host Controller & Baseband commands, double-click Write_Scan_Enable.
3. In HCI Command: Write_Scan_Enable (com5@115200), in the Scan_Enable list, select No Scans enabled,
and then click OK.
Set the Write Link Policy Settings parameters for the DUT
1. Reestablish the HCI Control Transport profile for the DUT (com4).
2. While in HCI Control: com4@115200, press the 2 key on the keyboard to select the Link Policy commands.
3. In the list of Link Policy commands, double-click Write_Link_Policy_Settings.
4. InHCICommand:Write_Link_Policy_Settings(com4@115200), selectthe Enable Sniff Mode checkbox,and
then click OK.
Set the Write Link Policy Settings parameters for the reference board
1. Reestablish the HCI Control Transport profile for the reference board (com5).
2. While in HCI Control: com5@115200, press the 2 key on the keyboard to select the Link Policy commands.
3. In the list of Link Policy commands, double-click Write_Link_Policy_Settings.
4. InHCICommand:Write_Link_Policy_Settings(com4@115200), selectthe Enable Sniff Mode checkbox,and
then click OK.
Set the Sniff_Mode parameters for the DUT
1. Reestablish the HCI Control Transport profile for the DUT (com4).
2. While in HCI Control: com4@115200, press the 2 key on the keyboard to select the Link Policy commands.
3. In the list of Link Policy commands, double-click Sniff_Mode.
4. In HCI Command: Sniff_Mode (com4@115200), make the following settings, and then click OK.
■Connection_HandleSelect the connection handle noted earlier when creating a connection.
■Sniff_Max_Interval0x320
■Sniff_Min_Interval0x320
■Sniff_Attempt0x4
■Sniff_Timeout0x0
Measure the current consumption
Set the approximate range of the ammeter to 3 mA and measure the current being consumed by the DUT.
5.7 HV(3/2) for DUT as Master Mode
This section explains how to set the BCM4324/BCM4334 to HV(3/2) for DUT as Master mode. Steps include the
following (Some of the steps apply to the DUT, and others apply to the reference board.):
■Set the HCI Control Transport profile on the DUT.
■Reset the DUT.
■Set the HCI Control Transport profile on the reference board.
■Reset the reference board.
■Read and record the BD Address of the DUT.
■Set the Event Filter parameters on the DUT.
■Set the Write Scan Enable parameters on the DUT.
■Reset the reference board.
■Read and record the BD Address of the reference board.
■Set the Event Filter parameters on the reference board.
■Set the Write Scan Enable parameters on the reference board.
■Read the local supported features on the reference board.

Measuring Current Consumption in Different Power Modes
www.cypress.com Document No. 002-14914 Rev. *C 19
■Write the local supported features on the reference board.
■Read the local supported features on the DUT.
■Write the local supported features on the DUT.
■Create a connection from the reference board.
■Set the Write Scan Enable parameters on the reference board.
■Add an SCO connection from the DUT.
This section concludes by specifying the approximate ammeter range setting for measuring the current being con-
sumed by the DUT.
Before you begin, set up and turn on the test equipment and launch Cypress BlueTool.
Set the HCI Control Transport profile on the DUT
1. Open a log window. On the View menu, click Log Window.
2. Set the HCI Control Transport profile.
a. On the Transport menu, click HCI Control.
b. In HCI Control Window Transport:
❐Select UART.
❐In the top UART list, type the COM port of the PC that the DUT is connected to (com4).
❐In the bottom UART list, select 115200.
❐Select the CTS flow control check box, and then click OK.
Reset the DUT
1. While in HCI Control, press the 3 key on the keyboard to select the Host Controller & Baseband commands.
2. In the list of Host Controller & Baseband commands, double-click Reset.
Set the HCI Control Transport profile on the reference board
1. On the Transport menu, click HCI Control.
2. In HCI Control Window Transport:
a. Select UART.
b. In the top UART list, type the COM port of the PC that the DUT is connected to (com5).
c. In the bottom UART list, select 115200.
d. Select the CTS flow control check box, and then click OK.
Reset the reference board
1. While in HCI Control, press the 3 key on the keyboard to select the Host Controller & Baseband commands.
2. In the list of Host Controller & Baseband commands, double-click Reset.
Read and record the BD Address of the DUT
1. Reestablish the HCI Control Transport profile for the DUT (com4).
2. While in HCI Control: com4@115200, press the 4 key on the keyboard to select the Informational Parameters
commands.
3. In the list of Informational Parameters commands, double-click Read_BD_ADDR.
4. Verify that the BD Address is displayed in Log Window and note the address for later use.
Set the Event Filter parameters on the DUT
1. While in HCI Control: com4@115200, press the 3 key on the keyboard to select the Host Controller &
Baseband commands.
2. In the list of Host Controller & Baseband commands, double-click Set_Event_Filter.
3. In HCI Command: Set_Event_Filter (com4@115200):
a. In the Filter_Type list, select Connection Setup.
b. In the Connection_Setup_Filter_Condition_Type list, select Allow Connections from all devices.
