Insportline Profigym C400 User manual

USER MANUAL –EN
IN 20770 Multi-Gym inSPORTline Profigym

2
CONTENTS
SAFETY INSTRUCTIONS....................................................................................................................... 3
PARTS LIST............................................................................................................................................ 4
ASSEMBLY ............................................................................................................................................. 8
STEP 1................................................................................................................................................. 8
STEP 2................................................................................................................................................. 9
STEP 3............................................................................................................................................... 10
STEP 4............................................................................................................................................... 11
STEP 5............................................................................................................................................... 12
STEP 6............................................................................................................................................... 13
STEP 7............................................................................................................................................... 14
STEP 8............................................................................................................................................... 15
STEP 9............................................................................................................................................... 17
STEP 10............................................................................................................................................. 20
STEP 11............................................................................................................................................. 22
STEP 12............................................................................................................................................. 24
STEP 13............................................................................................................................................. 26
STEP 14............................................................................................................................................. 28
STEP 15............................................................................................................................................. 29
STEP 16............................................................................................................................................. 30
STEP 17............................................................................................................................................. 31
EXERCISE INSTRUCTIONS ................................................................................................................ 31
MAINTENANCE .................................................................................................................................... 33
ENVIRONMENT PROTECTION ........................................................................................................... 33
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS................................................. 33

3
SAFETY INSTRUCTIONS
•Thank you for purchasing this product. Please read the manual carefully before starting the
assembly and before using the product. Keep this manual for future reference. In case of
doubt, contact a specialist service.
•Before finishing the assembly, check all parts for completeness and integrity. Use only
original spare parts and accessories. Do not make unauthorized product modifications.
•Assembly can be only done by an adult. Check that the product is properly assembled and
firm before use. The device must function properly to avoid injury to the user. If the device is
not working properly, it shows signs of damage or wear, stop using it immediately. Damaged
or worn parts must be replaced immediately.
•Ask your doctor for help before starting an exercise program.
•Keep the away from children and pets.
•Always do warm up exercise before starting your exercise program.
•Read and follow all instructions and warnings.
•Place the device on a flat, clean, dry surface. Keep a safe distance from another object’s min
0.6 m.
•Do not use outdoors.
•Do not modify the device.
•Check the if all bolts and nuts are tightened before each exercise. Do not use the product if it
is damaged.
•Exercise reasonably and carefully, do not overextend your exercise. The movements must not
be too steep to avoid injury to the user.
•Do not hold your breath during exercise.
•Exercise properly and adequately. High loads can lead to health complications.
•Keep clothing and body parts away from moving parts to prevent injury. Take appropriate
sportswear including sports shoes.
•Take care of your health and initially choose a slower pace. The same is useful after a longer
exercise break. Over time, you can work towards a more intense pace.
•Improper exercise or failure to observe safety precautions may result in serious injury or
equipment damage. In case of doubt or uncertainty, contact a specialist service or dealer.
•Never exceed the stated weight limits.
•Pay attention to body signals. In case of negative physical reactions, immediately stop
exercising and contact your doctor.
•Category: H –for home use
•Max. user weight: 150 kg
•Max. stack weight: 90 kg

4

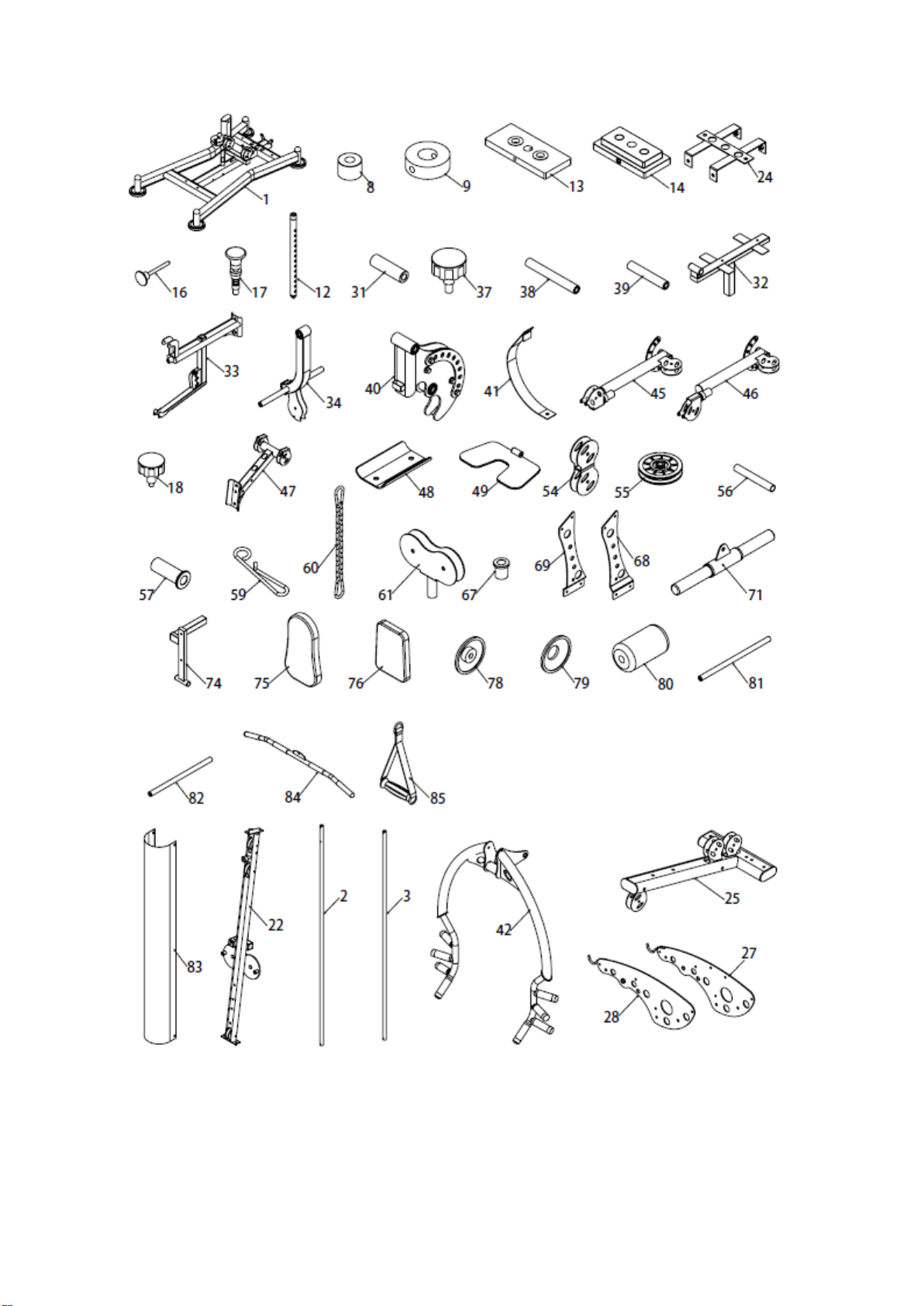

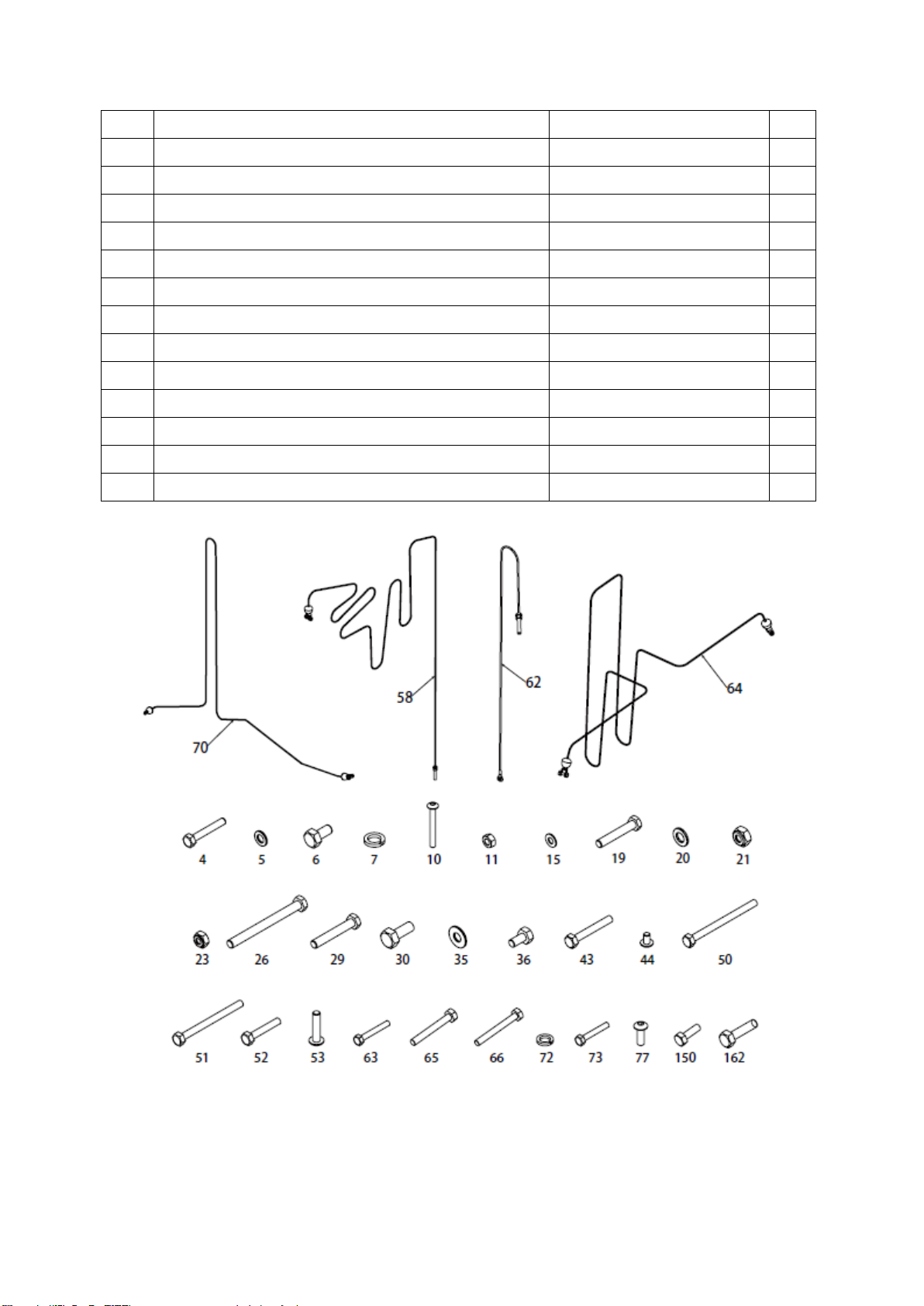

PARTS LIST
No.
Name
Specification
Qty.
1
Base frame
1
2
Guide rod
ø25x1853
2
3
Back support rod
ø259x1757.5
2
4
Hexagon bolt
M0x65
6
5
Washer
ø10
78
6
Hexagon bolt
M10x20
8
7
Spring washer
ø10
14
8
Rubber washer
ø60xø26x42
2
9
Weight rubber washer
ø60xø26x20
2
10
Hexagon bolt
M8x70
2
11
Nut
M8
6
12
Weight select rod
92 kg
1
13
Weight
6 kg
14
14
Top weight
8 kg
1
15
Washer
ø8
26
16
Weight pin
ø10x100
1
17
Safety pin
2
18
Pin
ø10
2
19
Hexagon bolt
M12x70
4
20
Washer
ø12
23
21
Nut
M12
11
22
Front frame
1
23
Nut
M10
32
24
Weight cover
1
25
Top frame
1
26
Hexagon bolt
M12x130
3
27
Right frame
1
28
Left frame
1
29
Hexagon bolt
M12x75
4
30
Hexagon bolt
M10x25
2
31
Axis
ø17x57
1
32
Adjustable seat frame
1
33
Seat frame
1
34
Leg press
1
35
Big washer
ø25x10x2.0
6

5
36
Hexagon bolt
M8x16
9
37
Pin
ø12
1
38
Shaft
ø17x134
1
39
Shaft
ø17x100
1
40
Handle bracket
1
41
Safety cover
1
42
Handles
1
43
Hexagon bolt
M10x70
1
44
Hexagon bolt
M10x16
2
45
Right frame
1
46
Left frame
1
47
Support frame
1
48
Reinforcing plate
1
49
Footplate
1
50
Hexagon bolt
M10x130
6
51
Hexagon bolt
M10x115
2
52
Hexagon bolt
M10x45
19
53
Hexagon bolt
M10x45
1
54
Pulley frame
2
55
Pulley
ø95x26
27
56
Connection plate
ø14x100
1
57
Pulley spacer
ø22x ø10.5x45.5
4
58
Cable
4540 mm
1
59
Cable hook
1
60
9 link chain + hook
5
61
Double pulley plate
1
62
Middle cable
1500 mm
1
63
Hexagon bolt
M8x45
4
64
Cable
5375 mm
1
65
Hexagon bolt
M10x75
2
66
Hexagon bolt
M10x85
1
67
Sleeve
ø10
2
68
Left support frame
1
69
Right support frame
1
70
Cable
3365 mm
1
71
Short bar
1
72
Spring washer
ø8
12
73
Hexagon bolt
M8x40
4

6
74
Backrest adjustable frame
1
75
Backrest
1
76
Seat
1
77
Hexagon bolt
M8x25
6
78
Cover
6
79
Cover
6
80
Foam roller
ø10x75
6
81
Foam roller bar
ø25x480
1
82
Foam roller bar
ø25x450
1
83
Cover
2
84
Long bar
1
85
Handle
2
150
Hexagon bolt
M8x25
1
162
Hexagon bolt
M10x40
2

7

8
ASSEMBLY
STEP 1
No.
Name
Specification
Qty.
1
Base frame
1
2
Guide rod
ø25x1853
2
3
Back support rod
ø259x1757.5
2
4
Hexagon bolt
M0x65
2
5
Washer
ø10
4
6
Hexagon bolt
M10x20
2
7
Spring washer
ø10
4
8
Rubber washer
ø60xø26x42
2

9
Attach the back support rod (3) to the base (1) using the bolt (4), washers (7 and 5).
Attach the guide rod (2) to the base (1) with the screw (6) and washers (7 and 5).
Place the rubber washer (8) on the guide rod (2).

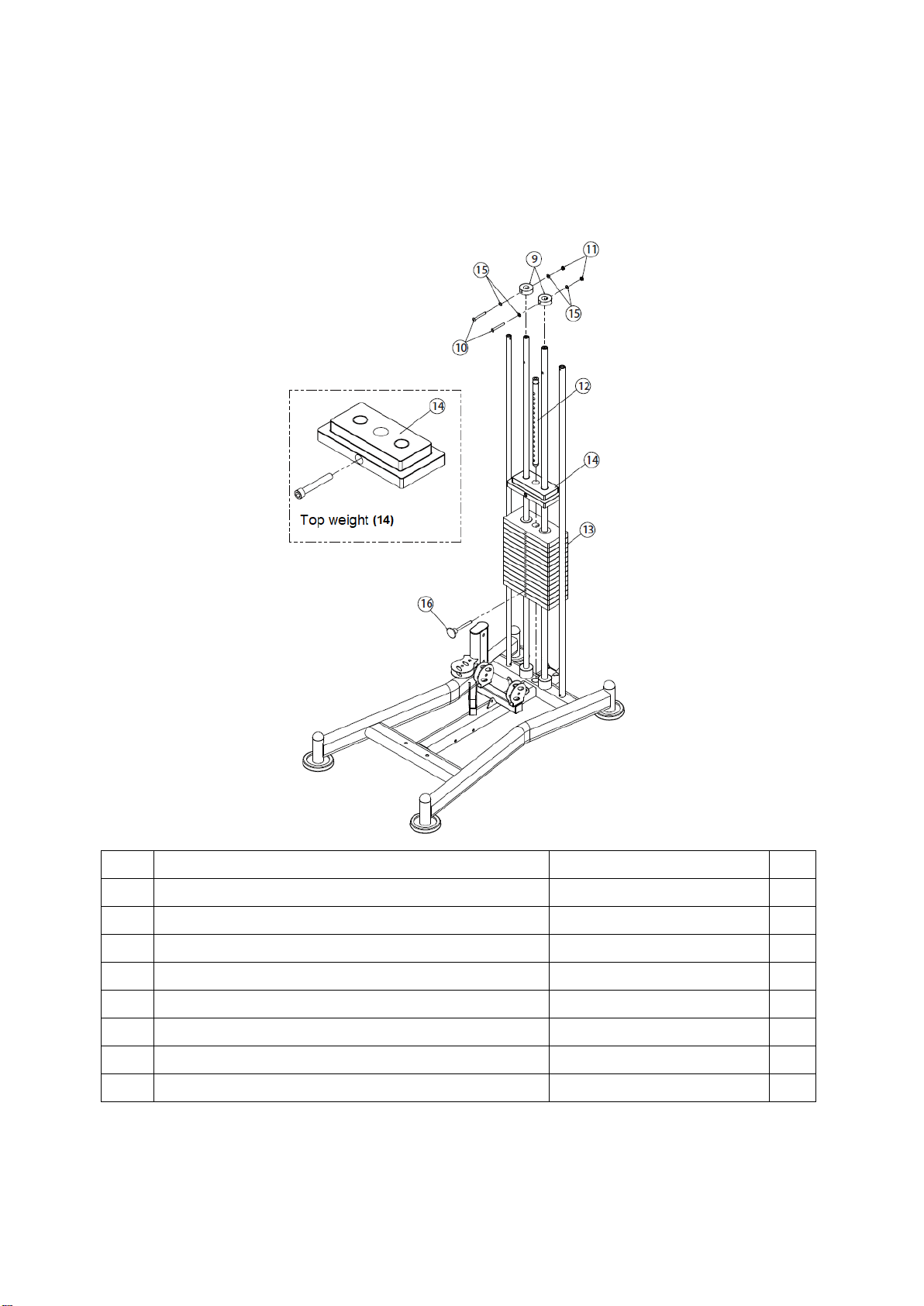

STEP 2
No.
Name
Specification
Qty.
9
Weight rubber washer
ø60xø26x20
2
10
Hexagon bolt
M8x70
2
11
Nut
M8
2
12
Weight select rod
92 kg
1
13
Weight
6 kg
14
14
Top weight
8 kg
1
15
Washer
ø8
4
16
Weight pin
ø10x100
1
Slide the weights (13) on the guide rods and then the top weight (14).
Remove the bolt from the top weight (14) and insert the Weight select rod (12) into the center of the
weight. Then re-attach the bolt to the weight select rod.

10
Attach the rubber washer (9) to the top of the guide rod using the bolt (10), washers (15) and nut (11).
Use the weight selection pin (16) to set the desired load.
STEP 3
No.
Name
Specification
Qty.
17
Safety pin
2
18
Pin
ø10
1
19
Hexagon bolt
M12x70
2
20
Washer
ø12
4

11
21
Nut
M12
2
22
Front frame
1
Attach the front frame (22) to the base (1) with the bolt (19), washer (20) and nut (21).
Insert the pin (17) into the front frame (22).
Insert the pin (18) into the front frame (22).
STEP 4
No.
Name
Specification
Qty.
4
Hexagon bolt
M0x65
4
5
Washer
ø10
8
6
Hexagon bolt
M10x20
2
7
Spring washer
ø10
4

12
19
Hexagon bolt
M12x70
2
20
Washer
ø12
4
21
Nut
M12
2
23
Nut
M10
2
24
Weight cover
1
25
Top frame
1

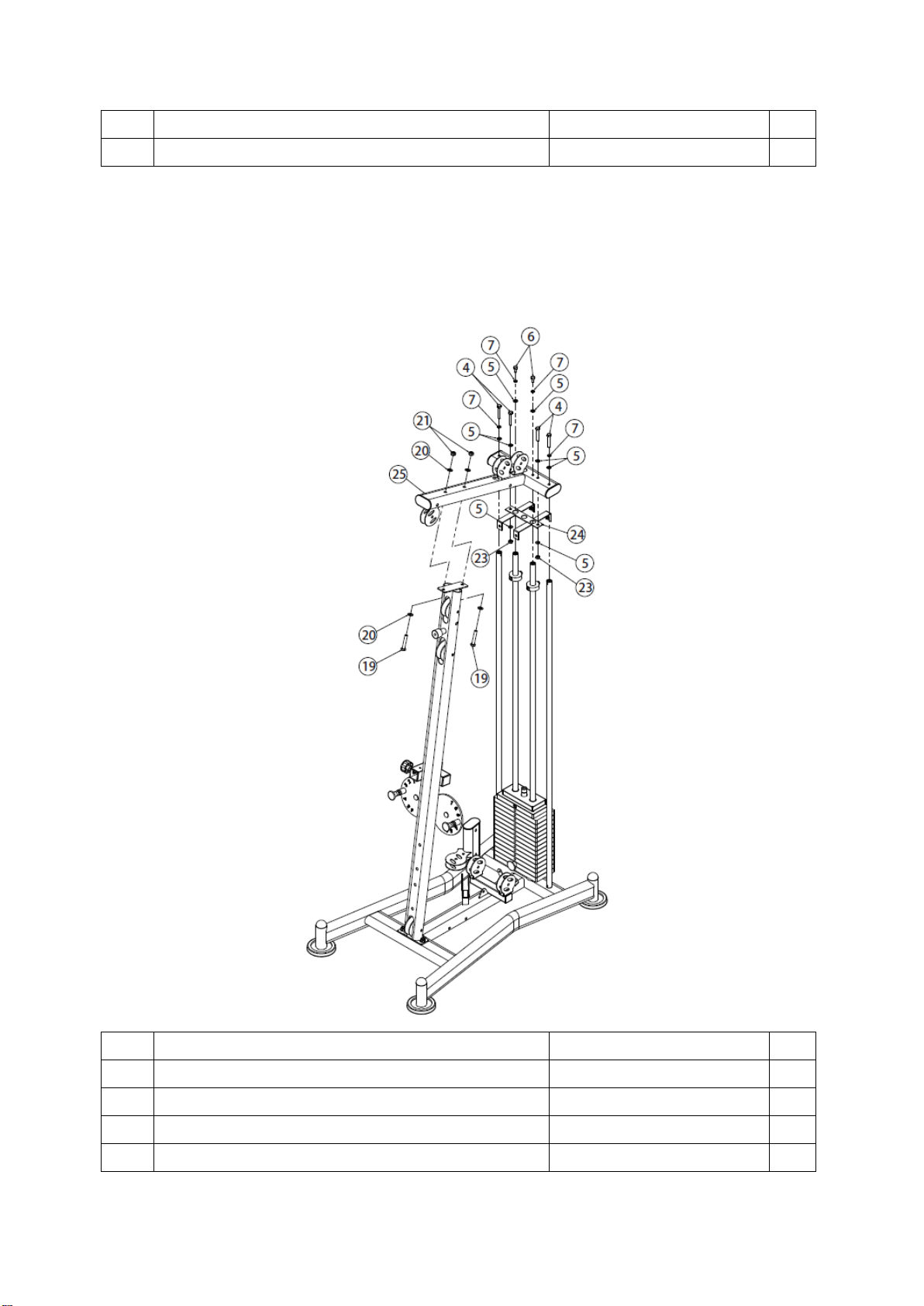

Slide the weight cover (24) onto the guide rod.
Attach the top frame (25) to the guide rod with the bolt (19), washer (7 and 5).
Attach the top frame (25) to the front frame using the bolt (19), washer (7 and 5).
Attach the weight cover (24) to the upper frame (14) with the bolt (4), washer (5) and nut (23).
STEP 5
No.
Name
Specification
Qty.
20
Washer
ø12
6
21
Nut
M12
3
26
Hexagon bolt
M12x130
3
27
Right frame
1

13
28
Left frame
1
Attach the right and left frame (27/28) to the frame with the bolt (26), washer (20) and nut (21).
STEP 6
No.
Name
Specification
Qty.
5
Washer
ø10
2
7
Spring washer
ø10
2
18
Pin
ø10
1
20
Washer
ø12
4
21
Nut
M12
2
30
Hexagon bolt
M10x25
2
31
Axis
ø17x57
1

14
32
Adjustable seat frame
1
33
Seat frame
1
34
Leg press
1
Attach the seat frame (33) to the front frame using the bolt (29), washer (20) and nut (21).
Attach the leg press frame (34) to the seat frame (33) using the bolt (30) axis (31), washer (7 and 5).
Attach the adjustable seat frame (32) to the seat frame (33) using the pin (18).
STEP 7
No.
Name
Specification
Qty.
6
Hexagon bolt
M10x20
4
7
Spring washer
ø10
2
15
Washer
ø8
1
35
Big washer
ø25x10x2.0
4

15
36
Hexagon bolt
M8x16
1
37
Pin
ø12
1
38
Shaft
ø17x134
1
39
Shaft
ø17x100
1
40
Handle bracket
1
41
Safety cover
1
42
Handles
1
Attach the handle bracket (40) to the left and right frame using the shaft (38), bolt (6), washer (7 and
35).
Attach the handles (42) to the handle bracket (40) with the shaft (39), bolt (6), washer (35) and pin
(37).
Attach the cover (41) to the handle bracket (40) with the screw (36) and washer (15).
STEP 8
No.
Name
Specification
Qty.
5
Washer
ø10
2
7
Spring washer
ø10
2

16
20
Washer
ø12
2
21
Nut
M12
4
23
Nut
M10
1
29
Hexagon bolt
M12x75
2
35
Big washer
ø25x10x2.0
2
43
Hexagon bolt
M10x70
1
44
Hexagon bolt
M10x16
2
45
Right frame
1
46
Left frame
1
47
Support frame
1
48
Reinforcing plate
1
49
Footplate
1

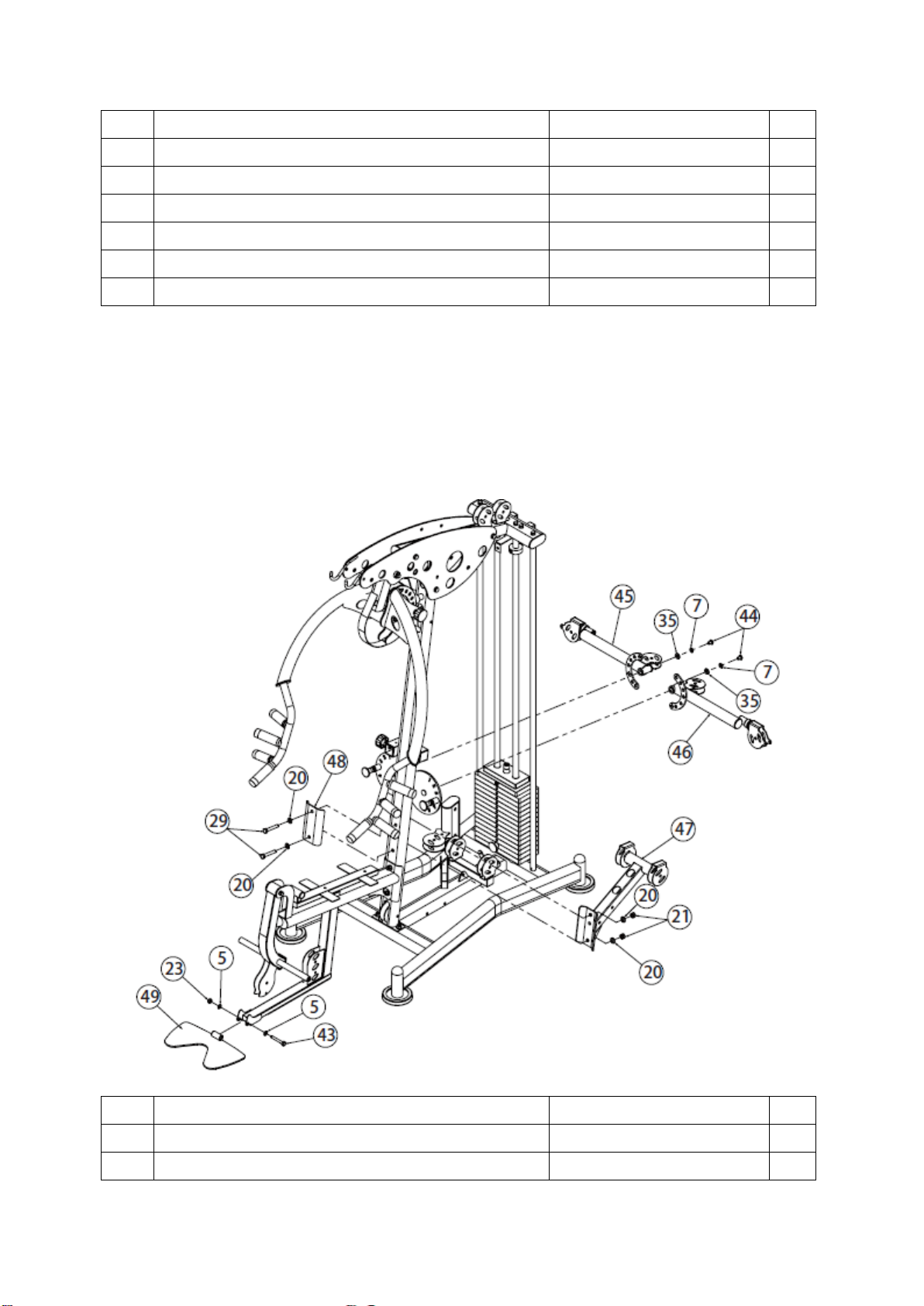

Attach the left and right frame (46 and 45) to the front frame using the bolt (44), washer (7 and 35).
Attach the pulley support frame (47) to the front frame with the bolt (29), washer (20), nut (21) and
plate (48).
Attach the footrest (49) to the seat frame with the bolt (43), washer (5) and nut (23).

17

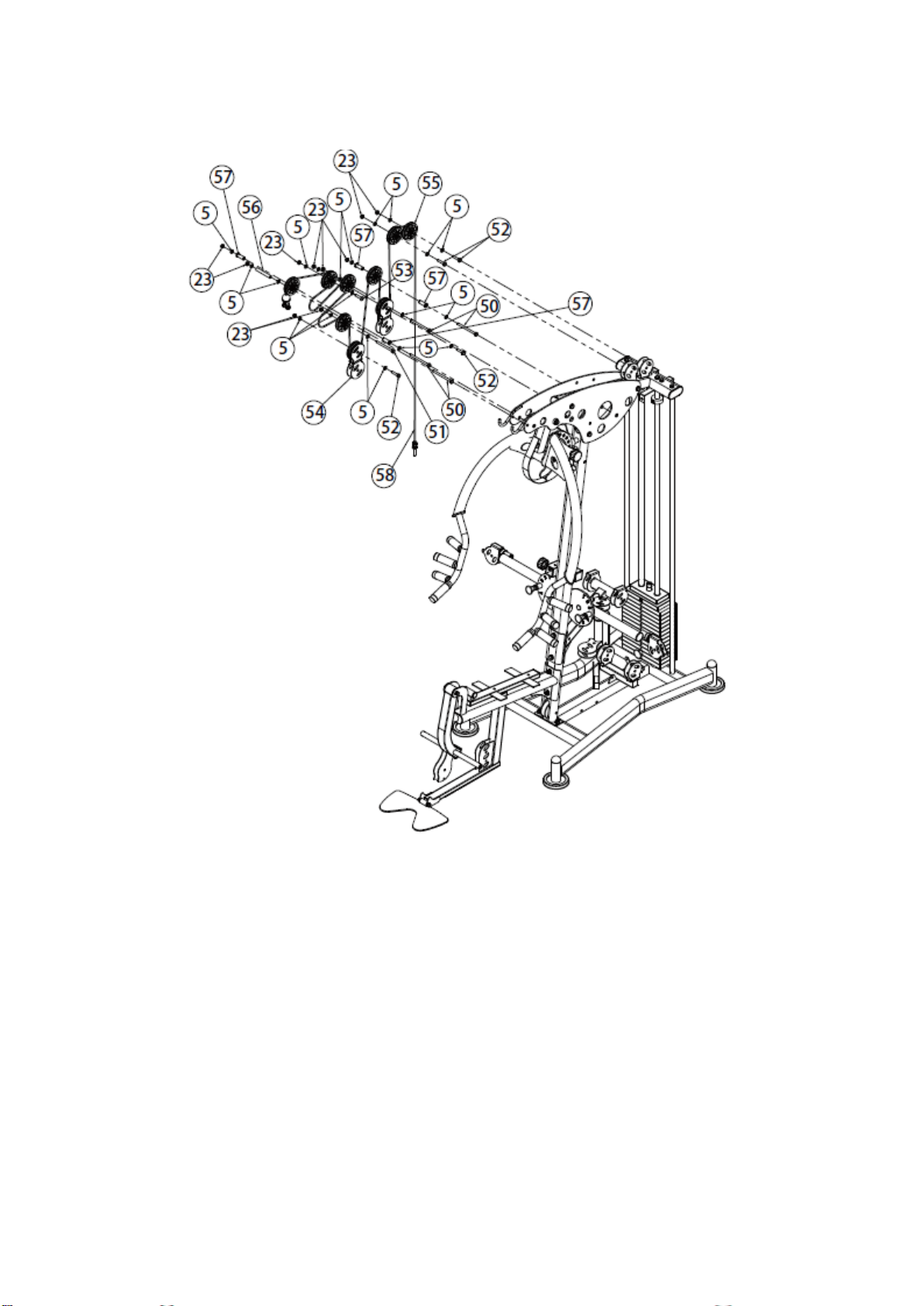

STEP 9

18
No.
Name
Specification
Qty.
5
Washer
ø10
20
23
Nut
M10
23
50
Hexagon bolt
M10x130
4
51
Hexagon bolt
M10x115
1
52
Hexagon bolt
M10x45
4
53
Hexagon bolt
M10x45
1

19
54
Pulley frame
2
55
Pulley
ø95x26
9
56
Connection plate
ø14x100
1
57
Pulley spacer
ø22x ø10.5x45.5
4
58
Cable
4540 mm
1

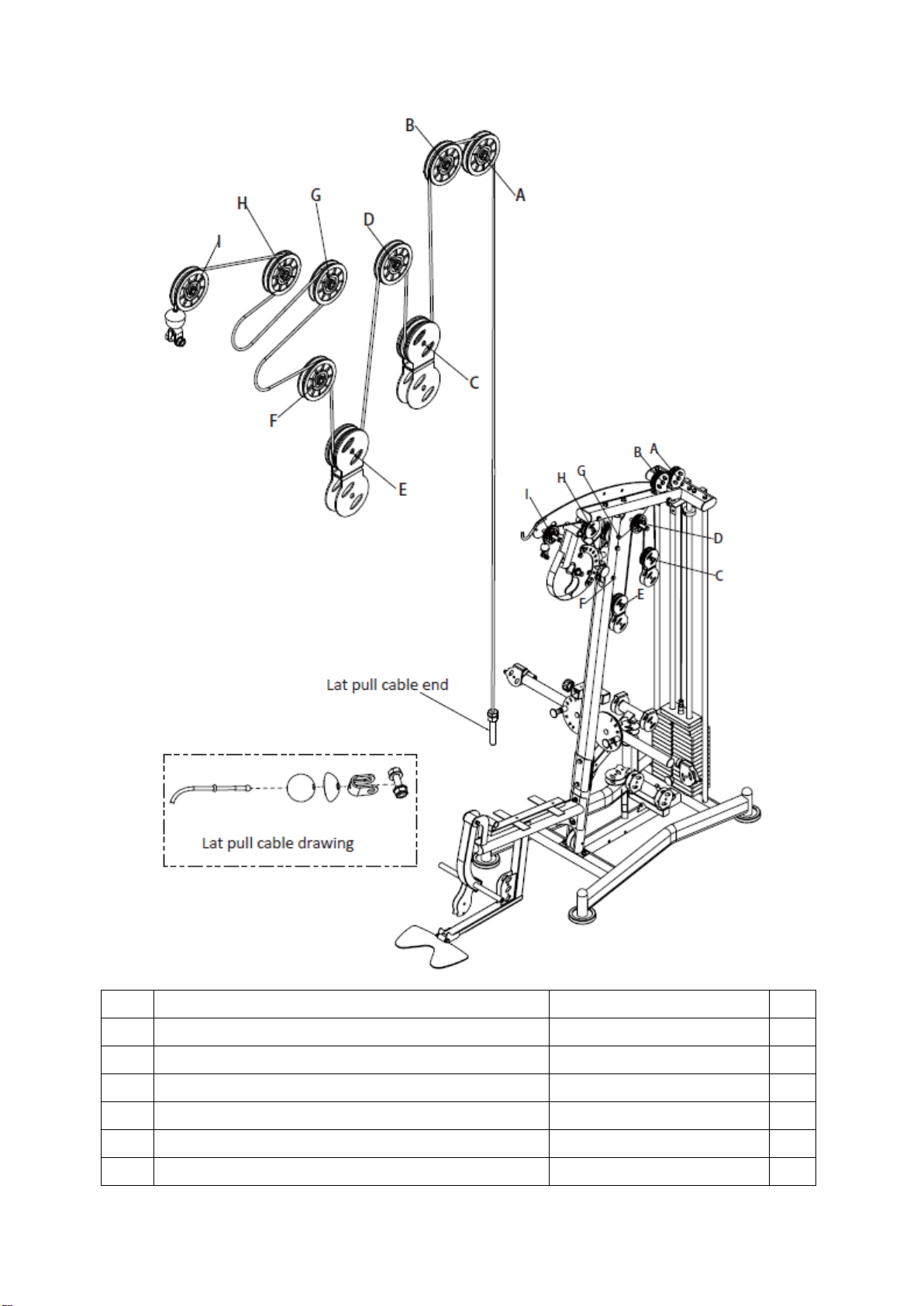

Attach the 4 pulleys (55) to points A, B, C, E with screws (52), washers (5) and nuts (23).
Attach 2 pulleys (55) to points I, D with screws (50), spacers (57), washers (5) and nuts (23).
Attach the pulleys (55) to the G point using the bolt (50), washer (5) and nut (23).
Attach the pulleys (55) to the H point using the bolt (63), washer (5) and nut (23).
Attach the pulleys (55) to point F with the bolt (51), washer (5) and nut (23).
Attach the pulleys (50) the junction plate (56), washer (5), nut (23) to the left and right frame near point
I.
Remove the cable end (58).
Attach the cable (58) to the weight selection rod, then pass through points A, B, C, D, E, F, G, H, I,
and reinstall the cable end.

20

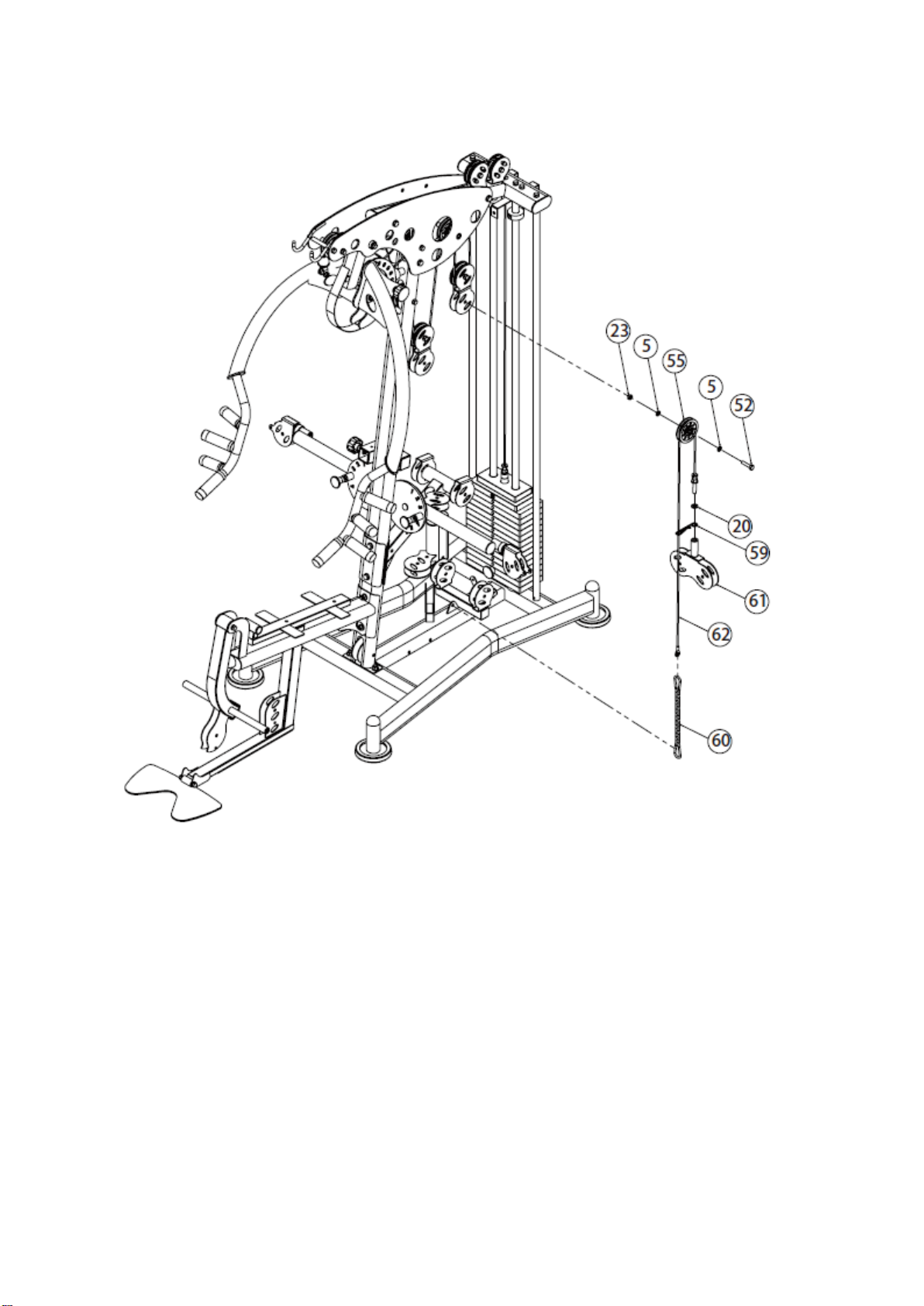

STEP 10
