Integra PIPETBOY pro User manual

PIPETBOY pro Operating instructions
156750_V11

i/iii INTEGRA Biosciences AG
Declaration of conformity
INTEGRA Biosciences AG – 7205 Zizers, Switzerland
declares on its own responsibility that the devices
comply with:
Description Models
PIPETBOY pro 156400, 156401, 156402, 156403, 156404
Accessories 156 450, 156630, 156631, 156632, 156633, 156634, 156151
EU Directives Scope Date effective
2014/35/EU Low voltage directive (LVD) 20.04.2016
2014/30/EU Electromagnetic compatibility (EMC) 20.04.2016
2012/19/EC
Waste electrical and electronic equipment (WEEE) 14.02.2014
2011/65/EC Restriction of hazardous substances (RoHS) 03.01.2013
2006/66/EC Battery directive 26.09.2008
EU Regulations Scope Date effective
1907/2006
Registration, evaluation, authorisation and
restriction of chemicals (REACH)
01.06.2007
2019/1782 External power supply efficiency 01.04.2020
1103/2010 Capacity labelling of portable batteries 30.11.2010
EU Standards Scope
EN 9001:2015 Quality Management
EN 61010-1:2020 Safety general laboratory equipment
EN 61326-1:2013 Electromagnetic compatibility laboratory equipment
EN 60950-1:2013 Safety information technology equipment
EN 62368-1:2021 Safety information technology equipment
EN 61951-2:2017 Batteries containing non-acid electrolytes

www.integra-biosciences.com ii/iii
PIPETBOY pro – Declaration of conformity
GBR Regulations Scope Date effective
S.I. 2016/1101
Electrical equipment safety 08.12.2016
S.I. 2016/1091 Electromagnetic compatibility (EMC) 08.12.2016
S.I: 2008/2164
Batteries and accumulators regulations 26.09.2008
S.I. 2013/3113
Waste electrical and electronic equipment (WEEE) 01.01.2019
S.I. 2012/3032 Restriction of hazardous substances (RoHS) 02.01.2013
GBR Standards Scope
BS 61010-1:2010 Safety general laboratory equipment
BS 62368-1:2020 Safety information technology equipment
BS 63000:2018 Restriction of hazardous substances (RoHS)
USA Regulations Scope
47 CFR Part 15 (FCC) Electromagnetic compatibility (EMC)
10 CFR Part 430 External power supply efficiency (CEC VI)
17 CFR Parts 240 & 249b Dodd frank “Conflict minerals”
27 CCR Parts 25102-
27001
Proposition 65: The safe drinking water and
toxic enforcement act
TSCA 40 CFR Part 751 Toxic substances control act
USA Standards Scope
UL 61010-1:2012 Safety general laboratory equipment
CAN Standards Scope
CSA-C22.2
No. 61010-1
Safety general laboratory equipment

iii/iii INTEGRA Biosciences AG
PIPETBOY pro – Declaration of conformity
Zizers, April 11, 2022
CHN Regulations Scope Date effective
AQSIQ Order 5 /2001 China compulsory certification mark (CCC)
safety and EMC requirements for electrical
equipment
01.08.2003
Order 32/2016 Restriction of hazardous substances (RoHS) 01.07.2016
CHN Standards Scope
GB4943.1-2011 Information technology equipment safety
GB9254-2008 Information technology equipment radio
disturbance
GB17625.1-2012 EMC limits for harmonic current emissions
SJ/T 11364-2014 Restriction of hazardous substances (RoHS)
EAC Технический регламент Таможенного союза
ТР ТС 004/2011 О
безопасности низковольтного оборудования
ТР ТС 020/2011 Электромагнитная совместимость технических средств
Urs Hartmann
CEO
Daniel Bächi
Head of Corporate Quality

PIPETBOY pro - Operating instructions V11
www.integra-biosciences.com 5
Table of Contents
1 Introduction ................................................................................................................ 6
2 Description of the device............................................................................................ 7
3 Installation .................................................................................................................. 8
4 Operation ................................................................................................................. 10
5 Maintenance............................................................................................................. 12
6 Technical Data ......................................................................................................... 13
7 Accessories.............................................................................................................. 15
Imprint
© 2022 INTEGRA Biosciences AG
Manufacturer and customer service
Your local INTEGRA Biosciences representative, further information, and operating
instructions in other languages can be found at www.integra-biosciences.com or are
available on request [email protected]m.
INTEGRA Biosciences AG
Tardisstrasse 201
CH-7205 Zizers, Switzerland
T [phone]
INTEGRA Biosciences Corp.
22 Friars Drive
Hudson, NH 03051, USA
T [phone]
INTEGRA Biosciences SAS
8 avenue du Fief
95310 Saint Ouen l'Aumône, FR
T [phone]
INTEGRA Biosciences Deutschland GmbH
An der Amtmannsmühle 1
35444 Biebertal, DE
T [phone]
INTEGRA Biosciences Ltd
2 Rivermead Business Park
Thatcham, Berks, RG19 4EP, UK
T [phone]
INTEGRA Biosciences Nordic ApS
Vallensbækvej 22A 3TV
Brøndby 2605, DK
T [phone]
INTEGRA Biosciences KK
Higashikanda 1-5-6, Chiyoda-ku
Tokyo, 101-0031, JP
T [phone]
INTEGRA Biosciences (Shanghai) Co., Ltd.
Room 1110, No. 515 Huanke Road
Shanghai 201315, CN
T [phone]

PIPETBOY pro - Operating instructions V11 Introduction
6 INTEGRA Biosciences AG
1 Introduction
1.1 Intended use
PIPETBOY pro is a pipette controller designed for aspirating and dispensing aqueous
solutions with plastic or glass pipettes of 1 to 100 ml volumes. It is intended for
measurement, control and laboratory use. Any use of this instrument in a medical or IVD
setting is the sole responsibility of the user.
1.2 Safety notes
1) Do not use or charge PIPETBOY pro in an atmosphere with danger of explosion. Also,
do not pipette highly flammable liquids such as acetone or ether.
2) When handling dangerous substances, comply with the material safety data sheet
(MSDS) and with all safety guidelines such as the use of protective clothing and safety
goggles. Never point a pipette in anyone’s direction.
3) Avoid pipetting of liquids whose vapours could attack the materials PA (polyamide),
POM (polyoxymethylene), FPM (fluor-rubber), NBR (nitrile-rubber), CR (chloroprene),
silicone. Corrosive vapours could also damage metallic parts inside the device.
4) Use an original INTEGRA Biosciences mains adapter only and protect it from
moisture, otherwise PIPETBOY pro might be damaged.
5) Prolonged exposure of PIPETBOY pro to UV-light can cause discolouration and/or
yellowing of the plastic housing. However, this will not affect the performance of the
device in any way.
6) Old NiMH batteries may cause a safety risk. We recommend to replace the batteries
after 5 years of use. Also replace the batteries if the charging intervals are unusually
short or if the charging takes much longer than usual (11 hours or more). These are
indicators that the batteries have reached the end of its life-cycle.
7) NiMH technology bears the risk of cell rupture if the battery was damaged. Do not
expose the battery to heat (> 60°C) and avoid mechanical stress.
8) To extend the battery life-cycle, it is recommended to charge the batteries once a
month if the PIPETBOY pro is not used regularly. If the PIPETBOY pro is not used for
more than 3 months, remove the batteries from the instrument.
Regardless of the listed safety notes, additionally applicable regulations and guidelines of
trade associations, health authorities, trade supervisory offices, etc. must be observed.
Please visit our website www.integra-biosciences.com on a regular basis for up to date
information regarding REACH classified chemicals contained in our products.

PIPETBOY pro - Operating instructions V11 Description of the device
www.integra-biosciences.com 7
2 Description of the device
2.1 Scope of delivery
• PIPETBOY pro device
• 2 rechargeable batteries (AAA, NiMH, 1.2 V)
• Mains adapter
• Wall mount
• Hydrophobic sterile filter 0.45 µm (spare)
• Operating instructions

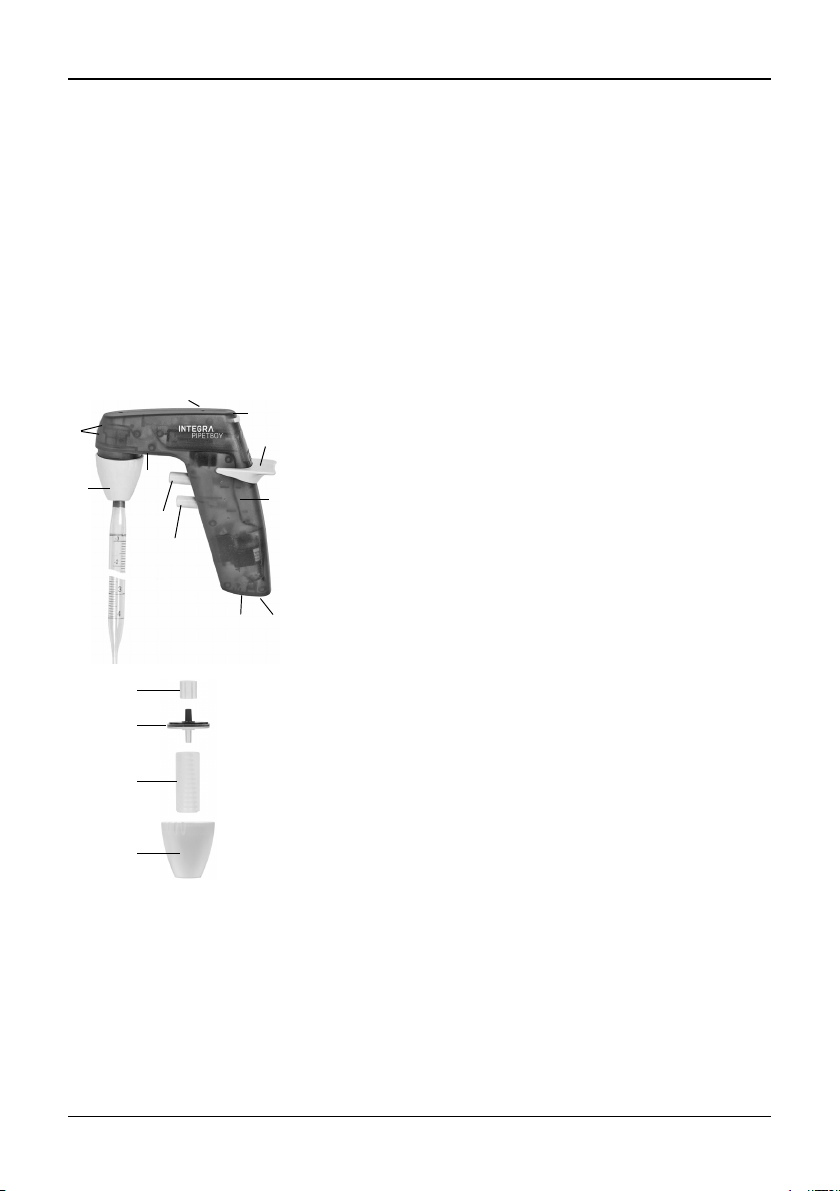

2.2 Overview of PIPETBOY pro
1 Aspiration button
2 Dispensing button
3 Thumb wheel for speed control
4 Flexor (hand rest and stand)
5 Battery charge indicator (red, green)
6 Contacts for charging station
7 Socket for mains adapter cable
8 LED illumination
9 On/off switch for LED illumination function
10 Handle
11 Sterile module (=nose piece)
11a Filter rubber
11b Hydrophobic filter
11c Pipette mount
11d Sterile module housing
1
2
3
4
8
97
6
11 10
5
11 a
b
c
d

PIPETBOY pro - Operating instructions V11 Installation
8 INTEGRA Biosciences AG
3 Installation
3.1 Inserting or replacing the batteries
3.2 Charging the batteries
A full charge takes 10 hours, but before the first use, PIPETBOY pro should be charged
at least 16 hours.
When the battery charge indicator (5) lights up red, PIPETBOY pro needs charging
immediately. PIPETBOY pro has an integrated overcharge protection.
The battery charge indicator (5) lights up green when the mains adapter is connected.
PIPETBOY pro can be used while it is being charged.

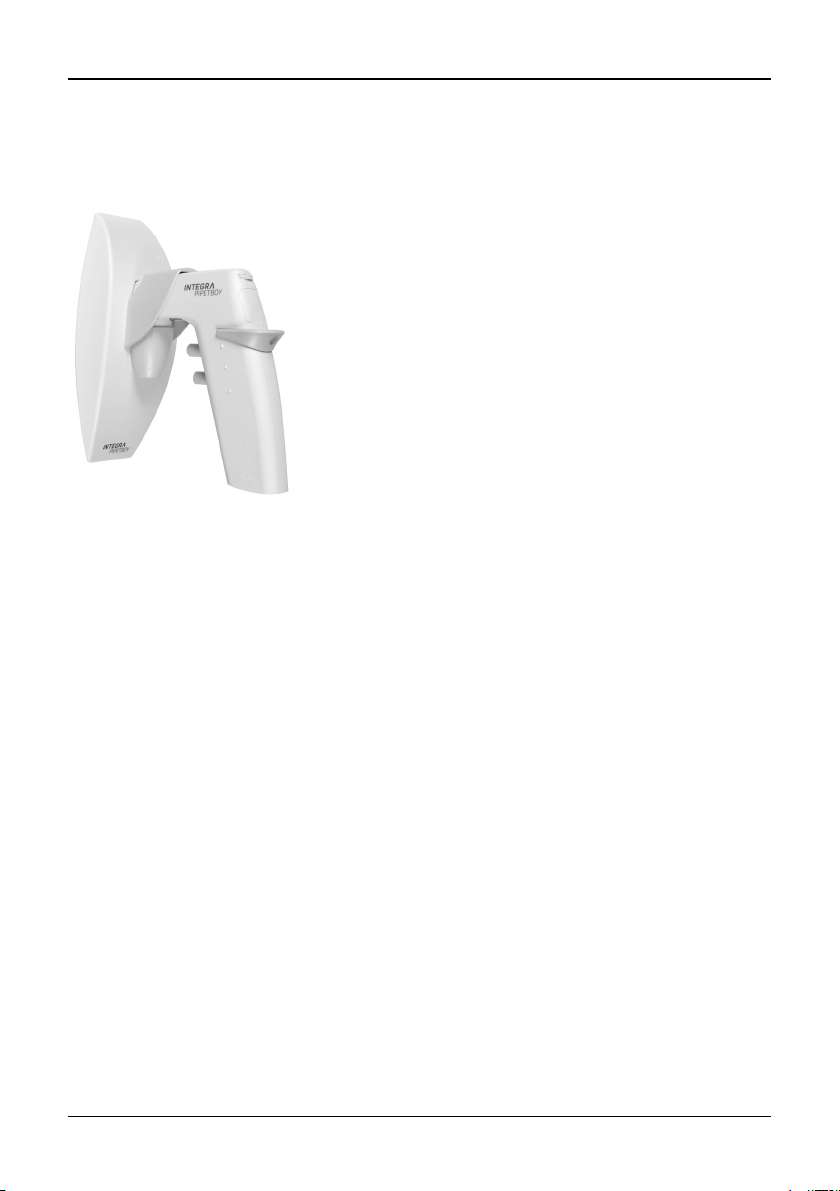

3.3 Mounting of the wall mount
The supplied wall mount serves to park PIPETBOY pro.
To mount the wall mount, remove the protective foil from the adhesive tape at the back of
the mount and press it to the desired place. Make sure that the surface onto which the wall
mount is mounted is smooth, clean and grease-free. Wait 24 hours before using the wall
mount for the first time. Alternatively the wall mount can be fixed with the included screws.

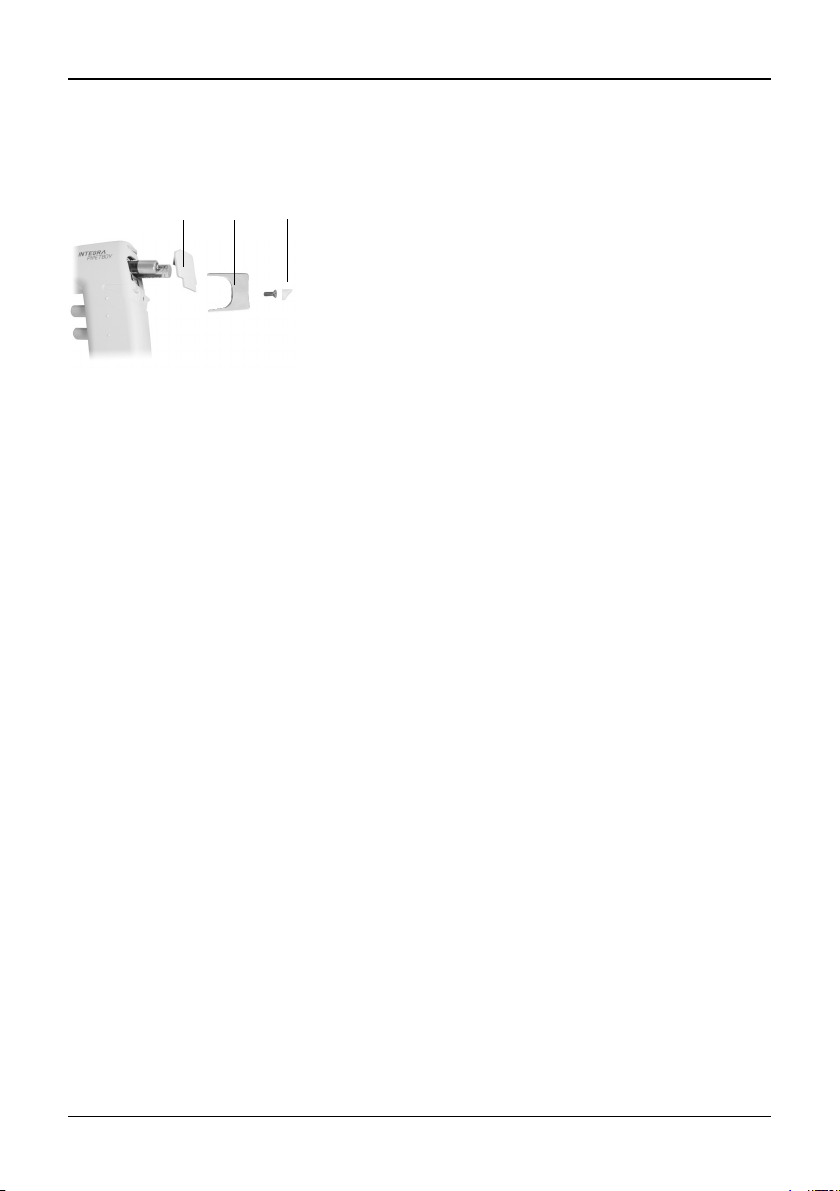

1) Remove the silicone plug (c), unscrew the flexor (b)
and remove it with the cover (a).
2) Insert two original INTEGRA rechargeable batteries
(1.2 V) with the correct polarity (+/–).
3) Put the cover and flexor back in place and tighten the
screw not excessively. Cover the screw with the
silicone plug (c).
abc

PIPETBOY pro - Operating instructions V11 Installation
www.integra-biosciences.com 9
3.4 Set-up and use of the charging station (optional accessory)
The optionally available charging station (Part No 156 450) serves to simultaneously park
and charge PIPETBOY pro.
To mount the charging station on a wall, use one of the
following means:
• double-sided adhesive tape
• screw fixation
Alternatively, the charging station can be placed on the
bench when fitted with rubber feet that prevent its sliding.
Plug the cable of the mains adapter in the socket on the
side of the charging station and connect the mains
adapter to the power supply.
Parking PIPETBOY pro in the charging station starts
charging.

PIPETBOY pro - Operating instructions V11 Operation
10 INTEGRA Biosciences AG
4 Operation
4.1 Inserting the pipette
WARNING
Do not insert pipettes with force into PIPETBOY pro, because they can break
and cause injury, particularly thin pipettes made of glass.
4.2 Pipetting
Press the aspiration button (1) to fill the pipette and the dispensing button (2) to empty it.
The aspiration and dispensing speed can be controlled in two manners:
• Fine speed adjustment by varying the finger pressure on the buttons (1, 2).
• Step-less presetting of the maximum pump speed by turning the thumb wheel (3) to
optimally match the pipette volume (turning to the left = slower pump speed, for small
pipettes; to the right = faster, for large pipettes).
To empty the pipette by gravity force, press the dispensing button only slightly in order to
avoid reaching the trigger point where the pump starts running. Gravity dispensing is used
for “to deliver” (TD) pipettes that are not of the “blow-out” type (blow-out pipettes have two
thin rings or a frosted band around the neck).
4.3 LED illumination
The LED (8) near the nose piece illuminates the work area around the pipette when the
pipetting buttons (1, 2) are pressed. After release of the button, the LED remains alight for
a approx. five seconds. The on/off-switch (9) at the base of the handle (10) serves to
switch the LED function on (I) or off (0).

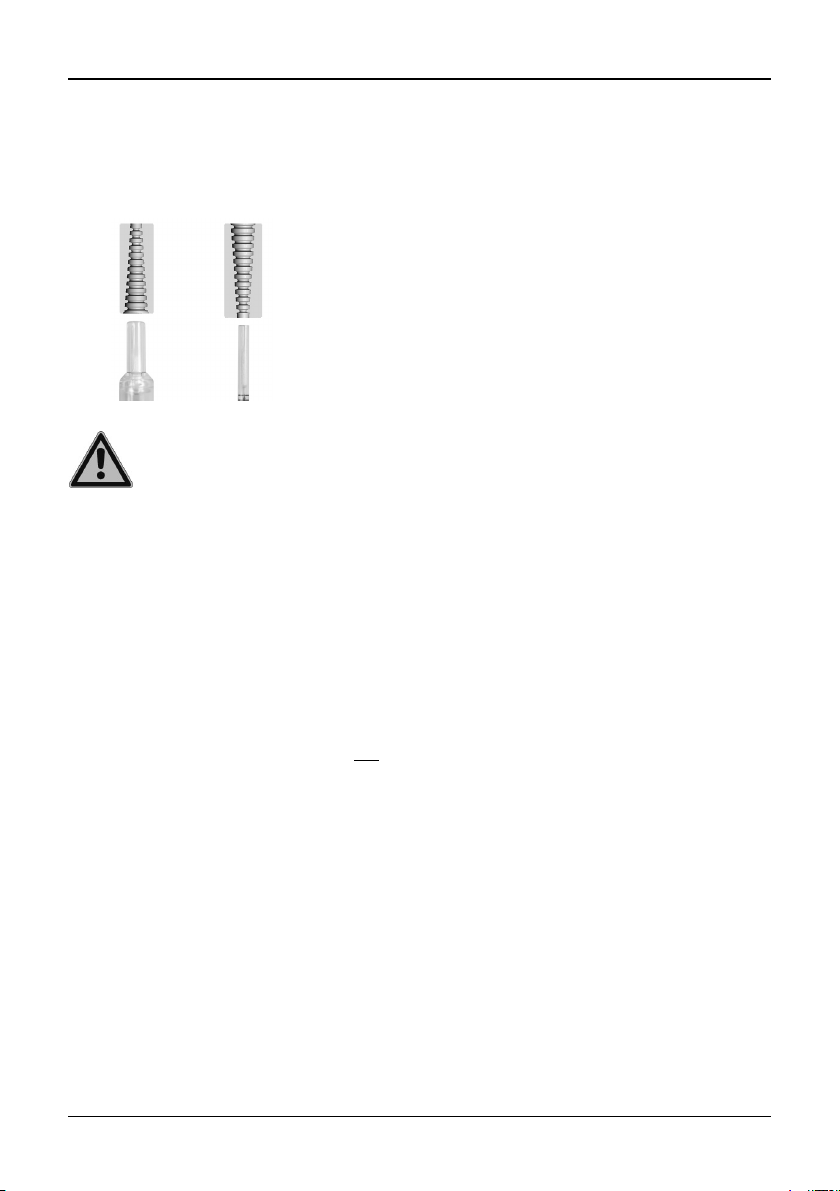

The pipette mount (11c) has a special conical channel to
guarantee a firm and leak-proof grip of the pipette
independently of its diameter.
Unscrew the nose piece housing (11d) and orient the
pipette mount:
a) with the large opening facing down for pipettes
> 2 ml (factory setting), or
b) with the small opening facing down for pipettes
<2ml.
a) b)

PIPETBOY pro – Operating instructions V11 Operation
www.integra-biosciences.com 11
4.4 Troubleshooting Problem Probable cause Remedy Pipette drips (leak in the system).
Pipette is damaged or not fully inserted in the nose piece (11).
Reinsert a new pipette by pushing it all the way into the nose piece. Make sure that the pipette mount orientation is correct for the used pipette (see “4.1 Inserting the pipette”
on page 10).
The inside of the pipette mount (11c) is damaged resulting in insufficient sealing of the pipette neck.
Replace the pipette mount (Part No. 151020).
The filter rubber (11a) or the filter (11b) in the nose piece are damaged or missing causing a leak.
Replace the filter rubber (Part No. 153225) and/or the filter (Part No. see “7 Accessories” on page 15).
Reduced aspiration efficiency or no liquid aspiration.
The filter (11b) is wet or dirty. Replace filter. The nose piece (11) is not tight. Tighten the nose piece, or replace defective parts. The batteries are discharged (battery charge indicator lights red).
Charge the batteries.
The batteries are missing. Insert the batteries, or connect the instrument to the mains
adapter.
The batteries are defective. Replace the batteries. The batteries are wrongly inserted. Insert correctly, note polarity (+) and (-).
Reduced operating time with fully charged batteries.
The batteries are worn. Replace the batteries. Wrong battery type is inserted. Use only original consumables.

PIPETBOY pro - Operating instructions V11 Maintenance
12 INTEGRA Biosciences AG
5 Maintenance
After maintenance work, perform a leak test to ascertain correct functioning of
PIPETBOY pro: liquid should not leak out of a filled pipette before the dispensing button
is pressed.
5.1 Cleaning and servicing
PIPETBOY pro can be cleaned with a cloth moistened with soapy water or with a 70 %
ethanol.
It is recommended to change the hydrophobic filter (11b) every three months. Should the
filter get wetted or soiled, it has to be changed immediately. The filter must be oriented
with the blue (0.45 µl) / red (0.2 µl) side facing upwards towards PIPETBOY pro.
5.2 Decontamination
The nose piece (11), the pipette mount (11c) and the filter rubber (11a) can be autoclaved
at 121°C, 1 bar overpressure for 20 minutes. Silicone may become brittle after extensive
autoclaving. Replace the pipette mount and filter rubber if they are damaged.
If the housing of the PIPETBOY pro have been in contact with biohazardous material, it
must be decontaminated in accordance to good laboratory practice. Do not spray directly
on the instrument but use a lint-free cloth, lightly soaked with a disinfectant and wipe dry
directly after decontamination. Never use acetone or other solvents! Follow the
instructions provided by the disinfectant manufacturer.
The device may be decontaminated with H2O2gas (maximal concentration 35 %) for 60
minutes.
5.3 Equipment disposal
The PIPETBOY pro device must not be disposed of with unsorted municipal
waste. Do not dispose of the device in a fire. Do not modify the NiMH batteries
in any way. Discharge the batteries before disposal. Dispose of the
PIPETBOY pro and the batteries separately in accordance with the laws and
regulations in your area governing disposal of devices containing NiMH
batteries.
In certain regions and countries, e.g. in EU member states, the distributor is obliged to take
back this product free of charge at the end of life. Please contact your local distributor for
more details.

PIPETBOY pro - Operating instructions V11 Technical Data
www.integra-biosciences.com 13
6 Technical Data
6.1 Specifications
Pipetting speed max. 12 ml/s
Batteries Type: rechargeable, AAA, NiMH, 1.2 V
Charging cycles: 500-1000 (when charging as indicated)
Running time: at least 4000 cycles of aspiration and dispensing
of 25 ml.
Electricity supply Mains adapter input: 100–240 VAC, 50/60 Hz
Device input: 8–10 VDC, 4.5 W
Materials Housing: ABS (white), MABS (all other colors)
Nose piece: POM
Pipette mount: Silicone
Filter rubber: Silicone
Dimensions (H x W x D) 145 x 130 x 35 mm
Weight 190 g
Ambient conditions Operation: 5–40°C, max. 80% RH
Storage: -10–50°C, max. 95% RH

PIPETBOY pro - Operating instructions V11 Technical Data
14 INTEGRA Biosciences AG
6.2 Chemical compatibility
The table below lists PIPETBOY pro parts that come into contact with the aspirated liquid
or its aerosols and vapors, and rates the compatibility of these parts to a few of the
chemicals commonly used in laboratories. To determine the compatibility of a component
to a chemical not listed in the table, please consult one of the several tables available on
the internet. Note that the rating refers to soaking in the concentrated chemical; however,
more relevant here is the attenuated effect resulting from vapors and the diluted chemical.
It is recommended to test the compatibility of relevant components to a specific chemical
prior to extensive use.
INTEGRA Biosciences does not warrant that the information in the table is accurate or
complete and that any material is suitable for any purpose.
Chemical compatibility chart
Compatibility ratings:
A = Good: no or minor effects.
B = Fair: moderate effects, not recommended for continuous use.
C = Critical: not recommended, suitability to be determined by test.
Parts Materials
JAVEL (e.g. NaClO)
Acetic acid (25 %)
Ethanol
Isopropyl alcohol
NaCl saturated
Sodium hydroxide (50%)
Sodium acetate
(3M, pH 5.2)
Hydrochloric acid (20%)
Chloroform
Acetone
Handle (white) ABS A C A B A A A A C C
Handle(othercolors)MABS AAABAA A ACC
Nose piece housing POM C C A A A A A B A A
Pipette mount,
Filter rubber, tubings
Silicone A B A A A A C A C C
Internal parts
(e. g. pump)
FPM AAAAAC C AAC
NBR ABBAAA A ACC
CR AAAAAA A ABA
Metal CCAABC A CAA

PIPETBOY pro - Operating instructions V11 Accessories
www.integra-biosciences.com 15
7 Accessories
Accessories Part No.
Charging station for parking and charging PIPETBOY pro 156 450
Stand for
PIPETBOY and
VACUBOY
for parking PIPETBOY pro with inserted pipette and for a
well organized work area
155065
Sterile module
(nose piece)
grey, complete nosepiece for PIPETBOY pro,
for holding filter rubber, filter and pipette mount
156104
Wall mount for parking PIPETBOY pro on the wall 156708
Mains adapter
(100-240 VAC,
50/60 Hz)
US version 156630
EU version 156631
UK version 156632
AU version 156633
JP version 156634
Consumables Part No.
Filter 0.45 µm sterile/unsterile, for the country specific part numbers,
please refer to our website
Filter 0.2 µm sterile/unsterile, for the country specific part numbers,
please refer to our website
Pipette mount silicone, for holding pipette in the nose piece 151020
Rubber for filter silicone, for holding the filter in the nose piece 153225
Battery set NiMH, PIPETBOY pro, pack of 2 156151
Battery cover set PIPETBOY pro Color Part No.
Set contains: colored cover, flexor, screw, plug white 156430
pink 156431
green 156432
orange 156433
blue 156434
