Integra CELLROLL User manual

CELLROLL and CELLSP N Operating instructions
183411_V12

2
Declaration of Conformity | Konformitäts-
erklärung | Déclaration de conformité
INTEGRA Biosciences AG – 7205 Zizers, Switzerland
declares on its own responsibility that the products |
erklärt in alleiniger Verantwortung, dass die Produkte |
déclare sous sa responsabilité exclusive, que les produits
in accordance with the EC directives | gemäß der EU-Richtlinien |
sont conforme au terme de la directives CE
are in compliance with the following standards or normative documents: |
mit den folgenden normativen Dokumenten übereinstimmen: |
aux documents normatifs ci-après :
Standards for Canada and USA
Zizers, December 9 th 2013
ledom,epyTnoitpircseD
500681,100681LLORLLEC
100381NIPSLLEC
2006/95/EC Low voltage equipment
2004/108/EC Electromagnetic compatibility
2011/65/EC Restriction of Hazardous Substances
2002/96/EC Waste Electrical and Electronic Equipment
EN 61010-1 Safety requirements for electrical equipment
for measurement, control and laboratory use,
Part 1: General requirements.
EN 61326-1 Electrical equipment for measurement, control
and laboratory use - EMC requirements.
CAN/CSA-C22.2 No. 61010-1 Safety requirements for electrical equipment
for measurement, control and laboratory use,
Part 1: General requirements.
UL Std. No. 61010-1 Safety requirements for electrical equipment
for measurement, control and laboratory use,
Part 1: General requirements.
FCC, Part 15, Class A Emission
Elmar Morscher
CEO
Thomas Neher
Quality Manager

2.1 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Contents
1. Safety precautions
2. Technical data
4. Assembly and installation CELLROLL/CELLSPIN
3. Abrid ed operatin instructions CELLROLL/CELLSPIN
3.1 nstrument parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.2 Description of keys and functions . . . . . . . . . . . . . . . . . . . . . 10
3.3 Abridged instructions CELLROLL . . . . . . . . . . . . . . . . . . . . . 11
3.4 Abridged instructions CELLSP N . . . . . . . . . . . . . . . . . . . . . . 13
4.1 Equipment provided - CELLROLL . . . . . . . . . . . . . . . . . . . . . 15
4.2 Equipment provided - CELLSP N . . . . . . . . . . . . . . . . . . . . . . 16
4.3 Control unit CELLROLL/CELLSP N . . . . . . . . . . . . . . . . . . . . 16
4.4 Designation of individual instrument parts . . . . . . . . . . . . . . 17
4.5 Vertical assembly - CELLROLL . . . . . . . . . . . . . . . . . . . . . . . 18
4.6 Horizontal assembly - CELLROLL . . . . . . . . . . . . . . . . . . . . . 19
4.7 Disassembly - CELLROLL . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.8 Stirring unit - CELLSP N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.9 Connecting the printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.10 Equipment disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
General precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation of CELLROLL/CELLSPIN: location and conditions . . . . . . . . . . . . 5
Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Conditions of use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Dangers involved when safety precautions are not observed . . . . . . . . . . . . . 6
Safety at work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Qualification of operating personnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Safety aspects for user company . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Changes in configuration/design by user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Power requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3

4
5.1 Operating steps
Starting and stopping the system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Switching on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Selecting outputs (OUTPUT 1/OUTPUT 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Configuration of connected instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.2 CELLSP N - specific CELLSP N functions
Stirring - "SPEED" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Pendular stirring angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Interval mode "––" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.3 CELLROLL - specific CELLROLL functions
Rolling speed - "SPEED" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Rocking angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.4 CELLROLL/CELLSP N - common functions
Running time mode "" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Cycle mode "CYCLES" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Printout and overview of program parameters "PRINT . . . . . . . . . . . . . . . . . . . 30
Storing programs "STORE" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Recalling and viewing programs "RECALL" . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6. Troubleshootin
7. Guarantee/Cleanin
5. Detailed operatin instructions
8. Manufacturer and Service Contacts

5
General
Throughout the manual, the following symbols will be used to indi-
cate general precautionary measures:
Indication: information on the correct use of
CELLROLL/CELLSPIN.
Warning: Warning that, if safety precautions are not
observed, damage may result to the instruments.
Please read all documentation.
Danger: Warning that, if safety precautions are not
observed, injury to personnel may result.
nstallation: Location and conditions
CELLROLL/CELLSPIN are intended for use in a laboratory.
Ambient conditions for the devices CELLROLL/
CELLSPIN see chapter Technical data
Warning: Always locate the control unit outside of an incu-
bator if used.
Avoid exposing the control unit and power supply to direct
sunlight or high humidity.
Locate CELLROLL in such a way that personnel
cannot come in contact with the cogs.
Transport
Always grip CELLROLL on the base when transporting
1. Safety precautions

6
Conditions of use
CELLROLL is a modular and expandable roller system for cell cul-
tivation and preparation of cell products in roller bottles. It is suit-
able for use with adherent cells and cell suspensions. The instru-
ment is not designed for any other applications and should there-
fore not be used for such.
CELLSP N is a spinning system comprising four stirring units for
the gentle cultivation of cells and the preparation of cell products in
spinning vessels. It is suitable for use with cell suspensions and immo-
bilised adherent cells (e.g. microcarriers/alginate inclusion). The instru-
ment is not designed for any other applications and should there-
fore not be used for such.
Dangers involved when safety precautions are not
observed
CELLROLL/CELLSPIN are state-of-the-art instruments with respect
to current technology and are safe to use. Some danger may exist
if the instruments are used by untrained personnel. Any person given
the task of operating CELLROLL/CELLSPIN must first read the oper-
ating and safety instructions and understand them fully or be thor-
oughly trained by a superior in the use of the instruments before
operating the instrument.
Safety at work
Independent of any safety precautions listed here, all other relevant
safety aspects - e.g. GLP, GMP, professional trade associations,
Department of Health, trade supervisory authorities - must be
observed.
Qualification of operating personnel
Normally, a technical qualification is required. Specialist knowledge
is required when using CELLROLL/CELLSPIN if all danger is to be
avoided.
Personnel without formal technical qualifications do not as a rule
possess such specialised information and should therefore only be
allowed to operate CELLROLL/CELLSPIN if properly trained and
under the supervision of suitably qualified personnel.
Safety aspects for the user company
The supervisors of operating personnel must have read and under-
stood all the safety precautions involved and must ensure that these
are adhered to. They must also ensure that operating personnel also
understand and observe all safety rules.
Prior to operating CELLROLL/CELLSPIN, the supervisor must ensure
that no other dangers exist, especially if other instruments and sys-
tems are also being used.
If necessary, additional safety instructions must be compiled by the
supervisor. The user company must, if necessary, in order to exclude
all possible danger, compile explicit safety instructions and have these
signed by the staff responsible. In addition, clear competences must
be established as to who is responsible for the operation of CELL-
ROLL/CELLSPIN so that these potential dangers can be reduced
to an absolute minimum.

7
Changes in configuration/design by user
No changes may be made to CELLROLL/CELLSPIN. Any parts that
become defective must be replaced by original INTEGRA Biosciences
parts.
CELLROLL/CELLSPIN may not be altered in design or in any of their
safety aspects without the express written permission of INTEGRA
Biosciences. In particular, no alterations may be made to any of the
protective functions. Any alteration made releases INTEGRA
Biosciences from any liability for damage caused.
Power requirements
Checking the power supply
Check the power supply at the location and ensure that it complies
with that of the instrument.
Indication: Using the wrong power supply may damage
electronic components in the instrument.
Connecting to the power supply
Connect CELLROLL/CELLSPIN to the power supply using the cable
provid ed.
Danger: The instrument may not be used if insufficient
protection is provided as this may expose personnel
to the danger of electrical current injury.
NB: When connecting or disconnecting the instrument
from the control unit the latter must always first be
switched off otherwise the electronics may be dam-
aged or a program interrupted.

8
2. Technical data
CELLROLL
Width Depth Height
1 Deck 295 mm 360 mm 240 mm
2 Decks 295 mm 360 mm 400 mm
3 Decks 295 mm 360 mm 560 mm
4 Decks 295 mm 360 mm 720 mm
Control unit: 295 mm 80 mm 60 mm
Speed: "Motor unit": 0.1 – 2.0 rpm
"Motor unit fast": 2.0 – 6.0 rpm
Power Supply:
Input: 100 – 240 VAC/47 – 63 Hz/1.6 A
Output: 9.5 VDC/4.0 A/38 W
Weight:
Motor unit: 1.85 kg
Deck: 1.7 kg
Operating Condition:
Operation
Motor-unit/ Deck: 5 – 40 °C/max. 99% RH/max. 10% CO2
Operation Control unit: 5 – 40 °C/max. 80% RH
Storage: -10 – 50 °C/max. 95% RH
Degree of protection:
Motor-unit/Deck: IP54
Control unit: IP21
2.1 Technical data
CELLSP N
Width Depth Height
Drive: 295 mm 330 mm 60 mm
Control unit: 295 mm 80 mm 60 mm
Speed: 5 – 75 rpm
Power Supply:
Input: 100 – 240 VAC/47 – 63 Hz/1.6 A
Output: 9.5 VDC/4.0 A/38 W
Weight:
Control unit: 0.5 kg
Stirrer unit: 2.9 kg
Operating Condition:
Operation Stirrer unit: 5 – 40 °C/max. 99% RH/max. 10% CO2
Operation Control unit: 5 – 40 °C/max. 80% RH
Storage: -10 – 50 °C/max. 95% RH
Degree of protection:
Stirrer unit: IP54
Control unit: IP21

9
3.1 nstrument parameters
3. Abrid ed operatin instructions
CELLROLL /CELLSPIN
Storing of programs – "STORE"
Memories Pr. 01 – Pr. 10
Recalling programs – "RECALL"
Pr. 01 – Pr. 10
CELLROLL
Motor unit fast (2 – 6 rpm)
"SPEED" for continuous rolling
(rolling with no directional change)
2.0 – 6.0 in steps of 0.25
and for rocking
(rolling with directional change)
ANGLE " " for rocking
(180° – 1440° in steps of 180°)
ANGLE ""for rolling = 0°
CELLSP N
"SPEED" for continuous stirring
(= continuous stirring)
5.0 – 40.0 rpm in steps of 2.5
40.0 – 75.0 rpm in steps of 5.0
"SPEED" for pendular stirring
(= stirring with directional change)
5.0 – 40.0 rpm in steps of 2.5
ANGLE " " for pendular stirring
(180° – 1440° in steps of 180°)
ANGLE ""continuous stirring = 0°
RUNNING TIME ""
(00.05 h.min. - 99.59 h.min.) or
unlimited = Con
Cycles – "CYCLES"
for programming
1 – 9999
CELLROLL
Motor unit (0.1 – 2 rpm)
"SPEED" for continuous rolling
(rolling with no directional change)
0.1 – 1.0 in steps of 0.1
1.0 – 2.0 in steps of 0.5
and for rocking
(rolling with directional change)
ANGLE " " for rocking
(180° – 1440° in steps of 180°)
ANGLE ""for rolling = 0°
Print-out of protocols – "PRINT"
or viewing stored programs P1
Protocol print-out P2
Print-out of stored programs P3
Storing of programs – "STORE"
Memories Pr. 01 – Pr. 10
Recalling programs – "RECALL"
Pr. 01 – Pr. 10
RUNNING TIME ""
(00.05 h.min. - 99.59 h.min.) or
unlimited = Con
PAUSE " "
(00.00 h.min. - 99.59 h.min.)
Cycles – "CYCLES"
for programming
1 – 9999
Print-out of protocols – "PRINT"
or viewing stored programs P1
Protocol print-out P2
Print-out of stored programs P3

3.2 Brief description of keys and functions

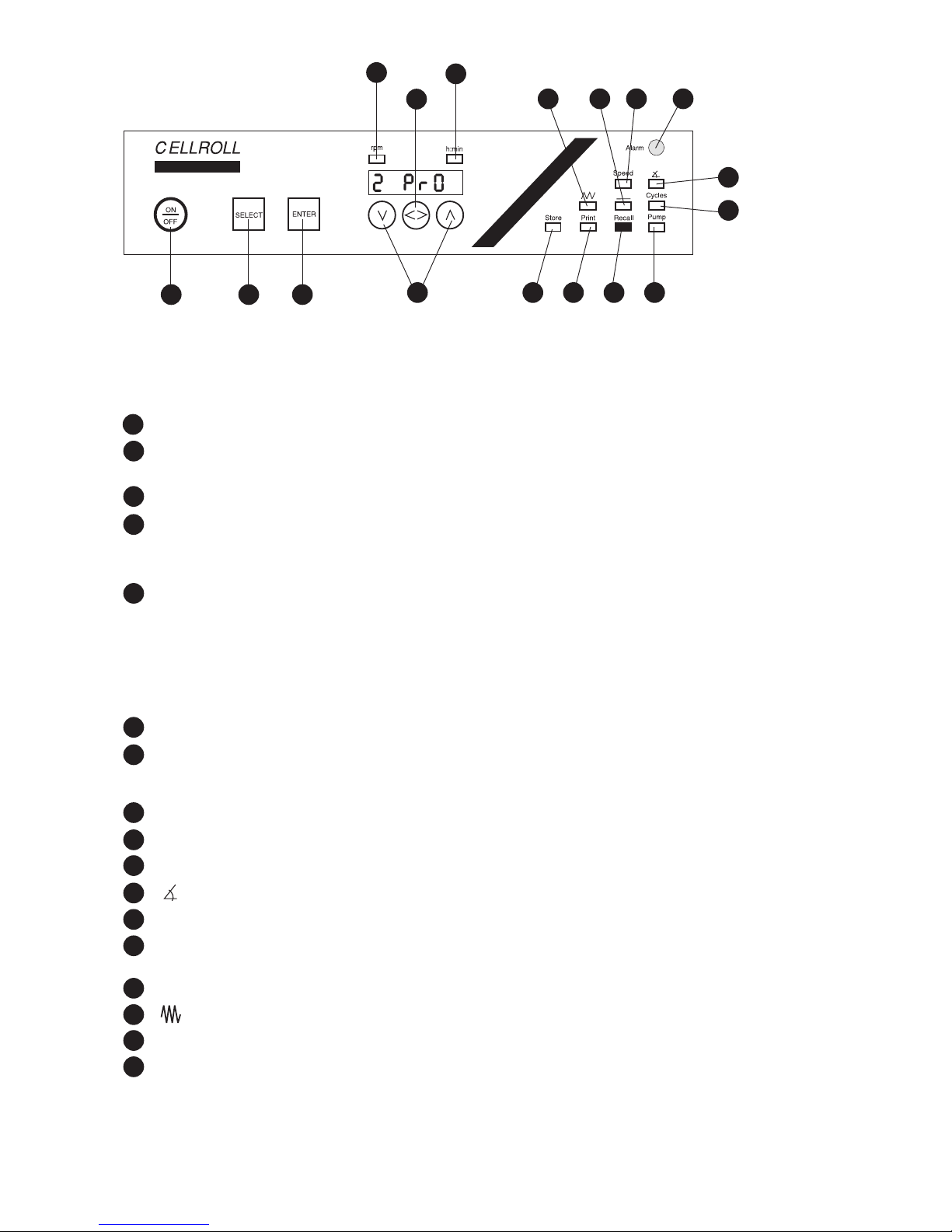

Keys:
ON/OFF: Switches the instrument on/off
SELECT: Switches between parameters. The corresponding green LED will light and the most
recently set value will appear in the display.
ENTER: or confirming the value entered.
∨/∧:Keys "∨" and "∧" alter the corresponding parameters stepwise, the values being shown on
the display.
By keeping keys "∨" and "∧" pressed, all parameter values are displayed in rapid sequence.
< >: or:
a) Changing e.g. from hours to minutes and vice versa when setting time.
b) Switching between OUTPUT 1 and OUTPUT 2 in the functions "SPEED" and "RECALL".
c) Activating/deactivating the print options P2 and P3 in the function "PRINT".
Function LED’s :
STORE: Storing of programs
PR NT: P1: Display of stored programs
P2: Setting the printing interval
P3: Print out of stored programs
RECALL: Recalling stored programs
PUMP: Additional function
CYCLES: Number of times a program should be repeated
: Angle for pendular/circular stirring and rocking/rolling
ALARM: Red lamp lights if there is malfunction
SPEED: Speeds for pendular/circular stirring and rocking/rolling and for selecting between
OUTPUT 1 and OUTPUT 2
–––– : Pause between two programmed runs
: Running time (specific/continuous) for pendular or continuous stirring, rocking or rolling
h/min: Activated during entry of time parameter
rpm: Activated during entry of speed
24
3
4
1
17
12
5
16
11
6
13
7
15
8
14
9
17
16
10
10
11
7
1213
6
8
14
9
10
2
3
515
1

NB: The control unit must always be located outside the incubator!
– Connect CELLROLL to the control unit with the cable
provided.
If connection has not been made, "Err 02" will appear on the
dis play on starting the instrument. Check the connection and
cancel the error message by pressing "ENTER".
– In the event of a power failure, any unstored data of both out-
puts will be automatically stored and recalled once the power has
been restored. The "Err 03" in the display can be cancelled by
pressing "ENTER".
Entering the program for working with CELLROLL
☞Switch on the instrument by pressing the ON/O key. The
green LED under "RECALL" will light.
☞Press "SELECT" and select the function "SPEED".
n the function "SPEED":
Selecting the output:
☞Select OUTPUT 1 or OUTPUT 2 via key "< >".
Setting the rolling speed:
CELLROLL is equipped with two different motors. The control unit
will always select the right one.
"CELLROLL" Motor unit (0.1-2.0 rpm):
☞Set the speed within the range 0.1 - 2.0 rpm via "∨" and "∧".
Confirm by pressing "ENTER".
"CELLROLL" Motor unit fast (2.0-6.0 rpm):
☞Set the speed within the range 2.0 - 6.0 rpm via "∨" and "∧".
Confirm by pressing "ENTER".
n the function " ":
Selecting the pendular angle:
☞or continuous rolling (no directional change), set the
pendulum angle to "0°" via "∨". Confirm by pressing "ENTER".
☞or rocking (with directional change), set the pendulum angle
within the range 180°- 1440° (= 0.5 - 4.0 bottle revolutions).
Confirm by pressing "ENTER".
NB: If "rocking" has been selected, please observe the restrictions
impos ed below under " " and "–".
n the function "":
Set the rolling duration:
The duration of continuous rolling or rocking can be set to:
- A limited time between 00.05 (h/min) - 99.59 (h/min), or
- An unlimited time as "Con".
☞To select a specific rolling duration, set hours and/or minutes
via the "< >" key and alter via "∨" and "∧". Confirm by pressing
"ENTER".
☞To select continuous rolling or rocking operation, activate the
h/min function and press the "∨" key until the display shows
less than 0.05 and "Con" appears. Confirm by pressing
"ENTER". 11
3.3 Abridged operating instructions - CELLROLL

n the function " – ":
The pause interval cannot be selected for either motor unit and is
overrun.
n the function "CYCLES":
Repeating programs:
Programs can be set to repeat within the range 1 - 9999.
☞Select the required value via "∨" and "∧". Confirm by pressing
"ENTER".
NB: If in the function " " continuous stirring has been selected,
"Con" will appear automatically under "CYCLES".
n the function "STORE":
Storing programs:
Up to 10 programs can be stored in separate memories.
☞Select a memory between Pr. 01 and Pr. 10 via keys "∨" and
"∧". Confirm by pressing "ENTER".
n the function "RECALL":
Recalling stored programs:
☞ Select a memory between Pr. 01 and Pr. 10 via keys "∨" and
"∧". Confirm by pressing "ENTER". Three beeps will be given
and the program will start.
NB: When recalling a program, please remember to take the out-
put into account.
Selecting the output:
☞ Key "< >" can be used to select OUTPUT 1 or 2.
Additional functions: "PR NT" and "PUMP":
Information on the operating steps for these functions along with the
options
P1 = view stored programs
P2 = entering print interval
P3 = Print-out of stored programs
is given in the detailed operating instructions.
12

NB: The control unit must always be located outside the incubator!
– Connect CELLSPIN to the control unit with the cable provided.
If connection has not been made, "Err 02" will appear on the
display on starting the instrument. Check the connection and
cancel the error message by pressing "ENTER".
– In the event of a power failure, any unstored data of both out-
puts will be automatically stored and recalled once the power has
been restored. The "Err 03" in the display can be cancelled by
pressing "ENTER".
Entering the program for working with CELLSP N:
☞Switch on the instrument by pressing the "ON/O " key. The
green LED under "RECALL" will light.
☞Select the function "SPEED" by pressing "SELECT".
n the function "SPEED":
Selecting the required output:
☞Select OUTPUT 1 or OUTPUT 2 via key "< >".
Selecting the stirring speed:
NB: In the "SPEED" mode, the rpm limit for pendular stirring must
be taken into account so that the pendulum angle " " can be
set.
☞or continuous stirring (no directional change), set the
speed within the range 5 - 75 rpm and for pendular stirring
(stirring with directional change) within 5 - 40 rpm via "∨" and
"∧". Confirm by pressing "ENTER".
n the function " ":
NB: The function " " can only be selected when the set speed is
<40 rpm. If a value > 40 rpm has been selected, the " " function
will be overrun and the angle automatically set to "0".
Selecting the pendular angle:
☞or continuous stirring, set the pendulum angle to "0°" via "∨".
Confirm by pressing "ENTER".
☞or pendular stirring, set the pendulum angle via keys "∨"
and "∧" within the range 180°- 1440°. Confirm by pressing
"ENTER".
n the function " ":
Setting the stirring duration:
The duration of stirring can be set to:
- A limited time between 00.05 (h/min) - 99.59 (h/min), or
- An unlimited time as "Con".
☞To select a specific stirring duration, set hours and/or minutes
via the "< >" key and alter via "∨" and "∧". Confirm by pressing
"ENTER".
☞To select continuous stirring, activate the h/min function with
the "< >" key and press the "∨" key until the display shows
less than 0.05 and "Con" appears. Confirm by pressing
"ENTER".
13
3.4 Abridged operating instructions - CELLSP N

n the function " – ":
Setting the interval:
Within any program, an interval can be freely selected within the range
00.00 (h/min) - 99.59 (h/min).
☞Choose the position for hours and minutes via key "< >" and
set the interval via keys "∨" and "∧". Confirm by pressing
"ENTER".
n the function "CYCLES":
Repeating programs:
Programs can be set to repeat within the range 1 - 9999.
☞Select the required value via "∨" and "∧". Confirm by pressing
"ENTER".
NB: If in the function " " continuous stirring has been selected,
"Con" will appear automatically under "CYCLES".
n the function "STORE":
Storing programs:
Up to 10 programs can be stored in separate memories.
☞Select a memory between Pr. 01 and Pr. 10 via keys "∨" and
"∧". Confirm by pressing "ENTER".
n the function "RECALL":
Recalling stored programs:
☞Select a memory between Pr. 01 and Pr. 10 via keys "∨" and
"∧". Confirm by pressing "ENTER". Three beeps will be given
and the program will start.
NB: When recalling a program, please remember to take the out-
put into account.
Selecting the output:
☞ OUTPUT 1 or OUTPUT 2 can be selected via key "< >".
Additional functions: "PR NT" and "PUMP":
Information on the operating steps for these functions along with the
options
P1 = view stored programs
P2 = entering print interval
P3 = Print-out of stored programs
is given in the detailed operating instructions.
14

Accessories:
Part No.
Deck for system extension (2 roller bottles per deck) 186 026
Storage deck for horizontal extension, with drive belt, 186 030
spacers and deck cover (Deck 186 026 not included)
Control cable for 2nd output, length 2 m 186 050
Interface cable for connection to printer or PC 186 041
Drive unit standard (0.1 - 2.0 rpm), incl. control cable 186 015
Drive unit fast (2.0 - 6.0 rpm), incl. control cable 186 020
Control unit incl. mains adapter 186 013
Mains adapter 186 238
4.1 Equipment provided - CELLROLL
4. Assembly and installation
CELLROLL/CELLSPIN
CELLROLL (Part. No. 186 001) or
CELLROLL fast (Part. No. 186 005) comprises:
1 Control unit
1 "Drive unit", 0.1-2.0 rpm (for 186 001)
or
1 "Drive unit fast ", 2.0-6.0 rpm (for 186 005)
2 Decks for 4 roller bottles
(incl. connectors for assembly)
1 Power cable
1 Mains adapter
1 Control cable, length 2 m
1 Operating instructions
15

4.3 Control unit for CELLROLL/CELLSP N
The CELLROLL/CELLSPIN control unit includes:
①Connection for power cable and integrated interface
RS 232 C for connecting a printer/PC (activated via Y-cable)
to POWER IN.
Two asynchronous outputs - OUTPUT 1 and OUTPUT 2
for connecting: – 1 CELLSPIN and 1 CELLROLL
– or 2 CELLSPINS or 2 CELLROLLS
4.2 Equipment provided - CELLSP N
①
Accessories: Article No.
Control cable for 2nd output, length 2 m 186 050
Control unit incl. mains adapter 183 013
Interface cable for connection to printer or PC 186 041
Stirring platform 183 015
Mains adapter 186 238
Conversion kit for using CELLSPIN 183 260
with impeller-type flasks
Spinner flasks (www.integra-biosciences.com)
CELLSP N (Part No. 183 001) comprises:
1 Stirring platform incl. control cable
1 Control unit incl. mains adapter
1 Power cable
1 Mains adapter
1 Control cable, length 2 m
1 Operating instructions
9,5 V ,3 A
9,5 V ,3 A
16

4.4 Designation of individual instrument parts
CELLROLL - Motor unit
①Socket
➁ Deck
CELLSPIN -stirring unit with 4 stirrers
③ Left cable channel
④Socket
⑤Right cable channel
Control cable
⑥Socket
⑦Plug
Mains cable
⑧Socket
⑥⑦
⑧
17

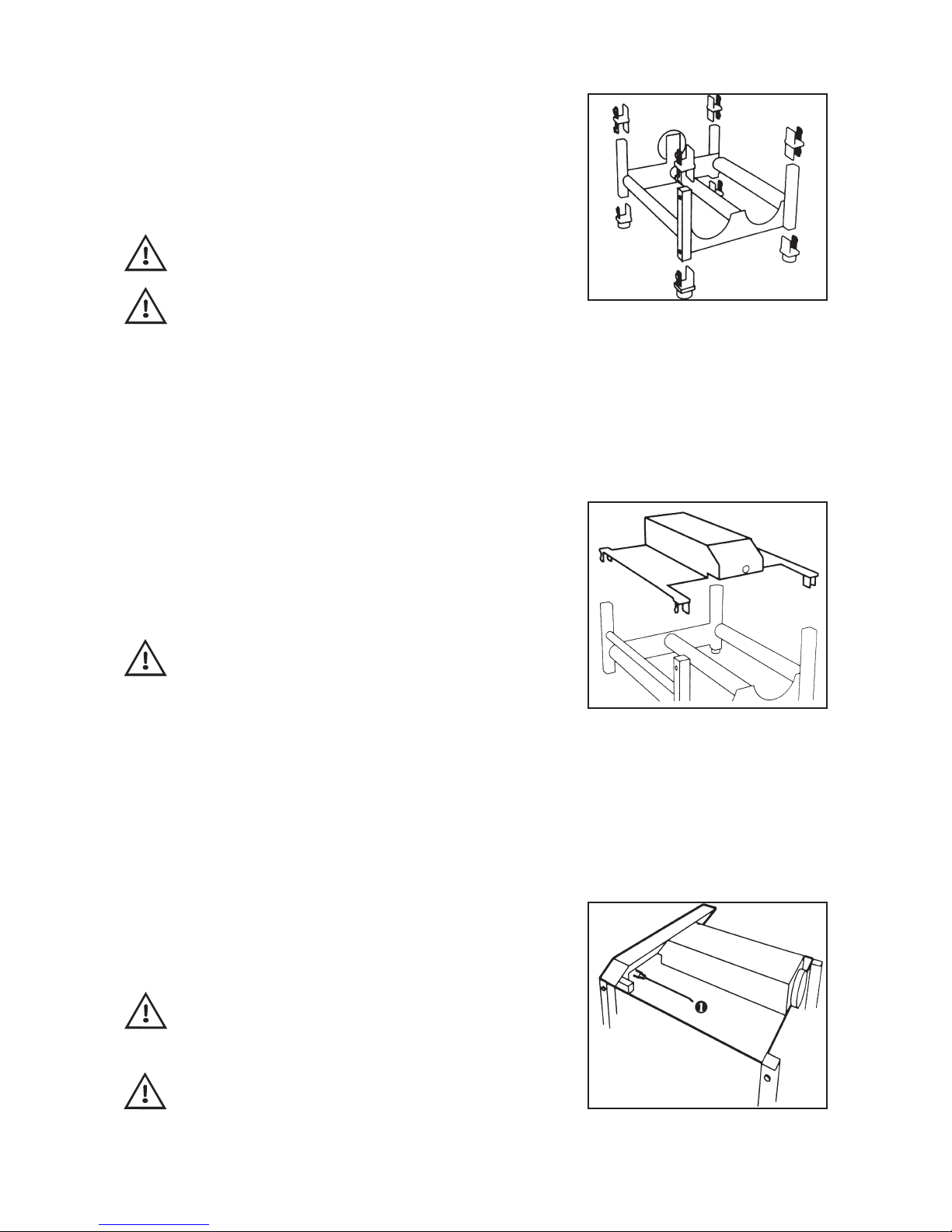

4.5 Vertical assembly - CELLROLL
☞Insert 4 connectors and 4 end pieces each into the bottom and
the top of the first deck until they audibly fit into position.
Via further connectors, up to four decks may be connected verti-
cally. The top deck of a tower remains without connectors.
The gears of the decks mesh together automatically. Locate
CELLROLL in such a way that personnel do not come in contact
with the cogs.
NB: Never stack more than 4 decks at any one time.
NB: When transporting CELLROLL, always grip the lower
deck.
☞Place the CELLROLL motor unit with its ex-factory fitted con-
nectors on the last free deck and ensure that it engages in posi-
tion.
If running special applications in which the usual cell culture con-
ditions (temperature, humidity etc.) are not necessary, the control
unit can be fitted directly to the guide slot on the motor unit.
NB: Before locating CELLROLL/CELLSPIN, please read
and observe the safety conditions listed in section 1.
☞Connect the plug of the low voltage cable ①to "POWER IN"
at the rear of the control unit and tighten.
☞Place the power cable in the cable clips located at the side of
the shelf of the motor unit. If necessary, mount additional clips
at the rear of the tower. Insert cable.
Take care that the cable does not come into contact with
the cogs.
☞Connect the power supply to power.
NB: Always locate the control unit outside of the incu-
bator.
18

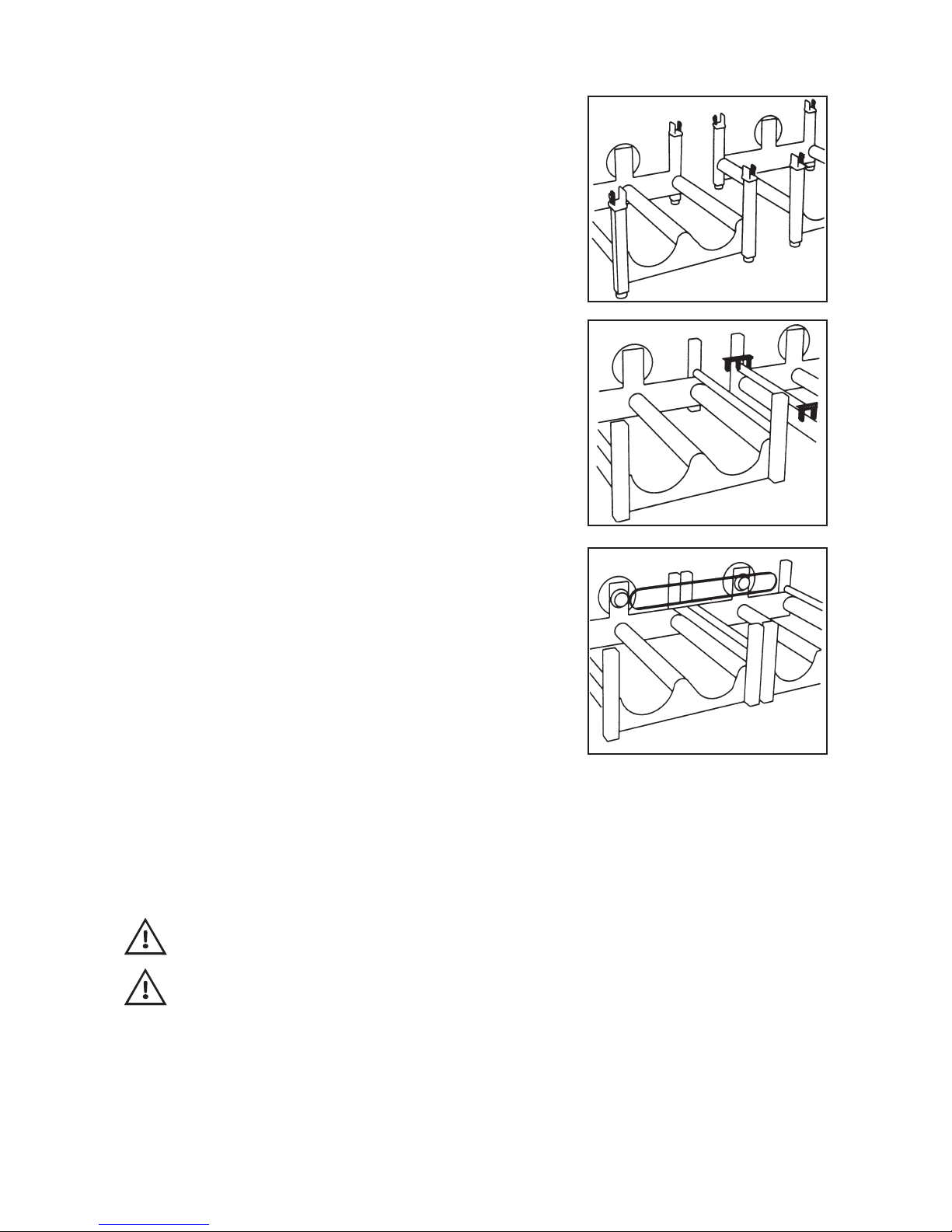

4.6 Horizontal assembly - CELLROLL
☞Place two modules furnished with end pieces/intermediaries
next to each other.
☞Snap two double-clips onto the round stud of the right module.
☞Place synchronous belt on both crown gears.
☞Snap the mounted double-clips onto the round stud of the left
modu-le.
Now the synchronous belt is stretched.
Up to three additional decks may be added vertically if they are
connected with intermediaries.
The individual module's composition gears mesh together auto-
matically.
The top deck or each tower remains without intermediaries.
Continue assembly following the instructions.
☞Place the CELLROLL motor unit with its ex-factory fitted con-
nectors on the top deck of one of the towers and ensure that
it engages in position.
☞Connect the control cable to the flange socket of the motor unit
and to OUTPUT 2 of the electronics unit.
NB: Never stack more than 4 decks at any one time.
NB: When transporting CELLROLL, always grip the lower
deck.
19

☞Connect the low voltage cable plug ①to "POWER IN" at the
rear of the instrument and tighten.
☞Insert the low voltage cable in the side clips of the motor unit.
NB: Ensure that the cable does not come into contact
with the cogs.
☞Add more cable clips on the back of one of the towers as it
appears appropriate and use them to guide mains cable.
☞Mount stacker plate onto the second tower with intermediaries.
☞Connect the power pack to the source of electricity.
NB: Always locate the control unit outside of the incu-
bator.
4.7 Disassembly - CELLROLL
☞Disconnect the power cable.
☞Remove the low voltage cable from the clips.
☞Disconnect the plug of the low voltage cable from control unit.
☞Press the green knobs on the framework and disconnect the
decks.
☞Disassemble motor unit and decks.
20
