Intergraph ImageStation ZII and use Quick start guide

ImageStation ZII
Installation and Use
February 1998
DHA023330

Copyright
1998 Intergraph Computer Systems. All rights reserved. This document contains information protected by copyright, trade secret, and trademark
law. This document may not, in whole or in part, be reproduced in any form or by any means, or be used to make any derivative work, without written
consent from Intergraph Computer Systems.
Use, duplication, or disclosure by the United States Government is subject to restrictions as set forth in subdivision (c)(1)(ii) of the rights in technical
data and computer software clause at DFARS 252.227-7013. Unpublished rights are reserved under the copyright laws of the United States.
Intergraph Computer Systems, Huntsville AL 35894-0001
Notice
Information in this document is subject to change without notice and should not be considered a commitment by Intergraph Computer Systems.
Intergraph Computer Systems shall not be liable for technical or editorial errors in, or omissions from, this document. Intergraph Computer Systems
shall not be liable for incidental or consequential damages resulting from the furnishing or use of this document.
All warranties given by Intergraph Computer Systems about equipment or software are set forth in your purchase contract. Nothing stated in, or
implied by, this document or its contents shall be considered or deemed a modification or amendment of such warranties.
Trademarks
Intergraph Computer Systems
and the Intergraph Computer Systems logo are registered trademarks of Intergraph Computer Systems. ImageStation
ZIIand TDZare trademarks of Intergraph Corporation.
Other brands and product names are trademarks of their respective owners.

Contents
1 Introduction..............................................................................................................1
2 Getting Started .........................................................................................................2
Unpack the Equipment ..................................................................................................2
Gather the Tools............................................................................................................2
3 Installing the Hardware............................................................................................3
Equipment Cautions ......................................................................................................3
Assemble the Cyborg Chair ...........................................................................................3
Assemble the Monitor Table..........................................................................................3
Assemble the Digitizer Table.........................................................................................4
Install the Base Unit and Keyboard................................................................................4
Install the Monitor.........................................................................................................4
Install the Interface PEM ...............................................................................................4
Install the Stereoscopic Display Subsystem....................................................................6
4 Completing the Installation......................................................................................8
Maintain the Equipment ................................................................................................8
Activate the Stereoscopic Display..................................................................................9
Customize the Screen Tracking Area ...........................................................................10
5 Troubleshooting the Installation.............................................................................11
Troubleshoot in Windows NT......................................................................................11
Troubleshoot in MS-DOS............................................................................................11
6 Installing and Customizing the Altek Driver.........................................................14
7 Adjusting System Ergonomics................................................................................15
Adjust the Cyborg Chair..............................................................................................15
Adjust the Digitizer Table............................................................................................16
Adjust the Monitor Table.............................................................................................16
Adjust the Monitor Position.........................................................................................16
Adjust the Keyboard Position.......................................................................................16
Adjust the Two-Handed Controller ..............................................................................17
Adjust the Stereoscopic Glasses...................................................................................17

1
1 Introduction
ImageStation ZII is a softcopy production system that allows you to view and process color imagery.
It features a D-sized digitizing surface and stereoscopic viewing using specially designed glasses.
The TDZ workstation, KI furniture, and other equipment comprise the complete system. Separate
documentation guides you to set up the TDZ workstation and assemble the KI workstation furniture.
This document describes how to install the hardware and software for an ImageStation ZII system. It
describes how to adjust and troubleshoot the installation.
WARNING Only Intergraph Computer Systems field service personnel may perform the installation
procedures in this document.
CAUTION To successfully install the equipment, read all of the instructions carefully before proceeding with the
installation.
The following figure shows the components of an ImageStation ZII system.
Monitor Table
D-sized Digitizer
Table Top
TDZ
Workstation
Base Unit
Two-Handed
Controller
Digitizer
Stand
Infrared Transmitter
PEM Bracket
(underside)
Monitor
Keyboard
Height
Adjustment
Handle and
Grommet
NOTE Cyborg chair, Interface PEM, AC Adapter, and stereoscopic glasses are not shown.

2
2 Getting Started
Refer to the hardware documentation delivered with the Intergraph Computer Systems TDZ
workstation for instructions on setting up the workstation hardware and operating system software.
Follow the instructions in this section to prepare to install an ImageStation ZII system.
Unpack the Equipment
Unpack all equipment from the shipping cartons. In addition to the TDZ workstation base unit, a
keyboard, and a 21-inch, 24-inch, or 28-inch monitor, verify that you have the following items:
u Monitor table (FFUR0530)
u Digitizer stand (FFUR0540), D-sized digitizer table top with an Altek digitizer controller
(CTIS1410), a 15-pin to 9-pin Analog to Digital Converter, three 9-pin RS-232 cables, PEM
bracket (CFAB806F), and Handle Grommet (CGEN534A)
u Wood screws (CPHW8760) for installing the PEM bracket
u Interface PEM (MESAN360)
u Two-Handed controller (MESAL150)
u Cyborg chair (FFUR0080)
u AC Adapter (CPWS1720)
Verify that you have the following components of the stereoscopic display subsystem.
u Stereoscopic glasses (CINF0110)
u Infrared transmitter (CINF0120)
u Stereo sync interface cable (MCBLV320)
If any of the listed items are missing or damaged, notify the Customer Response Center at
1-800-633-7248.
Gather the Tools
Gather the following tools to use when installing the system:
u Phillips screwdriver, #2 (for PEM bracket assembly)
u Phillips screwdriver, #3 (for furniture assembly)
u Flat-bladed screwdriver, 1/4-inch, common (for cable installation)
u Wrench, 1/2-inch, box-end or small adjustable (for table casters)

3
3 Installing the Hardware
You will set up the components of the ImageStation ZII hardware in the following order:
1. Cyborg chair
2. Monitor table
3. D-sized digitizer table with Altek digitizer controller
4. TDZ workstation base unit and keyboard
5. Monitor
6. Interface peripheral equipment module (PEM), two-handed controller, and cabling
7. Stereoscopic display subsystem
To connect the power cords and set the switches, refer to Chapter 4. Chapter 6 includes instructions
to install and customize the Altek driver.
Equipment Cautions
WARNING Do not sit or lean on the digitizer table during or after assembly. Failure to heed this warning
may result in equipment damage.
Note the following cautions when installing and using ImageStation ZII hardware:
u The digitizer table work surface is a non-load bearing surface. Damage to sensitive parts may
occur if used for purposes other than intended.
u The stereoscopic glasses are fragile. Handle them carefully. When not in use, store the glasses
in the box they came in or another suitable container.
u Do not immerse the stereoscopic glasses in water or other liquids. Consult the documentation
delivered with the glasses for more information on the care and cleaning of the glasses.
Assemble the Cyborg Chair
To assemble the Cyborg chair:
1. Remove the installation and assembly instructions from the packing box and review them.
2. Remove the Chair Base/Casters assembly from the packing box and place it on the floor with the
casters down.
3. Remove the Chair Seat/Arms assembly from the packing box.
4. Insert the Chair Seat/Arms assembly post into the center hole of the Chair Base/Casters
assembly. Apply firm, even pressure to seat the post into the Base/Caster assembly.
Assemble the Monitor Table
Remove the monitor table from the packing box. Refer to the documentation delivered with the KI
workstation furniture for detailed instructions for assembling the monitor table.

4
Assemble the Digitizer Table
To assemble the digitizer table:
1. Remove the digitizer table top assembly from the packing box. Remove all packing materials.
Place the table top assembly face down on a carpeted floor or on the packing materials.
2. Install the peripheral equipment module (PEM) bracket onto the underside of the digitizer table
top. Place the PEM bracket upside down with the open side of the PEM bracket facing away
from the table top. Install the four #5x 0.75-inch Phillips wood screws to mount the bracket to
the table top.
NOTE Position the angled side of the bracket toward the front of the digitizer table top.
3. Remove the digitizer stand from the packing box. Remove all packing materials and place the
digitizer stand on the digitizer table top.
4. Refer to the documentation delivered with the KI workstation furniture for instructions for
securing the digitizer stand to the digitizer table top.
5. Turn the assembled digitizer table upright.
6. Push the handle grommet into the opening for the height adjustment handle, and then install the
handle.
Install the Base Unit and Keyboard
Remove the TDZ workstation base unit and keyboard from their packing boxes. Refer to the TDZ
workstation’s hardware documentation for setup instructions.
Install the Monitor
WARNING The monitor is extremely heavy and could cause serious personal injury if dropped. Two
persons are required to lift and mount the monitor into place.
Remove the monitor from the packing box and place it on the monitor table.
Install the Interface PEM
The interface PEM is the electronics interface for the two-handed controller and the digitizer table.
To install the interface PEM:
1. Remove the interface PEM and its power cord from the packing box. Temporarily place the
interface PEM on top of the digitizer table in preparation for connecting the cables to the PEM.

5

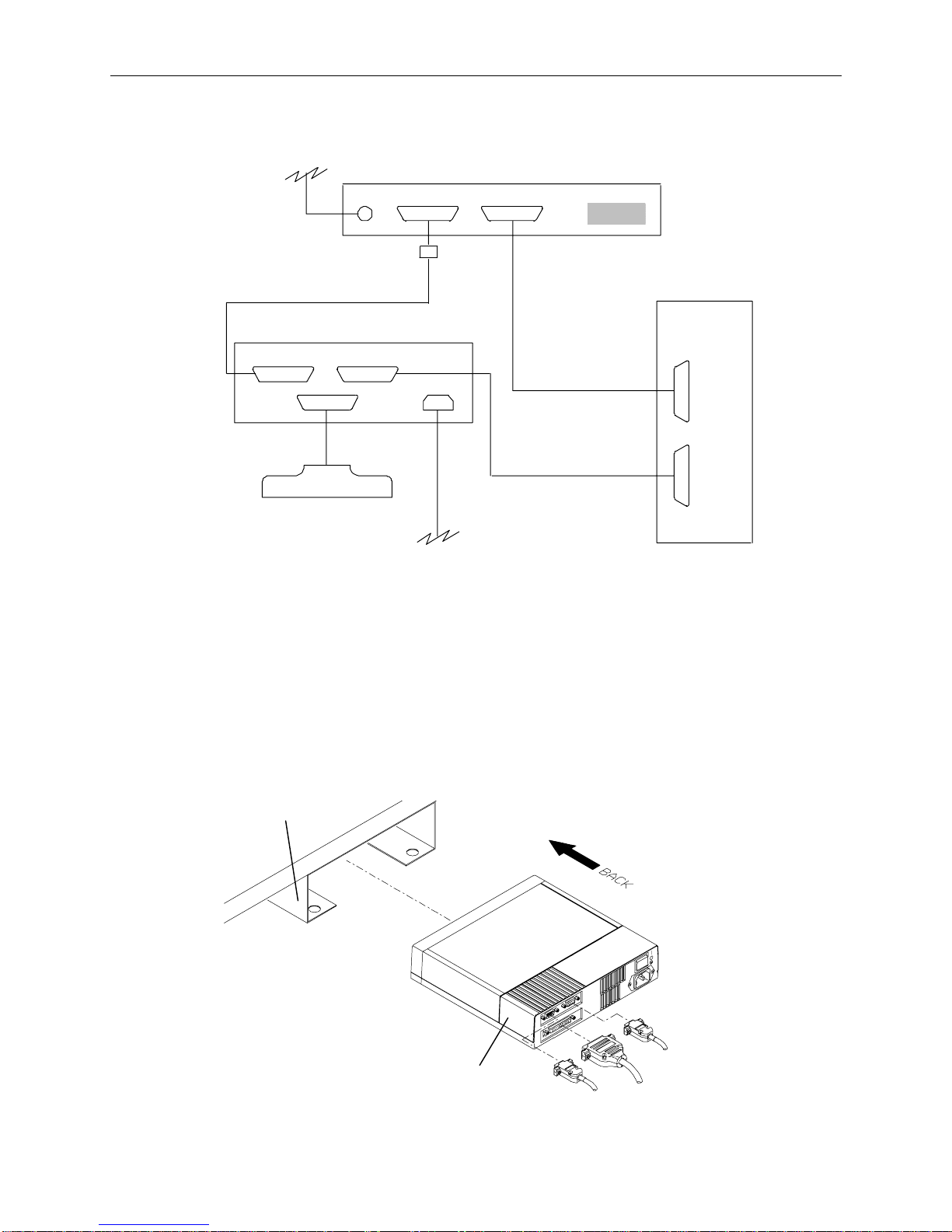

2. Refer to the following figure. Connect the three RS-232 cables between the interface PEM, the
Altek digitizer controller, and the TDZ workstation base unit as described in this section.
RS-232 Cable
Altek Digitizer Controller
TDZ
Workstation
Base Unit
Power Cursor RS-232
Two-Handed Controller
with 25-pin Cable
Interface PEM
Tablet RS-232 RS-232 Cable
RS-232 Cable
COM 1
COM 2
HC Power
A to D Converter
To connect the cables:
1. Connect one end of an RS-232 cable to the port labeled RS-232 on the interface PEM. Connect
the other end of the cable to COM 2 port on the TDZ workstation base unit. Tighten the cable
screws.
2. Connect the 25-pin cable from the two-handed controller to the port labeled Hand Controller
(HC) on the interface PEM. Tighten the cable screws.
3. Connect one end of an RS-232 cable to the port labeled Tablet on the interface PEM. Tighten the
cable screws. The other end of this cable is attached in Step 5.
4. Slide the interface PEM into the PEM bracket mounted to the underside of the digitizer table.
Refer to the following figure.
PEM
Bracket
Interface PEM

6
NOTE Ensure that the cables extend to the back of the interface PEM. Verify that the front feet of the
interface PEM install into the holes provided in the PEM bracket. These holes provide a positive lock-
down to prevent unwanted movement of the interface PEM.
5. The Altek digitizer controller is pre-mounted on the underside of the table as shown in the
following figure. Connect the 15-pin to 9-pin Analog to Digital converter to the port labeled
Cursor on the Altek digitizer controller. Connect the other end of the RS-232 cable from Tablet
of the Interface PEM (which you connected in step 3), to the 15-pin to 9-pin Analog to Digital
converter. Tighten the cable screws.
15-pin to 9-pin
Analog to Digital
Converter AC Power Cord
Receptacle
To Two-Handed Controller
To COM 1
To AC
Adapter
Altek Digitizer
Controller Interface PEM
From Tablet of
Interface PEM
To COM 2
6. Connect one end of an RS-232 cable to the port labeled RS-232 on the Altek digitizer controller.
Connect the other end of the cable to COM 1 port on the TDZ workstation base unit. Tighten the
cable screws.
7. Connect the round DIN end of the cable from the AC adapter to the power cord receptacle on the
Altek digitizer controller.
8. Connect the interface PEM power cord to the AC power cord receptacle on the back of the
interface PEM.
Install the Stereoscopic Display Subsystem
The stereoscopic display subsystem lets you view three-dimensional computer generated images. It
consists of an infrared transmitter, a cable assembly, and stereoscopic glasses.
To install the stereoscopic display subsystem:
1. Place the infrared transmitter on top of the monitor and face the infrared disperser panel towards
the user. No special mounting is required.
2. Set the infrared transmitter switch to the High position.
