Invacare®Platinum®Mobile
POC1–100B,POC1–100B-EU,POC1–100B-AZ,
POC1–100B-C
enOxygenConcentrator
ServiceManual
DEALER:Keepthismanual.
TheproceduresinthismanualMUSTbeperformedbyaqualied
technician.
All manuals and user guides at all-guides.com
all-guides.com

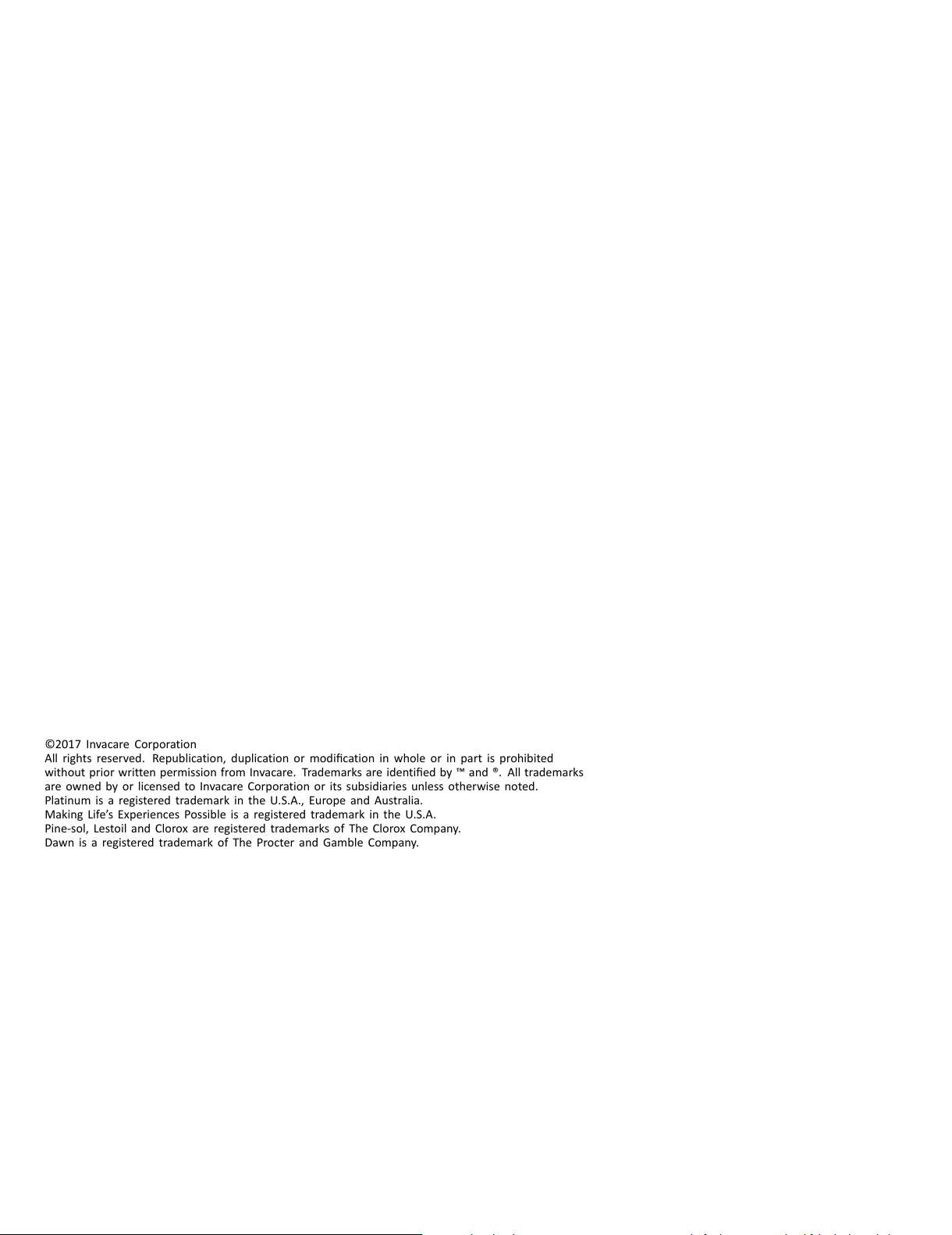

©2017InvacareCorporation
Allrightsreserved.Republication,duplicationormodicationinwholeorinpartisprohibited
withoutpriorwrittenpermissionfromInvacare.Trademarksareidentiedby™and®.Alltrademarks
areownedbyorlicensedtoInvacareCorporationoritssubsidiariesunlessotherwisenoted.
PlatinumisaregisteredtrademarkintheU.S.A.,EuropeandAustralia.
MakingLife’sExperiencesPossibleisaregisteredtrademarkintheU.S.A.
Pine-sol,LestoilandCloroxareregisteredtrademarksofTheCloroxCompany.
DawnisaregisteredtrademarkofTheProcterandGambleCompany.
All manuals and user guides at all-guides.com

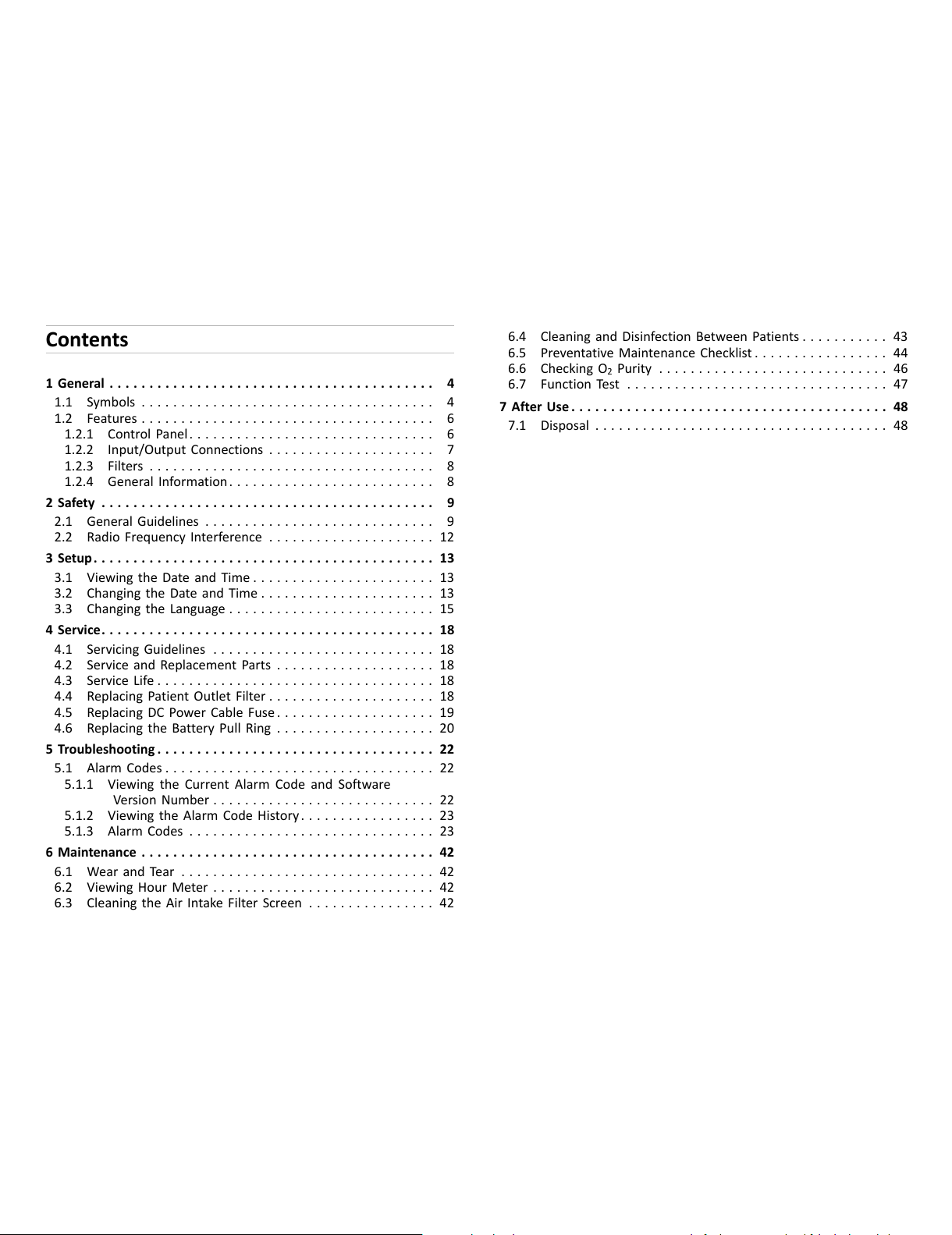

Contents
1General.........................................4
1.1Symbols.....................................4
1.2Features.....................................6
1.2.1ControlPanel...............................6
1.2.2Input/OutputConnections.....................7
1.2.3Filters....................................8
1.2.4GeneralInformation..........................8
2Safety..........................................9
2.1GeneralGuidelines.............................9
2.2RadioFrequencyInterference.....................12
3Setup...........................................13

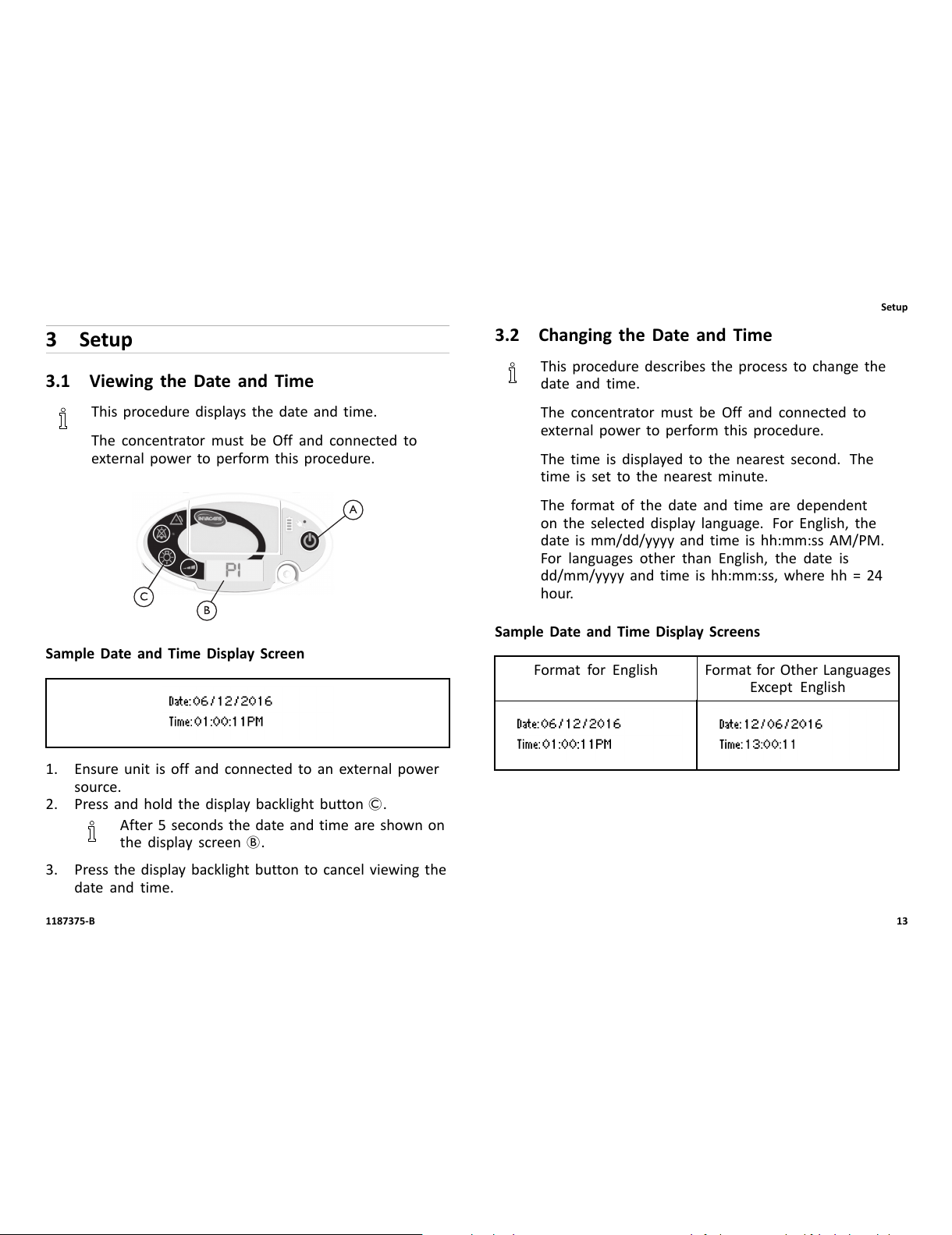

3.1ViewingtheDateandTime.......................13
3.2ChangingtheDateandTime......................13
3.3ChangingtheLanguage..........................15
4Service..........................................18
4.1ServicingGuidelines............................18
4.2ServiceandReplacementParts....................18
4.3ServiceLife...................................18
4.4ReplacingPatientOutletFilter.....................18
4.5ReplacingDCPowerCableFuse....................19
4.6ReplacingtheBatteryPullRing....................20
5Troubleshooting...................................22
5.1AlarmCodes..................................22
5.1.1ViewingtheCurrentAlarmCodeandSoftware
VersionNumber............................22
5.1.2ViewingtheAlarmCodeHistory.................23
5.1.3AlarmCodes...............................23
6Maintenance.....................................42
6.1WearandTear................................42
6.2ViewingHourMeter............................42
6.3CleaningtheAirIntakeFilterScreen................42
6.4CleaningandDisinfectionBetweenPatients...........43
6.5PreventativeMaintenanceChecklist.................44
6.6CheckingO2Purity.............................46
6.7FunctionTest.................................47
7AfterUse........................................48
7.1Disposal.....................................48
All manuals and user guides at all-guides.com

Invacare®Platinum®Mobile

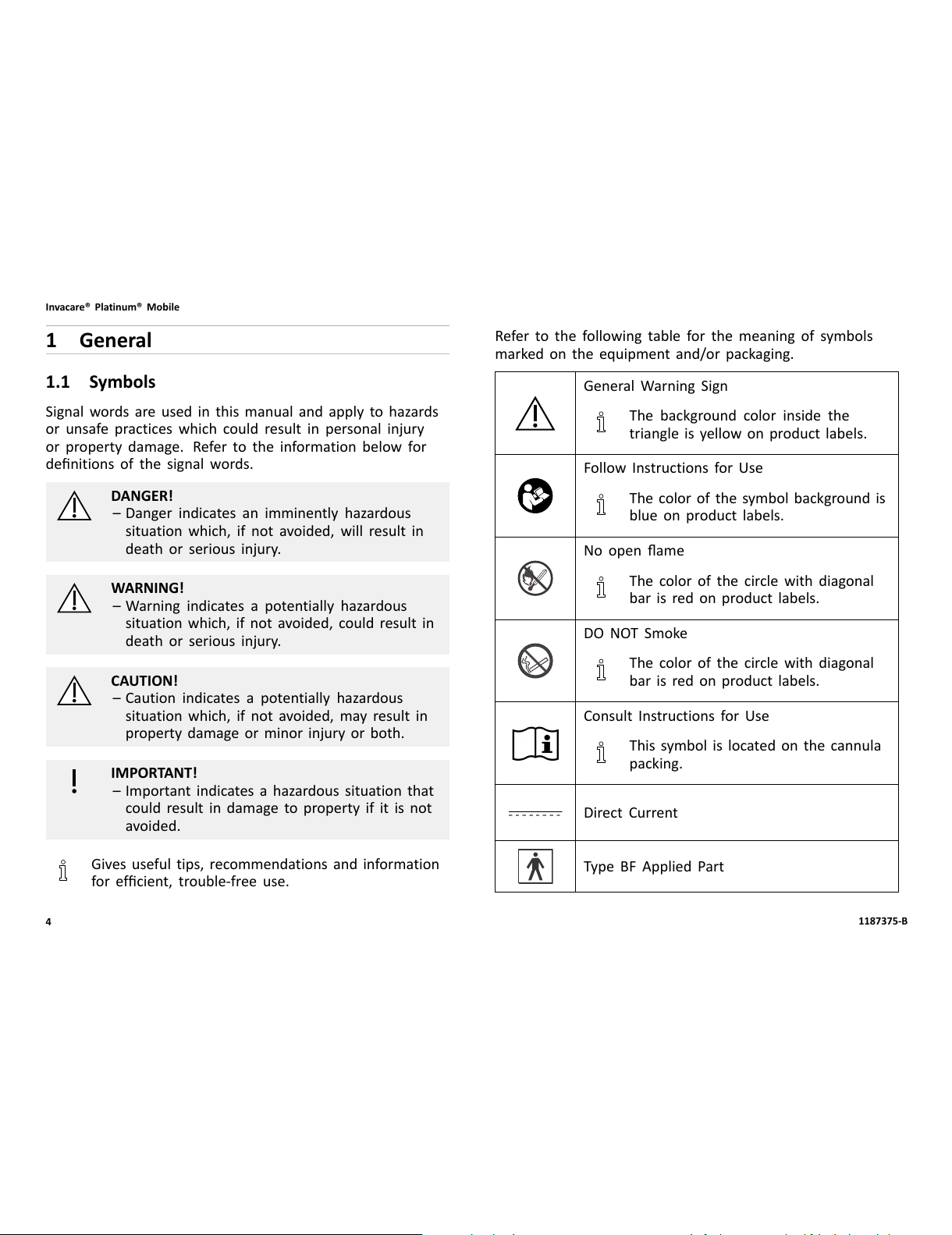

1General
1.1Symbols
Signalwordsareusedinthismanualandapplytohazards
orunsafepracticeswhichcouldresultinpersonalinjury
orpropertydamage.Refertotheinformationbelowfor
denitionsofthesignalwords.
DANGER!
–Dangerindicatesanimminentlyhazardous
situationwhich,ifnotavoided,willresultin
deathorseriousinjury.
WARNING!
–Warningindicatesapotentiallyhazardous
situationwhich,ifnotavoided,couldresultin
deathorseriousinjury.
CAUTION!
–Cautionindicatesapotentiallyhazardous
situationwhich,ifnotavoided,mayresultin
propertydamageorminorinjuryorboth.
IMPORTANT!
–Importantindicatesahazardoussituationthat
couldresultindamagetopropertyifitisnot
avoided.
Givesusefultips,recommendationsandinformation
forefcient,trouble-freeuse.
Refertothefollowingtableforthemeaningofsymbols
markedontheequipmentand/orpackaging.
GeneralWarningSign
Thebackgroundcolorinsidethe
triangleisyellowonproductlabels.
FollowInstructionsforUse
Thecolorofthesymbolbackgroundis
blueonproductlabels.
Noopename
Thecolorofthecirclewithdiagonal
barisredonproductlabels.
DONOTSmoke
Thecolorofthecirclewithdiagonal
barisredonproductlabels.
ConsultInstructionsforUse
Thissymbolislocatedonthecannula
packing.
DirectCurrent
TypeBFAppliedPart
41187375-B
All manuals and user guides at all-guides.com

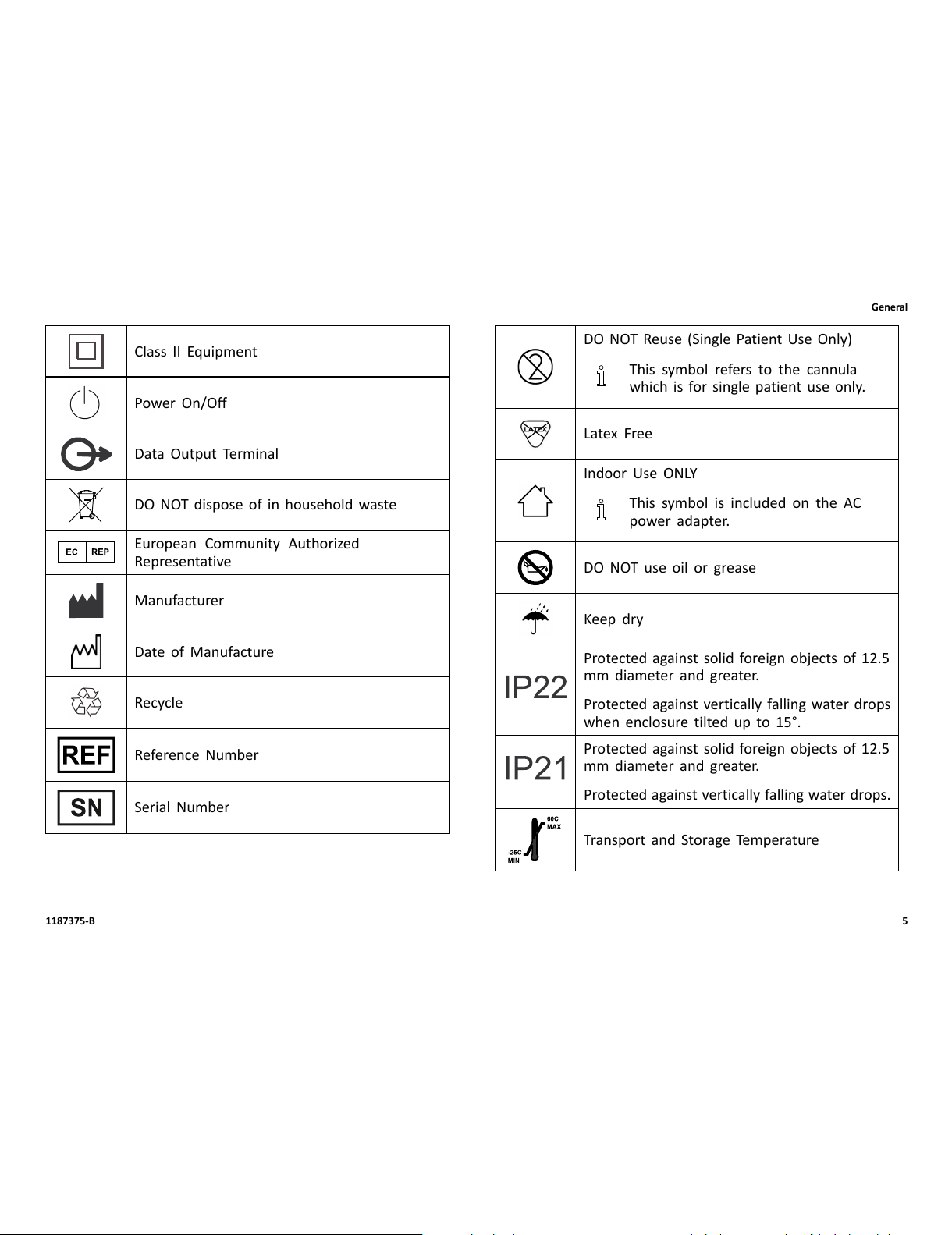

General
ClassIIEquipment
PowerOn/Off
DataOutputTerminal
DONOTdisposeofinhouseholdwaste
EuropeanCommunityAuthorized
Representative
Manufacturer
DateofManufacture
Recycle
ReferenceNumber
SerialNumber
DONOTReuse(SinglePatientUseOnly)
Thissymbolreferstothecannula
whichisforsinglepatientuseonly.
LatexFree
IndoorUseONLY
ThissymbolisincludedontheAC
poweradapter.
DONOTuseoilorgrease
Keepdry
Protectedagainstsolidforeignobjectsof12.5
mmdiameterandgreater.
Protectedagainstverticallyfallingwaterdrops
whenenclosuretiltedupto15°.
Protectedagainstsolidforeignobjectsof12.5
mmdiameterandgreater.
Protectedagainstverticallyfallingwaterdrops.
TransportandStorageTemperature
1187375-B5
All manuals and user guides at all-guides.com

Invacare®Platinum®Mobile
TransportandStorageHumidity
ThisproductcomplieswithDirective
93/42/EECconcerningmedicaldevices.
Thelaunchdateofthisproductisstatedin
theCEdeclarationofconformity.
74103
ElectricalSafetyAgencyCerticationMark
1.2Features
1.2.1ControlPanel
A
On/OffButton
Pressforonesecondtoturnconcentratoronoroff.
B
FlowSelectionButton
Presstoadjustthepulsedoxygenowtoyour
prescribedsetting.Theselectedowsettingis
shownonthedisplayscreen.RefertoAdjustingthe
PulseFlowSettinginUsageformoredetails.
C
DisplayBacklightButton
Pressoncetoilluminatethedisplayscreenfor5
seconds.
D
AudioOffButton
Presstomutetheaudiblesignal(beep)forboth
alarmsandstatusindications.Theblueindicator
lightnexttothebuttonilluminateswhenactivated.
Audiooffcanbeactivatedduringorpriortoan
alarmconditionoccurring.
E
DisplayScreen
Displaysinformationabouttheoperatingstatusof
theconcentrator.
F
AlarmIndicator
Theyellowindicatorlightatthecenterofthe
triangularsymbolilluminatestoindicateabnormal
operatingconditions.RefertoAlarmConditionsin
Troubleshootingformoredetails.
61187375-B
All manuals and user guides at all-guides.com
all-guides.com

General
G
BatteryGauge
Indicatesthechargestatusofthebattery(s).Refer
toReadingtheBatteryGaugeforInstalledand
UninstalledBattery(s)inSetupformoredetails.
H
ExternalPowerIndicator
Theorangeindicatorlightnexttotheplugsymbol
illuminateswhenanexternalpowersourceis
connectedtotheconcentrator .
I
BatteryCompartmentDoor
Usedtoaccesstheremovablebattery(s).
Not
Shown
AudibleSignal(Beep)
Indicatesachangeinoperatingstatusor
aconditionwhichrequirestheoperator’s
attention.
1.2.2Input/OutputConnections
AOxygenOutletPort
Usedtoconnectthenasalcannulatothe
concentrator.
BExternalPowerInputConnector
Usedtoconnectanexternalpowersourcetothe
concentrator.
CUSBPort
Usedforserviceonly.
1187375-B7
All manuals and user guides at all-guides.com

Invacare®Platinum®Mobile

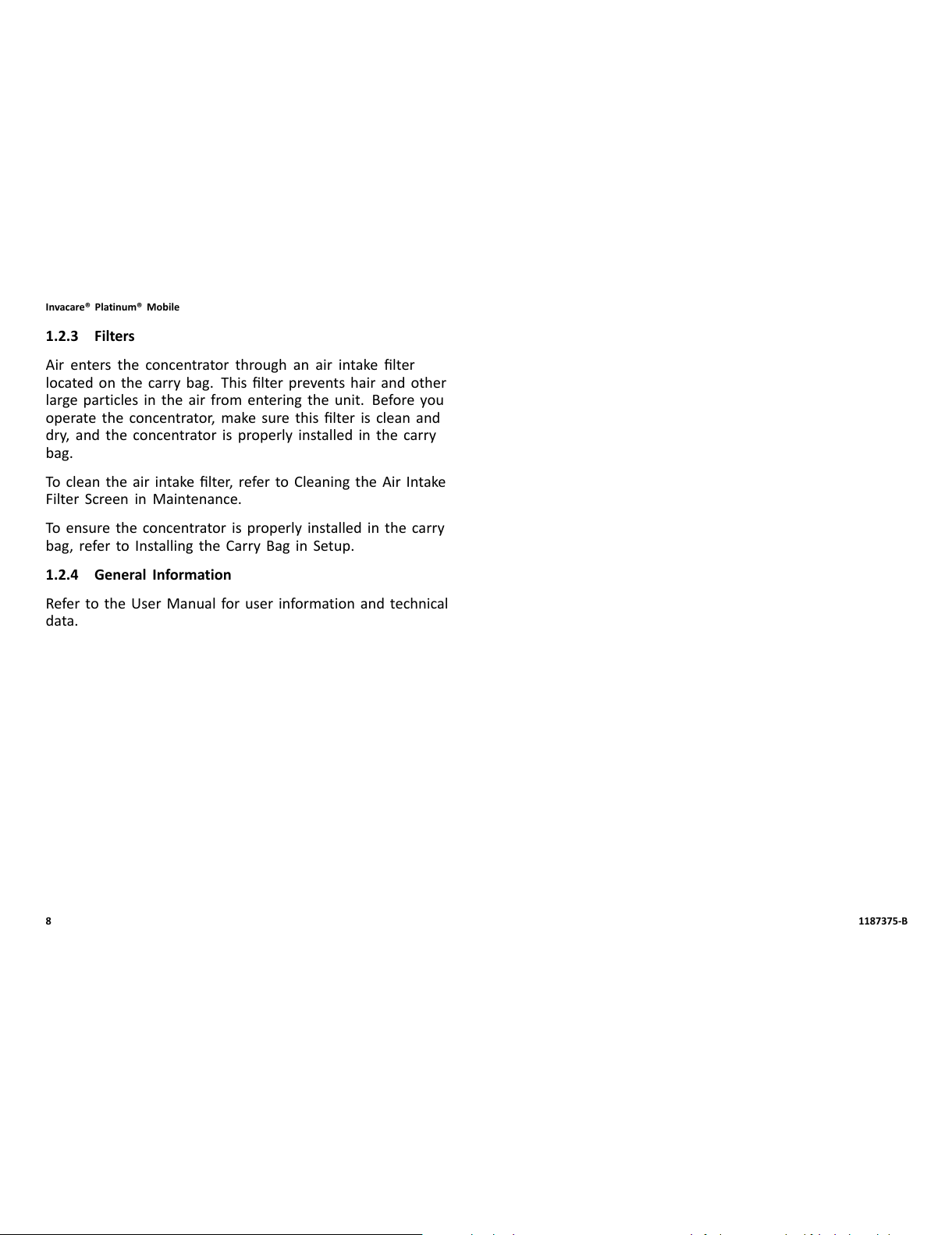

1.2.3Filters
Airenterstheconcentratorthroughanairintakelter
locatedonthecarrybag.Thislterpreventshairandother
largeparticlesintheairfromenteringtheunit.Beforeyou
operatetheconcentrator,makesurethislteriscleanand
dry,andtheconcentratorisproperlyinstalledinthecarry
bag.
Tocleantheairintakelter,refertoCleaningtheAirIntake
FilterScreeninMaintenance.
Toensuretheconcentratorisproperlyinstalledinthecarry
bag,refertoInstallingtheCarryBaginSetup.
1.2.4GeneralInformation
RefertotheUserManualforuserinformationandtechnical
data.
81187375-B
All manuals and user guides at all-guides.com

Safety

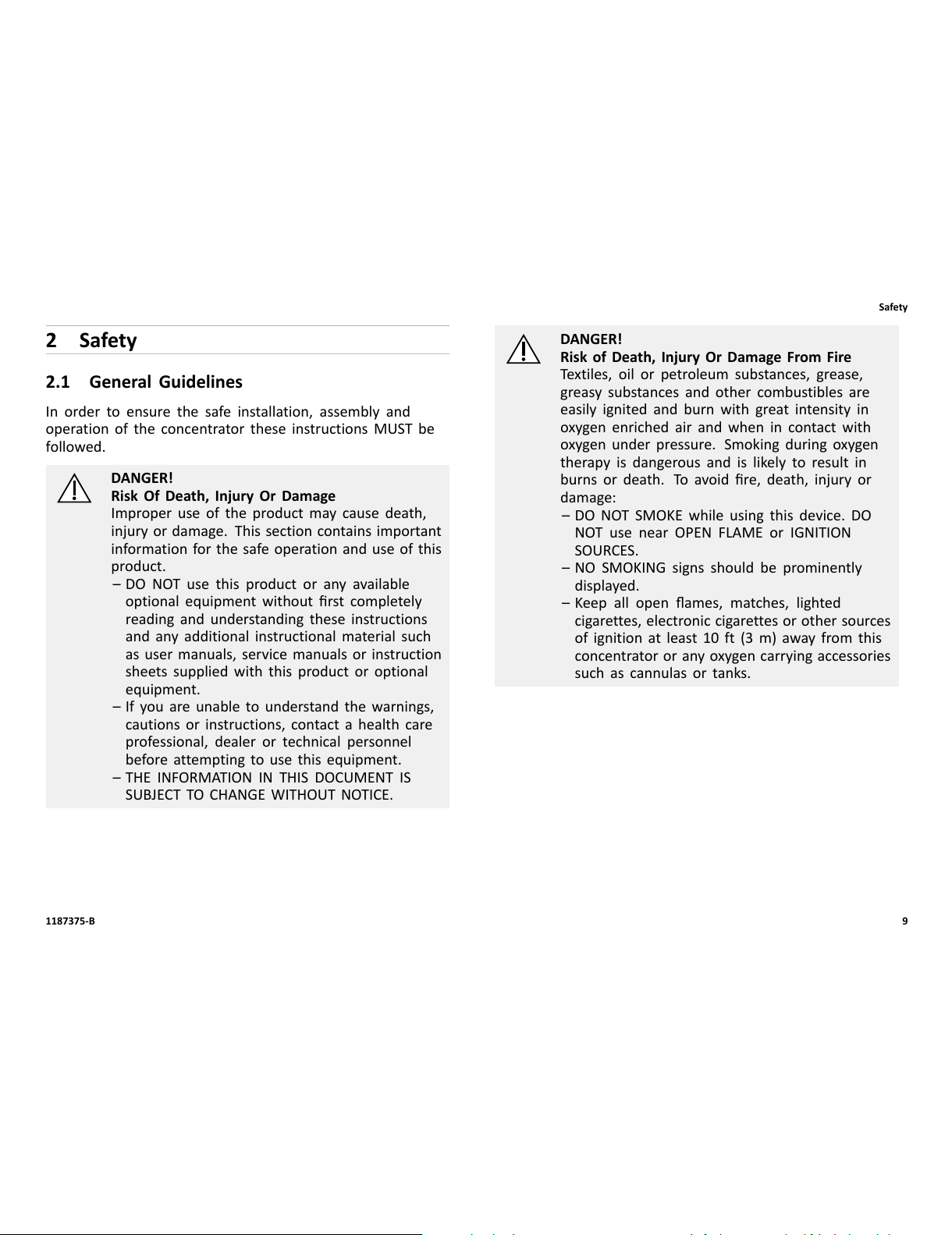

2Safety
2.1GeneralGuidelines
Inordertoensurethesafeinstallation,assemblyand
operationoftheconcentratortheseinstructionsMUSTbe
followed.
DANGER!
RiskOfDeath,InjuryOrDamage
Improperuseoftheproductmaycausedeath,
injuryordamage.Thissectioncontainsimportant
informationforthesafeoperationanduseofthis
product.
–DONOTusethisproductoranyavailable
optionalequipmentwithoutrstcompletely
readingandunderstandingtheseinstructions
andanyadditionalinstructionalmaterialsuch
asusermanuals,servicemanualsorinstruction
sheetssuppliedwiththisproductoroptional
equipment.
–Ifyouareunabletounderstandthewarnings,
cautionsorinstructions,contactahealthcare
professional,dealerortechnicalpersonnel
beforeattemptingtousethisequipment.
–THEINFORMATIONINTHISDOCUMENTIS
SUBJECTTOCHANGEWITHOUTNOTICE.
DANGER!
RiskofDeath,InjuryOrDamageFromFire
Textiles,oilorpetroleumsubstances,grease,
greasysubstancesandothercombustiblesare
easilyignitedandburnwithgreatintensityin
oxygenenrichedairandwhenincontactwith
oxygenunderpressure.Smokingduringoxygen
therapyisdangerousandislikelytoresultin
burnsordeath.T oavoidre,death,injuryor
damage:
–DONOTSMOKEwhileusingthisdevice.DO
NOTusenearOPENFLAMEorIGNITION
SOURCES.
–NOSMOKINGsignsshouldbeprominently
displayed.
–Keepallopenames,matches,lighted
cigarettes,electroniccigarettesorothersources
ofignitionatleast10ft(3m)awayfromthis
concentratororanyoxygencarryingaccessories
suchascannulasortanks.
1187375-B9
All manuals and user guides at all-guides.com

Invacare®Platinum®Mobile
DANGER!
RiskofDeath,InjuryOrDamageFromFire
Textiles,oilorpetroleumsubstances,grease,
greasysubstancesandothercombustiblesare
easilyignitedandburnwithgreatintensityin
oxygenenrichedairandwhenincontactwith
oxygenunderpressure.Toavoidre,death,
injuryordamage:
–Avoidcreationofanysparknearoxygen
equipment.Thisincludessparksfromstatic
electricitycreatedbyanytypeoffriction.
–Useonlyoxygencompatiblewater-based
lotionsorsalvesbeforeandduringservicing.
Toverify,refertothelotion/salvecontainer
foroxygencompatiblewater-basedstatement.
Ifnecessary,contactthemanufacturer .DO
NOTuseanylubricantsonconcentratorunless
recommendedbyInvacare.
–Keeptheoxygentubing,cord,ACadapterand
concentratorawayfromheatedorhotsurfaces
includingspaceheaters,stoves,andsimilar
electricalappliances.
–Makesureconcentratorisoffwhennotinuse.
WARNING!
RiskOfInjuryOrDamage
–Invacareproductsarespecicallydesigned
andmanufacturedforuseinconjunction
withInvacareprovidedorInvacarespecied
accessories.Anyotheraccessorieshave
notbeentestedbyInvacareandarenot
recommendedforusewithInvacareproducts.
–Nomodicationofthisequipmentisallowed.
WARNING!
RiskofInjuryorDamage
Toavoidinjuryordamagewhichwillvoid
warranty:
–UseonlyInvacarespeciedpowersupplies.
DANGER!
RiskofDeath,Injury,fromElectricShock
Toreducetheriskofburns,electrocution,death
orinjurytopersons:
–DONOTcomeincontactwiththeconcentrator
whilewet.
–DONOTplaceorstoreconcentratorwhereit
candropintowaterorotherliquid.
–DONOTreachforconcentratorthathasfallen
intowater .UnplugIMMEDIATELY .
–DONOTblockaccesstopoweroutletneeded
tounplugtheACpowercord.
–DONOTusefrayedordamagedpowercords.
–DONOTuseACpoweradapterifitshousingis
crackedorseparated.
101187375-B
All manuals and user guides at all-guides.com

Safety
WARNING!
RiskofDeath,InjuryorDamage
Topreventinjuryordamagefromcordmisuse:
–DONOTmoveorrelocateconcentratorby
pullingonthecord.
–DONOTuseextensioncordswithACpower
adaptersprovided.
–Properlystoreandpositionelectricalcords
and/ortubingtopreventatrippingand
strangulationhazards.
WARNING!
RiskofInjuryorDamage
Asasafetyfeature,thisappliancemayhavea
polarizedplug(onebladeiswiderthantheother).
Toavoidinjuryordamagefromelectricalshock:
–Thisplugwilltinapolarizedoutletonlyone
way.Iftheplugdoesnottfullyintheoutlet,
reversetheplug.Ifitstilldoesnott,contact
aqualiedelectrician.
–DONOTalterthepluginanyway.
–DONOTuseifthecordorplugaredamaged.
Callaqualiedelectricianforrepair .
WARNING!
RiskofInjuryorDamage
Topreventdamagefromliquidingress:
–NEVERdroporinsertanyobjectorliquidinto
anyopening.
–DONOTuseifcabinetofconcentratoror
housingofACpoweradapteriscrackedor
separated.
WARNING!
RiskofInjuryorDamage
Toavoidinjuryordamagefromairborne
pollutantsand/orfumesandforoptimal
performance:
–Locateandpositiontheconcentratorinawell
ventilatedspacesothattheairintakeandthe
airexhaustopeningsarenotobstructed.
–NEVERblocktheairopeningsofthe
concentratororplaceitonasoftsurface,such
asabedorcouch,wheretheairopeningmay
beblocked.
–Keeptheopeningsfreefromlint,hairand
similarforeignitems.
–Keepconcentratoratleast12in(30.5cm)away
fromwalls,draperiesandfurniture.
–DONOTuseinpresenceofpollutants,smoke
orfumes,ammableanesthetics,cleaning
agentsorchemicalvapors.
1187375-B11
All manuals and user guides at all-guides.com
all-guides.com

Invacare®Platinum®Mobile
2.2RadioFrequencyInterference
MedicalElectricalEquipmentneedstobeinstalledandused
accordingtotheEMCinformationinthismanual.
Thisequipmenthasbeentestedandfoundtocomplywith
EMClimitsspeciedbyIEC/EN60601-1-2.Theselimits
aredesignedtoprovideareasonableprotectionagainst
electromagneticinterferenceinatypicalhomehealthcare
environment.
PortableandmobileRFcommunicationsequipmentcan
affecttheoperationofthisequipment.Useofthis
equipmentadjacenttoorstackedwithotherequipment
shouldbeavoidedasitcouldresultinimproperoperation.
Theconcentratoroperationshouldbeobservedtoverify
normaloperationinthepresenceofsuchequipment.
Otherdevicesmayexperienceinterferencefromeven
thelowlevelsofelectromagneticemissionspermittedby
theabovestandards.Todetermineiftheemissionsfrom
theconcentratorarecausingtheinterference,turnthe
concentratoroff.Iftheinterferencewiththeotherdevice(s)
stops,thentheconcentratoriscausingtheinterference.In
suchrarecases,interferencemaybereducedorcorrected
byoneofthefollowingmeasures:
•Reposition,relocate,orincreasetheseparationbetween
theequipment.
•Connecttheequipmentintoanoutletonacircuit
differentfromthattowhichtheotherdevice(s)is
connected.
RefertoElectromagneticCompliance(EMC)inTechnical
Dataforadditionalinformation.
121187375-B
All manuals and user guides at all-guides.com

Setup
3Setup
3.1ViewingtheDateandTime
Thisproceduredisplaysthedateandtime.
TheconcentratormustbeOffandconnectedto
externalpowertoperformthisprocedure.
SampleDateandTimeDisplayScreen
1.Ensureunitisoffandconnectedtoanexternalpower
source.
2.PressandholdthedisplaybacklightbuttonC.
After5secondsthedateandtimeareshownon
thedisplayscreenB.
3.Pressthedisplaybacklightbuttontocancelviewingthe
dateandtime.
3.2ChangingtheDateandTime
Thisproceduredescribestheprocesstochangethe
dateandtime.
TheconcentratormustbeOffandconnectedto
externalpowertoperformthisprocedure.
Thetimeisdisplayedtothenearestsecond.The
timeissettothenearestminute.
Theformatofthedateandtimearedependent
ontheselecteddisplaylanguage.ForEnglish,the
dateismm/dd/yyyyandtimeishh:mm:ssAM/PM.
ForlanguagesotherthanEnglish,thedateis
dd/mm/yyyyandtimeishh:mm:ss,wherehh=24
hour.
SampleDateandTimeDisplayScreens
FormatforEnglishFormatforOtherLanguages
ExceptEnglish
1187375-B13
All manuals and user guides at all-guides.com

Invacare®Platinum®Mobile
1.Ensureunitisoffandconnectedtoanexternalpower
source.
2.PressandholdthedisplaybacklightbuttonC.
After5secondsthedateandtimeareshownon
thedisplayscreenB.
3.Whilethedateandtimeareshownonthedisplay
screen,pressandreleasethepowerbuttonA.
Pressingthepowerbuttonactivatesthedate
andtimechangemode.
Theselecteditemishighlighted.
4.PresstheowselectionbuttonDtoincreasethe
selectedvaluebyoneuntilthemaximumisreachedand
thenrollsovertothelowestvalue.
5.Pressthedisplaybacklightbuttontodecreasethe
selectedvaluebyoneuntiltheminimumisreachedand
thenrollsovertothehighestvalue.
6.Pressthepowerbuttontohighlightthenextitem.
7.Presstheaudiooff(mute)buttonEtohighlightthe
previousitem.
141187375-B
All manuals and user guides at all-guides.com

Setup

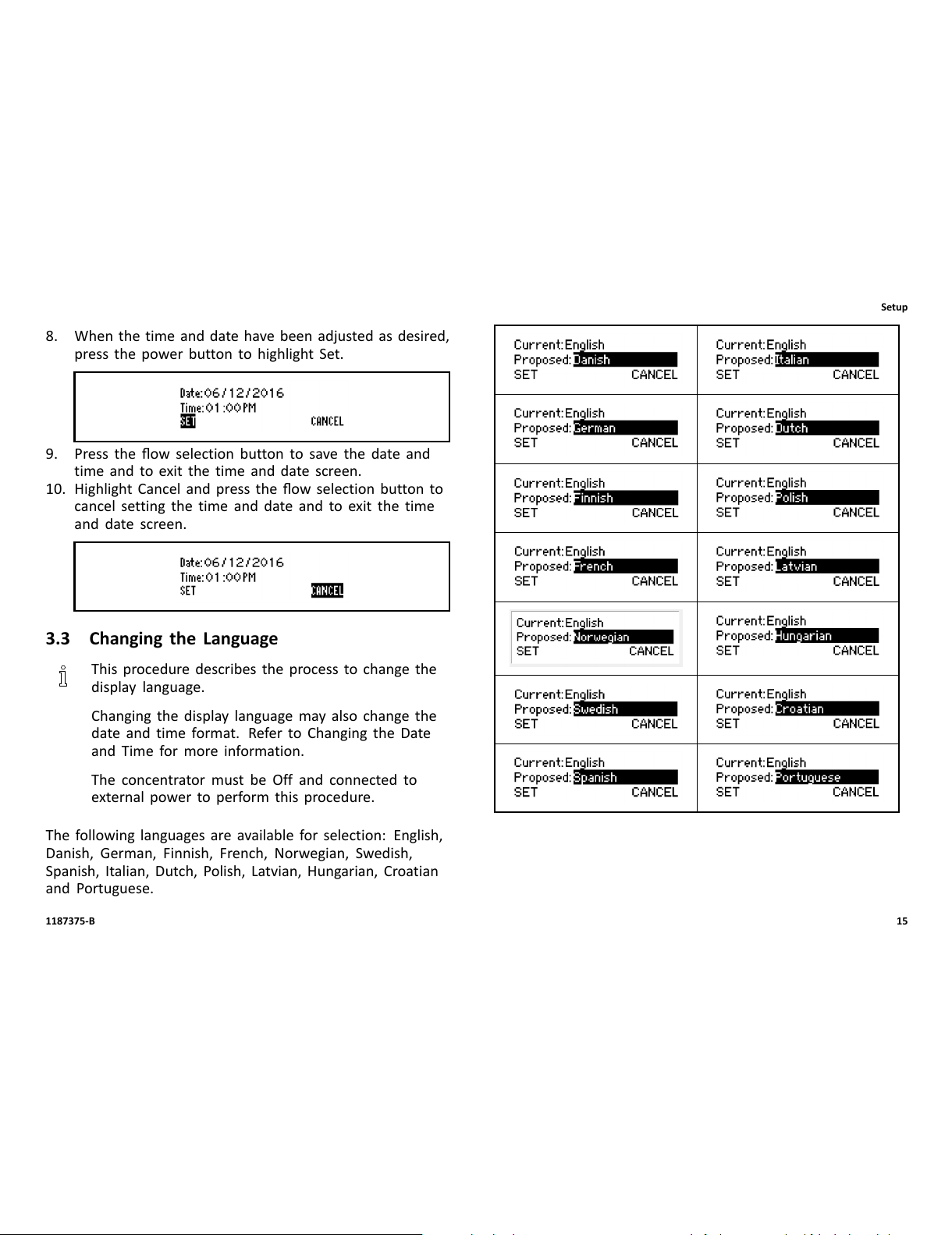

8.Whenthetimeanddatehavebeenadjustedasdesired,
pressthepowerbuttontohighlightSet.
9.Presstheowselectionbuttontosavethedateand
timeandtoexitthetimeanddatescreen.
10.HighlightCancelandpresstheowselectionbuttonto
cancelsettingthetimeanddateandtoexitthetime
anddatescreen.
3.3ChangingtheLanguage
Thisproceduredescribestheprocesstochangethe
displaylanguage.
Changingthedisplaylanguagemayalsochangethe
dateandtimeformat.RefertoChangingtheDate
andTimeformoreinformation.
TheconcentratormustbeOffandconnectedto
externalpowertoperformthisprocedure.
Thefollowinglanguagesareavailableforselection:English,
Danish,German,Finnish,French,Norwegian,Swedish,
Spanish,Italian,Dutch,Polish,Latvian,Hungarian,Croatian
andPortuguese.
1187375-B15
All manuals and user guides at all-guides.com

Invacare®Platinum®Mobile
1.Ensureunitisoffandconnectedtoanexternalpower
source.
2.Simultaneouslypressandholdthedisplaybacklight
buttonCandaudiooff(mute)buttonEforatleast
vesecondstoentertheCurrentLanguageScreen.
TheCurrentLanguageScreenwillcontinueto
displayuntilthebacklightbuttonispressed
againtoexitthisscreen.
3.PressandreleasetheOn/OffbuttonAtoenterthe
LanguageChangeScreen.
Theproposedlanguageselectionishighlighted.
4.PresstheowselectionbuttonDtomovetothenext
languageselection.PressthedisplaybacklightbuttonC
tomovetothepreviouslanguageselection.
5.Whenthedesiredlanguagehasbeenselected,pressthe
On/Offpowerbuttontohighlight“SET”.
161187375-B
All manuals and user guides at all-guides.com
all-guides.com

Setup
6.Presstheowselectionbuttontosetthedisplay
languagetothehighlightedlanguageandexitthe
LanguageChangeScreen.
Ifyoudonotwanttochangethedisplay
language,presstheOn/Offpowerbuttonto
highlight“CANCEL”.Thenpresstheowselection
buttontoexittheLanguageChangeScreen.
7.TheCurrentLanguageScreenwillappearonthedisplay
screen.Pressthedisplaybacklightbuttontoexitthe
CurrentLanguageScreen.
1187375-B17
All manuals and user guides at all-guides.com

Invacare®Platinum®Mobile

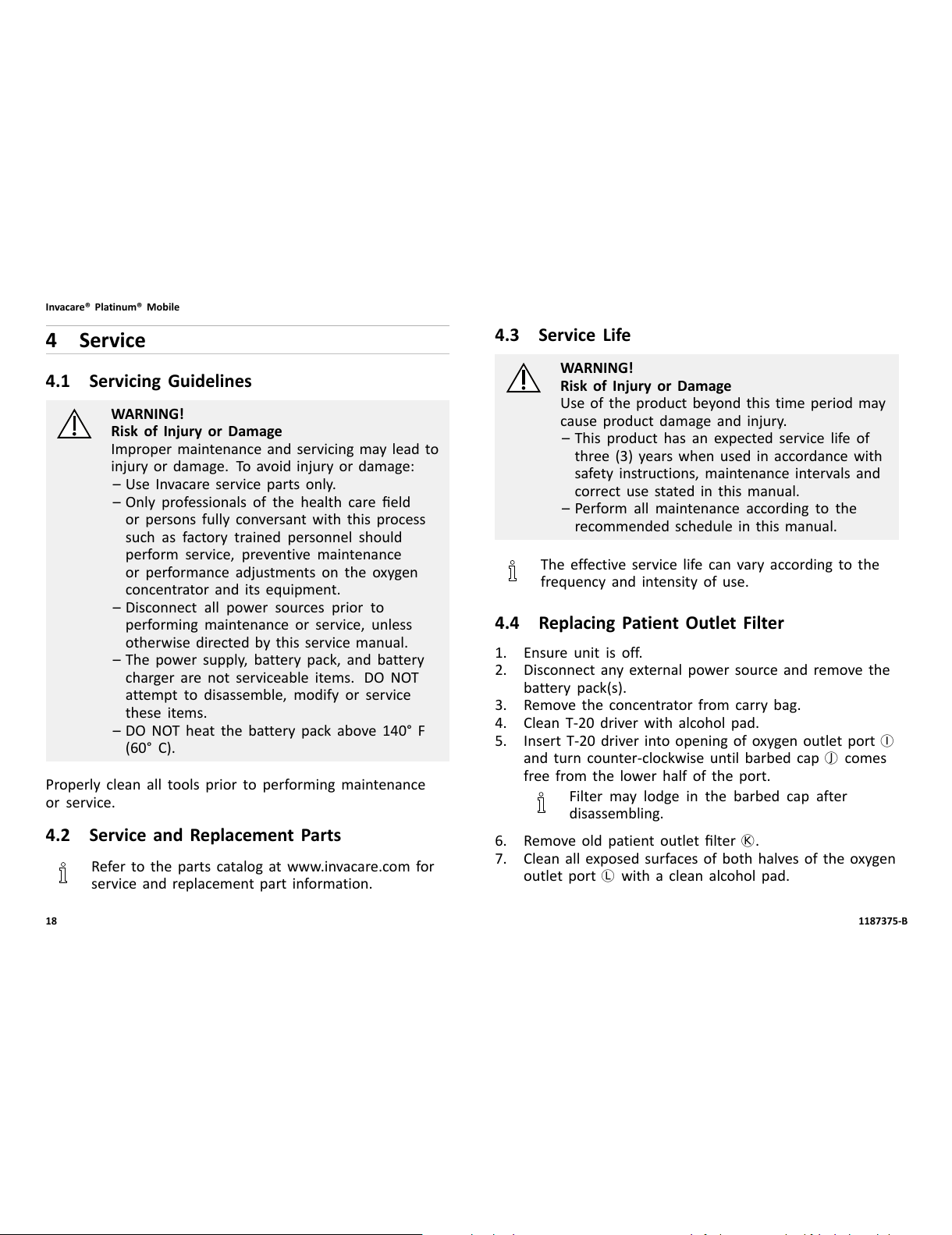

4Service
4.1ServicingGuidelines
WARNING!
RiskofInjuryorDamage
Impropermaintenanceandservicingmayleadto
injuryordamage.Toavoidinjuryordamage:
–UseInvacareservicepartsonly.
–Onlyprofessionalsofthehealthcareeld
orpersonsfullyconversantwiththisprocess
suchasfactorytrainedpersonnelshould
performservice,preventivemaintenance
orperformanceadjustmentsontheoxygen
concentratoranditsequipment.
–Disconnectallpowersourcespriorto
performingmaintenanceorservice,unless
otherwisedirectedbythisservicemanual.
–Thepowersupply,batterypack,andbattery
chargerarenotserviceableitems.DONOT
attempttodisassemble,modifyorservice
theseitems.
–DONOTheatthebatterypackabove140°F
(60°C).
Properlycleanalltoolspriortoperformingmaintenance
orservice.
4.2ServiceandReplacementParts
Refertothepartscatalogatwww.invacare.comfor
serviceandreplacementpartinformation.
4.3ServiceLife
WARNING!
RiskofInjuryorDamage
Useoftheproductbeyondthistimeperiodmay
causeproductdamageandinjury.
–Thisproducthasanexpectedservicelifeof
three(3)yearswhenusedinaccordancewith
safetyinstructions,maintenanceintervalsand
correctusestatedinthismanual.
–Performallmaintenanceaccordingtothe
recommendedscheduleinthismanual.
Theeffectiveservicelifecanvaryaccordingtothe
frequencyandintensityofuse.
4.4ReplacingPatientOutletFilter
1.Ensureunitisoff.
2.Disconnectanyexternalpowersourceandremovethe
batterypack(s).
3.Removetheconcentratorfromcarrybag.
4.CleanT-20driverwithalcoholpad.
5.InsertT-20driverintoopeningofoxygenoutletportI
andturncounter-clockwiseuntilbarbedcapJcomes
freefromthelowerhalfoftheport.
Filtermaylodgeinthebarbedcapafter
disassembling.
6.RemoveoldpatientoutletlterK.
7.Cleanallexposedsurfacesofbothhalvesoftheoxygen
outletportLwithacleanalcoholpad.
181187375-B
All manuals and user guides at all-guides.com

Service
8.Installnewpatientoutletlterintotheundersideof
thebarbedcap.
Gentlypresssealinplaceagainstthesealing
surface.Becarefulnottorupturethelter
element.
9.CleanT-20driverwithalcoholpad.
10.ReinstallbarbedcapandhandtightenwithT-20driver
untilthebarbedcaptsrmlyagainstthelowerhalf
oftheoxygenoutletport.
Becarefulnottocrossthethreadswhenstarting
toinstallthecap.
11.Reinstallunitintocarrybag.
12.Reinstallbatterypack(s).
13.Closethebatterycompartmentdoor .
14.Testtheconcentratorfunction.RefertoFunctionTest
inMaintenance.
4.5ReplacingDCPowerCableFuse
WARNING!
RiskofInjuryorDamage
–EnsurethattheDCpowercableisdisconnected
fromDCpower.
–DONOTreplacefuseiftheDCpowercableis
hot.
OnlyusefusesprovidedbyInvacare.
TheDCpowercabledoesnotworkunlessitis
assembledcorrectly.
–Whenreplacingthefuse,donotloseany
ofthesmallpiecesandmakesuretheyare
reassembledcorrectly.
1187375-B19
All manuals and user guides at all-guides.com

Invacare®Platinum®Mobile
1.UseplierstounscrewandremovetheendpieceE
fromtheDCpowercableF.
ThetipGwillcomeoffaswell.
2.RemovetheexistingfuseHfromtheDCpowercable.
ThespringImaycomeoutoftheDCpower
cablewhenthefuseisremoved.
3.EnsurethespringisinstalledintotheDCpowercable.
4.SeatthefuseintothetipG.
5.PlacethetipintotheendpieceE.
6.Slidetheassemblyoffuse,tipandendpieceintothe
DCpowercable.
7.TightlyscrewtheendpieceontotheDCpowercable.
8.Ensurepropercablefunction.
4.6ReplacingtheBatteryPullRing
1.Lifttheroundedendoftheexistingpullring.
2.Slidetheexistingpullringoutofitsmount.
201187375-B
All manuals and user guides at all-guides.com
