IPC CT 71 User manual

CT51 - CT71
Consultare attentamente questo manuale prima di procedere a qualsiasi intervento sulla macchina
Read this manual carefully before carrying out any work on the machine
Lire attentivement ce manuel avant toute intervention sur la machine
Vorliegendes Handbuch vor jedem Eingri󰀨 an der Maschine aufmerksam durchlesen
Consulte detenidamente este manual antes de llevar a cabo cualquier trabajo en la máquina
Konsulter denne håndboken nøye før du går i gang med noen som helst type inngrep på maskinen
Raadpleeg deze handleiding aandachtig alvorens met enige werkzaamheid aan de machine te beginnen
Consulte atentamente este manual antes de efectuar qualquer intervenção na máquina
Läs noggrant igenom denna handbok innan du utför något som helst ingrepp på maskinen
Прочетете внимателно това ръководство, преди да започнете работа с машината
Внимательно ознакомьтесь с данной инструкцией до проведения любой работы с машиной
Læs denne brugsanvisning omhyggeligt, inden du udfører arbejde på maskinen
Před jakoukoli manipulací se strojem si nejdříve pozorně přečtěte tento návod
Makine ile herhangi bir işlem yapmadan önce bu kılavuzu dikkatle okuyun
Pozorno preberite to navodilo za uporabo, preden se lotite kakršnega koli poseganja v stroj
Pažljivo pročitajte ovaj priručnik prije izvođenja bilo kakvih radnji na uređaju.
A géppel történő munkavégzést megelőzően gyelmesen olvassa el ezt az útmutatót
Przed rozpoczęciem pracy z urządzeniem należy uważnie przeczytać niniejszy podręcznik
Citiți cu atenție acest manual înainte de a efectua orice operațiuni asupra mașinii
Tento návod si pozorne prečítajte pred každým zásahom na stroji.
(IT) MANUALE ISTRUZIONI PER L’USO
(EN) OPERATOR’S MANUAL
(FR) MANUEL D’INSTRUCTIONS
(DE) BEDIENUNGSANLEITUNG
(ES) MANUAL DE INSTRUCCIONES
(NO) BRUKERHÅNDBOK
(NL) GEBRUIKERSHANDLEIDING
(PT) MANUAL DE UTILIZAÇÃO
(SE) INSTRUKTIONSBOK
(RU) РУКОВОДСТВО ОПЕРАТОРА
(BG) РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ
(DK) BETJENINGSMANUAL
(CZ) NÁVOD PRO OBSLUHU
(TR) KULLANIM KILAVUZU
(SL) PRIROČNIK Z NAVODILI ZA UPORABO
(HR) PRIRUČNIK ZA KORIŠTENJE
(HU) HASZNÁLATI ÚTMUTATÓ
(PL) PODRĘCZNIK OPERATORA
(RO) MANUALUL OPERATORULUI
(SK) NÁVOD NA POUŽITIE

ENGLISH
ENGLISH
(Translation of original instructions)
TECHNICAL CHARACTERISTICS CT51............................................................................................................................. 3
TECHNICAL CHARACTERISTICS CT71............................................................................................................................. 4
SAFETY SYMBOLS.............................................................................................................................................................. 5
MACHINE DIMENSIONS...................................................................................................................................................... 5
GENERAL INFORMATION................................................................................................................................................... 6
Purpose of this manual .................................................................................................................................................................................................. 6
Identifying the machine .................................................................................................................................................................................................. 6
Documentation provided with the machine .................................................................................................................................................................... 6
TECHNICAL INFORMATION................................................................................................................................................ 7
General description ........................................................................................................................................................................................................ 7
Key ................................................................................................................................................................................................................................. 7
Hazard areas.................................................................................................................................................................................................................. 7
Accessories .................................................................................................................................................................................................................... 7
SAFETY INFORMATION ...................................................................................................................................................... 8
Safety precautions ......................................................................................................................................................................................................... 8
MOVEMENT AND INSTALLATION ..................................................................................................................................... 11
Lifting and transporting the packaged machine ............................................................................................................................................................ 11
Delivery checks ............................................................................................................................................................................................................. 11
Unpacking: .................................................................................................................................................................................................................... 11
Batteries (Battery version)............................................................................................................................................................................................. 11
Batteries: preparation .................................................................................................................................................................................................... 11
Batteries: installation and connection............................................................................................................................................................................ 12
Batteries: removal ......................................................................................................................................................................................................... 12
Choosing a battery charger ........................................................................................................................................................................................... 12
Preparing the battery charger ...................................................................................................................................................................................... 12
Squeegee installation and adjustment .......................................................................................................................................................................... 13
Squeegee adjustment ................................................................................................................................................................................................... 13
Brush installation ........................................................................................................................................................................................................... 13
Lifting and transporting the machine ............................................................................................................................................................................. 14
Quick head change (BATTERY POWERED VERSIONS ONLY) .................................................................................................................................. 14
PRACTICAL GUIDE FOR THE OPERATOR....................................................................................................................... 15
Preparing the machine for work .................................................................................................................................................................................... 15
Controls ......................................................................................................................................................................................................................... 15
Working ......................................................................................................................................................................................................................... 17
Some useful tips to get the most from your scrubber drier ........................................................................................................................................... 17
Emptying the collection tank ......................................................................................................................................................................................... 18
Emptying the water/detergent tank ............................................................................................................................................................................... 18
Emptying the roller head bin ......................................................................................................................................................................................... 18
Filling the water/detergent tank ..................................................................................................................................................................................... 18
Filling the Chem-Dose tank (accessory) ....................................................................................................................................................................... 18
Finishing work ............................................................................................................................................................................................................... 18
Moving the machine when not in operation................................................................................................................................................................... 18
MAINTENANCE INSTRUCTIONS....................................................................................................................................... 19
Maintenance - General rules ......................................................................................................................................................................................... 19
Cleaning the suction motor air lter............................................................................................................................................................................... 19
Cleaning the debris container ....................................................................................................................................................................................... 19
Cleaning the dirty water tank oat ................................................................................................................................................................................. 19
Cleaning the water/detergent tank lter ........................................................................................................................................................................ 19
Fuses: replacing ............................................................................................................................................................................................................ 20
Battery maintenance and charging ............................................................................................................................................................................... 20
Replacing the squeegee blades .................................................................................................................................................................................... 21
Periodic checks ............................................................................................................................................................................................................. 21
PERIODS OF INACTIVITY .................................................................................................................................................. 21
TROUBLESHOOTING......................................................................................................................................................... 22
DISPLAY ALARMS .............................................................................................................................................................. 23
TECHNICAL MENU CT51 - 71........................................................................................................................................... 24
2

ENGLISH
TECHNICAL CHARACTERISTICS CT51
Gross weight (GVW): maximum permitted weight of the machine at full load, ready for use, plus its net load. The gross weight of the vehicle includes,
where applicable, full clean water tanks, empty dirty water tanks (half full for recycling systems), empty dust collection sacks, hopper lled to rated
capacity, the largest recommended batteries, all accessories such as cables, pipes and hoses, detergents, sweepers and brushes.
Transport weight: weight of the machine for transport, which includes the batteries but excludes the options (for example, the driver’s cabin, the
FOPS, the second and third side brush, the front brush attachment), clean water (for scrubbers or combined machines) and the standard weight of
an operator (75 kg).
Data subject to variation without warning.
C55
115V
C55
230V B55 BT55 XP55 XP55R BT60 XP60 BT70 XP70 BT55 ECS
BT70
ECS
Cleaning width mm 530 530 530 530 530 550 600 600 685 685 530 685
Squeegee width mm 816 816 816 816 816 816 816 816 842 842 816 842
Cleaning capacity per hour m2/h 1850 1850 1850 2915 2915 3025 3316 3316 3767 3767
Number of brushes n°111112222212
Brush diameter mm 530 530 530 530 530 100 310 310 345 345 530 345
Maximum brush pressure gr/cm214,3 14,3 11,6 11,6 16,2 70,2 30 27,3 21,1 26,6
Brush rotation speed g/1° 155 155 150 150 150 1360 200 200 200 200 600 600
Brush motor power W450 450 400 400 400 850x2 400x2 400x2 400x2 400x2 600 450
Drive motor power W / / / 200 200 200 200 200 200 200 200 200
Maximum speed Km/h 3,5 3,5 3,5 5,5 5,5 5,5 5,5 5,5 5,5 5,5 5,5 5,5
Suction motor power W 450 450 380 380 380 380 380 380 380 380 380 380
Solution tank L 50 50 50 50 50 50 50 50 50 50 50 50
Dirty water tank L 50 50 50 50 50 50 50 50 50 50 50 50
Rear wheel diameter mm 200 200 200 200 200 200 200 200 200 200 200 200
Maximum slope %222222222222
Gross weight (GVW) Kg 219,4 227,1 227,1 235,1 235,1 232,6 232,6
Transport weight Kg 50 50 138 138 138 138 138 138 138 138 138 138
Number of batteries n° / / 2222222222
Battery voltage V / / 12 12 12 12 12 12 12 12 12 12
Individual battery capacity Ah (5h) / / 105 105 105 105 105 105 105 105 105 105
Power system voltage V 115V
60Hz
220 -
240V
50/60Hz
24 24 24 24 24 24 24 24 24 24
Machine dimensions mm
X=1327
Y=1033
Z=563
X=1327
Y=1033
Z=563
X=1327
Y=1033
Z=563
X=1327
Y=1033
Z=563
X=1327
Y=1033
Z=563
X=1288
Y=1033
Z=640
X=1279
Y=1033
Z=653
X=1279
Y=1033
Z=653
X=1297
Y=1033
Z=735
X=1297
Y=1033
Z=735
X=1327
Y=1033
Z=563
X=1297
Y=1033
Z=735
Battery compartment dimensions (length,
width, height) mm / /
360
x344
x300
360
x344
x300
360
x344
x300
360
x344
x300
360
x344
x300
360
x344
x300
360
x344
x300
360
x344
x300
360
x344
x300
360
x344
x300
Packed size (length, width, height) mm
1365
x695
x1146
1365
x695
x1146
1365
x695
x1146
1365
x695
x1146
1365
x695
x1146
1335
x780
x1146
1335
x780
x1146
1335
x780
x1146
1335
x780
x1146
1335
x780
x1146
1365
x695
x1146
1335
x780
x1146
Sound pressure - Annex DD (Emission of
acoustical noise) EN 60335-2-72: 2012
LpA
(dBA) 59 58 58 58 58 59 59 59 59 59
Measurement uncertainty K
(dBA) 2,5 2,5 2,5 2,5 2,5 2,5 2,5 2,5 2,5 2,5 2,5 2,5
Vibration level (hand) - IEC 60335-2-72 ahv
m/sec21,2 1,4 0,9 0,9 0,9 1,0 0,8 0,8 0,7 0,7 1,1 1,3
Measurement uncertainty, k m/sec20,6 0,7 0,5 0,5 0,5 0,5 0,4 0,4 0,3 0,3 0,6 0,7
Vibration level (body) - IEC 60335-2-72 HBV
m/sec2////////////
Measurement uncertainty, k m/sec2////////////
Maximum water and detergent temperature °C 55 55 55 55 55 55 55 55 55 55 55 55
3

ENGLISH
TECHNICAL CHARACTERISTICS CT71
Gross weight (GVW): maximum permitted weight of the machine at full load, ready for use, plus its net load. The gross weight of the vehicle includes,
where applicable, full clean water tanks, empty dirty water tanks (half full for recycling systems), empty dust collection sacks, hopper lled to rated
capacity, the largest recommended batteries, all accessories such as cables, pipes and hoses, detergents, sweepers and brushes.
Transport weight: weight of the machine for transport, which includes the batteries but excludes the options (for example, the driver’s cabin, the
FOPS, the second and third side brush, the front brush attachment), clean water (for scrubbers or combined machines) and the standard weight of
an operator (75 kg).
Data subject to variation without warning.
C55
115V
C55
230V B55 BT55 XP55 XP55R BT60 XP60 BT70 XP70 BT55 ECS
BT70
ECS
Cleaning width mm 530 530 530 530 530 550 600 600 685 685 530 685
Squeegee width mm 816 816 816 816 816 816 816 816 842 842 816 842
Cleaning capacity per hour m2/h 1850 2915 2915 3025 3316 3316 3767 3767 2915 3767
Number of brushes n°111112222212
Brush diameter mm 530 530 530 530 530 100 310 310 345 345 530 345
Maximum brush pressure gr/cm214,3 14,3 11,6 11,6 16,2 70,2 30 27,3 21,1 26,6 13,4 20,9
Brush rotation speed g/1° 155 155 150 150 150 1360 200 200 200 200 600 600
Brush motor power W450 450 400 400 400 850x2 400x2 400x2 400x2 400x2 600 450
Drive motor power W / / / 200 200 200 200 200 200 200 200 200
Maximum speed Km/h 3,5 3,5 3,5 5,5 5,5 5,5 5,5 5,5 5,5 5,5 5,5 5,5
Suction motor power W 450 450 380 380 380 380 380 380 380 380 380 380
Solution tank L 65 65 65 65 65 65 65 65 65 65 65 65
Dirty water tank L 70 70 70 70 70 70 70 70 70 70 70 70
Rear wheel diameter mm 200 200 200 200 200 200 200 200 200 200 200 200
Maximum slope %222222222222
Gross weight (GVW) Kg 235,2 242,9 242,9 250,9 250,9 248,4 248,4 246,2 251,8
Transport weight Kg 153 153 153 153 153 153 153 153 153 153
Number of batteries n° / / 2222222222
Battery voltage V / / 12 12 12 12 12 12 12 12 12 12
Individual battery capacity Ah (5h) / / 105 105 105 105 105 105 105 105 105 105
Power system voltage V 115V
60Hz
220 -
240V
50/60Hz
24 24 24 24 24 24 24 24 24 24
Machine dimensions mm 1327
x563
x1033
1327
x563
x1033
1327
x563
x1033
1327
x563
x1033
1327
x563
x1033
1288
x640
x1033
1279
x653
x1033
1279
x653
x1033
1297
x735
x1033
1297
x735
x1033
1327
x563
x1033
1297
x735
x1033
Battery compartment dimensions (length,
width, height) mm / / 360
x344
x300
360
x344
x300
360
x344
x300
360
x344
x300
360
x344
x300
360
x344
x300
360
x344
x300
360
x344
x300
360
x344
x300
360
x344
x300
Packed size (length, width, height) mm 1365
x695
x1146
1365
x695
x1146
1365
x695
x1146
1365
x695
x1146
1365
x695
x1146
1335
x780
x1146
1335
x780
x1146
1335
x780
x1146
1335
x780
x1146
1335
x780
x1146
1365
x695
x1146
1335
x780
x1146
Sound pressure - Annex DD (Emission of
acoustical noise) EN 60335-2-72: 2012
LpA
(dBA) / / 58 58 58 59 59 59 59
Measurement uncertainty K
(dBA) / / 2,5 2,5 2,5 2,5 2,5 2,5 2,5 2,5 2,5 2,5
Vibration level (hand) - IEC 60335-2-72 ahv
m/sec2/ / 0,9 0,9 0,9 1,1 1,1 1,1 0,9 0,9 1,1 1,3
Measurement uncertainty, k m/sec2/ / 0,5 0,5 0,5 0,6 0,6 0,6 0,5 0,5 0,6 0,7
Vibration level (body) - IEC 60335-2-72 HBV
m/sec2////////////
Measurement uncertainty, k m/sec2////////////
Maximum water and detergent temperature °C 55 55 55 55 55 55 55 55 55 55 55 55
4

ENGLISH
X-Y-Z: See “TECHNICAL SPECIFICATIONS” table
MACHINE DIMENSIONS
WARNING! RISK OF CUTTING
WARNING! RISK OF CRUSHING LIMBS
WARNING! RISK OF ABRASION
WARNING! RISK OF ENTANGLEMENT
WARNING! RISK OF ACID BURNS
WARNING! RISK OF BURNS
MAXIMUM SLOPE
OPERATOR’S MANUAL, OPERATING INSTRUCTIONS
READ THE OPERATOR’S MANUAL
DIRECT CURRENT SYMBOL
INSULATION CLASS, THIS CLASSIFICATION ONLY APPLIES TO
MACHINES POWERED BY BATTERIES.
EARTHING POINT.
EXTERNAL BATTERY CHARGER CONNECTION POINT.
DO NOT WASH THE MACHINE BY SPRAYING DIRECTLY
WITH WATER OR USING HIGH PRESSURE WATER JETS.
SAFETY SYMBOLS
AA
Y
X
YY
ZZ
XX
Z
5

ENGLISH
GENERAL INFORMATION
Purpose of this manual
This manual has been written by the Manufacturer and is an integral part of the machine1.
It denes the purpose for which the machine has been designed and constructed and contains all the information required by operators2.
In addition to this manual, which contains information for operators, other publications are available providing specic information for maintenance
personnel3.
The terms “right” and “left”, “clockwise” and “anti-clockwise” refer to the forward movement of the machine.
Constant compliance with the instructions provided in this manual guarantees the safety of the operator and the machine, ensures low running costs
and high quality results and extends the working life of the machine. Failure to follow these instructions may lead to injury to the operator or damage
to the machine, oor and environment.
To nd the topic that interests you more rapidly, consult the list of contents at the beginning of the manual.
Parts of the text requiring special attention are printed in bold and preceded by the symbols illustrated and described here.
! DANGER
Indicates the need for attention in order to avoid a series of consequences which could cause death or serious injury to personnel.
! WARNING
Indicates the need for attention in order to avoid a series of consequences which could cause damage to the machine or work environment
or nancial loss.
! INFORMATION
Very important instructions
In line with the company’s policy of constant product development and updating, the Manufacturer reserves the right to make modica-
tions without prior notice.
Although your machine may di󰀨er appreciably from the illustrations in this document, the correctness and validity of the instructions
contained in this manual are guaranteed.
Identifying the machine
The nameplate provides the following information:
► Model.
► Battery voltage.
► Total rated power.
► Rated current draw.
► Serial number.
► Year of manufacture.
► IP Index of Protection.
► Gross weight (GVW).
► Maximum negotiable gradient.
► Name of manufacturer.
Documentation provided with the machine
► Operator’s manual;
► Certicate of warranty;
► CE certicate of conformity.
1 The denition "machine" replaces the trade name covered by this manual.
2 Persons responsible for using the machine without performing any operations requiring precise technical skills.
3 Persons with experience, technical training and a knowledge of legislation and standards, able to perform all the necessary operations and to
recognise and avoid possible risks in handling, installation, use and maintenance of this machine.
Model :
Vac :
W :
A :
Hz :
Ser.N :
Date :
IP :
Kg :
6

ENGLISH
TECHNICAL INFORMATION
General description
This machine is a scrubber drier for washing and drying at, horizontal, smooth or moderately rough, even and obstacle free oors in civil and indus-
trial premises.
The scrubber drier spreads a solution of water and detergent in the correct concentration on the oor and then scrubs it to remove the dirt. By carefully
choosing the detergent and brushes (or abrasive disks) from the wide range of accessories available, the machine can be adapted to a wide range
of combinations of types of oor and dirt.
A suction system incorporated in the machine dries the oor after washing by means of the low pressure generated in the dirty water tank by the
suction motor. The squeegee connected to the tank collects the dirty water.
Key
The main parts of the machine are as follows:
► The tank (g.1-ref.1), contains and carries the mixture of clean water and cleaning product and collects the dirty water picked up from the
oor after washing.
► Control panel (g. 1-ref. 2).
► Head assembly (g. 1-ref. 3): the main element comprises the brushes/rollers which distribute the detergent solution onto the oor and re-
move the dirt.
► Squeegee assembly (g. 1-ref. 4): wipes and dries the oor by collecting the water.
Hazard areas
► Control panel: risk of injury from short circuits.
► Tank assembly: when using certain detergents, danger of irritation for eyes, skin, mucous membranes and respiratory tract and of asphyxia.
Danger represented by the dirt collected from the environment (germs and chemical substances). Danger of crushing between the two tanks
when the dirty water tank is replaced on top of the detergent tank.
► Washing head assembly: danger due to brush rotation.
► Front/rear wheels: risk of crushing between the wheels and chassis.
► Motor/battery compartment: danger of short circuit between the battery poles and presence of hydrogen during charging.
Accessories
► Soft, hard and abrasive brushes.
► Chem-Dose tank.
► S.P.E. battery charger CBHD3.
1
3
2
4
1
7

ENGLISH
SAFETY INFORMATION
Safety precautions
! DANGER
Read the “User Manual” carefully before start-up and use or before performing maintenance or any other work on the machine.
! WARNING
Rigorously follow all the instructions in this Manual (in particular those marked “Danger!” and “Warning!”). Also respect the labels applied
to the machine (see the “Safety symbols” chapter.
The Manufacturer declines all liability for injury to persons or damage to property resulting from failure to follow instructions.
► Only one operator may operate the machine.
► The machine must be used exclusively by persons trained in its use and/or who have demonstrated their ability and have been expressly
authorised to use it.
► The machine must not be used by minors.
► Always pay attention to other people, especially children, in the place where you are working.
► Children must be supervised to make sure they do not play with the machine.
► The machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of expe-
rience and knowledge, unless they are supervised by a person responsible for their safety and have received instruction in the use of the
machine.
► The machine must not be used for purposes other than those for which it was expressly designed.
► Scrupulously respect all safety standards and conditions applicable to the type of building in which the machine is to be operated (e.g.: phar-
maceutical companies, hospitals, chemical companies, etc.).
► This machine is intended for use in commercial applications, such as hotels, schools, hospitals, factories, shops and commercial premises.
► The machine must only be used indoors.
► Warning, the machine must be kept indoors at all times.
► The machine is designed for use at temperatures of between +4°C and +40°C. When the machine is not being used, the temperature range
is +0°C and +50°C.
►The machine is designed to operate at relative humidity levels
between 30% and 95%.
► The machine must operate at altitudes below 2000 m.

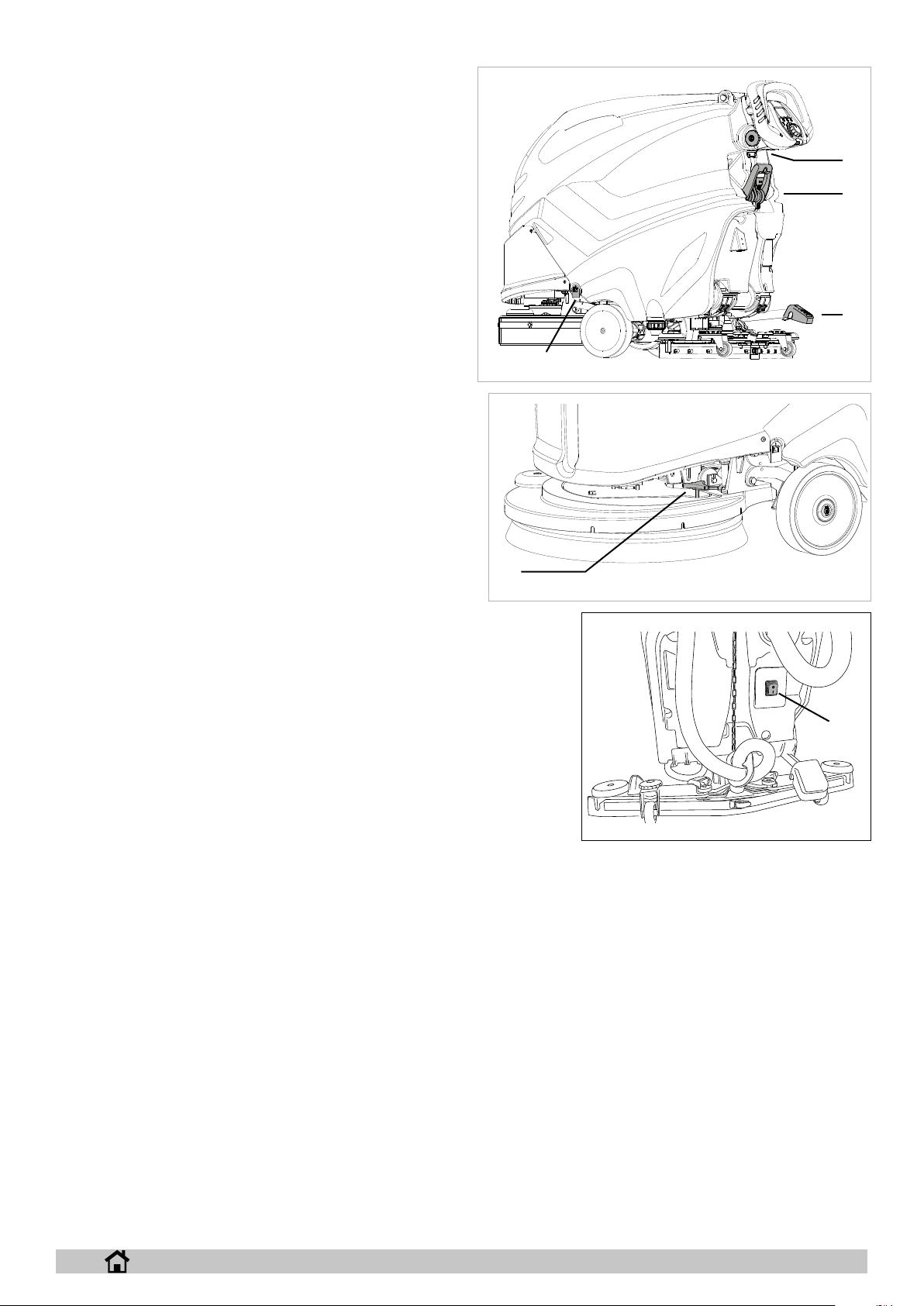

► When the tank needs to be lifted to access the compartment, its
contents must rst be emptied, then inserting the safety bracket
(g. 2-ref. 2) in position (g. 2-ref. 1) to prevent the tank from
accidentally closing again.
► Never use the machine to clean up ammable or explosive liq-
uids (e.g. petrol, fuel oil, etc.), acids or solvents (e.g. paint sol-
vents, acetone etc.) even if diluted.
► Do not use the machine in inadequate lighting, explosive atmos-
pheres, on public roads, to clean dirt that is hazardous to health
(dust, gas, etc.) or in unsuitable environments.
► Never clean up burning or incandescent objects.
► Never use to clean on slopes or ramps steeper than those mar-
ked on the machine.
► Never use on slopes or ramps steeper than those marked on the machine..
► If using the machine on gentle slopes, never drive sideways, rather keep the vehicle parallel to the direction of the slope. Always manoeuvre
with care and avoid reversing.
► Never park the machine on a slope.
► Never leave the machine unattended with the motor on. Before leaving it, turn the motors o󰀨 and make sure it cannot move accidentally by
disconnecting it from the power supply and removing the electronic key.
► Never use the machine to transport people or goods or to tow things.
► Do not tow the machine.
► Never rest objects of any weight on the machine for any reason.
► Never obstruct the ventilation and heat dispersion openings.
► Never remove, modify or circumvent safety devices.
► Numerous unpleasant experiences have shown that a wide range of personal objects may cause serious accidents. Before beginning work,
remove jewellery, watches, ties, etc..
2
1
2
8

ENGLISH
► The operator must always use personal protection devices: protective apron or overalls, non-slip waterproof shoes, rubber gloves, protective
goggles and ear protectors and mask to protect the respiratory tract.
► When using oor cleaning detergents, follow the instructions and warnings on the product labels.
► Do not use detergents that may produce hazardous reactions, vapours, heat, etc.
► Keep hands away from moving parts.
► Never wash the machine with water jets.
► Make sure the electrical characteristics of the machine (voltage, frequency, power) given on the nameplate correspond to those of the mains
electricity supply.
► Make sure the power sockets used for battery chargers and mains powered models are properly earthed and protected by a 2-pole thermal
magnetic switch with di󰀨erential circuit-breakers. In the event of a malfunction or failure, the earth connection provides the path of least
resistance for electrical current, minimising the risk of electric shock. Mains powered versions come with a three-wire cable and a three-pin
earthed plug for use in a suitable earthed socket. The earth wire is yellow and green. Never connect this wire to anything other than the earth
terminal of the socket. The plug must be plugged into a suitable socket, correctly installed and wired according to local standards. Incorrect
wiring or failure to connect the machine’s earth wire may lead to a risk of electric shock. If you are in doubt about the proper earthing of the
power socket, have it checked by a qualied electrician. Do not tamper with the plug supplied with the machine. Only use sockets that are
suitable for the machine’s mains plug. If the plug needs to be replaced, have the job done by a qualied electrician. Use of adapters with the
machine’s mains power plug is strictly forbidden.
► Battery charger: check the power cable regularly for damage; if the power cable is damaged, do not use the charger. To replace the cable,
contact a specialist service centre.
► Battery charger, when carrying out maintenance on the machine, disconnect both power supplies (AC and DC).
► When using cable models:
► Make sure to avoid crushing or tearing the power cable, and make sure the rotating brush does not come into contact with the power
cable.
► Check the power cable regularly. If damaged, do not under any circumstances use the machine. For replacement, contact a specialised
service centre.
► If the machine does not function as it should or has been dropped, damaged, left outdoors or has fallen in water, have it checked and
repaired by a specialist service centre.
► Do not move or transport the machine by pulling on its power cable. Do not use the power cable as a handle, close doors on it or pull it
over sharp objects or corners. Keep the power cable well clear of hot surfaces.
► Do not disconnect the machine by pulling on the power cable. Grip the plug, not the cable, to disconnect the machine.
► Never touch a machine with wet hands.
► Switch o󰀨 all controls before unplugging the machine.

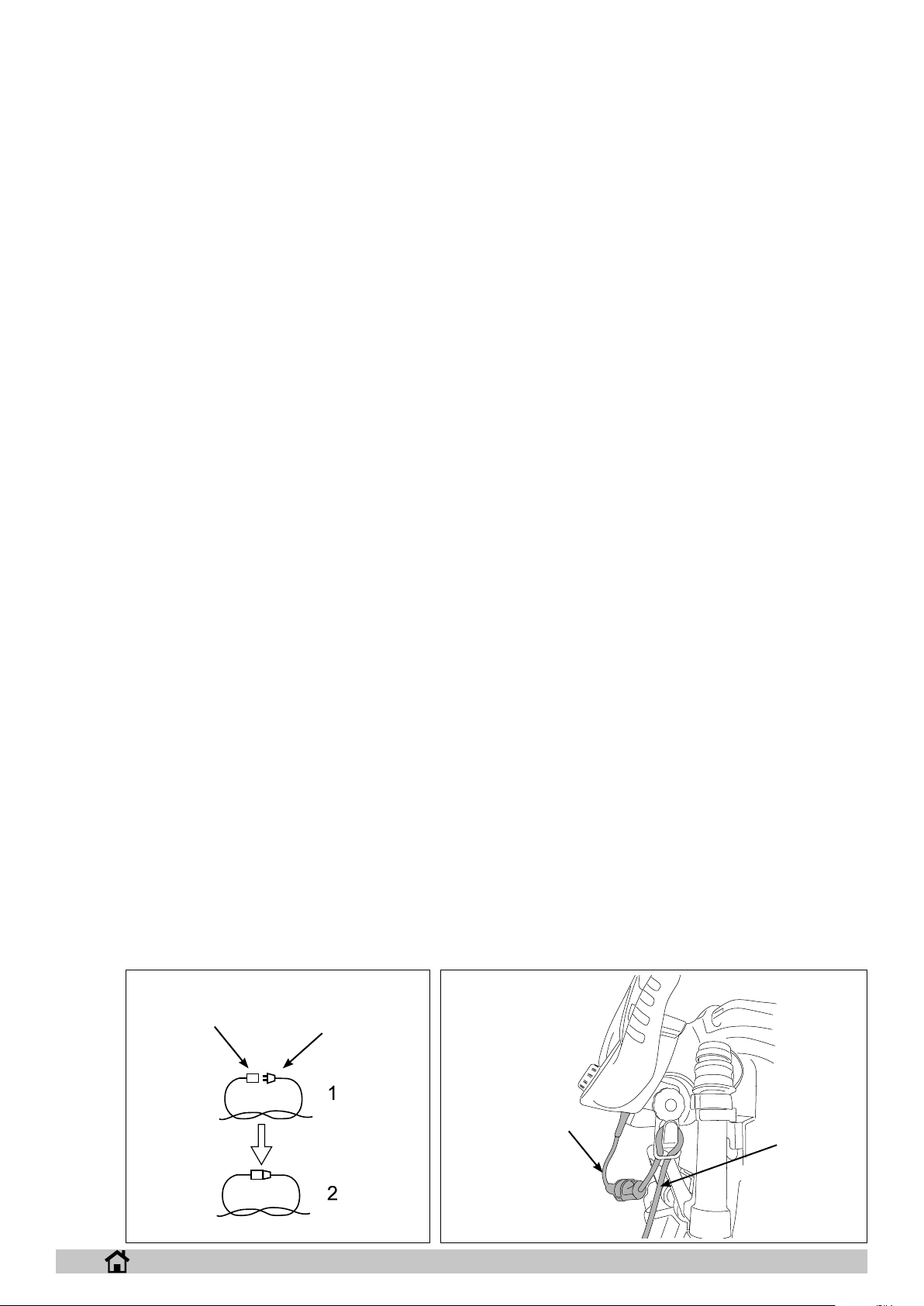

► To reduce the risk of personal injury caused by the machine’s power plug becoming loose in the extension, periodically check that the
connection is secure. Using an extension with a loose connection can cause overheating, smoke and even re. To reduce the risk of the
machine’s mains power plug becoming loose in the extension, tie a knot as shown (g. A), or secure the machine’s power cable to the
clip on the machine’s handle as shown (g. B).
Extension
Extension
Machine power
cable
Machine power
cable
A B
9

ENGLISH
► In the presence of particularly strong magnetic elds, assess the possible e󰀨ect on the control electronics.
► It is indispensable to respect the battery manufacturer’s instructions and applicable legislation.
► The batteries should always be kept clean and dry to avoid surface leakage current.
► Protect the batteries from impurities such as metal dust.
► Never rest tools on the batteries as they could cause short circuits leading to explosions.
► When using battery acid, always follow scrupulously the safety instructions given in the “Batteries: preparation “ section.
► If the machine is installed with lead batteries (WET), keep sparks, ames and hot materials away from the batteries. Explosive gases are
released during normal operation, in particular when charging.
► If the machine is installed with lead batteries (WET), highly explosive hydrogen gas is produced when charging the batteries. Lift the tank
(insert the safety bracket) during the entire battery charge cycle and only perform the procedure in areas that are well ventilated and far away
from naked ames.
► If deciding to no longer use the machine, it is recommended to remove the batteries and consign them to a waste collection centre, in com-
pliance with environmental safety standards in force.
► To charge the batteries, always use the battery charger supplied with the machine (if supplied), or one that meets the recommended values
shown in the technical specications.
► In the event of machine faults and/or malfunctions, switch it o󰀨 immediately (disconnecting it from the batteries/mains power supply); do not
try to repair it, rather contact the manufacturer’ service centre.
►All maintenance operations must be performed in an adequately lit place and only after disconnecting the machine from the power supply, in ca-
ble models by unplugging the machine from the socket, in battery models by disconnecting the battery connector; In cable models, the operator
must also be able to verify from any position that the machine remains unplugged from the mains socket while maintenance is being carried out.
► Only use original accessories and spare parts supplied by the Manufacturer to guarantee safe and problem-free operation of the machine.
► Never use parts removed from other machines or from other kits.
The machine is designed and constructed to provide ten years’ service from the date of manufacture shown on the nameplate. After this period, wheth-
er the machine has been used or not, it should be disposed of according to current legislation in the country in which it is used.
It should be disconnected from the power supply, emptied of all liquids and cleaned prior to disposal.
The machine is classied as WEEE-type special waste and is covered by the requirements of applicable environmental protection regulations
(2002/96/EC WEEE).
The machine must be disposed of separately from ordinary waste in compliance with current legislation and standards.
Also make sure that all parts of the machine that could represent a hazard, particularly to children, are made safe.
Alternatively, return the machine to the Manufacturer for a complete overhaul.
10

ENGLISH
MOVEMENT AND INSTALLATION
Lifting and transporting the packaged machine
! WARNING
During all lifting operations, make sure the packaged machine is rmly secured to avoid it tipping up or being accidentally dropped.
Always load/unload lorries in adequately illuminated areas.
The machine is packaged on a wooden pallet by the Manufacturer. It must be loaded onto the transporting vehicle using suitable equipment (see EC
Directive 2006/42 and subsequent amendments and/or additions). At destination, it must be unloaded using similar means.
A fork lift truck must always be used to lift the packaged body of the machine. Handle with care to avoid knocking or overturning the machine.
Delivery checks
When the carrier delivers the machine, make sure the packaging and machine are both whole and undamaged. If the machine is damaged, make sure
the carrier is aware of the damage and before accepting the goods, reserve the right (in writing) to request compensation for the damage.
Unpacking:
! WARNING
When unpacking the machine, the operator must be provided with the necessary personal protection devices (gloves, goggles, etc.) to limit
the risk of accident.
Proceed as follows to unpack the machine:
► Cut and remove the plastic straps using scissors or nippers.
► Remove the cardboard packaging.
►Remove the bags from the battery compartment and check their contents:
this Operator’s Manual, the maintenance manual, declaration of conformity, certicate of warranty;
battery bridges with terminals;
1 connector for battery charger.
2 electronic keys.
► Remove the metal brackets that secure the front wheels and the machine’s chassis to the pallet.
► Using a sloping ramp, push the machine backwards o󰀨 the pallet. The machine must not be raised.
► Unpack the brushes from their packaging.
► Clean the outside of the machine, taking care to respect safety regulations.
Once the machine is clear of the packaging, proceed to install the batteries (see the “Batteries: installation and connection” section).
The packaging may be kept as it can be reused to protect the machine if it is moved to another site or to a repair workshop.
Otherwise it must be disposed of in compliance with current legislation.
Batteries (Battery version)
Two di󰀨erent types of battery may be installed on these machines:
► Leak-proof tubular batteries (WET): these require regular checks on electrolyte level. When necessary, top up with distilled water until the
plates are covered. Do not over-ll (5 mm max. above the plates).
► Gel or AGM batteries: this type of battery requires no maintenance.
Battery technical characteristics must correspond to those listed in the Technical characteristics section. The use of higher capacity batteries could
seriously jeopardise manoeuvrability and lead to the drive motor overheating. Batteries with a lower capacity and weight will require charging more
frequently.
Batteries must be kept charged, dry and clean and the connections must be kept tight.
! INFORMATION
Follow the instructions below to congure the machine’s software for the type of batteries installed:
see the “Technical menu section“
Batteries: preparation
! DANGER
During battery installation and any type of battery maintenance, the operator must be provided with the necessary personal protection
devices (gloves, goggles overalls, etc.) to limit the risk of injury. Keep clear of naked ames, avoid short circuiting the battery poles, avoid
sparks and do not smoke.
11

ENGLISH
Batteries (WET) are normally supplied lled with acid and ready for use.
If the batteries are dry, proceed as follows before installing them in the machine:
Remove the caps and ll all elements with sulphuric acid solution specic for batteries until the plates are entirely covered (this requires at least a
couple of rells for each element). IF IN DOUBT, CONTACT THE DEALER.
Leave the batteries stand for 4-5 hours to allow air bubbles to come to the surface and the plates to absorb the electrolyte.
Make sure the level of electrolyte is still above the plates and if necessary top up with sulphuric acid solution.
Close the caps.
Install the batteries in the machine (following the procedure described below).
Charge the batteries before starting up the machine for the rst time. Follow the instructions in the “Battery maintenance and charging” section.
Batteries: installation and connection
! INFORMATION
Batteries must only be installed and connected by qualied technical personnel.
! DANGER
Remove the electronic key from the instrument panel before installing and connecting the batteries.
Make sure you connect the terminals marked with a “+” to the positive poles of the battery. Do not check the battery charge by sparking.
Meticulously follow the instructions given below as short circuiting the batteries could cause them to explode.
Rotate the tank backwards, then place the batteries in the compartment in the direction shown in the drawing on the tank.
Connect the wiring terminals to the battery poles, tighten the terminals to the poles and coat with vaseline.
Lower the tank into the working position.
When using the machine, follow the instructions below.
! WARNING
Never allow the batteries to become excessively at as this could damage them irreparably.
Batteries: removal
! INFORMATION
The batteries must be removed by qualied technical personnel.
! DANGER
When removing the batteries, the operator must be equipped with suitable personal protection devices (gloves, goggles, overalls, safety
shoes, etc.) to reduce the risk of injury. Make sure to remove the electronic key from the panel before proceeding. Keep away from naked
ames, do not short circuit the battery poles, do not cause sparks and do not smoke. Proceed as follows:
► Disconnect the battery cables and bridge terminals from the battery poles.
► If necessary, remove the devices xing the battery to the base of the machine.
► Lift the batteries from the compartment using suitable lifting equipment.
Choosing a battery charger
Make sure the battery charger is compatible with the batteries to be charged.
Tubular lead batteries (WET): it is recommended to use an electronic battery charger; always refer to the manufacturer and the battery charger manual
to conrm that the external battery charger is suitable.
Gel or AGM batteries: use a charger specic for this type of battery.
! DANGER
Use CE-marked battery chargers that comply with the relevant product standards (EN60335-2-29), featuring double or reinforced insulation
between input and output, and a SELV output circuit with a maximum output of 24 V and maximum charge current of 15 A
Preparing the battery charger
If you wish to use a battery charger not provided with the machine, you must t it with the connector supplied with the machine.
The connector supplied for the external battery charger is suitable for cables with a maximum cross-section of 16 mm2.
To install the connector, proceed as follows:
remove about 13 mm of protective sheath from the red and black wires of the battery charger;
insert the wires into the connector contacts and squeeze them forcefully with suitable pliers;
respect the polarity (red wire + black wire -) when inserting the wires into the connector.
12

ENGLISH
Squeegee installation and adjustment
Lower the squeegee using the lever (g. 3-ref. 1).
Lift the squeegee fastening levers (g. 3-ref. 3), insert the squeegee in the slots in the support (g. 3-ref. 2), then lower the fastening levers (g. 3-ref.
3) and insert the suction hose (g. 3-ref. 4) in the squeegee.
Squeegee adjustment
The squeegee blades scrape the lm of water and detergent from the oor and prepare the way for perfect drying. With time, the constant rubbing
makes the edge of the blade in contact with the oor rounded and cracked, reducing the drying e󰀩ciency and requiring it to be replaced. The state of
wear should be checked frequently.
For perfect drying, the squeegee must be adjusted in such a way that the edge of the rear blade bends during operation by about 45° with respect
to the oor at every point. The angle of the blades can be adjusted using the screw (g. 3-ref. 5), while the height of the squeegee from the oor can
be adjusted using the knobs (g. 4-ref. 6).
Brush installation
Automatic brush attachment, version “B”-“C” (Fig.21):
raise the machine head by pushing the head lift pedal down and to the left, then using the operation selector, select the
Brush control, rest the brush on the oor in front of the machine and centre it with the head. Lower the head by pushing
the head lift pedal down and to the right and activate the drive lever momentarily; the brush will be attached automatically
to the hub on the ange. If the operation is not successful, repeat by pressing the lever again and repeating the centring.
Use of abrasive/microbre disks: t the abrasive/microbre disk on the drive disk and perform the operations described
for tting the brush on the scrubber drier.
Automatic brush attachment, version “BT” (Fig.21):
raise the machine head by pushing the head lift pedal down and to the left, then using the operation selector, select the
Brush control, rest the brush on the oor in front of the machine and centre it with the head. Lower the head by pushing
the head lift pedal down and to the right, turn the selector to the “OFF” position, press the “SET” button once then press
the “+” button, the machine will complete the attachment sequence. Use of abrasive/microbre disks: t the abrasive/
microbre disk on the drive disk and perform the operations described for tting the brush on the scrubber drier.
Automatic brush attachment, version “XP”:
position the brush underneath the head, turn the selector to the “OFF” position, press the “SET” button once then press
the “+” button, the machine will complete the brush attachment sequence.
Automatic brush release, version “B-BT” (Fig.21): raise the machine head by pushing the head lift pedal down and
to the left, turn the selector to the “OFF” position, press the “SET” button once then press the “-” button, the machine will
complete the release sequence.
Automatic brush release, version “XP”:
turn the selector to the “OFF” position, press the “SET” button once then press the “-” button, the machine will complete
the release sequence.
Brush release, version ”C”
raise the machine head by pushing the head lift pedal down and to the left, then using the operation selector, select the Brush control and engage the
drive lever for 4 seconds; on releasing the lever, the machine will release the brush automatically.
A
6
4
21
1
2
3
4
5
6
3
13

ENGLISH
Attaching the brush roller (Fig. 23):
raise the machine head by pushing the head lift pedal down and then to the left, t the rollers in their housing by
rst inserting them on the drive pulley, then pushing them upwards until they click into place.
Releasing the brush roller (Fig. 23):
raise the machine head by pushing the head lift pedal down and then to the left, release the rollers by pulling
them downwards from the side opposite the drive pulley, then extracting them from their housing.
! INFORMATION
Follow the instructions given below to congure the machine’s control software to use the display
language you require:
See the “Technical menu” section.
Lifting and transporting the machine
! WARNING
All phases of lifting and moving must be performed in an adequately illuminated environment with the adoption of the safety measures
most appropriate to the situation.
The operator must always use personal protection devices.
Proceed as follows to load the machine onto a means of transport:
► Empty the tanks.
► Remove the batteries.
► Push the machine onto the pallet using a sloping ramp, securing the front wheels and the chassis using the brackets supplied. The machine
must not be raised.
► Lift the pallet (with the machine) using a fork lift truck and load it onto the means of transport.
► Anchor the machine to the means of transport with cables connected to the pallet and to the machine itself.
Quick head change (BATTERY POWERED VERSIONS ONLY)
The scrubber head can be changed as described below.
Removing the head:
► Lower the head (mechanical version) or select “CHANGE HEAD” (electronic version) in the “Technical menu”, pressing the “+” or “-” button
raises or lowers the head, releasing the button stops the actuator. Pressing the “SET” button exits the page and the machine lifts the head.
► Electrically disconnect the head from the machine’s wiring, disconnecting the connector highlighted in the drawing (g. 5-ref. 1) and discon-
necting the motor connector/connectors.
► Open the hook (g. 5, ref. 2).
► Unscrew the two knobs (g. 5-ref. 3).
► Remove the head.
Installing the head:
► Perform the procedure described previously but in the reverse order.
12
3
5
23
14

ENGLISH
PRACTICAL GUIDE FOR THE OPERATOR
! WARNING
Before starting work, wear overalls, ear protectors, non-slip and waterproof shoes, mask to protect the respiratory tract, gloves and all
other personal protection devices necessitated by the work environment.
! WARNING
Never leave the machine unattended or parked with the electronic ignition key inserted.
! INFORMATION
If you are using the machine for the rst time, we recommend trying it out on a large obstacle-free surface rst to acquire the necessary
familiarity.
! WARNING
To avoid damaging the surface of the oor you are cleaning, avoid rotating the brushes with the machine stationary.
! WARNING
Always dilute the detergent according to the manufacturer’s instructions. Do not use sodium hypochlorite (bleach) or other oxidants,
particularly in strong concentrations. Do not use solvents or hydrocarbons. The water and detergent temperature must not exceed the
maximum indicated in the “Technical specications”. They must be free of sand and/or other impurities.
The machine has been designed for use with low-foam biodegradable detergents made specically for scrubber driers.
For a complete and up-to-date list of the detergents and chemicals available, contact the Manufacturer.
Use products suitable for the oor and dirt to be removed only.
Follow the safety regulations on use of detergents given in the section “Safety regulations”.
Preparing the machine for work
Proceed as follows before starting work:
► Check that the display shows the batteries to be fully charged. Recharge if necessary. See the “Battery maintenance and charging” sec-
tion.
► Make sure that the dirty water tank is empty. Empty it if necessary, see “Emptying the dirty water tank”.
► Make sure that the solution tank is full. Fill it if necessary, see “Filling the water/detergent tank”. If the machine is not tted with the “Chem-
Dose” accessory, add detergent to the tank in the required percentage, using the measuring cap.
► Adjust the instrument panel height by unscrewing the adjustment knobs (g. 10-ref. 4).
Controls
►Display (g. 7):
► Displays the maximum speed ramp set (g. 7-ref. 1), version with electric drive.
► The percentage of battery charge (g. 7-ref. 2).
► The machine operating hours (g. 7-ref. 4) standard version, the minutes remaining until the detergent runs out, and alternatively the
sq.m remaining until the detergent runs out on the APC version (ADVANCED PRODUCTIVITY CONTROL).
► The number of litres of detergent in the tank, on the APC version (ADVANCED PRODUCTIVITY CONTROL) (g. 7-ref. 3).
►The alarms (see chapter “Alarms on the display”).
► Indication of the set operating program (g. 7-ref. 5).
► Brush indication, with pressure level (g. 7-ref. 6).
► Water delivery indication, with level (g. 7-ref. 7).
► Suction indication, with speed level (g. 7-ref. 8).
1
2
6 7 8
5
4
3
7
15

ENGLISH
►Electronic key (g. 8-ref. 1): inserting the key enables operation of the machine, remove the
key to completely switch o󰀨 the machine in an emergency.
►Main Switch (mains powered versions only):: press the switch to power the machine (g.
25, rif.1);
►Operation selector (g. 8-ref. 2): turn to select the machine operating program:
►OFF (Fig.9-Ref.3): in this position the electric drive is enabled (where featured), the
speed can be adjusted using the “-” and “+” buttons. Press the “SET” button to man-
age the following functions:
► pressing the “SET” button once accesses the attach/release brush menu, press-
ing the “-” button enables brush release, pressing the “+” button enables brush
attachment on machines tted with actuator.
► pressing the “SET” button twice accesses the “Technical menu”,to enter the
menu press “-” and “+” together.
►Suction motor (g. 9-ref. 4): in this position the suction motor is activated and the
electric drive is enabled (where featured), the speed can be adjusted using the “-”
and “+” buttons . The suction motor starts by activating the drive lever, in the version
with electric drive the suction motor starts by activating the drive lever after having
lowered the squeegee lift lever (g. 10-ref. 3). Press the “SET” button to manage
the following function:
► pressing the “SET” button once accesses the remote suction menu, pressing
the “+” button starts the suction motor, pressing the “-” button stops the suction
motor, is the suction motor can also be stopped by operating the drive lever.
►Brush (g. 9-ref. 5): in this position the suction motor is activated and the electric
drive is enabled (where featured), the speed can be adjusted using the “-” and “+”
buttons. Press the “SET” button to manage the following functions:
► pressing the “SET” button once accesses the detergent delivery menu,
delivery can be adjusted using the “+” and “-” buttons.
► pressing the “SET” button twice accesses the scrubber head pressure
menu, the pressure can be adjusted using the “+” and “-” buttons on mod-
els equipped with actuator.
► pressing the “SET” button three times accesses the Chem Dose menu,
detergent delivery can be adjusted using the “+” and “-” buttons, on mod-
els equipped with Chem Dose.
►Auto (g. 9-ref. 6): in this position all of the machine’s functions are activated,
the head pressure value on models equipped with actuator and the detergent
delivery value are pre-set by the manufacturer, these can be modied in the
“Technical menu” (see chapter “Technical menu”), the electric drive is ena-
bled (where featured), the speed can be adjusted using the “-” and “+” buttons.
Press the “SET” button to manage the following functions:
► pressing the “SET” button once accesses the detergent delivery menu,
delivery can be adjusted using the “+” and “-” buttons.
► pressing the “SET” button twice accesses the scrubber head pressure
menu, the pressure can be adjusted using the “+” and “-” buttons on mod-
els equipped with actuator.
► pressing the “SET” button three times accesses the Chem Dose menu,
detergent delivery can be adjusted using the “+” and “-” buttons, on models
equipped with Chem Dose.
►Eco (g. 9-ref. 7): in this position all of the machine’s functions are activated,
the head pressure value on models equipped with actuator and the detergent
delivery value are pre-set by the manufacturer, these parameters cannot be modied, the electric drive is enabled (where featured),
the speed can be adjusted using the “-” and “+” buttons,
22
2
11
1
8
1
25
38 9 10
4
5
6
7
9
16

ENGLISH
►Drive lever (g. 22): pulling the lever towards the operator en-
gages reverse gear, pushing the lever forwards engages forward
gear, to change speed press the “+” and “-” buttons.
►Tank release button (g. 10-ref. 1): releases the tank from the
chassis so it can be rotated backwards.
►Head lift pedal (g. 10-ref. 2): raises and lowers the head on
models without actuator.
►Squeegee lift lever (g. 10-ref. 3): raises and lowers the squee-
gee, enabling or disabling the suction motor on the version with
electric drive.
►Instrument panel height adjustment knobs (g. 10-ref. 4):
unscrew the two knobs to adjust the height of the instrument
panel.
►“SET” button (g. 9-ref. 10): when pressed accesses the ma-
chine operating program submenus, in the “Technical menu”
selects the parameter to be modied and conrms the value en-
tered.
►“+” button (g. 9-ref. 9): increases the value in the machine
operating program submenus, in the “Technical menu”selects the
next parameter or increases the value of the selected parameter.
►Button “-” (g. 9-ref. 8): decreases the value in the machine oper-
ating program submenus, in the “Technical menu”selects the pre-
vious parameter or decreases the value of the selected parameter.
Working
►Mains powered versions: plug the machine into the mains power
socket and press the main switch (g. 25, ref. 1);
► Insert the electronic key.
► Using the operation selector, select the scrubbing program.
► Activate the drive lever, lower the squeegee and start working.
► In the machines without electric drive, turning the knob (g. 11-ref. 1) corrects any
tendency to deviate from a straight line.
Some useful tips to get the most from your scrubber drier
In the event of particularly stubborn dirt on the oor, washing and drying can be performed in
two separate operations.
Prewashing with brushes or pads:
► Select the Brush operating program.
► Activate the drive lever, start working.
► If necessary, adjust the ow of detergent delivered to the brush; the outlet ow must
be metered in relation to the required travel speed; the slower the machine travels, the
less detergent must be delivered.
►Persist when washing particularly dirty points to give the detergent time to perform its
chemical action detaching and suspending the dirt and the brushes time to exert an e󰀨ective mechanical action.
Drying:
► Select the Suction operating program, lower the squeegee.
► Activate the drive lever, start working.
► Pass over the same area washed previously. The result is equivalent to in-depth washing and subsequent ordinary maintenance will take
less time.
1
2
3
4
10
111
1
25
17

ENGLISH
Emptying the collection tank
If the tank is full, the display shows the corresponding alarm, see the chapter “Display alarms”;
after a few seconds, the suction motor shuts down, then stop the machine and empty the tank
following the instructions shown below. To resume work, turn the operation selector to the OFF
position (reset errors):
► Switch o󰀨 all the machine’s functions.
► Take the machine to the disposal area.
► Unhook the hose from the clip.

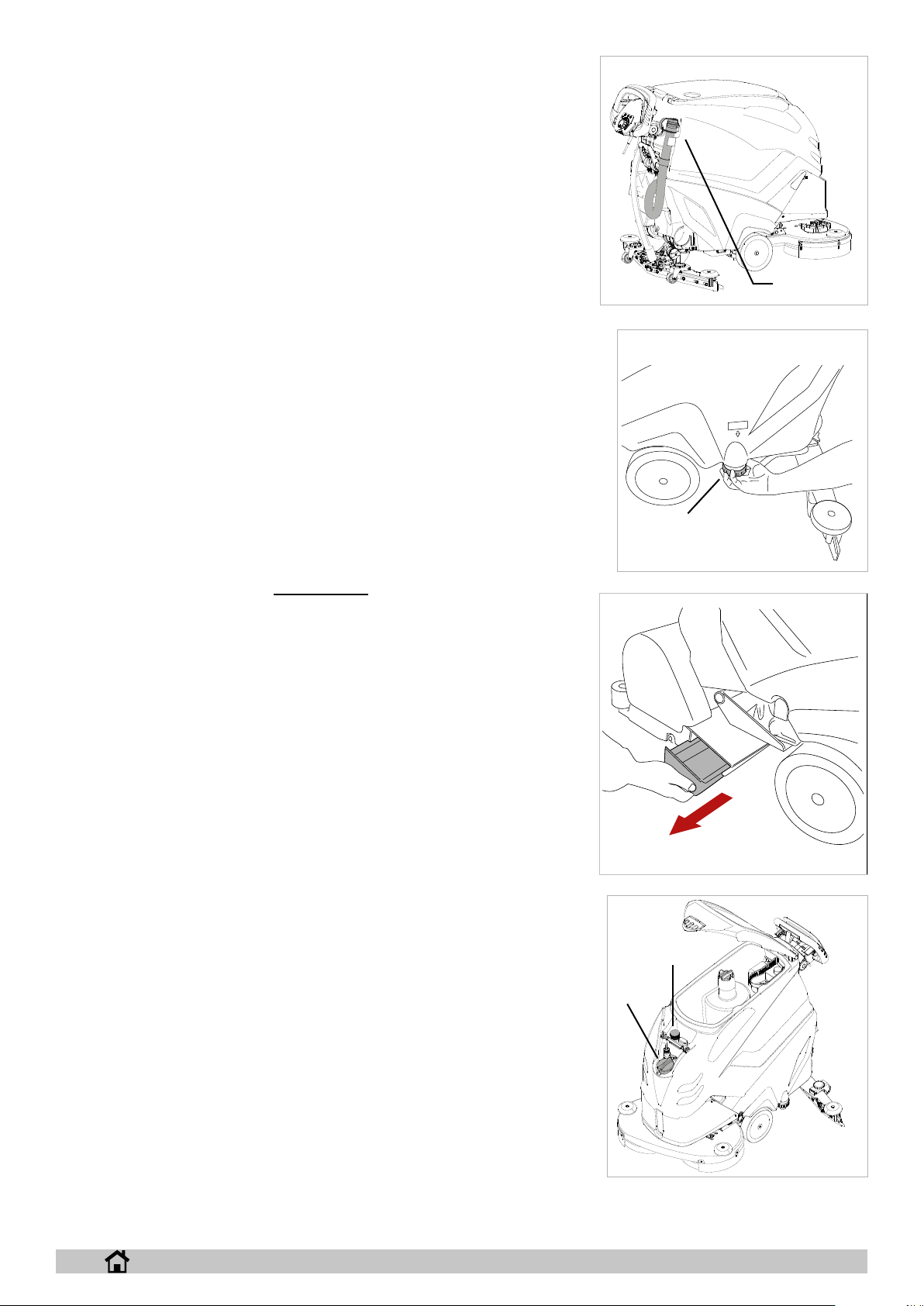

► Empty the tank using the hose (g. 12, ref. 1), at the end rinse the tank with clean water.
Emptying the water/detergent tank
To empty the tank, follow the instructions shown below:
► Switch o󰀨 all the machine’s functions.
► Take the machine to the disposal area.
► Stop the machine.
► Empty the tank by unscrewing the lter assembly (g. 13-ref. 1).
Emptying the roller head bin
► Remove the sweeper collection bin (Fig. 24), dispose of the contents and rinse out the bin
with clean water.
Filling the water/detergent tank
Fill the tank through the opening provided (g. 14, Ref. 1). The machine is equipped with a graduated
measuring cap that can be used to dilute the detergent inside the tank. If the tank is empty, the display
shows the corresponding alarm, see the chapter “Display alarms”; to resume work, turn the operation
selector to the OFF position (reset errors).
Filling the Chem-Dose tank (accessory)
Open the dirty water tank lid, ll the container highlighted in the drawing (g. 14-ref. 2) with detergent.
Finishing work
! INFORMATION
Empty the dirty water tank and recharge the batteries
After having nished work, remove the electronic key.
Moving the machine when not in operation
Proceed as follows to move the machine:
► Raise the squeegee.
► Raise the head.
► Move the operating program selector to O󰀨.
► Versions with mechanical drive: push or pull.
► Version with electric drive: activate the drive lever.
2
1
14
1
13
FILTER
1
12
24
18

ENGLISH
MAINTENANCE INSTRUCTIONS
! DANGER
Never perform any maintenance operations without rst disconnecting the bat-
teries.
Maintenance on the electrical circuit and all other operations not explicitly de-
scribed in this manual must be performed by specialised personnel only, in
compliance with current safety legislation and as described in the maintenance
manual.
! DANGER
Before lifting/rotating the tank to access the compartment, its contents must
rst be emptied, then insert the safety bracket in position to prevent the tank
from accidentally closing again, see chapter “SAFETY INFORMATION”.
Maintenance - General rules
Performing regular maintenance according to the Manufacturer’s instructions im-
proves performance and extends the working life of the machine.
When cleaning the machine, observe the following precautions:
► Avoid using pressure washers. Water could penetrate the electrical compart-
ment or motors leading to damage or short circuits.
► Do not use steam to avoid the heat warping plastic parts.
► Do not use solvents or hydrocarbon based products. These can damage the
cowling and rubber components.
Cleaning the suction motor air lter
Open the lid of the dirty water tank by releasing the clamp lever, then remove the
lter from its housing (g. 15 - Ref 1) and wash it under running water or using the
detergent dispensed by the machine; dry the lter thoroughly before repositioning it
in the housing.
Cleaning the debris container
Open the dirty water tank lid, then empty the debris accumulated in the container (g.
15-ref. 2); if needing to wash the container, remove it by lifting it out and then clean it.
Cleaning the dirty water tank oat
Open the dirty water tank lid, then remove the debris container by lifting it out (g. 15-ref. 2), turn the
oat protector (g. 15-ref. 3) and then clean the oat; make sure that the oat slides freely on its pin.
Cleaning the water/detergent tank lter
To clean the lter, proceed as follows:
► Unscrew the lter cap (g. 17-ref. 1), remove the lter/hose union (g. 17-ref. 2, then wash
under running water or using the same detergent as used on the machine.
► Replace the lter in its housing, making sure it is correctly positioned and screw the cover
back on.
1
2
3
15
17
FILTER
1-2
19

ENGLISH
Fuses: replacing
! WARNING
Never use a fuse with a higher amperage than specied.
The fuses can only be replaced by an IP Cleaning service centre or by technical person-
nel authorised by IP Cleaning.

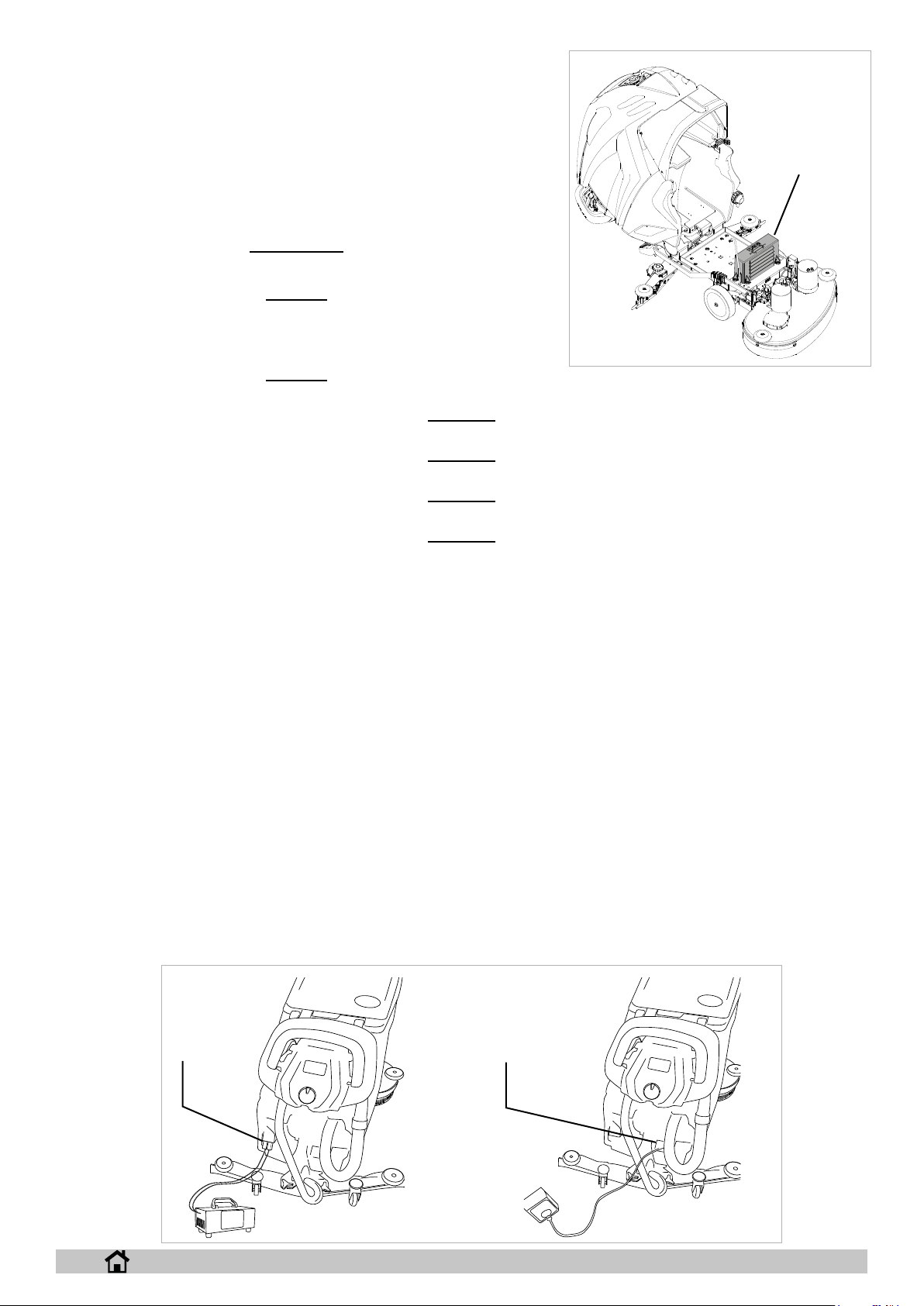

Lift the tank, disconnect the battery wiring connector from the electrical system or unplug
the power cable, remove the cover (Fig. 18-Ref. 1) to access the fuses.
Battery maintenance and charging
! INFORMATION
Before charging the batteries, remove the electronic key from the instrument pan-
el.
! DANGER
Do not check the batteries by sparking.
The batteries (WET) give o󰀨 ammable fumes. Put out all res and hot embers
before checking or topping up the battery level.
! DANGER
Perform the operations described below in a ventilated area.
! WARNING
When charging the batteries, the tank must be lifted and kept open, to allow correct ventilation of the battery compartment.
! WARNING
In the case of gel batteries, use a specic charger for gel batteries only.
! WARNING
To avoid permanent damage to the batteries, do not run them down completely.
! WARNING
Charge the batteries as instructed in the battery charger manual.
Disconnect the connectors at the end of charging.
“STANDALONE” battery charger, electrical connection to the machine:
► Turn the machine o󰀨.
► Plug the battery charger connector into the socket on the machine as highlighted (g. 19-ref. 1).
► Start the recharge cycle.
► Disconnect the connectors at the end of charging.
“ONBOARD” battery charger:
► Turn the machine o󰀨.
► Unplug the battery charger from the socket (g. 19-ref. 2).
► Plug into the mains socket.
► Start the recharge cycle.
► The display will show when the recharge cycle ends, see “Display alarms”
► At end of the recharge cycle, unplug the cable from the power socket.
1
18
1 2
19
BATTERY CHARGER STAND ALONE
24V
BATTERY CHARGER ON BOARD
20
