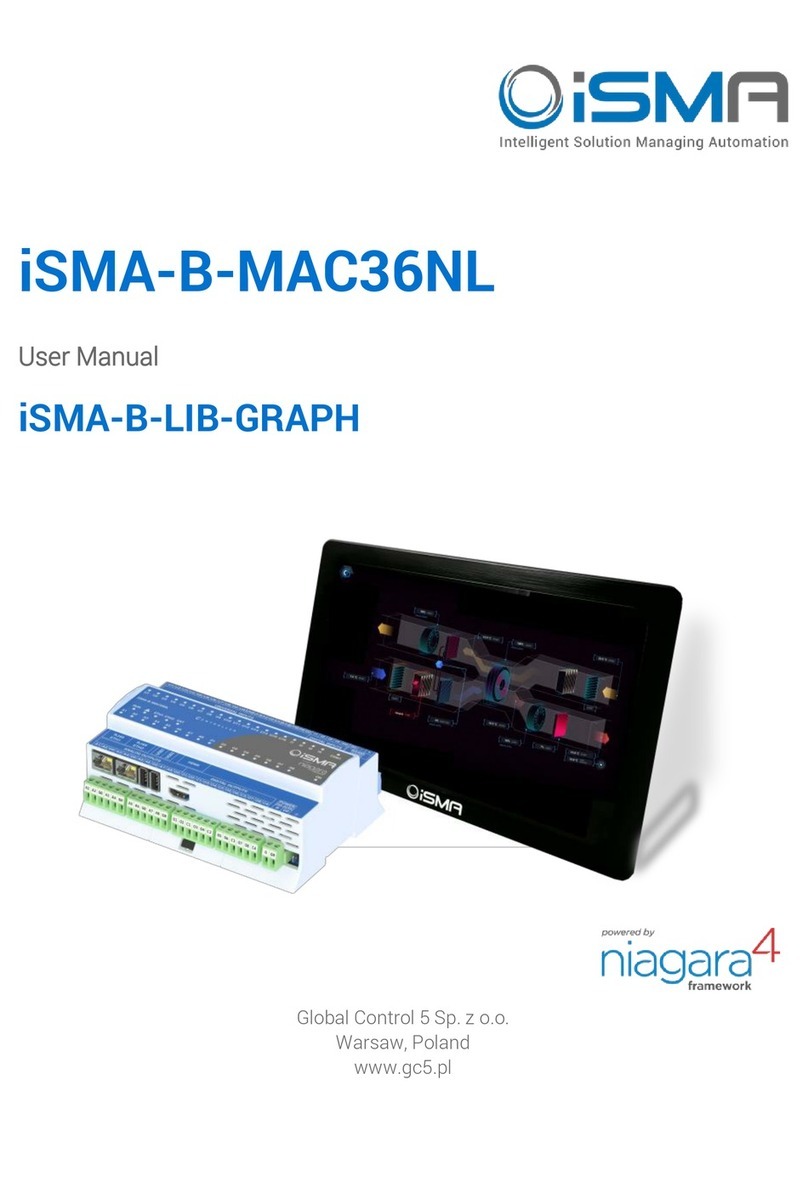

iSMA iSMA-B-MAC36NL User manual

iSMA-B-MAC36NL
User Manual
Install and Start-up
Global Control 5 Sp. z o.o.
Warsaw, Poland
www.gc5.pl

iSMA-B-MAC36NL
Version 1.0 www.gc5.pl Page 2 / 40
Table of contents
1Introduction............................................................................................................................... 3
1.1 Revision history ................................................................................................................ 3
1.2 Safety rules........................................................................................................................ 3
1.3 Overview............................................................................................................................. 4
1.4 Key Features:..................................................................................................................... 4
1.5 Technical specification ................................................................................................... 6
1.6 Software license notice................................................................................................... 7
1.7 Dimensions........................................................................................................................ 8
2Hardware Specification .......................................................................................................... 9
2.1 Terminals and Internal Connection Diagram.............................................................. 9
2.2 Power Supply Connection ............................................................................................10
2.2.1 Earth Grounding ......................................................................................................11
2.3 Communication Bus Connection (RS485) ................................................................11
2.3.1 RS485 Grounding and Shielding ..........................................................................11
2.3.2 RS485 Network Termination and Biasing..........................................................12
2.4 LED Indicators.................................................................................................................15
2.5 Mini USB...........................................................................................................................16
2.6 Local I/O........................................................................................................................... 17
2.6.1 Universal Inputs (16x UI) .......................................................................................17
2.6.2 Digital Inputs (4x DI) ...............................................................................................20
2.6.3 Analog Outputs (8x AO) .........................................................................................21
2.6.4 Digital Outputs (8x DO) ..........................................................................................23
3Start-up ....................................................................................................................................24
3.1 Before the start...............................................................................................................24
3.2 SD Card.............................................................................................................................24
3.3 Factory settings..............................................................................................................26
3.3.1 Factory communication settings.........................................................................26
3.3.2 Factory platform credentials ................................................................................26
3.4 First login to the controller platform in Workplace ..................................................27
3.5 TCP/IP Configuration ....................................................................................................30
3.6 Connection to the console............................................................................................35
3.7 Controller system update .............................................................................................36
3.8 Restore controller to the default state .......................................................................39

iSMA-B-MAC36NL
Version 1.0 www.gc5.pl Page 3 / 40
1Introduction
1.1 Revision history
Rev
Date
Description
1.0
01.10.2018
First edition
Table 1 - Revision history
1.2 Safety rules
•Note: Incorrect wiring of this product can cause its damage and may result in other
hazards. Make sure the product has been correctly wired before turning the power ON.
•Before wiring or removing / mounting the product, be sure to turn the power OFF. Failure
to do so might cause electric shock.
•Do not touch electrically charged parts such as the power terminals. Doing so might
cause electric shock.
•Do not disassemble the product. Doing so might cause electric shock or faulty
operation.
•Use the product within the operating ranges recommended in the specification
(temperature, humidity, voltage, shock, mounting direction, atmosphere etc.). Failure to
do so might cause fire or faulty operation.
•Tighten the wires firmly to the terminal. Insufficient tightening of the wires to the
terminal might cause fire.

iSMA-B-MAC36NL
Version 1.0 www.gc5.pl Page 4 / 40
1.3 Overview
The iSMA-B-MAC36NL is a compact Master Application Controller with built-in different types
of I/O and operating in Niagara Framework environment. Using the specific local I/O set 16x
UI, 8x AO, 4x DI and 8x DO allows to use the device in different applications. The Controller
provides control, data logging, alarming, scheduling, integration and visualisation.
To allow IP connectivity there are 2x Fast Ethernet ports which operate as two independent
ports. Built-in 1x RS485 can be used to expand the number of I/O by connecting MINI or MIX
series I/O modules or to integrate with other subsystems.
Dedicated microSD card stores real-time data, history and alarms as well as Operating
System, Niagara Framework and licenses.
There are 2x USB ports, one of them operates as a host and the other one in OTG mode.
1.4 Key Features:
•Niagara 4.4 and later
•Real-time programming
•2x Fast Ethernet (independent)
•1x RS485 (opto-isolated), optional extension as second RS485 port
•2x USB (1x OTG, 1x Host) ( support in the next release )
•16x UI, 8x AO, 4x DI and 8x DO
•HDMI to connect external display ( support in the next release )
•Built-in Web server provides graphical user interface available from Web browser level
•SD card to collect real-time data, history and alarms
•Hardware replacement by SD Card
•Different licensing models for various application types

iSMA-B-MAC36NL
Version 1.0 www.gc5.pl Page 5 / 40
Figure 1 –iSMA-B-MAC36NL Key Features

iSMA-B-MAC36NL
Version 1.0 www.gc5.pl Page 6 / 40
1.5 Technical specification
Power Supply
Voltage
24 V AC/DC ± 20% isolated
Power consumption
14 W @ 24 V DC; 24 VA @ 24 V AC
Universal Inputs
Temperature input
•Measurement with attached RTDs
•Accuracy ±0,1˚C
•For sensor Pt1000 and Ni1000 use 16-bit
resolution
Voltage input
•Voltage measurement from 0 - 10 V
•Input impedance 100 kΩ
•Measurement accuracy ±0,1%
•Measurement resolution 3 mV@12-bit and
1 mV@ 16-bit
Current input
•Current measurement 0 - 20 mA
•Required external resistor 200 Ω
•Measurement accuracy ±1,1%
•Measurement resolution 15 µA @ 12-bit and 5 µA
@ 16-bit
Resistive input
•Measurement of resistance from 0 to 1000 kΩ
•Measurement resolution for 20 kΩ load 20 Ω@12-
bit and 1 Ω@16-bit
•Measurement resolution for PT1000 and NI1000
0,1Ω@16bit
Resistance measurement method
The voltage divider
Dry contact input
Output current ~1 mA
Switching threshold: ON <5kΩ, OFF >8kΩ
Measurement resolution
12-bits (default) or 16-bits
Processing time
•10 ms/channel @ 12-bits
•140 ms/channel @ 16-bits
Digital Inputs
Type
Dry contact
Switching threshold
ON <5kΩ, OFF >8kΩ
Max input frequency
100 Hz
Analog Outputs
Voltage range
0 to 10 V DC
Max. load current
20 mA
Resolution
12-bits
Accuracy
±0.5%
Digital Outputs
(relays)
Contact material
AgSnO2
Resistive load
3 A @ 230 V AC/30 V DC
RS485 Interface
(base and optional)
RS485
Up to 128 devices
Half-duplex, Opto-isolated
Communication protocols
Modbus RTU/ ASCII

iSMA-B-MAC36NL
Version 1.0 www.gc5.pl Page 7 / 40
Baud rate
From 2400 to 115,200
Address
1 to 247
Ethernet
2x Fast Ethernet
independent mode
Baud rate
10/100 Mb/s
USB
2x USB
1x OTG, 1x Host
HDMI
1x HDMI
Standard type A
SD Card
1x microSD
2 GB system reserved / 2 GB user storage
Ingress protection
IP
IP40
Temperature
Storage
-40˚C to +85˚C (-40˚F to +185˚F)
Operating
-10˚C to +50˚C (14˚F to +122˚F)
Humidity
Relative
5% to 95% RH
Connectors
Type
Removable screw terminals
Maximum cable size
2.5 mm2
Housing
Construction
UL approved, self-extinguishing plastic (PC/ABS)
Mounting
DIN (DIN EN 50022 norm)
Dimension
Width
111 mm (4,4’’)
Length
160 mm (6,3’’)
Height
62 mm (2,45’’)
Table 2 –Technical Specification
1.6 Software license notice
This product contains code covered by the GNU General Public License (GPL).

iSMA-B-MAC36NL
Version 1.0 www.gc5.pl Page 8 / 40
1.7 Dimensions
Figure 2 –iSMA-B-MAC36NL Dimensions [mm]

iSMA-B-MAC36NL
Version 1.0 www.gc5.pl Page 9 / 40
2Hardware Specification
2.1 Terminals and Internal Connection Diagram
The iSMA-B-MAC36NL controller can be supplied by 24 V AC/DC. The power supply block is
separated. The grounding pin located next to power supply terminals must be connected to
the ground.
The device has 36x local IO on board:
•8x Digital Outputs (8DO), relay output with max. load 3 A @ 230 V AC/30 V DC.
•8x Analog Outputs (8AO), voltage output 0-10 V DC maximum load up to 20 mA.
•16x Universal Inputs (16UI), temperature, voltage, current, resistive or dry contact.
•4x Digital Inputs (4DI), dry contact inputs or fast counter up to 100 Hz.
Figure 3 –iSMA-B-MAC36NL Block Diagram

iSMA-B-MAC36NL
Version 1.0 www.gc5.pl Page 10 / 40
2.2 Power Supply Connection
The device is designed to work with 24 V AC/DC separated power supply.
Figure 4 24 V AC/DC power supply connection

iSMA-B-MAC36NL
Version 1.0 www.gc5.pl Page 11 / 40
2.2.1 Earth Grounding
Earth grounding provides protection from electrostatic discharge or other forms of EMI.
The way to connect the controller’s ground spade lug to a nearby earth ground is shown in the
figure below.
2.3 Communication Bus Connection (RS485)
The device is equipped with opto-isolated RS485 base port, which allows to connect the device
to the BMS in order to communicate with other devices in the network. The optional controller
version has an extension as second RS 485 port. All rules are the same as in the base port.
The way of proper bus cable connection is shown in the figure below.
Figure 6 RS485 communication bus connection
2.3.1 RS485 Grounding and Shielding
The device can be exposed to electromagnetic environment. The electromagnetic radiation
can induce electrical noise into both power and signal lines, as well as direct radiation into the
device causing negative effects to the device functioning. Appropriate grounding, shielding
and the other protective steps should be taken at the installation stage to prevent undesirable
effects. The preventions include making control cabinets grounding, cables shield grounding,
using protective elements for electromagnetic switching devices, using correct wiring as well
as appropriate cable types selection and cable cross sections.

iSMA-B-MAC36NL
Version 1.0 www.gc5.pl Page 12 / 40
2.3.2 RS485 Network Termination and Biasing
The transmission line often creates communication problems. These problems include
reflections and signal attenuation.
To eliminate the presence of reflections at the ends of the bus cable, it must be terminated
at both ends with a resistor across the line. The resistor value has to be the same as a
characteristic impedance of the bus cable. Both ends must be terminated since the
direction of propagation is bidirectional. In the case of an RS485 twisted pair cable the
termination is typically 120 Ω.
In the iSMA-B-MAC36NL version there is a built-in 3 position Switch on the back side of the
device (access after removing the back cover) which is dedicated to connect termination
resistor and/or biasing resistors. In the iSMA-B-MAC36NL-RS version 3 position Switch is
a built-in below terminal connector as shown in the figure below on the right side.
Bottom side of controller
Figure 7 Switch for termination and biasing for base (on left) and optional extension port (on right)
Table 3 Switch Termination and biasing
Switch position
Biasing
Termination 120 Ω +
Biasing
END
OFF
ON
BIA
ON
OFF
NONE
OFF
OFF

iSMA-B-MAC36NL
Version 1.0 www.gc5.pl Page 13 / 40
When the switch is in the END position it connects the termination resistor 120 Ω and biasing
resistors 680 Ω (pull-down to ground SG and pull-up to +5VDC) to the RS485 bus.
So instead of using additional resistors, the termination and biasing can be easily done by
simple switch activation.
Figure 8 RS485 network termination and biasing

iSMA-B-MAC36NL
Version 1.0 www.gc5.pl Page 14 / 40
When the switch is in the BIA position it connects the biasing resistors 680 Ω (pull-down to
ground SG and pull-up to +5VDC) to the RS485 bus. The biasing is added to the RS485 bus in
order to reduce communication failures.
WARNING! Only one single device on the network can have biasing resistors connected.
Connecting biasing resistors on two or more devices on the one single RS485 bus will take an
opposite effect –increase the number of the communication problems.
Figure 9 RS485 network biasing

iSMA-B-MAC36NL
Version 1.0 www.gc5.pl Page 15 / 40
2.4 LED Indicators
The device is equipped with LEDs for quick status checking and diagnostics:
Figure 10 LEDs on the front panel of iSMA-B-MAC36NL.
•The Power LED ON lights up (green) and then turns the power supply on.
•The Communication LED COM1 lights up (orange) for 20 ms in the transmit state for
sending each package through the main RS485 port. As long as the device sends
packages, the Communication LED blinks continuously.
•The Communication LED EXT lights up (orange) for 20 ms in the transmit state for sending
each package through the extension RS485 port. As long as the device sends packages,
the Communication LED blinks continuously.
•The Communication LEDs ETH1 and ETH2 light up (orange) in the transmit or receive state
when sending/receiving each packages through the particular Ethernet port. As long as
the device sends/receives packages, the Communication LEDs blink continuously.
•The Universal Inputs LEDs U1-U16 indicate the statuses of the Universal Inputs. When the
LED is ON, the resistance value connected to the input is lower than the switching
threshold value (Dry Contact input is active).
Note: The LED also lights up when voltage connected to the input has very low potential.
•The Digital Inputs LEDs I1-I4 indicate the statuses of the Digital Inputs. When the LED is
ON, the Input is active (resistance value connected to the input is lower than the switching
threshold value).
•The Analog Outputs LEDs A1-A8 indicate the statuses of the Analog Outputs. When the
LED is ON, the Output voltage or PWM factor is different than 0.
•The Digital Outputs LEDs O1-O8 indicate the statuses of the Digital Outputs. When the LED
is ON, the Outputs is active (closed circuit).

iSMA-B-MAC36NL
Version 1.0 www.gc5.pl Page 16 / 40
•The Status LED RUN does not light when the power is connected. After Operating System
(Linux) has started up, the LED RUN lights up continuously (green). Next, after the Platform
has started up, the LED RUN also flashes very quickly. If a station exists in a controller,
after the station has been started up and it operates correctly, the LED RUN flashes slowly
(1Hz).
•The Alarm LED Δ (triangle with an exclamation mark) lights up in red color when there is
no SD Card inserted or there is a problem with SD Card connection/reading/writing.
2.5 Mini USB
The mini USB port is dedicated to debugging connection through the console.
You can find a description of how to connect to the system console in Connection to the
console chapter.
Figure 11 LEDs on the front panel of iSMA-B-MAC36NL.

iSMA-B-MAC36NL
Version 1.0 www.gc5.pl Page 17 / 40
2.6 Local I/O
The iSMA-B-MAC36NL has built-in different types of I/O. The specific local I/O set 16x UI, 8x
AO, 4x DI and 8x DO allows to use the device in different applications.
2.6.1 Universal Inputs (16x UI)
All the Universal Inputs have 16-bit ADC, which supports the following types of the input
signals:
•Voltage Input (0 – 10 V DC)
•Current Input (0 – 20 mA)
•Resistive Input (0-1000 kΩ)
•Temperature Input
•Dry Contact Input (Digital Input)
2.6.1.1 Voltage Input connection (0 –10 V DC)
Figure 12 Connection of UI to measure voltage 0-10 V DC.

iSMA-B-MAC36NL
Version 1.0 www.gc5.pl Page 18 / 40
2.6.1.2 Current Input connection (0 –20 mA)
Current measurement is realized by voltage measurement and 200 Ω resistance.
According to the Ohm’s law the current is directly proportional to the voltage and the
resistance is the constant of proportionality.
𝑰 = 𝑼
𝑹
According to the Ohm’s law equation for 20 mA current with 200 Ω resistance the output
voltage is 4 V.
It means that the 4 V voltage measured on the Universal Input corresponds to 20 mA current.
The result is expressed in millivolts.
Figure 13 Connection of UI to measure current 0-20 mA.

iSMA-B-MAC36NL
Version 1.0 www.gc5.pl Page 19 / 40
2.6.1.3 Temperature Input connection
Temperature measurement is based on resistance.
The Universal Inputs working as Temperature Inputs support the following types of sensors:
10K3A1, 10K4A1, Carel 10K, 20K6A1, 2.2K3A1, 3K3A1, 30K6A1, SIE1, TAC1, SAT1, Pt1000,
Ni1000.
Figure 14 Connection of UI to measure temperature
2.6.1.4 Dry Contact Input connection (Digital Input)
The Universal Inputs can operate as standard Digital Inputs (Dry Contact Inputs).
The Input is active when it is connected to the ground (G0).
Figure 15 Connection of UI as Dry Contact Input (Digital Input)

iSMA-B-MAC36NL
Version 1.0 www.gc5.pl Page 20 / 40
2.6.2 Digital Inputs (4x DI)
In addition to the standard Dry Contact Input the Digital Inputs can operate as fast pulse
counters with up to 100 Hz impulse frequency counting.
The Input is active when it is connected to the ground (G0).
Figure 16 Connection to the Digital Input.
