IWILL Motherboard DJ800 User manual

IWILL DJ800
Motherboard
User’s Manual
FB25634000

DJ800 Motherboard
User’s Manual
ii

Preface
Disclaimer
The manufacturer makes no representations or warranties regarding the
contents of this manual and specifically disclaims any implied warranties
of merchantability or fitness for any particular purpose. Furthermore, the
manufacturer reserves the right to revise this publication or make changes
in the specifications of the product described within it at any time without
notice and without obligation to notify any person of such revision or
change.
Trademarks
Microsoft and Windows are registered trademarks of Microsoft Corp.
Intel and Xeon are registered trademarks of Intel Corporation. Texas In-
struments are registered trademarks of Texas Instruments Corporation.
Other product names used in this manual are the properties of their respec-
tive owners and are acknowledged.
Copyright
This publication, including all photographs, illustrations and software,
is protected under international copyright laws, with all rights reserved.
Neither this manual, nor any of the material contained here in, may be
reproduced without the express written consent of the manufacturer. IWILL
©Copyright 2004
Important
The information in this document is subject to change without notice.
iii

DJ800 Motherboard
User’s Manual
T able o f C ontents
1: Overview .............................................................................1-1
Packing list................................................................................. 1-1
Safety Notice.............................................................................. 1-2
DJ800 Specification .................................................................. 1-5
2: Components and Jumper Setting.........................2-1
Mainboard Map .......................................................................... 2-1
Components List........................................................................ 2-2
Jumper Setting ........................................................................... 2-3
Rear Panel I/O Ports .................................................................. 2-6
Additional I/O Connectors ........................................................ 2-8
EPS12V Power Connectors ..................................................... 2-14
Primary IDE Connectors ......................................................... 2-15
CPU/ System Fan Connectors ................................................. 2-16
3: Hardware Installation .................................................3-1
Motherboard Installation .......................................................... 3-1
Memory Installation Procedure ................................................. 3-6
Recommended Memory Configurations ................................... 3-7
Installing Expansion Cards ........................................................ 3-8
Powering on your System.......................................................... 3-9
iv

Preface
4: BIOS Setup .........................................................................4-1
Starting the BIOS Setup ............................................................ 4-1
Using the BIOS Setup Utility .................................................... 4-3
Main Menu................................................................................. 4-5
Advanced Menu ......................................................................... 4-6
Boot Menu ................................................................................. 4-7
Boot Setting Configuration Submenu ....................................... 4-8
Exit Menu ................................................................................ 4-10
5: OS and Drivers Installation .......................................5-1
OS Installation ........................................................................... 5-1
Drivers Installation .................................................................... 5-2
5:
v

Chapter 1
Overview

Chapter 1
Package
DJ800 Motherboard
Three jumper caps (Extra caps in case original caps get lost)
One Power Installation CD (contains drivers and utilities)
DJ800 User’s manual
Rear panel I/O shield
Two sets of SATA cables
One ATA-66/100 IDE cable
One floppy disk drive cable
Two Hat Springs for CPU cooler
1-1

Overview
DJ800 Motherboard
Overview
YOU MUST HAVE ENOUGH SYSTEM INTEGRATION KNOWLEDGE
BEFORE THE INSTALLATION
General Safety Precautions
¡Keep the area around the Server clean and free of clutter.
¡Servers weigh a lot. When lifting the system, two people should
lift slowly from opposite ends with their feet spread out to distrib-
ute the weight. Always keep your back straight and lift with your
legs.
¡Place the chassis top cover and any system components that have
been removed away from the system or on a table so that they won’t
accidentally be stepped on.
¡While working on the system, do not wear loose items such as neck-
ties and unbuttoned shirtsleeves. They can come into contact with
electrical circuits or get pulled into a cooling fan.
¡Remove any jewelry or metal objects from your body, which are
excellent metal conductors and can create short circuits and harm
you if they come into contact with printed circuit boards or areas
where power is present.
ESD Precautions
Electrostatic discharge (ESD) is generated by two objects with dif-
ferent electrical charges coming into contact with each other. An elec-
trical discharge is created to neutralize this difference, which can dam-
age electronic components and printed circuit boards. The following
measures are generally sufficient to neutralize this difference before
contact is made to protect your equipment from ESD:
1-2

Chapter 1
¡Use a grounded wrist strap designed to prevent static discharge.
¡Keep all components and printed circuit boards (PCBs) in their
antistatic bags until ready for use.
¡Touch a grounded metal object before removing the board from
the antistatic bag.
¡Do not let components or PCBs come into contact with your
clothing, which may retain a charge even if you are wearing a wrist
strap.
¡Handle a board by its edges only; do not touch its components,
peripheral chips, memory modules or contacts.
¡When handling chips or modules, avoid touching their pins.
¡Put the motherboard and peripherals back into their antistatic bags
when not in use.
¡For grounding purposes, make sure your computer chassis provides
excellent conductivity between the power supply, the case, the
mounting fasteners and the motherboard.
¡After accessing the inside of the system, close the system back up
and secure it to the rack unit with the retention screws after ensur-
ing that all connections have been made.
Operating Precautions
¡Check package contents
¡Missing or damaging accessories
Please contact your vendor immediately
¡Motherboard damage
Please contact your vendor immediately
¡Prepare minimum system components
zIntel Xeon @800MHz FSB Processor
zAt least one Registered DDR2 memory module
zGraphic card with PCI-Express interface
zAt least one SATA or IDE HDD
zEPS12V Power Supply with 460W or above
1-3

Overview
DJ800 Motherboard
Overview
Getting Help
If a problem arises with your system during Installation or Operation,
you should first ask your dealer for help as they have most likely config-
ured your system. They generally have the best grasp of your issues and
the fastest response for your symptoms. If your dealer is near your location,
it is recommended that you first bring your system to them to have it ser-
viced instead of attempting to solve the problem yourself.
If those options don’t work for you, IWILL also provides some helpful
resources to help you.
1. Visit IWILL®website at Http://www.iwill.net and navigate to this
product’s page which contain links to product updates such as Jumper
settings or BIOS updates.
2. The FAQ (Frequently Asked Questions) sections in the IWILL
website are often helpful since other users often have the same
questions.
3. Email us at: [email protected] and we will try to answer your ques-
tions within 5 business days.
1-4

Chapter 1
DJ800 Specifications
1-5
On-Board
LAN
Expansion
Slots
Processor Intel®Dual Xeon Socket 604 CPUs
Supports 800MHz FSB
Chipset
Intel E7525 Chipset MCH
Intel ICH5R
Intel PXH
Winbond 83627 HF
Memory
8 DIMMs for 240-pin DDR2 400 DIMM sockets
 Uses Registered DDR2 with ECC or Non-ECC memory
 Supports total system memory size of up to 16GB
 Intel 82541PI Gigabit Ethernet Controller
 One RJ-45 connectors for GbE
 Support PME
Audio
Integrated Analog Device AD1980
Professional 6-channel Audio with S/PDIF out
Support MIC IN/LINE OUT for the front panel
AC ’97 CODEC
USB 4 x external USB 2.0 ports
4 x internal USB 2.0 ports
IEEE-1394
TI TSB43AB22
One pin header for front panel IEEE-1394 port
One external IEEE-1394 header
Serial ATA
2 Serial ATA ports supported by ICH5R with RAID 0, 1
4 Serial ATA ports supported by Adaptec 8110
Support Adaptec Host RAID
Support hot swap
One PCI Express x16 slot for graphics
One PCI Express x4 slot
One PCI-X 64-bit/133 MHz
Two PCI-X 64-bit/100 MHz
One PCI 32-bit / 33 MHz

Overview
DJ800 Motherboard
Overview
1-6
z34-pin Floppy Connector
z 4-pin CD-In and Aux-In audio input connector
z2x 40-pin IDE connectors, supports up to
four (4) Enhanced IDE devices
zDual Channel Master Mode
zUltra DMA 100/66/33
Rear Panel I/O
zPS/2 mouse and keyboard connectors
z1 x UART 16550 serial port (COM1)
z 1 x 25-pin parallel port with ECP/EPP support
z4 x on board USB 2.0 ports
z1 x IEEE-1394 port
z1 x S/PDIF Out
zRear Out and Center Out
z Audio Phone Jacks - Line Out, Mic In, Line-In.
zAMI BIOS
z Flash write protection by BIOS and one jumper
zACPI 1.1
zAPM 1.2
zSupport ACPI S1, S3
zSupport ASF 2.0
zHardware Monitor control by Winbond
W83627 HF
zSupport AC power failure
Form Factor
zEATX form factor
z12’’x13’’
zEEB 3.5
zEPS 12V power connectors (24 pin + 8 pin)
Internal I/O
connector
IDE Bus
System BIOS
System Management

Chapter 2
Components and Jumper Setting

Hardware Installation
DJ800 Motherboard
Components and Jumper Setting
2-1
MAINBOARD MAP
MAINBOARD MAP
J57
J63
J46
J48
J66
J67
J68
J69
J34
J34A
J43
JP16
JP1
JP18
JP19
JP10
JP10A
PCI 32/33
PCI-X 64/133
PCI-X 64/100
PCI-X 64/100
PCI-Express x4
PCI-Express x16
DIMM A1 DIMM B4
CPU2 CPU1
Floppy
Primary Secondary

Chapter 2
Components List
CPU1; CPU2 Intel Xeon Socket604 Processor
Primary; Secondary IDE Driver Connectors
Floppy Floppy Disk Driver Connector
PCI Slots PCI-Express x16, x4 Slots; PCI-X 100,133; PCI
DIMM B4~A1 Memory Socket for DDR2 Memory
JP1 Clear CMOS Header
JP10 and JP10A Memory Voltage Select Jumper
JP16 BIOS Flash Protect Jumper
JP18 USB Power Select Jumper
JP19 LAN Power Select Jumper
J34 &J34A USB 2.0 Ports and Header
J43 Front Panel Switch Header
J46 WOL Connector
J48 SMBus Connector
J57 Front Audio Jumper
J63 IEEE 1394 (FireWire) Header
J66, J67, J68, J69 Serial ATA Connector
2-2

Hardware Installation
DJ800 Motherboard
Components and Jumper Setting
2-3

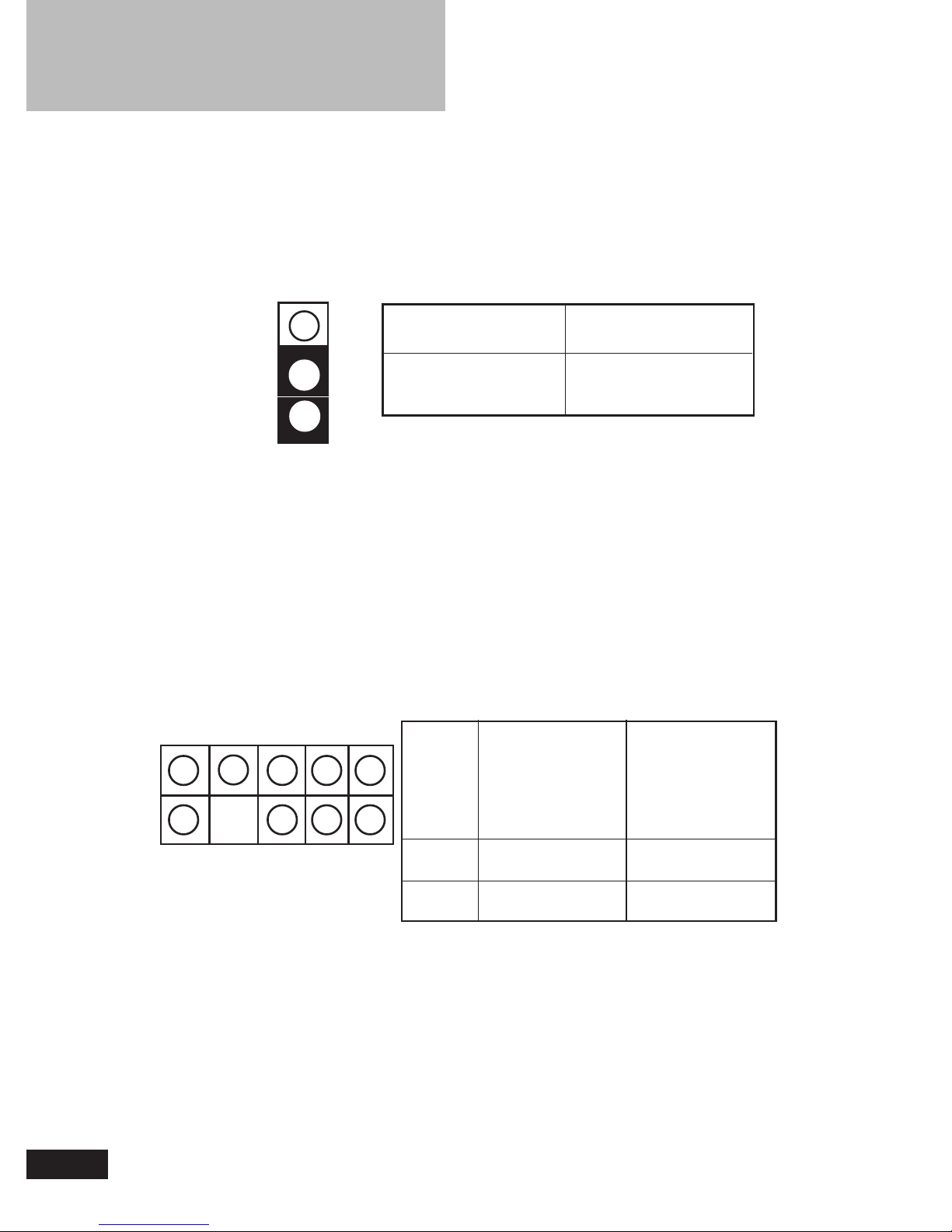

Jumper Setting
JP1: Clear CMOS Header
The onboard button cell battery powers the CMOS RAM. It con-
tains all the BIOS setup information. Keep the jumper connected to
pins 1-2 (Default) to retain the RTC data as shown below.
Under certain circumstances, you will need to reset system settings.
Follow these instructions to clear the CMOS RTC data:
1. Turn off the computer.
2. Short pins 2 and 3 with a jumper for a few seconds.
3. Replace the jumper to pins 1 and 2.
4. Turn on your computer by pressing the power-on button.
5. Hold down <F2> during boot and select either <Load Optimal
Defaults> or <Load Failsafe Defaults> in the “Exit” section. Then
go through the BIOS setup to re-enter user preferences.

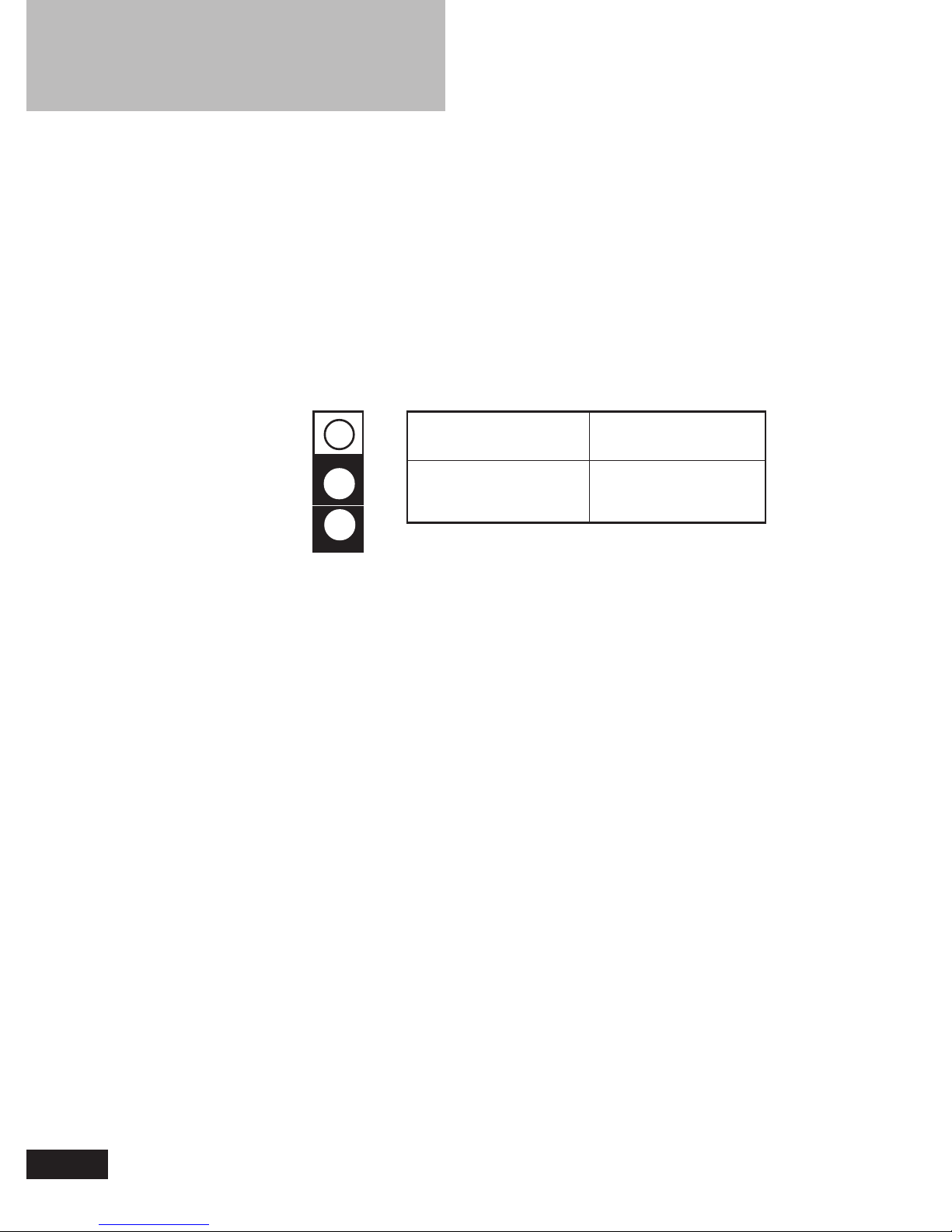

1-2 2-3
Normal (Default) Clear CMOS
3
2
1

Chapter 2
JP10 and JP10A: Memory Voltage Select Jumper
This header lets you adjust the memory voltage.
JP16: BIOS Flash Protect Jumper
This jumper protects the system from unnecessary updating or flashing
of the BIOS. It secures the BIOS therefore prevents accidental overwriting
of the data stored in flash memory.
2-4
JP10A JP10 VDDR JP10 JP10A
1.8V 1-2 1-2
1.85V 1-2 2-3
1.9V 2-3 1-2
1.95V 2-3 2-3
JP16
1-2 By Soft
2-3 Lock
Open Unlock
JP18: USB Power Select Jumper
This header lets you set your USB headers power status. You can
choose power standby or not.
3
2
11-2 2-3
VCC5 Stand By VCC5
123

Hardware Installation
DJ800 Motherboard
Components and Jumper Setting
JP19: LAN Power Select Jumper
This header lets you set your LAN connectors power status. You can
choose power standby or not.
J57: Front Audio Jumper
This header lets you enable or disable the function of the front audio
connector.
3
2
11-2 2-3
VCC33 Stand By VCC33
2-5
J57
5-6 SHORT OPEN
9-10 SHORT OPEN
W/O FRONT
AUDIO
CONNECTOR
WITH FRONT
AUDIO
CONNECTOR
19
10

Chapter 2
PS/2 Mouse Connector (6-pin Female)
The system will direct IRQ12 to the PS/2 mouse if one is detected.
If no mouse is detected, IRQ12 will be free for expansion cards to use.
PS/2 Keyboard Connector (6-pin Female)
This connection is for standard keyboards using a PS/2 (mini DIN)
plug. This connector will not accept standard AT size (large DIN) key-
board plugs. You may need a DIN to mini DIN adapter for standard AT
keyboards.
Universal Serial Bus Ports (4-pin Female)
Four onboard external USB 2.0 ports are available for connecting
USB devices. Refer to USB 2.0 Ports & Header for more information.
Rear Panel I/O Ports
This is an illustration of the Mainboard rear I/O port array
Line In
Line Out
Mic In
Keyboard COM1
Rear Out
S/PDIF USB2.0 Center Out
Mouse Parallel LAN IEEE1 94
2-6

Hardware Installation
DJ800 Motherboard
Components and Jumper Setting
IEEE 1394/ FireWire Connector (6-pin Male)
You have one (1) onboard IEEE 1394 connector port for connecting
FireWire devices. Refer to IEEE 1394 Ports & Header for more
information.
Serial Port (COM1) Connector (9-pin Male)
The COM1 serial port can be used for pointing devices or other se-
rial devices. See BIOS for more on serial port setup.
Parallel Printer Connector (25-pin Female)
You can enable the parallel port and choose an IRQ through the BIOS.
You can choose between ECP and EPP support through the BIOS setup.
Onboard LAN Port (RJ-45)
This Mainboard uses Intel 82541PI Gigabit Ethernet Controller. Refer
to the Onboard LAN User Guide for further information.
Audio Jacks (Phone Jacks)
The interface is supported by the onboard Analog Device AD1980.
It has 3 phone jacks for Line-Out, Microphone In, and Line-In.
S/PDIF Port
DJ800 also provides the S/PDIF out, Rear Out, and Center Out
function.
2-7
