IWILL DN800-SLI User manual

IWILL
DN800-SLI Motherboard
User’s Manual
Overview Hardware Installation BIOS Setup
FB23634600

DN800-SLIMainboard
-2- IWILLDN800-SLIMainboard

User’sManual
IWILLDN800-SLIMainboard -3-
Disclaimer
The manufacturer makes no representations or warranties regarding the contents of this
manual and specifically disclaims any implied warranties of merchantability or fitness for
any particular purpose. Furthermore, the manufacturer reserves the right to revise this
publication or make changes in the specifications of the product described within it at any
time without notice and without obligation to notify any person of such revision or change.
Trademarks
Microsoft and Windows are registered trademarks of Microsoft Corp. Intel and Xeon are
registered trademarks of Intel Corporation. nVIDIA and SLI Technology are registered
trademarks of nVIDIA Corp. Other product names used in this manual are the properties
of their respective owners and are acknowledged.
Copyright
This publication, including all photographs, illustrations and software, is protected under
international copyright laws, with all rights reserved. Neither this manual, nor any of the
material contained here in, may be reproduced without the express written consent of the
manufacturer. IWILL ©Copyright 2004
All product specifications are subject to change without prior notice. The actual
specifications will be according to the actual product.

DN800-SLIMainboard
-4- IWILLDN800-SLIMainboard
Table of Contents
DN800-SLI PACKAGE CONTENT.......................................................................................................... - 7-
SAFETY NOTICE..................................................................................................................................... - 8-
GETTING HELP..................................................................................................................................... - 10 -
DN800-SLI SPECIFICATIONS.............................................................................................................. - 11 -

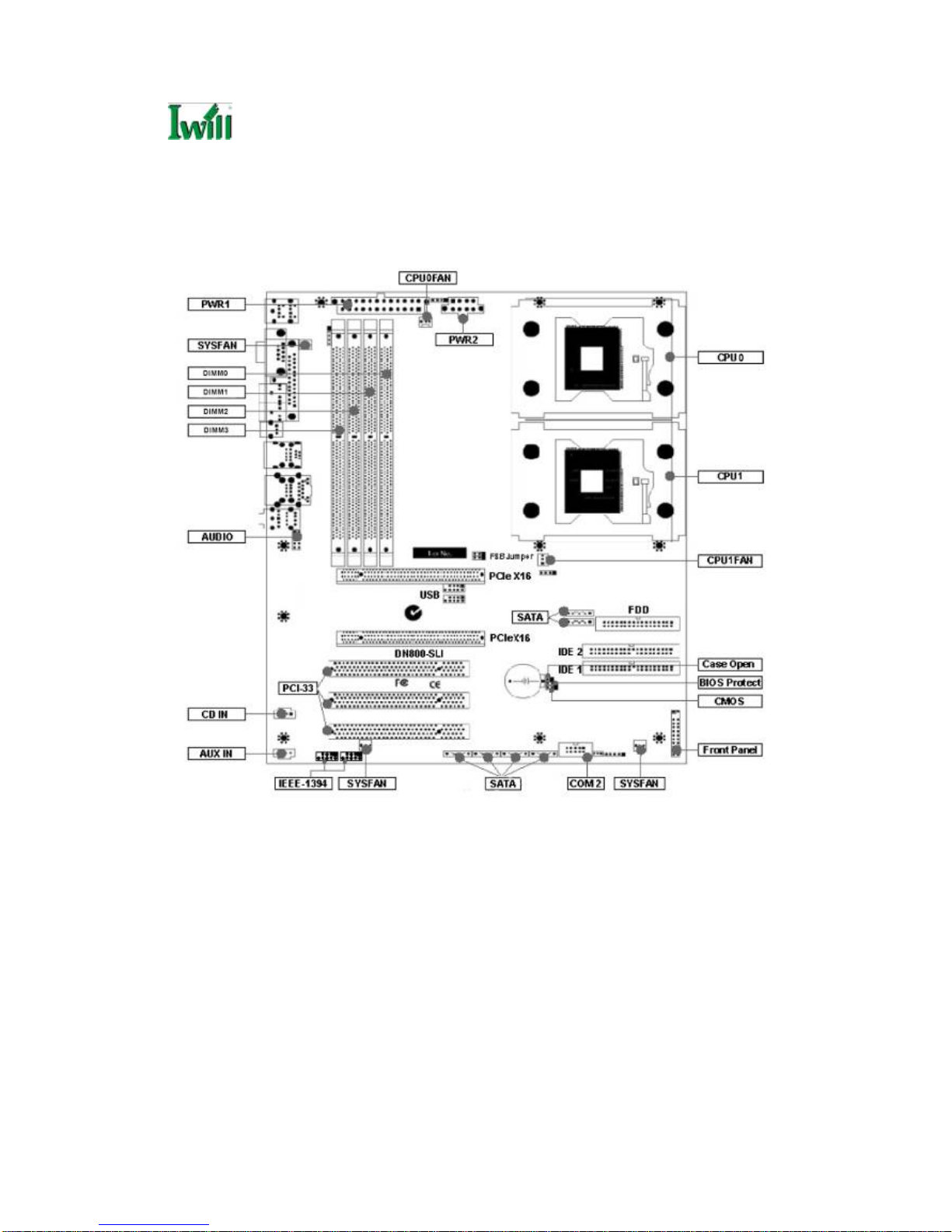

MOTHERBOARD LAYOUT...................................................................................................................... - 15 -
COMPONENTS LIST.............................................................................................................................. - 16 -

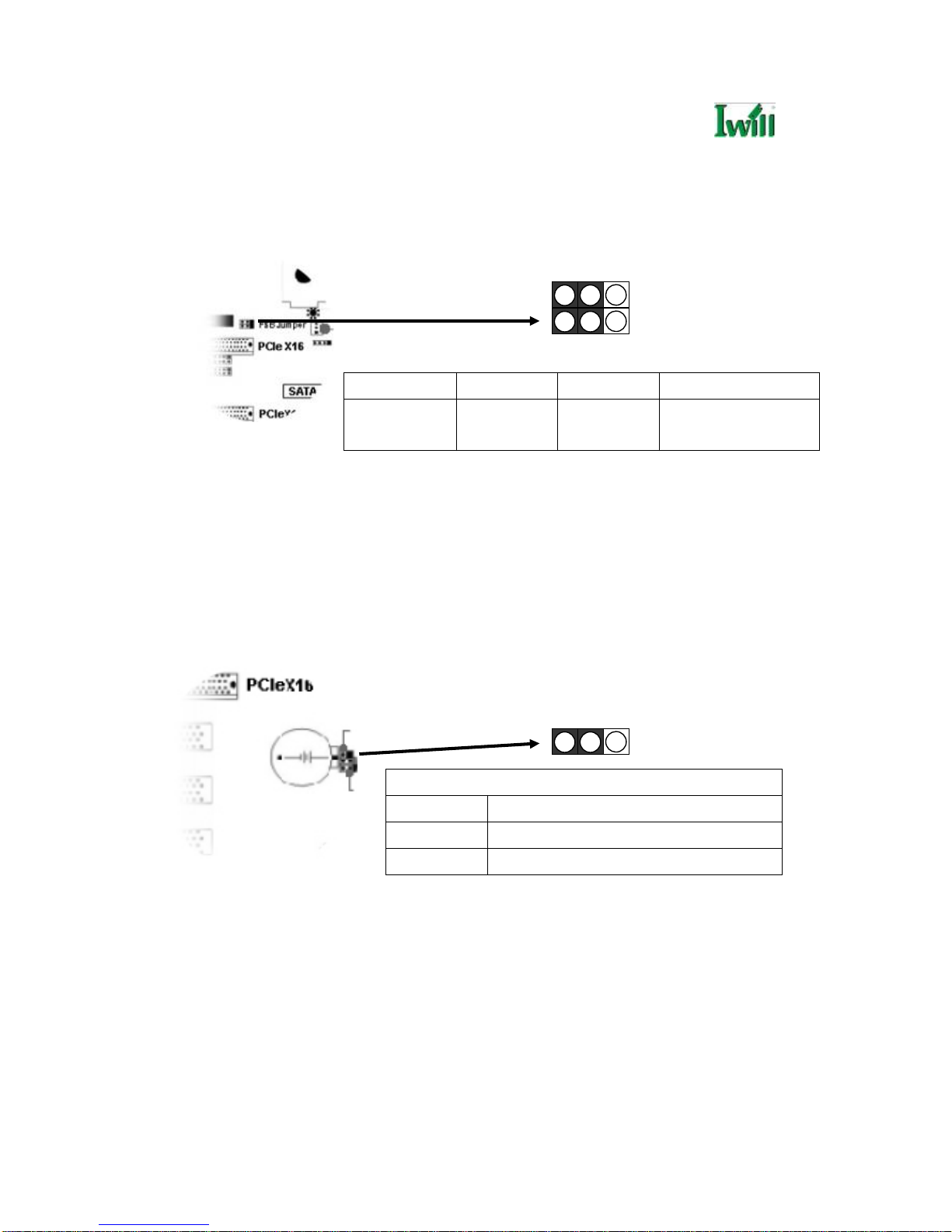

JUMPER SETTING ................................................................................................................................-17 -
JP1: Clear CMOS Header...........................................................................................................- 17 -
JP3; JB3A: FSB Jumper..............................................................................................................- 18 -
JP16: BIOS Protection Jumper..................................................................................................- 18 -
J42 Case Open Pin Header........................................................................................................- 19 -
J57: Front Audio Jumper.............................................................................................................- 20 -
REAR PANEL I/O PORTS...................................................................................................................... - 21 -
ADDITIONAL I/O CONNECTORS ........................................................................................................... - 23 -
J32: COM2 Header......................................................................................................................- 23 -
J43: Front Panel Switch Header ................................................................................................- 23 -
J45: IrDA Connector.....................................................................................................................- 25 -
J46: WOL Connector...................................................................................................................- 26 -
J48: SMBus Connector................................................................................................................- 26 -
SERIALATA CONNECTOR.................................................................................................................... - 27 -
USB HEADER ...................................................................................................................................... - 29 -
J60A, J60B: IEEE 1394 (FIREWIRE)HEADER ................................................................................. - 30 -
DN800-SLI POWER SUPPLY .............................................................................................................. - 31 -
IDEAND FLOPPY CONNECTORS ......................................................................................................... - 32 -
MOTHERBOARD INSTALLATION............................................................................................................ - 35 -
INSTALLING THE CPUAND HEATSINK PROCEDURES.......................................................................... - 36 -
MEMORY INSTALLATION PROCEDURE ................................................................................................. - 44 -
INSTALLING EXPANSION CARDS .......................................................................................................... - 46 -
SUPPORTING SLI TECHNOLOGY ......................................................................................................... - 47 -
POWERING ON YOUR SYSTEM............................................................................................................. - 49 -
BIOS SETUP........................................................................................................................................ - 51 -
USING THE BIOS SETUP UTILITY........................................................................................................ - 53 -
MAIN MENU.......................................................................................................................................... - 55 -
ADVANCED MENU ................................................................................................................................-56 -

User’sManual
IWILLDN800-SLIMainboard -5-
IDE CONFIGURATION SUBMENU........................................................................................................... - 57 -
SUPERIO CONFIGURATION SUBMENU................................................................................................... - 57 -
ONBAORD CONFIGURATION SUBMENU................................................................................................. - 58 -
PERFORMANCE SETTING SUBMENU...................................................................................................... - 58 -
BOOT MENU......................................................................................................................................... - 60 -
BOOT SETTING CONFIGURATION SUBMENU ....................................................................................... - 61 -
SECURITY MENU.................................................................................................................................. - 62 -
CHIPSET MENU.................................................................................................................................... - 63 -
POWER MENU...................................................................................................................................... - 64 -
EXIT MENU........................................................................................................................................... - 65 -
OS INSTALLATION................................................................................................................................-67 -
DRIVERS INSTALLATION ....................................................................................................................... - 68 -

DN800-SLIMainboard
-6- IWILLDN800-SLIMainboard
Chapter 1 Overview

User’sManual
IWILLDN800-SLIMainboard -7-
DN800-SLI Package Content
1. DN800-SLI Motherboard
The DN800-SLI mainboard
2. Three jumper caps
Extra caps in case original caps get lost
3. One Power Installation CD
Includes support software, drivers and bundled software utilities.
4. Rear panel I/O shield
Covers the area around the rear panel I/O ports when the board is installed in
the system housing.
5. Two sets of SATA cables
Connector cables for onboard SATA connectors.
6. Two ATA-66/100 IDE cables
Connects IDE devices to one of the onboard IDE connectors.
7. One floppy disk drive cable
Connects floppy disk drives to the onboard floppy disk connector.
8. Two Hat Springs for CPU cooler
Sustain and connect between CPU cooler and chassis
9. One iron backplate
The iron backplate connects the motherboard and chassis, and sustain the
mass of CPU heatsink.
10. Two CPU plastic backplates
It can fix the third party CPU heatsink. Please refer to Chapter 3 for the detail
information.
11. Two heatsink retention modules
It can buckle up the CPU heatsink. Please also refer to Chapter 3 for the
detail information.

DN800-SLIMainboard
-8- IWILLDN800-SLIMainboard
Safety Notice
GENERAL SAFETY PRECAUTIONS
Keep the area around the Server clean and free of clutter.
Servers weigh a lot. When lifting the system, two people should lift slowly
from opposite ends with their feet spread out to distribute the weight. Always
keep your back straight and lift with your legs.
Place the chassis top cover and any system components that have been
removed away from the system or on a table so that they won’t accidentally
be stepped on.
While working on the system, do not wear loose items such as neckties and
unbuttoned shirtsleeves. They can come into contact with electrical circuits or
get pulled into a cooling fan.
Remove any jewelry or metal objects from your body, which are excellent
metal conductors and can create short circuits and harm you if they come into
contact with printed circuit boards or areas where power is present.
ESD PRECAUTIONS
Electrostatic discharge (ESD) is generated by two objects with different electrical
charges coming into contact with each other. An electrical discharge is created to
neutralize this difference, which can damage electronic components and printed
circuit boards. The following measures are generally sufficient to neutralize this
difference before contact is made to protect your equipment from ESD:
Use a grounded wrist strap designed to prevent static discharge.
Keep all components and printed circuit boards (PCBs) in their antistatic bags
until ready for use.
Touch a grounded metal object before removing the board from the antistatic
You must have enough system integration knowledge before the installation，and
please carefully read our instruction while you are installing the system.

User’sManual
IWILLDN800-SLIMainboard -9-
bag.
Do not let components or PCBs come into contact with your clothing, which
may retain a charge even if you are wearing a wrist strap.
Handle a board by its edges only; do not touch its components, peripheral
chips, memory modules or contacts.
When handling chips or modules, avoid touching their pins.
Put the motherboard and peripherals back into their antistatic bags when not
in use.
For grounding purposes, make sure your computer chassis provides
excellent conductivity between the power supply, the case, the mounting
fasteners and the motherboard.
After accessing the inside of the system, close the system back up and
secure it to the rack unit with the retention screws after ensuring that all
connections have been made.
OPERATING PRECAUTIONS
Check package contents
Missing or damaging accessories
Please contact your vendor immediately
Motherboard damage
Please contact your vendor immediately
Prepare minimum system components
Intel Xeon @800MHz FSB Processor
At least one Registered DDR2 memory module
At least one SATA or IDE HDD
EPS12V Power Supply with 460W or above

DN800-SLIMainboard
-10- IWILLDN800-SLIMainboard
Getting Help
If a problem arises with your system during Installation or Operation, you should
first ask your dealer for help as they have most likely configured your system.
They generally have the best grasp of your issues and the fastest response for
your symptoms. If your dealer is near your location, it is recommended that you
first bring your system to them to have it serviced instead of attempting to solve
the problem yourself.
If those options don't work for you, IWILL also provides some helpful resources to
help you.
1. Visit IWILL® website at http://www.iwill.net and navigate to this product’s
page which contain links to product updates such as Jumper settings or BIOS
updates.
2. The FAQ (Frequently Asked Questions) sections in the IWILL website are
often helpful since other users often have the same questions.
3. Email us at: [e-mail] and we will try to answer your questions within
5 business days.

User’sManual
IWILLDN800-SLIMainboard -11-
DN800-SLI Specifications
Processor zSupports two Intel Xeon processors over an 800 MHz
system bus
z1 MB L2 up to 3.60 GHz
zHyper-Threading technology
zIntel Extended Memory 64 Technology
zDemand Based Switching with Enhanced Intel
SpeedStep Technology
zStreaming SIMD Extensions 3 (SSE3)
Chipset zIntel® E7525 Memory Controller Hub (MCH) chipset
zIntel® 6300ESB I/O Controller Hub
zSilicon Image 3114 SATA Controller
zWinbond W83627 THF
zAnalog Device AD1980 Audio codec
Memory z4 DIMMs for 240-pin DDR2 DIMM sockets
zDual Channel registered with ECC memory ONLY
zTotal system memory size of up to 8GB
zSupport 128MB/256MB/512MB/1GB/2GB memory
modules
zOffers a maximum memory bandwidth of 6.4 GB/second
Audio zAC '97 2.3 Compatible features
zIntegrated Stereo Headphone Amplifier
z6 DAC Channels for 5.1 Surround
zS/PDIF output
IEEE-1394 zTI TSB43AB23 IEEE-1394 controller
z3 x 1394a ports(1 x external port, 2 x internal connectors)
zFully support IEEE Std 1394a-2000
zCable port data rate of 100Mbs, 200Mbs, and 400Mbs
Serial ATA
z4 Serial ATA ports supported by Silicon Image with RAID
0, 1, 10
z2 Serial ATA ports supported by 6300ESB with RAID 0, 1
zSupport Adaptec Host RAID
zSupport hot swap

DN800-SLIMainboard
-12- IWILLDN800-SLIMainboard
USB zIntegrated NEC with four(4) USB 2.0 ports at the rear
panel
zTwo internal connectors for four front panel USB 2.0 ports
On-Board LAN zIntel Gigabit Ethernet controller
zSupport PME
Expansion Slots
zDual PCI Express x16 slot for fully supporting SLI
technology
zThree PCI 32/33 slots
zPCI 2.2 Compliant
Internal I/O
connector
z1 x 34-pin Floppy Connector
z4-pin CD-In and Aux-In audio input connector
IDE Bus
z2x 40-pin IDE connectors, supports up to four (4)
Enhanced IDE devices
zDual Channel Master Mode
zUltra DMA 100/66/33
External I/O
zPS/2 mouse and keyboard connectors
z1 x UART 16550 serial port (COM1)
z1 x 25-pin parallel port with ECP/EPP support
z4 x USB 2.0 ports
z1 x Gigabit Ethernet LAN RJ-45 port
z1 x IEEE-1394 port
z1 x S/PDIF Out
zRear Out and Center Out
zAudio Phone Jacks - Line Out, Mic In, Line-In.
Internal I/O
z1 x UART by 9-pin header
z1 x Smbus connector
z1 x WOL connector
z1 x IR connector
System BIOS
zAMI BIOS
zFlash write protection by BIOS and one jumper
zACPI 1.1
zAPM 1.2
zSupport ACPI S1
zSupport ASF2.0

User’sManual
IWILLDN800-SLIMainboard -13-
System
Management
zHardware Monitor control by ADT-7460
zFan speed control method: DC FAN
zSupport AC power failure
Form Factor
zATX form factor
z12”x 10”
z8 layers design
zEPS 12V power connectors (24 pin+8 pin)

DN800-SLIMainboard
-14- IWILLDN800-SLIMainboard
Chapter 2 Components and Jumpers

User’sManual
IWILLDN800-SLIMainboard -15-
Motherboard Layout

DN800-SLIMainboard
-16- IWILLDN800-SLIMainboard
Components List
CPU0; CPU1 Intel Xeon Socket 604 Processor
Primary; Secondary IDE Driver Connectors
Floppy Floppy Disk Driver Connector
PCIe Slot PCI-Express x16 Slots
PCI-33 PCI 32/33 Slots
DIMM0~3 Memory Socket for DDR2 Memory
JP1 Clear CMOS Jumper
JP3, JP3A FSB Jumper
JP16 BIOS Protect Jumper
J32 COM2 Port
J34, J34A USB 2.0 Headers
J42 Case Open Pin Header
J43 Front Panel Connector
J45 IrDA Connector
J46 WOL Connector
J48 SMBus Connector
J53 AUX-IN
J54 CD-IN
J57B Audio Jumper
J58, J58A, J58B, J58C, J58D,
J58E Serial ATA Connectors
J60A, J60B IEEE-1394 Headers

User’sManual
IWILLDN800-SLIMainboard -17-
Jumper Setting
JP1: Clear CMOS Header
The onboard button cell battery powers the CMOS RAM. It contains all the BIOS
setup information. Keep the jumper connected to pins 1-2 (Default) to retain the
RTC data as shown below.
Under certain circumstances, you will need to reset system settings. Follow these
instructions to clear the CMOS RTC data:
1. Turn off the computer.
2. Short pins 2 and 3 with a jumper for a few seconds.
3. Replace the jumper to pins 1 and 2.
4. Turn on your computer by pressing the power-on button.
5. Hold down <F2> during boot and select either <Load Optimal Defaults> or
<Load Failsafe Defaults> in the “Exit” section. Then go through the BIOS
setup to re-enter user preferences.
1-2 2-3
Normal (Default) Clear CMOS
1
2
3

DN800-SLIMainboard
-18- IWILLDN800-SLIMainboard
JP3; JB3A: FSB Jumper
This header lets you set your memory speed. Depend on the memory you choose,
please adjust this jumper in order to optimize your memory utilize.
JP16: BIOS Protection Jumper
This jumper protects the system from unnecessary updating or flashing of the
BIOS. It secures the BIOS therefore prevents accidental overwriting of the data
stored in flash memory.
JP16
1-2 By Soft (default)
2-3 Lock
Open Unlock
FSB JP3A JP3 MEMORY
800MHz
(Default)
Pin1-2 Pin1-2 DDRII-400
12
3
12
3

User’sManual
IWILLDN800-SLIMainboard -19-
1
J42 Case Open Pin Header
Case Open is a security function. This can detect whether the chassis (case) had
been opened or not. If the case had been opened, the open record would show on
the screen until you delete this message.
Setting J42
Open Disable
Close Enable

DN800-SLIMainboard
-20- IWILLDN800-SLIMainboard
J57: Front Audio Jumper
This jumper allows users to switch audio function to the front panel if front panel is
installed.
J57 W/O Front Audio
Connector
With Front Audio
Connector
5-6 SHORT OPEN
9-10 SHORT OPEN
1
910
Pin Assignment:
Pin 1 Mic-In L
Pin 2 GND
Pin 3 Mic-In R
Pin 4 VCC
Pin 5&6 Line-Out R
Pin 7 Audio VERF
Pin 8 NC KEY
Pin 9-10 Line-Out L
