Jacuzzi ERIKA 48 User manual

1

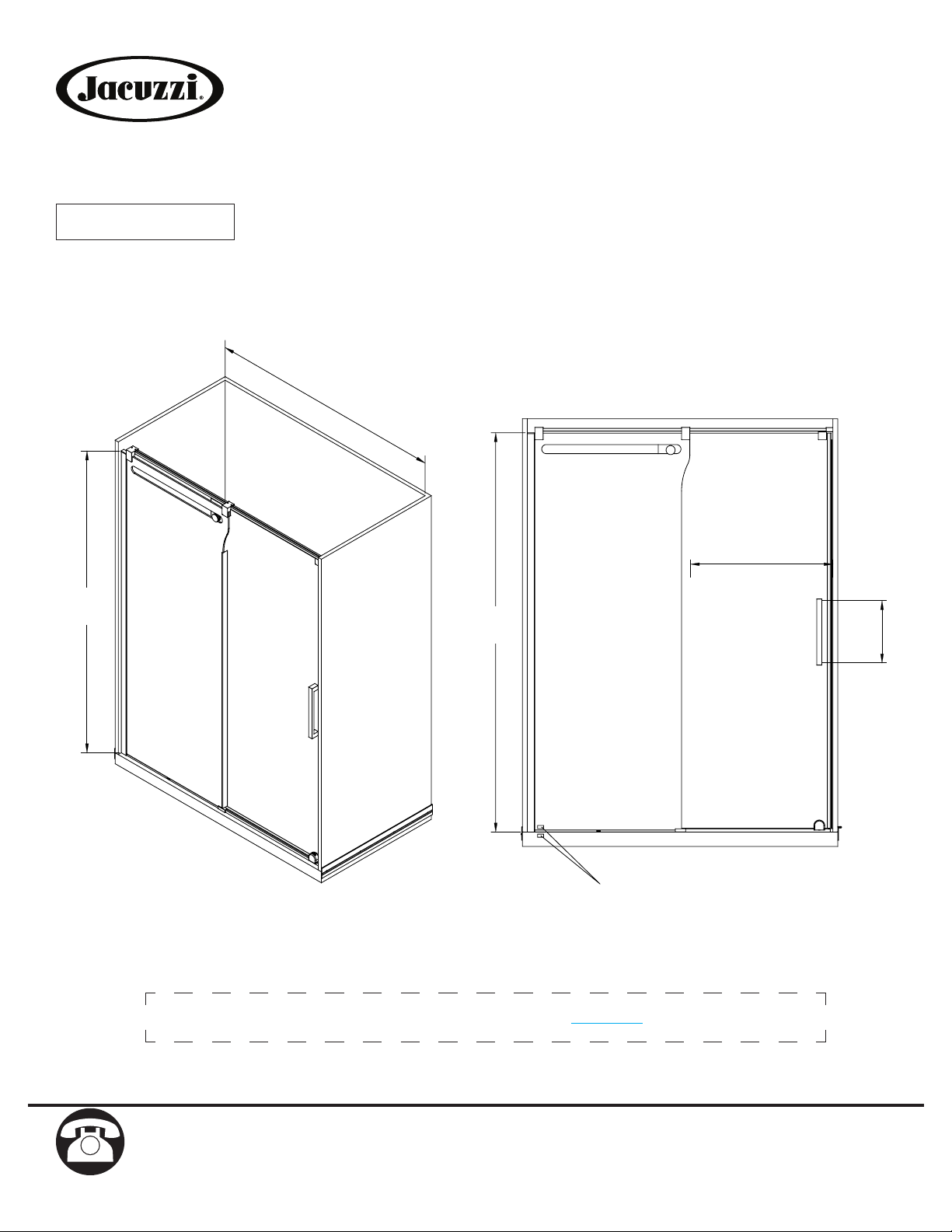

ERIKA 48
1930
[76]
1219
[48]
295
[11 5/8]
CSA Markings
Opening
470
[18 1/2]
1930
[76]
Measures: millimeter [inch]
MODEL #ERIKA-GP48
ITEM #0665830
Purchase date: _________________________ Product Tracking Reference: ________________________
Questions, problems, missing parts?
Before returning to your retailer, call our customer service department at
1-855-624-5959, 9 a.m. - 5 p.m., EST, Monday - Friday
2015-06-15
An installation video can be found on LOWES.CA

2
TABLE OF CONTENT
PACKAGE CONTENT.......................................................................................................................................... 4
HARDWARE CONTENT...................................................................................................................................... 5
TOOLS REQUIRED............................................................................................................................................. 5
SAFETY INFORMATION..................................................................................................................................... 6
PREPARATION.................................................................................................................................................... 6
SHOWER REVERSIBILITY.................................................................................................................................. 7
WALL TO WALL MEASURES............................................................................................................................. 7
BASE INSTALLATION GUIDELINES (OPTIONAL)............................................................................................ 8
WALL TRACK INSTALLATION..........................................................................................................................9
FIXED PANEL INSTALLATION.......................................................................................................................... 10
SUPPORT BAR INSTALLATION....................................................................................................................... 12
DOOR PANEL INSTALLATION......................................................................................................................... 14
HANDLE INSTALLATION & SEALING.............................................................................................................. 16
CARE AND MAINTENANCE............................................................................................................................. 17
LIMITED 5 YEARS WARRANTY........................................................................................................................ 17

3

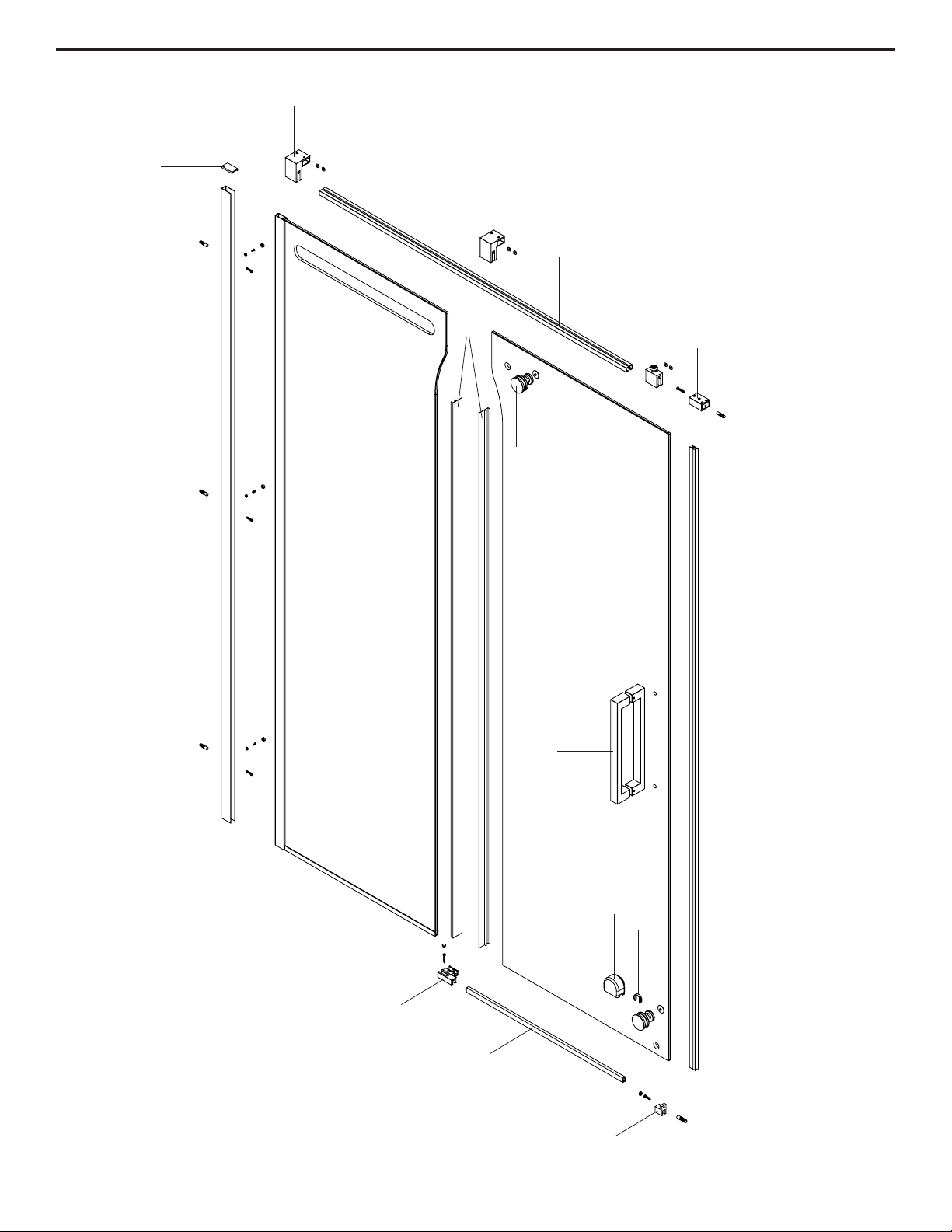

PACKAGE CONTENT
BD
E
F
H
I
R
M
G
CJ
Q
KL
N
O
P

4
PACKAGE CONTENT
PART# DESCRIPTION QTY CODE
BWall track 199STR1068-WM
CFixed glass panel 199SG10326-WM
DSupport bar’s anchor 199SGC1051-WM
EAuxiliary roller 199SGC3110-WM
FSupport bar 199SGS0021-WM
GFixed panel’s bracket 299SGC3108-WM
HDoor roller 299SWE0020-WM
IMagnetic seal strip 199SRU0128
JDoor panel 199SGD0031-WM
KRoller cover 199SGC3114-WM
LClip 199SHW0109-WM
MDoor handle 199SHA1033-WM
NSliding door guide 299SGC3111-WM
ORoller guide track 199STR0034-WM
PRoller guide track’s anchor 299SGC1052-WM
QDecorative cap 199SGC3113-WM
RVertical seal strip 299SRU0021
SHardware content 199SHW0115-WM

5
HARDWARE CONTENT
TOOLS REQUIRED
Pencil Screwdriver Level
Measuring Tape Silicone Rubber mallet Cutter
Safety glasses Allen key
2.5mm & 4mm & 5mm
Ratchet
5mm Bit socket
Drill with ceramic tile bits
ø3mm (1/8in) & 6mm (1/4in) & 8mm (5/16in)
FFEEDDCCBB
Wall Anchor
ø8x30mm
4+1
Cap
3x
Fitting
3x
GG
Screw
ST4x30mm
1+1
Screw
ST4x12mm
3+1
HH
Screw
ST4x20mm
1+1
Cap
2x
Cap
2x
Wall Anchor
ø6x30mm
1+1
Screw
ST5x30mm
3+1
Cap
6x
Screw
ST5x35mm
1+1
MM
LLKKJJII

6
Please read and understand this entire manual before attempting to assemble, operate
or install the product.
WARNING
• Distributor is not responsible for any damage to the unit or personal property caused
by improper installation. If you disregard instructional warnings, you will void your
warranty and possibly deal with water damage.
CAUTION
• Carefully remove product from packaging and keep packaging until installation is
complete.
• Inspect all parts for damage; if there is damage to the unit prior to installation,
please contact customer service at the number provided in this guide.
• Installtheshoweronaoorthatislevelandabletoaccommodatetheweightofthe
unit and an occupant.
• Please, consult local building codes and compliance standards prior to installation
and ensure conformity.
SAFETY INFORMATION
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare
parts with package contents list and hardware contents list. If any part is missing or
damaged, do not attempt to assemble the product.
Estimated Assembly Time: Shower (60 min).
Handle the tempered glass with caution! Improperly handling the glass can
cause it to break suddenly in small pieces (never in pointed fragments).
Dot NOT put glass panels on hard surfaces, always work on clean and soft
surface (e.g. towel). Shattering may occur otherwise!
HEAVY PRODUCT! You will need at least two people to install this
unit properly.

7
SHOWER REVERSIBILITY
BA

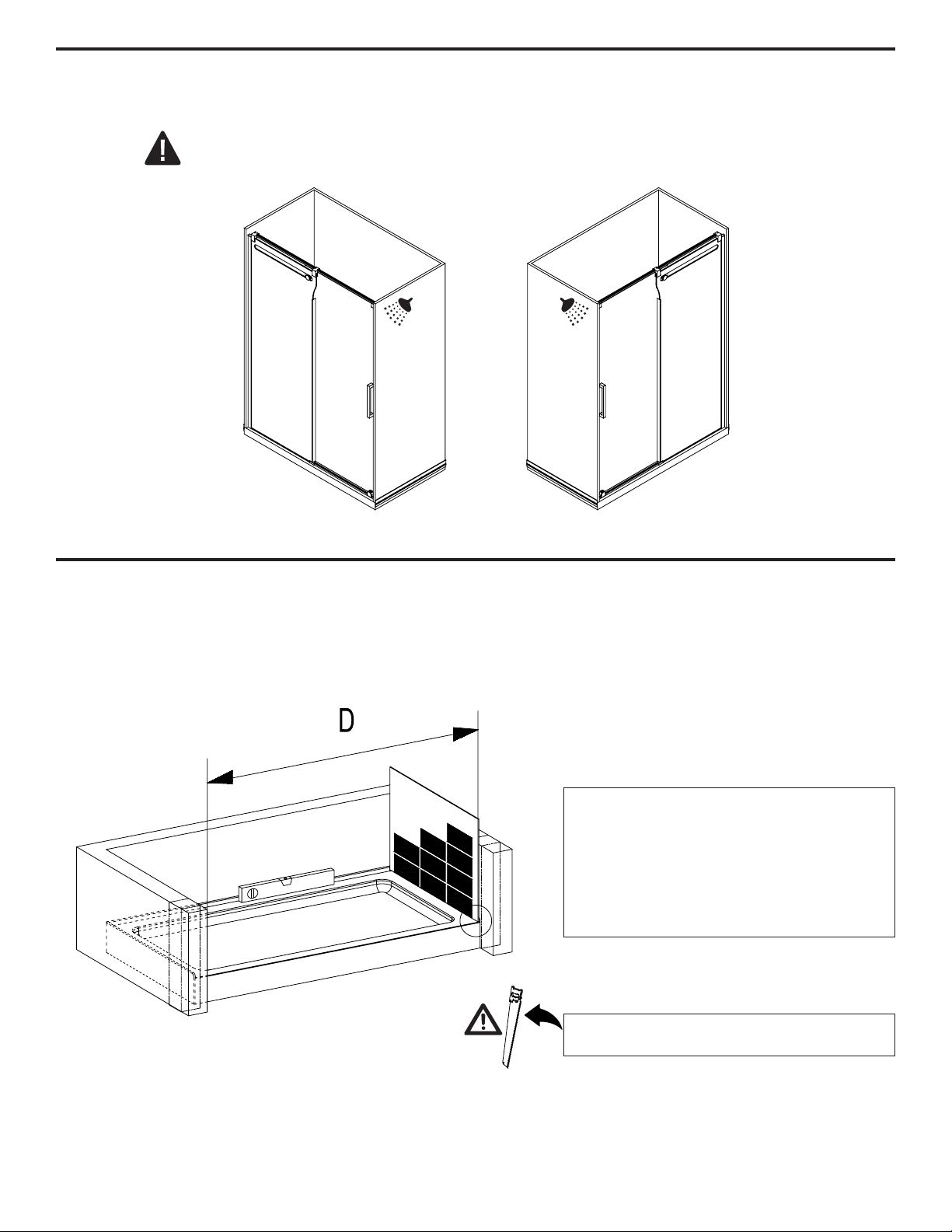

• This instruction is drawn up for an opening from right to left (see illustration A).
• For an installation from left to right (see illustration B), use the same instructions, but switch around the
panels: mirror effect.
WALL TO WALL MEASURES
• Measure the thickness of your tiles on either side before installing the metal tracks. A thicker tile will limit
your space to install the shower panels.
• Make sure to have a tile to tile distance (D) between 1173mm (46 3/16 in) min. and 1188mm (46 3/4 in)
max. (see image).
Make sure to have a distance (D) from the left side tile
to the right side tile:
D Min: 1173mm (46 3/16 in)
D Max: 1188mm (46 3/4 in)
Install the shower head on the door’s side! This will reduce the risk of leaking.
If D < 1173mm (46 3/16 in) you can cut the support
bar to adequate size. Only cut the side with no slot !

8
BASE INSTALLATION GUIDELINES (OPTIONAL)
1 2
4
Tile Wall
Studs
Drywall
Silicone
5
Shower Base
3
Shower Base
Cement
Floor
Wood shim
Flange
Stud
Drywall
Silicone
Flange

9

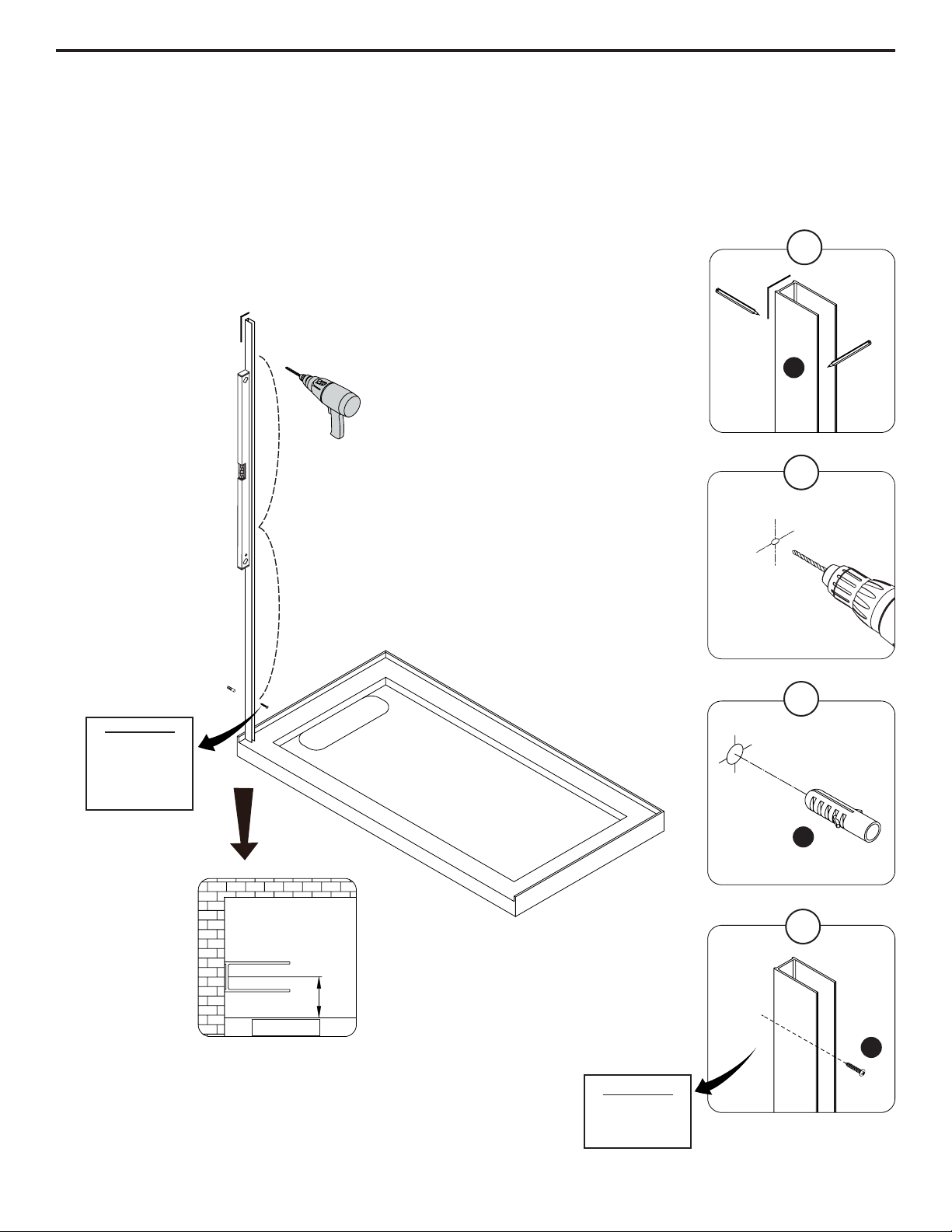

1. Level the track (B) and mark the track holes’ positions.
2. RemovethetrackanddrillpilotholesinthemarkedlocationswithaΦ8mm(5/16in)drillbit.
3. Insertthewallanchors(FF)usingarubbermalletuntilthewallanchorsareushwiththewall.
4. Replace and secure the track (B) with screws (EE). Do not overtighten.
WALL TRACK INSTALLATION
Helpful Hint
Make sure there
is a support stud
located behind the
drywall, behind the
tracks!
28mm
1 1/8in
Base edge
Φ8mm
5/16in
Helpful Hint
Do not overtighten!
This may crack the
acrylic or tile walls.
FF
EE
2
B
3
1
4

10
1. Insertthexedpanel(C)intothemetaltrack(B).Donotfullytightenitasfurtheradjustmentsmayberequired.
Note: The wall track (B) allows you to adjust the position of the xed glass panel (C). Adjusting the depth and/
or giving the xed glass panel a slight angle allows for precise alignment with the door.
2. Smoothlyslidetheguide(N)atthebottomofthexedglasspanel(C)withoutsecuring.
3-4. Insert the roller guide track (O) into the guide (N). Place the roller guide track’s anchor (P) onto the track (O).
5-6. Mark the positions of holes of the sliding door guide (N) and the roller guide track’s anchor (P).
FIXED PANEL INSTALLATION
B
C
1
C
N
2
O
NP
O
CP
4
6
3
5
N

11

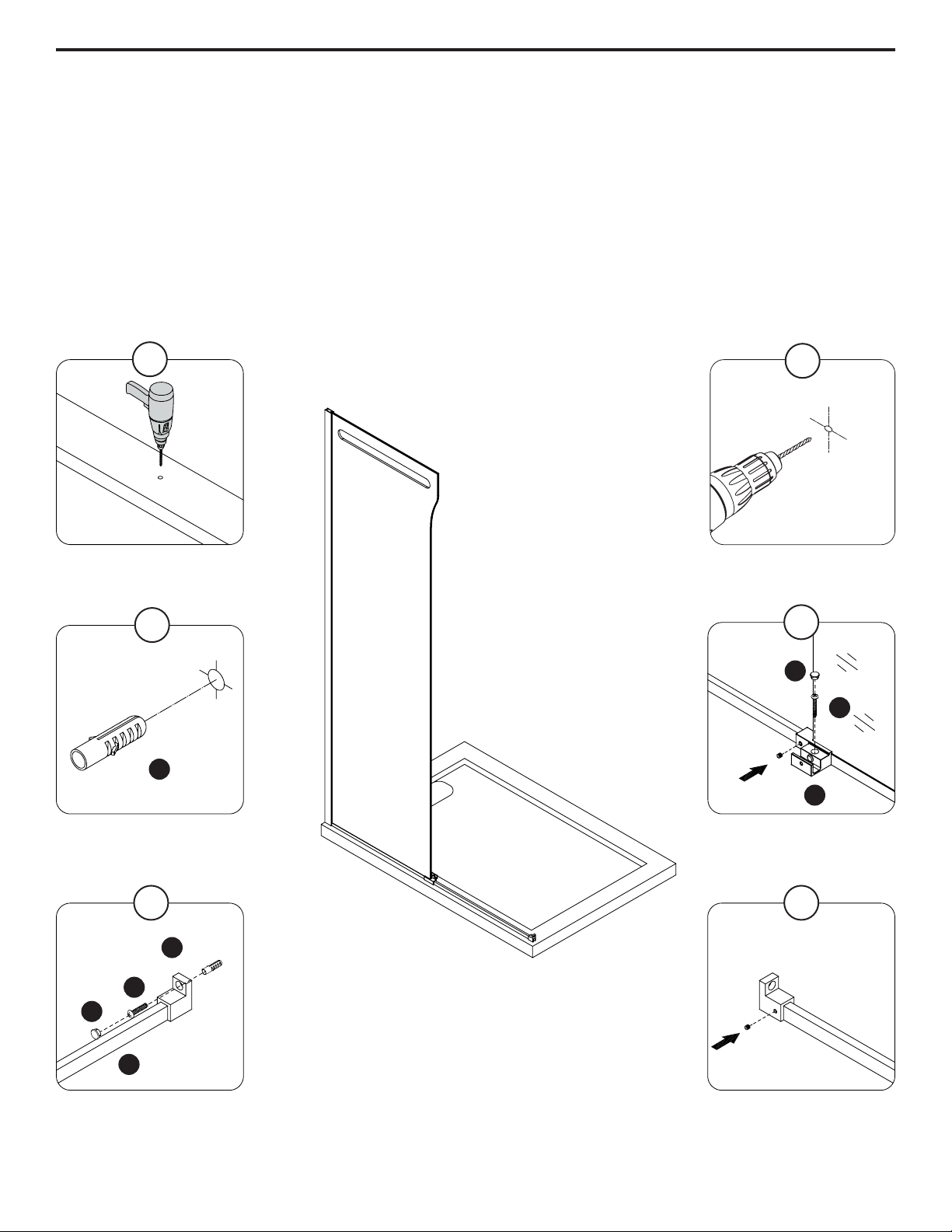

1. Drill a pilot hole for the sliding door guide (N) using a ø3mm (1/8in) drill bit.
2-3. Drill a pilot hole for the roller guide track’s anchor (P) using a ø6mm (1/4in) drill bit. Insert the wall anchors (GG)
usingarubbermalletuntilthewallanchorsareushwiththewall.
4. Install the sliding door guide (N) with the screw (CC) and the cap (II).
5-6. Install the roller guide track’s anchor (P) onto the roller guide track (O) using the screw (BB) and the cap (II).
FIXED PANEL INSTALLATION
1
Φ3mm
1/8in
2
Φ6mm
1/4in
II
CC
4
II
BB
GG
6
5
N
P
3
O

12
1-3. Slidetheauxiliaryroller(E),2xedpanel’sbrackets(G)andthesupportbar’sanchor(D)ontothesupportbar
(F).
4-5. Looselymountthesupportbar(F)ontoxedglasspanel(C)usingthebrackets(G)andlevelit.
6. Mark the outline of the support bar’s anchor (D) on the wall.
SUPPORT BAR INSTALLATION
E
1
FG
2
F
3
F
D
4
C
G
5
G
C
6
D

13
1. Completely remove the support bar. Place the support bar’s anchor (D) back on its wall mark, then mark its center
on the wall.
2-3. Drill a hole on the center marks with a ø8mm (5/16in) drill bit and insert the wall anchors (FF) using a rubber
mallet.Fixthecenterttingonthesupportbar’sanchor(D)usingthescrews(HH).
4Slideagaintheauxiliaryroller(E),2xedpanel’sbrackets(G)andthesupportbar’sanchor(D)ontothesupportbar
(F).Thenxthesupportbartoxedpanel(C)bythe2xedpanel’sbrackets(G).
5. Fix the support bar’s anchor (D) to wall.
SUPPORT BAR INSTALLATION
D
1
KK
3
FF
HH
5
D
D
Φ8mm
5/16in
2
4
C
G

14
1-2. Install the 2 door rollers (H) on the door glass panel (J). Use a ratchet to strongly tighten the bolts. Insert
the clip (L) at the bottom roller.
3-4. Gentlyhangthedoorpanelbyits2rollers(H)onthexedpanel(C)andtherollerguidetrack(O).
5. Slide the auxiliary roller (E) into the door panel (J).
DOOR PANEL INSTALLATION
H
J
L
H
J
3
J
C
4
J
O
J
E
5
H
1 2

15

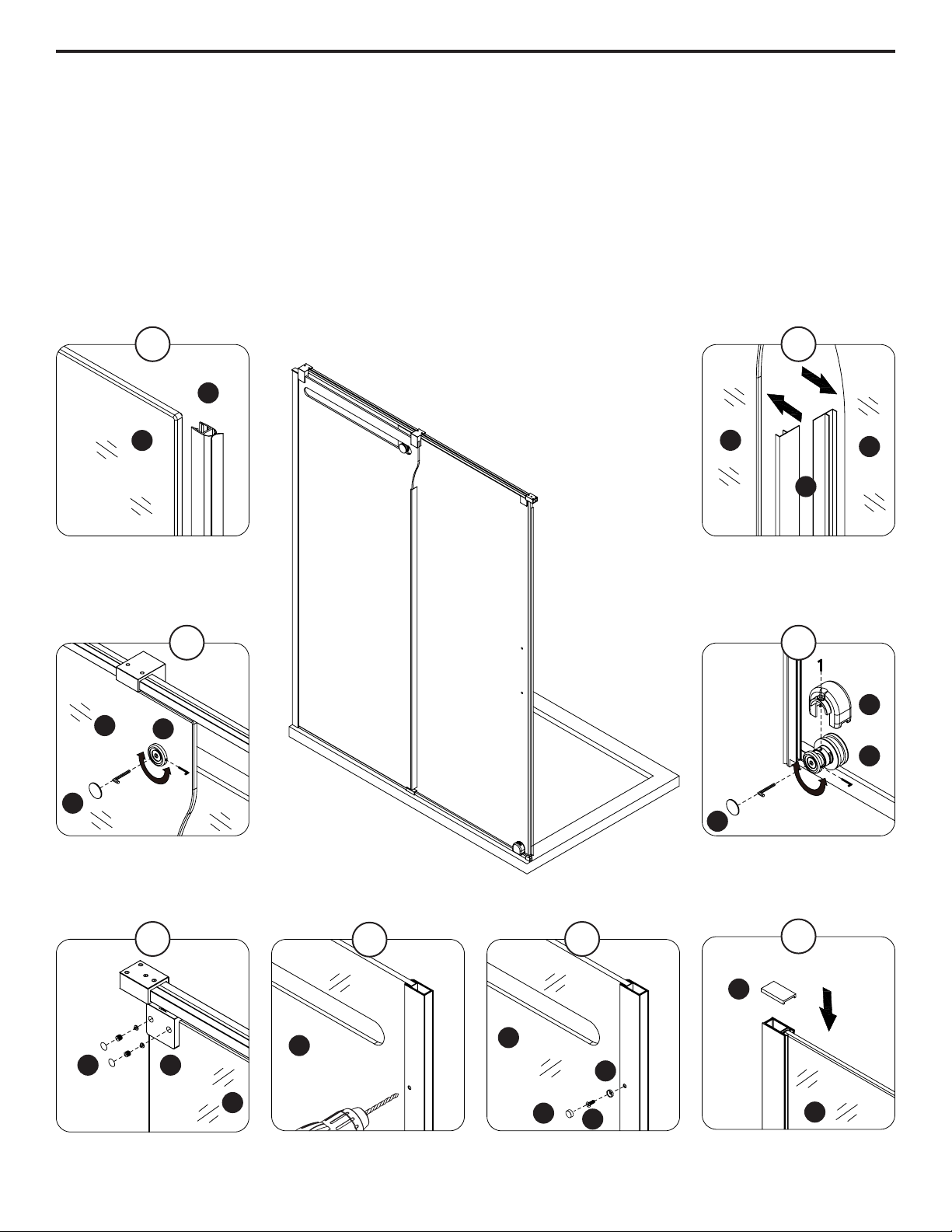

1. Install the magnetic seal strip (I) onto the door panel (J).
2. Install the 2 Vertical seal strips (R).
3-4. Adjusttheleveloftheglasspanelusingtheeccentricmechanismoftherollers.Theninstallthecap(JJ)
onto the door roller (H). Insert the roller cover (K) at the bottom roller.
5. Secure the support bar (F) to the door panel (J) using the auxiliary roller (E) and the cap (KK).
6-7. Drillthewalltrack(B)on3positionswithaø3mm(1/8in)drillbit.Levelthexedglasspanel(C)andxit
withthettings(MM),thescrew(DD)andthecap(LL).
8. Installthedecorativecap(Q)ontothexedpanel(C).
DOOR PANEL INSTALLATION
R
3
J
JJ
5
KK
2
4
CJ
K
JJ
H
H
6
C
MM
C
7
DD
LL
Φ3mm
1/8in
8
Q
C
J
E
J
1
I

16
HANDLE INSTALLATION & SEALING
1. Install the door handle (M) using an Allen key.
2. Ensure that the door closes tightly and opens smoothly, and that there is a tight connection between the side
glass panels and the frame as well as the support bar.
Applyaclearsiliconewatersealantaroundtheoutsideperimeterofanyxedshowercomponents(horizontally
betweenbottomofxedsideglasspanelandbase,aswellasverticallybetweenthewall,glassframes,and
any side glass panel).
Allow 24 hours for silicone to dry.
Improper application of silicone sealant may cause your shower to leak.
M
1
2

17
CARE AND MAINTENANCE
For the daily maintenance, use a wet cloth and a soft liquid cleaner.
Never use abrasive cleaners containing some acetone, chlorine or strong bleach, scrapers, metallic brushes,
norotherobjectsortheproductswhichcangrazeortarnishsurfaces.
Usearatchettostronglytightenanyboltsusedtosupportthexedglasspanelsordoorspanel(supportbolts
can withstand up to 250 lbf*in of torque).
Check these bolts every 4 months and re-tighten them if necessary.
LIMITED 5 YEARS WARRANTY
This warranty extends only to the original owner lend-user for personal household use only. For commercial
uses, additional limitations may apply.
Distributor warrants your satisfaction with each shower. Should any shower not meet your satisfaction due to
a visual defect, simply return it to your retailer with the original packaging, PRIOR TO INSTALLATION, for a
replacement.
Distributor warrants shower doors to be free from defects in workmanship and materials under normal use and
serviceforaperiodofve(5)years.
Distributor warrants acrylic surface against blistering or cracking and chipping resulting from defect in the
acrylicsurfacematerialwhenusedundernormalconditionsandserviceforaperiodofve(5)yearsfrom
purchase date.
Distributorfurtherwarrantsthestructureoftheacrylicshellagainstlossofwaterthroughberglasslaminateof
theacrylicbodyasaresultofdefectinmaterialsandworkmanshipforaperiodofve(5)yearsfrompurchase
date.
Distributor warrants, shower hardware (handles, hinges, rubber support clips, metal support bars and wall
tracks) to be free from defects in workmanship and materials under normal use and service for a period of one
(1) year.
Distributorwill,atitselection,repair,replace,ormakeappropriateadjustmentwheredistributoroptional
inspection discloses any such defects occurring in normal usage within the warrantee periods.
Please note distributor is not responsible for installation or removal costs.
Modicationofanyshowerenclosurecomponentsmayvoidthewarranty.Thiswarrantydoesnotcoverany
claim arising from abuse, misuse, negligence, accident, improper installation or operations on the part of the
purchaser.Thiswarrantyisvoidifthedistributorproductissubjecttoalterations,orifrepairswheredonetothe
shower unit.
This warranty does not extend to any plumbing or components installed by dealers, installers or by any party
other than distributor.
Impliedwarranties,includingthatofmerchantabilityortnessforaparticularpurpose,areexpresslylimitedin
duration to the duration of this warranty.
Distributor disclaims any liability for special, incidental or consequential damages.

18
Marques CSA
Mesures: millimètres [pouces]
ERIKA 48
295
[11 5/8]
Ouverture
470
[18 1/2]
1930
[76]
MODÈLE #ERIKA-GP48
ARTICLE #0665830
Date de l’achat: _______________________ Numéroderéférenceduproduit:______________________
Questions, problèmes ou pièces manquantes?
Avant de retourner le produit à votre détaillant, contactez notre service à la clientèle au
1-855-624-5959, du lundi au vendredi de 9h00 à 17h00 HNE.
1930
[76]
1219
[48]
2015-06-15
Un guide d’installation video est disponible sur LOWES.CA

19
TABLE DES MATIÈRES
CONTENU DE L’EMBALLAGE ......................................................................................................................... 21
QUINCAILLERIE FOURNIE .............................................................................................................................. 22
OUTILS REQUIS ............................................................................................................................................... 22
INFORMATION SUR LA SÉCURITÉ ................................................................................................................. 23
PRÉPARATION ................................................................................................................................................. 23
CETTE DOUCHE EST RÉVERSIBLE ............................................................................................................... 24
MESURES MUR À MUR.................................................................................................................................... 24
GUIDE D’INSTALLATION DE LA BASE (OPTIONNEL) ................................................................................... 25
INSTALLATION DES RAILS MURAUX ............................................................................................................. 26
INSTALLATION DU PANNEAU FIXE ................................................................................................................ 27
INSTALLATION DE LA BARRE DE SUPPORT ................................................................................................ 29
INSTALLATION DE LA PORTE ........................................................................................................................ 31
INSTALLATION DE LA POIGNÉE ET SCELLAGE ........................................................................................... 33
TRAITEMENT ET ENTRETIEN ......................................................................................................................... 34
GARANTIE LIMITÉE DE 5 ANS ........................................................................................................................ 34

20
BD
E
F
H
I
R
M
G
CJ
Q
KL
N
O
P
CONTENU DE L’EMBALLAGE
