jbc TE-QD User manual

English
www.jbctools.com
Precision Hot Air Station
without extractor desk
Ref. TE-QD
www.jbctools.com

Stand
Ref. TE-SD
2 3
Manual .........................................................1 unit
Ref. 0016961
www.jbctools.com
Power Cord .................................................1 unit
Ref. 0009417 (100V/120V)
0009401 (230V)
Precision Hot Air Station
without extractor desk
Ref. TE-QD
Precision Heater hose set .....................1 unit
Ref. TE-TB
JTE Control Unit ........................................1 unit
Ref. JTE-1D (120V)
JTE-2D (230V)
JTE-9D (100V)
Stand ............................................................1 unit
Ref. TE-SD
Nozzles ......................................................3 units
Ref. TN9209 Ø 3mm (x1)
TN9208 Ø 4mm (x1)
TN9080 Ø 5mm (x1)
Another connectable tool:
Heater hose set
Ref: JT-TA
Hot Air switch
(On / Off)
Heating
element
Precision Heater
Hose set
Ref. TE-TB
Suction Tube
Ref. 0932330
For tripods
and extractors
Activates the
suction pump
USB-B connector
Update the station
software from
the JBC website
Packing List
The following items should be included:
Power Socket
Optional:
P-005 Pedal
connection
Fuse
Equipotential
connection
Features
www.jbctools.com
2 3

4 5

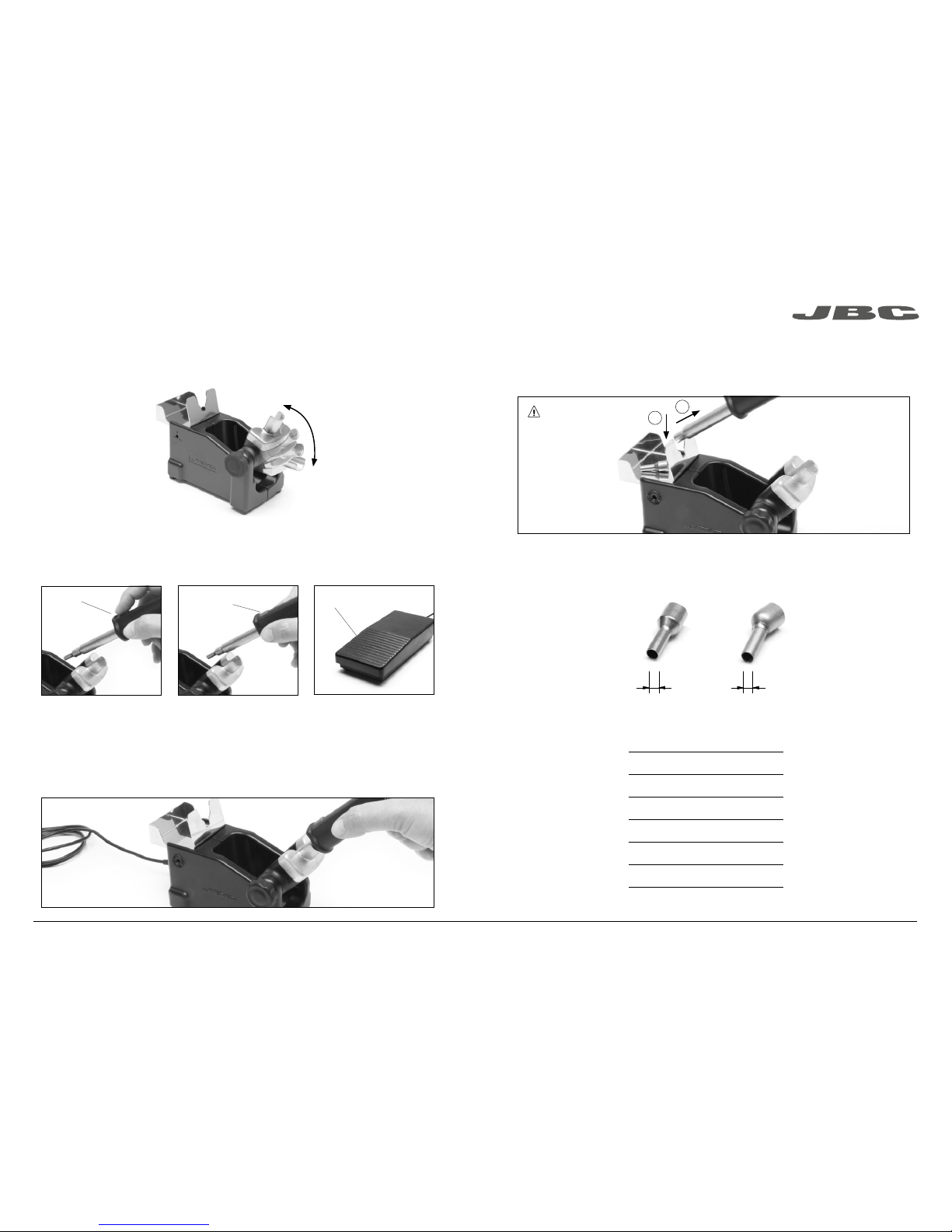

Quick Nozzle Changer
Changing nozzles quickly and safely.
Ref. Shape Size
TN9209 Straight Ø 3mm
TN9208 Straight Ø 4mm
TN9080 Straight Ø 5mm
TN9787 Bent Ø 3mm
TN9785 Bent Ø 4mm
TN9782 Bent Ø 5mm
Straight Bent
Ø mm Ø mm
Turn the tool off
and handle with
care. The heating
element and the
nozzle are still hot.
Compatible Nozzles
The TE-TB works with TE nozzles. Find the model that best suits your soldering needs in www.jbctools.com
2
1
Press Press
Do not
press
1. From the main Menu, select the mode to activate the tool depending on the task.
2. The tool stops blowing hot air when returned to the stand.
Adjust the tool holder angle to suit your work position.
Press the start/stop button to
blow hot air.
The tool automatically starts
blowing hot air when lifted
from the stand.
Press the Pedal to blow hot
air and release to stop.
*The P-005 Pedal is not
supplied with this station.
See our website.
Operation Modes
Stand + Autostart OFF Stand + Autostart ON Pedal*
Adjustable Stand
www.jbctools.com
4 5

Temp º CAir %
Time to stop 45 seconds
Power 70%
400 85
400ºC Select
Temp º C
º C
Program 8
380
Air 100%
Time 125s.
6 7
Position the extractor with the
appropriate suction cup and
press the suction button.
Heat the component by
pressing the heater button.
The component lifts off
automatically when the
solder melts.
Access Menu (pess key 2 seconds) & Confirm Selection
Selected temperature
Current temperature
% Instant power supplied
to heater
You can switch between operating modes (Manual Mode / Program Mode) by pressing the
“increase” and “decrease” keys simultaneously for 2 seconds. (Only when Program mode is ON)
Manual Mode
Decrease program
number
Increase program
number
Selected program
Current temperature
Selected flow
Graph of selected
program
Remaining time
Program Mode
Edit Program
This option allows you to edit or create a program.
First, you must select the program to edit and then modify the points that make up the program.
Each program is composed of 9 points, each point consisting of 3 parameters:
1. Time (seconds)
2. Temperature (°C / °F)
3. Flow rate (%)
You can delete the last point of the program by selecting “-----” in the time parameter.
It should be taken into account that the regulation range permitted by the station is between 150°C
and 450°C, so it is not possible to create temperature ramps between room temperature (Toff) and
150°C.
The station can store up to 25 temperature programs.
The first three programs are edited as an example.
Copy Program
This option allows you to copy a program.
You must select the program source and the program destination (where it will be copied).
Delete Program
This option will allow you to delete a previously selected program.
Operation
Process Control
3. Releasing1. Placing 2. Heating
www.jbctools.com
6 7

Main menu
1 Reset settings
2 Station Settings
3 Program Settings
4 Counters
5 Program version
Exit
Program Settings
Edit Program
Edit Program 8
1Programs
2 Edit program
3
Copy program
4
Delete program
Back
Select
Program
Step 4
Time 20
Temp 450
Air 100
º C
º C
8
Exit
Counters
1 Station ON hours 0
2 Works hours 0
3 Works cycles 0
Back
Settings
1 Temp unit Celsius
2 Maximum temp 450
0
C
3 Minimum temp T OFF*
4 Fix temp 400
0
C
5 Temp Adjust 0
0
C
6 Max air 100%
7 Min air 10%
8 Fix air 40%
9 Time to stop 120 sec
10 Stabd/Pedal Stand
Autostart OFF
11 Beep ON
12 Pop up ON
13 Change PIN
Back
8 9
Menu Screen
Original PIN: 0105 Only perform this operation when the element is cold and the unit is disconnected from the mains.
1. Loosen the screw.
2. Pull the heating element away from the handle.
3. Connect the new heating element, ensuring it is pushed all the way in.
4. Tighten the screw.
Replacing the Heating Element
1. Ensure that the tool is turned off.
2. Use a spanner to unscrew the connecting nut.
3. When attaching the new tube make sure the rib
lines up with the groove on the control unit.
4. Tighten with the spanner.
Changing the TE-TB Precision Heater Hose Set
Precision Heater
Hose Set
Ref. TE-TB
(230 V/120 V/100 V)
Heating Element
Ref. 0012374
(100V - 230V - 120V)
TE Handle
Ref. TE-B
* When selecting Minimum
Temp as “T OFF”, the air blows
at room temperature.
www.jbctools.com
8 9

Maximum working temp: 250ºC (482ºF)
10 11
1 2 3 4
Suction Cups
R e f. 0 9 3 0110
Extractor Desk
Extractor desk
Ref. 0008752
Protectors
and extractors
not included.
This accessory lets you quickly switch between different models of extractors and protectors.
There are two drawers for storage.
Find the model that best suits your soldering needs in www.jbctools.com
Protector Extractor Manual extractorTripod
We recommend using the protector + tripod. We recommend using the extractor.
1. Suction
Pick & Place
Ref. T260-A
2. Release
This tool helps you easily place and remove SMDs of any size thanks to the suction system.
Pick & Place
Hot Air Accessories (not supplied with TE-Q)
Press the button to
start/stop the suction
Once the suction is
activated, cover the
pen hole with your
finger and lift off the
component.
Insert the needle
with the appropriate
cup for a correct
suction process.
Lift your finger
to release the
component in the
appropriate place.
You should
avoid the needle
protruding from the
lower part.
Pick & Place
Ref. T260-A
Straight
Needles Set
Ref. 0901546
Bent Needles Set
Ref. 0861660
For small components (fig. 1 and 2). For big components (fig. 3 and 4). Choose the needle and the suction cup that best fits the component and start working as follows:
Operation
www.jbctools.com
10 11

12 13
Maintenance
Before carrying out maintenance or storage, always allow the equipment to cool.
- Clean the station screen with a glass cleaner or a damp cloth.
- Use a damp cloth to clean the casing and the tool. The metal parts can also be cleaned with
alcohol.
- Maintain heating element clean prior to storage in order to avoid oxidation. Rusty and dirty
surfaces reduce heat transfer.
- Periodically check all cables and tubes.
- Replace a blown fuse as follows:
- Replace any defective or damaged pieces. Use original JBC spare parts only.
- Repairs should only be performed by a JBC authorized technical service.
Safety
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.
- The power cord must be plugged into approved bases. Be sure that it is properly grounded
before use. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to activate the sleep mode.
The soldering tip, the metal part of the tool and the stand may still be hot even when the station is
turned off. Handle with care, including when adjusting the stand position.
- Do not leave the appliance unattended when it is on.
- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.
- Use a “non residue” classified flux and avoid contact with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protective glasses and gloves when
working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced
physical, sensory or mental capabilities or lack of experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
1. Pull off the fuse holder and remove the
fuse. If necessary use a tool to lever it off.
2. Press the new fuse into the fuse holder
and replace it in the station.
Fuse holder
Fuse holder
Fuse
www.jbctools.com
12 13

14 15
TE-1QD 120V 50/60Hz. Input fuse 8A. Rated Current 6A. Control Unit model: JTE-1D
TE-2QD 230V 50/60Hz. Input fuse 4A. Rated Current 3A. Control Unit model: JTE-2D
TE-9QD 100V 50/60Hz. Input fuse 8A. Rated Current 7A. Control Unit model: JTE-9D
- Weight: 5.4 kg (11.9 lb)
- Dimensions: 148 x 184 x 140
- Nominal Power: 300W
- Temperature selection: Room temperature / 150ºC to 450°C (300ºF to 840ºF)
Cool mode: T Off. Used to blow air at room temperature
- Ambient Operating Temperature: 10 to 40ºC (50-104ºF)
- Idle Temp. Stability: +/-20 ºC (+/-36 ºF)
- Air flow regulation: 3-17 SLPM
- USB connector station-PC
- P-005 Pedal connector
Complies with CE standards
ESD protected housing “skin effect”
Specifications Exploded View
www.jbctools.com
14 15

www.jbctools.com
Warranty
JBC’s 2 year warranty covers this equipment
against all manufacturing defects, including the
replacement of defective parts and labour.
Warranty does not cover product wear due to use
or mis-use.
In order for the warranty to be valid, equipment
must be returned, postage paid, to the dealer
where it was purchased.
This product should not be thrown in the garbage.
In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life
must be collected and returned to an authorized recycling facility.
