jbc B-iRON 210 User manual

Precision B·iRON Station
B·iRON 210
INSTRUCTION MANUAL

Packing List
The following items are included:
Power Cord ........................................................................................................................................................ 1 unit*
Ref. 0027380 120V - N. America, Taiwan 0027378 230V - United Kingdom
0027381 230V - India 0027379 230V - China
0027382 230V - Europe 0028103 100V - Japan
* according to purchased station reference.
Manual .............................. 1 unit
Ref. 0027779
Stand for
B 210 Precision Tool ... 1 unit
Ref. B210-SA
Brass Wool ..................... 1 unit
Ref. CL0300
already assembled in the stand
B 210 Precision Tool...1 unit
Ref. B210-A
This manual corresponds to the following references:
Console included*:
BI210UA 120 V - N. America, Taiwan
BI210IA 230 V - India
BI210A 230 V - Europe
BI210KA 230 V - United Kingdom
BI210HA 230 V - China
BI210JA 100 V - Japan
Cable USB ....................... 1 unit
Ref. 0028092
B·iRON Console ........ 1 unit*
*included according purchased
reference
Console not included*:
BI210UQA 120 V - N. America, Taiwan
BI210IQA 230 V - India
BI210QA 230 V - Europe
BI210KQA 230 V - United Kingdom
BI210HQA 230 V - China
BI210JQA 100 V - Japan
2

Wiper
Features and Connections
B 210
Precision Tool
Console Support
Quick Tip Changer
Brass Wool (inside)
Tool Stand and Charger
Cartridge Storage
B·iRON Console
Note: for references without console blue tooth
device like PC or mobile can be connected.
Power Socket
USB Connector
USB Cable
(only for charging)
Bluetooth
Connection
Stand for
B 210 Precision Tool
Antisplash Membrane
Screw to
detach the
Support
Cartridge
C210-Range,
not included
3
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

Quick Start
Connect the stand to the mains (100 - 240 V).
Insert a cartridge into the tool (1) and place it into
the charger on the stand (2).
Note: Charge the tool completely (30 min)
before using for the first time.
The status indicator light idicates as follows the
tool status:
21
Status Indicator Light
1. Connection
2. Cartridge Insertion and Charging
green working/soldering
green blinking charging
alternating
red/green blinking
low battery,
less than 20%
red blinking: no cartridge
no color: power OFF
4

Tool
ON
MENU
28174
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
348ºC
5,7 W
80%
350ºC
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
WORK
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
80%
JBC
210
350ºC
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
348ºC
5,7 W
80%
350ºC
JBC#1
JBC#1
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
80%
350ºC
JBC#1
MENU
Tool1
2822
Tool ID
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
Return to Work
Tool1
Tool ID
28714
Hardware
Software
0028283
X886787
Update File
File
Hardware
Software
Select your Firmware
-
-
Update
MENU
JBC
210
Return to Work
JBC#1
Bi115
Bi210
User’s Manual
User’s Manual
Documents
MENU
JBC#1
JBC
210
Return to Work
Tool1
Tool2
Devices
MENU
JBC#1
JBC
210
Return to Work
Scanning...
MENU
JBC#1
Tool ID
Settings
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
_ _ _ _
Enter PIN
OK
28714
Return to Work
2822
Work
Settings
Counters
Update
Documents
Light Theme
Dark Theme
Disconnect
JBC#1
OK
348ºC
6 W
Tool
ON
MENU
28174
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
348ºC
5,7 W
80%
350ºC
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
WORK
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
80%
JBC
210
350ºC
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
348ºC
5,7 W
80%
350ºC
JBC#1
JBC#1
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
80%
350ºC
JBC#1
MENU
Tool1
2822
Tool ID
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
Return to Work
Tool1
Tool ID
28714
Hardware
Software
0028283
X886787
Update File
File
Hardware
Software
Select your Firmware
-
-
Update
MENU
JBC
210
Return to Work
JBC#1
Bi115
Bi210
User’s Manual
User’s Manual
Documents
MENU
JBC#1
JBC
210
Return to Work
Tool1
Tool2
Devices
MENU
JBC#1
JBC
210
Return to Work
Scanning...
MENU
JBC#1
Tool ID
Settings
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
_ _ _ _
Enter PIN
OK
28714
Return to Work
2822
Work
Settings
Counters
Update
Documents
Light Theme
Dark Theme
Disconnect
JBC#1
OK
348ºC
6 W
3. Switching on Console/Device
Select the tool from the detection list.Turn on the console/device and open the B·iRON
Application:
4. Selecting Tool
Console Work Screen
Temperature
and Power
Grafics
Application Menu Connected Tool
Temperature
Selection Slider
Tool Status
Battery
Level
Tool
Status
The work screen shows the graph of the current tip temperature and the power supplied to the tip by
moving the graph permantely to the left.
5
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

Tool
ON
MENU
28174
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
348ºC
5,7 W
80%
350ºC
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
WORK
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
80%
JBC
210
350ºC
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
348ºC
5,7 W
80%
350ºC
JBC#1
JBC#1
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
80%
350ºC
JBC#1
MENU
Tool1
2822
Tool ID
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
Return to Work
Tool1
Tool ID
28714
Hardware
Software
0028283
X886787
Update File
File
Hardware
Software
Select your Firmware
-
-
Update
MENU
JBC
210
Return to Work
JBC#1
Bi115
Bi210
User’s Manual
User’s Manual
Documents
MENU
JBC#1
JBC
210
Return to Work
Tool1
Tool2
Devices
MENU
JBC#1
JBC
210
Return to Work
Scanning...
MENU
JBC#1
Tool ID
Settings
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
_ _ _ _
Enter PIN
OK
28714
Return to Work
2822
Work
Settings
Counters
Update
Documents
Light Theme
Dark Theme
Disconnect
JBC#1
OK
348ºC
6 W

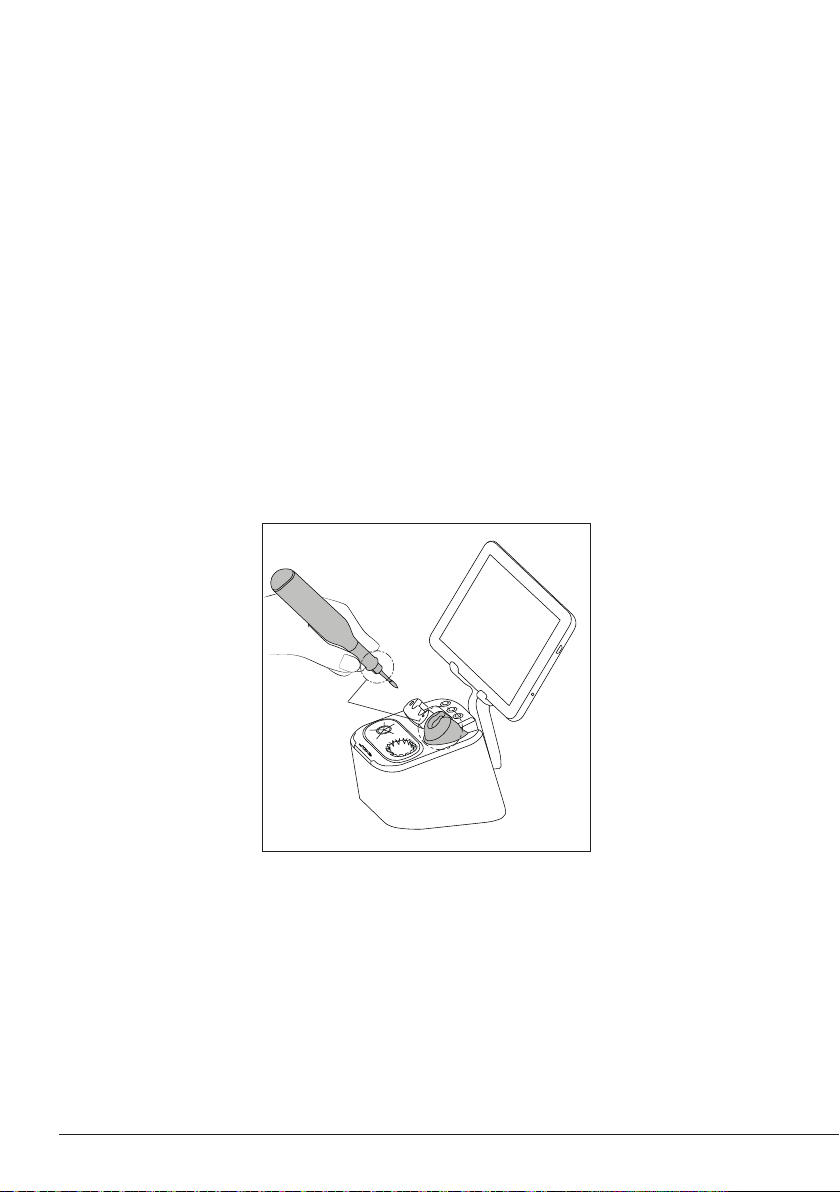

Operation
The JBC Most Efficient Soldering System
This revolutionary technology is able to recover tip temperature extremely quickly. This allows the
user to work at a lower temperature. As a result, tip life increases by 5.
Work Charging and Hibernation
When the tool is lifted from the
stand the tip will heat up to the
selected temperature.
When the tool is in the stand
enters into Hibernation Mode
and cools down to room
temperature.
While the tool remains in the
stand, it charges.
Hibernation
When the tool is outside of the
stand and remains inactive (no
movement), the tool enters into
Hibernation mode and cools
down to room temperature.
To turn the tool on, put it back
into the stand.
Note: When the tool is lifted from stand the Soldering System acts as follows:
If the tool has been inactive
for a longer period of time, it is
turned off.
long time
inactive
Turned Off Turned On
Note: If desired, the tool can be swithed off/on. Tab the Tool Power
button at the tablet screen (bottom right) to switch it off/on.
Tool Power Button
6

Tool
ON
MENU
28174
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
348ºC
5,7 W
80%
350ºC
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
WORK
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
80%
JBC
210
350ºC
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
348ºC
5,7 W
80%
350ºC
JBC#1
JBC#1
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
80%
350ºC
JBC#1
MENU
Tool1
2822
Tool ID
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
Return to Work
Tool1
Tool ID
28714
Hardware
Software
0028283
X886787
Update File
File
Hardware
Software
Select your Firmware
-
-
Update
MENU
JBC
210
Return to Work
JBC#1
Bi115
Bi210
User’s Manual
User’s Manual
Documents
MENU
JBC#1
JBC
210
Return to Work
Tool1
Tool2
Devices
MENU
JBC#1
JBC
210
Return to Work
Scanning...
MENU
JBC#1
Tool ID
Settings
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
_ _ _ _
Enter PIN
OK
28714
Return to Work
2822
Work
Settings
Counters
Update
Documents
Light Theme
Dark Theme
Disconnect
JBC#1
OK
348ºC
6 W
Grafics
The work screen shows the automatic recording of the temperature and power grafics.
The automatic recording can be pause by tapping the screen at the grafic area. The automatic
recording stops also when the tool stops working.
While the automatic recording is stopped, you can get the temperature/power value in a concret
point by tapping the graph on the tablet screen.
When the tool ist not in use
the grafics stops recording
The grafic can be moved to the left and right by swiping the touch screen sideways with one finger.
The recording starts automatically as soon as the tool is removed from the stand and the graphic
automatically jumps to the end of the last recording and continues with the recording.
Note: When the tool is placed in the stand and is not in use, the temperature/power recording
stops. A gap can then be seen in the curve grafics.
7
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

Tip Cleaner
Select the option to suit your needs and improve the thermal transfer of the tip.
Antisplash Membrane with Wiper
Ref. CL0301
The antisplash membrane prevents splashing and keeps
the work area clean.
Includes a temperature resistant wiper for removing
excess solder by gently tapping or wiping the cartridge
tip.
If the tip is very dirty, JBC recommends first cleaning it
with the wiper to remove excess solder and then with
the brass wool.
Brass Wool
Ref. CL0300
Very effective
cleaning method.
Leaves a small layer
of solder on the tip
preventing oxidation
between cleaning
and rewetting.
Tap gently to remove excess solder. Use the slots to remove remaining particles.
Wiper
Tapping Wiping
8

Replacing Brass Wool
1. Lifting 2. Replacing
Space
3. Assembling 4. Pressing on
Lift and remove the antisplash membrane. Replace the brass wool with a new one. Make
sure that the brass wool is on the far left and that
there is space for the wiper on the right.
Assemble the antisplash membrane in vertical
direction onto the stand.
Press the antisplash membrane down. Make sure
that the membrane is correctly inserted all around.
Note: The brass wool and the wiper position can be reversed by rotating the antisplash
membrane 180 degrees
9
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

ø 1
ø 1,5
ø 3,5

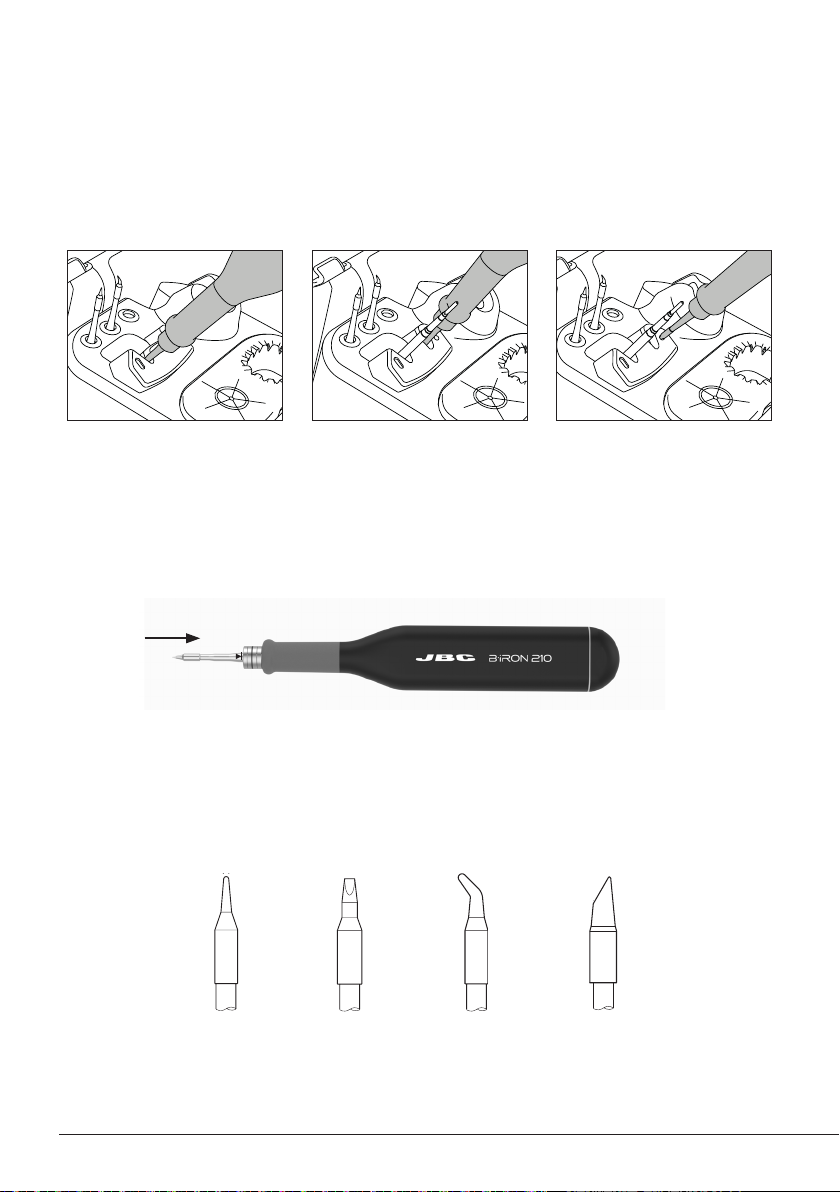

Quick Tip Changer
Save time and change cartridges safely without switching the station off.
Place the handpiece in the
extractor and pull to remove
the cartridge.
Place the handpiece on top of
the new cartridge and press
down slightly.
Use the holes for fixing the
cartridge.
*Important: Insert the cartridge up to the stop. The charging indicator light changes from red
to green when the cartridge is proprely inserted.
Conical Chisel Conical
Bent
Bevel
Compatible Cartridges
B 210 Pecision Tool works with C210 Cartridges.
Find the model that best suits your soldering needs in www.jbctools.com
until “stop”
1. Removing 2. Inserting 3. Fixing
10

Tool
ON
MENU
28174
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
348ºC
5,7 W
80%
350ºC
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
WORK
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
80%
JBC
210
350ºC
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
348ºC
5,7 W
80%
350ºC
JBC#1
JBC#1
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
80%
350ºC
JBC#1
MENU
Tool1
2822
Tool ID
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
Return to Work
Tool1
Tool ID
28714
Hardware
Software
0028283
X886787
Update File
File
Hardware
Software
Select your Firmware
-
-
Update
MENU
JBC
210
Return to Work
JBC#1
Bi115
Bi210
User’s Manual
User’s Manual
Documents
MENU
JBC#1
JBC
210
Return to Work
Tool1
Tool2
Devices
MENU
JBC#1
JBC
210
Return to Work
Scanning...
MENU
JBC#1
Tool ID
Settings
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
_ _ _ _
Enter PIN
OK
28714
Return to Work
2822
Work
Settings
Counters
Update
Documents
Light Theme
Dark Theme
Disconnect
JBC#1
OK
348ºC
6 W
tabs
new grip
Changing the Grips
For Precision Tool Ref. B210-A and for Nano Tool Ref. B115-A foam grips Ref. 0028829 are available.
Remove the prior grip and replace the grips easily using the slip-on tabs. To change the grips do as
follows:
1. Inserting Tabs 2. Inserting Handle 3. Removing Tabs
Menu Settings
The B·iRON Console offers an intuitive user interface which provides quick access to station
parameters.
Put the slide-on tabs into the
new grip.
Hold the grip and pull the tab.
Use pliers if necessary.
Push the grip with the tabs
onto the handle.
11
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

Parameter
Tool ID
PIN
Hibernation Delay
Sleep Mode /
Sleep Temperature
Maximum
Temperature
Tool Status
Description
Allows to change the tool identifier.
Allows to change the PIN
Set hibernation delay from 5 to 15 sec. Countdown starts when no
movement ist detected.
Set sleep mode ON/OFF. The tip temperature will drop to the selected
sleep temperature.
Allows selection of the maximum temperature that can be set for the work
mode
The tool status light indicates as follows the tool status:
- Green: working / soldering
- Green blinking: charging
- Alternating red/green blinking: low battery, less than 20%
- Red blinking: no cartridge
- No color: power OFF
Parameters
12

Tool
ON
MENU
28174
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
348ºC
5,7 W
80%
350ºC
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
WORK
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
80%
JBC
210
350ºC
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
348ºC
5,7 W
80%
350ºC
JBC#1
JBC#1
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
80%
350ºC
JBC#1
MENU
Tool1
2822
Tool ID
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
Return to Work
Tool1
Tool ID
28714
Hardware
Software
0028283
X886787
Update File
File
Hardware
Software
Select your Firmware
-
-
Update
MENU
JBC
210
Return to Work
JBC#1
Bi115
Bi210
User’s Manual
User’s Manual
Documents
MENU
JBC#1
JBC
210
Return to Work
Tool1
Tool2
Devices
MENU
JBC#1
JBC
210
Return to Work
Scanning...
MENU
JBC#1
Tool ID
Settings
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
_ _ _ _
Enter PIN
OK
28714
Return to Work
2822
Work
Settings
Counters
Update
Documents
Light Theme
Dark Theme
Disconnect
JBC#1
OK
348ºC
6 W
Tool
ON
MENU
28174
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
348ºC
5,7 W
80%
350ºC
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
WORK
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
80%
JBC
210
350ºC
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
348ºC
5,7 W
80%
350ºC
JBC#1
JBC#1
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
80%
350ºC
JBC#1
MENU
Tool1
2822
Tool ID
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
Return to Work
Tool1
Tool ID
28714
Hardware
Software
0028283
X886787
Update File
File
Hardware
Software
Select your Firmware
-
-
Update
MENU
JBC
210
Return to Work
JBC#1
Bi115
Bi210
User’s Manual
User’s Manual
Documents
MENU
JBC#1
JBC
210
Return to Work
Tool1
Tool2
Devices
MENU
JBC#1
JBC
210
Return to Work
Scanning...
MENU
JBC#1
Tool ID
Settings
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
_ _ _ _
Enter PIN
OK
28714
Return to Work
2822
Work
Settings
Counters
Update
Documents
Light Theme
Dark Theme
Disconnect
JBC#1
OK
348ºC
6 W
- Download the JBC update file from: https://www.jbctools.com/jbcsoftware.html
- Connect the console/device via USB connection to the PC.
- On the console/device notification bar at the top, open “USB Connection Settings” and select “MTP”.
- On the PC copy the downloaded file to “IT706/internal share storage/JBC”.
- Once copying is finished, disconnect the console/device from the PC.
- On the console/device open the Application (1) and then select “update” (2) on the Application Menu.
- Use the update button of the version to be downloaded.
B·iRON Update
21
Update
Button
Application
Menu
13
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

Before carrying out maintenance, always extract the cartridge and disconnect it from the mains.
Allow the equipment to cool down.
- Use a damp cloth to clean the casing and the tool. Alcohol can only be used to clean the metal parts.
- Periodically check that the metal parts of the tool and stand are clean so that the charging works
properly.
- Maintain tip surface clean and tinned prior to storage in order to avoid tip oxidation. Rusty and dirty
surfaces reduce heat transfer to the solder joint.
- Do not use liquid such as alcohol, thinner or benzene to clean the console.
- Repairs should only be performed by a JBC authorized technical service.
Maintenance
Clean
periodically
14

Safety
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.
- The power cord must be plugged into approved bases. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to charge the batteries.
- The soldering tip or nozzle, the metal part of the tool and the stand may still be hot even when the
station is turned off.
- Do not leave the appliance unattended when it is on.
- Avoid flux coming into contact with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working
to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced physical,
sensory or mental capabilities or lack of experience provided that they have been given adequate
supervision or instruction concerning use of the appliance and understand the hazards involved.
Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
- Do not expose the console to high temperatures, humidity or dust. Avoid direct sunlight.
- Do not drop the console as it may cause damage or malfunction.
- Do not disconnect your device when it is in file transfer mode.
- Do not use the console in places were electronic devices are resticted.
It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
15
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

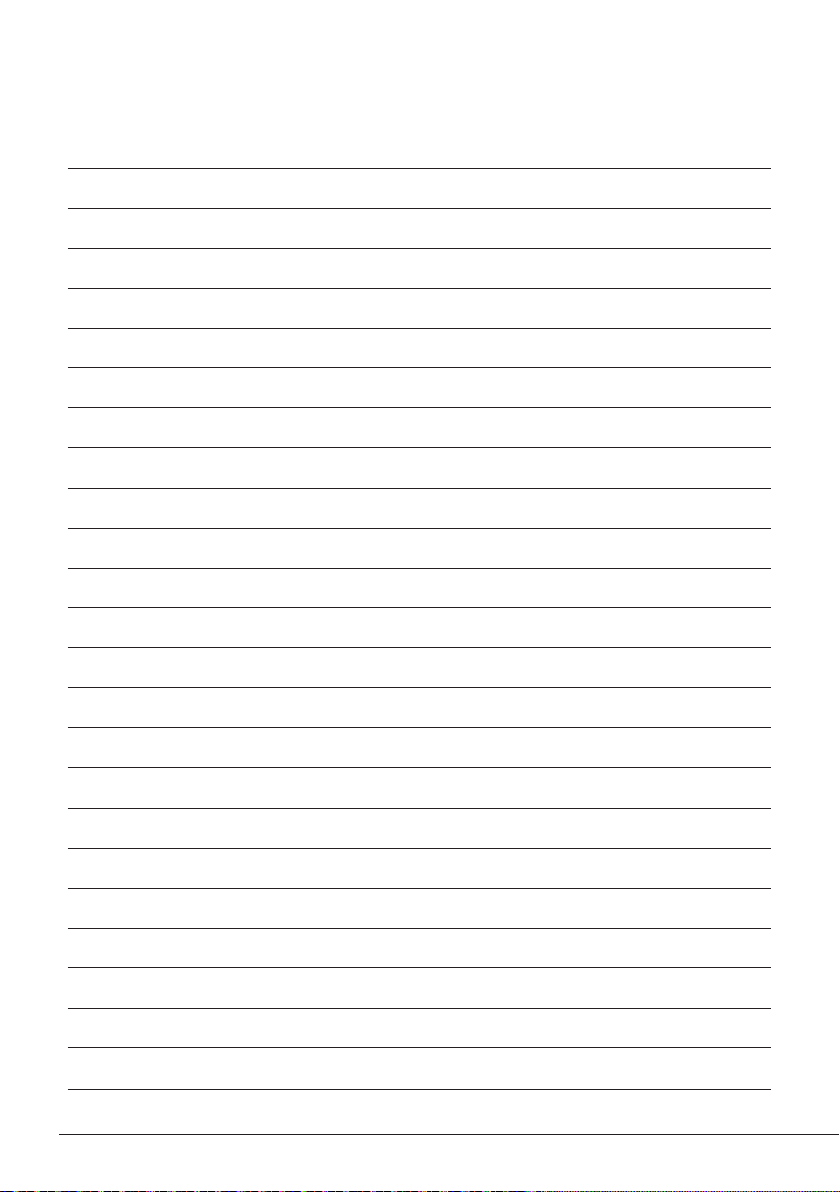

Notes
Notes
16

Notes
17
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

Notes
18

Specifications
B·iRON 210
Precision B·iRON Station
Ref.: BI210UA 120 V - N. America Ref.: BI210KA 230 V - United Kingdom
Ref.: BI210IA 230 V - India Ref.: BI210HA 230 V - China
Ref.: BI210A 230 V - Europe Ref.: BI210JA 100 V - Japan
Stand:
- Input: 100 V - 240 V 50/60 Hz
- Power: 15 W
- Tool output: 12 V / 350 mA
- USB output: 5 V / 1000 mA
Tool:
- Output Peak Power: 24 W
- Battery: Li-Ion 7.4 V / 180 mAh
- Charge Time: 40 minutes
- Temperature Range: 200 - 450 °C / 390 - 840 °F
- Idle Temp. Stability (still air): ±1.5 °C / ±3 °F
- Temp. Accuracy: ±3% (Using reference cartridge)
- Connections: Bluetooth Low Energy (BLE)
- Ambient Operating Temp: 10 - 50 °C / 50 - 122 °F
- Tool Weight: 35 g / 0.08 lb
- Total Net Weight: 1442 g / 3.18 lb
- Total Package Dimensions / Weight: 265 x 223 x 160 mm / 2000 g
- (L x W x H) 10.43 x 8.78 x 6.30 in / 4.41 lb
Complies with CE standards
ESD safe
Not grounded device. No ESD discharge feature.
19
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
Get 1 extra year JBC warranty by registering here:
https://www.jbctools.com/productregistration/
within 30 days of purchase.
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm
0027779-230522
