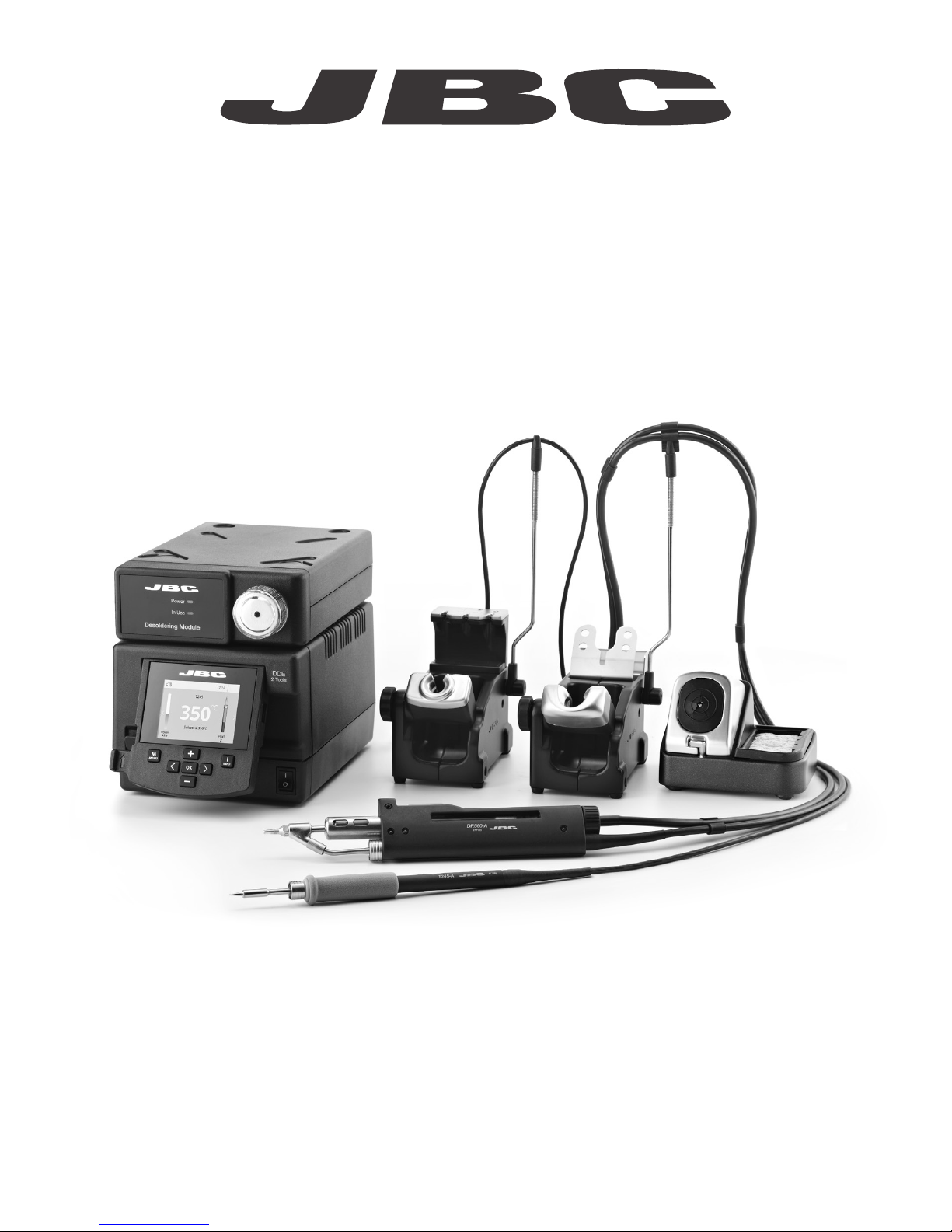

jbc DDSE-1B User manual

Premium Rework station
with Electric Pump
Ref. DDSE-B
www.jbctools.com

Packing List
The following items should be included:
Stand Cable ................ 2 units
R ef. 0 0112 83
Stand ................. 1 unit
Ref. AD-SD
Sponge ............................ 1 unit
Ref. S0354
Metal Brush .................... 1 unit
Ref. CL6217
Electric Desoldering
Module ............................. 1 unit
Ref. MSE-A
Module Cable ............... 1 unit
R ef. 0 014 874
DDE Control Unit .......... 1 unit
Ref. DDE-1B (120V)
DDE-2B (230V)
DDE-9B (100V)
Brass Wool ..................... 1 unit
Ref. CL6210
Desoldering
Iron ..................... 1 unit
Ref. DR560-A
Stand ................. 1 unit
Ref. DR-SD
Power cord ..................... 1 unit
Ref. 0010569 (230V)
0013671 (100/120V)
General Purpose
Handle ............... 1 unit
Ref. T245-A
ESD Tip Cleaner ........... 1 unit
Ref. CL8499
Check our website for the corresponding manuals. Also available in other languages.
2

Premium Rework station
with Electric Pump
Ref. DDSE-B

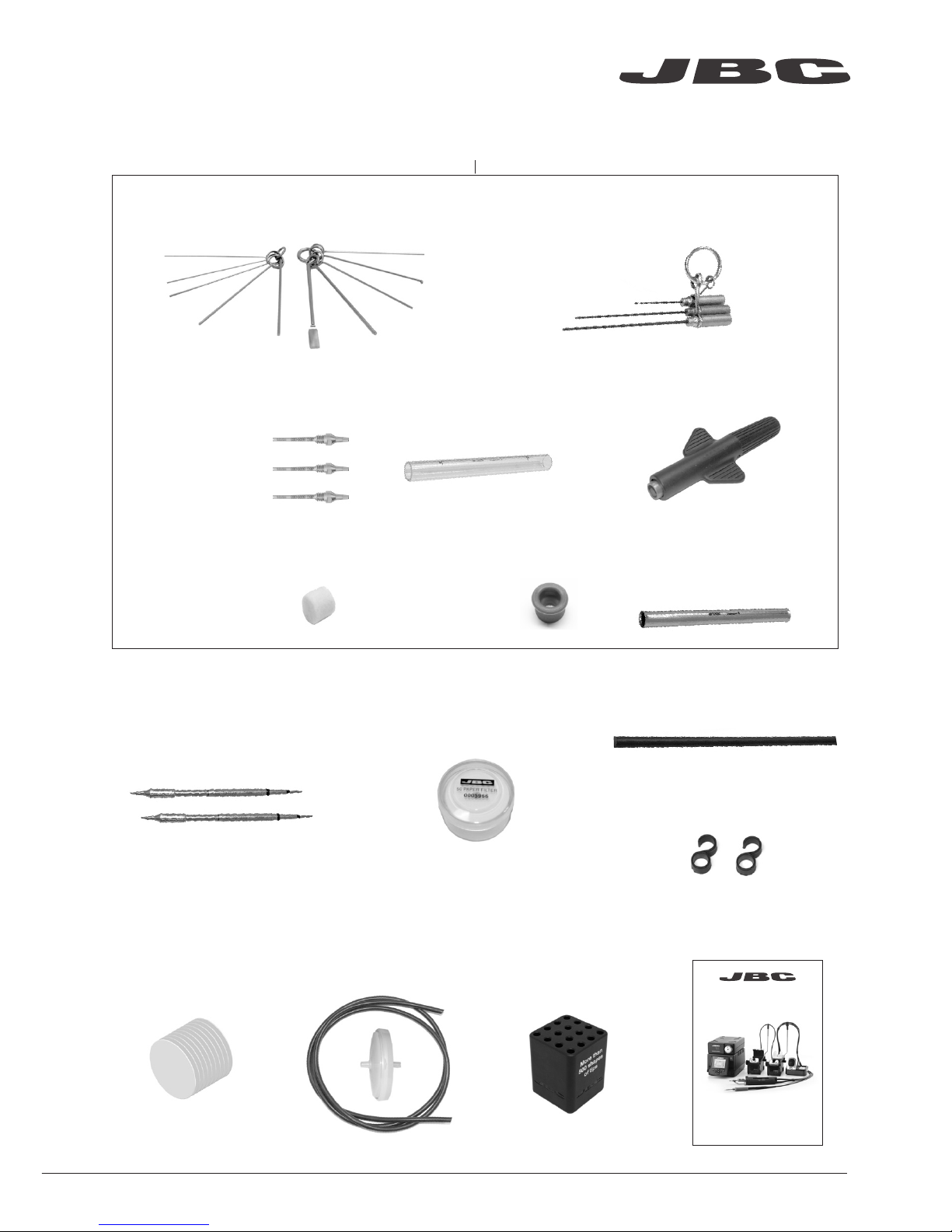

DR560 Accessories
R ef. 0 010 211
Internal gasket .......... 1 unit
Ref. 0019208
It contains 2 gaskets
Filter Box .................... 1 unit
Ref. 0780840
It contains 10 filters
Spanner ...................... 1 unit
Ref. 0780550
Glass solder
collector ...................... 1 unit
Ref. 0812620
Metal solder
collector ...................... 1 unit
Ref. 0812630
Tips ............................. 3 units
Ref. C560005 (x1)
Ref. C560013 (x1)
Ref. C560004 (x1)
Tip cleaning set .................................... 1 unit
Ref. 0965970
Long Tip Cleaning set ........................ 1 unit
Ref. 0965760
Manual ...............1 unit
Ref. 0020487
Suction
Filter ................. 1 unit
Ref. 0821830
Cartridge
holder ................ 1 unit
Ref. 0021083
Cotton
Filter ....................1 unit
Ref. 0781046
It contains 10 filters
Cleaning stick .................1 unit
Ref. 0786640
Cartridges .................... 2 units
Ref. C245903 (x1)
C245906 (x1)
Filter Box ..........................1 unit
Ref. 0005966
It contains 50 filters
Union Flanges ............... 1 unit
R ef. 0 0113 56
www.jbctools.com
3
www.jbctools.com

Stand
Ref. DR-SD
Stand Cable
R ef. 0 0112 83
Features
Work simultaneously with up to 2 tools and join each station port with 1 module + 1 pedal (Peripherals).
Stand
Ref. AD-SD
RJ12 connector for Robot
USB-B connector
Equipotential connection
Power Socket
Desoldering Iron
Ref. DR560-A
General
Purpose
Handle
Ref. T245-A
4

Suction Filter
Ref. 0821830
Module Cable
R ef. 0 014 874
USB-A connector2,8” Color TFT screen
Tilt the display
for easy reading
Electric Desoldering Module
Ref. MSE-A
To another peripheral
To Pedal
Ref. P-005
www.jbctools.com
5

MSE-A Compatibility
Module Stand Tool Cartridge
Range
Control Units Peripherals
DDE DME P-005
MSE-A
DS-SD DS360-A C360
DR-SD DR560-A C560
DDE-B Compatibility
* The MNE Nitrogen Flow Regulator is required.
**If you need to connect the MS, MV, MN or FS modules, an adapter is required (Ref. IM2496).
Basic working system Peripherals**
Control
Unit Stand Tool Cartridge Range
MSE-A /
MVE-A MNE-A FSE-A P-005
DDE-B
AD-SD
T210-A C210
T245-A C245
T470-A C245
DN-SE
T210-NA* C210
T245-NA*
C245
T470-NA*
AP-SD AP250-A C250
PA-SD PA120-A C120
HT-SD HT420-A C420
DS-SD DS360-A C360
DR-SD DR560-A C560
6

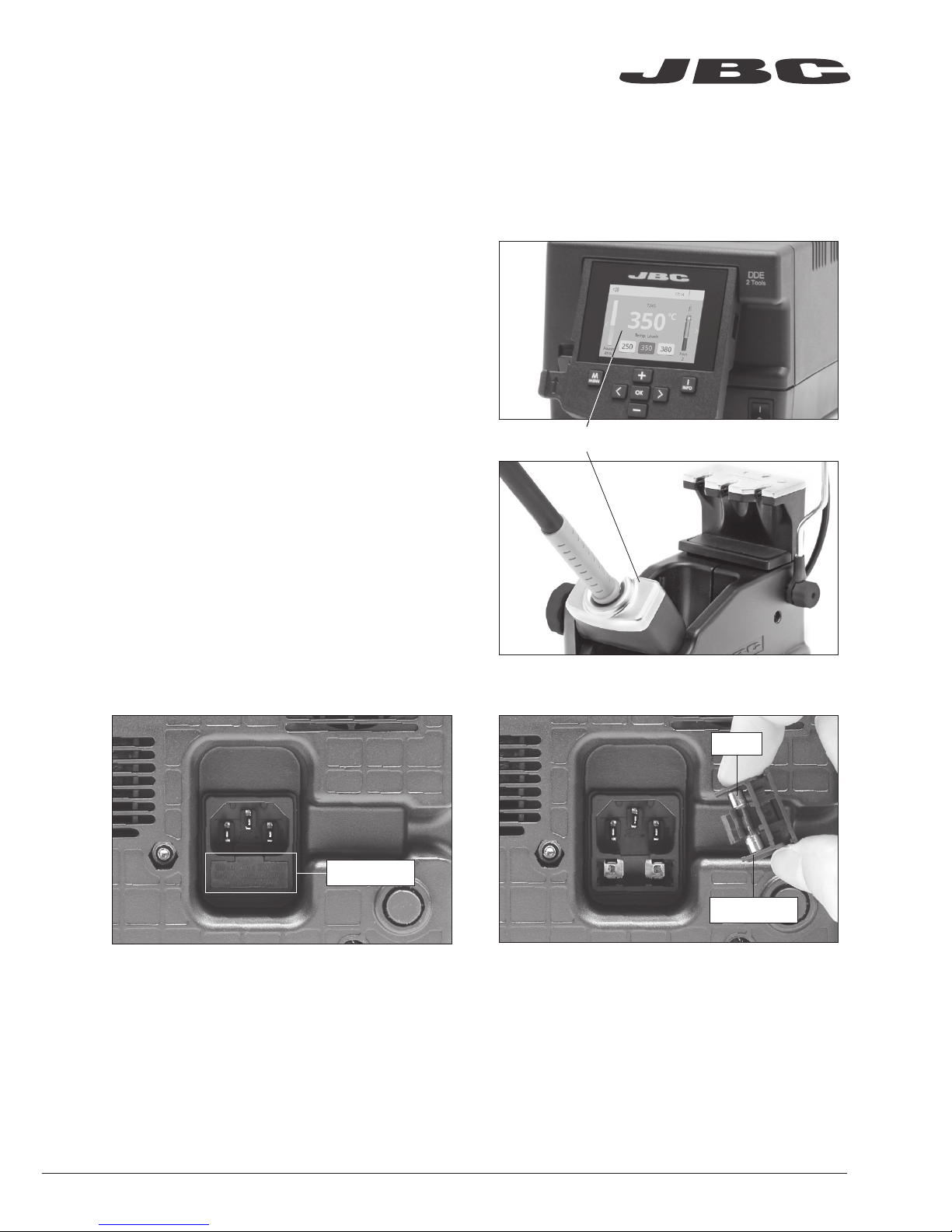

Clean periodically
Maintenance
Before carrying out maintenance or storage, always allow the equipment to cool.
- Clean the station screen with a glass cleaner
or a damp cloth.
1. Pull off the fuse holder and remove the
fuse. If necessary use a tool to lever it off.
2. Press the new fuse into the fuse holder
and replace it in the station.
- Use a damp cloth to clean the casing and the
tool. Alcohol can only be used to clean the
metal parts.
- Periodically check that the metal parts of the
tool and stand are clean so that the station
can detect the tool status.
- Maintain tip surface clean and tinned prior to
storage in order to avoid tip oxidation. Rusty
and dirty surfaces reduce heat transfer to the
solder joint.
- Periodically check all cables and tubes.
- Replace a blown fuse as follows:
- Replace any defective or damaged pieces. Use original JBC spare parts only.
- Repairs should only be performed by a JBC authorized technical service.
Fuse holder
Fuse holder
Fuse
www.jbctools.com
7

Safety
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.
- The power cord must be plugged into approved bases. Be sure that it is properly grounded
before use. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to activate the sleep mode.
The soldering tip, the metal part of the tool and the stand may still be hot even when the station is
turned off. Handle with care, including when adjusting the stand position.
- Do not leave the appliance unattended when it is on.
- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.
- Avoid flux coming into contact with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protective glasses and gloves when
working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced
physical, sensory or mental capabilities or lack of experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
8

产品中有害物质的名称及含量
有害物质含量表
部件名称
有害物质
铅(Pb) 汞(Hg) 镉(Cd) 六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
烙铁头 O O O O O O
手柄 O O O O O O
电源线 O O O O O O
主机 O O O O O O
电源插座 O O O O O O
保险丝 O O O O O O
主开关 O O O O O O
电位连接 X O O O O O
变压器 O O O O O O
线路板 X O O O O O
O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。
X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。
www.jbctools.com
9

Specifications
Premium Rework Station with Electric Pump
DDSE-1B /DDSE-2B / DDSE-9B
- Total weight: 9,25 kg (20.4 lb)
DDE-1B 120V 50/60Hz. Input fuse: 4A. Output: 23.5V
DDE-2B 230V 50/60Hz. Input fuse: 2A. Output: 23.5V
DDE-9B 100V 50/60Hz. Input fuse: 5A. Output: 23.5V
- Weight: 3,815 kg (8.41 lb)
- Dimensions: 148 x 120 x 232 mm (5.83 x 4.72 x 9.13 in)
- Output Peak Power: 150W per tool
- Temperature Range: 90 - 450 °C (190 - 840 ºF)
- Idle Temp. Stability (still air): ±1.5 ºC (±3 ºF)
- Tip to ground resistance: <2 ohms
- Tip to ground voltage: <2mV RMS
- Ambient Operating Temperature: 10 - 40 ºC (50 - 104 ºF)
- Communicatio connectors: USB-A / USB-B / Peripherals connectors
- Robot connector: RJ12 for RS-232 protocol
MSE-A
- Weight: 0,7 kg (1.54 lb)
- Dimensions: 145 x 55 x 225 mm (5.71 x 2.17 x 8.86 in)
- Air Pressure supply range: 4-6 Bar
- Vacuum at 6 Bar: 90% / 680 mmHg / 26.8 inHg
- Flow rate: 15 SLPM
- Ambient operating temp.: 10 - 40 ºC (50 - 104 ºF)
- Pedal connection
Complies with CE standards.
ESD protected.
10

Exploded View
www.jbctools.com
11

This product should not be thrown in the garbage.
In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life
must be collected and returned to an authorized recycling facility.
Manual in other languages available on our website
Warranty
JBC’s 2 year warranty covers this equipment
against all manufacturing defects, including the
replacement of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment
must be returned, postage paid, to the dealer
where it was purchased.
Please register your product warranty
within 30 days of purchase in:
www.jbctools.com/productregistration.
0020487-031
8
