Jimmy JV83 User manual

Instruction Manual Vacuum Cleaner
JV83

2
Products Installation
Unpacking
Parts Name
Open the package, take out the foam pad , all accessories and machine from the package, take
off the plastic bag and save them for the purpose of future maintenance and repair.
1. Floor Head Release Button
4. HEPA
7. attery Pack Release Button
10. Metal Tube
13.Strench Hose
16.2-in-1 Upholstery Tool
19.Expansion Hose
11. Electric Floor Head
14. Soft Brush
17.Electric Mattress Head
20.Screws
12. Connector
15. 2-in-1 Crevice Tool
18.Charging Base
2. Metal Tube Release Button
5. Speed Control Button
8. Battery Pack
3. Dust Cup Release Button
6. On/off Button
9. Adaptor
11
10
9
8
7
6
5
4
3
2
1
18
20
16
15
17
13
12
19
14

3
Main-body Assembly
Packing List

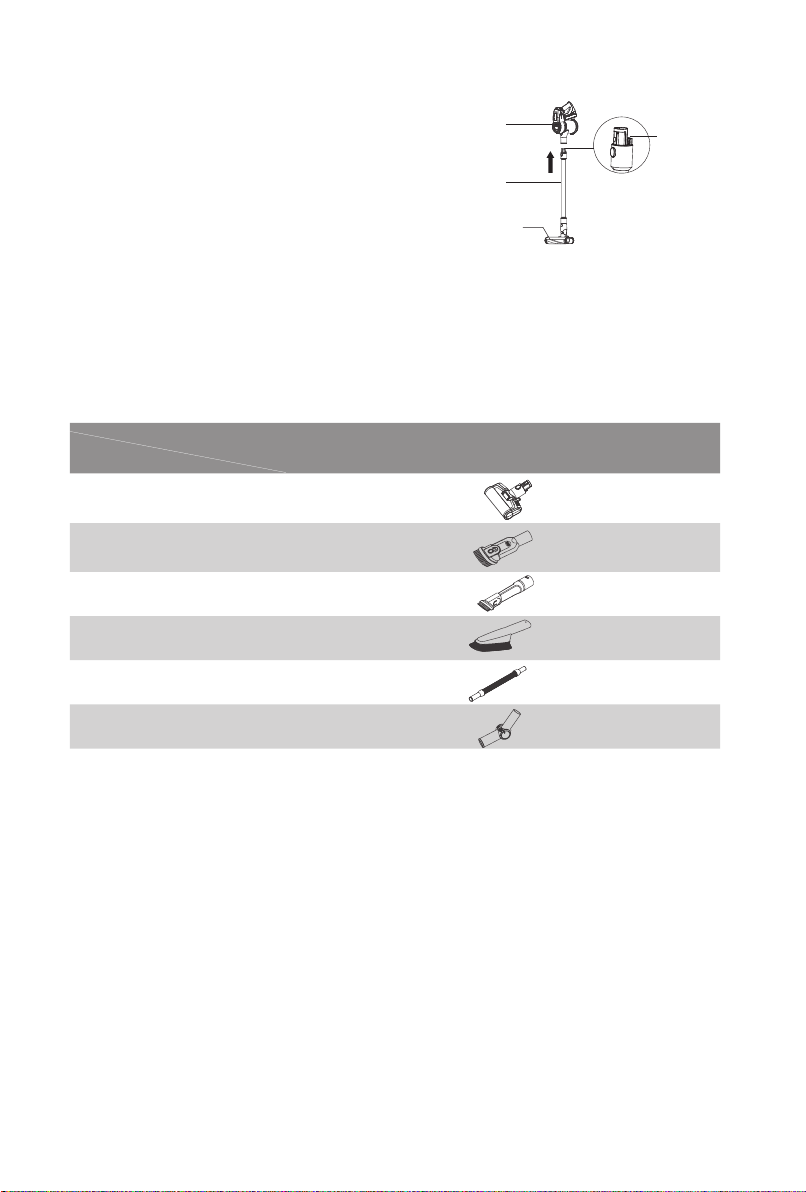

Hold the floor head with left hand, use right hand
to insert the metal tube vertically into floor head,
align with the conductive needle, press the handle
until a “click” sound is heard.(Picture 1)
Fix the charging base on wall through screw holes,
so that the handheld vacuum cleaner can be
placed.(Picture 2)
Battery pack assembly: use one hand to hold
handheld vacuum cleaner, one hand to hold
battery pack, align with the guide-track groove,
then install the battery pack until the “click” sound
is heard. Pull hard the battery pack downwards, if
the batter pack remain tight, which means battery
pack assembly complete.(Picture3)
Connect the electric floor head with metal tube
Charging base assembly
Assemble battery pack and handheld vacuum
Cleaner
Part Name Handheld Vacuum
Cleaner
Electric Floor
Head
Electric Mattress
Head
2-in-1
Upholstery
Tool
2-in-1 crevice tool
Quantity 1 1 1 1 1
Part Name Metal Tube Adaptor Battery Pack Soft Brush Connectorl
Quantity 1 1 1 1 1
Part Name Strench Hose Charging Base Instruction Manual Screws Expansion Hos
Quantity 1 1 1 2 2
Note: Keep the handle and floor head in the same
direction, conductive needle shall align with the socket.
Note: Please disassemble the battery pack from the
machine when the vacuum cleaner is not used for a long
time.Pack the machine and store in dry place, avoiding
direct sunlight or humid environment.
Conductive
Needle
Electric Floor
Head
Metal Tube
Screw Hole
Charging base
1.
2.
3.
groove
Guide-track groove
Battery pack

4

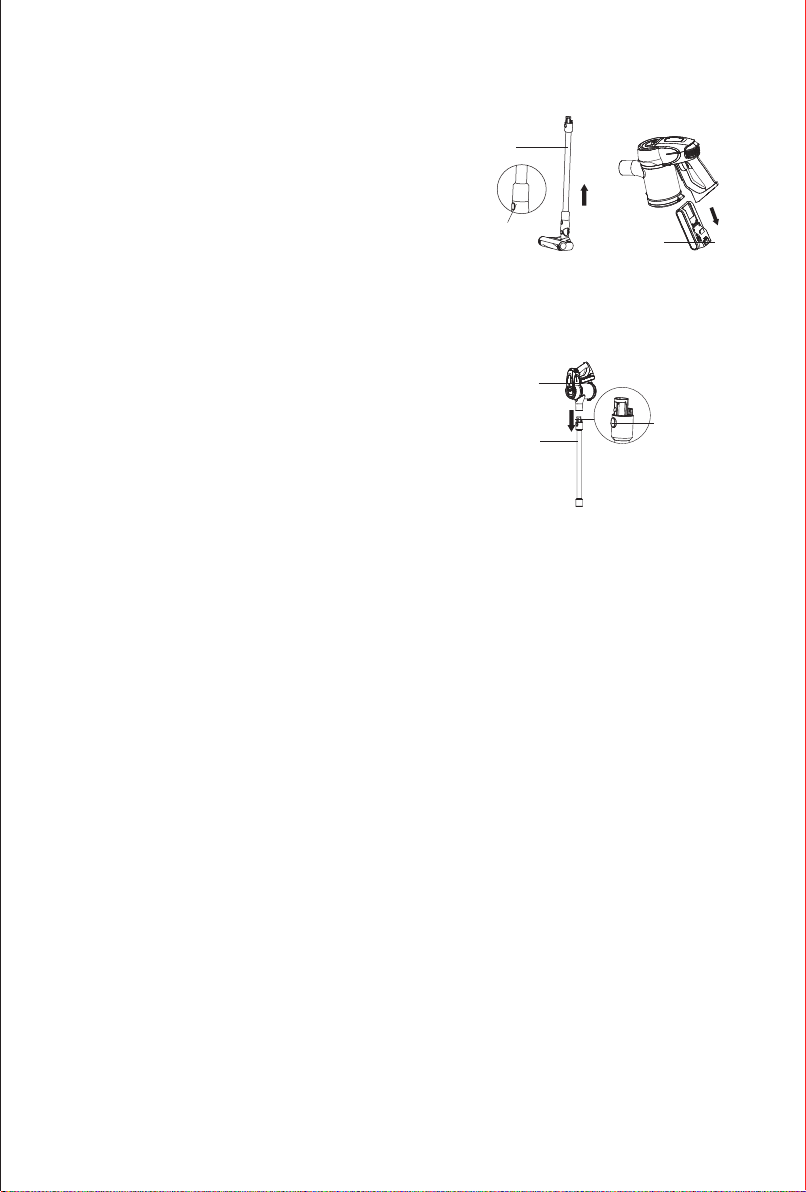

First, assemble the floor head and conductive
metal tube based on the assembling method of
electric floor head and conductive metal tube.
Secondly, align the conductive needle of the
conductive metal tube with the suction mouth
conductive pipe, push upwards until a “click”
sound is heard.(Picture4)
Assemble the electric head floor, metal tube and
handheld vacuum cleaner
Mainbody
Conductive
needle
Metal tube
Electric floor
head
4.
Accessories Assembly
For ease of use, this product is specially equipped with accessories for the hand-held vacuum
cleaner. The handheld can connect to different tools for different cleaning purpose.
JV83
Electric Mattress Head
2-in-1 Upholstery Tool
2-in-1 Crevice Tool
Brush Soft
Stretch Hose
Connector
NAME
Model

5
Accessories Connection List

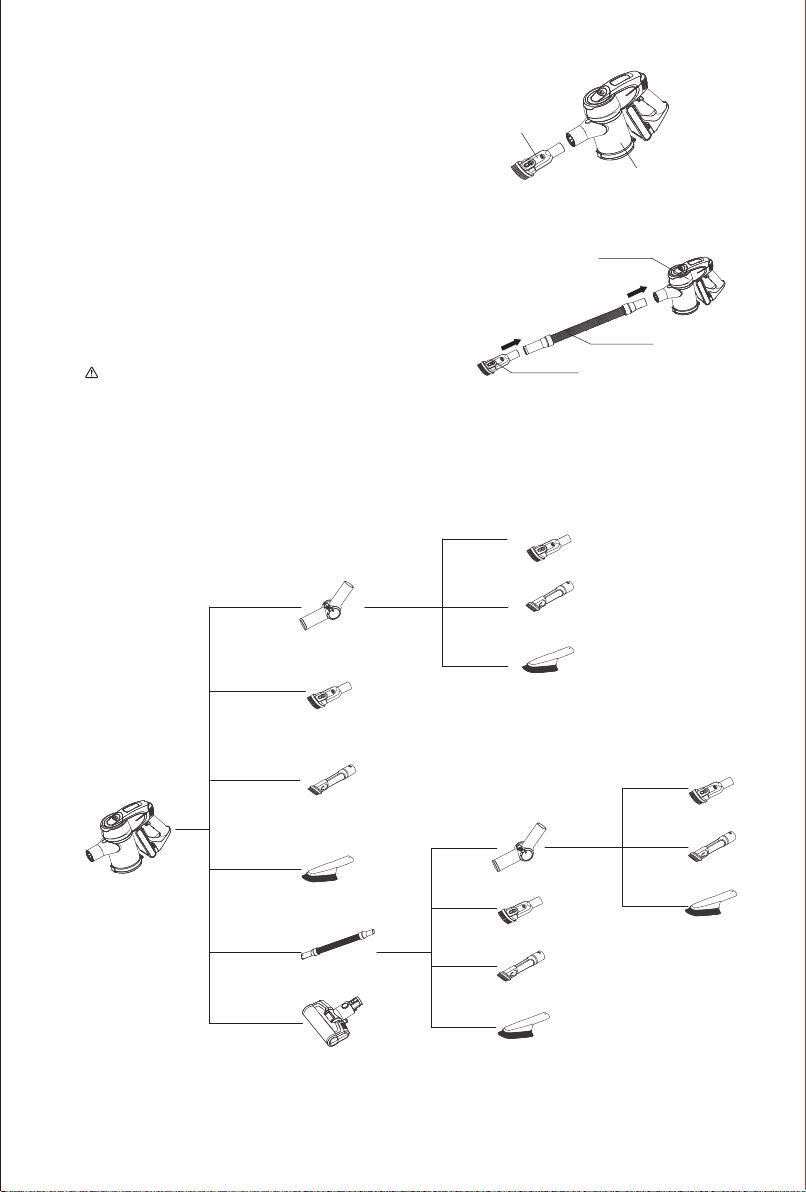

Connect handheld vacuum cleaner with 2-in-1
upholstery tool
Connect handheld vacuum cleaner with
accessories through stretch hose
Insert 2-in-1 upholstery tool connector into the
handheld air inlet until it is tightly fitted. (Picture5)
Align the vacuum cleaner with stretch hose, insert
until it is fully tightened.(Picture6)
Align the vacuum cleaner with stretch hose, insert
until it is fully tightened.(Picture6)
5.
6.
2-in-1 upholstery
tool
handheld vacuum cleaner
handheld vacuum cleaner
2-in-1 Upholstery Tool
Stretch Hose
Note: The stretch hose can also connect other
accessories:2-in-1 crevice tool and soft brush, the
connecting method is the same as 2-in-1 upholstery tool

6
Connecting accessories with charging base
9-1. 9-2.
7.
10.
11.
8.
Please fix the charging base on a clean wall, do not
fix on the wet wall like in the kitchen.After the task
has been competed, place them on the charging
base.(Picture7&8)
Charge the vacuum cleaner in time when battery
power is insufficient; When the voltage is too low,
to protect the battery, the vacuum will
automaticallyturn off. At this time, the vacuum
must be charged.During charging, the battery pack
can be taken off,charge it through adaptor, or
place the machine ontothe charging base, and the
charging indicator turns red.The vacuum cleaner is
charging.
JV83 Charging time is about 5 hours.When the
charging indicator on the hand-held vacuum turns
from red to green, it means the vacuum cleaner is
fully charged. We recommend continue charging
for half an hour to one hour, so that the charging
effect is better. After charging, unplug the charger
to stop charging.(Picture10）
Note: When using the machine for the first time,The
battery capacity is not full, need to put the machine on
the charging base or take out the battery to charge. The
machine is able to be used after the battery is charged
fully.(Picture9)
Indicate light
Adaptor
Charging
socket
Indicate
light
Speed Control Button
On/off Button
“Red ” means charging
“Green”means fully charged
2-in-1 crevice tool
Charging Base
2-in-1 upholstery
tool
Use of Vacuum Cleaner
Charging
Use of Handheld Vacuum Cleaner
（√）
Clean wall
（×）
Wet wall
Adaptor
Charging
socket
Note: When using the vacuum cleaner for the first
time, fully charge the battery and fully discharge the
battery before second charge to increase the battery
life.
Take the handheld vacuum from the charging base,
press the on/off button to turn on and turn off
the vacuum.Green indicator lights up, it is normal
mode, press the speed control button to strong
mode, the speed control button can switch
between strong mode and normal mode easily.
(Picture11)

7
12-1.
13.
15.
17.
16.
12-2.
14.
Note: When the electric floorhead is running, if
brushroll stopped running due to big foreign object
blockage or excessive fiber entangle, or the child
accidentally putting hand into brushroll, the floorhead
will stop working to protect personal safety and avoid
damage to floorhead motor.
Use of Electric Floor Head
Use of Accessories
Electric floorhead can clean short hair carpet,
hardfloor or tile floor.(Picture12)
2-in-1 upholstery tool: Suitable to clean dust
on closet, sofa,windowsill and table surface.
(Picture13)
2-in-1 crevice tool: Suitable to clean crevices,corners
and other narrow areas.(Picture14)
Soft brush:Suitable to clean easily scratched
furniture,such as book shelf, artworks.(Picture15)
Electric Mattress Head: Beat up and clean dust、
dust mite and dust mite allergen from sofa and bed.
(Picture16)
Stretch hose: to connect handheld vacuum cleaner
and Accessories to clean hard to reach areas.
(Picture17)

8
Note:
1. HEPA filter is available for sale from local vacuum cleaner distributors.
2. It is recommended to clean the dust cup after each use; When the dust cup is full or the HEPA filter is
clogged, it needs to be cleaned and replaced if necessary. Floorhead brushroll might be entangled with hair
after long time use, it needs to be cleaned in time to keep the vacuum working more efficiently.
Cleaning and Replacing Parts
Cleaning Dust Cup and Filtration System
Cleaning Electric Brushroll
Pull out downwards the dust cup On/ off button to
dump dust in dust cup.(Picture 18)
Press hard the dust cup release button, hold steady
the main body with right hand, rotate the dust cup
in the direction shown on the picture, remove the
dust cup from main body to further clean the dust
cup.(Picture19)
1.Use your finger to release the brushroll button,
take out the side cover of the brushroll.
2.Take out one side of the brushroll in the same
direction as shown on the picture, then brushroll
can be taken out to clean.
3.After cleaning and replacing, reassemble
it.(Picture22&23)
Hold the mainbody, take the HEPA upwards as
shown on the picture, take out the HEPA, then
take out Grade 2 cyclone system, clean them.
(Picture20)
Fix inlet HEPA, rotate the HEPA cover in the same
direction shown on the picture, separate the
HEPA cover from inlet HEPA, which will be easily
cleaned. After cleaning and drying, assemble again.
(Picture20&21)
Clean dust cup
Clean filter system
18-1. 18-2.
19.
20.
21.
23-1.
22.
23-2.
HEPA cover
Grade 2 cyclone
HEPA
Dust Cup On/off Button
Dust Cup Release Button
Brushroll
release button
Brushroll
cover
Inlet HEPA
①
②

9
Storage of Vacuum Cleaner
Disassemble electric floor head and metal
tube
Unpack the Battery Pack
Machine Storage
Disassemble the Handheld Vacuum Cleaner
and Metal Tube
When store or clean the vacuum cleaner, if you
need to disassemble the electric floor head, press
the electric floor head release button, pull upwards
the metal tube. (Picture24)
Press the battery release button, take out the
battery pack.Put the battery pack into a plastic
bag, then place in a dry place.(Picture25)
Take out the battery pack if the machine is not
used for a long time.Store the machine in cool
and dry place, avoiding direct sunlight or humid
environment.
Fix the handheld first, press the release button of
metal tube, pull out it.(Picture26)
Metal tube
Floor head
release button
Handheld Vacuum
Cleaner
Metal Tube
Battery pack
release button
Metal Tube
Release Button
24.
26.
25.

10
Safety Notes
When using an electrical appliance, basic precautions should always be followed, including the
following.
READ ALL INSTRUCTIONS
BEFORE USING
FOR HOUSEHOLD USE ONLY
WARNING-To reduce the risk of fire, electric shock, or injury:
Do not leave appliance when plugged in. Unplug from outlet when not in use and before
servicing.
Do not allow to be used as a toy. Close attention is necessary when used by or near children.
Use only as described in this manual. Use only manufacturer's recommended attachments.
Do not use with damaged cord or plug. If appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped into water, return it to a service center.
Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp
edges or corners. Do not run appliance over cord, Keep cord away from heated surfaces.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
Do not handle plug or appliance with wet hands.
Do not put any object into openings. Do not use with any opening blocked; keep free of dust,lint,
hair, and anything that may reduce air flow.
Keep hair, loose clothing, fingers, and all parts of body away from Openings and moving parts.
Turn off all controls before unplugging.
Use extra care when cleaning on stairs.
Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where
they may be present.
CAUTION - Risk Of Injury. Brush May Start Unexpectedly.
Disconnect Battery Pack Before Cleaning or Servicing
WARNING-To Reduce The Risk Of Electric Shock-Do not use outdoors or on wet surfaces.
Always turn off this appliance before connecting or disconnecting motorized nozzle.
Do not pick up anything that is burning or smoking, such as cigarettes. matches. orhot ashes.
WARNING: Read all safety warnings and instructions. Failure to follow the warnings and
instructions may result in electric shock fire and / or serious injury.

11
Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the
switch or energizing appliance that have the switch on invites accidents.
Disconnect the battery pack from the appliance before making any adjustments, changing
accessories, or storing appliance.Such preventive safety measures reduce the risk of starting the
appliance accidentally.
Recharge only with the charger E-TEK charger type ZD24W300060US specified by the
manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire
when used with another battery pack
Use appliances only with specifically designated Kingclean battery pack type T-DC39B.
Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips,coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery;avoid contact. If contact
accidentally occurs, flush with water.If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
Do not use a battery pack or appliance that is damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or
temperature above 130 °C(265 E) may cause explosion.
Follow all charging instructions and do not charge the battery pack or appliance outside of the
temperature range specified in the instructions. Charging improperly or at temperatures outside
of the specified range may damage the battery and increase the risk of fire.
Have servicing performed by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the product is maintained.
Do not modify or attempt to repair the appliance or the battery pack except as indicated in the
instructions for use and care.
Do not put the vacuum close to fire or other high temperature facility.
Do not use or store the machine under extreme bad conditions, for example, extreme
temperature. It is recommended to use it indoors between the temperature of 5 °C to 40 °C.
Store the machine in dry place and avoid direct sunlight.
Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the
switch or energizing appliance that have the switch on invites accidents.
Disconnect the battery pack from the appliance before making any adjustments, changing
accessories, or storing appliance.Such preventive safety measures reduce the risk of starting the
appliance accidentally.

12
Recharge only with the charger specified by the manufacturer. A charger that is suitable for one
type of battery pack may create a risk of fire when used with another battery pack
Use appliances only with specifically designated battery packs.
Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips,coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery;avoid contact. If contact
accidentally occurs, flush with water.If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
Do not use a battery pack or appliance that is damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or
temperature above 130 °C(265 E) may cause explosion.
Follow all charging instructions and do not charge the battery pack or appliance outside of the
temperature range specified in the instructions. Charging improperly or at temperatures outside
of the specified range may damage the battery and increase the risk of fire.
Have servicing performed by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the product is maintained.
Do not modify or attempt to repair the appliance or the battery pack except as indicated in the
instructions for use and care.
Do not put the vacuum close to fire or other high temperature facility.
Do not use or store the machine under extreme bad conditions, for example, extreme
temperature. It is recommended to use it indoors between the temperature of 5 °C to 40 °C.
Store the machine in dry place and avoid direct sunlight.
Fully charge the battery before first use or after long storage.
Before using the vacuum, make sure brushroll is assembled, otherwise, it may lead to motor fan
blockage, causing motor burn out.
Please do not use the vacuum to pick up detergent, oil, glass slag, needle, cigarette ash, wet
dust, water, matches, etc.
Please do not use the vacuum to pick up tiny particles such as cement,gypsum powder, wall
powder, or large objects such as paper balls, otherwise it will cause malfunctions such as
blockage and motor burnout.
Avoid blockage to air inlet or brushroll, it may cause motor failure.
Do not pour or splash water or other liquids into the machine to avoid short circuit to burn out
the machine.

13
If the brushroll is not working, please check whether the brushroll is entangled with hair or other
long fiber, clean it in time.
When storing the machine for a long time, ensure that the battery is fully charged before storage
and charge the machine at least every three months.
Unplug the charger to clean or repair the machine. Hold the charger when plugging or
unplugging it, and do not pull the charging cord.
Use a dry cloth to clean the machine. Liquids like gasoline, alcohol, lacquer thinner will cause
crack or colour fading and cannot be used.
If the machine is not working after fully charged, it must be checked and repaired in our
designated office, please do not dismantle the machine on your own.
When discard the machine, please press the button to release the battery pack, take out the
battery pack, make sure the machine is disconnected with power and handled properly. Do not
throw into fire,water or soil.
If the battery liquid leakage touches your skin or clothes, wash it with water, if there is any
discomfort, please go to hospital immediately.
Do not use non-original battery pack, avoiding machine damage and safety problems.
Avoid to use the vacuum cleaner to pick up easily blockable things such as: plastic bags, candy
paper, big scrap of paper, which might affect the function, even cause failure of working. Please
clean the foreign matter on the floor head in time, then it will work normally. The discarded
battery pack shall be recycled safely, do not throw away casually.
PRECAUTIONS
The vacuum cleaner is specially used for household purpose, and please do not use it for
commercial or other purposes.
Please don't use the vacuum cleaner to suck detergent, kerosene, glass waste, needles, cigarette
ash, moisturized dust, sewage, matches and similar articles.
Please don't use the vacuum cleaner to suck cement, gypsum powder, wall power and similar
small particles, or toy, paper filler and other larger objects, which can cause vacuum cleaner
clogging, motor burnout and other fault.
Please don't use the vacuum cleaner near fire source and other high temperature places.
Before using the vacuum, please make sure the Hepa filter and ground brush roller are installed
properly, otherwise it may clog motor cooling fan, which will result motor burned-out.
When the vacuum cleaner is used, please note that the suction inlet can not be clogged and
roller can not be blocked, otherwise motor failure may be caused.
Please do not use dump or splash water or other liquid into the machine, thereby avoiding short-
circuit and burn-out of machine.
Before new battery is used or the battery is used for the first time after long-term storage, please
fully charge the battery. When the machine is stored and not used for long term, please ensure
that the battery power is enough, and ensure that the battery should be charged and discharged
at least once every three months.

14
When your vacuum cleaner is fully charged, and requires cleaning or repair, please remove
the plug of the charger timely. Please hold the charger when the power cord is removed and
inserted, and please do not pull the charging power cord.
Please use any cloth cleaning vacuum cleaner, do not use gasoline, alcohol, banana oil etc.
Otherwise shell cracking or fading will be caused.
Please do not use and store the machine in extremely adverse conditions, such as extreme
temperature, it is suggested that the vacuum cleaner can be used in room with environmental
temperature between 5 DEG C-40 DEG C. Please store it in a cool and dry place. Sunlight
exposure for long time should be prohibited.
When the vacuum cleaner is used, hands can't be placed in the suction inlet of ground brush,
otherwise it is easy to cause personal injury.
Note:
If the soft wire of the power supply is damaged, it must be replaced by professional personnel
from manufacturer, maintenance department or similar department in order to prevent risk.
Risk of Injury. Brush may start unexpectedly. Disconnect battery pack be ore cleaning or
servicing.
To reduce the risk of fire, electric shock or injury.
Do not use outdoors on wet surfaces. Do not expose to rain, store indoors.
To reduce the risk of injury from moving parts-disconnect battery pack before cleaning or
servicing.
SAVE THESE INSTRUCTIONS

15
Product Specification
Failure Removal
Please check the following issues before sending to designated repair offices.
Symptoms Possible Causes Solutions
Motor is not
working
Battery has no power Charge the vacuum cleaner
Metal tube, electric floor had,
battery pack is not assembled
correctly to the mainbody
Check the accessories are assembled
correctly to the mainbody
Low suction
Dust cup is full Empty dust cup
Filter is blocked by dust Clean or replace HEPA
Floor head hose or brushroll
blocked Clean the floorhead
Short run time
after charging
Battery not fully charged Follow instruction manual to fully charge
the battery
Battery old aging Replace new battery
Note: If any other failures occurred, which need professional tools, in order to avoid danger, the machine
must be repaired or replaced by manufacturer, other maintenance offices or professionals from similar offices.
Technical Parameter
Model No JV83
Rated Voltage 25.2V
Rated Power 500W
Adaptor Input Voltage 100-240V ～50/60Hz 0.8A
Adaptor Output Voltage 30V 600mA
Adaptor Model ZD24W300060US
Battery Pack Model T-DC39B
Battery pack capacity 2500mAh,63Wh
Charging time 5h
Manufacturer: Kingclean Electric Co., Ltd
Manufactuer address: No.1 Xiangyang Road, Suzhou New District, Jiangsu
Province, China

16
Circuit Diagram
Warranty Information
Your JIMMY machine enjoys two year warranty from the date of purchase.
Excluded from the guarantee is normal wear, commercial use, alterations to the appliance as
purchased, cleaning activities, consequences of improper use or damage by the purchaser
or a third person, damage, that can be attributed to external circumstances or caused by the
batteries.
This limited warranty Is subject to the follows terms:
WHAT IS NOT COVERED?
1.Normal wear and tear of the vacuum and vacuum parts that require replacement under normal
use such as disposable dust bags,filters,drive belts,light bulbs,brush-roll,bristles, impellers and
cleaning.
2.Damages or malfunctions resulting from: improper or unreasonable use or maintenance, abuse,
negligence, failure to follow instructions contained in any written materials that accompany the
product, deterioration by reason of excess moisture, corrosive atmosphere, lightning, power
surges, connections to improper voltage supply, unauthorized alteration, or other external
causes, such as extremes in temperature or humidity, accidents, misuse, or acts of God. This
warranty also does not cover damage resulting from repair or attempted repair by anyone other
than JIMMY.
3.This warranty is not applicable to any product that has been altered or on which the serial
number has been defaced,modified pr removed. Altering,erasing, or forging any proof-of-
purchase documents voids any applicable product warranty.
Adaptor
7 pcs lithium battery
Floor head motor
Vacuum cleaner motor
lithium battery
protection board
Transfer board 1
Transfer board 2
Speed
control board On/off Button
100-240V ～
M1

17
OBTAINING WARRANTY SERVICE:
To obtain warranty service you can contact the JIMMY Service Team, email support@
jimmyglobal.com, to discuss the warranty claim and procedures to be followed.
All warranty claims must include submission of proof-of-purchase documentation. For additional
information, you may also visit www.jimmyglobal.com
SHIPPING CHARGES:
You will be responsible for any initial shipping and insurance charges if the defective product(s)
must be shipped for warranty service or warranty evaluation; however, JIMMY will pay the
return warranty.
When returning parts for repair, you must include the model, type and serial number located
on the rating plate. If any product submitted for warranty service is found to be ineligible, an
estimate of repair cost will be furnished and the repair performed only if requested by the owner
and upon receipt of payment or acceptable arrangements for payment.
FUETHER LIMITITATIONS AND EXCLUSIONS:
Any warranty that may be implied in connection with your purchase or use of the vacuum,
including any warranty of Merchantability or any warranty of Fitness For A Particular Purpose is
limited to the duration of this limited warranty. Some states do not allow limitations on how long
an implied warranty lasts, so the above limitations may not apply to you.
This warranty for the breach of this warranty is limited to the relief expressly provided above.
In no event shall the manufacturer be liable for any consequential or incidental damages you
may incur in connection with your purchase or use of the vacuum. Some states do not allow
the exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
This warranty gives you specific legal rights. You may also have other rights, which may vary by
state.
