Jimmy JV51 User manual

Instruction Manual Vacuum Cleaner
JV51

2
Products Installation
Unpacking
Parts Name
Open the package, take out the foam pad , all accessories and machine from the package,
take off the plastic bag and save them for the purpose of future maintenance and repair.
1. Electric Floor Head
4. Metal Tube Release Button
7. Speed Control Button
10. Adaptor
13.2-in-1 Crevice Tool
16. Screws
11. Electric Mattress Head
14. Wall Storage Base
12. 2-in-1 Upholstery Tool
15. Wall Anchors
2. Floor Head Release Button
5. Dust Cup Release Button
8. On/off Button
3.Metal Tube
6. HEPA
9. Battery Pack
2
1
3
4
5
6
7
9
8
12
13
11
10
14
15
16

3
Main-body Assembly
Packing List
Battery pack assembly: use one hand to hold
handheld vacuum cleaner, the other hand to hold
battery pack, align with the guide-track groove,
then install the battery pack until the “click” sound
is heard. Pull hard the battery pack downwards, if
the batter pack remain tight, which means battery
pack assembly complete. (Picture 1)
Hold the oor head with the left hand, use the right
hand to insert the metal tube vertically into floor
head, align with the conductive needle, press the
handle until a “click” sound is heard. (Picture 2)
Firstly, assemble the electric floor head and
conductive metal tube based on the assembling
method of electric oor head and conductive metal
tube. Secondly, align the conductive needle of
the conductive metal tube with the suction mouth
conductive pipe, push upwards until a “click” sound
is heard. (Picture 3)
Assemble battery pack and handheld vacuum
cleaner
Connect the electric floor head with metal
tube
Assemble the electric floor head, metal tube
and handheld vacuum cleaner
Part Name
Handheld
Vacuum
Cleaner
Electric Floor
Head
Electric Mattress
Head
2-in-1
Upholstery
Tool
2-in-1
crevice tool Metal Tube
Quantity 1 1 1 1 1 1
Part Name Adaptor Battery Pack Storage Base Instruction
Manual Screws Wall
Anchors
Quantity 1 1 1 1 2 2
Note: Please disassemble the battery pack from the
machine when the vacuum cleaner is not used for a long
time. Pack the machine and store in dry place, avoiding
direct sunlight or humid environment.
Note: Keep the handle and floor head in the same
direction, conductive needle shall align with the socket.
Battery Pack
Guide-track
Groove
Conductive Needle
Metal Tube Release
Button
Metal Tube
Conductive Needle
Floor Head
Release Button
suction mouth
conductive pipe
1.
2.
3.

4

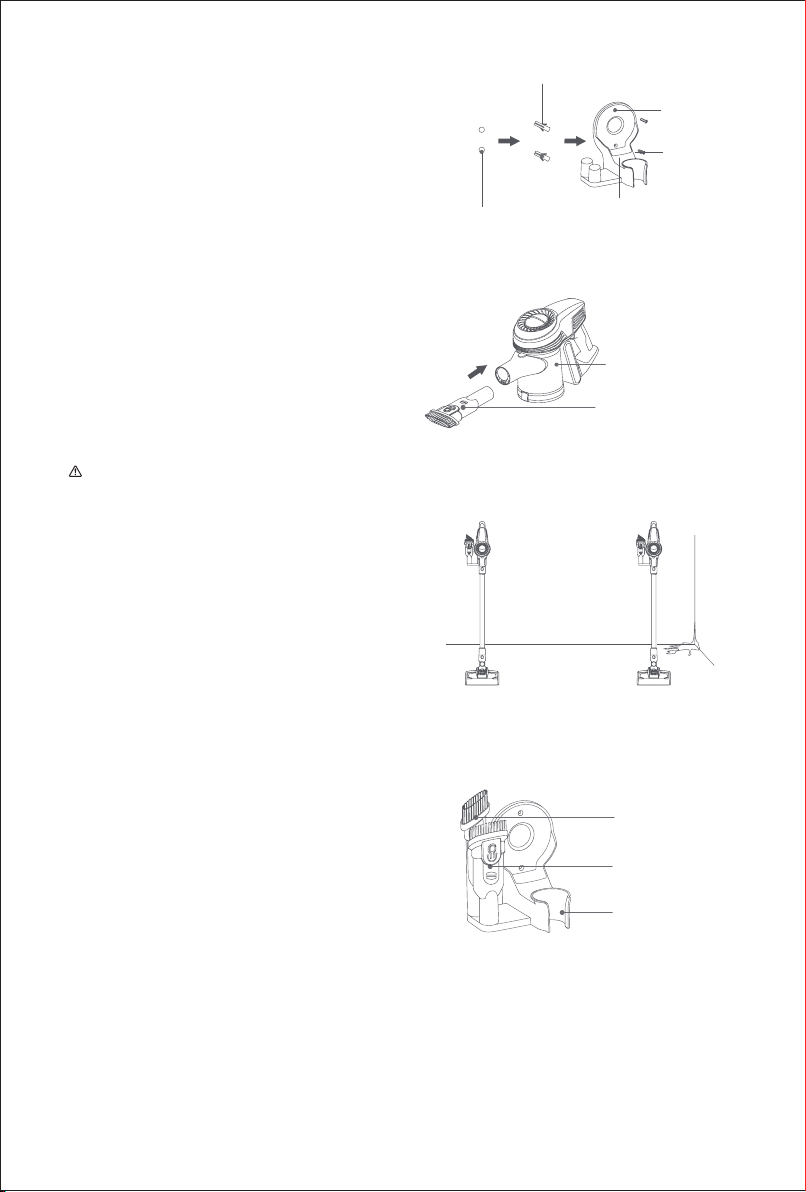

Please drill a hole with a diameter of 6mm and a
depth of about 30mm on the wall. Then put the
wall anchors into the hole. After positioning
the storage base, fx it on the wall with screws.
(Picture 4)
Installation of storage base 4.
5.
6.
7.
Accessories Assembly
For ease of use, this product is specially
equipped with accessories for the handheld
vacuum cleaner. The handheld vacuum can be
connected to different tools for different cleaning
purposes.
Please fx the storage base on a clean wall, do
not x on the wet wall like in the kitchen. (Picture 6)
After the task has been completed, place them
on the storage base. (Picture 7)
Screw
Hole
Screw
Install the storage base
Drill holes on the
walls
Insert wall anchors into the hole
Insert 2-in-1 upholstery tool connector into the
handheld vacuum’s air inlet until it is tightly tted.
(Picture 5)
Connect handheld vacuum cleaner with 2-in-
1 upholstery tool
Connecting accessories with storage base
Note: The handheld vacuum can also connect
other accessories: 2-in-1 crevice tool and electric
mattress head, the connecting method is the same as
2-in-1 upholstery tool.
Handheld Vacuum
2-in-1 Upholstery
Tool
Clean Wall
2-in-1 Crevice Tool
2-in-1 Upholstery
Tool
Storage Base
Wet Wall
（√）（×）

5
9.
8.
Charge the vacuum cleaner in time when
battery power is insufcient; When the voltage
is too low, to protect the battery, the vacuum will
automatically turn off. At this time, the vacuum
must be charged. During charging, the battery
pack can be taken off, charge it through adaptor,
or place the machine onto the storage base,
and the charging indicator turns red, the vacuum
cleaner is charging.
JV51’s Charging time is about 5 hours. When
the charging indicator on the vacuum battery
turns from red to green, it means the vacuum
cleaner is fully charged. We recommend
continue charging for half an hour to one
hour, so that the charging effect is better. After
charging, unplug the charger to stop charging.
Note: When using the machine for the rst time, the
battery capacity is not full, need to put the machine on
the charging base or take out the battery to charge.
The machine is able to be used after the battery is
charged fully when the indicate light turns from red to
green. (Picture 8)
Indicate Light
Charging Socket
Adaptor
speed control
On/off Button
Indicate Light: “Red ” means
charging “Green”means fully
charged

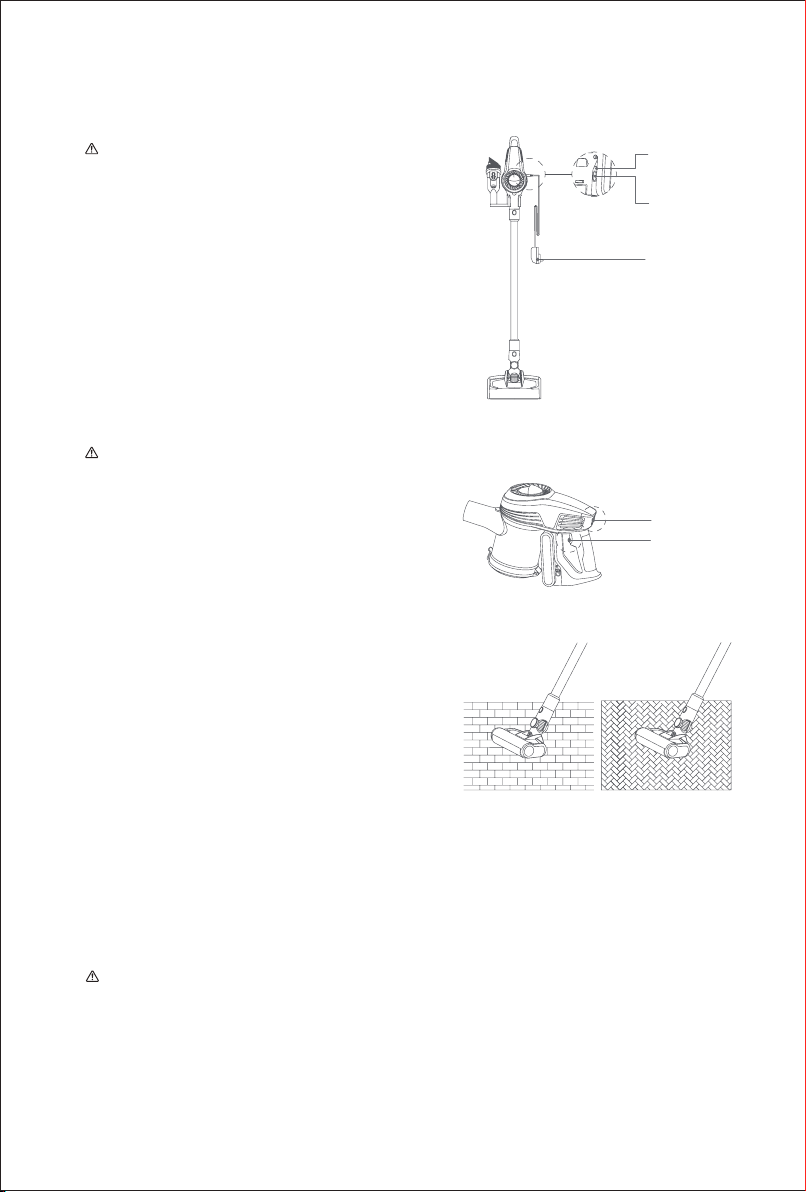

Use of Vacuum Cleaner
Charging
Use of Handheld Vacuum Cleaner
Note:When using the vacuum cleaner for the rst
time, fully charge the battery and fully discharge the
battery before second charge to increase the battery
life.
Take the handheld vacuum from the storage
base, press the on/off button to turn on and turn
off the vacuum. When green indicator lights
up, it is normal mode, press the speed control
button to max mode. The speed control button
can switch between max mode and normal
mode easily. (Picture 9)
Note:When the electric floorhead is running, if
brushroll stops running due to big foreign object
blockage or excessive fiber entangle, or the child
accidentally putting hand into brushroll, the oorhead
will stop working to protect personal safety and avoid
damage to oorhead motor.
Use of Electric Floor Head
Electric floorhead can clean short-hair carpet,
hardoor or tile oor. (Picture 10)
10-1. 10-2.

6
11.
12.
14.
13.
15.

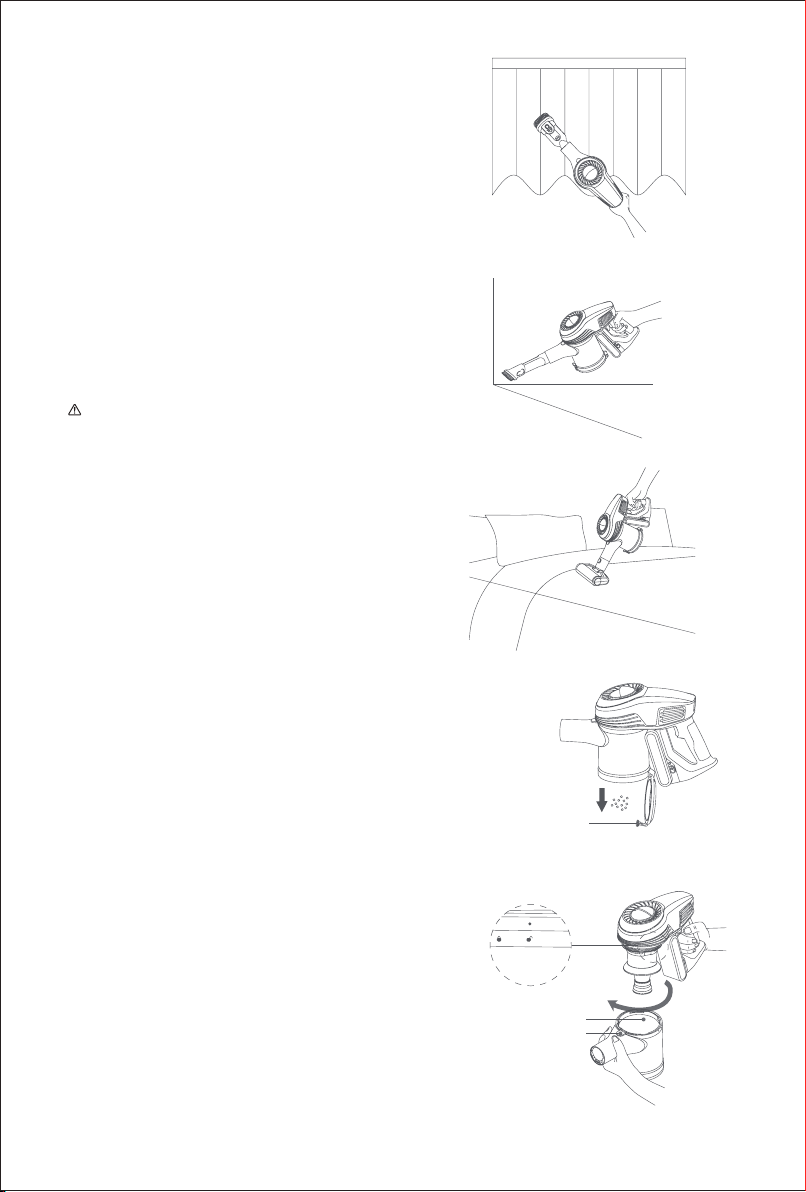

Use of Accessories
2-in-1 Upholstery Tool: Suitable for dust mites
cleaning on bed, sofa and other kinds of fabric
furniture. (Picture 11)
2-in-1 Crevice Tool: Suitable to clear narrow
seam, blind angle of doors and windows and
other narrow places. (Picture 12)
Electric mattress head: Especially designed for
sofa and mattress, it can beat up and remove
the dust mites and bacteria which hide in the
sofa and mattress by flapping of the brushroll.
(Picture 13)
Note:
1. HEPA lter is available for sale from local vacuum
cleaner distributors.
2. It is recommended to clean the dust cup after
each use; When the dust cup is full or the HEPA lter
is clogged, it needs to be cleaned and replaced if
necessary. Floorhead brushroll might be entangled
with hair after long time use, it needs to be cleaned in
time to keep the vacuum working more efciently.
Cleaning and Replacing Parts
Cleaning Dust Cup and Filtration
System
Pull out downwards the dust cup on/ off button
to dump dust in dust cup. (Picture 14)
Press hard the dust cup release button, hold
steady the main body with right hand, rotate the
dust cup in the direction shown in the picture,
remove the dust cup from main body to further
clean the dust cup. (Picture 15)
Hold the main body, take the HEPA upwards as
shown in the picture, take out the HEPA, then
take out the dual-cyclonic system components,
clean them. (Picture 16)
Fix inlet HEPA, rotate the HEPA cover in the
direction as shown in the picture, separate the
HEPA cover from inlet HEPA, which will be
easily cleaned. (Picture 17)
Clean dust cup
Clean lter system Dust Cup on / off Button
Dust Cup Components
Dust Cup Release Button

7
Note: The inlet HEPA should be fully dried before
installation.
Cleaning Electric Floor Head
Cleaning Electric Mattress Head
1.Use nger to release the brushroll button, take
out the side cover of the brushroll.
2.Take out one side of the brushroll in the same
direction as shown in the picture, then brushroll
can be taken out to clean. (Picture 18)
3.After cleaning and replacing,reassemble them
in the opposite order of the disassembly.
Turn the knob according to the unlocking
direction indicated on the knob of the electric
mattress head. After hearing the sound of "click",
the brushroll of the electric mattress head can be
pulled out for cleaning. After cleaning, it can be
assembled in the reverse order of disassembly.
(Picture 19)
After cleaning and drying(if necessary, please
replace HEPA) , reassemble them in the
opposite order of the disassembly.
16.
17.
18.
19.
HEPA Filter
HEPA Cover
Brushroll Release
Button
Brus
Brushroll
Brushroll Cover
Inlet HEPA
Dual-cyclonic
System
Components
Knob
Brushroll

8
Storage of Vacuum Cleaner
Disassemble the Handheld Vacuum
Cleaner and Metal Tube
Guide-track Groove
Battery Pack
Battery Pack
Release Button
Conductive Needle
Metal Tube
Release Button
Metal Tube
Conductive Needle
Electric Floor Head
Release Button
Unpack the Battery Pack
Machine Storage
Disassembly of Electric Floor Head
and Metal Tube
Fix the handheld rst, press the release button
of metal tube, pull out it. (Picture 20)
Press the battery release button, take out the
battery pack.Put the battery pack into a plastic
bag, then place it in a dry place.
Take out the battery pack if the machine is not
used for a long time.Store the machine in cool
and dry place, avoiding direct sunlight or humid
environment.
When store or clean the vacuum cleaner, if you
need to disassemble the electric floor head,
press the electric oor head release button, pull
upwards the metal tube. (Picture 21)
20.
21.

9
Safety Notes
When using an electrical appliance, basic precautions should always be followed, including
the following.
READ ALL INSTRUCTIONS
BEFORE USING
FOR HOUSEHOLD USE ONLY
WARNING-To reduce the risk of re, electric shock, or injury:
Do not leave appliance when plugged in. Unplug from outlet when not in use and before
servicing.
Do not allow to be used as a toy. Close attention is necessary when used by or near
children.
Use only as described in this manual. Use only manufacturer's recommended attachments.
Do not use with damaged cord or plug. If appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped into water, return it to a service center.
Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around
sharp edges or corners. Do not run appliance over cord, Keep cord away from heated
surfaces.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
Do not handle plug or appliance with wet hands.
Do not put any object into openings. Do not use with any opening blocked; keep free of
dust,lint, hair, and anything that may reduce air ow.
Keep hair, loose clothing, ngers, and all parts of body away from Openings and moving
parts.
Turn off all controls before unplugging.
Use extra care when cleaning on stairs.
Do not use to pick up ammable or combustible liquids, such as gasoline, or use in areas
where they may be present.
CAUTION - Risk Of Injury. Brush May Start Unexpectedly.
Disconnect Battery Pack Before Cleaning or Servicing
WARNING-To Reduce The Risk Of Electric Shock-Do not use outdoors or on wet surfaces.
Always turn off this appliance before connecting or disconnecting motorized nozzle.
Do not pick up anything that is burning or smoking, such as cigarettes. matches. orhot
ashes.
WARNING: Read all safety warnings and instructions. Failure to follow the warnings and
instructions may result in electric shock re and / or serious injury.

10
Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
battery pack, picking up or carrying the appliance. Carrying the appliance with your nger on
the switch or energizing appliance that have the switch on invites accidents.
Disconnect the battery pack from the appliance before making any adjustments, changing
accessories, or storing appliance.Such preventive safety measures reduce the risk of
starting the appliance accidentally.
Recharge only with the charger E-TEK charger type ZD12D250060US specified by the
manufacturer. A charger that is suitable for one type of battery pack may create a risk of re
when used with another battery pack.
Use appliances only with specically designated Kingclean battery pack type T-DC38M.
Use of any other battery packs may create a risk of injury and re.
When battery pack is not in use, keep it away from other metal objects, like paper
clips,coins, keys, nails, screws or other small metal objects, that can make a connection
from one terminal to another. Shorting the battery terminals together may cause burns or a
re.
Under abusive conditions, liquid may be ejected from the battery;avoid contact. If contact
accidentally occurs, ush with water.If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
Do not use a battery pack or appliance that is damaged or modied. Damaged or modied
batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.
Do not expose a battery pack or appliance to re or excessive temperature. Exposure to re
or temperature above 130 °C(265 E) may cause explosion.
Follow all charging instructions and do not charge the battery pack or appliance outside of
the temperature range specied in the instructions. Charging improperly or at temperatures
outside of the specied range may damage the battery and increase the risk of re.
Have servicing performed by a qualified repair person using only identical replacement
parts.
This will ensure that the safety of the product is maintained.
Do not modify or attempt to repair the appliance or the battery pack except as indicated in
the instructions for use and care.
Do not put the vacuum close to re or other high temperature facility.
Do not use or store the machine under extreme bad conditions, for example, extreme
temperature. It is recommended to use it indoors between the temperature of 5 °C to 40 °C.
Store the machine in dry place and avoid direct sunlight.
Fully charge the battery before rst use or after long storage.
Before using the vacuum, make sure brushroll is assembled, otherwise, it may lead to motor
fan blockage, causing motor burn out.
Please do not use the vacuum to pick up detergent, oil, glass slag, needle, cigarette ash,
wet dust, water, matches, etc.
